Insignia NS-HFMS80 User manual

Before using your new product, please read these instructions to prevent any damage.
ASSEMBLY GUIDE
Console for TVs
up to 80”
NS-HFMS80

www.insigniaproducts.com
2
Contents
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembling your stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintaining your TV console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

www.insigniaproducts.com 3
Console for TVs up to 80”
IMPORTANT SAFEGUARDS
WARNING
CAUTION
The top surface of this stand is designed for use with a product weighing no more than 135 lbs. (61.2 kg) and having a
width that permits it to sit evenly on the stand with no more than a one-inch overhang on each side of the shelf. Use
with products that weigh more than the maximum weight allowed, or with dimensions that extend beyond the
maximum width may result in instability, which may result in injury.
CAUTION
The drawer weight capacity of this product is 30 lbs. (13.6 kg).
CAUTION
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young
children!
WARNING
Please use your stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or
household items. Carefully read the following chart.
SAVE THESE INSTRUCTIONS
LOOK OUT FOR: WHAT CAN HAPPEN: HOW TO AVOID THE PROBLEM:
• Children climbing on the
stand.
• A child may try to reach a
toy or other object by
climbing on the stand.
• Children will play and be
active near the TV.
• Risk of injury or death.
• A child climbing on the
stand can make it
top-heavy and cause it to
tip over.
• A child playing with a TV
can cause it to tip over.
• Never allow children to climb on or play with
the stand.
• Do not place toys or food on the top shelves.
Children may try to climb to reach them out of
curiosity.
• Improper use of the stand
to support TVs.
• The stand is designed for
use with TVs will specify
the maximum weight
rating and recommended
size of the TVs it will safely
support.
• Risk of injury or death.
• TVs can be very heavy.
Note, older CRT TVs tend
to be unbalanced and
prone to tipping forward.
• A TV must only be set on furniture specifically
designed to support a television.
• Never use a TV that exceeds the weight ratings
or size guidelines specified for the stand.
• Improperly moving the
stand.
• The stand can tip over or
break if improperly
moved.
• Risk of injury.
• Unload shelves from the top to the bottom
before moving the stand.
• Do not push the stand, especially on a carpeted
floor. Have a friend help you lift the item and set
it in place.
• Do not lift the stand using the top shelf. Lift
from the frame or leg assembly.
• Remove the TV before moving the TV stand.
• The TV/stand assembly
tipping forward.
• Risk of injury.
• Top-heavy furniture can
tip over.
• The TV and stand could
be damaged.
• Use the tipping restraint hardware provided
and install it properly.
Some steps are more easily
handled with two adults.

www.insigniaproducts.com
4
Features
• Interchangeable door fronts customize your stand’s look with either glass or wood insert panels
• Sturdy frame supports most flat screen TVs up to 80 in. (203.2 cm) and 135 lbs (61.2 kg)
• Shelving adds space for cable boxes, Blu-ray players, game consoles, and more
• Drawer stores cords, spare remotes and other accessories out of sight
• Light gray wood finish with metal accents looks modern to match most decor
• Cutouts leave room for cords to exit the back while ventilating electronics
Dimensions
70 in. (177.8 cm)
24.3 in.
(61.6 cm)
15.9 in.
(40.4 cm)
16.6 in. (42.3 cm)
13.5 in. (34.5 cm)
22 in.
(55.8 cm)
14.8 in. (37.7 cm)
7.7 in.
(19.6 cm)
21.7 in. (55.2 cm)
15.6 in. (39.5 cm)
23.7 in. (60.2 cm)
6.1 in. (15.6 cm)
12.5 in. (31.7 cm)
6.5 in. (16.5 cm)

www.insigniaproducts.com 5
Console for TVs up to 80”
Package contents
Make sure that you have all the parts necessary to assemble your new TV stand.

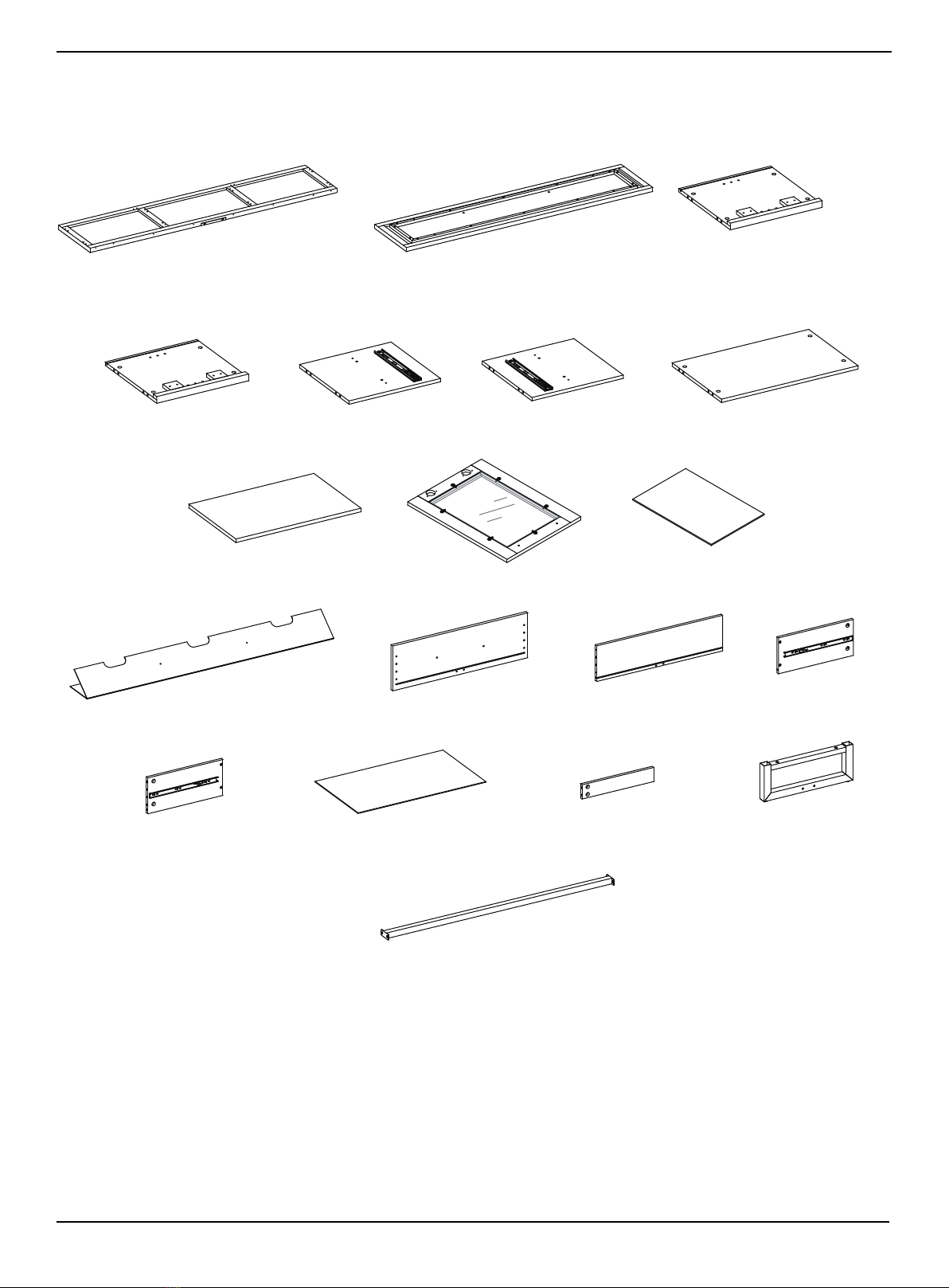

Parts
ATop panel (1)
Note: Keep the stopper template attached to the top
panel
BBottom panel (1) CLeft side panel (1)
DRight side panel (1) ELeft partition panel (1) FRight partition panel (1) G Media Shelf (1)
HAdjustable shelf (2) IDoor (2) JWood door panel (2)
KBack panel (1) L Drawer front panel (1) M Drawer back panel (1) N Drawer left side panel (1)
P Drawer right side panel (1) Q Drawer bottom panel (1) R Drawer bottom support (1) S Metal base (2)
T Metal stretcher (1)

www.insigniaproducts.com
6
Hardware
LABEL STAND PART QTY. LABEL STAND PART QTY.
U20 HH 3
V26 II 6
W20 JJ 4
X8KK 4
Y6LL 8
Z6MM 8
AA 4NN 8
BB 4PP 8
CC 2QQ 2
DD 16 RR 1
EE 8SS 1
FF 8TT 1
GG 4UU 2
Wood dowel M8 x 30 mm
Handle
Cam pin
Handle bolt
Large cam lock
Bolt 1/4”x 5/8”
Wood dowel M6 x 30 mm
Bolt 1/4”x 1-1/4”
Small cam lock
Lock washer
Flat head screw M4 x 38 mm
Flat washer
Washer head screw M3.5 x 15 mm
Plastic holder
Flat head screw M3.5 x 15 mm
Flat head screw M3 x 17 mm
Door stopper
Acrylic stopper
PVC cover
4 mm hex wrench
Shelf support
Glue
Zinc hinge screw M4 x 14 mm
Touch-up pen
Hinge
Tipping restraint hardware kit

www.insigniaproducts.com 7
Console for TVs up to 80”

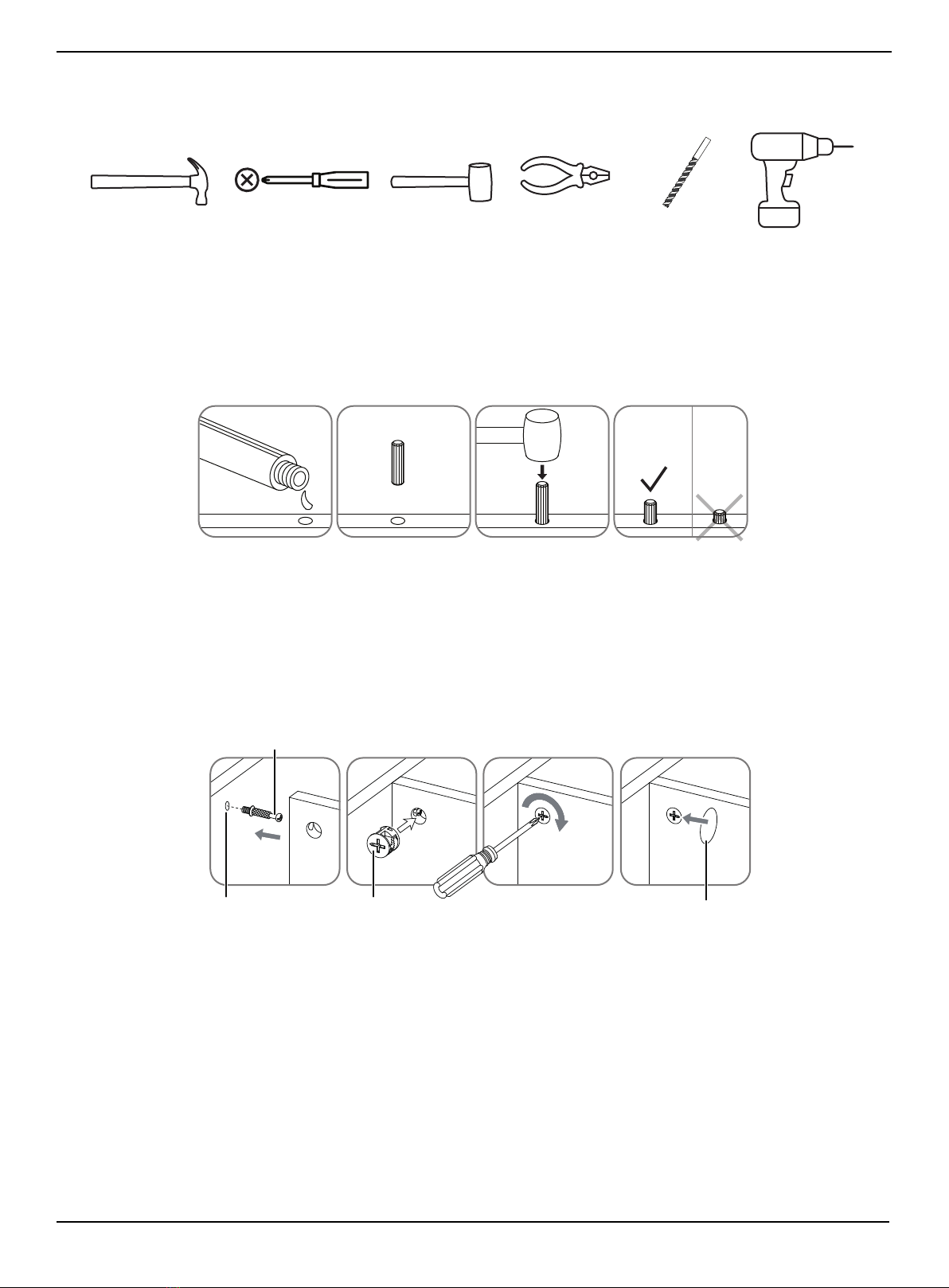

Tools needed
Installation tips
Gluing wood dowels (U and X)
When using a wood dowel (Uand X), put one drop of glue (SS) in the hole before you insert the wood dowel (Uand X).
Insert the wood dowel (Uand X), then gently tap it with a rubber mallet to secure it in place.
Locking cam pins (V) and cam locks (W and Y)
1One end of a cam pin (V) is threaded so that it screws into place. The other end is not threaded. Before you insert the
un-threaded end into a hole, insert a cam lock (Wand Y) into the hole and make sure that the hole in the cam lock (W
and Y) faces the outside edge of the part being used.
2Insert the un-threaded end of the cam pin (V) through the hole in the part being used and into the cam lock hole, then
rotate the cam lock (Wand Y) clockwise with a screwdriver to lock the cam pin (V) into place.
3Insert a PVC cover (DD) into the cross slot of the cam lock (Wand Y) to conceal.
Phillips screwdriver
Hammer 1/8”drill bit
Power drill
Rubber mallet Pliers
312 4
GLUE
PA N E L
Cam pin
Pre-drilled hole Cam lock
Locked panel
PVC cover

www.insigniaproducts.com
8
Assembling your stand
STEP 1: Screw cam pins onto the drawer front panel
You need :
• Securely screw the cam pins (V) into the indicated holes in the drawer front panel (L), using a Phillips screwdriver.
Tip: Assemble your stand on a carpeted floor or the empty TV stand box to avoid scratching it.
Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully
tighten all bolts. This will make the assembly easier.
LDrawer front panel (1) V Cam pin (6)
Phillips screwdriver
Metal frame

www.insigniaproducts.com 9
Console for TVs up to 80”
STEP 2: Install the small wood dowls
You n e ed :
• Glue eight small wood dowels (X) into the drilled holes on the ends of the drawer back panel (M) and drawer side
panels (Nand P).
MDrawer back panel (1)
SS Glue (1)
XWood dowel (8)
NDrawer left side
panel (1)
PDrawer right
side panel (1)

www.insigniaproducts.com
10
STEP 3: Assembly the drawer back panel and the drawer side panels
You n e ed :
• Attach the drawer back panel (M) between the drawer side panels (Nand P) with four 38 mm screws, using a Phillips
screwdriver. The grooves in the drawer panels must line up with each other and face inward.
Z 38 mm screws (4)
MDrawer back panel (1) NDrawer left side
panel (1)
PDrawer right
side panel (1)
Phillips screwdriver
Metal frame

www.insigniaproducts.com 11
Console for TVs up to 80”
STEP 4: Install the drawer bottom panel
You n e ed :
• Slide the drawer bottom panel (Q) into the drawer assembly (N, P, and M) until fully inserted.
QDrawer bottom panel (1)

www.insigniaproducts.com
12
STEP 5: Install the drawer bottom support
You n e ed :
• Fasten the drawer bottom support (R) to the drawer back panel (M) with two 38 mm screws (Z). The cam screw holes
should face upward.
Z38 mm screw (2)
RDrawer bottom support (1) Phillips screwdriver
Cam screw holes

www.insigniaproducts.com 13
Console for TVs up to 80”

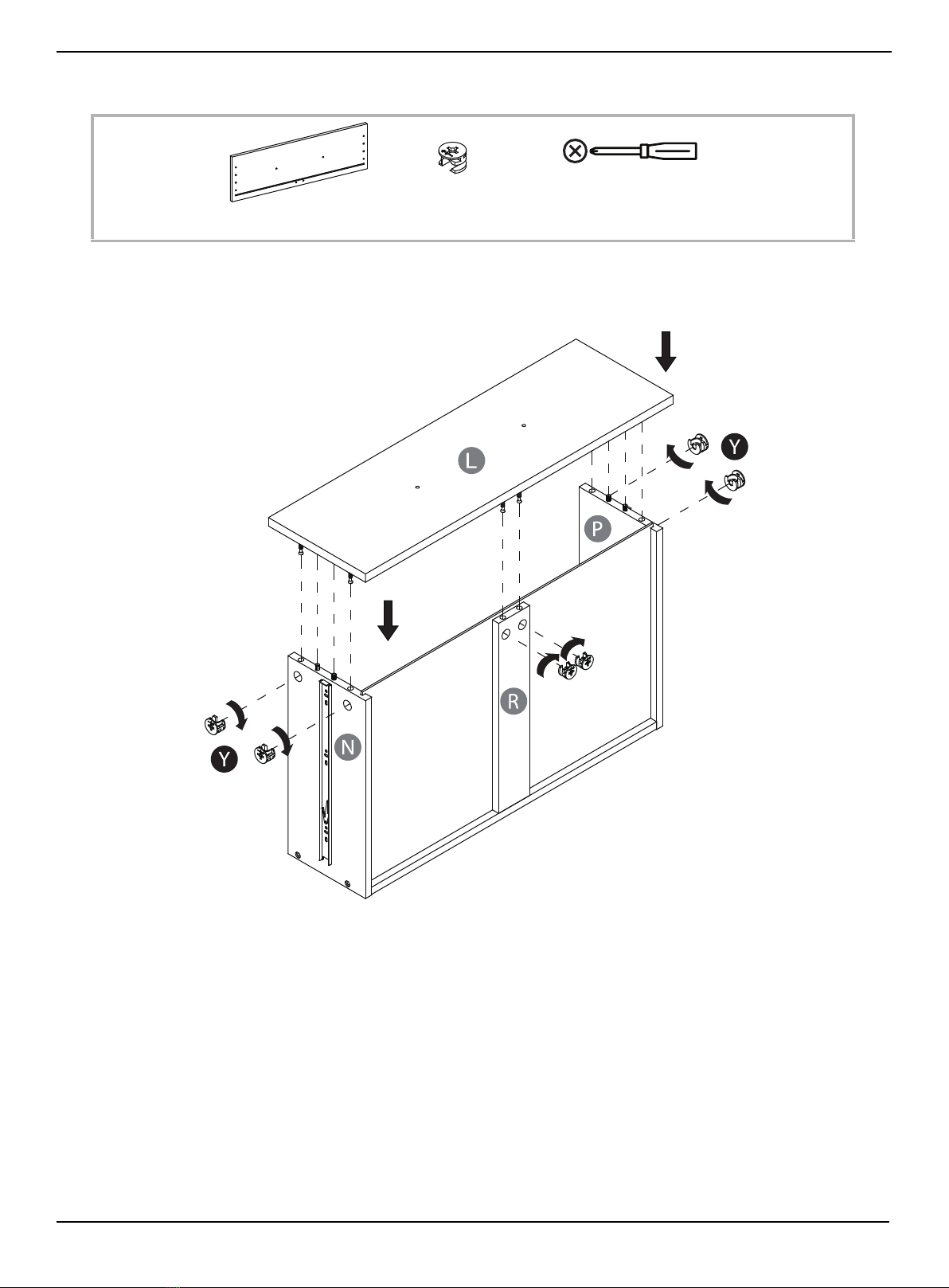

STEP 6: Install the drawer front
You n e ed :
• Stand the drawer assembly on its back and position the drawer front panel (L) onto the installed wood dowels. Fasten
the drawer front panel in place with the small cam locks (Y).
YSmall cam locks (6)
L Drawer front panel (1)
Phillips screwdriver

www.insigniaproducts.com
14

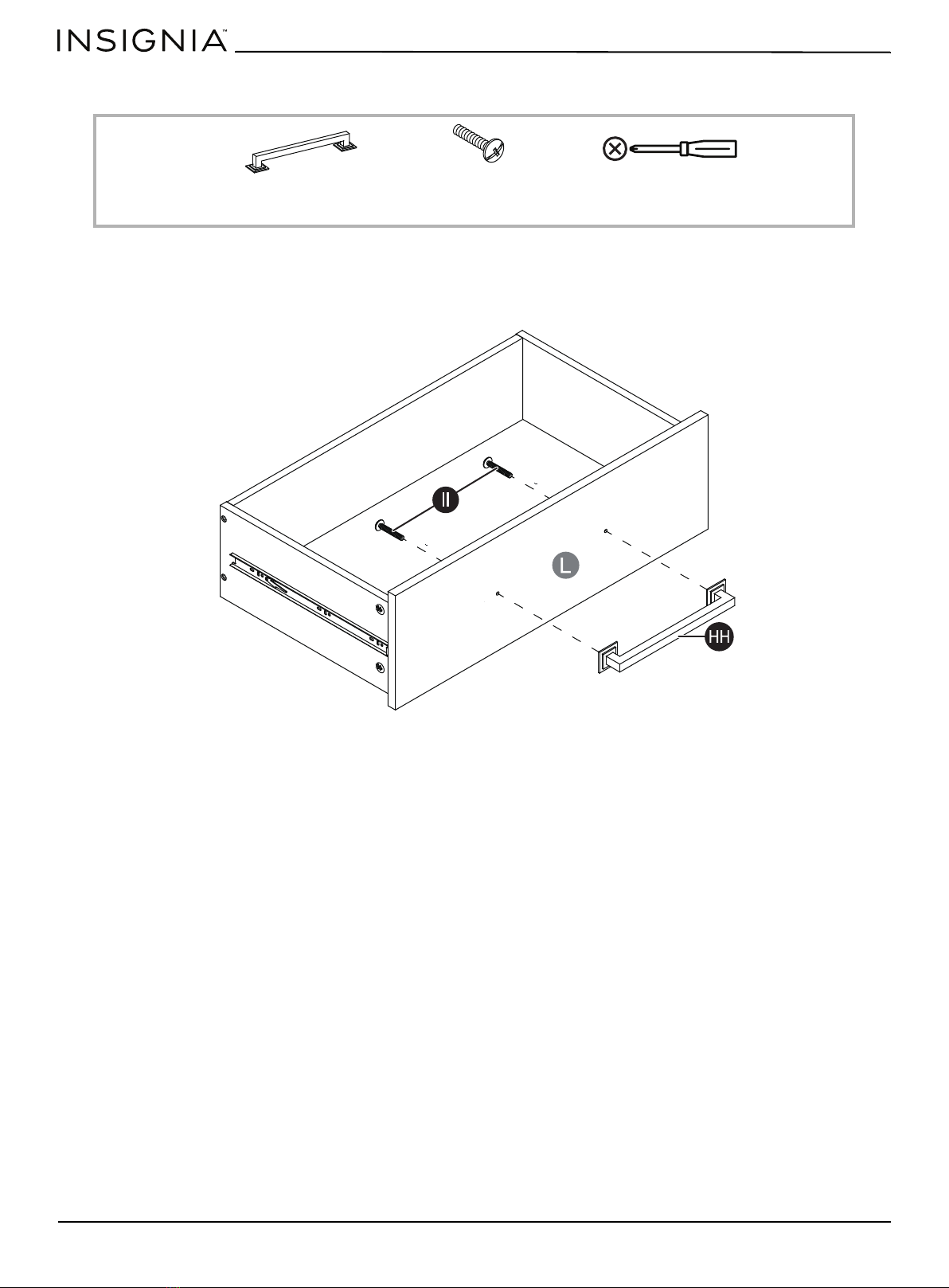

STEP 7: Install the drawer handle
You n e ed :
• Turn the drawer assembly upright and attach the drawer handle (HH) to the front of the drawer assembly with two
handle bolts (II).
HH Drawer handle (1) II Handle bolts (2) Phillips screwdriver

www.insigniaproducts.com 15
Console for TVs up to 80”

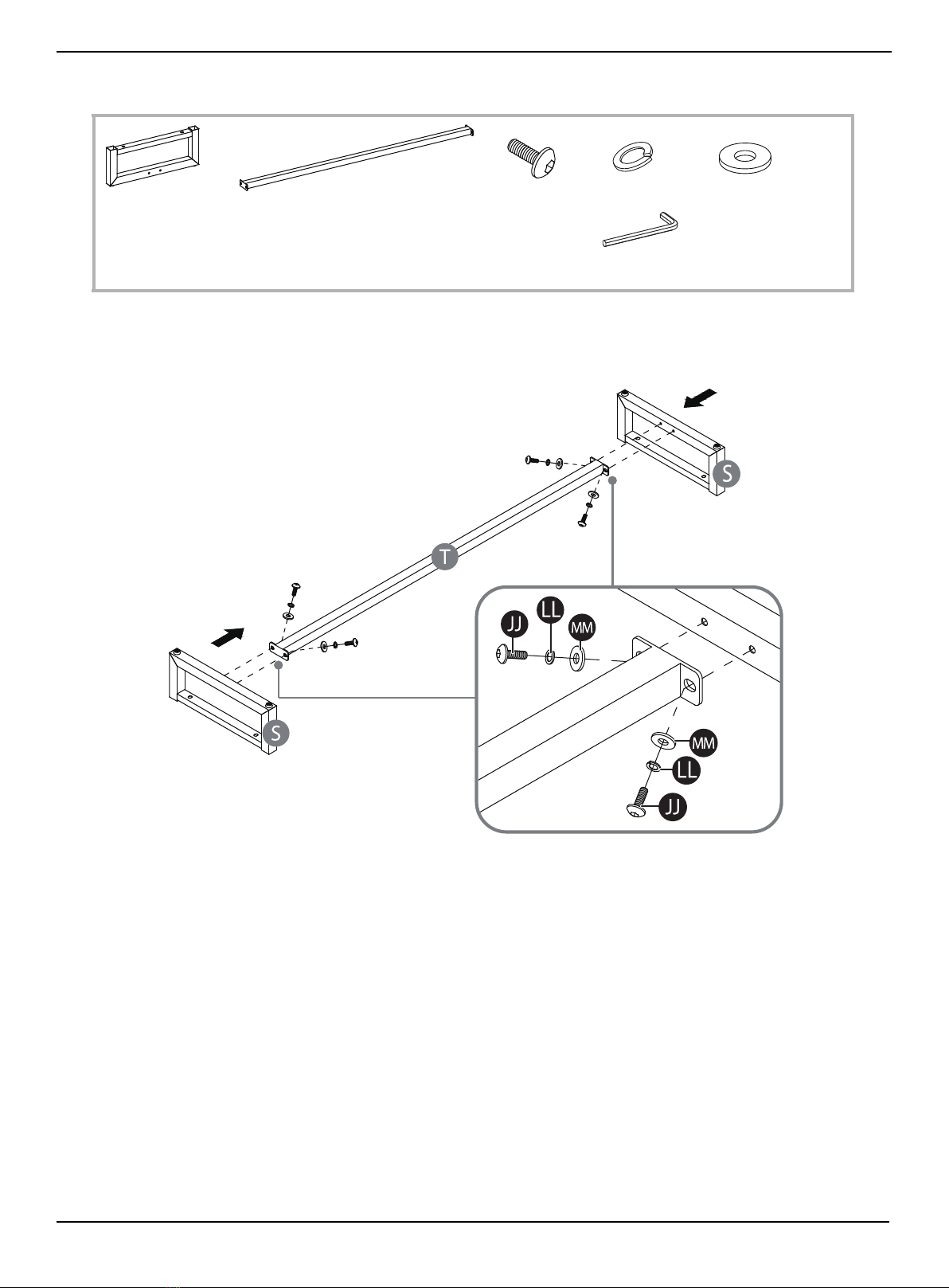

STEP 8: Assembling the metal base
You n e ed :
• Insert four 5/8” bolts (JJ) with four lock washers (LL) and flat washers (MM) through the holes in the metal stretcher (T),
into the metal bases (S), then tighten the bolts with the 4 mm hex wrench (RR).
RR Hex wrench 4 mm (1)
LL Lock washer (4) MM Flat washer (4)
SMetal base (2) TMetal stretcher (1) JJ 5/8”bolt (4)

www.insigniaproducts.com
16
STEP 9: Attach the metal base to the bottom panel
You n e ed :
• Insert four 1/1/4” bolts (KK) with lock washers (LL) and flat washers (MM) through the holes on both bases (S), then
tighten them into the threaded holes in the bottom panel (B) with the 4 mm hex wrench.
RR Hex key 4 mm (1)
LL Lock washer (4) MM Flat washer (4)
KK 1-1/4”bolt (4)
BBottom panel (1)
RR
RR

www.insigniaproducts.com 17
Console for TVs up to 80”
STEP 10: Prepare the bottom panel assembly
You n e ed :
• Securely screw eight cam pins (V) into the indicated small holes in the bottom panel assembly, using a Phillips
screwdriver.
V Cam pin (8)
Phillips screwdriver

www.insigniaproducts.com
18

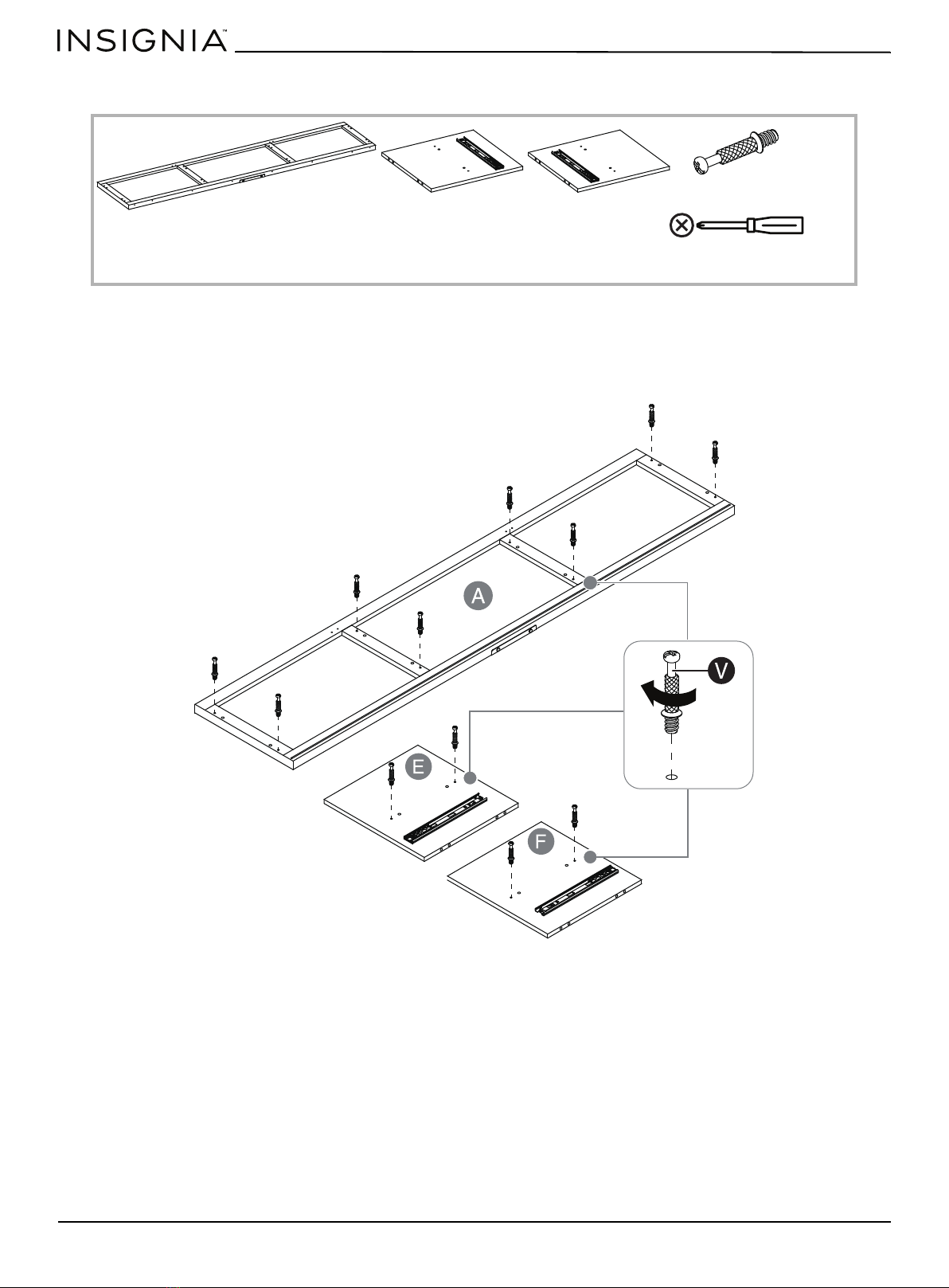

STEP 11: Prepare the top panel and partition panels
You n e ed :
• Securely screw twelve cam pins (V) into the indicated small holes in the top panel (A) and the partition panels (Eand F)
with a Phillips screwdriver.
V Cam pin (12)
Phillips screwdriver
ATop panel (1) ELeft partition panel (1) FRight partition panel (1)

www.insigniaproducts.com 19
Console for TVs up to 80”
STEP 12: Prepare the side panels, partition panels, and media shelf
You n e ed :
• Glue the large wood dowels (U) into the drilled holes on both ends of the side panels (Cand D), partition panels (Eand
F), and media shelf (G).
U Wood dowel (20)
SS Glue (1)
CLeft side panel (1) ELeft partition panel (1)
FRight partition panel (1)
DRight side panel (1)
G Media shelf (1)

www.insigniaproducts.com
20
STEP 13: Attach the partition panels to the media shelf
You n e ed :
• Attach the media shelf (G) between the partition panels (Eand F) by engaging four large cam locks (W). The cam screw
holes must face inward
W Large cam lock (4)
G Media shelf (1)
Phillips screwdriver
ELeft partition panel (1) FRight partition panel (1)
Cam screw holes
