Insignia NS-HWG1865 User manual

USER GUIDE
SAFETY INFORMATION AND SPECIFICATIONS .2
PACKAGE CONTENTS: PARTS ..................................3
PACKAGE CONTENTS: HARDWARE.......................4
ASSEMBLY INSTRUCTIONS ......................................6
CARE AND MAINTENANCE................................... 21
Wood & Glass TV Stand
for TVs up to 75”
NS-HWG1865
Before using your new product, please read these instructions to prevent any damage.

2
NS-HWG1865
www.insigniaproducts.com
SAFETY INFORMATION AND SPECIFICATIONS
Maximum overall weight: 335 lbs (151.9 kg)
Maximum top panel weight: 135 lbs (61.2 kg)
Maximum shelf weight: 50 lbs (22.6 kg)
Maximum TV weight: 135 lbs (61.2 kg)
Maximum screen size: 75” diag.
Overall dimensions (H × W × D):
22 × 65 × 15.75 in. (55.8 x 165.1 x 40 cm)
Shelf dimensions (W × D):
30.0 × 12.2 in. (76.3 × 31 cm)
TV stand weight: 91.5 lbs (41.5 kg)
22 in.
(55.8 cm)
65in.
(165.1cm)
15.75 in.
(40 cm)
30.04in.
(76.3cm)
16.34 in.
(41.5 cm)
12.2 in.
(31 cm)
CAUTION: The console’s top work surface is
designed for use with a product weighing no
more than 135 lbs. (61.2 kg) and having a
width that permits it to sit evenly on the
console with no more than a one-inch
overhang on each side of the top panel. Use with
products that weigh more than the maximum weight
allowed, or with dimensions that extend beyond the
maximum width may result in instability, which may
result in injury. The base of the television must be placed
behind the stopper. See instructions for more details.
CAUTION: This product contains small items
that could be a choking hazard if swallowed.
Keep these items away from young children!

3
Wood & Glass TV Stand
www.insigniaproducts.com

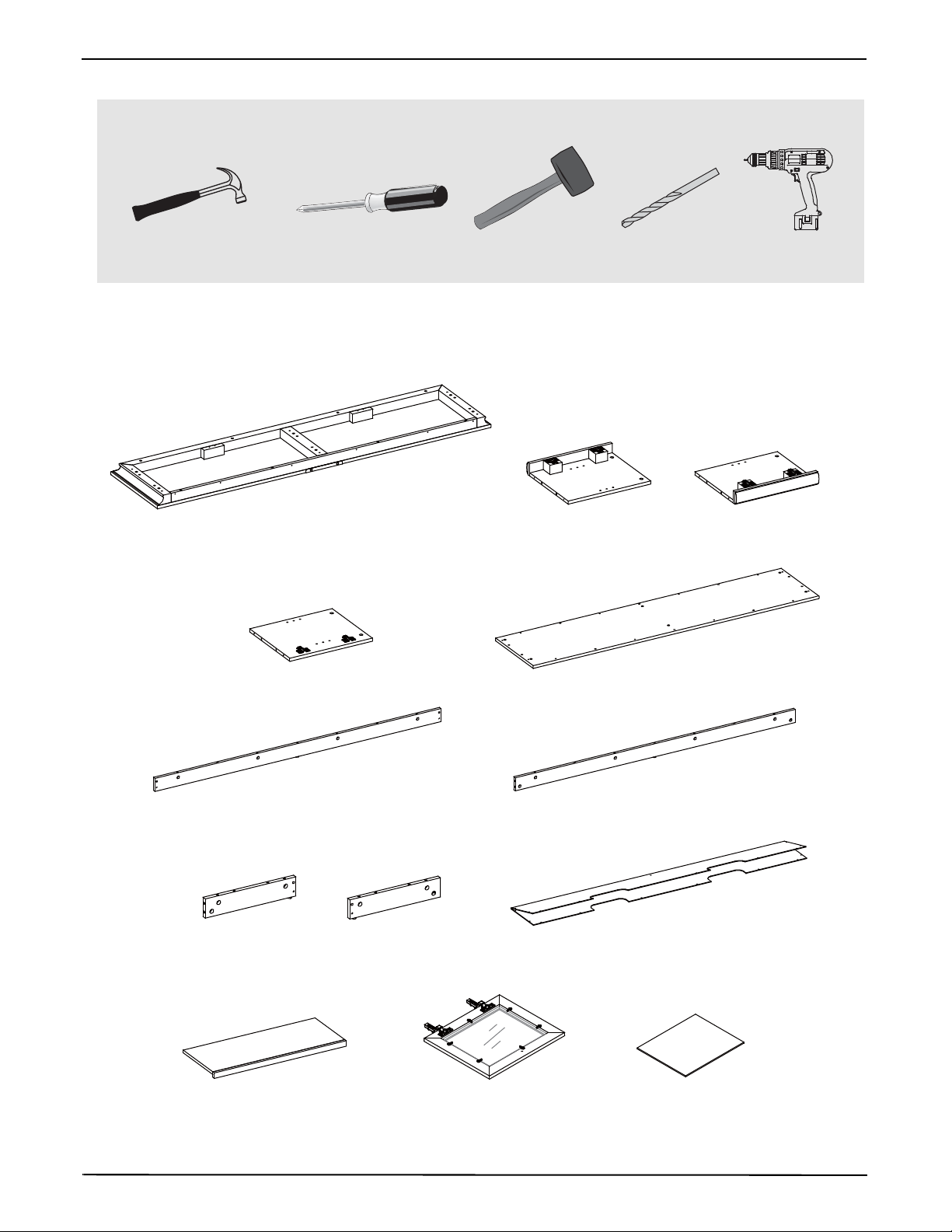

PACKAGE CONTENTS: PARTS
Make sure that you have all the parts necessary to assemble your new TV stand.
Tools needed:
Phillips screwdriver
Power drill
3/8” drill bit
Hammer Rubber mallet
ATop panel (1)
Note: Keep the stopper template attached to the top panel.
BLeft side panel (1) CRight side panel (1)
DPartition panel (1) EBottom shelf (1)
FFront skirting (1) GBack skirting (1)
HLeft skirting
(1) IRight skirting
(1) J Back panel (1)
K Adjustable shelf (2) L Door (4) M Wood door
panel (4)

4
NS-HWG1865
www.insigniaproducts.com
PACKAGE CONTENTS: HARDWARE
Note: You may receive extra hardware.
Make sure that you have all the hardware necessary to assemble your new TV stand.
Label Hardware Qty.
N26
P22
Q22
R6
S12
T22
U2
V6
Wood dowel
M8 x 30 mm
Cam pin
Cam lock
Screw
M4 x 50 mm
Flat head screw
M3.5 x 15 mm
Washer head screw
M3.5 x 15 mm
Door stopper
Cam lock cover
Label Hardware Qty.
W8
X4
Y4
Z2
AA 2
BB 2
CC 1
DD 1
EE 2
Shelf support
Knob
Knob bolt
Corner
connector
Floor leveler
Stopper
Glue
Touch-up pen
Tipping restraint
hardware kit
10 20 30 40 50 60 70 80 90 100mm
1234in

5
Wood & Glass TV Stand
www.insigniaproducts.com

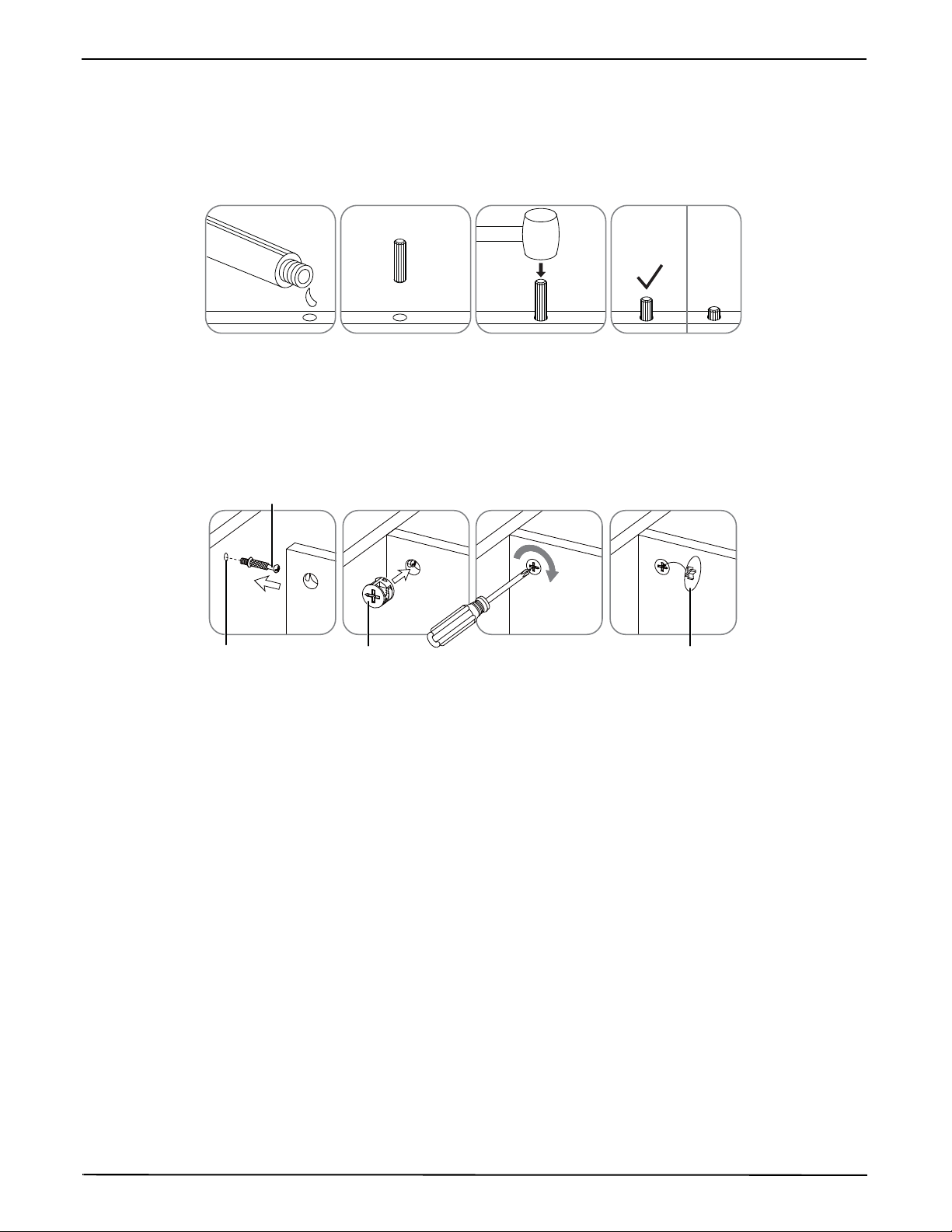

INSTALLATION TIPS
Gluing wood dowels (N)
When using a wood dowel (N), put one drop of glue (CC) in the hole before you insert the wood dowel (N). Insert
the wood dowel (N), then gently tap it with a rubber mallet to secure it in place.
Locking cam pins (P) and cam locks (Q)
1One end of a cam pin (P) is threaded so that it screws into place. The other end is not threaded. Before you insert
the un-threaded end into a hole, insert a cam lock (Q) into the hole and make sure that the hole in the cam lock
(Q) faces the outside edge of the part being used.
2Insert the un-threaded end of the cam pin (P) through the hole in the part being used and into the cam lock
hole, then rotate the cam lock (Q) clockwise with a screwdriver to lock the cam pin (P) into place.
3Insert a cam lock cover (V) into the cross slot of the cam lock (Q) to conceal.
312 4
X
FINAL
GLUE
Cam pin
Pre-drilled hole Cam lock Cam lock
cover
LOCKED
PANEL
PANEL

6
NS-HWG1865
www.insigniaproducts.com
ASSEMBLY INSTRUCTIONS

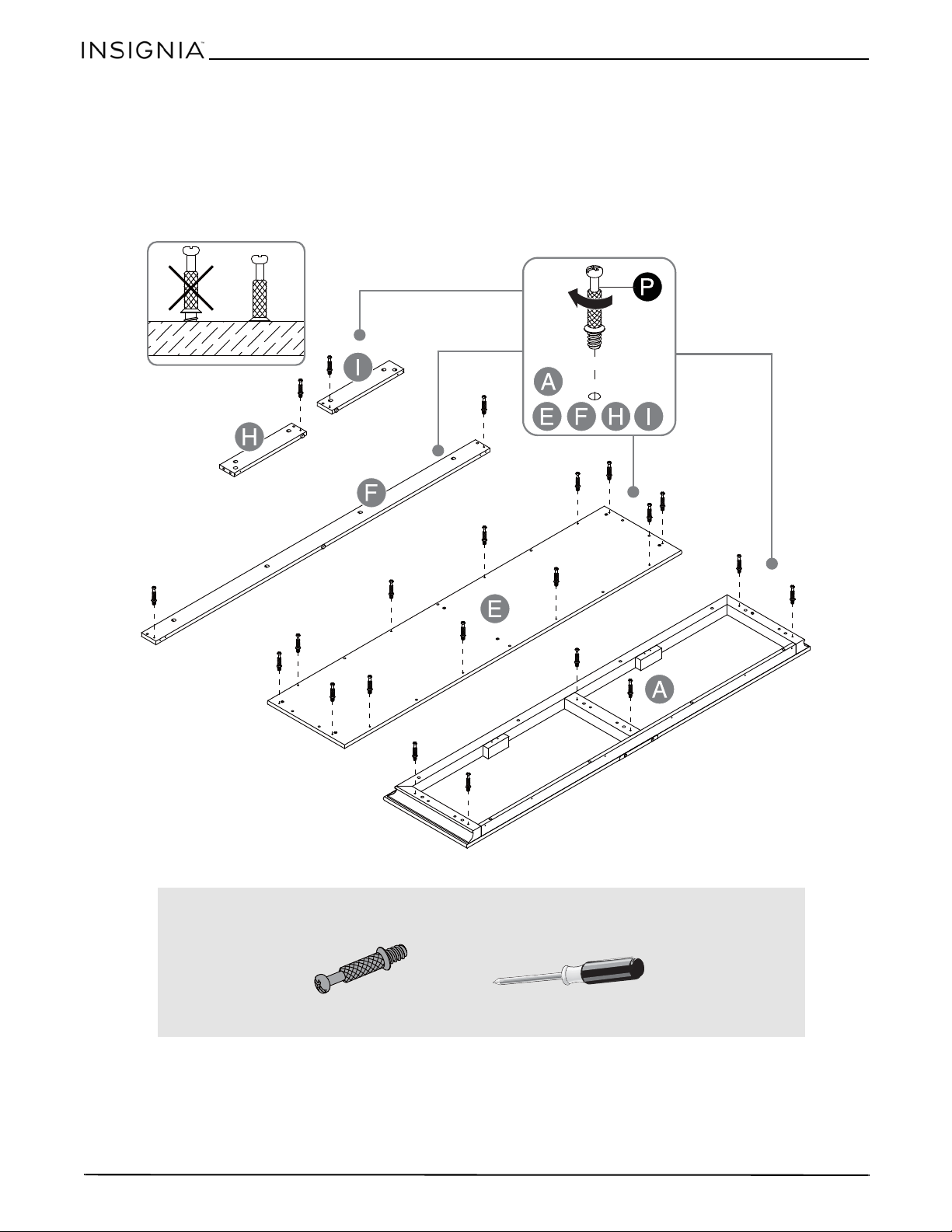

Step 1: Screw cam pins onto the top panel, bottom shelf, and skirtings
Tip: Assemble your stand on a carpeted floor or the empty TV stand carton to avoid scratching it.
• Securely screw the cam pins (P) into the designated small holes on the top panel (A), bottom shelf (E), front
skirting (F) and side skirtings (H and I) using a Phillips screwdriver.
You’ll need:
P(22) Phillips screwdriver

7
Wood & Glass TV Stand
www.insigniaproducts.com
Step 2: Attach the back skirting between the side skirtings
1Glue two wood dowels (N) into the drilled holes on the ends of the back skirting (G).
Tip: See “Gluing wood dowels (N)“ on page 5for more information.
2Attach the back skirting to the side skirtings (H and I) by inserting two cam locks (Q) and tightening with a
screwdriver. Make sure that the cam screw holes face inward.
Tip: See “Locking cam pins (P) and cam locks (Q)“ on page 5for more information.
You’ll need:
Cam screw holes must
face in
Phillips screwdriver
N(2) Q(2) CC (1)

8
NS-HWG1865
www.insigniaproducts.com

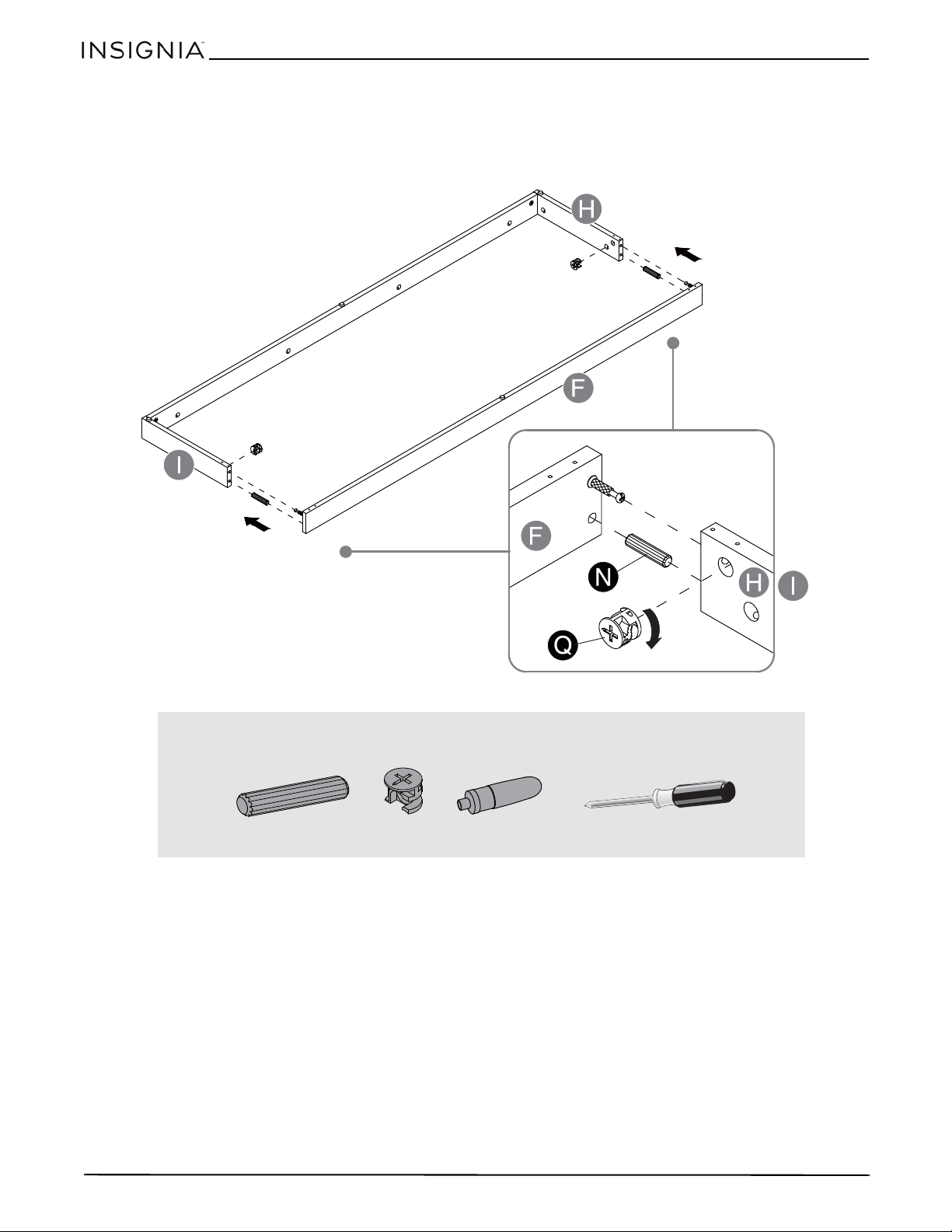

Step 3: Attach the front skirting to the side skirtings
1Glue two wood dowels (N) into the drilled holes on the front skirting (F).
2Attach the front skirting (F) to the side skirtings (H and I) by inserting two cam locks (Q) and tightening with a
screwdriver. Make sure that the cam screw holes face inward.
You’ll need:
Phillips screwdriver
N(2) Q(2) CC (1)

9
Wood & Glass TV Stand
www.insigniaproducts.com

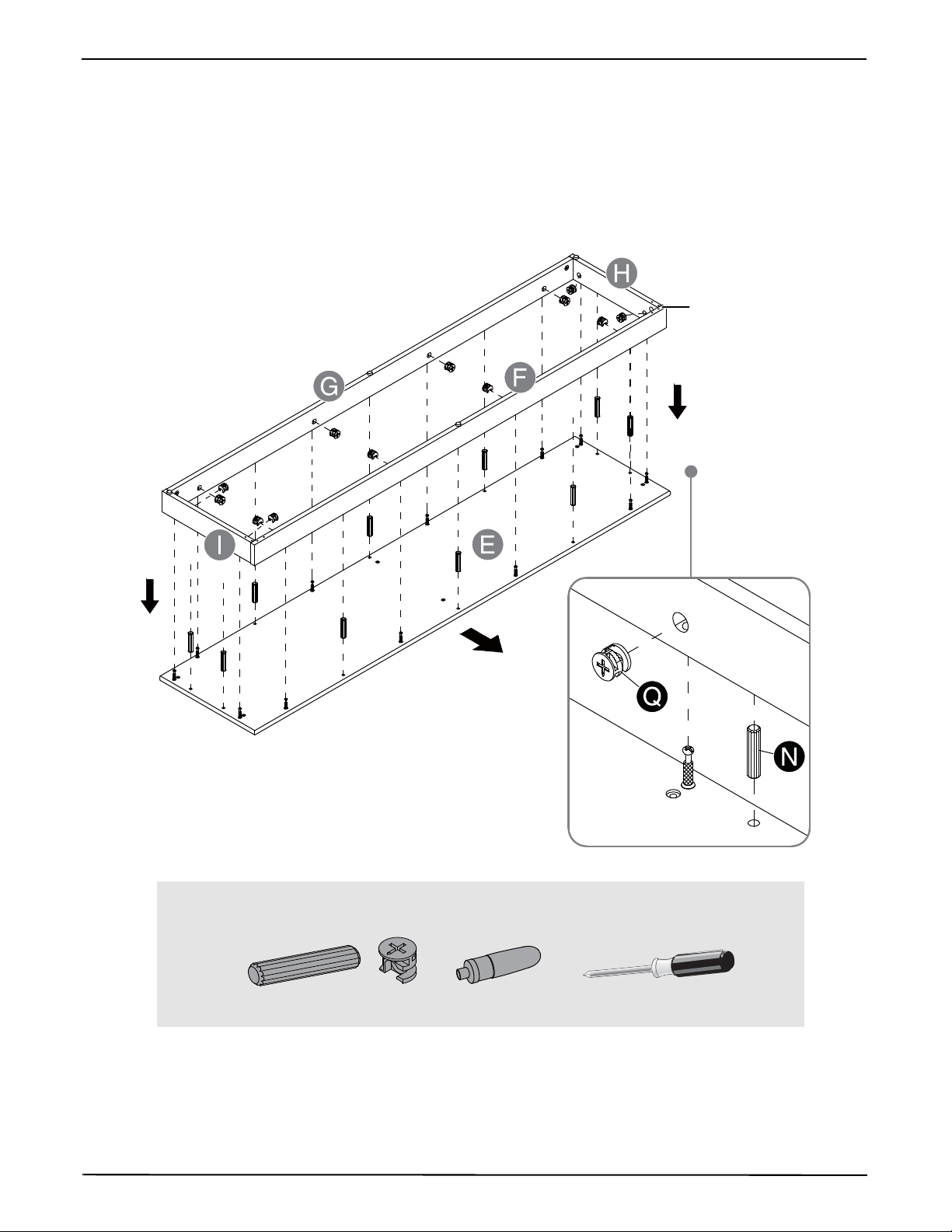

Step 4: Attach the assembled base to the bottom shelf
1Glue 10 wood dowels (N) into the drilled holes on the bottom shelf (E).
2Position the assembled base onto the wood dowels (N) and cam pins (P) on the bottom shelf (E). Make sure that
the pilot holes for the corner connectors face the front of the bottom shelf.
Tip: Try working from one end to the other to slide the assembled base into place. You may need to push or pull the
skirts slightly to get them to align with the holes.
3Insert 12 cam locks (Q), then tighten with a screwdriver to secure.
You’ll need:
Pilot holes for
corner connector
FRONT
Phillips screwdriver
N(10) Q(12) CC (1)

10
NS-HWG1865
www.insigniaproducts.com

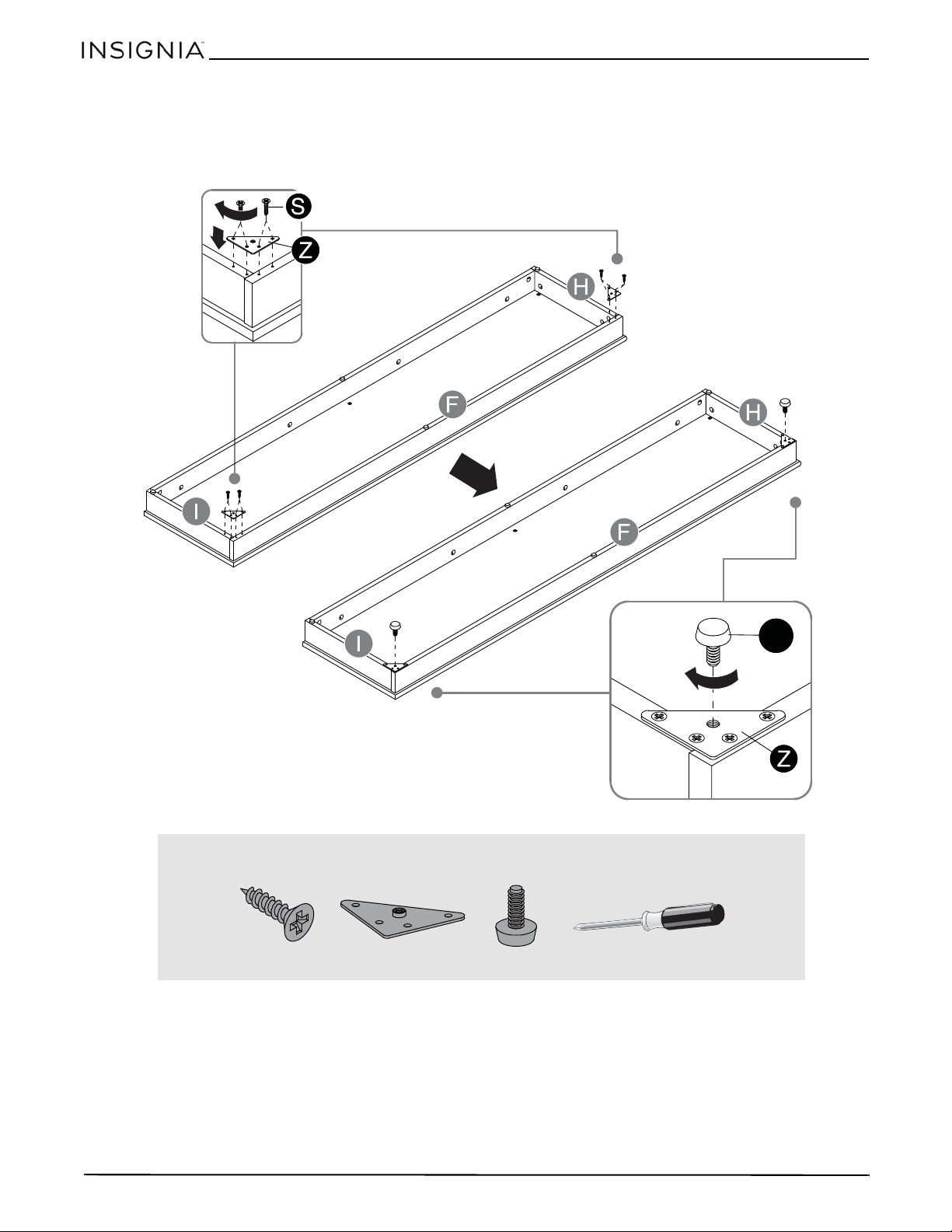

Step 5: Install two floor levelers to the assembled base
1Using the pilot holes as a guide, fasten two corner connectors (Z) to the joints where the front skirting (F) meet
with the side skirtings (H and I) with eight 15 mm flat head screws (S).
2Screw two floor levelers (AA) onto the installed corner connectors (Z).
You’ll need:
AA
Phillips screwdriver
AA (2)
Z (2)
S (8)

11
Wood & Glass TV Stand
www.insigniaproducts.com
Step 6: Attach two door stoppers to the top panel
Note: Keep the stopper template attached to the top panel (A).
• Using the pilot holes as a guide, attach two door stoppers (U) onto the front supports on the top panel (A) with
two 15 mm flat head screws (S) per stopper. Make sure that the right angle sides of the stoppers face the front of
the unit.
You’ll need:
Phillips screwdriver
S (4) U (2)

12
NS-HWG1865
www.insigniaproducts.com
Step 7: Align and attach the side panels to the top panel
1Glue two wood dowels (N) into the holes on the top edge of the left side panel (B).
2Attach the left side panel to the top panel (A) by inserting two cam locks (Q) and tightening with a screwdriver.
Make sure that the door hinge mounts are on the same side as the door stoppers.
3Repeat this process to attach the right side panel (C) on the opposite end.
You’ll need:
Door stopper
Door hinge mounts
point towards the
front of the unit
Phillips screwdriver
N(4) Q(4) CC (1)

13
Wood & Glass TV Stand
www.insigniaproducts.com
Step 8: Attach the partition panel to the top panel
1Glue two wood dowels (N) into the inner holes on the top edge of the partion panel (D).
2Attach the partition panel to the top panel (A) by inserting two cam locks (Q) and tightening with a screwdriver.
You’ll need:
Door hinge mounting bases point
towards the front of the unit
Phillips screwdriver
N(2) Q(2) CC (1)

14
NS-HWG1865
www.insigniaproducts.com
Step 9: Attach the bottom shelf to both side panels and partition panel
1Glue six wood dowels (N) into the holes on the bottom edge of side panels (B and C) and partition panel (D).
2Align the drilled holes on the bottom shelf (E) with the installed wood dowels (N) on both side panels (B and C)
and partition panel (D), then press them together. Make sure that the leveling feet are on the same side as the
hinges.
3Insert six 50 mm screws (R) through the pre-drilled holes on the bottom shelf (E) and screw into the holes on the
vertical panels (B, C, and D).
You’ll need:
Leveling feet
Hinges
Phillips screwdriver
N(6) R(6)

15
Wood & Glass TV Stand
www.insigniaproducts.com

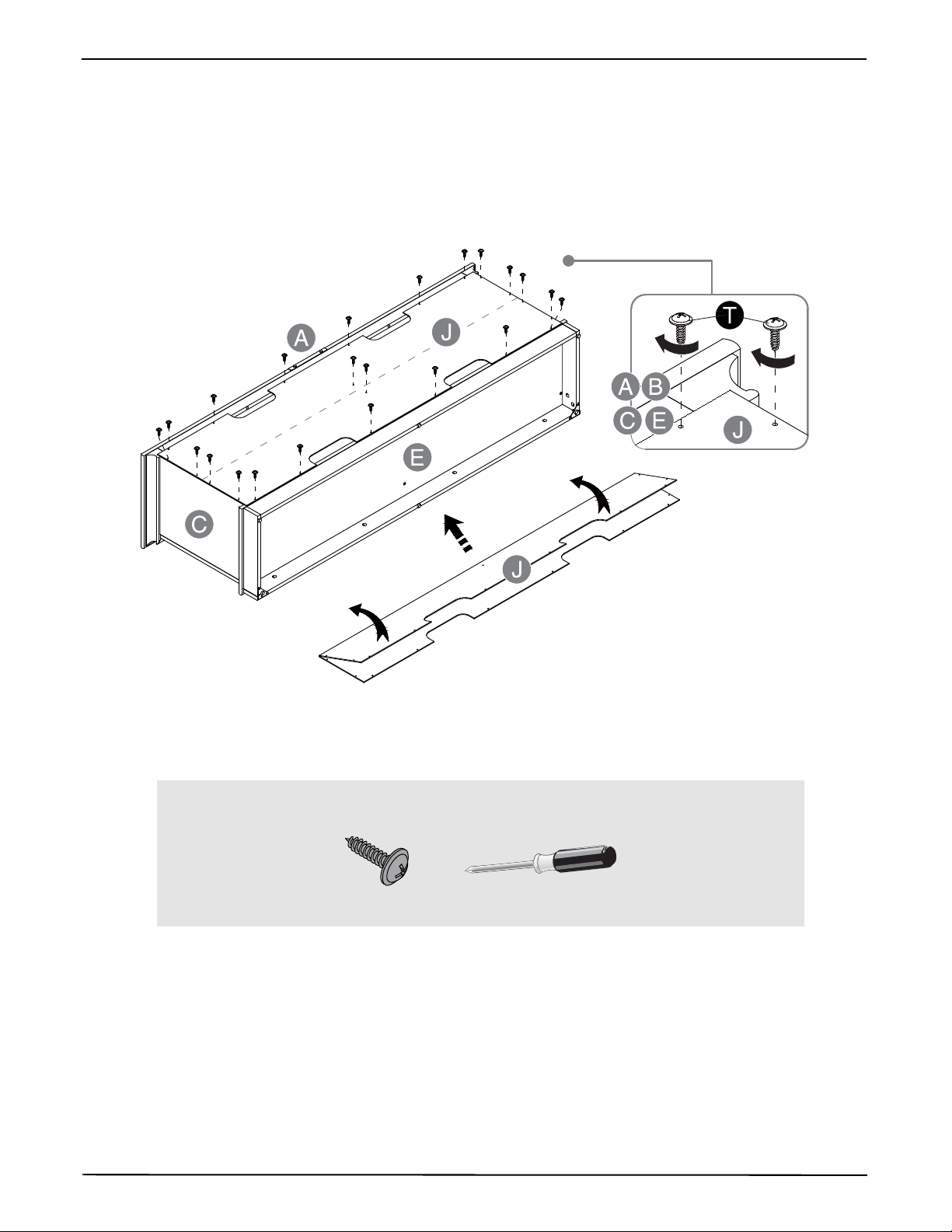

Step 10: Attach the back panel to the assembled console frame
1Go back and tighten all cam locks and screws. Make sure that all the parts are tight and there are no gaps
between the pieces. This will help keep the unit square.
2Turn the assembled unit over so that its back is facing up.
3Unfold the back panel (J) and align its holes with the pilot holes along the edges of the assembled unit.
4Use the washer head screws (T) to secure the back panel to the assembled unit. Tighten the screws using a
Phillips screwdriver.
You’ll need:
Phillips screwdriver
T(22)

16
NS-HWG1865
www.insigniaproducts.com
Step 11: Attach adjustable shelves
1Stand the assembled unit upright.
2Insert the cam lock covers (V) into the cross slots on the visible cam locks on the vertical panels (B, C, and D).
3Insert eight shelf supports (W) into the holes in the sides of the compartments. Make sure that you place the
shelf supports at the same level so the shelves are not tilted.
4Tilt and rest the adjustable shelves (K) onto the shelf supports (W).
You’ll need:
V(6) W(8)

17
Wood & Glass TV Stand
www.insigniaproducts.com

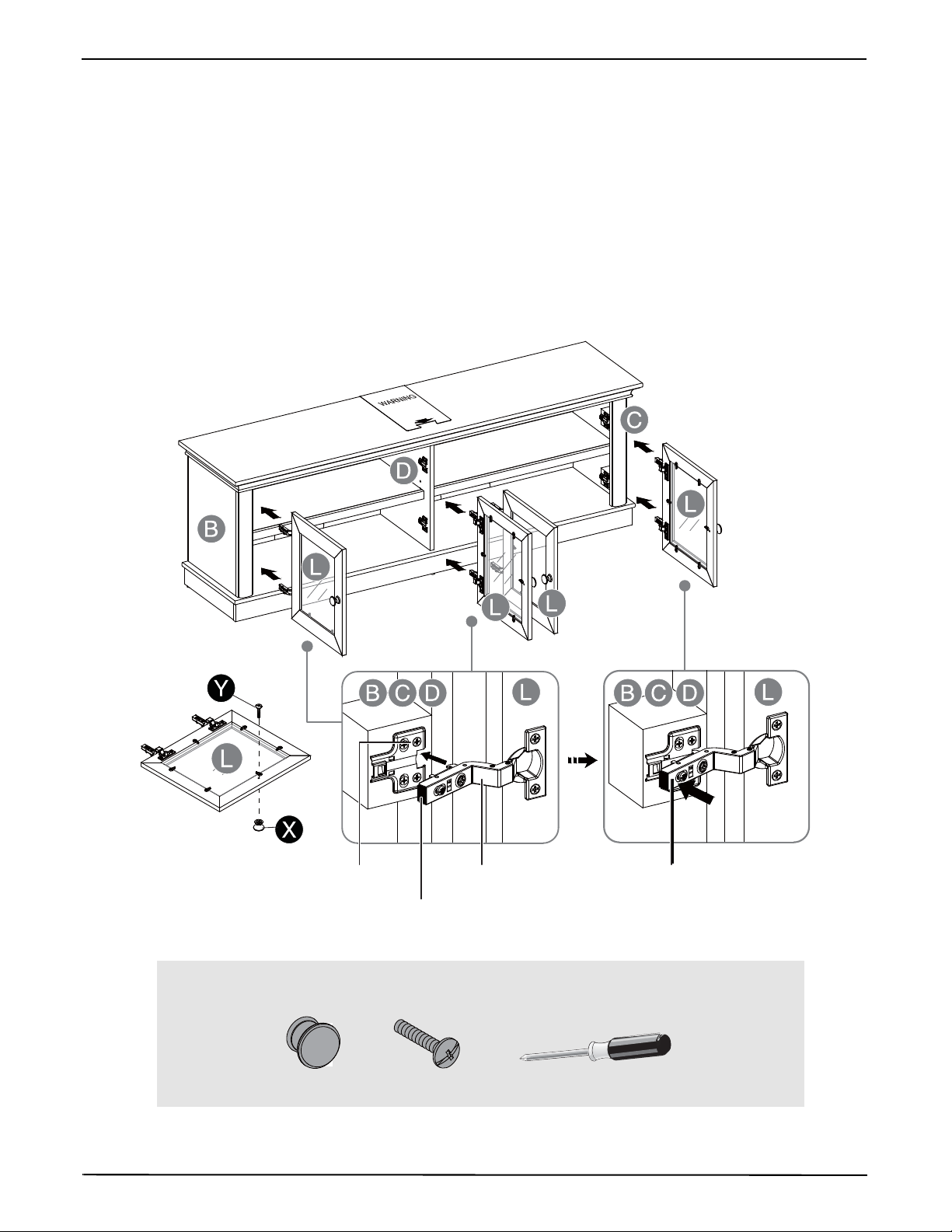

Step 12: Attach doors to the vertical panels
1Push the knob bolts (Y) through the inside of each door (L), then screw on the knobs (X).
2Attach a door (L) to the right side panel (C) by engaging both door hinges together as shown:
AExtend both hinges of the door (L) to the open position, if needed.
BSlide the back hooks (on the door hinges) into the slots on the ends of the mounting bases.
COnce the back hooks are inserted into place, push in the back of the hinge arm to secure it to the mounting
base.
DRepeat the same process to attach the other doors (L) to left side panel (B) and partition panel (D).
Tip: If you need to remove a door, press the release lever on the end of the hinge arm.
3Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the screws on
the hinge arm for a better fit.
You’ll need:
x 4
Release lever
Mounting base Hinge arm Push in the back of the
hinge arm
X (4) Phillips screwdriver Y (4)

18
NS-HWG1865
www.insigniaproducts.com

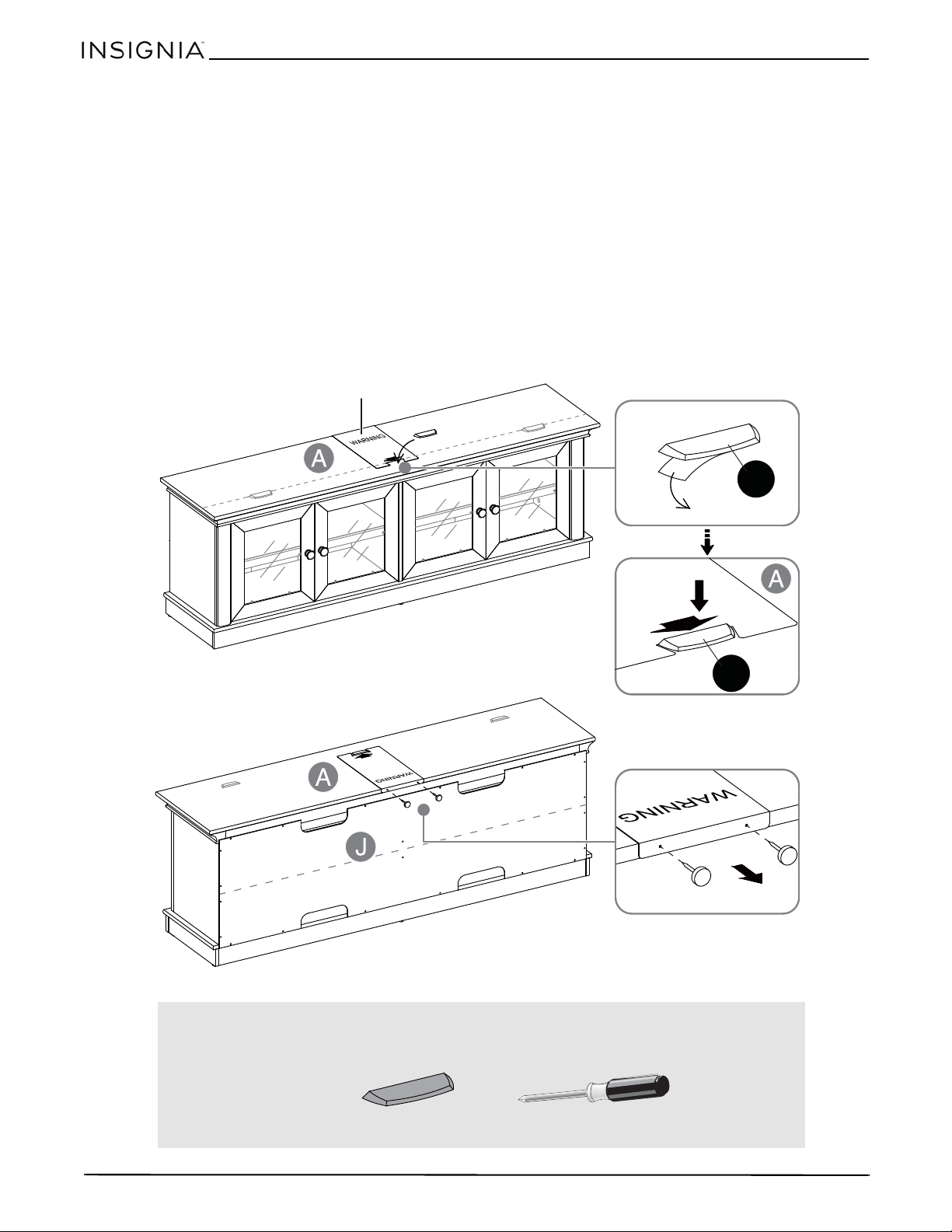

Step 13: Attach the stopper to the top panel
To prevent your TV from tipping, you must follow these instructions if you place a TV on top of your stand.
Otherwise, skip to “Step 14: Change the door panel” on page 19.
If your TV has one base:
1Remove the paper backing from the stopper (BB), then place it in the cut-out of the stopper template on the top
panel (A). Press down on the stopper (BB) to help adhesion.
2On the back of the top panel (A), carefully pull out the thumb tacks to remove the stopper template.
If your TV has two bases:
1On the back of the top panel (A), carefully pull out the thumb tacks to remove the stopper template.
2Align the template at the position where one of your TV’s bases will be located.
3Remove the paper backing from the stopper (BB), then place it in the cut-out of the stopper template on the top
panel (A). Press down on the stopper (BB) to help adhesion.
4Repeat this process to attach the second stopper.
You’ll need:
BB
BB
Release lever
Phillips screwdriver
BB (2)

19
Wood & Glass TV Stand
www.insigniaproducts.com
Step 14: Change the door panel
Follow these steps if you want to change your TV stand’s door panels from glass to wood. Otherwise, skip to “Step
15: Position the TV stand and install the tipping restraint hardware kit” on page 20.
1Open a door (L) and loosen the screws on the inside of the door frame.
2Rotate the clips to remove the old panel.
3Insert the new panel, then rotate the clips and tighen screws to secure the panel in the door frame.
4Repeat this process to replace all the door panels.
You’ll need:
Glass door
panel
Wood door
panel
Clip
Phillips screwdriver

20
NS-HWG1865
www.insigniaproducts.com
Step 15: Position the TV stand and install the tipping restraint hardware kit
1Position the assembled stand against the wall where you plan to use it.
2Adjust the leveling feet to level the TV stand.
3Follow the instructions printed on the bag containing the tipping restraint hardware kit (EE) to attach the
restraint hardware to the wall and the stand.
WARNING: It is very important that the tipping restraint is installed correctly. Failure to do this could result in your TV
stand falling forward, resulting in damage to equipment or personal injury.
You’ll need:
Anchor Anchor
Wall
Metal
bracket
Long
screw
Short
screw
Leveling feet
Wall
Phillips screwdriver
Power drill 3/8” drill bit Rubber mallet
EE (2)
