User Guide
64"Wood Finish
TV Stand
NS-HW1764G

Table of Contents
Package contents 2
Safety information 4
Specifications 5
Assembling your TV stand 6
Attaching the doors 11
Installing the shelves 13
Leveling your TVstand 14
Care and maintenance 14
One-Year Limited Warranty 15
Package contents

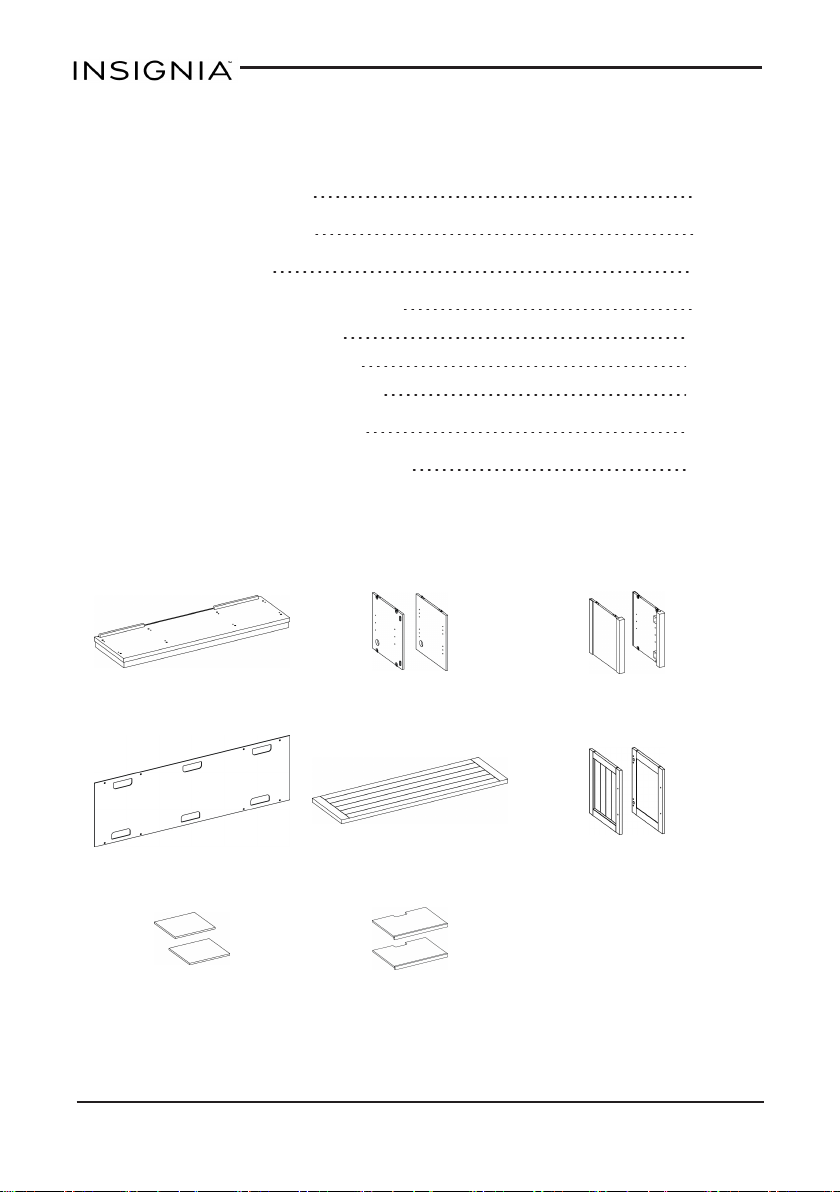

Parts
(A) Base (B &C) Divider panels (2) (D &E) Sides (2)
(F) Back
(G)Top (H)Doors (2)
(I) Side shelves (2) (J) Middle shelves (2)
www.insigniaproducts.com
2
NS-HW1764G

Hardware
Label Hardware Quantity
L Hinges 4
K 4 (dia.) × 22 mm screws 4
N8 (dia.) × 30 mm wooden
dowels 16
O Shelf supports 16
P Touch-up pen 1
R 3.5 (dia.) × 16 mm screws 8
V Handles 2
X 6.3 (dia.) × 15 mm bolts 8
Tools Needed
Phillips screwdriver
www.insigniaproducts.com
3
64"Wood Finish TV Stand

Safety information
CAUTION: This product contains small items that could be a choking hazard if
swallowed. Keep these items away from young children.
CAUTION: This stand is intended only for use with a TV not weighing more than
125 lbs. (56.7 kg) and not more than 75" wide if sitting on the top shelf. Refer to
instructions for details. The center shelves can only support 30 lbs. (13.6 kg) and
the side shelves can only support 15 lbs. (6.8 kg). Using with other products
including products that weigh more than the maximum weight allowed, may result
in instability, which may cause possible injury.
Model #: NS-HW1764G
Distributed by Best Buy Purchasing, LLC
Manufacturer: Elements International Group, LLC
Manufacture date:
This TV Stand is intended for a TV NO WIDER than 75".
TV should be centered and should not hang more than 1-inch over either edge.
WARNING
Please use your stand correctly and safely. Improper use can cause safety hazards or damage
to your furniture or household items. Carefully read the following chart.
Look out for: What can happen: How to avoid the problem:
lChildren
climbing on the
stand.
lChildren will play
and be active
near the TV.
lRisk of injury or death.
lA child playing with a TV can
cause it to tip over.
lNever allow children to climb on or
play with the stand.
lDo not place toys or food on the top
shelves. Children may try to climb
to reach them out of curiosity.
lImproper use of
the stand to
support TVs.
lTVs that are
above the
maximum
specified weight
and/or size.
lRisk of injury or death.
lTVs can be very heavy.
Note, older CRTTVs tend to
be unbalanced and prone to
tipping forward.
lATV must only be set on furniture
specifically designed to support a
television.
lNever use a TV that exceeds the
weight ratings or size guidelines
specified for the stand.
lOverloaded
shelves.
lRisk of injury.
lTop-heavy furniture can tip
over.
lOverloaded shelves can
break.
lNever exceed the weight limits
shown in the instructions.
lWork from the bottom to the top
when loading shelves.
lThe middle shelf can only support
25 lbs. and the bottom shelf can
only support 50 lbs. The top can
support 125 lbs.
www.insigniaproducts.com
4
NS-HW1764G

lImproperly
moving the
stand.
lThe stand can tip over or
break if improperly moved.
lRisk of injury.
lUnload shelves from the top to the
bottom before moving the stand.
lDo not push the stand, especially
on a carpeted floor. Have a friend
help you lift the item and set it in
place.
lDo not lift the stand using the top
shelf. Lift from the frame or leg
assembly.
lRemove the TV before moving the
TV stand.
Specifications
Dimensions (H × W × D) 24.0 × 63.5 × 19.5 in. (61 × 161.3 × 49.5 cm)
Weight 123 lbs. (56 kg)
Maximum weight capacity 125 lbs.
Maximum shelf capacity Side shelves:15 lbs.
Center shelves:30 lbs.
Maximum screen size 75" diagonal
www.insigniaproducts.com
5
64"Wood Finish TV Stand

Assembling your TV stand
1Insert eight wooden dowels into the base.
You’ll need:
A
N (8)
2Align the divider panels with the wooden dowels (the holes in the panels
should face each other), then push the locks closed.
You’ll need:
B &C
www.insigniaproducts.com
6
NS-HW1764G

3Align the sides with the wooden dowels (the holes in the sides should face
each other), then push the locks closed.
You’ll need:
D &E
www.insigniaproducts.com
7
64"Wood Finish TV Stand

4Slide the back into the groves formed by the base and sides. The finished
side should face the inside.
You’ll need:
F
www.insigniaproducts.com
8
NS-HW1764G

5Insert eight wooden dowels into the divider panels and sides, then make
sure that the unused locks are open.
You’ll need:
N (8)
6Align the top with the wooden dowels (the groove should be towards the
back of the stand), then push the locks closed.
Tip:If the locks won't close, remove the top and make sure that the back is
correctly aligned in the groove.
You’ll need:
G
www.insigniaproducts.com
9
64"Wood Finish TV Stand

7Screw the eight bolts into the back of the TVstand to secure it to the sides
and divider panels.
You’ll need:
X (8)
8See Attaching the doors (on the facing page) to continue assembly.
www.insigniaproducts.com
10
NS-HW1764G

ATTACHING THE DOORS
1Fit the hinges into the circular holes on the doors, align the screw holes, then
use a Phillips screwdriver and two 3.5 × 16 mm screws to secure each
hinge.
You’ll need:
H
L (4) R (8) Phillips
screwdriver
www.insigniaproducts.com
11
64"Wood Finish TV Stand

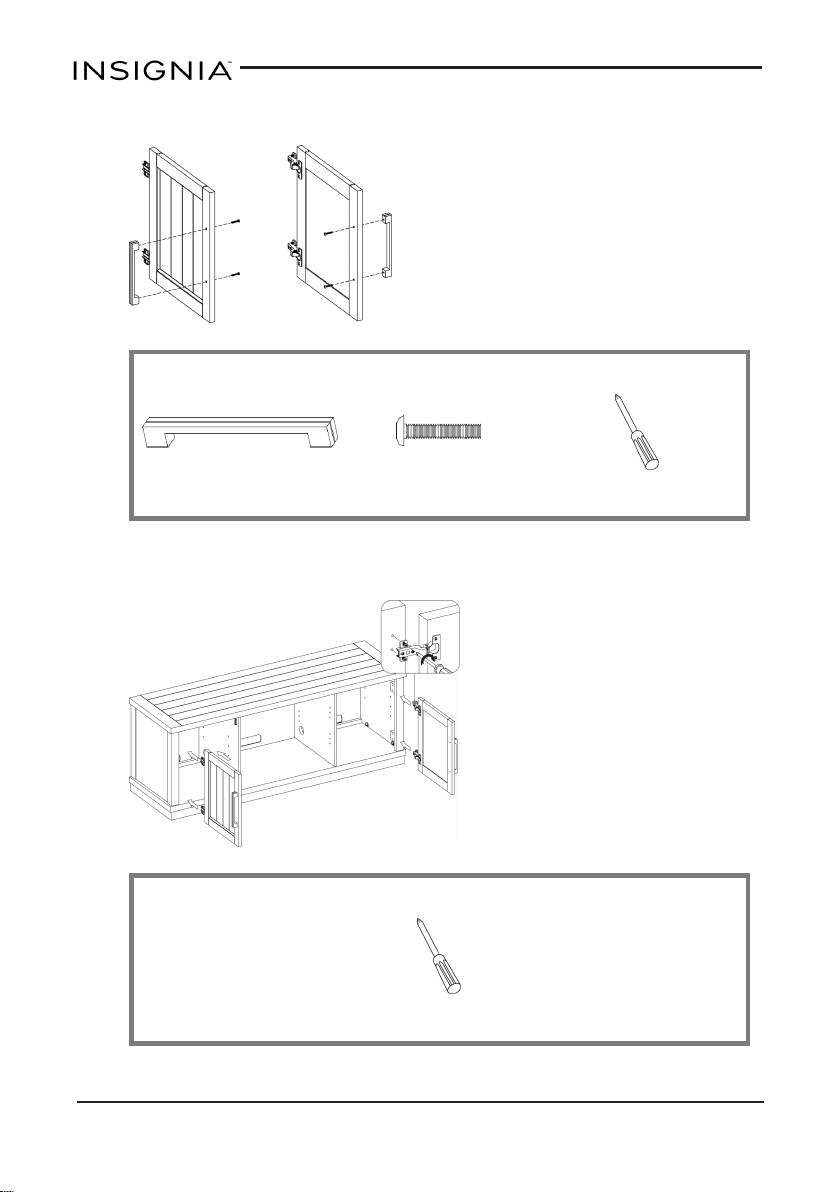

2Align the handles with the holes on the front of the doors, then use a Phillips
screwdriver to attach the handles with the 4 × 22 mm screws.
You’ll need:
V (2) K (4)
Phillips screwdriver
3With the hinges in the open position, align the hinge's pre-assembled
screws with the holes in the sides of the TV stand (use the middle holes),
then use a Phillips screwdriver to secure.
You’ll need:
Phillips screwdriver
www.insigniaproducts.com
12
NS-HW1764G

4If a door is not aligned correctly, loosen or tighten the screws on the hinges
to adjust their alignment.
You’ll need:
Phillips screwdriver
INSTALLING THE SHELVES
lInsert the shelf supports at the height that you want your shelves, then slide
the shelves into place.
You’ll need:
O (16) I (2) J (2)
www.insigniaproducts.com
13
64"Wood Finish TV Stand

LEVELING YOUR TVSTAND

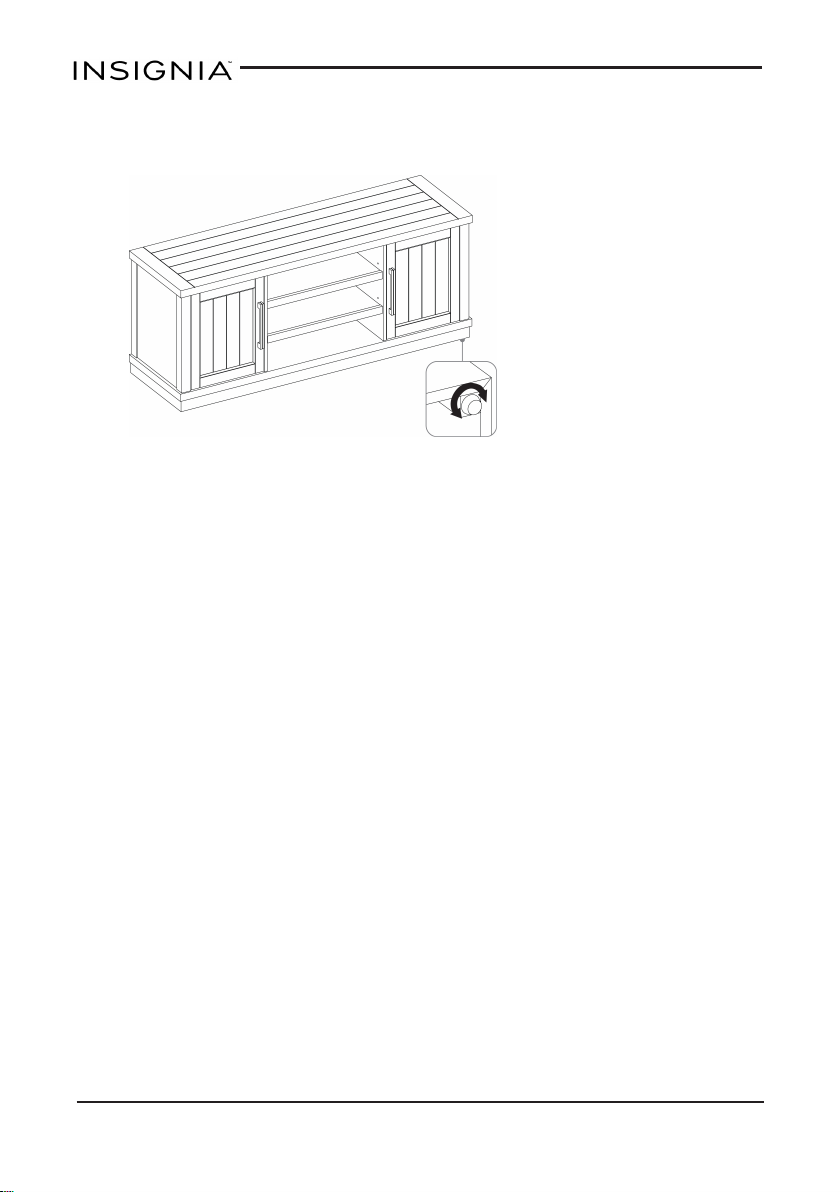

lIf your TV stand is not level, turn your stand onto its back and tighten or
loosen the leveling feet on the bottom.
Care and maintenance
lUse your favorite type of furniture polish.
lDo not spray directly onto the stand. Spray onto a soft cloth then wipe the
stand.
lAlways test any polish in a discrete location first, such as the back of the
stand, to make sure that there is no adverse reaction.
lDust frequently with a soft cloth.
lNever slide objects across surfaces. Lift objects from the top surface rather
than dragging them across the finish when moving them.
lDo not expose your stand to direct sunlight, drying heat sources, or
dampness.
www.insigniaproducts.com
14
NS-HW1764G

One-Year Limited Warranty
Definitions:
The Distributor* of Insignia branded products warrants to you, the original
purchaser of this new Insignia-branded product (“Product”), that the Product shall
be free of defects in the original manufacturer of the material or workmanship for a
period of one (1) year from the date of your purchase of the Product (“Warranty
Period”).
For this warranty to apply, your Product must be purchased in the United States or
Canada from a Best Buy branded retail store or online at www.bestbuy.com or
www.bestbuy.ca and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the
Product. Your purchase date is printed on the receipt you received with the
Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or
workmanship of the Product is determined to be defective by an authorized
Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair
the Product with new or rebuilt parts; or (2) replace the Product at no charge with
new or rebuilt comparable products or parts. Products and parts replaced under
this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you
must pay all labor and parts charges. This warranty lasts as long as you own your
Insignia Product during the Warranty Period. Warranty coverage terminates if you
sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location, please take your
original receipt and the Product to any Best Buy store. Make sure that you place
the Product in its original packaging or packaging that provides the same amount
of protection as the original packaging. If you purchased the Product from a Best
Buy online web site (www.bestbuy.com or www.bestbuy.ca), mail your original
receipt and the Product to the address listed on the web site. Make sure that you
put the Product in its original packaging or packaging that provides the same
amount of protection as the original packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY or in
Canada call 1-866-BESTBUY. Call agents may diagnose and correct the issue
over the phone.
www.insigniaproducts.com
15
64"Wood Finish TV Stand

Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded
retail stores or websites to the original purchaser of the product in the county
where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
lCustomer instruction/education
lInstallation
lSet up adjustments
lCosmetic damage
lDamage due to weather, lightning and other acts of God, such as power
surges
lAccidental damage
lMisuse
lAbuse
lNegligence
lCommercial purposes/use, including but not limited to use in a place of
business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private
home.
lModification of any part of the Product, including the antenna
lDisplay panel damaged by static (non-moving) images applied for lengthy
periods (burn-in).
lDamage due to incorrect operation or maintenance
lConnection to an incorrect voltage or power supply
lAttempted repair by any person not authorized by Insignia to service the
Product
lProducts sold “as is” or “with all faults”
lConsumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
lProducts where the factory applied serial number has been altered or
removed
lLoss or Theft of this product or any part of the product
lDisplay panels containing up to three (3) pixel failures (dots that are dark or
incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of
the display size or up to five (5) pixel failures throughout the display. (Pixel
based displays may contain a limited number of pixels that may not function
normally.)
lFailures or Damage caused by any contact including but not limited to
liquids, gels or pastes.
www.insigniaproducts.com
16
NS-HW1764G

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL
NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF
YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS
MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE
PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET
FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED,
WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES
AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR
PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China
www.insigniaproducts.com
17
64"Wood Finish TV Stand

1-877-467-4289 (U.S. and Canada)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2016 Best Buy. All rights reserved.
Made in China.
V1 ENG
15-0536
