Inspire FT1 Supplement

ASSEMBLY & OPERATION MANUAL
RECORD SERIAL NUMBER HERE
www.inspirefitness.net by Health In Motion LLC June 2011

TABLE OF CONTENTS
uSection Description………………………………………………….. Page
uBefore You Begin…………………………………………………………. 1
uImportant Safety Notices……………………………………………. 2
uTools Requires……………………………………………………………… 2
u
Parts List…………………..………………………………………………….. 3
uHardware Sizing Chart ………………………………………………… 4
uAssembly Instructions………………………………………………….. 5-16
uExploded Diagram……………………………………………………….. 17
uGeneral Maintenance Information…….………………………… 18
uMaintenance Schedule…….………………………………………….. 19
uLimited Warranty.………………………….……………………………. 20
BEFORE YOU BEGIN
Read this entire manual before attempting to build or use your gym. This
manual contains step by step instructions for proper assembly.
Use the parts list included in this manual to verify that all parts are
accounted for before assembly. If any parts are missing, contact the retailer
of this home gym for replacement parts. Or, call Inspire at 714-738-1729
Service of your home gym should only be preformed by an authorized
INSPIRE retailer. Service preformed by anyone else can result in loss of
warranty. Use only Inspire replacement parts on this machine. The use of
any other brand of parts can also result in a loss of warranty. If you need
help finding an authorized retailer, please contact us directly:
Inspire Fitness
4945 East Hunter Ave.
Anaheim, CA 92807
Ph: 877-738-1729
Fx: 714-738-1728
www.inspirefitness.net
PAGE 1 6/2011

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your
machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other
abnormal symptoms, STOP the workout at once. Consult a Physician.
4. Position the machine on a clear, leveled surface. Do not use outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual.
8. Disabled persons should not use the machine without a qualified
person or physician in attendance.
9. Always do stretching exercises to properly warm up before using
machine.
10. Never operate the machine if it is not functioning properly.
11. A spotter is recommended during exercise.
12. Maximum user weight on bench is 300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
Tools Required for Assembling the Machine: Adjustable Wrench and Allen
Wrenches. NOTE: Two or more people assembling this machine is a must.
DO NOT attempt to assemble this machine alone.
PAGE 2 6/2011

PARTS LIST
Part#
Description Q'ty
(pcs)
Part#
Description Q'ty
(pcs)
1Right Station Assembly 1
33 Left Inner Logo Plate 1
2Left Station Assembly 1
34 Shroud Mount Bar 4
3Upper Frame Assembly 1
35 Hanger Panel 1
4Lower Cross Brace 1
36 Height Adjustment Handle 2
5Upper Cross Brace 1
37 Rubber Bumper 4
6Guide Rod Bracket&Ring Cap 2
38 Plastic Washer 2
7Guide Rod 4
39 Hook 2
8Exercise Chart Hanger Bracket 2
40 M6 x 5/8”Allen Bolt 16
9Exercise Chart Hanger 1
41 M10 x 3 1/8”Allen Bolt 4
10 Selector Stem Assembly 2
42 M10 x 2 ¾” Allen Bolt 8
11 Support Frame for Weight Stack 4
43 M10 x 1”Allen Bolt 4
12 Weight Selector Pin 2
44 M10 x ¾” Allen Bolt 4
13 Weight Plate 30
45 M5 x 3/8”Allen Bolt 2
14 Upper Hanger Bracket 1
46 M8 x ½” Allen Bolt 1
15 Lower Hanger Bracket 1
47 Ø ¾” Lock Washer 8
16 Upper Hanger 1
48 M10 Aircraft Nut 8
17 Middle Hanger 1
49 Ø 7/8”Washer 21
18 Lower Hanger 1
50 Ø 1”Washer 28
19 Middle Hanger Bracket 1
51 Ø ¾” Washer 12
20 Rope 152 D-shaped Washer 1
21 Sports Handle 1
53 #6 Allen Wrench (Tool) 1
22 Curl Bar 1
54 #5 Allen Wrench (Tool) 1
23 Straight Bar 1
55 #4 Allen Wrench (Tool) 1
24 Single Handle 2
56 #17 Crossing Wrench (Tool) 1
25 Chin Up Belt 1
57 Flip Exercise Chart 1
26 Ankle Strap 1
58 Resistance Label Set 2
27 Outer Fabric Shroud 2
59 M8 x 5/8”Allen Bolt 20
28 Inner Fabric Shroud 4
60 Ø 2”Tension Adjustment Plate 2
29 Lower Shroud Mount 4
61 Pulley 2
30 Left Outer Logo Plate 1
62 U-shaped Pulley Bracket 2
31 Right Outer Logo Plate 1
63 5LBS Weight Block 2
32 Right Inner Logo Plate 1
PAGE 3 6/2011

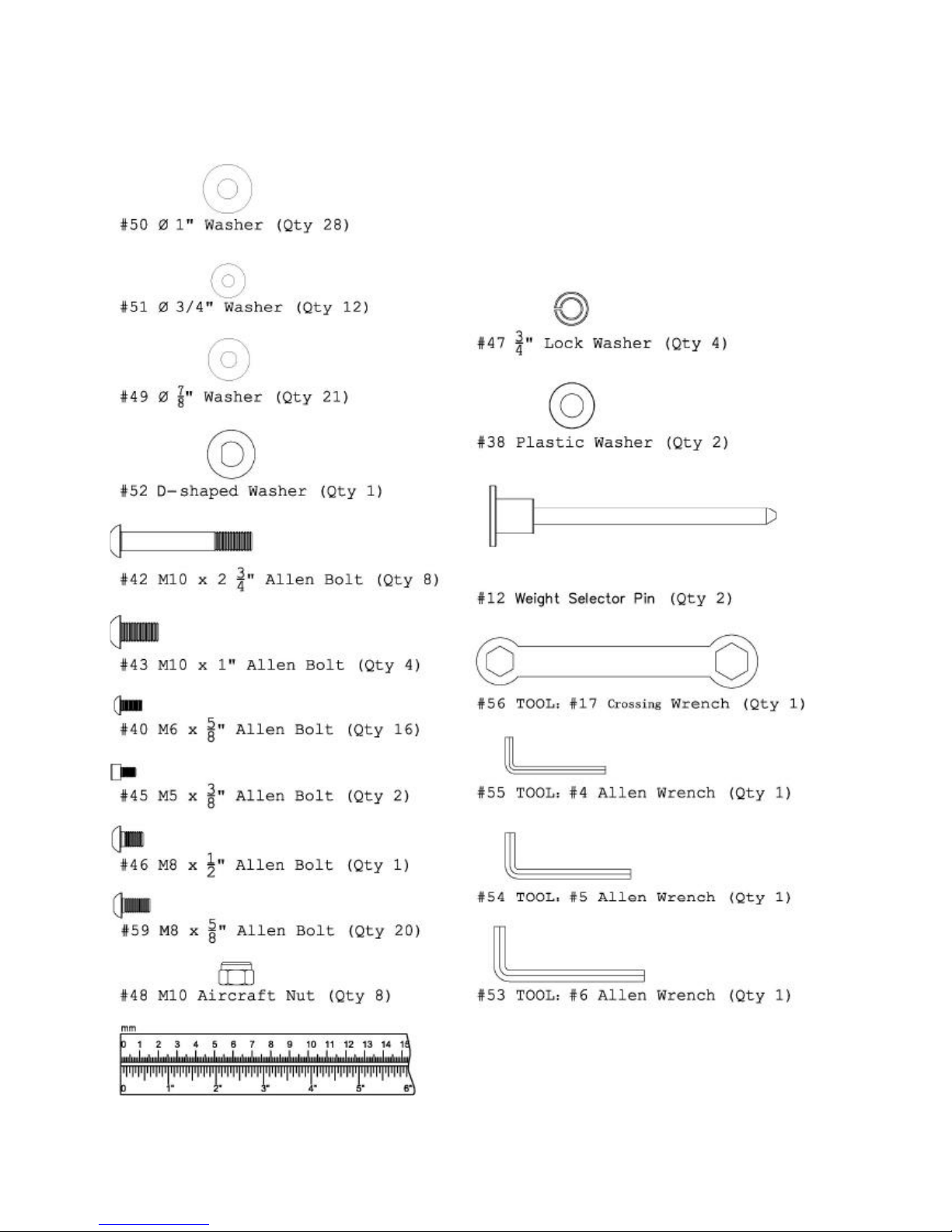

HARDWARE SIZING CHART
PAGE 4 6/2011

FUNCTIONAL TRAINER ASSEMBLY INSTRUCTIONS
STEP 1 (See Diagram 1)
A.) Do not tighten the Nuts and Bolts until instructed to do so.
B.) Place the Lower Cross Brace (#4) between the Right & Left
Stations (#1 & #2) in the mid-span.
C.) Attach one end of the Lower Cross Brace to the Right Station.
Secure it with two M10 x 2 ¾” Allen Bolts (#42), four Ø 1” Washers
(#50), and two M10 Aircraft Nuts (#48). Repeat the same
procedure to install the other side.
D.) Repeat Procedure B & C to install the Upper Cross Brace (#5).
E.) Place the Upper Frame (#3) on top of the Right and Left Stations.
F.) Secure each end with two M10 x 1” Allen Bolts (#43), two Ø ¾”
Lock Washers (#47), and
Ø 1” Washers (#50). G.) Securely tighten all Nuts and Bolts
installed
PAGE 5 6/2011

Diagram 1
PAGE 6 6/2011

STEP 2 (See Diagram 2)
A.) Lift up the Selector Stem (#10) on the Right Station (#1) and
hold it still to release the tension on the cables. Remove the two
M10 x ¾” Allen Bolts (#44), Ø ¾” Spring Washers (#47), and Ø 1”
Washers (#50) which were pre-assembled in the factory to hold the
Guide Rod Bracket (#6).
B.) Pull the two Guide Rods (#7) away from the Upright. Remove
the Guide Rod Bracket (#6) from the top of the Guide Rods.
C.) Remove the Selector Stem (#19) from the Guide Rods.
D.) Slide fifteen 10lb Weight Plates (#13) from the top of Guide
Rods down to the Rubber Bumpers (#37). Make sure the weight
sticker cut out is facing the inside of the machine.
E.) Slide the Selector Stem back onto the Guide Rods. Hold the
Selector Stem above the weight stack to make it easier to re-install
Guide Rods and Bracket.
F.) Re-install the Guide Rod Bracket (#6) onto the Guide Rods.
G.) Push the Guide Rod Bracket back into the upright.
H.) Secure the Bracket back to the upright frame with the two M10
x ¾” Allen Bolts (#44), Ø ¾” Spring Washers (#47), Ø1” Washers
(#50).
I.) Lower the Selector Stem down onto the top of the weight stack.
J.) Check all the cables to make sure they are on track on the
pulleys.
K.) Peel off the weight resistance label from the Resistance Label
Set (#58) and attach to the plates.
L.) Insert the Weight Selector Pin (#12) into the weight stack.
M.) Lubricate the Guide Rods with super lube or lube provided.
N.) If Needed, Adjust the Cable tension by first loosening the M10 x
2” Allen Bolt (#10) then rotate the Tension Adjustment Plate (#60)
clock or counterclockwise to move the Bolt and the Large Pulley
(#61) up and down along the open track inside the U-shaped Pulley
Bracket (#62). Once desired tension is achieved, securely tighten
the Bolt (#10) back.
O.) Repeat the Procedure A through N above to install the other set
of weight plates to the Left Station (#2).
PAGE 7 6/2011

Diagram 2
PAGE 8 6/2011

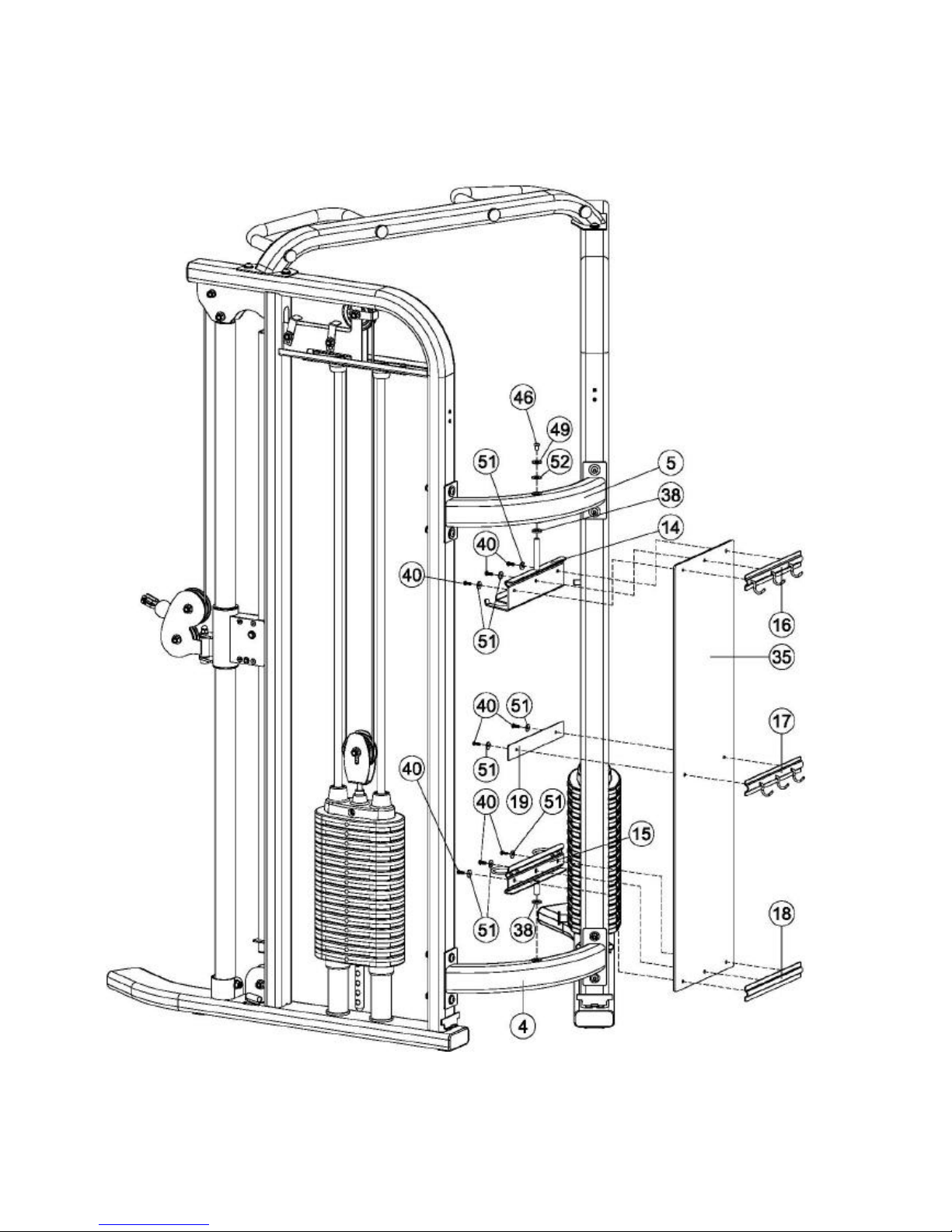

STEP 3 (See Diagram 3)
A.) Slide a Plastic Washer (#38) onto the axle on Upper Hanger
Bracket (#14). Insert the axle through the Upper Cross Brace (#5)
from bottom. Secure it with one M8 x ½” Allen Bolt (#46), one Ø
7/8” Washer (#49), and one D-shaped Washer (#52).
B.) Slide a Plastic Washer (#38) onto the axle on Lower Hanger
Bracket (#15). Insert the axle into the Lower Cross Brace (#4) from
top.
C.) Do not tighten the Bolts until instructed to do so.
D.) Attach the Hanger Panel (#35) to the Upper Hanger Bracket.
Attach the Upper Hanger (#16) to the Hanger Panel. Align the holes.
Secure them together with three M6 x 5/8” Allen Bolts (#40) and Ø
¾” Washer (#47).
E.) Repeat Procedure D to install the Lower Hanger (#18).
F.) Attach the Middle Hanger Bracket (#19) and the Middle Hanger
(#17) to the Hanger Panel from each side. Align the holes. Secure
them together with two M6 x 5/8” Allen Bolts (#40) and Ø ¾”
Washer (#51).
G.)Securely tighten all the Bolts.
PAGE 9 6/2011

Diagram 3
PAGE 10 6/2011

STEP 4 (See Diagram 4) (Attach Shrouds)
Start on the Right Side of the gym.
A.) Slide two panels of the Inner Fabric Shroud (#28) onto a Shroud
Mount Bar (#34) so the seams face inside. Attach the Shroud
Mount Bar (#34) to the inside upper frame as shown, using two
M8x5/8” Allen Bolts (#59) and two Ø 7/8” Washers (#49). Please
Note: The ends of the Shroud Mount Bar are slotted. Be sure to
position the bolts in the center of both slots and tighten completely.
B.) Slide a Lower Shroud Mount (#29) through the bottom loops of
the two Inner Fabric Shroud panels (#28) in Step A. Attach the
Lower Shroud Mount (#29) to the gym frame by sliding one end
into the frame insert. The other end latches under the notched
flange and attaches with one M6X5/8” Allen Bolt (#40).
C.) Attach the Right Inner Logo Plate (#32) as shown using three
M8x5/8” Allen Bolts (#59) and three Ø 7/8” Washers (#49)
D.) Slide the Outer Fabric Shroud (#27) onto a Shroud Mount Bar so
the seams face inside.
(#34) Attach the Shroud Mount Bar (#34) to the outside upper
frame as shown, using two M8x5/8” Allen Bolts. (#59) and two Ø
7/8” Washers (#49). Please Note: The ends of the Shroud Mount
Bar are slotted. Be sure to position the bolts in the center of both
slots and tighten completely.
E.) Slide a Lower Shroud Mount (#29) through the bottom loop of
the Outer Fabric Shroud (#27) in Step D. Attach the Lower Shroud
Mount (#29) to the gym frame by sliding one end into the frame
insert. The other end latches under the notched flange and
attaches with one M6X5/8” Allen Bolt (#40).
F.) Repeat steps A through E to install shrouds to the Left Side of
the gym.
Note: To loosen or tighten the shrouds release the Lower Shroud
Mount (#29) from the gym. Next loosen the two bolts in the Shroud
Mount Bar (#34). Adjust the Shroud Mount Bar (#34) up to tighten
or down to loosen. Once desired position is found, tighten the bolts
that secure the Shroud Mount Bar (#34). Then reattach the Lower
Shroud Mount by following step B.
PAGE 11 6/2011

Diagram 4
PAGE 12 6/2011

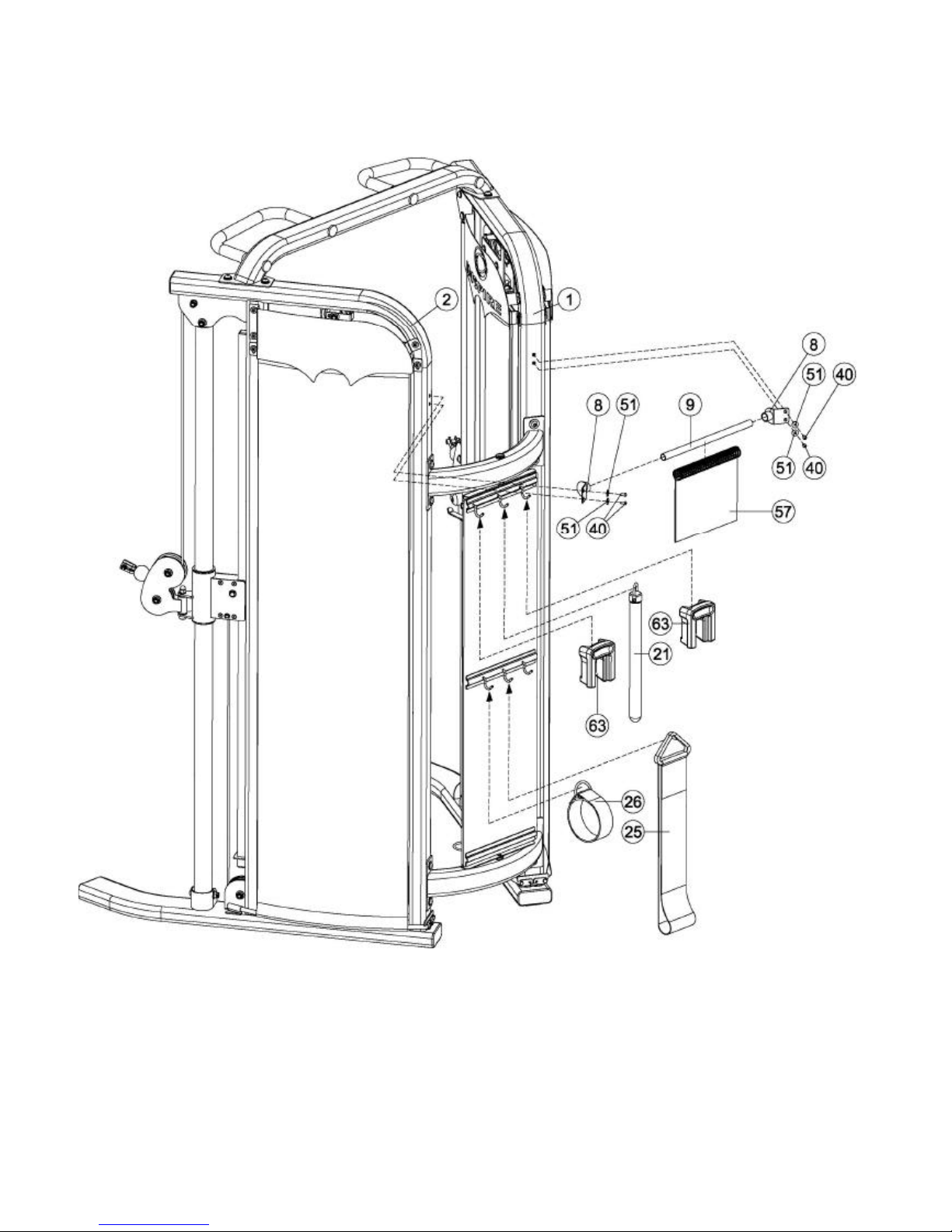

STEP 5 (See Diagram 5)
A.) Attach one Exercise Chart Hanger Bracket (#8) to the Right
Station (#1). Secure it with two M6 x 5/8” Allen Bolts (#40) and Ø
¾” Washers (#51). Do not tighten the Bolts yet.
B.) Slide the Flip Exercise Chart (#57) onto the Exercise Chart
Hanger (#15).
C.) Attach the Hanger (#15) to the Bracket (#8).
D.) Secure the other Bracket (#8) to the Left Station (#2) with two
M6 x 5/8” Allen Bolts (#40) and ؾ” Washers (#51).
E.) Securely tighten all Bolts installed.
F.) Hang the Sports Handle (#21), both 5lb. Add-on Weights (#63),
Chin Up Belt (#25) & Ankle Strap (#26) onto Upper & Middle
Hanger.
PAGE 13 6/2011

Diagram 5
PAGE 14 6/2011

STEP 6 (See Diagram 6)
A.) Attach the Height Adjustment Handle (#36) to the Right Lock
Switch (#10) on the Pulley Carriage (#8) Not Shown on Diagram.
Secure it with one M5 x 3/8” Allen Bolt (#45). Repeat the same
procedure to install the other side.
B.) Connect the Single Handle (#24) to the Cable (#2) on the Right
Station (#1) with a Spring Clip (#39). Repeat the same procedure
to install the other side.
C.) Replace the Single Handle with the Ankle Strap (#26), or Sports
Handle (#21) for various Leg Exercises.
D.) Lift up the Height Adjustment Handle (#36) and slide the Pulley
Carriage (#8) along the Pulley Carriage Support Frame to the
selected level. Release the Handle to lock the Pulley Carriage in
position.
E.) Store Curl Bar (#22), Straight Bar (#23), Rope (#20) onto the
Upper and Lower Hanger Bracket (#14) & (#15).
PAGE 15 6/2011

Diagram 6
PAGE 16 6/2011

PAGE 17 6/2011

GENERAL MAINTENANCE INFORMATION
Warning: DO NOT place styrofoam or printed materials on the
orthopedic seat pads. Over time, these may stick to the pads and
mar the surface.
Do not leave items sitting on the orthopedic seat pads, these pads
have a special density that takes shape to objects and small objects
will leave imprints in the surface that may take time to come out.
• Periodically inspect the cables for splitting, cracking or fraying. Also,
watch for bulging or flat areas in the cable.
• Immediately replace cables at the first signs of damage or wear. Never
use equipment with damaged or worn cables.
• Cables naturally stretch over time, so check cable slack periodically and
adjust cable tension as needed.
• Regularly inspect product for loose hardware.
• Do not use or store equipment outdoors.
• Inspect snap links, swivels, handles and weight stack pin for wear or
damage. If wear or damage exists, replace immediately.
• Locate and familiarize yourself with all warning decals on the home gym.
• Replace damaged or worn upholstery immediately.
• Periodically wipe down guide rods with a dry cloth and re-apply a thin coat
of a teflon-based lubricant.
PAGE 18 6/2011

MAINTENANCE SCHEDULE
ROUTINE HOME
MAINTENANCE
ENTRY DATE
Inspect: Links, Pull Pins,
Snap Links, Swivels,
Weight Stack Pins WEEKLY
Clean: Upholstery WEEKLY
Inspect: Cables and
their Fittings WEEKLY
Inspect: Tautness of all
Shrouds WEEKLY
Inspect: Accessory Bars
and Handles 3 MONTHS
Inspect: All Decals 3 MONTHS
Inspect: All Nuts and
Bolts. Tighten if Needed
3 MONTHS
Inspect: Anti-Skid
surfaces 3 MONTHS
Clean and Lubricate:
Guide Rods with a Teflon
based lubricant 3 MONTHS
Lubricate: Seat Sleeves
and all Plastic Slides 3 MONTHS
Clean and Wax: All
Glossy Finishes YEARLY
Replace: Cables, Belts
and Connecting Parts 2 YEARS
PAGE 19 6/2011
