Inspire FTX Supplement

FTX ASSEMBLY & OPERATION MANUAL
RECORD SERIAL NUMBER HERE
www.inspirefitness.com by Health In Motion LLC May 2020

CONGRATULATIONS… You’ve just taken the first step to a healthier
and stronger body. This multi-gym by Inspire offers the key to unlocking
your body’s potential. Regular strength training on a multi-gym has been
shown to deliver a host of benefits including: increased muscle tone,
decreased body fat, improved energy levels, a reduction in stress, and
improved cardiac output. Once again, congratulations, you are on your way
to improving your self image, overall health, and quality of life.
BEFORE ASSEMBLING YOUR HOME GYM
IMPORTANT: Read this entire manual before attempting to build or use
this machine. This manual contains step by step instructions for proper
assembly.
Use the parts list included in this manual to verify that all parts are
accounted for before assembly. If any parts are missing, contact the retailer
of this multi-gym for replacement parts. Or, call Inspire at 877-738-1729.
Make sure that adequate room has been cleared before attempting to build
your multi-gym. A rubber mat is recommended for use under your
multi-gym to protect wood flooring or carpeting from damage during
assembly and usage.
This multi-gym is intended for indoor use only. Rust can form on certain
parts including guide rods in a humid environment, resulting in impaired
function.
Service of your multi-gym should only be performed by an authorized
Inspire retailer. Service performed by anyone else can result in loss of
warranty. If you need help finding an authorized retailer, please contact us
directly:
Inspire Fitness
255 Airport Cir, Suite 101
Corona, CA 92880
Ph: 877-738-1729
Fx: 714-738-1728
www.inspirefitness.com
05/2020

TABLE OF CONTENTS
Section Description……………………………………………………. Page
Important Safety Instructions………………………………………. 1
Tools Required………………………………………………………………… 1
Parts & Hardware List……………………………………………………. 2-4
Exploded View …………………………………………………………………. 5
Assembly Instructions……………………………………………………. 6-11
Decal Placement……………………………………………………………… 12
General Maintenance Information…….…………………………… 13
Maintenance Schedule…….……………………………………………… 14
Limited Warranty…………………………………………………………….. 15
05/2020

IMPORTANT SAFETY NOTICE PRECAUTIONS
This exercise machine is built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your
machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other
abnormal symptoms, STOP the workout at once. Consult a Physician.
4. Position the machine on a clear, leveled surface. Do not use outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. Running or
aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual.
8. Disabled persons should not use the machine without a qualified person
or physician in attendance.
9. Always do stretching exercises to properly warm up before using
machine.
10. Never operate the machine if it is not functioning properly.
11. A spotter is recommended during exercise.
TOOLS REQUIRED FOR ASSEMBLY
Tools Required for Assembling the Machine: Adjustable Wrench and Allen
Wrenches. NOTE: Two or more people assembling this machine is a must.
DO NOT attempt to assemble this machine alone
PAGE 1 05/2020

part list
Part#
Description
Part Number
Q'ty
(pcs)
1
Right Station Assembly
GM692200408PZ
1
2
Left Station Assembly
GM692200409PZ
1
3
Upper Frame Assembly
GM692220002PZ02
1
4
Lower Cross Brace
GM690260001PT0105
1
5
Upper Cross Brace
GM692300004PT0105
1
6
Guide Rod Bracket & Ring Cap
GM692381001PT0105
GM692-881-002
2
7
Guide Rod
GM692-381-002
4
8
Selector Stem Assembly
GM692500003PZ10
2
9
Weight Selector Pin
GM692-500-004
2
10
Weight Plate
30
11
Rope
GM692-881-011
1
12
Curl Bar
GM691320003PZ02
1
13
Single Handle
GM660820001WX07
2
14
Chin Up Belt
GM692-400-005SK
1
15
Height Adjustment Handle
GM691-880-003SK
2
16
Rubber Bumper
GM692-881-003
4
17
Hook
0200-070-082
2
18
M10 x 80 Allen Bolt
0113-210-806
4
19
M10 x 70 Allen Bolt
0113-210-708
8
20
M10 x 25 Allen Bolt
0113-210-258
4
21
M10 x 19 Allen Bolt
0113-210-208
4
22
M5 x 10 Allen Bolt
0113-705-088
2
23
Ø10 Lock Washer
0116-310-028
8
24
M10 Aircraft Nut
0110-710-008
8
25
Ø10 Washer
0116-210-508
28
26
Resistance Label Set
GM692-900-001
2
27
U-shaped Pulley Bracket
GM692-500-002
2
28
Ø2”Tension Adjustment Plate
GM690-501-006
2
29
M10 x 2”Allen Bolt
0113-210-508
2
30
Pulley
GM692-880-001
2
31
Right Lock Switch
GM690-320-003
1
32
Left Lock Switch
GM690-320-004
1
Tool List
33
#6 Allen Wrench (Tool)
0511-606-03
1
34
#4 Allen Wrench (Tool)
0511-604-01
1
35
14#&17# Wrench (Tool)
M330-561-002
1
Page 2 05/2020

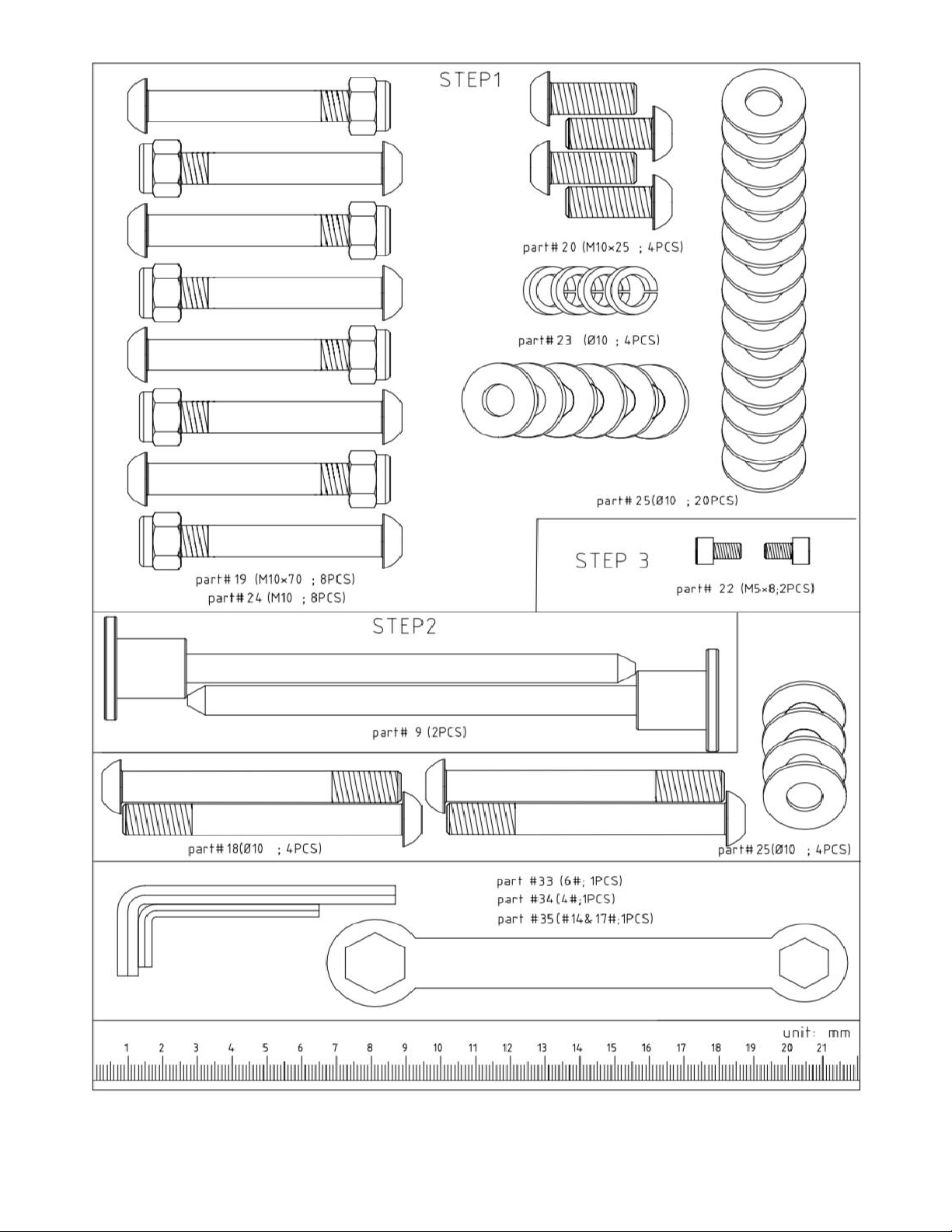

HARDWARE SIZING CHART
Page 3 05/2020

Page 4 05/2020

Page 5 05/2020

FUNCTIONAL TRAINER ASSEMBLY INSTRUCTIONS

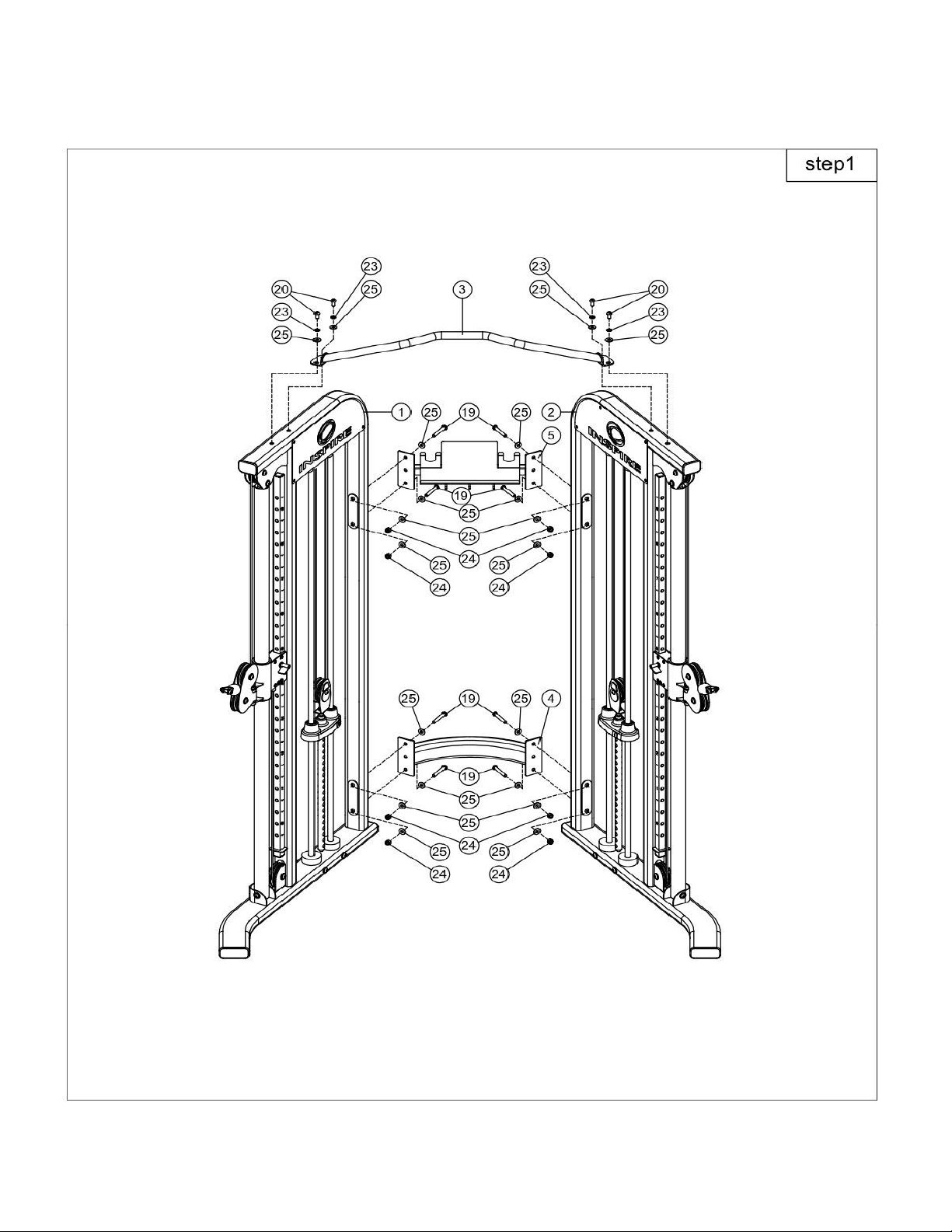

STEP 1
A.) Do not tighten the Nuts and Bolts until instructed to do so.
B.) Place the Lower Cross Brace (#4) between the Right & Left
Stations (#1 & #2) in the mid-span.
C.) Attach one end of the Lower Cross Brace to the Right Station.
Secure it with two M10 x 70 Allen Bolts (#19) four Ø 10 Washers
(#25), and two M10 Aircraft Nuts (#24). Repeat the same
procedure to install the other side.
D.) Repeat Procedure B & C to install the Upper Cross Brace (#5).
E.) Place the Pull Up Bar Assembly (#3) on top of the Right and Left
Stations.
F.) Secure each end with two M10 x 25 Allen Bolts (#20), two Ø 10
” Lock Washers (#23), and Ø 10 Washers (#25).
G.) Securely tighten all Nuts and Bolts installed.
Page 6 05/2020

Page 7 05/2020

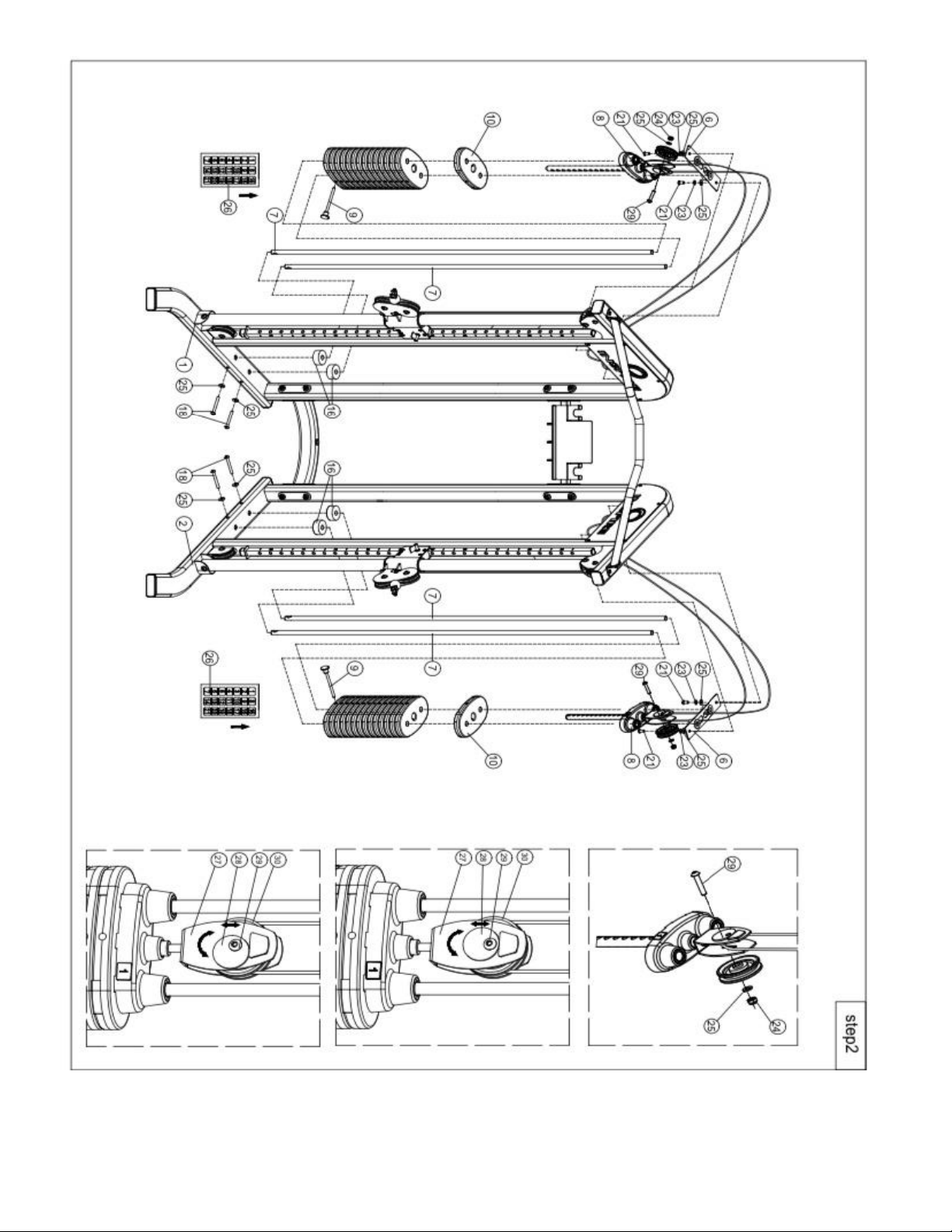

STEP 2
A.) Install Guide Rods (#7) into holes on bottom Frame using M10 x
80 Allen Bolt (#18) and Ø 10 Spring Washers (#25). Tighten bolts
now.
B.) Install Rubber Bumpers (#16) on each Guide Rod (#7). Slide
fifteen 10lb Weight Plates (#10) from the top of Guide Rods (#7)
down to the Rubber Bumpers (#16). Make sure the weight sticker
cut out is facing the inside of the machine.
C.) Remove the two M10 x 19 Allen Bolts (#21), Ø 10 Spring
Washers (#23), and Ø 10 Washers (#25) which were pre-
assembled in the factory to hold the Guide Rod Bracket (#6). Slide
the Selector Stem Assembly (#8) onto the Guide Rods (#7). Install
Large Pulley (#30) and wrap the cable between the U-shaped Pulley
Bracket (#27) using the M10 x 2 (#29) Allen Bolt located on the
Selector Steam Assembly (#8).
D.) Hold the Selector Stem Assembly (#8) above the weight stack
to make it easier to install Guide Rod Bracket (#6) on Guide Rods
(#7).
E.) Once the Guide Rod Bracket (#6) is installed onto the Guide
Rods (#7), Push the Guide Rod Bracket back into the upright.
F.) Secure the Bracket back to the upright frame with the two M10 x
19 Allen Bolts (#21), Ø 10 lock Washers (#23), Ø 10mm Washers
(#25).
G.) Lower the Selector Stem down onto the top of the weight stack.
H.) Check all the cables to make sure they are on track on the
pulleys.
I.) Peel off the weight resistance label from the Resistance Label
Set (#26) and attach to the plates.
J.) Insert the Weight Selector Pin (#9) into the weight stack.
K.) Lubricate the Guide Rods with super lube or lube provided in
Hardware Pack.
L.) If Needed, Adjust the Cable tension by first loosening the M10 x
2 (#29) Allen Bolt located on the Selector Steam Assembly (#8)
then rotate the Tension Adjustment Plate (#28) clock or
counterclockwise to move the Bolt and the Large Pulley (#30) up
and down along the open track inside the U-shaped Pulley Bracket
(#27). Once desired tension is achieved, securely tighten the Bolt
(#29) back.
M.) Repeat the Procedure A through N above to install the other set
of weight plates to the Left Station. (#2)
Page 8 05/2020

Page 9 05/2020

STEP 3
A.) Attach the Height Adjustment Handle (#15) to the Left Lock
Switch (#32) on the Pulley Carriage. (Not shown on diagram) And
secure it with one M5 x 10 Allen Bolt (#22). Repeat the same
procedure to install the other side.
B.) Connect the Single Handle (#13) to the Cable (#1) on the Right
Station (#1) with a Spring Clip (#17). Repeat the same procedure
to install the other side.
D.) Lift up the Height Adjustment Handle (#15) and slide the Pulley
Carriage along the Pulley Carriage Support Frame to the selected
level. Release the Handle to lock the Pulley Carriage in position.
E.) Store Curl Bar (#12), and Rope (#11) onto the
Hanger Bracket behind the Upper Cross Brace (#5). Hang Chin Up
Belt (#14) on Upper Cross Brace (#5).
Page 10 05/2020

Page 11 05/2020

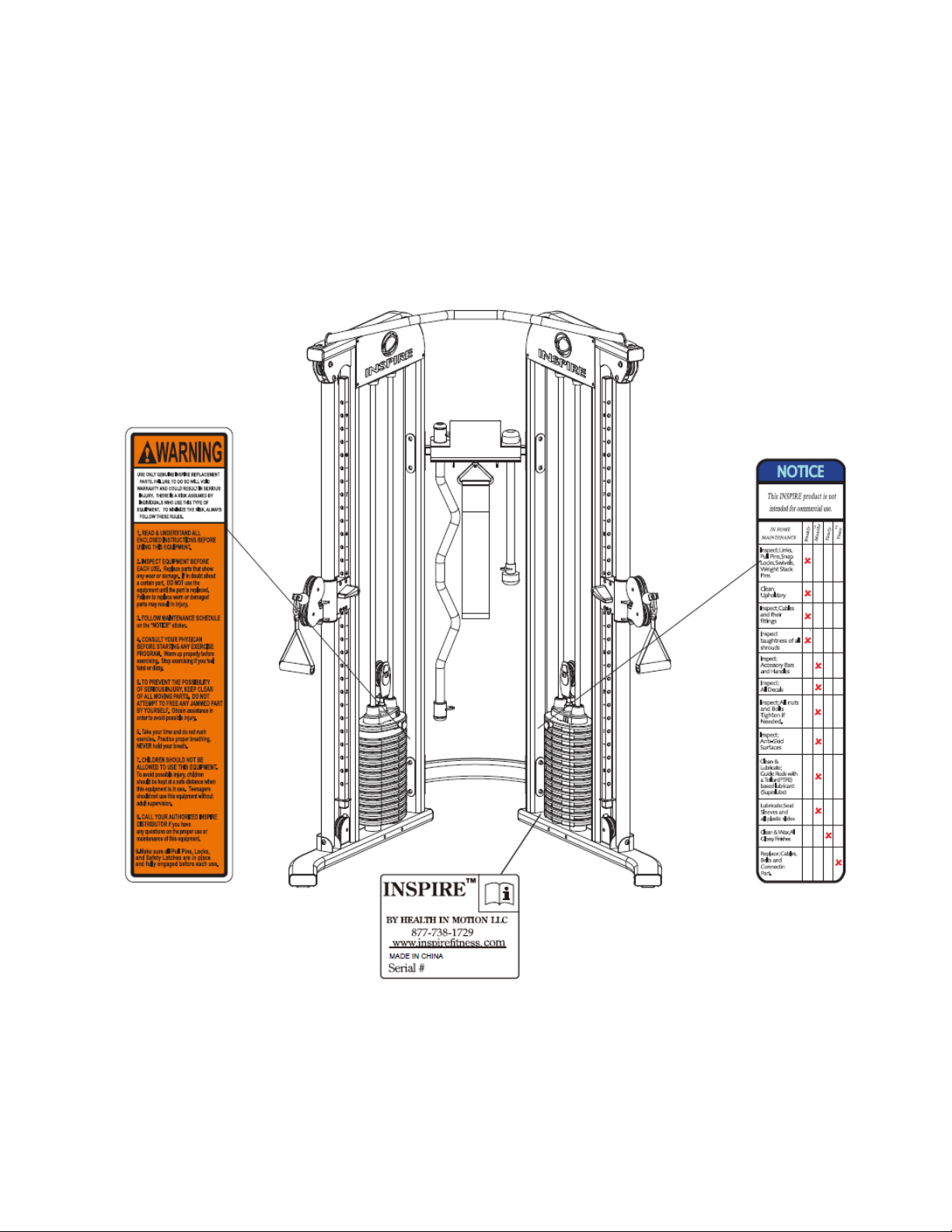

DECAL PLACEMENT
Page 12 05/2020

GENERAL MAINTENANCE INFORMATION
• Periodically inspect the cables for splitting, cracking or fraying. Also,
watch for bulging or flat areas in the cable.
• Immediately replace cables at the first signs of damage or wear. Never
use equipment with damaged or worn cables.
• Cables naturally stretch over time, so check cable slack periodically and
adjust cable tension as needed.
• Regularly inspect product for loose hardware.
• Do not use or store equipment outdoors.
• Inspect snap links, swivels, handles, and weight stack pins for wear or
damage. If wear or damage exists, replace immediately.
• Locate and familiarize yourself with all warning decals on the multi-gym.
• Replace damaged or worn upholstery immediately.
• Periodically wipe down guide rods with a dry cloth and re-apply a thin coat
of a Teflon-based lubricant.
Page 13 05/2020

MAINTENANCE SCHEDULE
ROUTINE
HOME
MAINTENANCE
ENTRY DATE
Inspect: Links, Pull
Pins, Spring Clips,
Swivels, Weight Stack
Pins
WEEKLY
Clean: Upholstery
WEEKLY
Inspect: Cables and
their Fittings
WEEKLY
Inspect: Tautness of all
Shrouds
WEEKLY
Inspect: Accessory Bars
and Handles
3 MONTHS
Inspect: All Decals
3 MONTHS
Inspect: All Nuts and
Bolts. Tighten if
Needed
3 MONTHS
Inspect: Anti-Skid
surfaces
3 MONTHS
Clean and Lubricate:
Guide Rods with a
Teflon based lubricant
3 MONTHS
Lubricate: Seat Sleeves
and all Plastic Slides
3 MONTHS
Clean and Wax: All
Glossy Finishes
YEARLY
Replace: Cables, Belts
and Connecting Parts
2 YEARS
Page 14 05/2020

Warranty.
This Warranty applies to Inspire Strength products manufactured or distributed by Health In Motion LLC.
CONSUMER USE:
LIMITED LIFETIME FRAME:
Includes Frame and Welds
LIMITED LIFETIME PARTS:
Includes Upholstery, Hardware, etc.
LIMITED LIFETIME MOVING PARTS:
Includes Pulleys, Cables, etc.
PLEASE NOTE THIS INSPIRE PRODUCT IS NOT MADE FOR COMMERCIAL USE
Using a non-commercial product in a commercial setting can result in serious injury or death!
Health In Motion warrants that the Product you have purchased for light-commercial, personal, family or household use from Health In
Motion LLC or from an authorized Health In Motion reseller is free from defects in materials or workmanship under normal use during
the warranty period. Your sales receipt, showing the date of purchase of the Product, is your proof of the date of purchase. This
warranty extends only to you, the original purchaser. It is not transferable to anyone who subsequently purchases the Product from
you. It excludes expendable parts such as paint and finish. This Warranty becomes VALID ONLY if the Product is assembled /
installed according to the instructions / directions included with the Product.
Replacement and repair of parts.
During the warranty period Health In Motion will, at no additional charge, repair or replace the Product if it becomes defective,
malfunctions, or otherwise fails to conform with this Warranty under normal light-commercial, personal, family, or household use. In
repairing the product Health In Motion may replace defective parts with, at the option of Health In Motion, serviceable used parts that
are equivalent to new parts in performance, or new parts. All exchanged parts and Products replaced under this warranty will become
the property of Health In Motion. Health In Motion reserves the right to change manufacturers and or specification of any part to cover
any existing warranty.
Service procedures.
To obtain warranty parts, you must return the parts to Health In Motion or an authorized Health In Motion retailer in its original container
(or equivalent). You must pre-pay any shipping charges, taxes, or any other charges associated with transportation of the Product. In
addition, you are responsible for insuring any Product shipped or returned. You assume the risk of loss during shipment. You must
present Health In Motion with proof-of-purchase documents (including the date of purchase, Model, and Serial Number). Any evidence
of alteration, erasing or forgery of proof -of-purchase documents will be cause to void this Warranty. Register your warranty online visit
www.inspirefitness.com
Conditions and Exceptions.
This Warranty does not extend to any Product not purchased from Health In Motion LLC or from an authorized Health In Motion
reseller. This Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident,
misuse, or abuse; (b) by the use of parts not manufactured or sold by Health In Motion; (c) by modification of the Product; (d) as a result
of service by anyone other than Health In Motion, or an authorized Health In Motion warranty service provider; (e) product that has not
been properly maintained (follow maintenance schedule found on product). Should any product submitted for Warranty service be
found to be ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon Health In Motion
receipt of payment or acceptable arrangement of payment.
Disclaimer
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY HEALTH IN MOTION MAKES NO OTHER WARRANTIES;
EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. HEALTH IN MOTION EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS WARRANTY. NEITHER HEALTH IN
MOTION NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. HEALTH
IN MOTION IS NOT RESPOSIBLE FOR THE REPAIR OR REPLACEMENT OF ANY PARTS THAT HEALTH IN MOTION
DETERMINES HAVE BEEN SUBJECTED AFTER THE DATE OF MANUFACTURE TO ALTERATION, NEGLECT, ABUSE, MISUSE,
NORMAL WEAR & TEAR, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, OR ANY ACT OF GOD.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU. This Warranty gives you specific legal rights and you may also have other rights that may vary from state to state.
This is the only express warranty applicable to Health In Motion’s “Inspire” branded strength products. Health In Motion neither
assumes nor authorizes anyone to assume for it any other express warranty.

Page 15 05/2020
