Inspire SCS-1 Installation and operating instructions

SCS-1
INSPIRE
SMITHCAGESYSTEMOPTION-1
ASSEMBLYANDOPERATIONMANUAL
(SCS-0 SMITH CAGE
SOLDSEPARATELY)
RECORD SERIAL NUMBER HERE
www.inspirefitness.net byHealthInMotion 07-23-09

CONGRATULATIONS… You’ve just taken the first step to a healthier and
stronger body. This Smith Cage System Option-1 by Inspire Fitness offers
the key to unlocking your body’s potential. Regular strength training has
been shown to deliver a host of benefits including: increased muscle tone,
decreased body fat, improved energy levels, a reduction in stress, and
improved cardiac output. Once again, congratulations, you are on your way
to improving your self image, overall health, and quality of life.
BEFORE ASSEMBLING YOUR HOME GYM
CAUTION: Two people are required to assemble the Smith Cage System
Option-1 to ensure that parts do not fall that could result in injury to the
persons assembling the gym.
IMPORTANT: Read this entire manual before attempting to build or use
this equipment. This manual contains step by step instructions for proper
assembly.
Use the parts list included in this manual to verify that all parts are
accounted for before assembly. If any parts are missing, contact the retailer
of this Smith Cage System for replacement parts. Or, call Inspire Fitness
at 714-738-1729 or 877-738-1729.
Make sure that adequate room has been cleared before attempting to build
your Smith Cage System Option-1. A rubber mat is recommended for use
under your Smith Cage System to protect wood flooring or carpeting from
damage during assembly and usage.
The Smith Cage System is intended for indoor use only. In addition,
garages and screened in porches are not recommended due to high
humidity or dust. Rust could form on certain parts, including linear bearing
shafts, in a humid environment resulting in impaired function.
Service of your Smith Cage System should only be performed by an
authorized Inspire Fitness retailer. Service performed by anyone else can
result in loss of warranty. If you need help finding an authorized retailer,
please contact us directly:
Inspire Fitness
637 S. State College Blvd.
Fullerton, CA 92831
Ph: 714-738-1729 or 877-738-1729
Fx: 714-738-1728
www.inspirefitness.net

TABLE OF CONTENTS
Section Description……………………………………………………. Page
Important Safety Instructions………………………………………. 1
Tools Required………………………………………………………………… 1
Parts & Hardware List……………………………………………………. 2
Hardware Chart …………………………………………………………….. 3
Assembly Instructions……………………………………………………. 4
General Maintenance Information and Schedule………… 6
Limited Warranty…………………………………………………………….. 7

IMPORTANT SAFETY INSTRUCTIONS
Please read this entire manual and familiarize yourself with all decals and
warnings before using this Smith Cage System Option-1.
• WARNING! It is necessary to inspect this Smith Cage System Option-1
regularly to maintain safety and proper function. Please use the
maintenance schedule included towards the back of this manual.
Immediately replace any and all defective or worn parts. Pay special
attention to moving parts. See General Maintenance section for
complete details.
• Use this Smith Cage System Option-1 for its intended purpose as
described in this Operation Manual or the exercise chart. Do not use
attachments not recommended by the manufacturer.
• Make sure bystanders are at least 5 feet away from the Smith Cage
System Option-1 while it is in use.
• Keep children away from the Smith Cage System Option-1 at all times.
• Keep the Smith Cage System Option-1 away from walls and clear of any
obstructions and furniture.
• Stop immediately if you experience shortness of breath, pain, or
dizziness during your workout. Inspire Fitness strongly recommends
consulting your doctor before starting an exercise program.
TOOLS REQUIRED FOR ASSEMBLY
• 9/16” wrench
• 3 mm Allen wrench – supplied
PAGE 1

PARTS & HARDWARE LIST
Item Parts Description SCS-1 Box Qty Qty
Rec'd Item Hardware Description SCS-1 Qty Qty Rec'd
1 Weight Bar 1 1 Bolt, 3/8-16 x 3/4" L (Blue Dot) 8
2 Weight Holder 2 2 3/8” Washer 8
3 Linear Bearing shaft 2
4 Top Shaft Mount 2 3 3 mm Allen Wrench 1
5 Bottom Shaft Mount 2
Page 2

Hex Bolt 3/8"
Allen Wrench
3/8" Washer
ACTUAL PARTS MAY BE SMALLER OR LARGER THAN SHOWN
1" 2" 3" 4" 5" 6" 7"
Page 3

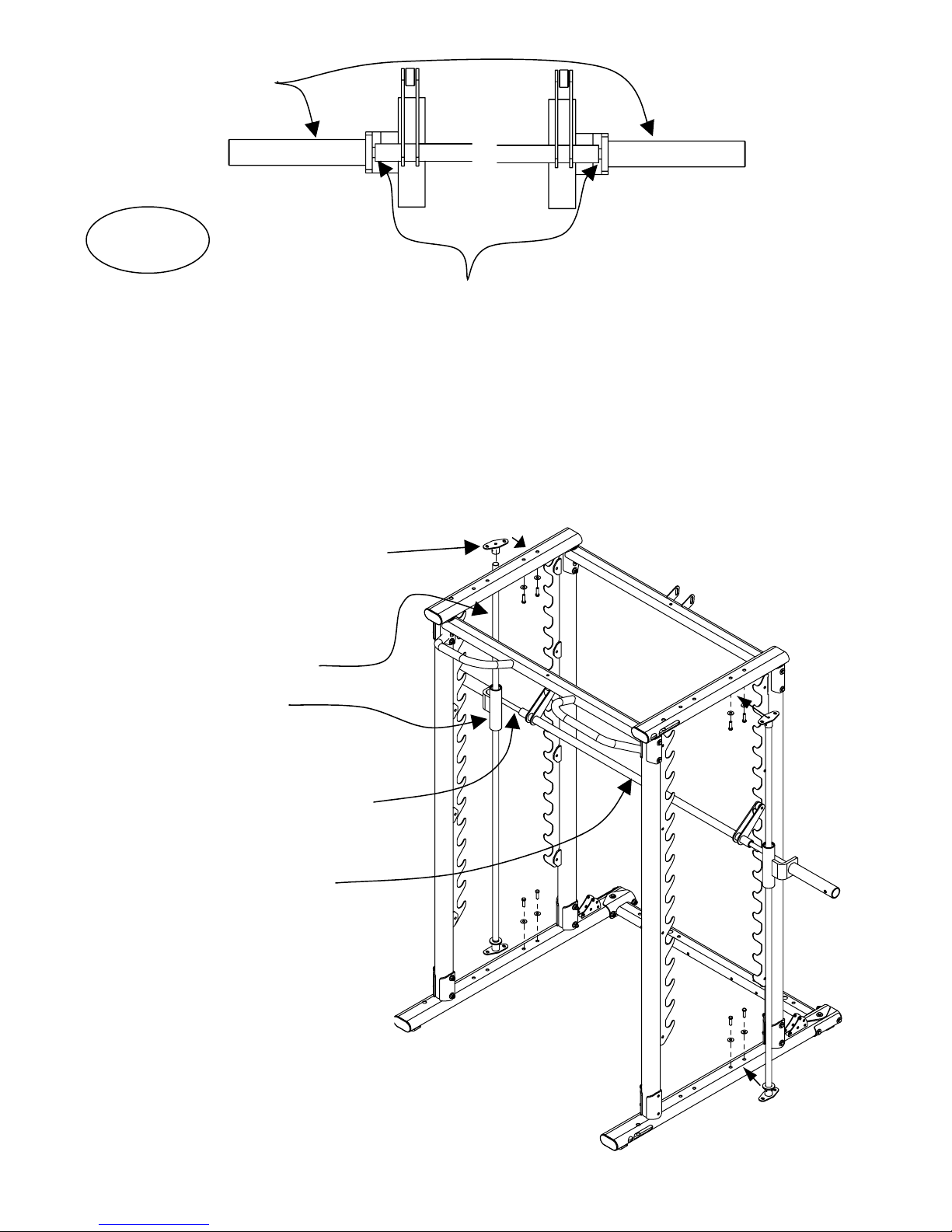

Top Shaft Mount with Racks
Slotted Adjustment Holes
Step 1
WeightBarAssembly
Step 2
Linear Bearing Shaft
WeightHolder
Step 3
Smaller diameter Weight Holder shaft
4 - 3/8” x ¾”L Bolts
4 - 3/8” Flat Washers
Step 4
4 - 3/8” x ¾”L Bolts
4 - 3/8” Flat Washers
Bottom Shaft Mount with
SlottedAdjustmentHoles
Setscrews
Step 1: Position the Red Weight Bar Assembly on the Hooks of the front Racks.
(NOTE: The SCS-1 can also be installed on the rear Racks as shown on the next page.)
Step 2: Slide a Linear Bearing shaft into one of the Weight Holders. Orient the Weight Holder as shown.
Place a Bottom Shaft Mount onto the Shaft assuring it is fully seated and tighten the
setscrews. Next, place a Top Shaft Mount on the Shaft before positioning it into the Cage (do not
tighten Top Mount setscrews at this time)
Step 3: Gently guide the small diameter shaft of the Weight Holder into the Red Weight Bar Assembly
and secure the Top and Bottom Shaft Mounts to the Cage using:
Four (3/8” x ¾”L Bolts)
Four(3/8”FlatWashers)
(Finger Tighten Only)
Step 4: Repeat Steps 2 and 3 for the second side Linear Shaft and Weight Holder using:
Four (3/8” x ¾”L Bolts)
Four(3/8”FlatWashers)
(Finger Tighten Only)
Page4

WeightHolder
Step 5
Step 5: Adjust the spacing between the Weight Holders and the ends of the Red Weight Bar Assembly by
moving the Linear Bearing Shafts in or out (using the adjustment slots in the Top and Bottom Shaft
Mounts) before final tightening of the bolts. These components should not rub or bind when
workingout.
(Wrench Tighten Everything Now)
To attach the SCS-1 Option to the rear Racks, repeat steps 1 thru 5
using the rear set of mounting holes as shown below.
Top Shaft Mount with Slotted Adjustment Holes
Linear Bearing Shaft
WeightHolder
Smaller diameter Weight Holder shaft
WeightBarAssembly
Page5

Training Tips
CONSULT A PHYSICIAN BEFORE STARTING ANY EXERCISE PROGRAM
1. Always warm up before you start weight training. This helps get
your muscles warm and prevents injury. You can warm up with light
cardio or by doing a light set of each exercise before going to heavier
weights.
2. Control the weight. Always work with a weight that you can handle
through a full range of motion. Slow and steady movements are
recommended.
3. Breathe. Don’t hold your breath during your set. Holding your
breath builds internal pressure which increases your change for broken
blood vessels, as well as a hernia.
4. Sit up straight. Pay attention to your posture and keep everything
straight. Engage your abs in every movement to keep balanced and
protect your spine.
GENERAL MAINTENANCE INFORMATION AND SCHEDULE
• Regularly inspect product for loose hardware, wear, or damaged
hardware or parts. If wear or damage exists, replace immediately.
• Do not use or store equipment outdoors.
• Locate and familiarize yourself with all warning decals on the home gym.
• Periodically wipe down Linear Shafts with a dry cloth and re-apply a thin
coat of a teflon-based lubricant.
ROUTINE HOME
MAINTENANCE ENTRY DATE
Inspect: All Nuts and
Bolts. Tighten if Needed 3 MONTHS
Clean and Lubricate:
Linear shafts with a
Teflon based lubricant 3 MONTHS
Inspect: All Decals 3 MONTHS
Clean and Wax: All
Glossy Finishes YEARLY
PAGE6

LIMITED WARRANTY
In-Home Lifetime Warranty.
This Warranty applies only in the United States to Inspire strength products manufactured or distributed by Health In
Motion LLC. The warranty period to the original purchaser is lifetime of the original purchaser.
Health In Motion warrants that the Product you have purchased for non-commercial, personal, family or household
use from Health In Motion LLC or from an authorized Health In Motion reseller is free from defects in materials or
workmanship under normal use during the warranty period. Your sales receipt, showing the date of purchase of the
Product, is your proof of the date of purchase. This warranty extends only to you, the original purchaser. It is not
transferable to anyone who subsequently purchases the Product from you. It excludes expendable parts such as paint
and finish. This Warranty becomes VALID ONLY if the Product is assembled / installed according to the instructions /
directions included with the Product.
Replacement and repair of parts.
During the warranty period Health In Motion will at no additional charge, repair or replace the Product if it becomes
defective, malfunctions, or otherwise fails to conform with this Warranty under normal non-commercial, personal,
family, or household use. In repairing the product Health In Motion may replace defective parts with, at the option of
Health In Motion, serviceable used parts that are equivalent to new parts in performance, or new parts. All exchanged
parts and Products replaced under this warranty will become the property of Health In Motion. Health In Motion
reserves the right to change manufacturers and or specification of any part to cover any existing warranty.
Service procedures.
To obtain warranty parts, you must return the parts to Health In Motion or an authorized Health In Motion retailer in
its original container (or equivalent). You must pre-pay any shipping charges, taxes, or any other charges associated
with transportation of the Product. In addition, you are responsible for insuring any Product shipped or returned. You
assume the risk of loss during shipment. You must present Health In Motion with proof-of-purchase documents
(including the date of purchase, Model, and Serial Number). Any evidence of alteration, erasing or forgery of proof -
of-purchase documents will be cause to void this Warranty.
Conditions and Exceptions.
This Warranty does not extend to any Product not purchased from Health In Motion LLC or from an authorized Health
In Motion reseller. This Warranty does not extend to any Product that has been damaged or rendered defective; (a)
as a result of accident, misuse, or abuse; (b) by the use of parts not manufactured or sold by Health In Motion; (c) by
modification of the Product; (d) as a result of service by anyone other than Health In Motion, or an authorized Health
In Motion warranty service provider; (e) product that has not been properly maintained (follow maintenance schedule
found on product). Should any product submitted for Warranty service be found to be ineligible, an estimate of repair
cost will be furnished and the repair will be made if requested by you upon Health In Motion receipt of payment or
acceptable arrangement of payment.
Disclaimer
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY HEALTH IN MOTION MAKES NO OTHER WARRANTIES;
EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. HEALTH IN MOTION EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS
WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS
WARRANTY. NEITHER HEALTH IN MOTION NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES. HEALTH IN MOTION IS NOT RESPOSIBLE FOR THE REPAIR OR REPLACEMENT OF
ANY PARTS THAT HEALTH IN MOTION DETERMINES HAVE BEEN SUBJECTED AFTER THE DATE OF MANUFACTURE TO
ALTERATION, NEGLECT, ABUSE, MISUSE, NORMAL WEAR & TEAR, ACCIDENT, DAMAGE DURING TRANSIT OR
INSTALLATION, FIRE, FLOOD, OR ANY ACT OF GOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. This Warranty gives you specific legal rights and
you may also have other rights that may vary from state to state. This is the only express warranty applicable to
Health In Motion’s “Inspire” branded strength products. Health In Motion neither assumes nor authorizes anyone to
assume for it any other express warranty.
