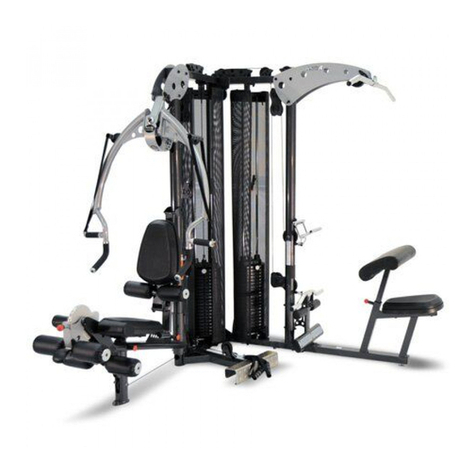

Inspire M5 User manual

M5.2 ASSEMBLY &
OPERATION MANUAL
RECORD SERIAL NUMBER HERE
www.inspirefitness.net by Health In Motion LLC Mar. 2015

CONGRATULATIONS… You’ve just taken the first step to a healthier
and stronger body. This multi-gym by Inspire offers the key to unlocking
your body’s potential. Regular strength training on a multi-gym has been
shown to deliver a host of benefits including: increased muscle tone,
decreased body fat, improved energy levels, a reduction in stress, and
improved cardiac output. Once again, congratulations, you are on your way
to improving your self image, overall health, and quality of life.
BEFORE ASSEMBLING YOUR HOME GYM
IMPORTANT: Read this entire manual before attempting to build or use
this machine. This manual contains step by step instructions for proper
assembly.
Use the parts list included in this manual to verify that all parts are
accounted for before assembly. If any parts are missing, contact the retailer
of this multi-gym for replacement parts. Or, call Inspire at 877-738-1729.
Make sure that adequate room has been cleared before attempting to build
your multi-gym. A rubber mat is recommended for use under your
multi-gym to protect wood flooring or carpeting from damage during
assembly and usage.
This multi-gym is intended for indoor use only. Rust can form on certain
parts including guide rods in a humid environment, resulting in impaired
function.
Service of your multi-gym should only be preformed by an authorized
Inspire retailer. Service preformed by anyone else can result in loss of
warranty. If you need help finding an authorized retailer, please contact us
directly:
Inspire Fitness
255 Airport Circle
Suite 101
Corona, CA 92880
Ph: 877-738-1729
Fx: 714-738-1728
www.inspirefitness.net

TABLE OF CONTENTS
Section Description……………………………………………………. Page
Important Safety Instructions………………………………………. 1
Tools Required………………………………………………………………… 1
Parts & Hardware List……………………………………………………. 2
Cable Chart ……………………………………………………………………. 3
Assembly Instructions……………………………………………………. 4-23
Decal Reference……………………………………………………………… 24-25
Decal Placement……………………………………………………………… 26
Accessories……………………………………………………………………… 27
General Maintenance Information…….…………………………… 28
Maintenance Schedule…….……………………………………………… 29
Limited Warranty…………………………………………………………….. 30

IMPORTANT SAFETY INSTRUCTIONS
Please read this entire manual and familiarize yourself with all decals and
warnings before using this multi-gym.
• WARNING! It is necessary to inspect this multi-gym regularly to
maintain safety and proper function. Please use the maintenance schedule
included towards the back of this manual. Immediately replace any and all
defective or worn parts. Pay special attention to moving parts such as the
cables and pulleys and connections to accessories. See General
Maintenance section for complete details.
• Use this multi-gym for its intended purpose as described in this Operation
Manual or the exercise chart. Do not use attachments not recommended by
the manufacturer.
• Do not hang from press arm. The press arm is not designed to
support human weight.
• Make sure bystanders are at least 5 feet away from the multi-gym while
it is in use.
• Keep children off the multi-gym at all times.
• Keep the multi-gym away from walls and clear of any obstructions and
furniture.
• Stop immediately if you experience shortness of breath, pain, or dizziness
during your workout. Inspire strongly recommends consulting your
doctor before starting an exercise program.
TOOLS REQUIRED FOR ASSEMBLY
• Metric socket set (including 16mm, 17mm, 18mm, and 19mm sockets)
• Metric 16mm, 17mm, 18mm, and 19mm wrenches
• 4mm, 5mm, and 6mm Hex Keys (supplied in the hardware packs)
• Adjustable wrench
• Tape Measure
• Rubber Mallet
PAGE 1

Item Parts Description Qty
EVS p/n Item Parts Description Qty EVS p/n
1Main Frame, Lat Station 157 4 1/2" Pulley 2
2Main Upright, Press Arm 158 Small Pulley, Leg Extension 2
3Lat Seat Frame 159 3 1/2" Pulley 25
4Seat Base Frame 160 Press Arm Exercise Placard 1
5Preacher Curl Stem 161 Cable Ball 4
6Foot Rest Assembly 162 "U" Bracket Cable End 4
7Seat Stem Assembly 163 Floating Pulley Bracket 1
8Back Pad Mount 164 Press Arm Cover Plate 1
9Upper Shroud Mount Bracket 265 Lat Exercise Placard 1
10 Double D Low Row Handle Mount 166 Press Arm Bearing Assembly 2
11 Lower Pulley Mount 167 Rubber Donut 4
12 Press Arm Mount 168 Placard Hanger Bracket Assy 4
13 Press Arm Assembly 169 Large Plastic Washer 4
14 Back Pad Support Frame 170 Weight Plate 40
15 Leg Extension Assembly 171 Adjustment Bumper 1
16 Double D Low Row Handle 172 Cable Adapter 2
17 Revolving Aluminum Lat Bar 173 Corner Bracket 1
18 Revolving Aluminum Curl Bar 174 Flat Head Nut, M6 4
19 Calf Block Attachment Arm 175 Button Head Bolt, M6*15 4
20 Floating Pulley Bracket Assembly 176 Weight Pin Lanyard Assembly 2
21 Adjustable Stop 277 Top Weight/Selector Stem Assembly 2
22 Top Beam Plate, Press Arm 278 Spring Clip 4
23 Top Beam Plate, Lat Station 279 Flat Washer, M8 8
24 Pulley Bracket 180 Washer, Φ25.4*Φ10*2 14
25 Barrel Spacer, 1" long 181 Locknut, M8 4
26 Lower Guide Rod Mount 282 End Cap, Black Plastic 2
27 Cam Plate 183 Flat Head Bolt, M10*25 6
28 Floating Pulley Plate 484 Button Head Bolt, M5*12 1
29 Swivel Pulley Assy, Lat Station 185 Hex Nut, M12 2
30 Calf Raise Block 186 Flat Washer, M10 157
31 Shroud Plate Assembly 287 Flat Washer, M12 7
32 Shroud Plate 288 Curved Washer, M10 4
33 Shroud Bracket 489 Thin Locknut, M12, h=8mm 1
34 Preacher Curl Pad 190 Locknut, M10 76
35 Seat Pad 391 Locknut, M12 3
36 Small Covered Foam Roller 292 Button Head Bolt, M8*25 4
37 Thigh Pad 293 Hexagon Bolt, M10*100 7
38 Large Covered Foam Roller 494 Hexagon Bolt, M10*45 22
39 Covered Foam Roller with tube insert 295 Button Head Bolt, M10*20 2
40 Press Arm Lower Cable 196 Hexagon Bolt, M10*50 4
41 Leg Extension Cable 197 Hexagon Bolt, M10*95 12
42 Press Arm Middle Cable 198 Hexagon Bolt, M12*95 2
43 Press Arm Upper Cable 199 Hexagon Bolt, M12*110 1
44 Lat Lower Cable 1100 Hexagon Bolt, M10*105 3
45 Lat Upper Cable 1101 Hexagon Bolt, M10*110 1
46 Step Spacer, 1" long 10 102 Hexagon Bolt, M10*70 13
47 Step Spacer, 15mm long 2103 Flat Head Bolt, M10*70 2
48 Leg Extension Cam Assembly 1104 Hexagon Bolt, M10*60 4
49 Plastic Spacer Tube 2105 Hexagon Bolt, M10*35 4
50 Aluminum Endcap 6106 Hexagon Bolt, M10*20 15
51 Guide Rod 4107 Hexagon Bolt, M12*150 1
52 Shroud Plate Spacer 2108 Hexagon Bolt, M10*25 6
53 Shroud Plate Connector Pin 12 109 Flat Head Screw, M6 4
54 Fabric Shroud 2110 Hex Key Wrench, 6mm 1
55 D Handle Strap 2111 Hex Key Wrench, 5mm 2
56 Flat washer, M5 1112 Hex Key Wrench, 4mm 1
113 Thin Locknut, M10，h=8mm 4
Parts & Hardware List
Rev030915
Page 2

rev030215
M5 CABLE CHART
Press Arm Upper Cable p/n GM870-500-004
Leg Extension Cable p/n GM870-500-002
Press Arm Middle Cable p/n GM870-500-003
Lat Upper Cable p/n GM870-500-006
Cable lengths could change at any time without notice.
Lat Lower Cable p/n GM870-500-005
Cable lengths are in millimeters and for reference only.
Press Arm Lower Cable p/n GM870-500-001
2681
3386
1905
1885
3576
2886
PAGE 3

ASSEMBLY INSTRUCTIONS
PAGE 4

STEP 1
This step requires two people to be completed safely
A) Place the Main Frame (1) and the Main Upright (2) as shown and attach them using the
M10*95 bolts (97) and M10*20 bolts (106).
B) Attach the Corner Bracket (73) to the two frames using a M10*95 bolt (97) and M10*100
bolt (93).
Tighten all the hardware at this time.
PAGE 5

Calf Block Attachment Arm Flange
A
STEP 2
Do not tighten any hardware in Step 2 until specifically instructed.
A) Using the M10*100 bolt (93) attach the Seat Base Frame (4) to the Main
Upright (2).
B) Insert the M10*105 bolt (100) above the M10*100 bolt (93) in Step 2A.
C) Attach the Calf Raise Block (30) to the Calf Block Attachment Arm (19) using the M10*25
bolts (108). The flange on the Calf Block Attachment Arm should be positioned on the
inside of the Calf Raise Block.
D) Attach the Calf Block Attachment Arm (19) and the Lower Pulley Mount (11) to the Main
Upright using the two M10*105 bolts (100) and the M10*110 bolt (101). The slotted
holes in the Calf Raise Block Attachment Arm and Calf Raise Block are to allow up and
down adjustment to ensure the gym is level.
E) Tighten the hardware now by starting with bolt 93 (arrow A). Then tighten the Calf Block
Attachment Arm (19) to the Main Upright (2). Then tighten the Calf Raise Block (30) to
the Calf Raise Block Attachment Arm (19). Tighten all the remaining hardware in
Steps A-D at this time.
PAGE 6
30

1
82
36
102
86
97
90
86
82
36
90
86
102
86
86
86
90
97 86
90
3
6
88
21
STEP 3
A) Attach the Foot Rest Assembly (6) to the Lat Seat Frame (3) using the two M10*70 bolts
(102).
B) Attach the Lat Seat Frame (3) to the Main Frame (1) using two M10*95 bolts (97), four
M10 Flat Washers (86), and two M10 Locknuts (90).
C) Attach the Foot Rest Assembly (6) to the Main Frame (1) using the two M10*95 bolts (97)
with the Curved Washers (88) placed against the round tube upright on the Main Frame.
D) Adjust the Adjustable Stop (21) until it contacts the floor and tighten the Jam Nut.
E) Slide the two Small Covered Foam Rollers (36) onto the Foot Rest and secure with the two
black plastic End Caps (82).
Tighten all the hardware in Steps A-D at this time.
PAGE 7

Seat Base Frame
Selector Plate
4
STEP 4
A) Attach the bottom of the Back Pad Support Frame (14) to the Selector Plate on the Seat
Base Frame (4).
B) Attach the Back Pad Support Frame (14) to the Main Upright (2) using the M12*110
bolt (99). Tighten this bolt now but ensure that the Back Pad Support Frame can move
easily.
C) Attach the Back Pad Mount (8) to the Back Pad Support Frame (14) using the
M12*95 bolt (98). Tighten this bolt now but ensure that the Back Pad Mount (8)
moves easily.
D) Install the Large Covered Foam Rollers (38) onto the Back Pad Mount. Ensure that the
Large Plastic Washers (69) are placed on the Foam Roller tube first then the pad (38),
Aluminum End Cap (50) and then secure this with the M10*25 flat head screws (83).
Tighten now.
PAGE 8

STEP 5
A) Attach the Top Beam Plates (22) to the Main Upright (2) using the two M10*100 bolts
(93) and the smaller M10*20 bolts (106). Only screw in the smaller M10*20 bolts by a
couple of threads to allow the Top Beam Plates to move when inserting the Press Arm
Mount (12).
B) Carefully hang the Press Arm Mount (12) from the Top Beam Plates.
C) Slide the Press Arm Bearing Assemblies (66) onto the shaft of the Press Arm Mount and
attach to the Top Beam Plates using the four M10*20 bolts (106) with the eight smaller
M10 washers (86).
D) Install the two M10*20 button head bolts (95) with the large M10 washers (80) to the
center of the Press Arm Bearing Assemblies.
PAGE 9
95
95

Pulley 1
86
90
90
92
59 86
92
23
81
94
79 1
79
93
79
86
86
29
23
STEP 6
A) Install the 3.5” Pulley 1 (59) at the top of the Main Frame (1) using the M10*45 bolt (94).
Tighten this bolt now.
B) Install the Top Beam Plates (23), with the Inspire logo to the outside, to the Main Frame
using three of the M10*100 bolts (93). The lower bolt should be inserted into the lower
or back hole at the bottom of the Top Beam Plates. (The upper or forward hole is used for
less pre-stretch or for clearance under a lower ceiling.)
C) Attach Swivel Pulley (29) to Top Beam Plates (23) using four M8*25 Button Head Bolts
(92), eight M8 flat washers (79), and four M8 Locknuts (81).
Note: Use the hex key to hold the Button Head Bolts tight while tightening the locknuts.
Tighten all bolts now.
PAGE 10

86
90
86
86
77
70
104
67
105
86
52 113
86
105
102
90
90
102
86
26
2
76
113
31
32
86
51
Front of Weight Plate has a recessed area
for the Weight Plate Number Stickers
Bottom of Weight Plate has three feet
Two holes facing forward
STEP 7
A) Begin by placing the Lower Guide Rod Mount (26) on the Main Upright (2) as shown with
the flanges for bolt (105) towards the front of the gym. Attach the mount using two
M10*70 bolts (102). Tighten the bolts now.
B) Attach the Guide Rods (51) to the Lower Guide Rod Mount (26) using two M10*35 bolts
(105). Install one bolt from the front and one bolt from the back as shown above. Tighten
the bolts now. Do not allow the Guide Rods to bend the mounting bracket while performing
the next steps.
C) Place the Shroud Plate Spacer (52) on top of the Lower Guide Rod Mount (26). Next place
the Shroud Plate (32) on top of the Shroud Plate Spacer (52) and attach with two M10*60
bolts (104). Make sure the two holes in the face of the Shroud Plate face forward. Do not
tighten now.
D) Slide the Rubber Donuts (67) and 20 Weight Plates (70) onto the Guide Rods.
E) Slide the Top Weight/Selector Stem (77) onto the Guide Rods.
F) Now place the Shroud Plate Assembly (31) on the Guide Rods and bolt it to the top of the
Main Upright using two of the M10*70 bolts (102). Tighten this hardware, and Step C
hardware, now. Ensure that all the hardware is tight.
H) Attach the Weight Pin Lanyard Assembly (76) to the end of the Selector Stem sticking out
of the Top Weight Assembly (77).Tighten the two setscrews securely.
PAGE 11

113
70
77
51
76
102
86 31
90
86
90
86
1
67
104
86
32
52
86
26
105
113
90
86
102
105
86
86
STEP 8
Repeat the Step 7 instructions to complete Step 8 with the weight stack angled towards the
center of the gym as shown. If installing the LP3 Leg Press, then angle the weight stack towards
the outside of the gym.
PAGE 12

Pulley 3
Pulley 4
Pulley 5
Pulley 6
Pulley 8
Pulley 9
Pulley 7
Pulley
10
Press Arm Upper Cable
p/n 870-500-004
STEP 9
Attach pulleys 3 and 4 to the Main Upright (2) as shown with the M10*45 bolts (94). Pulley 5 is
assembled with the Floating Pulley Plates (28) and M10*45 bolts as shown. Pulley 6 is
assembled in the corner of the Main Upright between the Top Beam Plates (22) with the M10*45
bolt as shown. Pulleys 7 and 8 are installed inside the 3” round tube of the Main Upright. Pulley
7 is above Pulley 8 and they are installed with the 1” Step Spacers (46) as shown on both sides
of the tube. Pulleys 9 and 10 are attached to the Press Arm Mount (12) as shown with the
M10*70 bolts (103). Tighten all pulley hardware now.
To route the Upper Cable (43), start by laying it out on the floor to completely unwind it. Then
fully insert the threaded end into the Top Plate of the Weight Stack. With the other end, run the
cable up and over Pulleys 3 and 4 and then down and around Pulley 5 before going back up to
Pulley 6 in the corner of the gym. After routing over Pulley 6 run the cable down through the 3”
tube and around the bottom of Pulley 8 then to the bottom of Pulley 9 in the Press Arm Mount.
Continue back through the 3” round tube to run the cable around the bottom of Pulley 7. Head
back out of the 3” round tube to the bottom of Pulley 10 in the Press Arm Mount. Go around
Pulley 10 and secure the cable end to the bracket at the top of the 3” round tube as shown using
the M10*45 bolt and the Cable End (55) with Bushing (56) and tighten the hardware.
PAGE 13

Leg Extension
Cable
p/n 870-500-002
Pulley 11
Pulley 12
Pulley 13
The cable must go over
this plate or it will be
damaged.
Large ball end
STEP 10
A) Install Pulley 11 and 13 using the M10* 45 bolts (94). Install Pulley 12 using the M10*95
bolt (97) and two 1” Step Spacers (46) as shown in the drawing. Tighten the hardware at
this time.
B) On the Leg Extension Cam Assembly (48), remove the four flat head screws (109) and the
chrome Cam Plate (27). Insert the large ball end of the Leg Extension Cable (41) into the
recessed area and reinstall the chrome Cam Plate with the four screws. Tighten the
screws. Then feed the other cable end between the two small pulleys (58), over the
metal plate and down to Pulley 11 as shown in the enlarged drawing. Run the cable
behind Pulley 11 then down and under Pulley12 and then to the back of the gym. Be sure
the cable goes between Pulley 12 and the cable retainer rod welded inside the tube. You
will finish routing it after Step C.
C) Now insert the Leg Extension Cam Assembly (48) into the Leg Extension Assembly (15)
with the selector number “5” at the top. Now while holding them together, place them
between the two plates of the Seat Base Frame (4) and assemble using the M12*95 bolt
(98), flat washer (87), and thin locknut (89). Tighten this bolt but do not over tighten as
the Leg Extension must be able to rotate freely.
D) Now continue routing the cable by running it through the bottom of the Main Upright (2)
and under Pulley 13. You will finish installing this cable in Step 11A.
PAGE 14
89
98

Pulley 14
Pulley 15
Pulley 16
Eyelet end
of Cable
STEP 11
A) Insert the end of the Leg Extension Cable (41), from Step 10, into the Floating Pulley
Bracket Assembly (20) as shown in the circle diagram, slide on the Cable Adapter (72),
seat it in the pulley bracket and install Pulley 14 with M10*45 bolt (94).
B) Now with Press Arm Middle Cable (42), take the end with the eyelet and bolt it to the Main
Frame with M10*25 bolt (108) and tighten the hardware now. Then route the cable under
Pulley 14 through the Floating Pulley Bracket (20) and up the other side of the square
post. The Floating Pulley Bracket and Pulley 14 should now be positioned directly under
the post where the cable end is attached.
C) Attach Pulley 15 to the Floating Pulley Plates (28) with one M10*45 bolt and run the cable
over the top of the pulley and back down towards Pulley 16 (59). At Pulley 16, you will
first need to finish the cable end as in Step A above and then install the pulley into the
Floating Pulley Bracket (63) with one M10*45 bolt.
Tighten all hardware in this Steps A, B, and C above.
PAGE 15
Floating Pulley
Bracket Assembly
has a plate on the
bottom
Cable Adapter
Press Arm Middle Cable
p/n 870-500-003
72
41
20

Pulley 17
Press Arm Lower Cable
p/n 870-500-001
STEP 12
A) Install Pulleys 17 and 18 with M10*45 bolts (94) and tighten the hardware.
B) Begin routing the Lower Cable (40) by screwing the threaded end half way into the frame,
near Pulley 17, as shown and tighten the Jam Nut. Then route cable up and around Pulley
16, down around the bottom of Pulley 17 and then under Pulley 18.
C) Remove the hardware from the “U” Bracket (62). Assemble the cable end by sliding one
black Cable Ball (61) on the end of the cable just up to the little Rubber Donut then slide
the cable end into the side of the “U” Bracket. Bolt the Spring Clip (78) to the “U” Bracket
with the hardware. Retighten the “U” Bracket hardware now. Slide the Rubber Donut and
Cable Ball tightly against the “U” Bracket.
PAGE 16
Pulley 18
Pulley 16
78

Lat Upper Cable
p/n 870-500-006
Pulley 22
Pulley 20
Pulley 21
Pulley 23
Pulley 1
Pulley 2
Pulley 24
94
28 90
86
28
59
90
86
86
108
25 86 102
94 86
24
77
STEP 13
`
A) Install the Pulley Bracket (24) to the back side of the gym under Pulley 22 with M10*25 bolt (108).
This bolt is installed in the threaded insert located below Pulley 22 on the back side.
B) Install Pulley 19, 20, 22 and 23 at the top of the Main Frame (1) with the M10*45 bolts (94). Pulley
21 is installed directly below Pulley 22 on the back side of the gym. It is attached to Pulley Bracket
(24) and the gym with the M10*70 bolt (102) and the 1” Barrel Spacer (25) between the pulley and
the Main Frame as shown at the top of the picture.
C) To route the Lat Upper Cable (45), first unwind it by stretching it out on the floor. Then fully screw
the threaded end into the Top Weight Assembly (77) of the weight stack and tighten the Jam Nut.
Route the cable up and around both Pulley 19 and 20 as shown. Be sure to route the cable between
the cable retainer rods and the Pulleys or cable damage will occur.
(NOTE: If you installing an LP3 to the M5.2, go to page 15 in the LP3 manual at this time.)
Continue by routing the cable down and around Pulley 21 then up and around Pulley 22. From there
run the cable over the top of the gym, over Pulleys 20 and 19, then down and around Pulley 23
before running it down to the back side of Pulley 24. Pulley 24 is assembled with two Floating Pulley
Plates (28) and the M10*45 bolt (94). Run the cable around Pulley 24, then up and over Pulley 1
and 2. Make sure that the cable is routed through the curved opening in the pulley bracket and
between Pulley 2 and the cable retainer pin or the cable will be damaged. Finish the cable end the
same way it was finished in Step 12.
Tighten the hardware for Pulleys 19, 20, 21, 22, 23 and 24 at this time. Also ensure that the
hardware for the Pulley Bracket (24) is tight at the top of the gym.
PAGE 17
Pulley 19
