Interlogix TVB-5801 Instruction sheet

TruVision Stainless Steel IP
Cameras Configuration
Manual
P/N 1073371-EN • REV B • ISS 27MAR18

Copyright
©
2018 United Technologies Corporation.
Interlogix is part of UTC
Climate, Controls & Security, a unit of U
nited
Technologies Corporation.
All rights reserved.
Trademarks and
patents
T
rade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Manufacturer
Interlogix
2955 Red Hill Avenue, Costa Mesa, CA 92626
-5923, USA
Authorized EU manufacturing representative:
UTC
Building & Industrial Systems B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
Product warnings and
disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO AND
INSTALLATION BY QUALIFIED PROFEIONALS. UTC FIRE &
SECURITY CANNOT PROVIDE ANY AURANCE THAT ANY
PERSON OR ENTITY BUYING ITS PRODUCTS, INCLUDING ANY
“AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”, IS
PROPERLY TRAINED
OR EXPERIENCED TO CORRECTLY
INSTALL FIR
E AND SECURITY RELATED PRODUCTS.
For more information on warranty disclaimers and product safety
information, please check
www.firesecurityproducts.com
/policy/product-warning/ or scan the
following code:
Contact
information
and manuals
For contact information go to: www.interlogix.com or
www.firesecurityproducts.com
.
To get translations for this and other product manuals go to:
www.firesecurityproducts.com
.
2 TruVision Stainless Steel IP Cameras Configuration Manual

Content
Introduction 3
Default settings to access the camera 3
Network access 4
Checking your web browser security level 4
Activating the camera 5
Overview of the camera web browser 6
Camera configuration 8
Configuration menu overview 8
Local configuration 9
System time 11
Network settings 12
Recording parameters 19
Video image 23
OSD (On Screen Display) 26
Text overlay 28
Privacy masks 28
Picture overlay 29
Motion detection alarms 30
Tamper-proof alarms 36
Exception alarms 37
Alarm inputs and outputs 38
Face detection 39
Audio exception detection 41
Cross line detection 42
Intrusion detection 44
Defocus detection 46
Scene change detection 47
Region entrance detection 49
Region exiting detection 51
Unattended baggage detection 53
Object removal detection 55
Snapshot parameters 57
NAS settings 59
Storage devices 60
Recording schedule 61
RS-485 settings 63
Object counting 63
Camera management 65
User management 65
RTSP authentication 67
IP address filter 68
Defining the security service 69
TruVision Stainless Steel IP Cameras Configuration Manual 1

Restore default settings 69
Import/export a configuration file 70
Upgrade firmware 70
Reboot camera 71
Camera operation 72
Logging on and off 72
Live view mode 72
Playing back recorded video 73
Searching event logs 75
Operating PTZ control 77
2 TruVision Stainless Steel IP Cameras Configuration Manual

Introduction
This is the configuration manual for the following TruVision models:
IP stainless steel outdoor box camera housings:
• TVB-5801 (2 MPX camera, 3.8 to 16 mm lens)
• TVB-5802(2 MPX camera, 11 to 40 mm lens)
IP stainless steel dome camera:
• TVD-5801 (2 MPX camera, 2.8 to 12 mm lens)
Default settings to access the camera
Default credentials
The camera comes with a user account with administrative rights for configuring all
options on the camera. The user name is “admin” and the password is “1234”. For
enhanced security, we highly recommend changing the default password during initial
setup.
Default network settings
The network settings are:
IP address (in a network without a DHCP server): 192.168.1.70
Subnet mask: 255.255.255.0
Gateway address: 192.168.1.1
Ports used:
Browser
TruVision Navigator
RTSP: 554
RTSP: 554
HTTP: 80
Server/client control port: 8000
TruVision Stainless Steel IP Cameras Configuration Manual 3

Network access
This manual explains how to configure the camera over the network with a web
browser.
TruVision IP cameras can be configured and controlled using Microsoft®Internet
Explorer®and other browsers. The procedures described use Microsoft Internet
Explorer (IE) web browser.
Checking your web browser security level
When using the web browser interface, ActiveX controls can be installed to connect and
view video using Internet Explorer. However, data such as video and images cannot be
downloaded due to the increased security measure. Check the security level of the PC
to enable interaction with the cameras over the web and, if necessary, modify the
Active X settings.
Configuring IE ActiveX controls
Confirm the ActiveX settings of your web browser.
To change the web browser’s security level:
1. In Internet Explorer click Internet Options on the Tools menu.
2. On the Security tab, click the zone to be assigned to a website under “Select a web
content zone to specify its security settings.”
3. Click Custom Level.
4. Change the ActiveX controls and plug-ins options that are signed or marked as
safe to Enable. Change the ActiveX controls and plug-ins options that are
unsigned to Prompt or Disable. Click OK.
—or—
Under Reset Custom Settings, click the security level for the whole zone in the
Reset To box, and then select Medium. Click Reset, and then click OK in the
Internet Options Security tab window.
5. Click Apply in the Internet Options Security tab window.
Windows users
Internet Explorer for Windows®operating systems have increased security measures to
protect a PC from malicious software.
To ensure complete functionality of the Windows web browser interface, do the
following:
• Run IE as an administrator in the workstation
• Add the camera’s IP address to the IE’s list of trusted sites
4 TruVision Stainless Steel IP Cameras Configuration Manual

To add the camera’s IP address to Internet Explorer’s list of trusted sites:
1. Open Internet Explorer.
2. Click Tools, and then Internet Options.
3. Click the Security tab and then select the Trusted sites icon.
4. Click the Sites button.
5. Deselect the Require server verification (https:) for all sites in this zone check
box.
6. Type the IP address in the Add this website to the zone box.
7. Click Add, and then click Close.
8. Click OK in the Internet Options dialog window.
9. Connect to the camera for full browser functionality.
Activating the camera

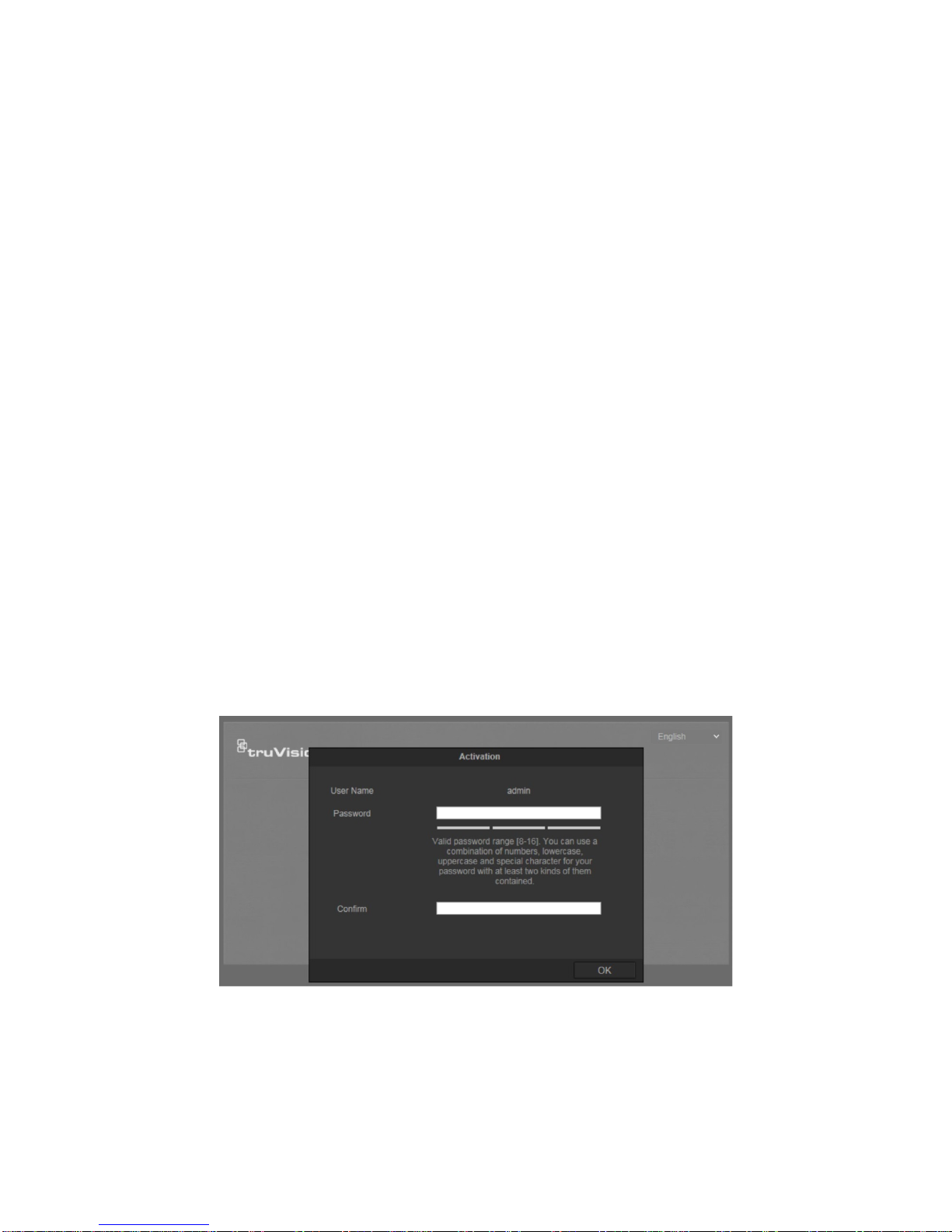

When you first start up the camera, the Activation window appears. You must define a
high-security admin password before you can access the camera. There is no default
password provided.
You can activate a password via a web browser and via TruVision Device Manager
(included on the CD to find the IP address of the camera).
Activation via the web browser:
1. Power on the camera and connect the camera to the network.
2. Type the IP address into the address bar of the web browser, and press Enter to
enter the activation interface.
Note:
The default IP address of the camera is 192.168.1.70.
For the camera to enable DHCP by default, you must activate the camera via
TruVision Device Manager. Please refer to the following section, “Activation via
TruVision Device Manager”.
TruVision Stainless Steel IP Cameras Configuration Manual 5

3. Type the password in the Password field.
Note: A valid password range must be between 8 and 16 characters. You can use a
combination of numbers, lower and upper case letters, and special characters : _ - ,
. * & @ / $ ? Space. The password must contain characters from at least two of
these groups. We also recommend that you reset your password regularly. For high
security systems, it is particularly recommended to reset the password monthly or
weekly for better protection.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via TruVision Device Manager:
For instructions on how to activate the camera using TruVision Device Manager, refer
to the TruVision Device Manager User Manual.
Go to www.interlogix.com/video/product/truvision-device-manager and click
Downloads.
Overview of the camera web browser
Use the camera web browser to view, record, and play back recorded videos as well as
manage the camera from any PC with access to the same network as the camera. The
browser’s easy-to-use controls provide quick access to all camera functions.
If there is more than one camera connected over the network, open a separate web
browser window for each individual camera.

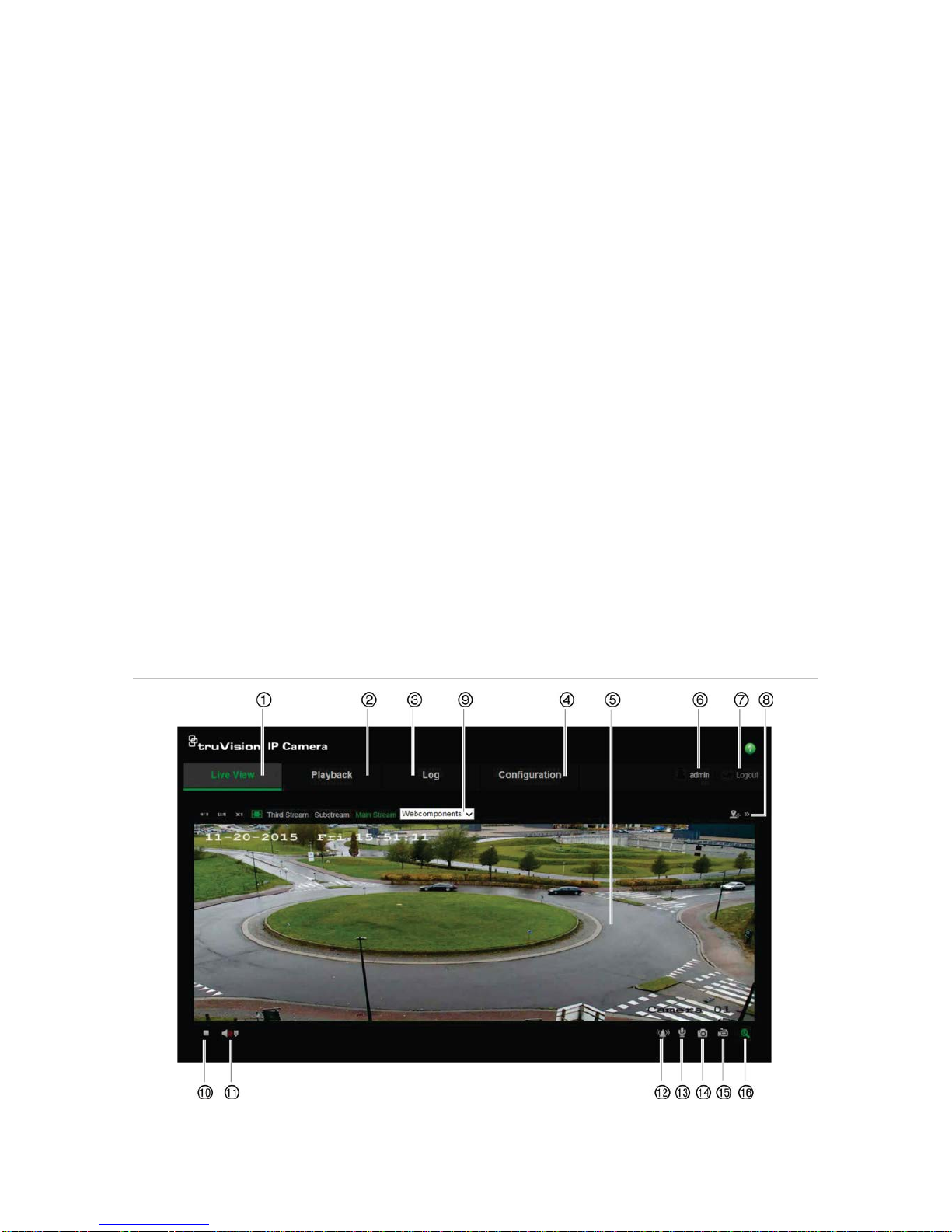

Figure 1: Web browser interface
6 TruVision Stainless Steel IP Cameras Configuration Manual

Name
Description
1. Live view Click to view live video.
2. Playback Click to play back video.
3. Log Click to search for event logs. There are three main types: Alarm,
Exception and Operation.
4. Configuration Click to display the configuration window for setting up the camera.
5. Viewer View live video. Time, date and camera name are displayed here.
6. Current user Displays current user logged on.
7. Logout Click to log out from the system. This can be done at any time.
8. PTZ controls Direction actions, zoom, focus, iris, light and wiper control.
Note: Direction actions, light, and wiper control can be used if the
camera supports RS-485 and external pan/tilt unit, light or wiper is
installed.
9. Display Control Click each tab to adjust the layout and the stream type of the live
view. You can also click the drop-down menu to select the plug-in.
For IE (internet explorer) users, web components and QuickTime®
are selectable. For non-IE users, web components, QuickTime, VLC
or MJPEG are selectable, if they are supported by the web browser.
10. Start/stop live view Click to start/stop live view.
11. Audio Adjust the volume.
12.
Manual alarm Turn on/off the alarm
13. Bidirectional audio Turn on/off the local microphone (if supported).
14. Capture Click to take a snapshot of the video. The snapshot will be saved to
the default folder in JPEG or BMP format.
15. Start/stop
recording Click to record live video.
16. Digital zoom Click to enable digital zoom.
TruVision Stainless Steel IP Cameras Configuration Manual 7

Camera configuration
This chapter explains how to configure the cameras through a web browser.
After the camera hardware has been installed, configure the camera’s settings through
the web browser. Administrator rights are required to configure the cameras over the
internet.
The camera web browser permits configuration of the camera remotely using a PC.
Web browser options may vary depending on camera model.
There are two main menus in the configuration panel:
Local configuration
Configuration
Configuration menu overview
Use the Configuration panel to configure the network, camera settings, alarms, users,
transactions and other parameters such as upgrading the firmware. See Figure 2 below
for descriptions of the configuration menus available.
Figure 2: Configuration window (Device Information tab selected)
Configuration menus Description
1.
System
Defines basic device information including SN, the current firmware
version, time settings, maintenance, and serial port parameters. See
“System time” on page 11 for further information.
2.
Network
Defines the parameters required to access the camera over a network
.
See “Network settings” on page 12 for further information on the setup.
3.
Video/Audio
Defines recording parameters.
8 TruVision Stainless Steel IP Cameras Configuration Manual

Configuration menus Description
4.
Defines the image parameters, OSD settings, overlay text, and privacy
mask. See “Video image” on page 23 for further information on the
setup.
5.
Security
Defines who can access and use the camera, their passwords and
access privileges, RTSP authentication, IP address filter, and SSH.
6.
Basic
Event Defines Motion Detection, Tamper-proof, Alarm Input/Output, and
Exceptions. See “Motion detection alarms” on page 30, “Tamper-proof
alarms” on page 36, and “Exception alarms” on page 37.
7.
Smart Event
Defines Defocus Detection, Scene Change Detection, Face Detection,
Cross Line, Intrusion Detection, Region Entrance Detection, Region
Exiting Detection, Unattended Baggage Detection and
Object Removal
Detection.
8.
Storage
Defines recording schedule, storage management, NAS configuration
and snapshot.
9.
Counting
Defines the people/object counting parameters.
Local configuration
Use the Local menu to manage the protocol type, live view performance and local
storage paths. In the Configuration panel, click Local Configuration to display the local
configuration window. See Figure 3 below for descriptions of the different menu
parameters.

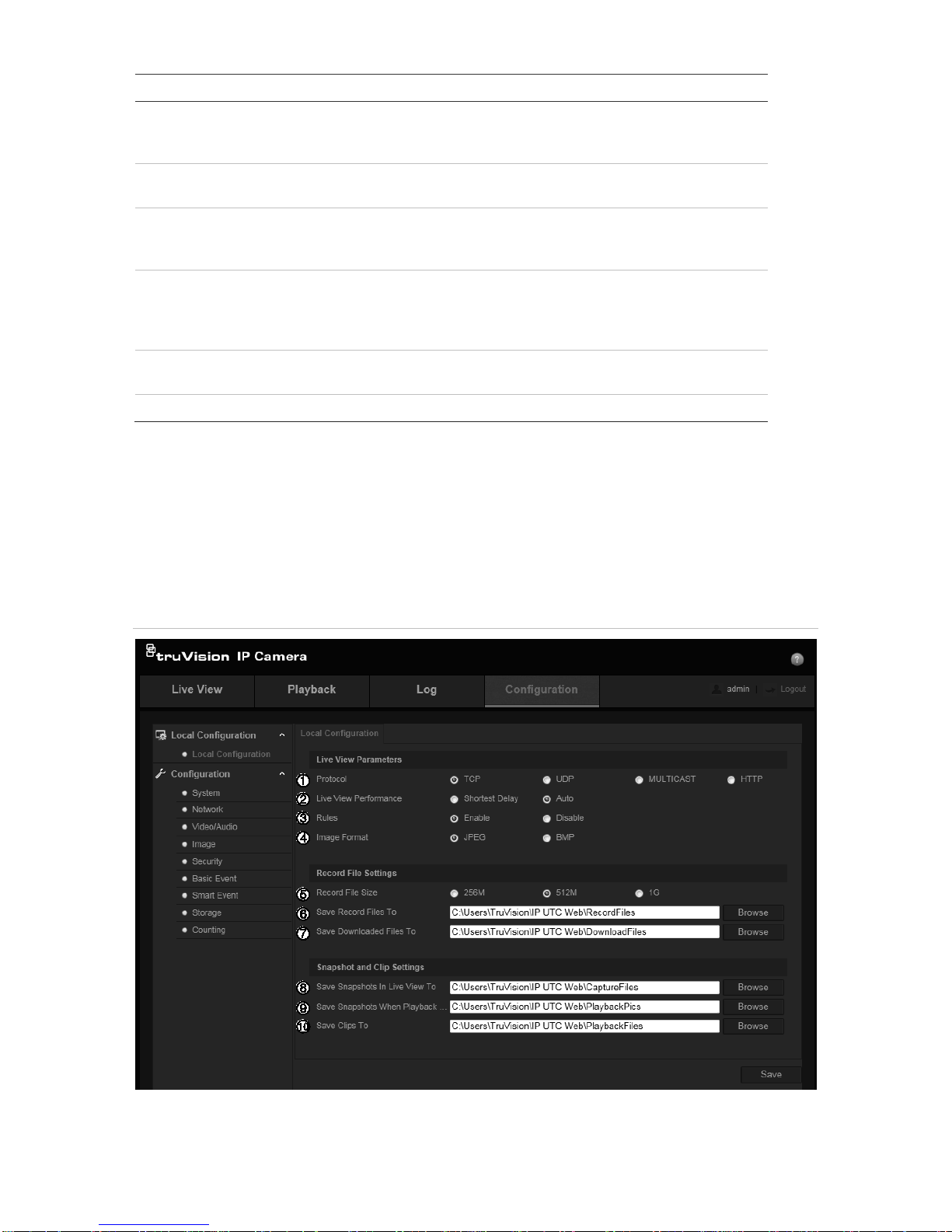

Figure 3: Example of the Local configuration window
TruVision Stainless Steel IP Cameras Configuration Manual 9

Parameters Description
Live View Parameters
1.
Protocol
Specifies the network protocol used.
Options include: TCP, UDP, MULTICAST and HTTP.
2.
Live View Performance
Specifies the transmission speed.
Options include: Shortest Delay or Auto.
3.
Rules
Enable or disable the display of intelligent metadata in Live
View mode on the browser. Specify whether or not to display
the colored marks for events such as motion detection, face
detection, and intrusion detection while viewing video live in
the browser. For example, when the Rules option is enabled,
Face Detection is enabled, and a face is detected, the face
will
be marked with a green frame in Live View.
4.
Image Format
Choose the image format for a snapshot: JPEG or BMP.
Record File Settings
5.
Record F
ile Size Specifies the maximum file size for downloaded and recorded
video files.
Options include: 256 MB, 512 MB and 1G.
6.
Save
Record Files to Specifies the directory for recorded files.
7.
Save
Downloaded Files to Specifies the directory for downloaded files.
Snapshot and Clip Settings
8.
Save
Snapshots In Live
View To
Specifies the directory for saving snapshots in live view mode.
9.
Save
Snapshots When
Playback To
Specifies the directory for saving snapshots in playback mode.
10.
Save Clips To
Specifies the directory for saving video clips in playback mode.
10 TruVision Stainless Steel IP Cameras Configuration Manual

System time
Network Time Protocol (NTP) is a protocol for synchronizing the clocks of network
devices, such as IP cameras and computers. Connecting network devices to a
dedicated NTP time server ensures that they are all synchronized.
To define the system time and date:
1. From the menu toolbar, click Configuration > System > Time Settings.
2. From the Time Zone drop-down menu, select the time zone that corresponds to the
camera’s location.
3. Under Time Sync, select one of the options for setting the time and date:
Synchronize with an NTP server: Select NTP and type the server NTP address.
The time interval can be set from 1 to 10080 minutes.
- Or -
Set manually: Select Manual Time Sync and then click to set the system time
from the pop-up calendar.
Note: You can also select the Sync with computer time check box to synchronize
the time of the camera with the time of your computer.
4. Select Enable DST to enable the DST (Daylight Savings Time) function, and set the
date of the DST period.
5. Click Save to save changes.
TruVision Stainless Steel IP Cameras Configuration Manual 11

Network settings
Accessing the camera through a network requires that you define certain network
settings. Use the “Network” menu to define the network settings. See Figure 4 below for
further information.
Figure 4: Network window (TCP/IP tab shown)
Menu tabs Description
1.
TCP/IP
NIC Type: Enter the NIC type. Default is Auto. Other options include: 10M
Half-dup, 10M Full-dup, 100M Half-dup and 100M Full-dup.
DHCP: Enable to automatically obtain an IP address and other network
settings from that server.
IPv4 Address: Enter the IPv4 address of the camera.
IPv4 Subnet Mask: Enter the IPv4 subnet mask.
IPv4 Default Gateway: Enter the IPv4 gateway IP address.
IPv6 Mode: Enter the IPv6 mode: Manual, DHCP or Router
Advertisement.
IPv6 Address: Enter the IPv6 address of the camera.
IPv6 Subnet Prefix Length: Enter the IPv6 prefix length.
IPv6 Default Gateway: Enter the IPv6 gateway IP address.
Mac Address: Enter the MAC address of the devices.
MTU: Enter the valid value range of MTU. Default is 1500.
Multicast Address: Enter a D-class IP address between 224.0.0.0 to
12 TruVision Stainless Steel IP Cameras Configuration Manual

Menu tabs Description
239.255.255.255. Only specify this option if you are using the multicast
function. Some routers prohibit the use of multicast function in case of a
network storm.
Enable Multicast Discovery: Enables the automatic detection of the
online network camera via private multicast protocol in the LAN.
DNS server: Specifies the DNS server for your network.
See page 14 for setup information.
2.
Port
HTTP Port: The HTTP port is used for remote browser access. Enter the
port used for the Internet Explorer (IE) browser. Default value is 80.
RTSP Port: RTSP (Real Time Streaming Protocol) is a network control
protocol designed for use in entertainment and communications systems
to control streaming media servers. Enter the RTSP port value. The
default port number is 554.
HTTPS Port: HTTPS (Hyper Text Transfer Protocol Secure) allows video
to be securely viewed when using a browser. Enter the HTTPS port,
value. The default port number is 443.
Server Port: This is used for remote client software access. Enter the
server port value. The default port number is 8000.
Alarm Server IP: Specifies the IP address of the alarm host.
Alarm Server Port: Specifies the port of the alarm host.
See page 14 for setup information.
3.
DDNS
DDNS is a service that maps Internet domain names to IP addresses. It is
designed to support dynamic IP addresses, such as those assigned by a
DHCP server.
Specify IP Server, DynDNS, or ezDDNS.
DynDNS (Dynamic DNS): Manually create your own host name. You will
first need to create a user account using the hosting web site,
DynDNS.org.
ezDDNS: Activate the DDNS auto-detection function to set up a dynamic
IP address. The server is set up to assign an available host name to your
recorder.
IPServer: Enter the address of the IP Server.
See page 15 for setup information.
4.
PPPoE
Retrieves a dynamic IP address. See page 15 for setup information.
5.
SNMP
SNMP is a protocol for managing devices on networks. Enable SNMP to
get camera status and parameter related information. See page 15 for
setup information.
6.
802.1.X
When the feature is enabled, the camera data is secured and user
authentication is needed when connecting the camera to the network.
See
page 15 for setup information.
7.
QoS
QoS (Quality of Service) can help solve the network delay and network
congestion by configuring the priority of data sending.
Enable the option in order to solve network delay and network congestion
by configuring the priority of data sending.
See page 16 for setup information.
8.
FTP
Enter the FTP address and folder to which snapshots of the camera can
be uploaded. See page 16 for setup information.
TruVision Stainless Steel IP Cameras Configuration Manual 13

Menu tabs Description
9.
UPnP
The UPnP (Universal Plug and Play) protocol allows devices to connect
seamlessly and to simplify the implementation of networks in the home
and corporate environments. With the function enabled, you do not need
to configure the port mapping for each port, and the camera is connected
to the Wide Area Network (WAN) via the router.
Enable and set the friendly name detected.
See page 16 for setup information.
10.
Email
Enter the email address to which messages are sent when an alarm
occurs. See page 17 for setup information.
11.
NAT
A NAT (Network Address Translation) is used for network connection.
Select the port mapping mode: auto or manual. See page 18 for setup
information.
12.
HTTPS
Specifies authentication of the web site and its associated web server,
which protects against Man-in-the-middle attacks.
To define the TCP/IP parameters:
1. From the menu toolbar, click Configuration > Network > TCP/IP.
2. Configure the NIC settings, including the NIC Type, IPv4 settings, IPv6 settings,
MTU settings, and Multicast Address.
3. If a DHCP server is available, select DHCP.
4. If the DNS server settings are required for some applications (e.g., sending email),
you should configure the Preferred DNS Server or Alternate DNS Server.
5. Click Save to save changes.
To define the port parameters:
1. In Configuration > Network, click the Port tab to open its window.
2. Set the HTTP port, RTSP port, HTTPS port and Server port of the camera.
HTTP Port: The default port number is 80, and it can be changed to any port No.
which is not occupied.
RTSP Port: The default port number is 554. It can be changed to any port number
in the range from 1 to 65535.
HTTPS Port: The default port number is 443. It can be changed to any port number
that is not occupied.
Server Port: The default server port number is 8000. It can be changed to any port
number in the range from 2000 to 65535.
3. Enter the IP address and port if you want to upload the alarm information to the
remote alarm host. Also select the Notify Alarm Recipient option in the normal
Linkage of each event page.
4. Click Save to save changes.
14 TruVision Stainless Steel IP Cameras Configuration Manual

To define the DDNS parameters:
1. From the menu toolbar, click Configuration > Network > DDNS.
2. Select Enable DDNS to enable this feature.
3. Select DDNS Type. Two options are available: DynDNS and IPServer.
• Select DDNS Type. Select one of the following options:
• DynDNS: Enter the DDNS server address, members.ddns.org, which is used to
notify DDNS about changes to your IP address, the host name for your camera,
the port number (443 (HTTPS)), and your user name and password used to log
into your DynDNS account. The domain name displayed under “Host Name” is
that which you created on the DynDNS web site.
• ezDDNS: Enter the required host name under “Host Name”. The default host
name is utc-serial number. The new host name is registered when you click
Save.
Note: The default server address is www.tvr-ddns.net, which cannot be changed.
4. Click Save to save changes.
To define the PPPoE parameters:
1. From the menu toolbar, click Configuration > Network > PPPoE.
2. Select Enable PPPoE to enable this feature.
3. Enter User Name, Password, and Confirm password for PPPoE access.
4. Click Save to save changes.
To define the SNMP parameters:
1. From the menu toolbar, click Configuration > Network > SNMP.
2. Select the corresponding version of SNMP: v1, v2c or v3.
3. Configure the SNMP settings. The configuration of the SNMP software should be
the same as the settings you configure here.
4. Click Save to save changes.
Note: Before configuring SNMP, test your SNMP monitoring software and attempt to
receive the camera information via the SNMP port. By setting the Trap Address, the
camera can send the alarm event and exception messages to the SNMP monitoring
software. The SNMP version you select should be the same as that supported by the
SNMP software.
To define the 802.1x parameters:
1. From the menu toolbar, click Configuration > Network > 802.1X.
2. Select Enable IEEE 802.1X to enable the feature.
3. Configure the 802.1X settings, including EAPOL version, user name, and password.
The EAPOL version must be identical with that of the router or the switch.
4. Click Save to save changes.
TruVision Stainless Steel IP Cameras Configuration Manual 15

Note: The switch or router to which the camera is connected must support the IEEE
802.1X standard, and a server must be configured. Please apply and register a user
name and password for 802.1X in the server.
To define the QoS parameters:
1. From the menu toolbar, click Configuration > Network > QoS.
2. Configure the QoS settings, including Video / Audio DSCP, Event / Alarm DSCP
and Management DSCP. The valid value range of the DSCP is 0-63. The bigger the
DSCP value, the higher the priority.
3. Click Save to save changes.
To define the FTP parameters:
1. You must have an FTP server configured and available on the network in order to
use the FTP feature
2. From the menu toolbar, click Configuration > Network > FTP.
3. Configure the FTP settings, including server address, port, user name, password,
directory, and upload type.
Anonymous: Select the check box to enable the anonymous access to the FTP
server.
Directory: In the Directory Structure field, you can select the root directory, Main
directory and Subdirectory. When the Main directory is selected, you have the
option to use the Device Name, Device Number or Device IP for the name of the
directory; and when the Subdirectory is selected, you can use the Camera Name or
Camera No. as the name of the directory.
Upload Type: To enable uploading the snapshots to the FTP server.
4. Click Save to save changes.
To define the UPnP parameters:
1. Click Configuration > Network > UPnP.
2. Select the check box to enable the UPnP function. The name of the device when
detected online can be edited.
3. Click Save to save changes.
16 TruVision Stainless Steel IP Cameras Configuration Manual

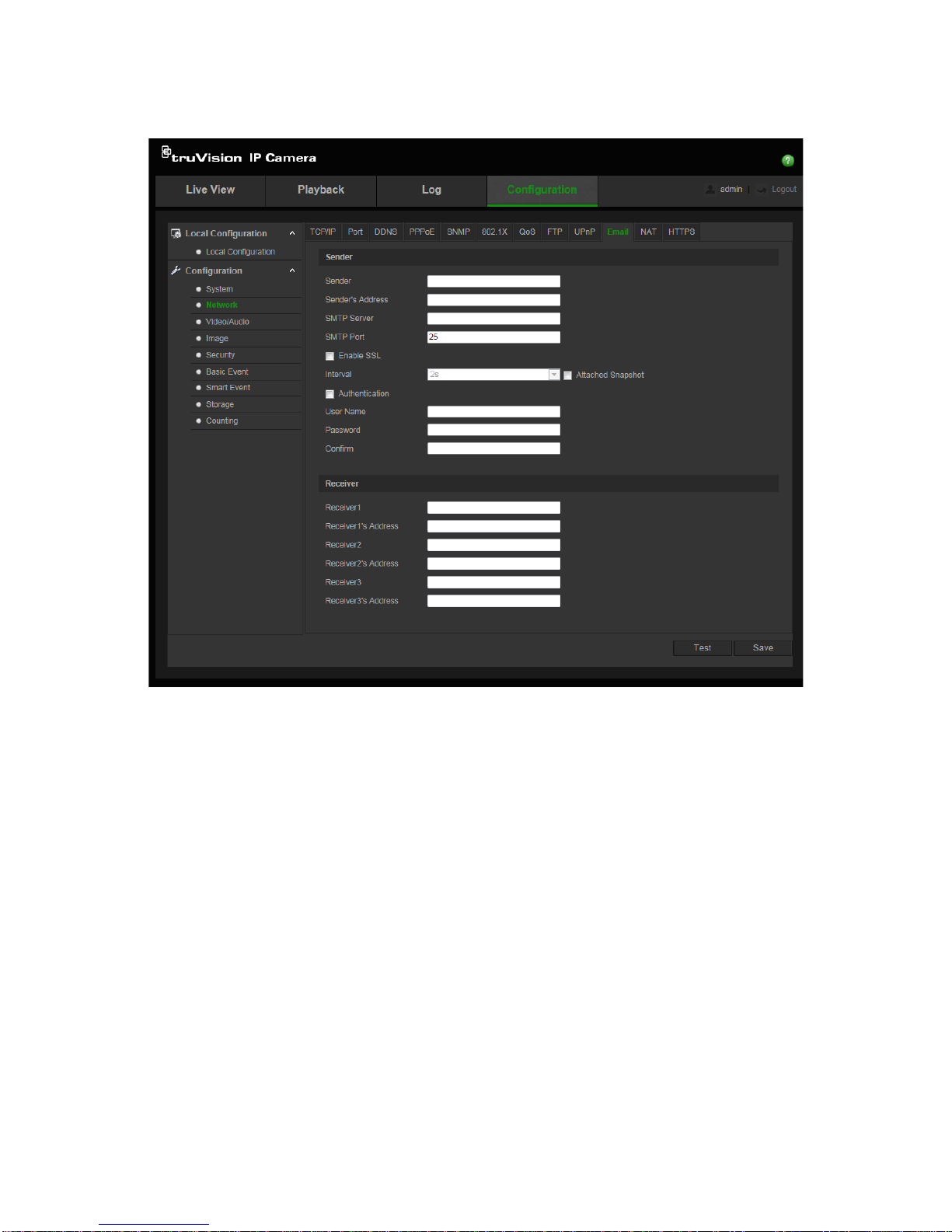

To set up the email parameters:
1. In Configuration > Network, click the Email tab to open its window.
2. Configure the following settings:
Sender: The name of the email sender.
Sender’s Address: The email address of the sender.
SMTP Server: The SMTP Server, IP address or host name.
SMTP Port: The SMTP port. The default is 25.
Enable SSL: Select the check box to enable SSL if it is required by the SMTP
server.
Attached Snapshot:Select the check box of Attached Snapshot if you want to
send emails with attached alarm images.
Interval: This is the time between two actions of sending attached images.
Authentication: If your email server requires authentication, select this check box
to use authentication to log in to this server. Enter the login user name and
password.
User Name: The user name to log in to the server where the images are uploaded.
Password: Enter the password.
TruVision Stainless Steel IP Cameras Configuration Manual 17

Confirm: Confirm the password.
Receiver1: The name of the first user to be notified.
Receiver’s Address1: The email address of the first user to be notified.
Receiver2: The name of the second user to be notified.
Receiver’s Address2: The email address of the second user to be notified.
Receiver3: The name of the third user to be notified.
Receiver’s Address3: The email address of the third user to be notified.
3. Click Test to test the email parameters.
4. Click Save to save changes.
To set up the NAT parameters:
1. Click Configuration > Network > NAT.
2. Select the check box to enable the NAT function.
3. Select Port Mapping Mode to be Auto or Manual. When you choose Manual mode,
you can configure an external port of your choice.
4. Click Save to save changes.
To set up the HTTPS parameters:
1. In the Network folder, click the HTTPS tab to open its window.
2. To create a self-signed certificate:
Click the Create button beside “Create Self-signed Certificate”. Enter the country,
host name/IP, validity and the other information requested.
18 TruVision Stainless Steel IP Cameras Configuration Manual
