Intermec CV60 User manual

CV60 Vehicle Mount
Computer
User's Manual

ii CV60 Vehicle Mount Computer User's Manual
Intermec Technologies Corporation
Corporate Headquarters Cedar Rapids Technical Communications Department
6001 36th Ave. . 550 Second Street SE
Everett, A 98203 Cedar Rapids, IA 52401
U.S.A. U.S.A.
www.intermec.com
The information contained herein is proprietary and is provided solely for the purpose of allowing customers
to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for
any other purpose without written permission of Intermec.
Information and specifications contained in this document are subject to change without prior notice and do
not represent a commitment on the part of Intermec Technologies Corporation.
E 2003 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar, Data Collection Browser, dcBrowser,
Duratherm, EasyCoder, EasyLAN, Enterprise ireless LAN, EZBuilder, Fingerprint, i-gistics, INCA (under
license), InterDriver, Intermec Printer Network Manager, IRL, JANUS, LabelShop, Mobile Framework,
MobileLAN, Nor* are, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000, Trakker Antares, UAP,
Universal Access Point, and Virtual edge are either trademarks or registered trademarks of Intermec
Technologies Corporation.
Throughout this manual, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in
every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion,
and to the benefit of the trademark owner, with no intention of infringement.
There are U.S. and foreign patents pending.
i-Fi is a registered certification mark of the i-Fi Alliance.
Microsoft, indows, and the indows logo are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.

Contents
iiiCV60 Vehicle Mount Computer User’s Manual
Contents
Before You Begin ix.........................................................
Safety Summary ix...................................................
Donotrepairoradjustalone ix...................................
First aid ix...................................................
Resuscitation ix...............................................
Energized equipment ix.........................................
Safety Icons x.......................................................
Global Services and Support xi..........................................
Warranty Information xi........................................
Web Support xi...............................................
Telephone Support xi...........................................
WhoShouldReadthisManual? xii.......................................
Related Documents xii.................................................
Introduction 1..........................................................

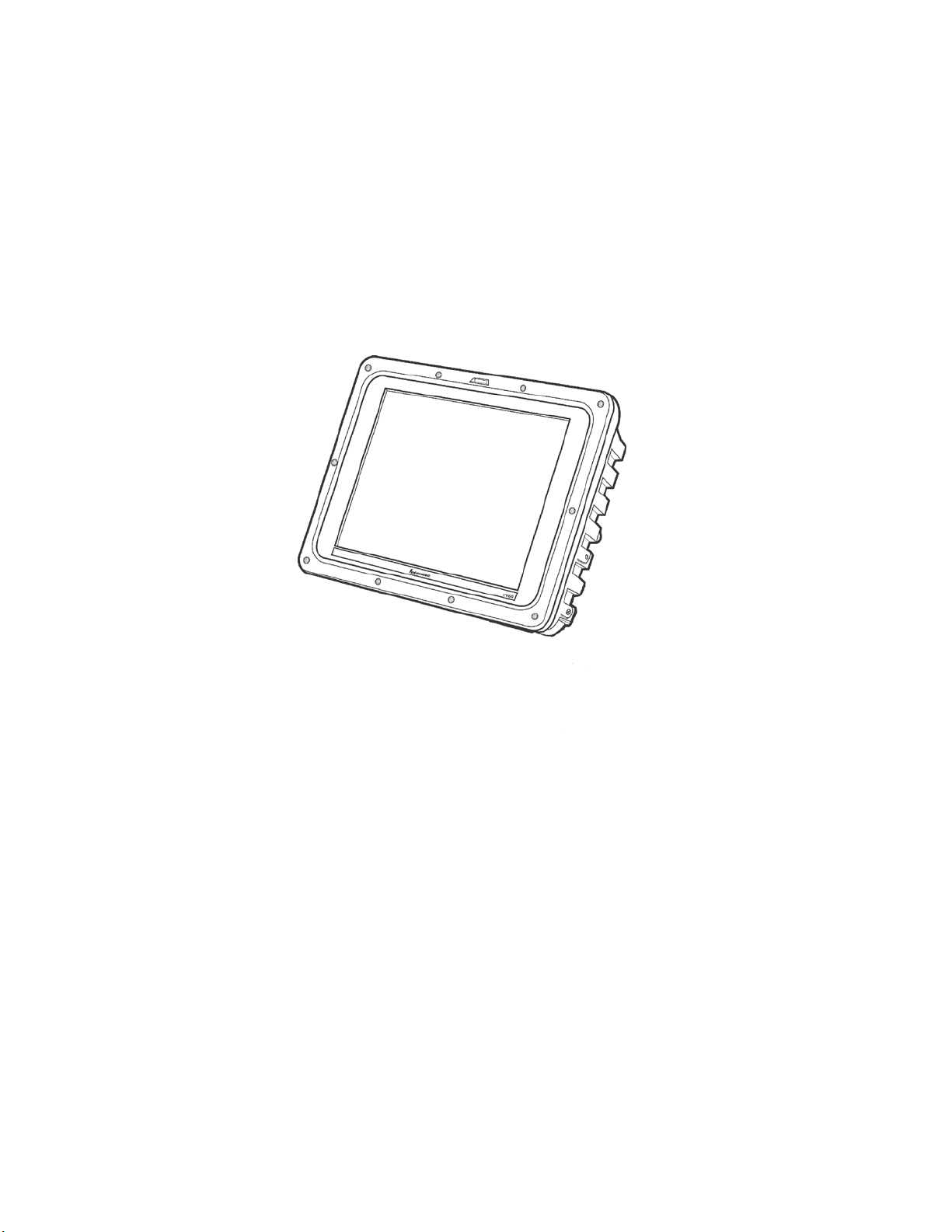

Introducing the CV60 Vehicle Mount Computer 2.................................
Features 3..........................................................
Unpacking the CV60 Vehicle Mount Computer 4...........................
Accessories for the CV60 Vehicle Mount Computer 5........................
Locating the Data Collection PC Connectors 6.............................
Card/Drive Slot 8....................................................
Hard Drive/Memory Location 9........................................
SODIMM Memory Slot 9.............................................
AC-DC Power Supply 10...............................................
DC-DC Power Supplies 10.............................................
Maintenance 11...............................................
Cleaning 11...................................................
Daily Checks 11...............................................
Specifications 12......................................................
Size 12.......................................................
Environmental 12..............................................
Processor/Memory/Storage 12.....................................
System Software 12.............................................
Power System 13...............................................
Wired Connectivity 13..........................................
Wireless Connectivity 13.........................................
Peripherals/Accessories 13........................................
FCC Notice 14................................................
1

Contents
iv CV60 Vehicle Mount Computer User's Manual
Operation 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Startup Requirements 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Startup Sequence 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Options 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard Drive Installation 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solid State Drive Installation 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SODIMM Slot 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Card/Drive Slot 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Card Installation 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio Installation Options 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
802.11 Radio 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless Printing Radio Module 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PicoLink Radio 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up the Cordless Scanner 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External Antenna Connection 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Patch Antenna 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Desktop Mounting Options 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing PC Cards 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Start-Up 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restart (or, Reboot") 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warm Restart 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold Restart 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting up for Data Collection 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Configuration 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2

Contents
vCV60 Vehicle Mount Computer User's Manual
PhoenixBIOS Setup Utility 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
eneral Information 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Time 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Date 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Primary Master 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
None 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CDĆROM 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IDE Removable 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ATAPI Removable 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other ATAPI 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Secondary Master 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
None 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CDĆROM 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IDE Removable 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ATAPI Removable 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other ATAPI 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Cache 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Cache 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cache System/Video BIOS Areas 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cache Base 0ć512k, 512kć640k, Extended Memory Area 35. . . . . . . . . . . . .
Boot Features 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary Screen 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BootĆTime Diagnostic Screen 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
QuickBoot Mode 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Advanced 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Advanced Chipset Control 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Boot Type 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enable Memory ap 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frequency Ratio 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Device Configuration 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Ports 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel Heater 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picolink 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legacy USB Support 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset Configuration Data 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FirstWare Authentication Level 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PC Card Boot Support 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Set Supervisor Password 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Boot 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3

Contents
vi CV60 Vehicle Mount Computer User's Manual
Exit 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exit Saving Changes 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exit Discarding Changes 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Setup Defaults 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Discard Changes 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Save Changes 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reflash Procedure 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows CE 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows XP 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents
viiCV60 Vehicle Mount Computer User's Manual
Windows Device Con igurations 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AutoIP/DHCP 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CV60 Settings 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows CE 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Com Ports 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Versions 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows XP 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Status 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Status 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UPS Service 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Adapters 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
802.11b/g Communications 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless Printing 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows CE 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows XP 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picolink Radio 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stylus 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows CE 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DoubleĆTap 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calibration 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows XP 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DoubleĆTap 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calibration 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TCP/IP 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows CE 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windows XP 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tethered Scanner 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enabling and Disabling 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Scanner Cabling 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitations and Capabilities 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4

Contents
viii CV60 Vehicle Mount Computer User's Manual
Developing and Installing Applications 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Developing Applications for the CV60 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Developing a New Application for the CV60 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Converting a Trakker Antares Application to a CV60 CE Application 67. . . . . . . . . .
Developing a Web-Based Application 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Applications on the CV60 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
All CV60: 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing Applications Using Wavelink Avalanche 68. . . . . . . . . . . . . . . . . . .
To use Avalanche to remotely manage the CV60 68. . . . . . . . . . . . . . . . . . . .
CV60 CE only: 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using ActiveSync to Install Applications 68. . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing ActiveSync and Establishing a Partnership 69. . . . . . . . . . . . . . . . . . . . . . . .
To install ActiveSync and establish a partnership 69. . . . . . . . . . . . . . . . . . . .
The Microsoft ActiveSync Screen 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using ActiveSync to Copy Files and Install Applications 70. . . . . . . . . . . . . .
To install an application on the CV60 CE using ActiveSync 70. . . . . . . . . . .
CV60 XP/XPE: 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mapping a network drive: 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connector Pinouts 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectors 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectors 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COM Port Pinout 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard PS/2 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Connectors 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Connections 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Microphone / Headphone 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Connector Pin out 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
6

Before You Begin
ixCV60 Vehicle Mount Computer User's Manual
Before You Begin
This section provides you with safety information, technical support
information, and sources for additional product information.
Safety Summary
Your safety is extremely important. Read and follow all warnings and
cautions in this document before handling and operating Intermec
equipment. You can be seriously injured, and equipment and data can be
damaged if you do not follow the safety warnings and cautions.
Do not repair or adjust alone
o not repair or adjust energized equipment alone under any
circumstances. Someone capable of providing first aid must always be
present for your safety.
First aid
Always obtain first aid or medical attention immediately after an injury.
Never neglect an injury, no matter how slight it seems.
Resuscitation
Begin resuscitation immediately if someone is injured and stops breathing.
Any delay could result in death. To work on or near high voltage, you
should be familiar with approved industrial first aid methods.
Energized equipment
Never work on energized equipment unless authorized by a responsible
authority. Energized electrical equipment is dangerous. Electrical shock
from energized equipment can cause death. If you must perform
authorized emergency work on energized equipment, be sure that you
comply strictly with approved safety regulations.

Before You Begin
x CV60 Vehicle Mount Computer User's Manual
Safety Icons
This section explains how to identify and understand dangers, warnings,
cautions, and notes that are in this manual. You may also see icons that tell
you when to follow ES procedures and when to take special precautions
for handling optical parts.
A warning alerts you of an operating procedure, practice, condition, or
statement that must be strictly observed to avoid death or serious injury to
the persons working on the equipment.
Avertissement: Un avertissement vous avertit d'une procédure de
fonctionnement, d'une méthode, d'un état ou d'un rapport qui doit être
strictement respecté pour éviter l'occurrence de mort ou de blessures graves
aux personnes manupulant l'équipement.
A caution alerts you to an operating procedure, practice, condition, or
statement that must be strictly observed to prevent equipment damage or
destruction, or corruption or loss of data.
Attention: Une précaution vous avertit d'une procédure de
fonctionnement, d'une méthode, d'un état ou d'un rapport qui doit être
strictement respecté pour empêcher l'endommagement ou la destruction
de l'équipement, ou l'altération ou la perte de données.
Note: Notes either provide extra information about a topic or contain
special instructions for handling a particular condition or set of
circumstances.

Before You Begin
xiCV60 Vehicle Mount Computer User's Manual
Global Ser ices and Support
Warranty Information
To understand the warranty for your Intermec product, visit the Intermec
web site at http://www.intermec.com and click Service & Support. The
Intermec Global Sales & Service page appears. From the Service &
Support menu, move your pointer over Support, and then click
Warranty.
isclaimer of warranties: The sample code included in this document is
presented for reference only. The code does not necessarily represent
complete, tested programs. The code is provided as is with all faults." All
warranties are expressly disclaimed, including the implied warranties of
merchantability and fitness for a particular purpose.
Web Support
Visit the Intermec web site at http://www.intermec.com to download our
current manuals in P F format. To order printed versions of the Intermec
manuals, contact your local Intermec representative or distributor.
Visit the Intermec technical knowledge base (Knowledge Central) at
http://intermec.custhelp.com to review technical information or to request
technical support for your Intermec product.
Telephone Support
These services are available from Intermec Technologies Corporation.
Service Description
In the U.S.A. and Canada
call 1Ć800Ć755Ć5505
and choose this option
Factory Repair and
OnĆsite Repair
Request a return authorization
number for authorized service
center repair, or request an
onĆsite repair technician.
1
Technical Support Get technical support on your
Intermec product.
2
Service Contract
Status
Inquire about an existing
contract, renew a contract, or ask
invoicing questions.
3
Schedule Site Surveys
or Installations
Schedule a site survey, or request
a product or system installation.
4
Ordering Products Talk to sales administration,
place an order, or check the
status of your order.
5
Outside the U.S.A. and Canada, contact your local Intermec
representative. To search for your local representative, from the Intermec
web site, click Contact.

Before You Begin
xii CV60 Vehicle Mount Computer User's Manual
Who Should Read this Manual?
This guide provides you with information about the features of the CV60
Vehicle Mount Computer, and how to install, configure, operate, mainĆ
tain, and troubleshoot it.
Before you install and configure the CV60, you should be familiar with
Windows XP or Windows CE, your network and general networking
terms, such as IP address and network naming conventions.
Related Documents
Document Title art Number
CV60 QuickStart Guide 962Ć054-072
Intermec Computer Command Reference 073529
CV60 Vehicle Power Supply Installation Guide 962-054-076
The Intermec web site at http://www.intermec.com contains many of our
documents that you can download in P F format.
To order printed versions of the Intermec manuals, contact your local
Intermec representative or distributor.
Patent Information
Product is covered by one or more of the following patents:
4,455,523; 5,627,360; 4,553,081; 5,657,317; 4,709,202; 5,671,436;
4,845,419; 5,684,290; 4,961,043; 5,777,309; 5,195,183; 5,793,604;
5,216,233; 5,805,807; 5,218,187; 5,818,027; 5,218,188; 5,821,523;
5,227,614; 5,828,052; 5,241,488; 5,831,819; 5,278,487; 5,834,753;
5,322,991; 5,841,121; 5,331,136; 5,844,222; 5,331,580; 5,883,492;
5,349,678; 5,883,493; 5,397,885; 5,886,338; 5,371,858; 5,889,386;
5,373,478; 5,898,162; 5,410,141; 5,969,328; 5,488,575; 5,986,435;
5,500,516; 6,075,340; 5,504,367; 6,109,528; 5,508,599; 6,158,661;
5,530,619; 6,234,395; 5,567,925; 6,244,512; 5,568,645; 6,330,975;
5,592,512; 6,431,451; 5,598,007, 6,497,368; 5,617,343; 6,538,413.
There may be other U.S. and foreign patents pending.

1CV60 Vehicle-Mount Computer User’s Manual
Introduction
1
This chapter outlines the features and specifications of the CV60
Vehicle-Mount Computer.

IntroductionChapter —1
2 CV60 Vehicle-Mount Computer User’s Manual
Introducing the CV60 Vehicle-Mount Computer
The CV60 Vehicle-Mount Computer is a rugged PC computing device
consisting of a 12.1-inch color, SVGA LCD display with touch screen for
data input and menu navigation.
Communication options include connectivity through two RS-232 serial
ports, USB (host), and Ethernet Wireless network connectivity is enabled
through multiple LAN radio options.
Peripherals supported include PS/2 keyboard, USB mouse, external head-
set, wired RS-232 scanners, wireless scanners via proprietary wireless base
station, wireless printers, and USB data recovery drives.
CV60 Vehicle-Mount Computer

Introduction
—Chapter 1
3CV60 Vehicle-Mount Computer User’s Manual
Features
SWi-Fi certified for interoperability with other 802.11g wireless LAN
devices.
SOperating Systems: Windows CE. NET (4.2), Windows XP Em-
bedded, Windows XP Professional Edition
SIntel® Pentium® III 800 MHz embedded
S128MB base SDRAM memory 256/384 MB optional upgrade
SDisplay: 12.1” TFT 800*600 SVGA
SResistive touch panel
SRotating or solid-state IDE hard drive
SSolid-StatePCMCIATypeIIflashstoragecard
SWireless Printing for cordless accessories and printing
SIntegrated antennas
SRecovery CD provided by Intermec
SExternal USB boot support
SExternal headset jack
SSpeaker
SLocking I/O connectors
SHeater option for low temperature operation

IntroductionChapter —1
4 CV60 Vehicle-Mount Computer User’s Manual
Unpacking the CV60 Vehicle-Mount Computer
When you remove the data collection PC from its box, save the box and
shipping material in case you need to ship or store the data collection PC.
Check the contents of the box against the invoice for completeness and
contact your local Intermec service representative if there is a problem.
The CV60 shipping box contains:
SCV60 Vehicle-Mount Computer (P/N 245-232-101)
SDocumentation (P/N 962-054-072)
The CV60 display allows user input and menu navigation via resistive
touchscreen. The touch panel is field replaceable.
Refer to the CV60 Touch Panel Replacement Instructions (P/N
962-054-078) for information on replacing the touch panel.

Introduction
—Chapter 1
5CV60 Vehicle-Mount Computer User’s Manual
Accessories for the CV60 Vehicle-Mount Computer
You can use these accessories (sold and ordered separately) with the CV60
Vehicle-Mount Computer:
SAC power supply Use the AC power supply (P/N 851-070-001) to
powerthedatacollectionPCwhenitisinthedesktopmounting
stand. The AC power supply is only for use in clean, dry, office-like
environments with temperatures from 10° C to 40° C (50° F to 104°
F). The power supply comes with a North American power cord. If
you are using the data collection PC outside North America, you
need to purchase the appropriate power cord for your local power
source.
SDC power supply There are two DC power supply kits that you can
use to power the data collection PC when it is mounted to a vehicle:
SHeater option kit (15-96 VDC) (P/N 203-665-002) or
(12-72VDC) (P/N 203-669-002).
SDesktop mounting stand The desktop mounting stand (P/N
203-664-001) attaches to your data collection PC to provide a stable
desktop platform. The desktop mounting stand is useful when you
have the data collection PC connected to your PC to develop applica-
tions.
SKeyboard The alphanumeric keyboard is backlit for view in low
lighting conditions (P/N 850-537-002) and supports a subset of the
available keys on a PC-AT keyboard. The CV60 ships with a key-
board overlay to match the application or language you ordered: En-
glish, Western European, or one of the three TE 2000 terminal
emulation options. You must use the keyboard accessory with the
Intermec TE 2000 terminal emulation applications.
SScanner cables Use the scanner cables to connect a scanning device
such as the 1550 and 1551 and 1553 laser scanners.
SKeyboard tray mount The keyboard tray (P/N G9A-KB000-01) is an
orderable option which allows mounting the CV60 keyboard directly to
the device.
SRemote keyboard mounting kit (P/N 203-564-001)

IntroductionChapter —1
6 CV60 Vehicle-Mount Computer User’s Manual
Locating the Data Collection PC Connectors
You connect power, a keyboard, scanner, and RS-232 serial devices to the
data collection PC ports that are located on the bottom panel of the CV60.
Connectors
The On/Off switch and all connectors are located on the bottom of the
CV60.
These include a power connector, two standard serial I/O connectors
(COM1 and COM2), a USB keyboard (USB) connector, and a network
(NET) connector.
Power Connector
Power Switch
Ethernet
USB
Speaker
Serial
Ports
Headphone
Microphone
PS/2 Keyboard
Speaker
A speaker is provided to allow standard PC sounds, as well as business audio
playback and record.
Microphone
This 2.5 mm connector accepts an external microphone.
USB Serial Port
The USB serial port accommodates an external USB standard mouse and
keyboard. Other USB devices which do not have locking connectors can
beused,providedtheCV60isusedonlyasafixedmountterminal.

Introduction
—Chapter 1
7CV60 Vehicle-Mount Computer User’s Manual
DC Power Input
This is a 5-pin circular power connector with a locking collar.
A regulated +12 volt power supply/converter is required.
PS/2 Keyboard
This is a standard keyboard connector for use with PS/2-type keyboards.
On/Off Switch
This switch is located on the bottom of the device next to the DC power
input connector.
Note: ALWAYS perform a proper system (or Windows) shut-down before
shutting the computer OFF.
COM1, COM2 (Serial Ports)
Each port has its own address and a 9-pin male connector to attach
RS-232 serial devices. COM ports can provide 5 volts dc to support a de-
coding type tethered scanner.
Note: Picolink uses the COM2 serial port, so you have COM1 left for
scanner or serial connection use. CV60 computers with the Picolink radio
option installed will have a cover plate over the COM2 serial port.
Headphone
This 3.5 mm connector accepts an external headphone.
Network Connection (NET)
The CV60 Vehicle-Mount Computer has Ethernet (10BASE-T, RJ-45
jack) on board.
Caution: The Lithium-ion (Li-Ion) backup battery is not
user-replaceable. Refer to the “Before You Begin” section of this user
guide for information on where to send your CV60 Vehicle-Mount
Computer for service and warranty repairs.

IntroductionChapter —1
8 CV60 Vehicle-Mount Computer User’s Manual
Card/Drive Slot
RemovetheradomecovertoaccessthePCMCIAcard/driveslot.When
reinstalling the cover, carefully route the antenna cables near the slot to
avoid damage.
PC Card Slot (PCMCIA)
PCMCIA Slot
CV60 Top View (Radome Cover Removed)
This user-accessible slot is for PC Card devices. The 68-pin slot can
accommodate a Type I or Type II device.
Note: Use spinning media for fixed-mount applications only.
Warning: Both edges of PC cards must be in the correct grooves in the
drivetoavoiddamagetothecardortothecomputer.DoNOTforce
PC cards into their respective slots.
