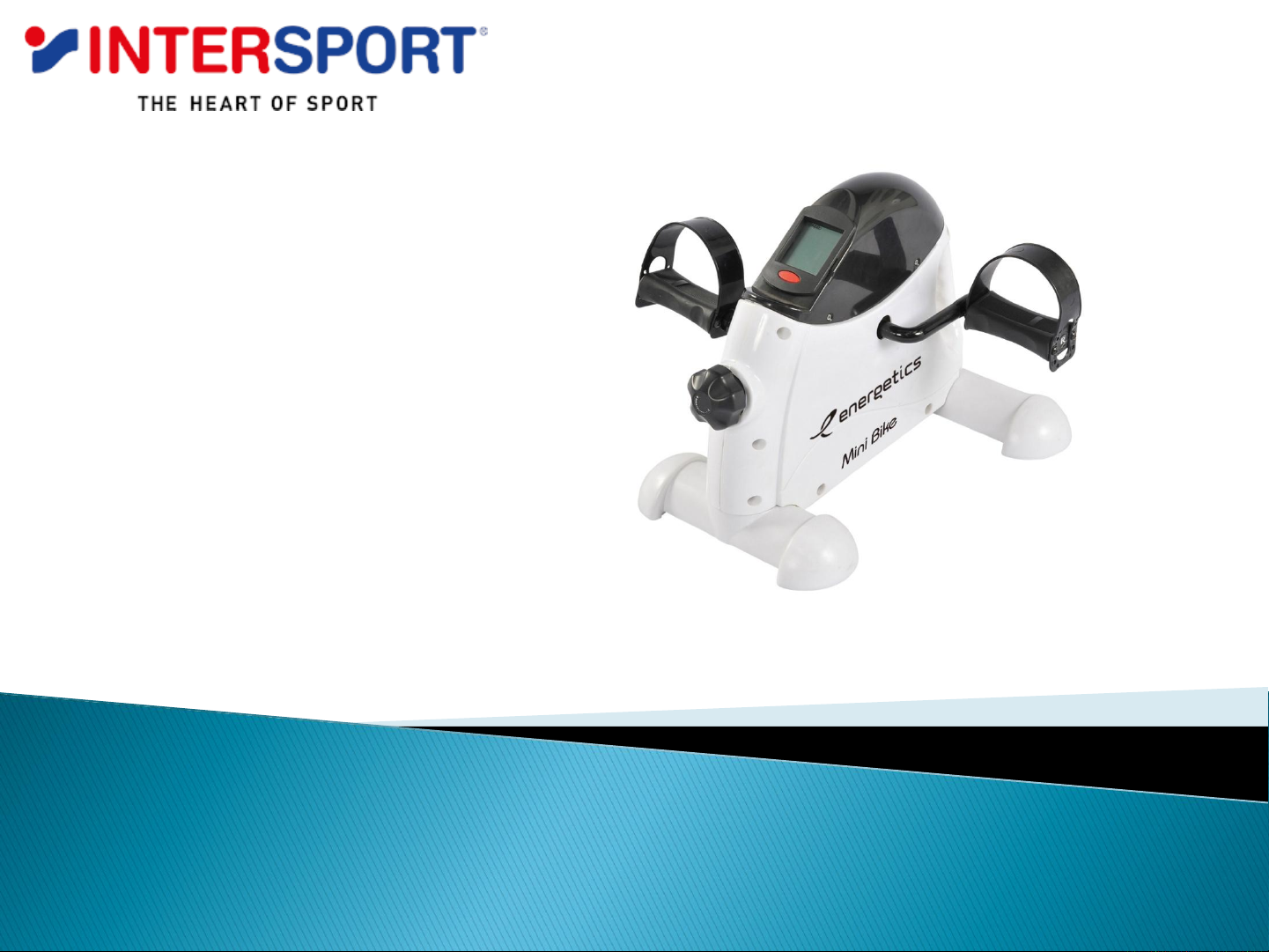

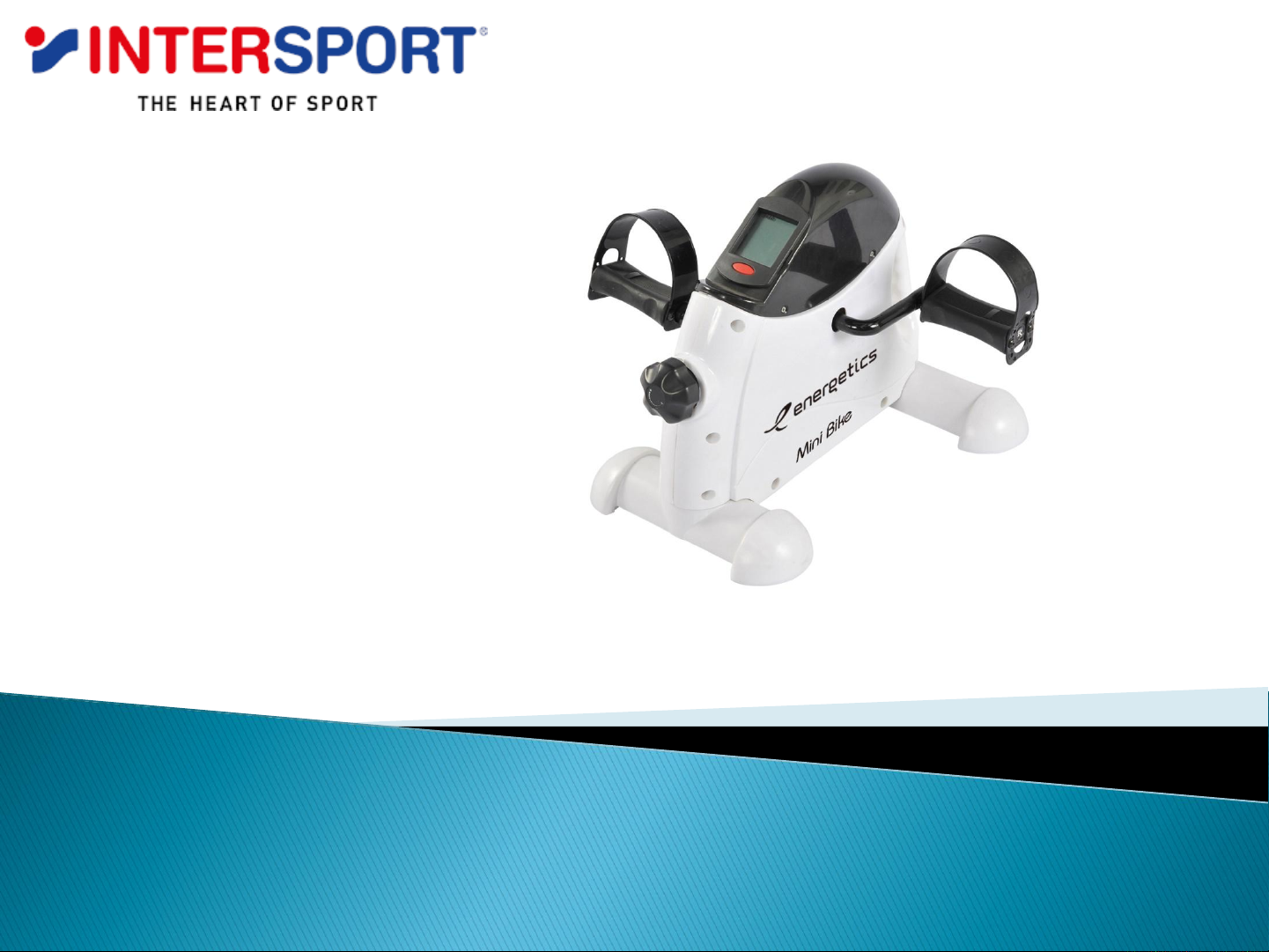

INTERSPORT YC-9031-B User manual
YC-9031-B
MINI BIKE
ENGLISH MANUAL
1
2
Important Safety Information
Please keep this manual in a safe place for reference.
1. It is important to read this entire manual before assembling and using the equipment.
Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly. It is your
responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
2. Before starting any exercise program you should consult your doctor to determine if you have any physical or health
conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your
doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
3. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you
experience any of the following symptoms: Pain, tightness in your chest, irregular heartbeat, extreme shortness of
breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you should consult your
doctor before continuing with your exercise program.
4. Keep children and pets away from the equipment. The equipment is designed for adult use only.
5. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. For safety, the
equipment should have at least 0.5 meter of free space all around it.
6. Before using the equipment, check the nuts and bolts are securely tightened.
7. The safety level of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
8. Always use the equipment as indicated. If you find any defective components whilst assembling or checking the
equipment, or if you hear any unusual noise coming from the equipment during use, stop. Do not use the equipment until
the problem has been rectified.
9. Wear suitable clothing whilst using the equipment.Avoid wearing loose clothing which may get caught in the
equipment or that may restrict or prevent movement.
10. The equipment has been tested and certified to EN957 under class H.C. Suitable for domestic, home use only.
Maximum weight of user: 100kg. Braking is speed independent.
11. The equipment is not suitable for therapeutic use.
12. This article can't be used by standing on it.
13. Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting
techniques and/or use assistance.
3

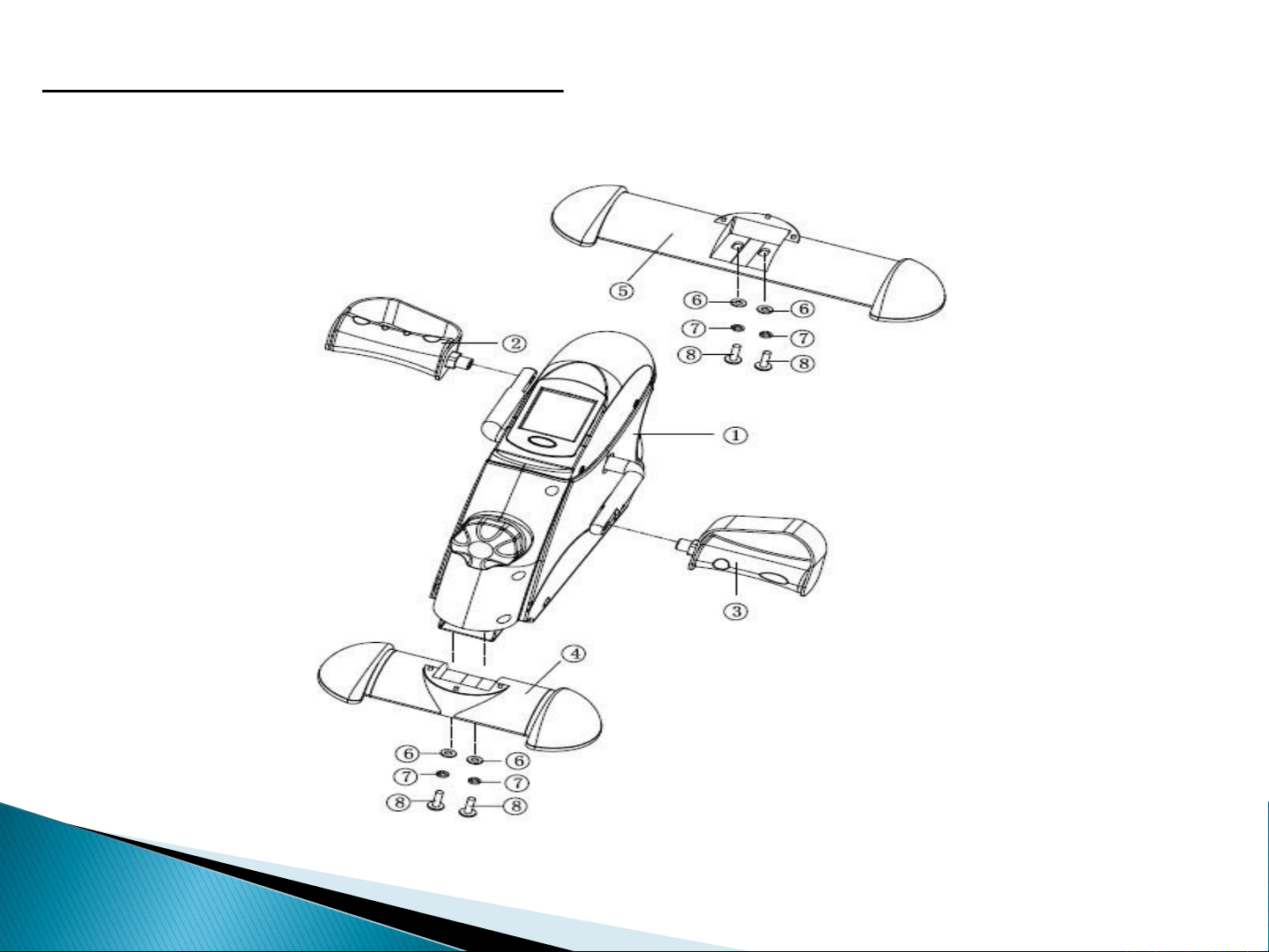

EXPLODED-VIEW ASSEMBLY DRAWING
4
PARTS LIST
No.
Description
Quantity
,1
Mini Bike(basic unit)
1
,2
Left foot pedal
1
,3
Right foot pedal
1
,4
Front foot
1
,5
Rear foot
1
,6
Plain washer
4
,7
Spring washer
4
,8
Screws
4
5
ASSEMBLY INSTRUCTION

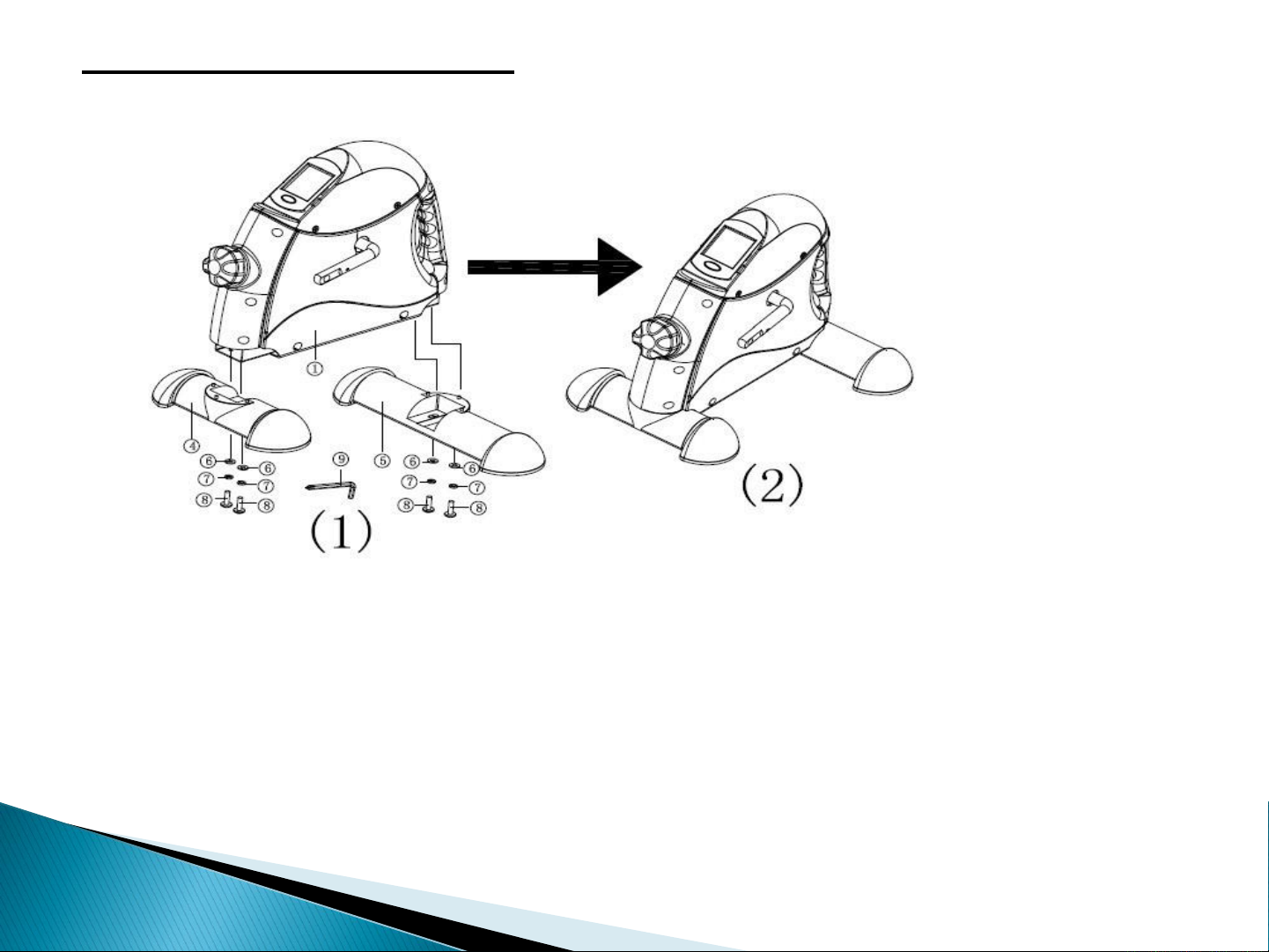

STEP 1
Attach the front foot O,4and rear foot O,5 to the basic unit O,1 with the screws O,8 spring washer O,7 and plain
washer. O,6. Use the supplied screwdriver O,9 for this. See picture (1).
Note: Ensure that the front foot O,4 and rear foot O,5 are correctly positioned. Picture (2) shows the image after
step 1.
6

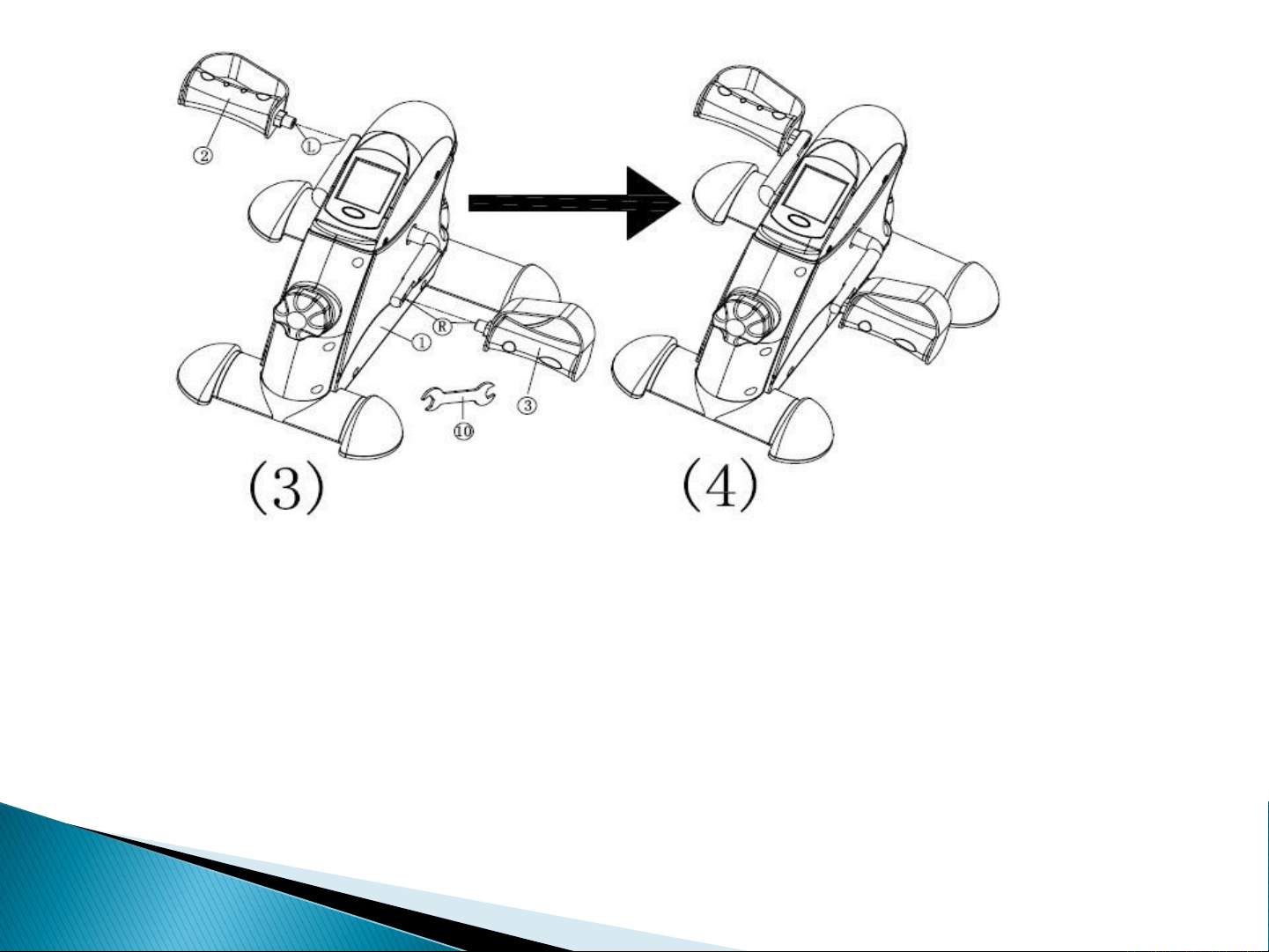

STEP 2
Attach the left foot pedal O,2 and right foot pedal O,3 to the corresponding crank arms. Use the supplied open-
ended spannerO, 10 to fasten the pedals. See picture (3).
Note:
that these markings match. Picture (4) shows the image after step 2.
Note that the left pedal should be threaded on anti-clockwise.
Note that the right pedal should be threaded on clockwise.
INTERSPORT ATHLETICS SA
18-20 SOROU
15125
MAROUSI
GREECE
+302102806019
7

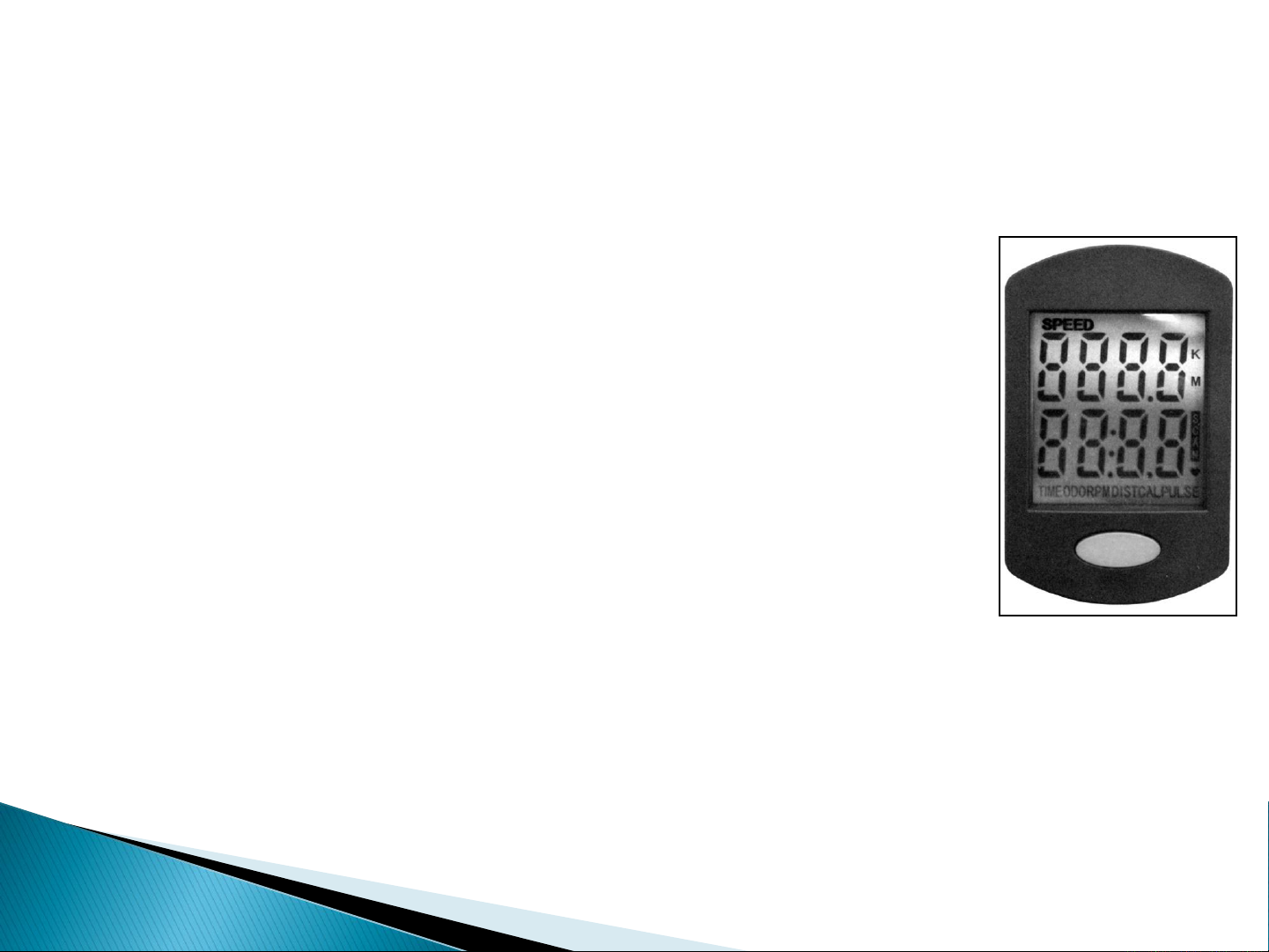

EXERCISE COMPUTER
The computer has a two line display on which the different functions can be displayed. The speed is displayed in the upper line.
There are different displays avail to you in the lower line.
Press the oval key below the display to switch between the following display values:
SCAN: Each display is shown for a few seconds.
TIME: Previous training time in minutes: seconds (0:00 99:59).
ODO: Total distance covered since the last insertion of the battery (0 9999 km)
(note: This value is reset to 0 as soon as the exhausted battery is removed and replaced by a new
battery).
RPM: Shows the speed of rotation per minute.(0 999)
DIST: Shows the distance covered. (0.00 99.99 km)
CAL: Shows the number of calories burned (0.00 999.9)
(this display states an approximate value. The actual calorie consumption depends on the condition of
the person training)
SPEED: Speed in km / h (0.0 999.9 km)
Keep the oval key pressed down for approximately three seconds to delete all of the values(except for
the ODO).
Turning the computer on and off
The computer automatically turns on and starts taking measurements as soon as you start exercising on
the Mini Bike. The computer turns off automatically when the equipment is not used for longer than
approximately 4 minutes.
Replacing the battery
computer.
Note: Make sure you fit the battery the right way round (polarity). The correct polarity is shown inside the
battery compartment.
Check that the plug-in connector is correctly inserted. Insert it again if necessary.
Place the training computer back into the holder and lightly press it into position.
Caution!
Ensure that the cable does not become kinked or trapped.
8
GREEK MANUAL
YC-9031-B
ΠΟΔΗΛΑΤΟ ΓΥΜΝΑΣΤΙΚΗΣ
ΜΙΝΙ
9
1.
2.
3.
4.
5.
6.
7.
8.
9.
ENH.C
100
12
10
11
No.
,1
1
,2
1
,3
1
,4
1
,5
1
,6
4
,7
4
,8
4
12
, 4 ,5 , 1
, 8 ,7 , 6 . ,9.
,4 ,5
13
2 ,3
10
L
R
14
COMPUTER
Auto Scan
----
Time
99.
Odometer
RPM: 999)
DIST:
999.9
Calories
999
Speed
99.9
Reset
AAA 1.5V
Auto On/Off
INTERSPORT ATHLETICS SA
18-20 SOROU
15125
MAROUSI
GREECE
+302102806019
15
service service.
1.
2. i
service
-
.
CE
16
ROMANIAN MANUAL
YC-9031-B
MINI BICICLETA
17
DE IMPORTANTE
acest manual -un loc sigur, astfel avea acces la el cu .
1. Este important manual echipamentul. Utilizarea poate
fi numai cazul care echipamentul este asamblat, utilizat mod . Este
responsabilitatea utilizatorii echipamentului sunt cu privire la toate
avertismentele de .
2. de a orice program de trebuie cu medicul pentru a stabili
vreo sau care ar putea pericol sau sau care v-ar putea
mod echipamentul. Sfatul medicului este
medicamente care ritmul cardiac, tensiunea sau nivelul .
3. semnalelor corpului dvs. Antrenamentul excesiv sau efectuat mod eronat poate afecta
. antrenamentului vreunul dintre simptome: durere, de
piept, aritmie, excesiv, durere de cap, sau . una dintre aceste - medicul
de a continua programul de fizice.
4. copiii animalele departe de aparat. Aparatul este proiectat pentru a fi utilizat doar de .
5. echipamentul pe o cu un de pentru podea sau un covor. Pentru a fi
siguri de aparatul trebuie fie la cel 0,5 metri jurul acestuia.
6. de a utiliza aparatul, buloanele sunt bine .
7. aparatului poate fi doar mod regulat a suferit pagube .
8. aparatul conform . vreo timp ce sau
aparatul sau zgomote de la aparat timpul acestuia, - imediat. Nu
aparatul nu se problema.
9. aparatul. hainele largi care se pot prinde de aparat sau care pot
sau bloca .
10. Aparatul a fost testat are certificatul EN957 clasa H.C. Potrivit numai pentru uz casnic. Greutatea a
utilizatorului: 100 kg. Capacitatea de este de .
11.Aparatul nu este adecvat pentru utilizare .
12. Toate piesele (de ex. pedale, scaun ... etc) . totul de
utilizare. vreun accesoriu a fost rupt sau imediat.
18
19
LISTA COMPONENTELOR
No.
Description
Quantity
,1
Mini Bike(basic unit)
1
,2
Left foot pedal
1
,3
Right foot pedal
1
,4
Front foot
1
,5
Rear foot
1
,6
Plain washer
4
,7
Spring washer
4
,8
Screws
4
20
PASUL 1
, ,5 la axul central, , ,8 rozete de
,7 & rozete simple, , 9 vezi fig. (1)
:-, , 4 & cel din spate, 5 sunt bine fixate. Imaginea (2) arata
