InterTest iGrab EM19610 User manual
iGrab™ Complete Professional
FOD Retrieval Tool Kit
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Released January 2022
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 2of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Table of Contents
Contact Information ....................................................................................... 2
Introduction................................................................................................. 3
System Components...................................................................................... 4
Standard Parts List................................................................................... 4
Dimensional Part Sketches .............................................................................. 7
Safety ....................................................................................................... 8
Safety Precautions...................................................................................... 8
Operational, General Safety Considerations and Precautions ................................... 8
Cautionary Symbols and Symbol Terminology ..................................................... 9
Warnings ................................................................................................. 9
Disclaimers .............................................................................................. 9
Warranty .................................................................................................. 10
Copyrights and Rights of Portrait ..................................................................... 10
Registered Trademark Information ................................................................... 11
Connections .............................................................................................. 11
Controls ................................................................................................... 13
Battery Replacement ................................................................................. 13
Table of Figures ......................................................................................... 14
Care & Maintenance .................................................................................... 14
Overall System ........................................................................................ 14
Troubleshooting ......................................................................................... 14
Returns for Repair or Service ....................................................................... 14
Return Evaluation Procedure ....................................................................... 15
NOTES: ................................................................................................... 16
Contact Information
InterTest, Inc.
303 Route 94
Columbia, NJ 07832 USA
Telephone (USA and Canada): 800-535-3626
Telephone (Outside the USA and Canada): +1 908-496-8008
Fax: +1 908-496-8004
Visit us on the Internet
www.intertest.com
General Information via Email info@intertest.com InterTest © 2020. All rights reserved
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 3of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Introduction
The iGrab™ Complete Professional FOD Retrieval Tool Kit, made from 300 Series Stainless
Steel, provides numerous options for retrieving foreign objects in hard-to-access areas. Any
operator or facility equipped with the Complete Professional FOSAR Retrieval Tool kit can
immediately respond to a retrieval operation that is causing disruption in a mechanical system
or plant operation.
The RT-750 Electro-Mechanical Tool portion of the kit is a heavy-duty motorized, mechanical
gripper with a closing force of greater than 20 lbs. at 30 degrees closure. The variety of
detachable jaw sets, Sampling Cups, Fork & Tine, Viper, and Pliers are built to grasp almost
any object needing retrieval. The tool attaches to the end of interlocking, fiber-glass push
poles for operator-friendly movement. Push poles to come in 3/16", 5/16", and 3/8" diameters,
and the kit includes 10-units of each, packaged in a canvass-covered tube with a shoulder
strap and handle. A spring coupler, flex-pole coupler, and knuckle joint have been included to
help push the poles around bends and move the tool into a perpendicular position to the pole.
Small J and large U hooks, 0.69- and 1.25-inch magnets, and small & large snares make up
the remainder of the Complete Professional FOD Retrieval Tool Kit. With the exception of the
push poles, all other components fit neatly into a durable locking hard case for easy storage.
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 4of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
System Components
Standard Parts List
Part # Description
EM19659 TOOL KIT CASE WITH DIVIDERS
EM19647 IGRAB COUPLING, FLEXIBLE PUSH POLE
EM19657 IGRAB COUPLING, FLEXIBLE SPRING
EM19651 ADJUSTABLE KNUCKLE JOINT
EM19650 IGRAB PUSH POLE, 3/16" DIA x 5' LENGTH
EM14824 IGRAB PUSH POLE, 3/8" DIA x 5' LENGTH
EM10707 IGRAB PUSH POLE, 5/16" DIA x 5' LENGTH
EM10687 T- STYLE HANDLE FOR PUSH POLES
EM17399 IGRAB QUIVER FOR PUSH POLES
EM19649 LARGE DIAMETER PUSH POLE SNARE
EM19648 SMALL DIAMETER PUSH POLE SNARE
EM19654 HOOK, J TYPE
EM19656 HOOK, U TYPE LARGE
EM17108 Large Retrieval Magnet 1.25"
EM17067 Small Retrieval Magnet 0.69"
EM17161 Magnet Storage Case
EM18001 IGRAB RT-750 TOOL HEAD ONLY
EM17789 100' CABLE FOR RT-750/1000
EM13833 iShot RT-750 Control Box Unit
EM10740 SPARE FORK AND TINE JAW SET FOR RT 750
EM10741 SPARE GRIPPINGS PLIER JAW SET FOR RT 750
EM10742 SPARE SAMPLING CUP JAW SET FOR RT 750
EM10743 SPARE VIPER JAW SET FOR RT 750
EM64636 4-40 X 3/16" SOCKET SET SCREW 18-8 SS
EM65023 ALLEN KEY LONG .050"
EM63863 ALLEN KEY SHORT 2mm
EM65030 ALLEN KEY SHORT 3/16"
EM63870 Plastic Box
EM66238 AA BATTERY
Figure 1 Standard Tool Kit Parts List
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 8of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832

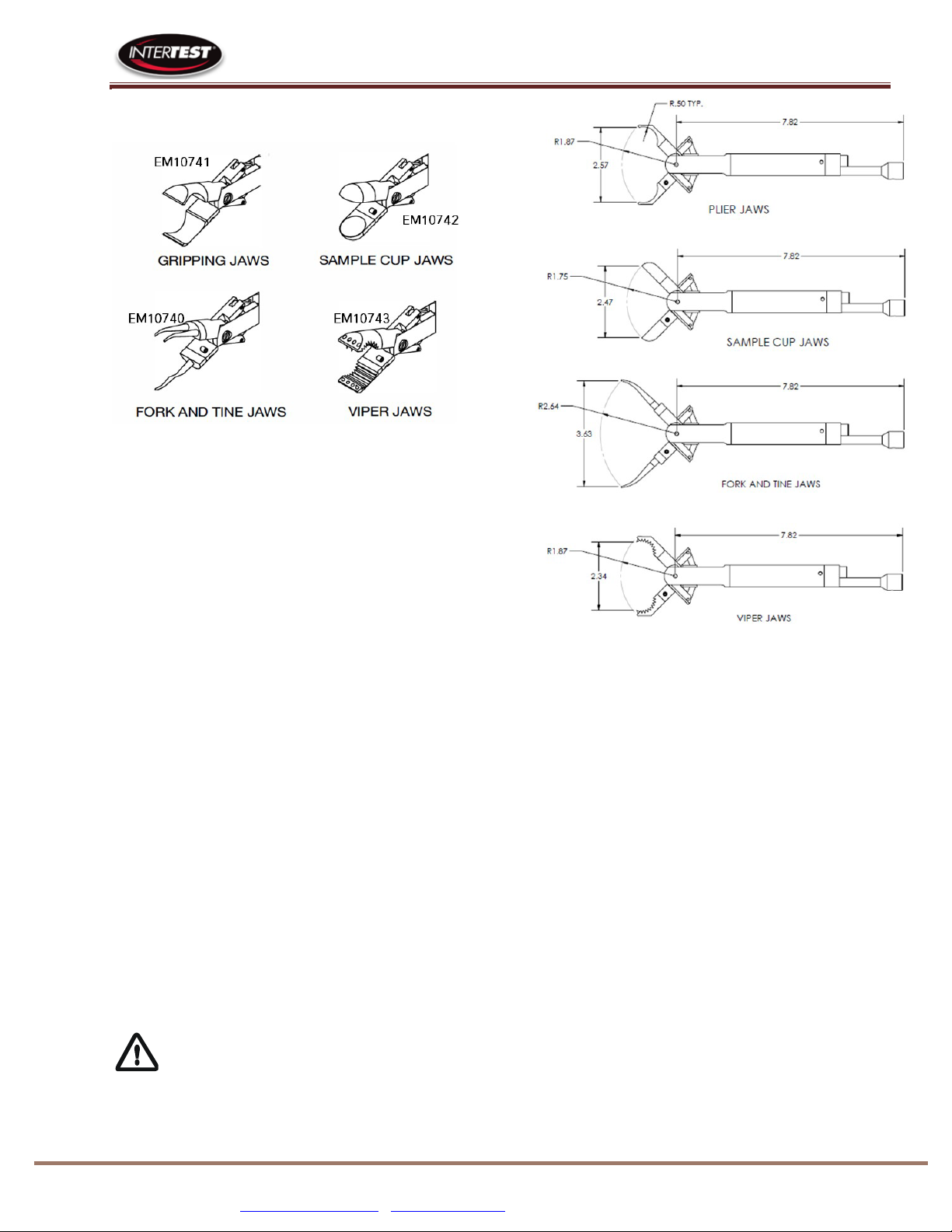

Figure 7 Jaw Dimensions
Safety
Safety Precautions
This manual covers the iGrab™ Complete Professional FOD Retrieval Tool Kit, its functions,
and its use. It also covers precautions to be taken to ensure safe operation. Please read this
manual thoroughly before operating the equipment. By doing so, you will become familiar with
the equipment’s capabilities and better understand its functions. Save the manual for future
reference.
Follow all warnings and instructions in the manual and marked on the equipment.
Operational, General Safety Considerations and Precautions
Always observe the guidelines and precautions that follow.
There are no user-serviceable parts inside the motorized retrieval tool. Refer all
services to the InterTest Customer Service and Support Group.
IMPORTANT: To ensure operator safety, read and understand this manual before
using the system.
To avoid injury, read and understand the associated documentation of support
components before operation. Direct any questions about equipment operation
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 9of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
to InterTest Customer Service and Support Group at 908-496-8008 or email
service@intertest.com.
Cautionary Symbols and Symbol Terminology
Table A describes the various symbols included in this manual and mounted on the
equipment. The severity level of a potential hazard varies. Refer to for hazard level
descriptions.
Table A — Manual and Equipment Safety Symbols
Symbols Definitions
WARNING/CAUTION: Risk of electric shock.
WARNING/CAUTION: Refer to the instruction manual.
WARNING/CAUTION: Avoid exposure to water and liquids.
WARNING/CAUTION: Avoid eye and skin exposure to UVA Light.
Warnings
Stop operation immediately when any abnormality or defect occurs. Use during an
abnormal condition, such as emitting smoke, burning odors, after damage from dropping,
invasion of foreign objects, etc., may cause fire and electrical shock. Disconnect the power
plug from the electrical outlet and contact InterTest Inc.
Only use the specified power supply / Control Unit.
Do not mix battery types—alkaline, NiCad, etc.
Do not use in proximity to energized electrical equipment
Do not connect or disconnect any cable while the unit is energized.
Some surfaces may be warm to the touch. Use caution when handling.
Disclaimers
InterTest Inc. disclaims any responsibility and shall be held harmless for any damages or
losses incurred by the user using this product. Including the following:
1. Fire, earthquake, or any other act of God. Actions by third parties; misuse by the user,
whether intentional or accidental; use under conditions outside of noted operating
range.
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 10 of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
2. Malfunction or non-function resulting in indirect, additional, or consequential damage,
including but not limited to loss of expected income and suspension of business
activities.
3. Use not in compliance with this manual’s instructions.
4. Malfunctions resulting from misconnection.
5. Unauthorized repairs or modifications.
6. Notwithstanding the preceding, Intertest’s liabilities shall not exceed the product’s
purchase price.
Warranty
InterTest, Inc. guarantees products manufactured by InterTest, Inc. to be free from defects in
materials and workmanship for one (1) year from the original purchase date. All other
products not manufactured by InterTest, Inc. will carry the OEM’s limited warranty, which will
be passed to the purchaser through and supported by InterTest, Inc. InterTest, Inc.’s
obligation under this limited warranty shall be confined to the repair or exchange of any part,
or parts thereof, that prove defective under regular use and service for which the product was
intended or designed.
This limited warranty covers products that are deemed to be defective upon our examination.
This limited warranty is in lieu of all other warranties, express or implied, including the
warranties of merchantability and fitness for use. We neither assume nor authorize any other
person to assume any other liabilities in connection with the sale of InterTest, Inc. equipment.
This warranty does not apply to any equipment that has been subject to accident, negligence,
alteration, abuse, unauthorized repair, improper storage, or other misuse.
This limited warranty applies only to the original purchaser and cannot be assigned or
transferred to any third party without express written consent from InterTest, Inc.
This limited warranty does not apply to consumable items, expendable items, or normal wear
and tear, nor does it apply to failure due to radiation, overheating, and/or below-freezing
temperatures.
InterTest, Inc. assumes no responsibility, either expressed or implied, regarding the improper
usage of this equipment or interpretation of test data derived from the use of this equipment.
InterTest, Inc.’s responsibility and obligations, in all cases, are limited strictly to the repair and
replacement costs outlined above.
The laws of the State of New Jersey shall govern this warranty.
Note: If the equipment cannot be returned to InterTest, Inc. The customer agrees to pay all
travel and living expenses incurred to have an InterTest, Inc. representative evaluate, assess
or affect a warranty repair in the field.
Copyrights and Rights of Portrait
There may be a conflict with the Copyright Law and other laws when a customer uses,
displays, or exhibits an image picked up by a television camera without permission from the
copyright holder. Please also note that the transfer of an image or file covered by copyright is
restricted to use within the scope permitted by the Copyright Law.
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 11 of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Registered Trademark Information
InterTest® is a registered trademark of InterTest, Inc.
iShot®is a registered trademark of InterTest, Inc.
iShot®Imaging™is a trademark of InterTest, Inc.
iGrab®is a registered trademark of InterTest, Inc.
IMPORTANT: If you have a printed or electronic version of this document, be
aware that it may not be the current revision. To ensure that you are using the
most up-to-date revision of this document, contact the InterTest Customer
Service and Support Group or reference the downloads portal under this product
on www.intertest.com.
Connections
Figure 8 Cable Connections
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 14 of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Table of Figures
Figure 1 Standard Tool Kit Parts List ...................................................................................................... 4
Figure 2 Standard Tool Kit Image (Labeled)........................................................................................... 5
Figure 3 Standard Tool Kit Part Images (Labeled) ................................................................................. 6
Figure 4 R750 Jaw Sets.......................................................................................................................... 6
Figure 5 Dimensioned Part Sketches ..................................................................................................... 7
Figure 6 Retrieval Tool Dimensions........................................................................................................ 7
Figure 7 Jaw Dimensions........................................................................................................................ 8
Figure 8 Cable Connections ................................................................................................................. 11
Figure 9 Tool Connections & Adjustments............................................................................................ 12
Figure 10 RT750 Control Buttons ......................................................................................................... 13
Figure 11 Battery Replacement ............................................................................................................ 13
Care & Maintenance
Overall System
•Do not operate near intense electromagnetic fields.
•Do not mix battery types, Alkaline, NiCad, etc.
Troubleshooting
•Ensure cable connection is tight and secure.
•Replace 8 AA batteries if jaw strength wanes or the motor stops
running.
•Verify electrical continuity in the cable if the jaw is not opening/closing.
•Check the lead screw for foreign matter if the jaw is stuck in an open
position.
Returns for Repair or Service
If the product needs repair, send it to the Service Department at the main office
in Columbia, NJ. An RMA (Return Material Authorization Number) must be
issued before the unit is returned. Call InterTest, Inc. at (908) 294-8008 to
obtain an RMA Number from customer service. Shipments returned without an
RMA will have an administrative fee applied to the transaction.
Provide the product number, serial number, and a brief description of the
problem or damage when obtaining an RMA number
iGrab™ Complete Professional FOD Retrieval Tool Kit
Page 15 of 16
InterTest, Inc. • 303 Route 94 • Columbia, NJ 07832
Return Evaluation Procedure
Once InterTest, Inc. receives a return, it will be evaluated. The fee for any repair
evaluation not sent in under warranty is $55 (USD credited against the repair
cost). This cost is in addition to any other charges required. Before any repairs
are completed, a repair evaluation will be issued and payment arranged.
Payment via credit card is preferred and will expedite the repair process.
Once payment is arranged, the authorization to repair the product is given.
Completed repairs will ship back to the customer using the pre-arranged
shipping methods.
For Service:
InterTest, Inc.
303 State Route 94
Columbia, NJ 07832
1-800-535-3626
+1 908 496 8008
http://www.intertest.com
Table of contents
Other InterTest Analytical Instrument manuals
Popular Analytical Instrument manuals by other brands
Thermo Scientific
Thermo Scientific Orion Star A113 reference guide
Water Analytics
Water Analytics AquaMetrix AM-ODO2 Operation manual
SPX
SPX Pearpoint Flexiprobe P340 Operation manual
LaserLiner
LaserLiner LaserRange-Master T2 manual
Extech Instruments
Extech Instruments BR100 user guide
Bühler technologies
Bühler technologies GAS 222.35 Ex2 Installation and operation instruction
