InTouch KIO215VRT User manual

KIO215VRT USER MANUAL
COPYRIGHT 2021 - INTOUCH SCREENS
1350
640 400
33590
27°

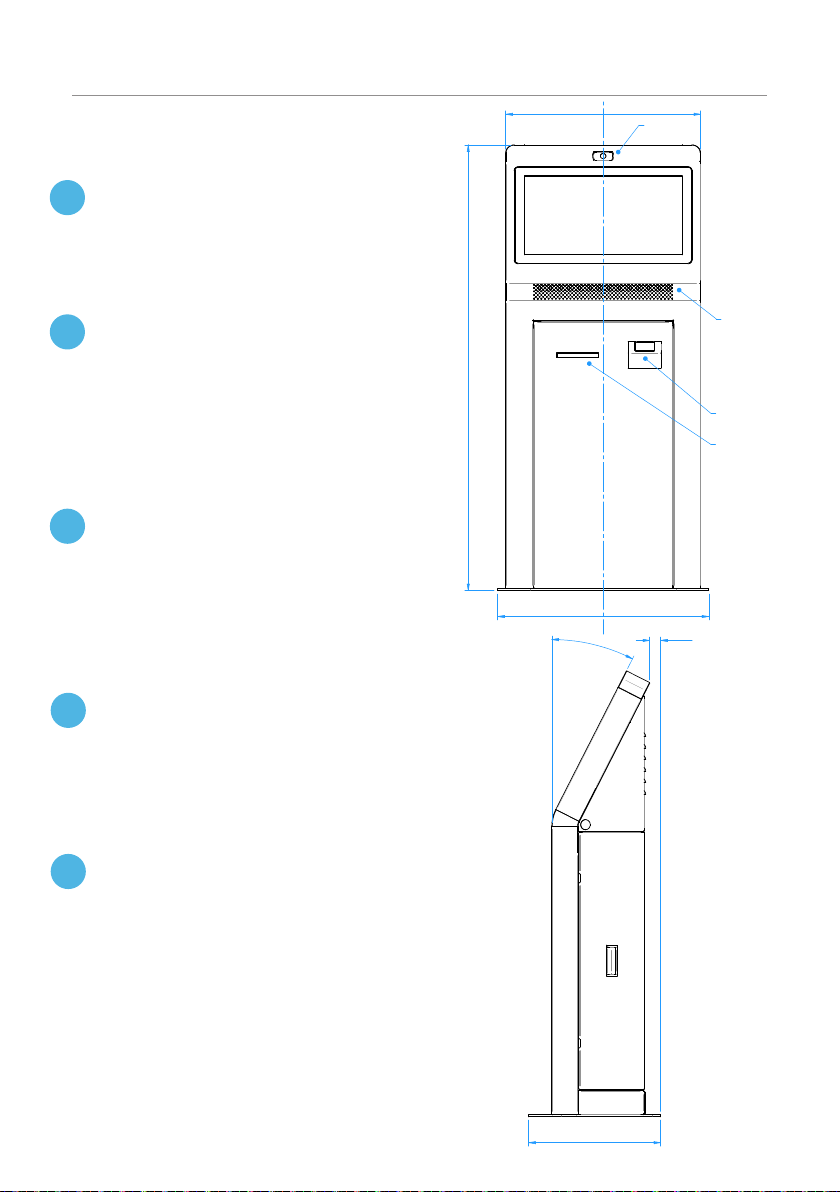

KIO215VRT - 21.5 inch Touch Screen Display Kiosk
1920 x 1080 Resolution
21.5 inch Active Area - 477.0 x 269.0 mm
16:9 Aspect Ratio
Standard Accessories: Thermal Label Printer, Camera, Speakers and 2D Scanner
Overall Dimensions: 1350H x 640W x 400D
Weight: 75 kg approx.
Product data available in DXF and 3D PDF formats
138132
334
390
Mounting Holes to suit
M10 Fasteners
R 100
R 25
Scanner
Thermal Label
Printer
Camera
Speakers
160120
340

KIO215VRT SPECIFICATIONS
Touch Screen INOF215
1
• 21.5” active viewable area
• 10-point PCAP multi-touch
• VGA & HDMI input
• 1920 x 1080 Native Resolution
Scanner Datalogic Gryphon GFS4400
(Alternate Devices Available)
3
• Reads 1D & 2D barcodes
• Wide angle eld-of-view
• Reads QR Codes
• Programmable for “Always On”
or “Object Sense” mode
Printer Citizen CL-S400DT
(Alternate Devices Available)
2
• Direct thermal printing
• Industrial Auto-Cutter
• Max. print width 104mm
• Max. print length 812mm
• Two cutting modes -
backfeed & cut through
Camera Logitech C922
Pro-stream Webcam
4
• Full HD 1080p at 30fps
• Hyperfast frame rate in HD
• Video capture capabilities
• 78° Field of view
5Speaker Lenovo Soundbar
• USB delivered audio and power
• Dual Speaker support with 1.25+1.25
total watts of output
• Stylish and sleek design
COPYRIGHT 2021 - INTOUCH SCREENS
1350
640
400
33
590
27°
KIO215VRT - 21.5 inch Touch Screen Display Kiosk
1920 x 1080 Resolution
21.5 inch Active Area - 477.0 x 269.0 mm
16:9 Aspect Ratio
Standard Accessories: Thermal Label Printer, Camera, Speakers and 2D Scanner
Overall Dimensions: 1350H x 640W x 400D
Weight: 75 kg approx.
Product data available in DXF and 3D PDF formats
138132
334
390
Mounting Holes to suit
M10 Fasteners
R 100
R 25
Scanner
Thermal Label
Printer
Camera
Speakers
160120
340
COPYRIGHT 2021 - INTOUCH SCREENS
1350
640
400
33590
2
7°
KIO215VRT - 21.5 inch Touch Screen Display Kiosk
1920 x 1080 Resolution
21.5 inch Active Area - 477.0 x 269.0 mm
16:9 Aspect Ratio
Standard Accessories: Thermal Label Printer, Camera, Speakers and 2D Scanner
Overall Dimensions: 1350H x 640W x 400D
Weight: 75 kg approx.
Product data available in DXF and 3D PDF formats
138132
334
390
Mounting Holes to suit
M10 Fasteners
R 100
R 25
Scanner
Thermal Label
Printer
Camera
Speakers
160120
340

KIO215VRT INTERNAL ACCESS
CABLING INFORMATION
Step 2. Connect all USB
devices.
Step 3. Connect your PC power cable into the powerboard.
(The powerboard is normally located on the PC shelf)
HDMI VGA
Touch Screen
Printer
Camera
Scanner
Fan
{
Step 1. Connect your desired
display cable. (HDMI
Recommended)
(VGA option may not
be included)
COPYRIGHT 2021 - INTOUCH SCREENS
Project Name
CONCEPT DESIGN
To access the inside of
the kiosk. Unlock both
key locks and use the
handle depicted to open
the door. (You may
need to slighlty lift the
door when opening)
There are multiple VESA holes
to mount your PC onto the PC
shelf as indicated. (It can also
simply be placed on the shellf if
required)
Open the rear
door to gain
access to the
printer for paper
replacement.
PC Shelf

CLEANING INSTRUCTIONS
WARRANTY
Applicable to touch screens and kiosks:
InTouch suggests using an isopropyl alcohol spray and clean microbre cloth.
Caution: Be careful when cleaning your kiosk to avoid vinyled graphic areas so as not
to damage the artwork. DO NOT use abrasive cleaners, solvents or cloths.
For more information please visit www.intouchscreens.com.au/cleaning
FOR MORE INFORMATION
For more information please visit www.intouchscreens.com.au/warranty
Visit our Website
Telephone [phone]
suppor[email protected]
[e-mail]
www.intouchscreens.com.au
SECURING YOUR KIOSK TO THE FLOOR (OPTIONAL)
For further information on securing your
kiosk, do not hesitate to contact us on
suppor[email protected]
