Invacare Action Vertic User manual

Invacare® Action®
Ver tic
User guide
Yes, you can.

Foreword
The information contained in this manual is subject to change without notice. Some information is submitted under copyright – all rights reserved. Any infor-
mation in this document cannot be photocopied or duplicated without prior written authorization by Invacare.
As the European and world leader manufacturer of wheelchairs, Invacare endeavours to supply a wide range of wheelchairs to meet all the needs of the user in
everyday life. Final selection of the Action Vertic is based upon prior trial in order to obtain part or full reimbursement. The user, with the assistance of a multi-
disciplinary team of qualied health advisors as well as a registered distributor, will nd out if the product is perfectly adapted.
- Your wheelchair is especially designed to be used inside. It is intended for active adults who wish to position themselves vertically during the day for medical
or professional reasons. This product complies with the European CE EN93/42 directives relative to medical products of Class 1, EMC (NF EN6060-2 et CEI
60335-2) and meets the NF mark standard (NF EN ISO 14971 & NF EN 12182).
- The Action Vertic is designed to be used for short periods as well as permanently, in everyday life or at work.
- It is important that you comply with the vertical positioning protocol (duration, frequency, posture, maximum verticality angle,…) which has been prescribed
by your physical therapist.
Safety Information on Electromagnetic Interference
This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) Regula-
tions. However, electromagnetic elds, such as those generated by radio and television transmitters, and cellular phones, can inuence the functions of electric
vehicles. Also, the electronics used in our vehicles can generate a low level of electromagnetic interference, which however will remain within the tolerance
permitted by law.
For these reasons we ask you to please observe the following precautions:
WARNING: Danger of malfunction due to electromagnetic interference!
− Do not switch on or operate portable transceivers or communication devices (such as radio transceivers or cellular phones) when the vehicle is switched on!
− Avoid getting near strong radio and television transmitters!
− In case the vehicle should be set in motion unintentionally, switch it off immediately!
− Adding electrical accessories and other components or modifying the vehicle in any way can make it susceptible to electromagnetic interference. Keep in
mind that there is no sure way to determine the effect such modications will have on the overall immunity of the electronic system!
− Report all occurrences of unintentional movement of the vehicle, or release of the electric brakes to the manufacturer!
Stamp of the Distributor

Introduction
Dear Customer
Thank you for purchasing an Invacare wheelchair.
This model was designed to provide you with all the benets and features to meet your needs. Only quality
components were selected for your wheelchair based upon rigorous inspections during the entire manufac-
turing process.
This manual describes the operating limits of your wheelchair, maintenance operations and adjustments that
you or your assistant can make.
However, all the repairs (except for inner tubes) as well as some adjustments, require specic technical
training and, therefore, must be performed by your distributor.
!
Please read carefully the operating instructions in this user guide before rst use of your wheelchair .
This product was supplied by Invacare® manufacturer with respect to the environment. It is in conformity
with 2002/96/CE directive relative to electric and electronic equipment waste management.
This product may contain substances which might damage the environment if they are disposed of in inap-
propriate places and places non conform to national regulation.
The symbol showing a crossed out waste bin is afxed on this product in order to encourage you to
recycle it at selective collection structures (please contact your municipal authorities / local government).
Please be ecologically responsible and recycle this product at the end of use.

2
3
A. GENERAL GUIDELINES
Page
1. Safety and operating limits
1.1. Reaching an object from the chair 3
1.2. Transferring to other seats 5
1.3. Tilting 6
1.4. Tilting, Kerbs 6
1.5. Slopes 7
1.6. Stairways 7
1.7. Vertical positioning 7
2. Operating instructions
2.1. Folding and Unfolding the wheelchair 8
3. Safety inspection and maintenance
3.1. Performance control 10
3.2. General inspection 10
4. Battery recharging 11
5. Transportation 11
6. Summary of warranty terms 14
5.1. Standard terms 14
5.2. Limitation of liability 14
7. Operating instructions for optimal safety 14
B. DESCRIPTION OF YOUR WHEELCHAIR
Page
1. Presentation
1.1. Introduction 15
1.2. General description 15
2. Adjustments
2.1. Seat elements 16
2.1.1 Depth adjustable seat 16
2.1.2 Tension adjustable seat upholstery 17
2.1.3 Height adjustable backrest 19
2.1.4 Tension adjustable backrest upholstery 20
2.1.5 footrests 21
2.1.6 Armrests 21
2.1.7 Straps and posture belts 21
2.2. Frame 23
2.2.1 Side frame 23
2.2.2 Stand up mechanism 23
2.3. Rear wheel 23
2.3.1 Wheels 23
2.3.2 Handrims 24
2.3.3 Quick release axles 25
2.4. Castors 25
2.4.1 Wheels 25
2.5. Brakes 26
2.5.1 Manual brakes 26
2.6. Options and accessories 27
2.6.1 Push handle 27
2.6.2 Anti-tippers 28
2.6.3 Work tray 29
2.7. Table of light/sound signals signication 27
2.8. Specications and tools 27
2.8.1 Standard wheelchair specication 27
2.8.2 Tools for adjustment (not supplied) 28
2.8.3 After sale and disposal 29
2.9. Dimensions (ISO) 31
TABLE OF CONTENTS

2
3
- Weight Limit
The maximum recommended weight of the user is 115kg.
However, the level of activity is an essential factor. For
example, an active user who weighs 75 kg may subject the
wheelchair to more stress than a user who weighs 100 kg.
To this purpose, we recommend that you consult your
retailer when choosing the model of wheelchair based upon
your daily life style.
1.1. Reaching an object from the chair
The limitations on reaching out from a wheelchair indicated
in the following diagrams have been calculated based on a
representative sample of wheelchair users:
- Only the arms should be extended beyond the seat of the
wheelchair. (gure 2).
- The body and head should remain within the boundaries of
the seat. (gure 3).
123
A GENERAL GUIDELINES
1. Safety and operating limits
For a safe operation of your wheelchair, the following para-
meters should be observed :
- Stability and balance
Your wheelchair has been designed to provide the stability
you need during normal daily activities.
Any movement in the wheelchair will have an impact on
the position of the centre of gravity, which may lead to the
wheelchair tipping and a fall.
To improve your safety when you move a lot or you trans-
fer your weight from one place to another, we recommend
using seat belts.

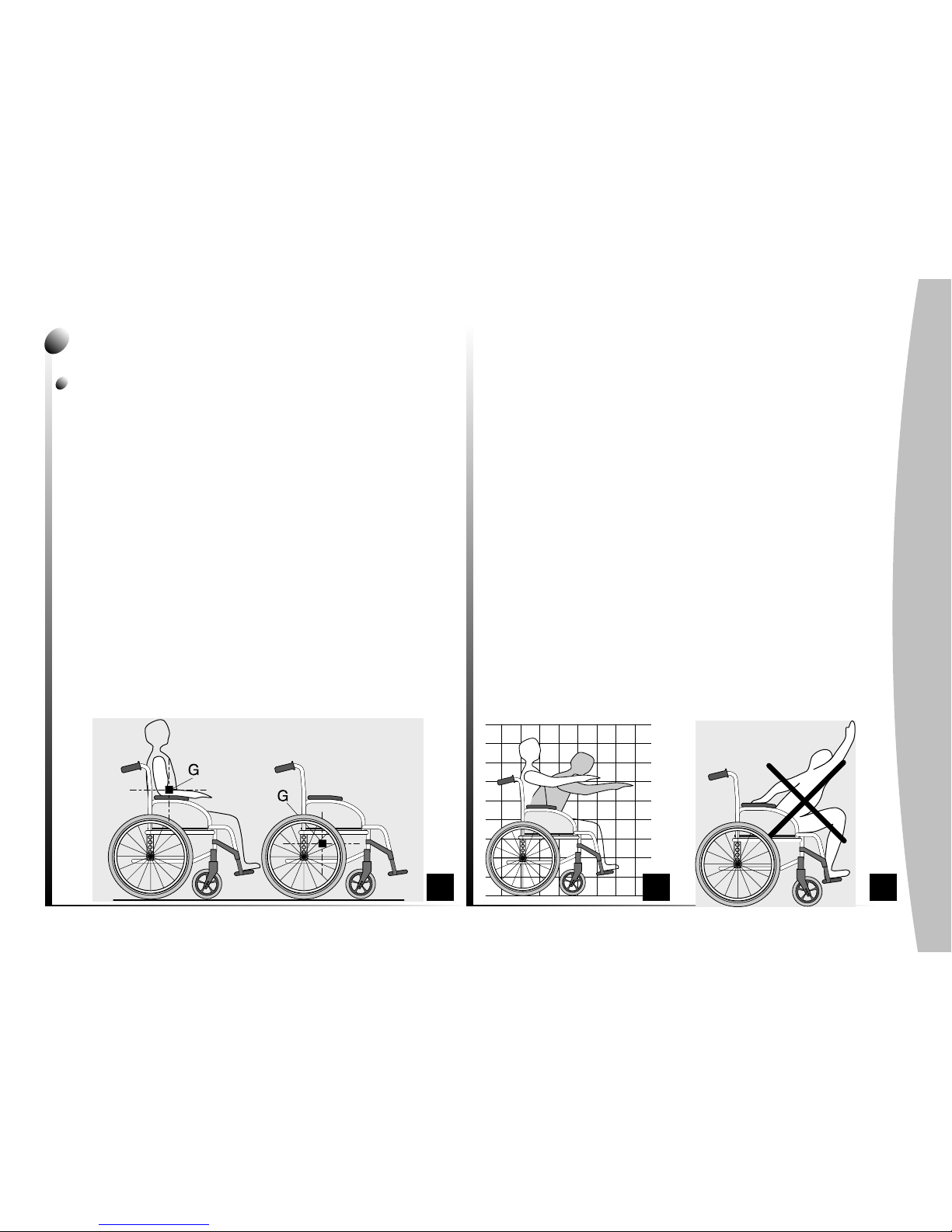

- Weight distribution (gure 1)
Many actions cause the user of a wheelchair to reach out,
lean over or move about within the wheelchair and outside
it. These movements cause a change to normal balance,
centre of gravity (G) and weight distribution of the wheel-
chair.

4
5
1.1.1 Leaning forward
Do not extend your chest over the armrest (gure 4).
In order to reach an object in front of you, you must lean and
bend down ; therefore, you must use the castors as a tool
(pointing them forward) to maintain stability and balance. An
accurate alignment of the wheels is essential for your safety
(gure 5).
1.1.2 Leaning backward
Position the wheelchair as close as possible to the desired
object so that you can simply pick it up by stretching your
arm while sitting in the chair in a normal position. In any case,
do not lean backwards because you may cause the chair to
tip (gures 6 and 7).
5 7
6
4

4
5
1.2. Transferring to other seats sideways
(gures 8 & 9)
This may be done without assistance provided that you are
sufciently mobile and have a strong enough torso.
- Move the wheelchair as close as possible to the seat
to which you would like to sit, with the castors pointed
forward. Lock the wheels by applying the brakes. Swing the
armrest pad backwards on the side you would like to move
to. Move the weight of your body towards the seat (gure
8)
- Front transfer is possible by leaning on the two armrests
to lift yourself up ; however it is not recommended as the
slight exibility of armrests may cause momentary instability
and possibly lead to a fall.
- While moving from the wheelchair to the seat, your body
will have little or no support. Where possible use a transfer
board during transfers (gure 9).
!
Warning :
- Position yourself as close as possible to the place where
you wish to sit.
- When transferring, position yourself as far back as possible
in the seat to prevent breaking screws, damaging the seat
upholstery or causing the wheelchair to tip forward.
- Lock the two brakes ; they should not be used in any case
as support for transfers.
- Never stand on the footrests when you are getting in or
out of the wheelchair (gure 10).
9
810

6
7
1.3. Tilting (balancing on the rear wheels)
For greater safety, this operation must be performed by an
attendant. The attendant should be aware of the required
physical effort and use appropriate positioning in order to
relieve the strain on his/her back (keep a straight back and
bend your knees during this operation).
To tilt the wheelchair, the attendant must rmly grab the han-
dles making sure both are properly xed. Warn the occupant
in the wheelchair before tilting it and remind him / her to
lean backwards and make sure that both feet and hands of
the user are clear of the wheels.
Place a foot on the footstep tube and move continuously
until the chair reaches the equilibrium point. At this stage, the
assistant will feel a difference in weight distribution, which
usually occurs at approximately 30°. At this point, the
wheelchair can get over the obstacle easily.
Finally, the attendant slowly and gradually lowers the front
down to the ground, while rmly holding the handles.
!
Warning :
- Be aware of detachable parts such as armrests or legrests :
they must NEVER be used as lifting supports as they may be
inadvertedly released, resulting in possible injury to the user
and / or attendant.
- Do not lower the wheelchair suddenly, even if it is several
centimetres from the ground, as this may result in injury of
the user.
1.4. Tilting, Kerbs
To get on the pavement :
- Method 1 (gure 11)
The attendant positions the wheelchair in front of the
pavement facing forward. Attendant tilts the wheelchair
backwards until the castors reach the pavement; attendant
pushes the wheelchair forward until the rear wheels are
against the kerb and again pushes the wheelchair until the
rear wheels climb over the kerb.
- Method 2 (gure 12)
In this case, the attendant stays on the pavement and
moves the wheelchair in a backwards position with the rear
wheels against the kerb. The attendant tilts the wheelchair
backwards until it is balanced and pulls the wheelchair with a
steady movement until the rear wheels climb over the kerb ;
then he / she lowers the castors, while making sure that the
chair is far enough on the pavement so that the castors do
not fall into empty space.
To get off the pavement :
11 12

6
7
The attendant positions the wheelchair facing forward on
the pavement and tilts it backwards until it is balanced, then
he/she pushes the wheelchair forward until the rear wheels
touch the road after getting over the obstacle; then, he / she
gradually lowers the castors to the ground.
1.5. Slopes
It is recommended to avoid using ramps with a slope higher
than 9°. The wheelchair risks tipping over in the event of
spinning or side movement (gure 13).
Upward slopes (gure 14) :
Lean the upper body forward and move the wheelchair
forward with short quick pushes on the hand rims to main-
tain speed and direction control. If you want to rest, apply
both brakes when stopping.
Downward slopes (gure 15) :
Lean backward cautiously and let the hand rims slide in your
hands. Be ready to react at any moment to control speed
and direction.
!
Warning :
- Avoid turning suddenly and never try to climb and descend
a ramp diagonally (figure 16).
1.6. Stairways
Because this is a difcult movement, we recommend using
two attendants, one in front of the wheelchair and one
behind the wheelchair.
!
Warning :
we recommend that users over 125 kg in weight do not use
this operation !
To climb stairways (gure 17) :
After tilting the wheelchair to the point of equilibrium, one
assistant (at the back) holds the wheelchair up against the
rst step grasping the handles rmly to lift.
The second assistant, lifts the wheelchair above the stairs,
while holding rmly a xed part of the frame, and holds it
13 15
14 16

8
9
while the rst assistant takes a step and repeats the opera-
tion. The wheelchair must not be lowered until the last step
has been passed and the chair is clear of the stairs.
To descend stairways :
Same operation as above, however, in reverse order.
!
Warning :
- Do not attempt to lift the wheelchair by any removable parts
(such as armrests, legrests or footrests).
- Avoid using an escalator which may lead to serious injury in
the event of a fall.
1.7. Vertical positioning
Battery autonomy make it possible to stand up and sit down
about 150 times (depending on user’s weight) before
recharging.
!
Warning :
You should not use the raising/lowering mechanism when
the charger is connected, unless batteries are at very low
capacity and cannot drive lowering operation.
Please comply with the vertical positioning protocol which
has been prescribed by your physical therapist.
It is essential that your Action Vertic is perfectly adapted to
your morphology, all necessary adjustments are described in
§ B 2.1.
Always make sure that the ground where you want to
stand up is perfectly level and rm, without any obstacle or
object which might damage stability of the wheelchair and
safety of the user.
Operate both manual brakes to block rear wheels.
17 19
18

8
9
Make sure that the four slings used to hold the body during
vertical positioning are in place and well adjusted , see § B
2.1.7. Straps and posture belts
Make sure that no obstacle or person (a child for ins-
tance) prevents the raising or lowering as there is a risk of
serious injury in case of body jamming in moving mechani-
cal devices.
Be careful not to hit an obstacle with the raising / lowe-
ring knob, as the possibility of the switch breaking could
cause an overly long blockage in the vertical position.
Make sure you always have the possibility to call for
assistance in case of a problem when standing up (mobile
phone or alarm necklace / bracelet at hand).
1.7.1. Standing up (photos 20 & 21)
After applying the above safety measures, you can stand
up : position your forearms on armrest tubes and operate
button (A) upwards ; stand up progressively (in stages) until
the prescribed vertical angle. The persons around you and
yourself will be advised that you are using the stand up func-
tion by a long beep (1 tone).
1.7.2. Sitting down (photo 22)
Keep your forearms on the armrest tubes and switch button
(A) down ; go down progressively (in stages) to the initial
seating position (beeping will stop).
Note : After no use during 30 minutes, 1 tone warns you of
the setting in a stand-by mode.
22
A
2120

10
11
!
Warning :
Push on the backrest (downwards) before re-tightening both
treaded pins (A) to make sure the backrest is well positio-
ned.
!
Warning :
Check that quick release axles are well locked in their hou-
sing, as there is a risk of a serious fall if not the case.
2.2. Wheelchair propulsion
Wheelchair propulsion is provided by the handrims moun-
ted on the wheels. The handrims can be adjusted based
upon your height to allow you to hold them properly, and
various accessories can be added to improve the grip (anti-
slip plastic coated, capstan spigot kit, etc.)
Qualied medical and paramedical staff will be able to
provide you with advice regarding the propulsion which is
best adapted to your disability.
2. Operating instructions
2.1. Folding and unfolding of stand-up wheelchair
2.1.1. Folding :
- To reduce the wheelchair bulk for transport or putting away,
rst loosen both threaded pins (A) to stop without forcing
(risk of loss of the nut), then position the two armrest pads
parallel to the backrest, pull the backrest upwards and fold it
on the seat.
- Rear wheels also are removable : push on the central knob
of the quick release wheel axle (see § B-2.3.3.)
2.1.2. Unfolding :
- Follow the same instruction in reverse order, by rst posi-
tioning rear wheels.
- Then put the backrest in initial position.
23
A
24

10
11
3. Safety inspection and maintenance
3.1. Performance control
As the user, you will be the rst to notice the possible
operational defects of your wheelchair. The following table
indicates the easiest troubleshooting symptoms to identify
and the preliminary inspection that you can perform.
In the event that the symptoms persist after adjusting the
pressure in the tyres and tightening screws and nuts, please
consult your retailer.
The inner tubes of the wheels are the only components that
you can repair yourself (see § B-2.3).
Depending on use (once a week to once a month),
regularly lubricate the different articulations of the stand
up mechanism with uid oil (same type as for a sewing
machine) or 3 in 1 type oil spray equipped with precision tip
(see § B 2.2.2.)
3.2. General inspection
Your distributor, who has the required technical expertise, is
responsible for any wheelchair repair.
We recommend that you take the wheelchair to your
retailer at least once a year for a complete inspection. Regu-
lar maintenance allows the identication and replacement of
defective and worn parts, which improves the daily operation
of your wheelchair.
Regular inspections to be performed by you or your
assistants :
a. General
Make sure that the wheelchair folds and unfolds easily.
Make sure that the wheelchair moves in a straight line. (no
resistance or deviation)
b. Manual brakes
Make sure that the manual brakes do not touch the moving
tyres.
Make sure that the manual brakes operate easily.
Make sure that the joints are not worn and do not have
excessive play.
c. Vertical positioning system
Check the raising / lowering mechanism for any play or jam-
ming in articulations (lubricate if necessary, see § B-2.2.2).
d. Skirtguard/armrest upholstery
Make sure that all the ttings are properly tightened.
e. Armrest tubes
Make sure that armrest tubes are securely tightened and
that there is no play or jamming in articulations (lubricate if
necessary, see § B-2.2.2)
The
wheelchair
swerves
to the right
The
wheelchair
swerves
to the left
The
wheelchair
turns or
moves slowly
The
castors
lift
Creaking
and
clinking
Play in
the
wheelchair
Inspections
Make sure that pressure
in the pneumatic tyre
is correct
(cf. § B-2.3)
Make sure that the bolts
are tight
Check the adjustment
on the fork angle
Make sure that the 2
castors come in contact
with the ground at the
same time

12
13
!
Warning :
Do not use any product to clean parts except for the uphols-
tery which can be washed with soap and water only.
Make sure you dry the wheelchair if it is wet (e.g. after
washing it or going out in the rain).
Avoid riding on wet areas as well as gravel, grass, etc. (war-
ning: sand and sea water particularly damage ball bearings).
When using the wheelchair inside, we recommend using solid
tyre castors, especially when riding on carpet.
Do not expose the wheelchair to a temperature higher than
40°C (e.g. in a vehicle).
f. Armrest tube foam
Make sure that armrest tube foam is in good condition
g. Seat and backrest upholstery
Make sure that the upholstery is in good condition.
h. Rear wheels
Make sure that the wheel nuts and precision bearings are tight.
Make sure that the wheels are parallel to the frame.
i. Handrims
Check for rough patches.
j. Spokes
Make sure that the spokes are not distorted, loose or broken.
k. Castors
Make sure that the axle is tight by turning the wheel the wheel
must gradually come to a stop.
l. Fork/steering tube
Make sure that all the ttings are well tightened.
m. Pneumatic and solid tyres
Check the pressure of the pneumatic tyres (value indicated on
the side) check the wear of the solid tyre tread.
n. Batteries
Maintenance-free batteries are protected inside a box equip-
ped with a light load indicator (green = full load charge; yellow
= low load charge, use is still possible; red = empty, battery to
be recharged asap, see following page § 4 Battery recharging).
o. Maintenance
Make sure that electric connections are well in place, that
cables are not cut or crushed.

12
13
A
4. Battery recharging
4.1. Instructions
a. It is possible to recharge batteries at night as the charger
is equipped with an automatic switch off device thus pre-
venting any battery overloading.
b. Before rst use, new batteries should be charged for 8
hours .
c. Recharge at least for 8 hours if batteries are completely
unloaded (red light bar on the battery box).
d. Ambient temperature during recharging should be
between 10°C and 30°C.
e. Recharging time is longer if temperature is below 10°C.
4.2. Battery charge
!
Warning :
- Always use the charger (HP 1202N2) supplied with the
wheelchair as there is a risk of explosion or destruction of
batteries if poor quality or incompatible charger is used.
- Always protect the charger against humidity as there is a
risk of electrocution and destruction of the charger if it is wet.
-Do not use the charger if it has been dropped or dama-
ged as there is a risk of short-circuit and electrocution.
-Only use an extension lead if it is absolutely necessary as
there is a risk of re or injury if a damaged one is used. If
there is no other choice, make sure the extension lead is in
good condition and compatible with the charger power

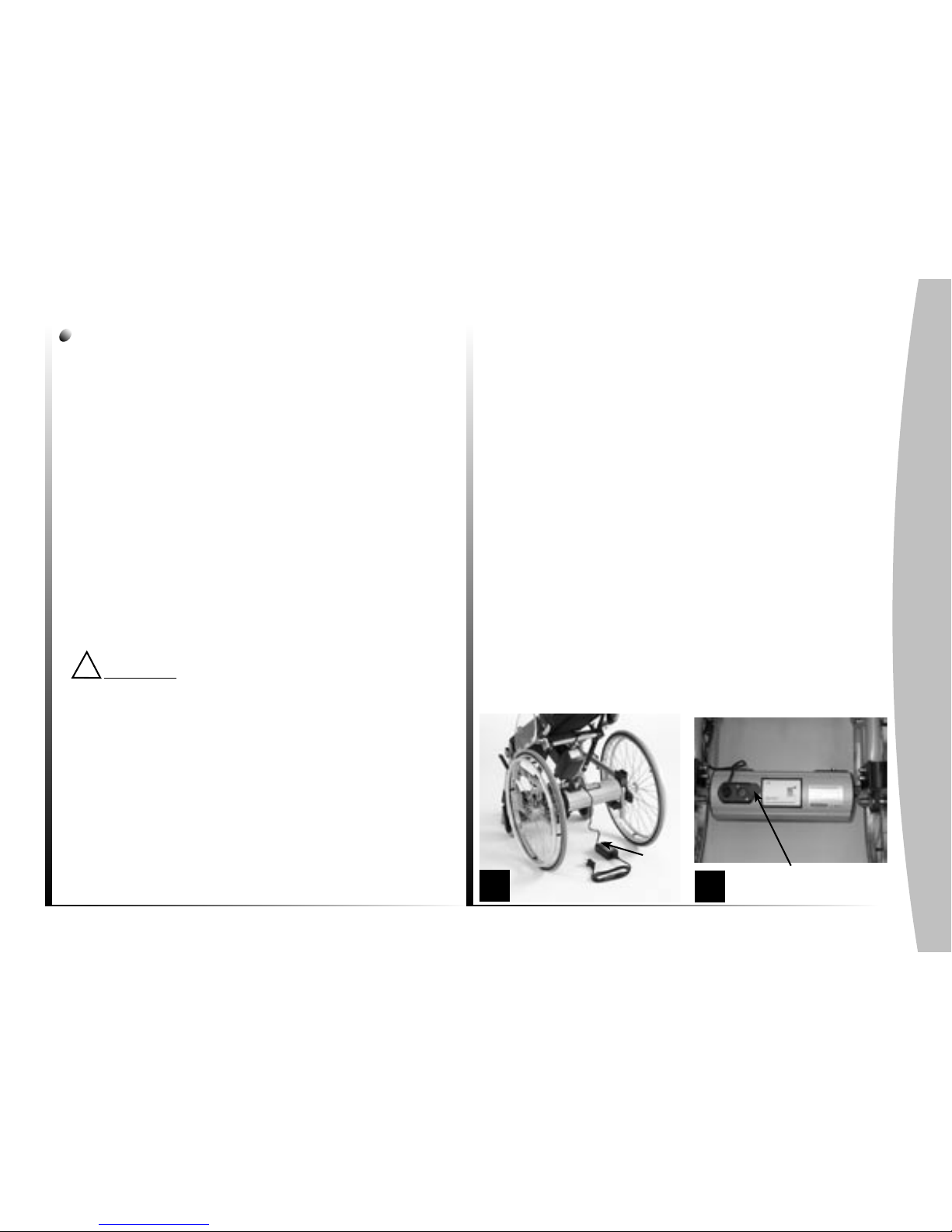

• Connect the charger (A) to the battery box (photo 25):
the charge plug is located on the upper face, under the plug
protection (B) (photo 26)
• Plug the charger into the mains, it starts automatically and
the red light on top of the charger turns orange.
• When charging is nished (the warning light on top of the
charger is green), rst unplug the charger from the mains and
then the charge plug from the battery box.
Red ashing = low charge load capacity;
orange ashing = tension of batteries in low or overheating.
Do not use the raising / lowering mechanism when
the charger is plugged unless battery load capacity is
too low for lowering operation.
25 26 B

14
15
4.3. Battery maintenance instructions
Only store batteries when they are completely charged.
Batteries can be stored at a temperature from -40°C to
+65°C.
If batteries are stored for more than 4 weeks, they should
be recharged once a month. This is to keep their full charge
and prevent any deterioration by spontaneous discharge.
5. Transportation
!
Warning :
This wheelchair was not designed nor tested to be used as a
seat in a vehicle ; it is necessary to move the user to a vehicle
seat adapted to human transport.
The Action Vertic is equipped with batteries which are not
considered as « dangerous equipment ».
This classication conforms to the following regulations:
- Regulation on dangerous goods road transport (GGVS)
- Regulation on dangerous goods railway transport
- Regulation on dangerous goods air freight (IATA/DGR)
Two persons are required to raise the wheelchair, for exam-
ple to put it into a car, as the heaviest part is about 27 kg in
weight (see § 2.1. Folding / Unfolding)
Make sure you are well positioned in order to relieve your
back.
6. Summary of warranty terms
6.1. Standard Invacare terms and conditions
This is to certify that your manual wheelchair is warranted
by Invacare for a period of 2 years for the frame and cross-
bars, all others parts 2 years also but subject to the following
conditions :
- If a defect or fault is discovered the supplier / dealer from
whom the appliance was purchased should be notied imme-
diately.
- The manufacturer will not accept responsibility for damage
caused by misuse or non-observance of the instructions set
out in the user manual.
- During the period of warranty, any parts that have become
defective due to faulty workmanship or materials, will be
renewed or repaired without charge by the Invacare dealer/
supplier.
- The warranty will be forfeited should any unauthorised
alteration be made to the equipment.
- The Purchaser’s statutory rights under the Consumer
Protection Act are not affected.

14
15
6.2. Limitation of liability
This warranty does not extend to the consequential costs
resulting from fault clearance, in particular freight and travel
costs, loss of earnings, expenses, etc.
Invacare shall not be liable for :
- Natural wear and tear.
- Inappropriate or incorrect use.
- Defective assembly or setting-up by the purchaser or third
parties.
- Defective or neglectful treatment use of unsuitable spares.
7. Operating instructions for optimal safety
- Maximum user’s recommended weight : 115 kg.
- Do not attempt to reach objects if you have to move
forward in the seat.
- Do not attempt to pick up objects from the oor by rea-
ching down between your knees.
- Do not lean over the top of the upholstery back to reach
objects located behind you : this may cause you to tip over
- Always engage both manual brakes simultaneously.
- Manual brakes are parking brakes : they must not be used
in any case to slow down the wheelchair or as support
during transfers.
- Do not tilt the wheelchair (down kerbs or steps) without
using an assistant.
- Do not carry in the stairways or escalator, user sited in the
wheelchair whith only one attendant; this may cause serious
injury.
- Do not use the wheelchair unless it has the proper tyre
pressure as indicated on the side wall of the tyre.
- Do not overinate the tyres : this may cause the tyres to
explode and cause bodily harm.
- Do not expose the wheelchair to a temperature higher
than 40°C.
- To avoid injury, keep your ngers away from mobile parts
(swing in armrests, foldable backrest, vertical positioning
system, manual brakes), and maintain good posture before
lifting the wheelchair.
- Do not use the wheelchair in humid environment and
outside under the rain.

16
17
B. DESCRIPTION OF YOUR WHEELCHAIR
1. PRESENTATION
1.1. Introduction
Your wheelchair has been factory set before you purchased
it. However, it must be specically adapted to your needs.
The following detailed paragraphs describe the various
functions and possible adjustments as well as available
options. You can make some adjustments yourself, while
others can be made only by your dealer.
Important: based upon the selected model or options, your
new Action® Vertic wheelchair may be equipped with all of
the components or options which are described in the
following pages.
!
This is a warning symbol ; you must
imperatively follow the instructions that
are provided in these paragraphs to
prevent personal injuries as well as
injuries to people around you !
1.2. General description (see photo)
Your wheelchair is made of various parts and this manual
describes only the main parts. We recommend that you
become acquainted with the following terms in order to
better understand your wheelchair operation :
 The seat consists of the seat and backrest upholstery,
the backrest and armrests. This unit is designed to provide
optimal comfort.
 The swing-away footrest support or legrest : this
is the supporting part between the frame and the footrest
which swivels to facilitate transfers and can be removed
during transport.
 The footrest consists of an adjustable tube and the
footplate which supports the foot.
 The folding frame consists of side frames and a folding
system including the seat rails. These parts constitute the
frame, which is the supporting component of the wheelchair
and its strength is well tested (checked at 115 kg).
 The steering tube is the connection between frame and
castors ; it allows the adjustment of the seat angle.
 The rear wheel consists of the wheel, axle and handrim.
The rear wheels ensure the rear stability and allow the
propulsion of the wheelchair using the handrims. They are
mounted on the multiple adjustment wheel support brackets .

16
17
 The castor consists of the front wheel and the fork. The
castors provide front contact with the ground and determine
the steering by the direction of the forks.
 The manual brake is a parking brake. The two manual
brakes are used to secure the wheelchair when stationary.
2. Adjustments and maintenance
2.1. Seat elements
!
Always perform the necessary adjustments before the
user sits down the wheelchair in order to prevent any injury.
2.1.1. Depth adjustable seat (photo)
First loosen the 4 screws (A) (6 mm hexagonal key) loca-
ted on the actuator back supports in order to facilitate the
backrest supports sliding. Loosen the two external (B) and
internal (C) screws sideways (4 mm hexagonal key), then
simultaneously slide the two support tubes forwards or bac-
kwards (based upon user’s morphology) to the preset holes.
Re-tighten the 4 screws (B & C) sideways.
!
Make sure the 4 screws on the actuator back supports
(A) are re-tightened, as there is a risk of vertical positioning
system dysfunction if the supports slide on the chassis tubes.
Seat upholstery
Armrest
tube
Backrest upholstery
Backrest
Monobloc
footplate
Adjustable
footrest tube
1B
AC
Chest strap
Belt
Knee support
Calf pad
2
Frame
Steering tube
Rear wheel
Rear wheel axle
Handrim
Manual
brake
Front wheel
Rear wheel
support

18
19
2.1.2. Tension adjustable seat upholstery (photo 3)
It allows to adjust the depth and curvature based upon user’s
morphology. First disassemble one armrest panel by loosening
the 2 screws and the supports (4 mm hexagonal key and 10
mm key) , position the upholstery, if needed, according to the
depth adjustment (see above §) then adjust Velcro fasteners
(B) in order to stretch or slacken them in width. Reposition
the armrest panel (A) and securely tighten fastening screws.
!
Check the quality and positioning of Velcro fasteners.
2.1.3. Height adjustable backrest (photos 4 & 5)
For height adjustment, rst take the backrest upholstery off,
slightly loosen the screw (A) with a 3 mm hexagonal key,
adjust to the desired height based upon the preset holes,
tighten without forcing. Reposition the backrest upholstery
according to the new height.
2.1.4. Tension adjustable backrest upholstery (Photo 5)
It allows to adjust the curvature of the backrest to the user’s
morphology and body posture. Lift the ap and adjust the
Velcro straps in order to stretch or slacken them. Reposition
the ap.
!
Check the quality and positioning of Velcro straps.
3
A
45
A
B
C
B
