Ipevo iZiggi-HD User manual

IPEVO

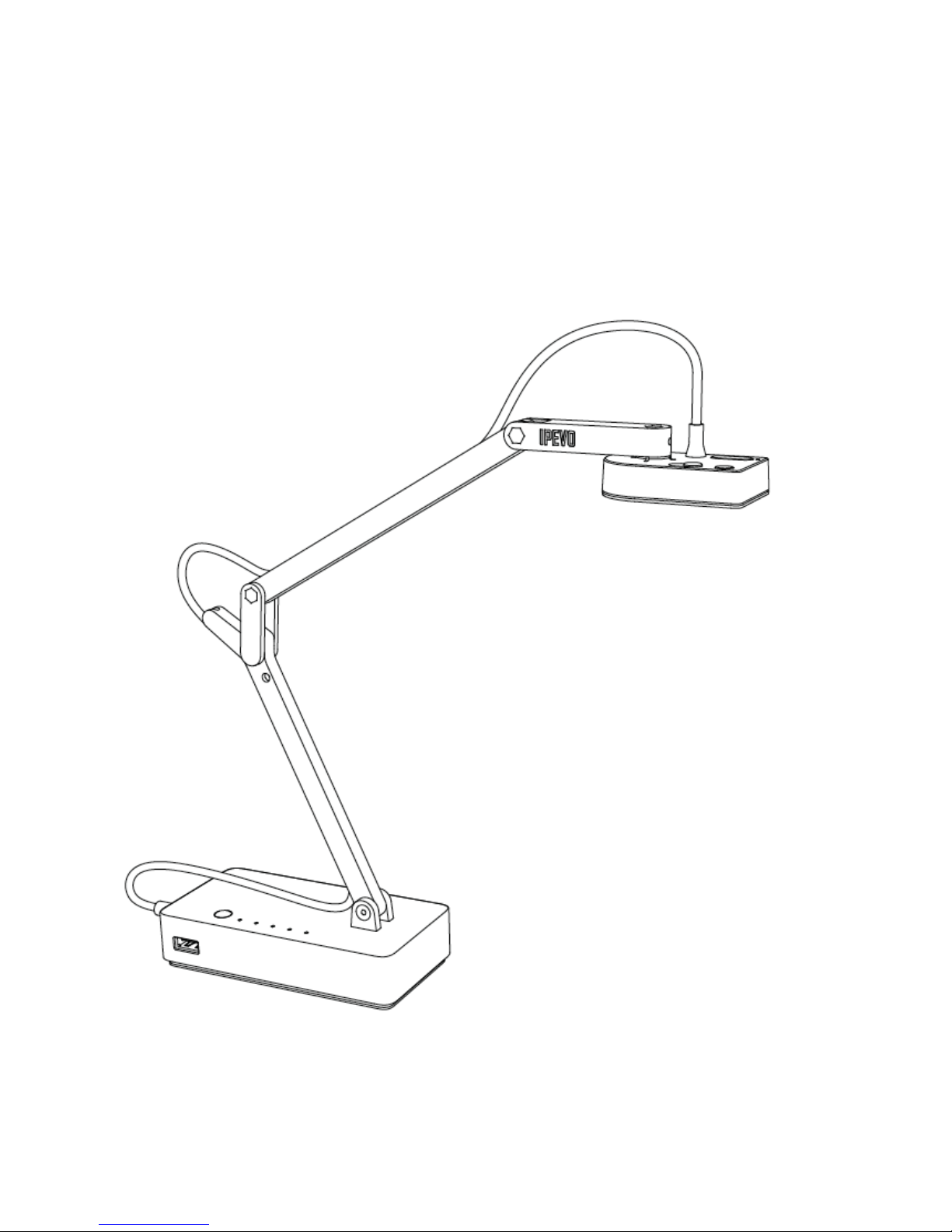

iZiggi‐HDWirelessDocumentCamera
UserManuel




CongratulationsonyourpurchaseoftheiZiggi‐HDWirelessDocumentCameras.ThisUserManuelwill
helpyougetiZiggi‐HDsetuprightaway.

Note:ThisdocumentwillrefertotheiZiggi‐HDWirelessDocumentCameraassimplyiZiggi‐HD.
PackageContents
iZiggi‐HDWirelessDocumentCamera
ACpoweradapter
2mMicro‐USBchargingcable
UserManual(thisdocument)
TheBasics
TheiZiggi‐HDWirelessDocumentCameraletsyoucommunicatewirelesslysoyoucandoevenmore:

StreamliveimagesfromiZiggi‐HDtoiPad,PCorMacviaWi‐Fi
TakeadvantageofthefreeWhiteboardapptofurtherenhanceyourdoccam'suseontheiPad
UsethestationasaUSBdriveorUSBcardreaderwiththebuilt‐inUSBport.Youcanwirelessly
sharefilesontheiZiggi‐HDviaWi‐Fi






InstallingYouriZiggi‐HD

iZiggi‐HDiscompatiblewithiPad,PCandMac,andcanbeinstalledfollowingthesesteps:

1. WhenactivatingiZiggi‐HDforthefirsttime,connectthemicroUSBchargingcableto
theincludedpoweradaptorandpriortopoweringupthedevice.Thisensuresthebatterywill
havesufficientpower.

2. Pressthepowerbuttonandholdfor2seconds.TheWi‐Fiindicatorwillflashfrom
OrangetoGreen.


3. ConnecttheiZiggi‐HDCameraUSBtotheUSBportoniZiggi‐HDbase.TheUSBCamera
indicatorshouldturnoninafewseconds.

4. Notethatwithasufficientcharge,thebuilt‐inbatterycanpoweriZiggi‐HD,alongwithyour
ZiggiorP2Vcamera,withoutthepoweradapter.

OniPad

5. ConnecttotheAppleAppStoreonyouriPad.OnAppStore,searchforandinstallthefree
“IPEVOWhiteboard”app.


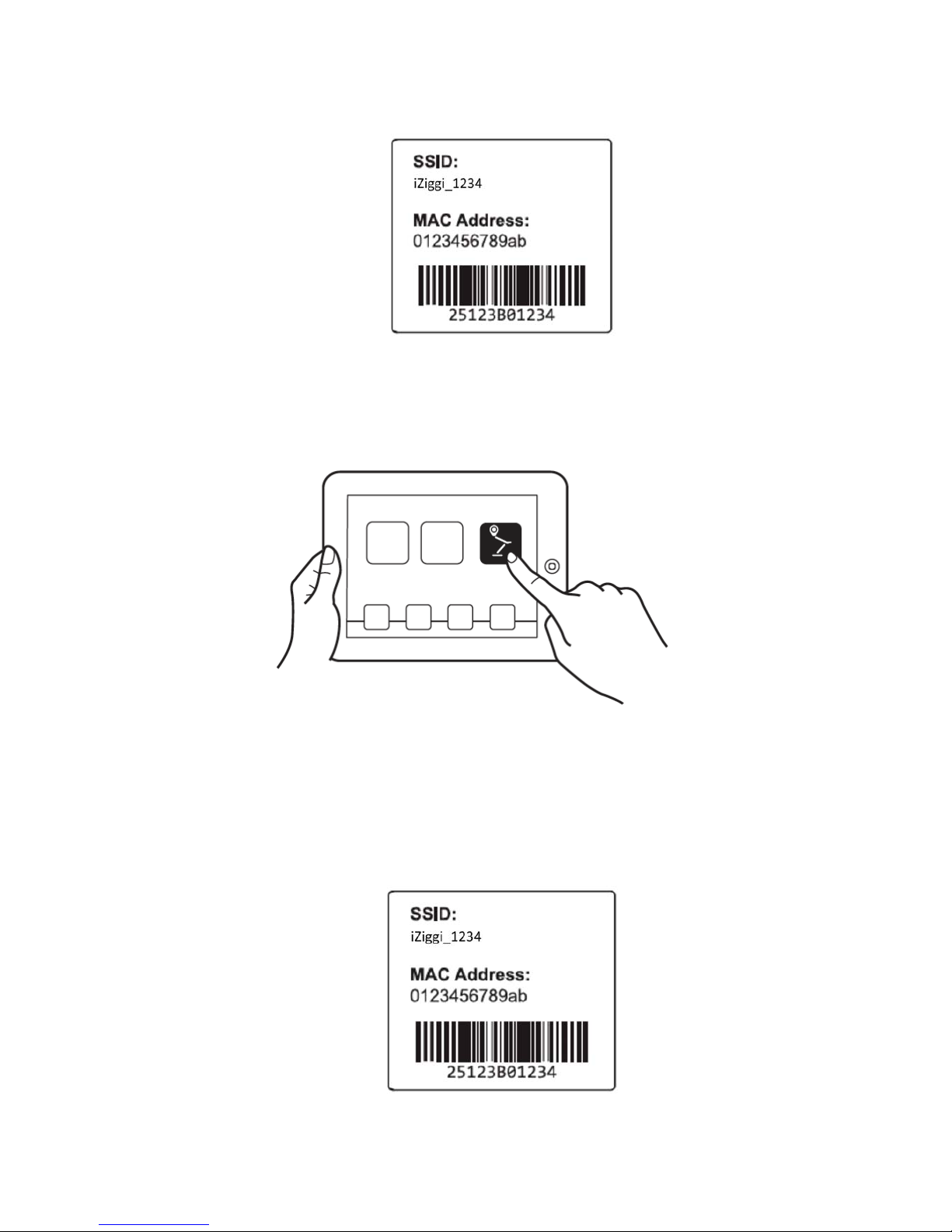

6. TheiZiggi‐HD'snetworkname(orSSID)canbefoundonthelabellocatedonthebottomofthe
device.YouwillneedthisSSIDforthenextstep.



7. Hit“Settings”onyouriPadandenter“Wi‐FiSettings.”Browsetheavailableconnectionsand
connecttoiZiggi‐HD'sSSIDasidentifiedinStep6.AsuccessfulconnectionwillresultinaWi‐Fi
iconappearinginthetopleft‐handcornerofyouriPad.

8. LaunchIPEVOWhiteboardandfollowtheonscreenguidetoaccessiZiggi‐HD’sfeatures.

OnMacorPC

5. TheiZiggi‐HD'snetworkname(orSSID)canbefoundonthelabellocatedonthebottomofthe
device.YouwillneedthisSSIDforthenextstep.


6. BrowseyouravailablewirelessnetworksandconnecttoiZiggi‐HD'sSSIDasidentifiedinStep5.

7. LaunchyourbrowserandconnecttotheIPaddressofiZiggi‐HDbytypingitintotheaddress
bar.ThedefaultforthisIPaddressis10.10.10.1.

8. Entertheloginpasswordattheprompt,whichbydefaultis"admin".

9. Clickon"Live‐View"ontheSettingspagetoaccessthevideostreamandrelatedoptions.


LiveStreamingDocCamImagesonYourBrowser

YourbrowsercandisplaythelivevideostreamfromiZiggi‐HDandyourdoccam.To doso:

ConnectyouriPad,PCorMactoiZiggi‐HDviaWi‐FiperthestepsinInstallingYouriZiggi‐HD,
Pages5and6.
LaunchyourbrowserandentertheIPaddressofiZiggi‐HDintoyouraddressbar.ThedefaultIP
addressforiZiggi‐HDis10.10.10.1.
Note:IfyournetworksetuphasassignedadifferentIPtoiZiggi‐HD,pleaseenterthatIPaddress
intoyourbrowsertoaccessthevideostream.
Enterthepasswordattheprompt,whichbydefaultis"admin".Clickon"Live‐View"toaccessthe
livevideostream.
Inthetopright‐handcornerofthevideostreamwindowisaniconwith4arrows.Clickthisicon
toenlargethevideoscreentomatchthebrowserwindow.


UsingiZiggi‐HDforDataStorage

iZiggi‐HD'sUSBportallowsyoutoinsertUSBstoragecontainingvideo,music,photosandotherfiles
toviewandshareviayourbrowserortheIPEVOWhiteboardapp.Additionally,fileseditedusing
WhiteboardcanbesavedonaninstalledUSBstorage.


Click"WirelessDisk"ontheSettingsPagetoaccessandmanagetheUSBstorage'sdata.(SeePage11
foraccessingtheSettingsPage.)Filenames,sizes,andlastmodifieddateswillbeshown.Usethefour
iconsabovethefilelisttomanagethedata:

Home:Returntotherootdirectory
Up:Gouponeleveltotheparentdirectory
Delete:Checkmarkedfileswillbedeleted
Download:Downloadcheckmarkedfiles.ThisfunctionisdisabledwhenusingiPad

Note:forDeleteandDownloadfunctions,clickthewhitecheckboxestotheleftoffilenamestomark
filesaccordingly

ChargingYouriZiggi‐HD

TochargeiZiggi‐HD'sbattery:

1.ConnecttheincludedmicroUSBcablewithpoweradaptortothebuilt‐inmicroUSBport,then
connectthepoweradaptertoanoutlet.

2.Thebattery/powerLEDindicatorwillstayredwhilecharging.Whenthebatteryisfullycharged,this
indicatorwillturnblue.

3.Thebatterymayalsobechargedbypluggingthebuilt‐inmicro‐USBconnectordirectlyintoa
computer'sUSBport.However,thismethodwilltakelongerthanusingthepoweradapter.

BatteryTips

Chargingtofullwilltakeapproximately4hours,ormoreifyouareusingtheiZiggi‐HDwhile
charging.

TheiZiggi‐HD's3300mAhbatterywillpowerthedeviceforabout3.5hoursbeforerequiringa
charge.

AblinkingorangepowerLEDmeansyourbatteryislow.Pleaserechargeyourdeviceifso.


ImportantCaution!
Pleasedonotattempttouseanypoweradapterotherthantheoneincludedwithyourpackage.Using
adifferentadaptermaydamagetheiZiggi‐HDandwillvoidthemanufacturerwarranty.
ChangingNetworkSettingsoniZiggi‐HD

NetworkandsecuritysettingscanbechangedviatheiZiggi‐HDSettingsPage.Toaccessthispage:

OniPad

ConnectiPadtoiZiggi‐HDandlaunchtheIPEVOWhiteboardapp.Followtheonscreenguidetoenter
theiZiggi‐HDSettingsPage.

OniPad/PC/Mac

ConnectyouriPad/PC/MactoiZiggi‐HD,launchyourbrowserandentertheIPaddressofiZiggi‐HD
intotheaddressbar.ThedefaultIPaddressis10.10.10.1.Enterpasswordattheprompt,whichby
defaultis"admin".
CustomizeYourLoginInformation

Tocustomizeyourlogininformationforsecurity,accesstheiZiggi‐HDSettingsPage(SeePage11).

OntheSettingsPage,youhavetwooptions:
WirelessPassword—TheiZiggi‐HDnetworkname(SSID)andnetworkpasswordcanbechanged
here.
AdminPassword—SetanewpasswordforaccessingtheSettingsPage.Anadditional8guest
userscanbeadded.GuestuserswillhaveaccesstotheSDCarddataandLive‐view,butwillnot
haveaccesstoInternetConnection,AdminPassword,WirelessPassword,orAdvancedSettings.
Note:theAdminIDcannotbechanged.



FederalCommunicationCommissionInterferenceStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandused

inaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.
However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis
equipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedetermined
byturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyone
ofthefollowingmeasures:
.Reorientorrelocatethereceivingantenna.
.Increasetheseparationbetweentheequipmentandreceiver.
.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCCaution:Toassurecontinuedcompliance,anychangesormodificationsnotexpresslyapprovedby
thepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethisequipment.
(Example‐useonlyshieldedinterfacecableswhenconnectingtocomputerorperipheraldevices).

FCCRadiationExposureStatement
ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolled
environment.Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof20
centimetersbetweentheradiatorandyourbody.

Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor
transmitter.

Theantennasusedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20
cmfromallpersonsandmustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor
transmitter.

Model：iZiggi‐HD/FCCID：WKP‐CDVW‐01IP
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions:
(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.


Operational Description
iZiggi is the MAC/BBP IC products , use the RT3352 dual band MIMO 2T2R chipset that fully
comply with IEEE 802.11n draft 2.0 and IEEE 802.11 b/g standards and operate in 2.4GHz bands.
The RT3352 router-on-a-chip includes an 802.11n media access controller (MAC) and baseband, a
2.4GHz radio and FEM, a 400 MHz MIPS® 24K™ CPU core, a 5-port 10/100 switch and one
RGMII, with an integrated RF front-end module.
It uses a 400MHz IF (intermediate frequency) radio architecture to optimize the system cost and
area. The 400MHz-IF eliminates the need of IF conversion stages and bulky and costly IF SAW
(surface acoustic wave) filter to save the cost and size. The receiver part includes all functional
blocks from the RF front-end to the base-band interface: high pass filter. The transmit part includes
the base-band smoothing filter. With an internal PAand a SPDT Switch, the receiver part and the
transmit part use the same chip antenna. Part of internal baseband blocks can be shared to minimize
the overhead in hardware.
The iZiggi is designed to support standard based features in the areas of security, quality of service
and international regulation, giving end users the greatest performance anytime in any
circumstance.
