iPuray BRT-601 User manual

Product Description of BRT-601 Page 1of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Touch Pad Timer Switch with Remote Control
(No Neutral Required)
Model #：BRT-601
Features:
BRT-601 is a touch pad timer switch which is controlled by a micro controller unit. In addition to
a wall mount touch pad unit, it also has a handheld IR remote control. It is designed for easy
installation and retrofit, directly fit into standard wall box with no need for the neutral.
Control over up to 4 loads. Each load can have a delay-off time of 30 seconds or instant
on/off;
Easy to use. Four touch pads to turn on or turn off the load, and one touchpad operation to
turn off all the loads;
Good for all kinds of loads (resistive, inductive, or capacitive);
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View and Back View:
Fig. 1 and Fig. 2 show the front view and the back view of BRT-601 touch pad timer switch with
remote control respectively.
Fig. 1 Front View Fig. 2 Back View

Product Description of BRT-601 Page 2of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
As shown in Fig. 1 and Fig. 2, BRT-601 touch pad timer switch set includes a wall mount unit and
an IR remote control. The wall mount unit has 4 control touch pads and an LED power indicator,
and wiring terminal blocks on the back. The remote control has five control buttons and a wall
mount bracket.
Specification Parameters:
Input Voltage
180～250V(50Hz/60Hz)
Operation
Environment
No-condensation 20-90% RH，
-20℃～40℃
Motor Wattage
150W
Lamp Wattage
Resistive: 1000W/Load
Inductive: 500W/Load
Capacitive: 500W/Load
Remote Control
Mode
IR
Remote Control
Distance
7m
Wall Mount
Unit Dimension
86mm x 86mm x 43mm
Wall Mount
Unit Weight
84g
Remote Control
Dimension
107mm x 36mm x 14mm
Remote Control
Weight
31g
Mounting Hole
Spacing
60mm
Matching
Box
75mm x 75mm x 50mm
Wiring Diagram and Installation Guide:
BRT-601 touch pad timer switch only require two wires for installation:
Hot wire (ACL): Coming from the power line with 220V; and
Load wire: Going to the load.

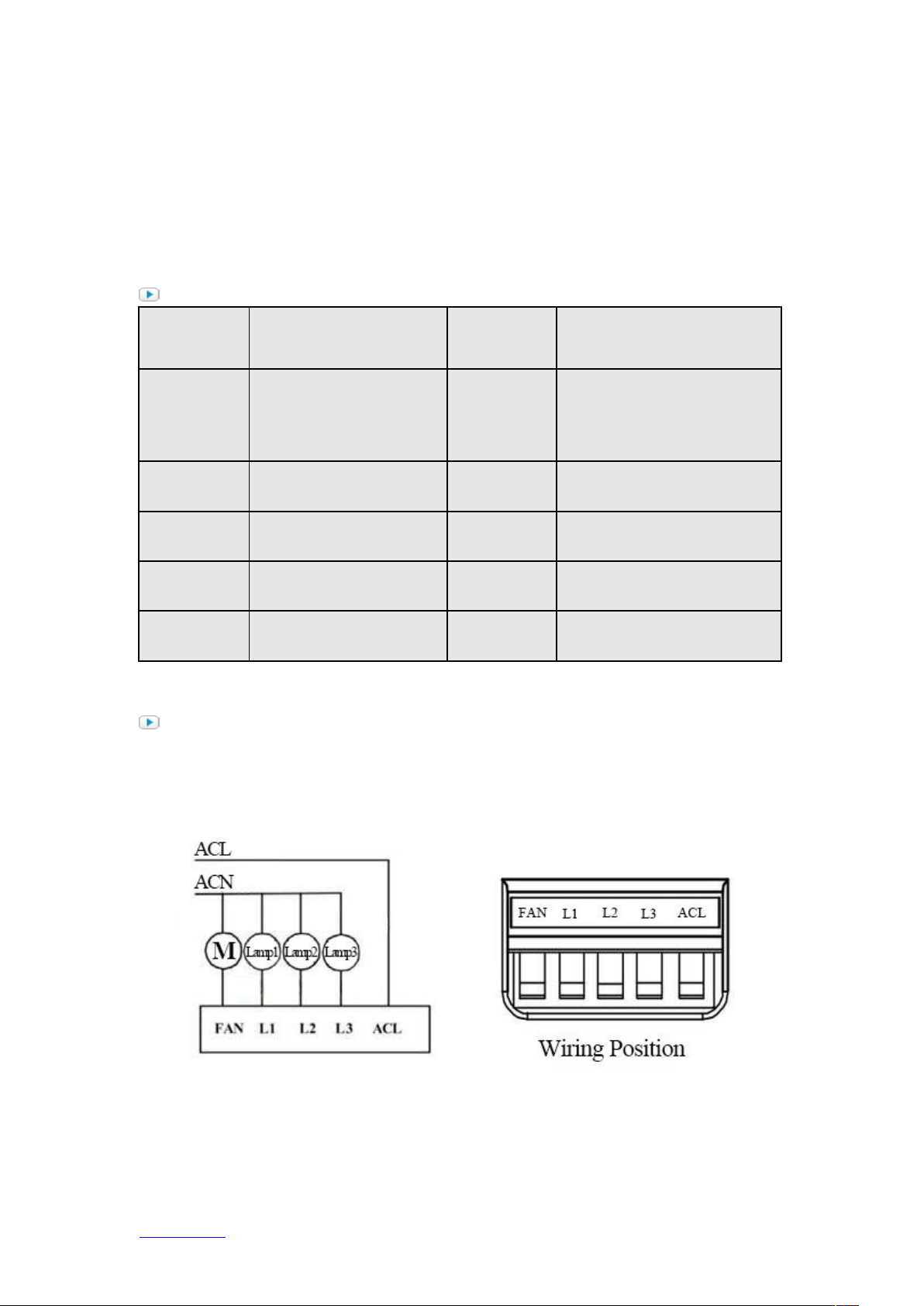

Fig. 3 BRT-601 Wiring Diagram
Warning: Please make sure power is turned off before starting installation!

Product Description of BRT-601 Page 3of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Fig. 3 shows the wiring diagram and Fig. 4 shows the step-by-step installation instructions. There
are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install the switch to the wall box using screws and put back the front plate.
Fig. 4 BRT-601 Installation Guide
BRT-601 Operation Guide:
BRT-601 touch pad timer switch can be controlled either using the touch pads of the wall mount
unit or the remote control as shown in Fig 5. After BRT-601 is powered on, the LED on the front
panel will be on and the unit is ready to control the loads.
Fig. 5 Two Ways to Control loads

Product Description of BRT-601 Page 4of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Control using wall mount unit: There are 4 touch pads on the front panel. Pressing each touch
pad will turn on or turn off the fan or the lamp.
FAN: Pressing once will turn on the fan, and pressing again will turn off the fan;
LAMP 1: Pressing once will turn on lamp 1, and pressing again will turn off lamp 1;
LAMP 2: Pressing once will turn on lamp 2, and pressing again will turn off lamp 2; and
LAMP 3: Pressing once will turn on lamp 3, and pressing again will turn off lamp 3.
Also, pressing a touch ypad to turn on a load will cause the touch pad to flash briefly.
One touch pad operation to turn off all the loads in the same time: Pressing and holding the
FAN touch pad for 2 seconds will turn off all the loads in the same time.
Control using remote: There are 5 buttons on the remote. Pressing each button will turn on or
turn off the fan, or turn on or turn off the lamp.
FAN: Pressing once will turn on the fan, and pressing again will turn off the fan;
LAMP 1: Pressing once will turn on lamp 1, and pressing again will turn off lamp 1;
LAMP 2: Pressing once will turn on lamp 2, and pressing again will turn off lamp 2;
LAMP 3: Pressing once will turn on lamp 3, and pressing again will turn off lamp 3; and
OFF: Pressing this button will turn of all the loads in the same time.
Set up delay-off function: Use a screwdriver to pry off the back cover to access the dip
switches as shown in Fig. 6. Switching a dip switch to on will set up the corresponding load for
delay-off operation respectively.
Fig. 6 Dip Switches for Activating Delay-off Time
Dip switch 1 = Lamp 1 Dip switch 2 = Lamp 2
Dip switch 3 = Lamp 3 Dip switch 4 = Fan

Product Description of BRT-601 Page 5of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
The delay-off time is set at 30 seconds at factory. Please talk to our sales representative if other
customized settings are required.
Activate delay-off function: Once the delay-off function is set up, touching the keypad once
will turn on the load, and touching the keypad the second time will trigger delay-off for the load.
The keypad will blink until he load is automatically turned off after 30 seconds.
During the delay-off time countdown, touching the keypad will turn off the load immediately.
Applications:
BRT-601 keypad timer switch can be used for automatically turning on and/or turning off various
loads such as fans, lights, appliances, or other kinds of electrical equipment. They are perfect for
saving energy and bringing convenience and safety to our daily life and work.
They have wide applications at various locations such as homes, hotels, schools, laboratories,
hospitals, offices, etc.
How to Order:
Please contact us: Shenzhen Asia Bright Industry Co., Ltd
Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China
Tel: [phone] [phone]
Fax: [phone] [phone]
Email: [e-mail] Website: www.a-brt.com
