iPuray BRT-606 User manual

Product Description of BRT-606 Page 1of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Timer Switch with Remote Control
(Neutral Required)
Model #：BRT-606
Features:
BRT-606 is a timer switch kit which consists of a wall mount unit and a remote control set. The
user can control the loads either directly using the wall mount unit or using the remote. The wall
mount unit is designed for easy installation and retrofit, directly fit into standard wall box.
Two buttons to control two loads respectively;
Hidden keypad panel for timer settings;
Delay-off time up to 30 minutes, which can be set accurately to a second;
Remote control distance up to 15m;
LCD display showing the current time and the current status of the switch;
Good for all kinds of loads (Resistive, inductive, and capacitive);
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View, Back View, Hidden Panel and Remote Set:
Fig. 1 and Fig. 2 show the front view and the back view of the wall mount unit of BRT-606 timer
switch respectively.
Fig. 1 Front View Fig. 2 Back View

Product Description of BRT-606 Page 2of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
As shown in Fig. 1, the wall mount unit of BRT-606 timer switch has an LCD display and two
On/Off buttons in the front. The LCD display shows the current time and the current status of the
switch. The On/Off buttons are used for turning on or turning off two loads, respectively.
For each On/Off button, when the On/Off button is pressed,
The display shows On and the load will be turned on immediately; and
When the On/Off button is presses again, the display will show Off, and
If there is no delay-off time being set, the load will be turned off immediately; or
If there is delay-off time being set, the load will be turned off only after the preset delay off
time runs out. Meanwhile, the display will show a “bell” sign. Press the On/Off button will
cancel the delay off operation and turn off the load immediately.
Fig.3 Hidden 9 Keypad Panel
As shown in Fig. 3, the front plate can be flipped down from the top edge. A 9 keypad panel
hidden behind the front plate is used for setting up the timer. Please refer to “BRT-606 Timer
Switch Setup” for details.
Fig.4 Remote Control Set

Product Description of BRT-606 Page 3of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Fig. 4 shows the remote control set. Each of the buttons can be used as an on/off button. Although
there are 6 buttons on the remote, only two buttons are needed to control one BRT-606 wall mount
unit. The remote set can be set to control up to three BRT-606 wall mount units. Please refer to
“BRT-606 Timer Switch Setup” for details.
Specification Parameters:
Input Voltage
220～240V(50Hz/60Hz)
Operation
Environment
No-condensation 20-90% RH，
-20℃～55℃
Wattage
1000W/Loads
Load type
All Types
Mounting Hole
Spacing
60mm
Matching
Box
75mm x 75mm x 50mm
Wall Mount
Unit Dimension
86mm x 86mm x 43mm
Wall mount
Unit Weight
112g
Remote Set
Dimension
102mm x 43mm x 13mm
Remote Set
Weight
33g
Wiring Diagram and Installation Guide:
The wall mount unit of BRT-606 timer switch requires both hot wire and neutral wire for
installation:
Hot wire (ACL): Coming from the power line with 220V;
Neutral wire (ACN): Usually coming with the hot wire;
Load wires: Going to the load.

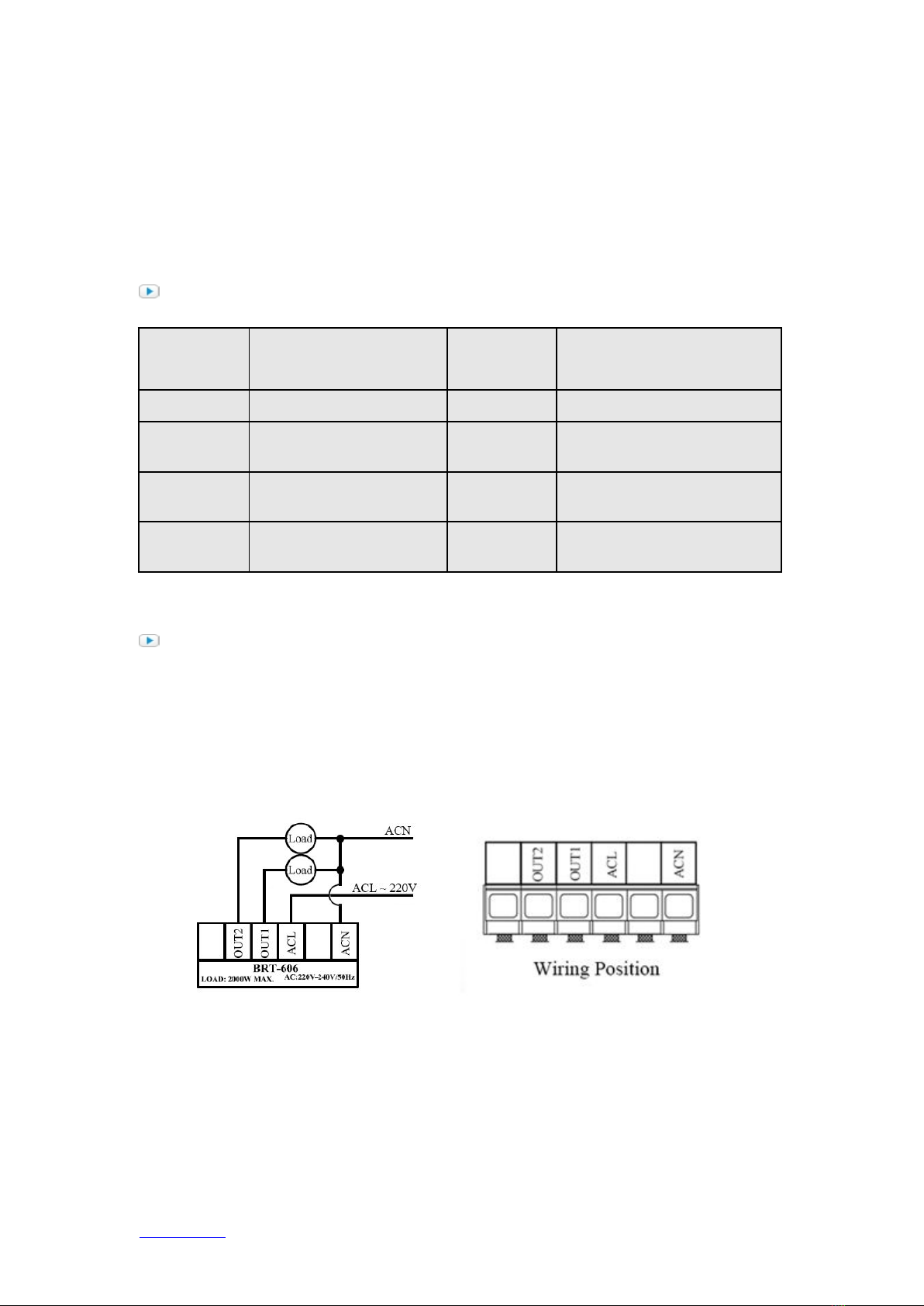

Fig. 5 Wiring Diagram of Wall Mount Unit
Warning: Please make sure power is turned off before starting installation!
Fig. 5 shows the wiring diagram and Fig. 6 shows the step-by-step installation instructions. There
are three easy steps:

Product Description of BRT-606 Page 4of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install screws and front plate.
Fig. 6 Installation Guide of Wall Mount Unit
BRT-606 Timer Switch Setup:
1. Following the wiring diagram and Installation Guide to set up the wall mount unit, and power
it with 220 voltages.
2. Flip down the front plate from the top edge.
3. Set up Time and Date: Press the SET button, the displayed hours will flash, and then press
–or +to adjust the hours. Press the SET button again, the displayed minutes will flash, and
then press –or +to adjust the minutes. Press the SET button again, the displayed date will
flash, and then press – or + to adjust the date. Finally, press the SET button to finish and the
settings are saved.
4. Set up Delay off Time: The delay-off time of the two loads can be set separately.
Setting up the first load: The longest delay off time is 30 minutes. Press the Ibutton to set
the minutes, and then press button ◁or ▷to adjust the minutes. Press the Ibutton again to
set the seconds, and then press button ◁and ▷to adjust the seconds. Finally, press and hold
the Ibutton to save the settings or the settings will be saved automatically if there is no
keypad operation for 15 seconds.
Setting up the second load: Use the Ⅱbutton to set up the second load in the same way
as setting up the first load..

Product Description of BRT-606 Page 5of 5
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. [email protected].
© 2015 All rights reserved. Subject to change without notices.
Once the settings are finished, flip up and close the front plate. The delay off time can be
deleted following Step 2 above and Step 5 below.
5. Delete the Delay off Time setting: Press the I(orⅡ)button to set the minutes to 00 using
–or +, and press the I(orⅡ)button again to set the seconds to 00 using –or +. The
switch will just have a basic ON/OFF function.
At this point, the wall mount unit is ready to control the loads. In order to control the loads
remotely using a remote set, the remote set needs to be synchronized with the wall mount unit.
6. Install one 12V 23A battery into the remote set.
7. Synchronize the wall mount unit with the remote: Flip down the front plate from the top
edge. Press and hold Ibutton for 2 seconds until the display shows . Then, press one of
the 6 buttons on the remote until disappears. This button is now set up to control the
first load specifically. The synchronization process can last up to 20 seconds. Another remote
button can be synchronized to control the second load by usingⅡbutton.
Applications:
BRT-606 timer switch kit can be used for automatically turning off all kinds of loads such as fans,
lights, appliances, or other kinds of electrical equipment. They are perfect for saving energy and
bringing convenience and safety to our daily life and work. The remote set is especially handy.
The elegant design of BRT-606 timer switch makes it suitable for wide applications at various
locations such as homes, schools, laboratories, hospitals, offices, etc., especially for luxurious
hotels and high-grade villas.
How to Order:
Please contact us: Shenzhen Asia Bright Industry Co., Ltd
Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China
Tel: [phone] 89748211 89748345
Fax: [phone] [phone]
Email: [e-mail] Website: www.a-brt.com
