IRT HDA-4510 User manual

4510-HDA.ib.Rev0.doc Page 1 of 12 19/07/2006
IRT Eurocard
Type HDA-4510
1.485 Gb/s HD 6 O/P
Reclocking Distribution Amplifier
Designed and manufactured in Australia
IRT can be found on the Internet at:
http://www.irtelectronics.com
I R T Electronics Pty Ltd A.B.N. 35 000 832 575
26 Hotham Parade, ARTARMON N.S.W. 2064 AUSTRALIA
National: Phone: [phone] Fax: [phone]
International: [phone] [phone]
Email: [e-mail]
Web: www.irtelectronics.com

4510-HDA.ib.Rev0.doc Page 2 of 12 19/07/2006
IRT Eurocard
Type HDA-4510
1.485 Gb/s HD 6 O/P
Reclocking Distribution Amplifier
Instruction Book
Table of Contents
Section Page
Operational Safety 2
General Description 3
Technical Specifications 4
Configuration 5
Link Settings 5
Location of links & user settings 5
Installation 6
SMU-4000 Installation 7
Figure 1: SMU-4000 module 7
HDA-4510 SNMP Functions 7
Front and rear layouts 8
SNMP – What Is It? 9
Maintenance & Storage 11
Warranty & Service 11
Equipment return 11
Drawing List Index 12
This instruction book applies to units later than S/N 0506001.
Operational Safety:
WARNING
Operation of electronic equipment involves the use of voltages and currents that may
be dangerous to human life. Note that under certain conditions dangerous potentials
may exist in some circuits when power controls are in the OFF position.
Maintenance personnel should observe all safety regulations.
Do not make any adjustments inside equipment with power ON unless proper
precautions are observed. All internal adjustments should only be made by suitably
qualified personnel. All operational adjustments are available externally without the
need for removing covers or use of extender cards.

4510-HDA.ib.Rev0.doc Page 3 of 12 19/07/2006
IRT Eurocard
Type HDA-4510
1.485 Gb/s HD 6 O/P
Reclocking Distribution Amplifier
General Description
The HDA-4510 1.485 Gb/s serial digital video reclocking distribution amplifier provides the user with a single
standard module to cover a wide range of distribution and monitoring functions for High Definition (HD) digital
signals.
As well as accepting an HD signal, the HDA-4510 will also accept Standard Definition (SD) rates such as SDI. ASI
is also possible, however as three of the six outputs are inverted only the non-inverted output ports are suitable for
ASI.
Serial digital signals suffer severe deterioration over relatively short cable distances. This is especially so with the
HD high data rate. The HDA-4510 provides a means of extending the working distances that can be achieved by
equalising and re-transmitting the data mid route.
The HDA-4510 will automatically reclock either a 1.485 Gb/s HD signal or a lower rate SD signal and automatically
adjust the output driver slew rate to suit.
Front panel LEDs indicate when an input signal is present and also whether it is either an HD or SD type of signal.
A relay alarm output, with a selectable N/O or N/C switch to ground contact, is available for indication of loss of
input signal or loss of power.
An optional SNMP (Simple Network Management Protocol) plug in module is available for remote monitoring when
used in conjunction with IRT’s 4000 series frame fitted with SNMP capability.
The HDA-4510 is designed to fit IRT’s 4000 series frame for use with IRT’s SNMP system as well as being suitable
with IRT’s Standard 1000 and 3000 series Eurocard frames and may be used alongside any other of IRT’s analogue
or digital Eurocards.
Standard features:
• Automatic selection of either High Definition or Standard Definition digital signals
• 6 reclocked outputs
• Automatic input equalisation
• Locked signal presence LED and external relay alarm contact
• Optional plug-in SNMP monitoring module
O/P 2
O/P 3
O/P 4
O/P 5
O/P 6
OUTPUTS
EQUALISER
SIGNAL
DETECT
INPUT
Relay RL 1 = Output Alarm
LINK
ALARM O/P
RL 1

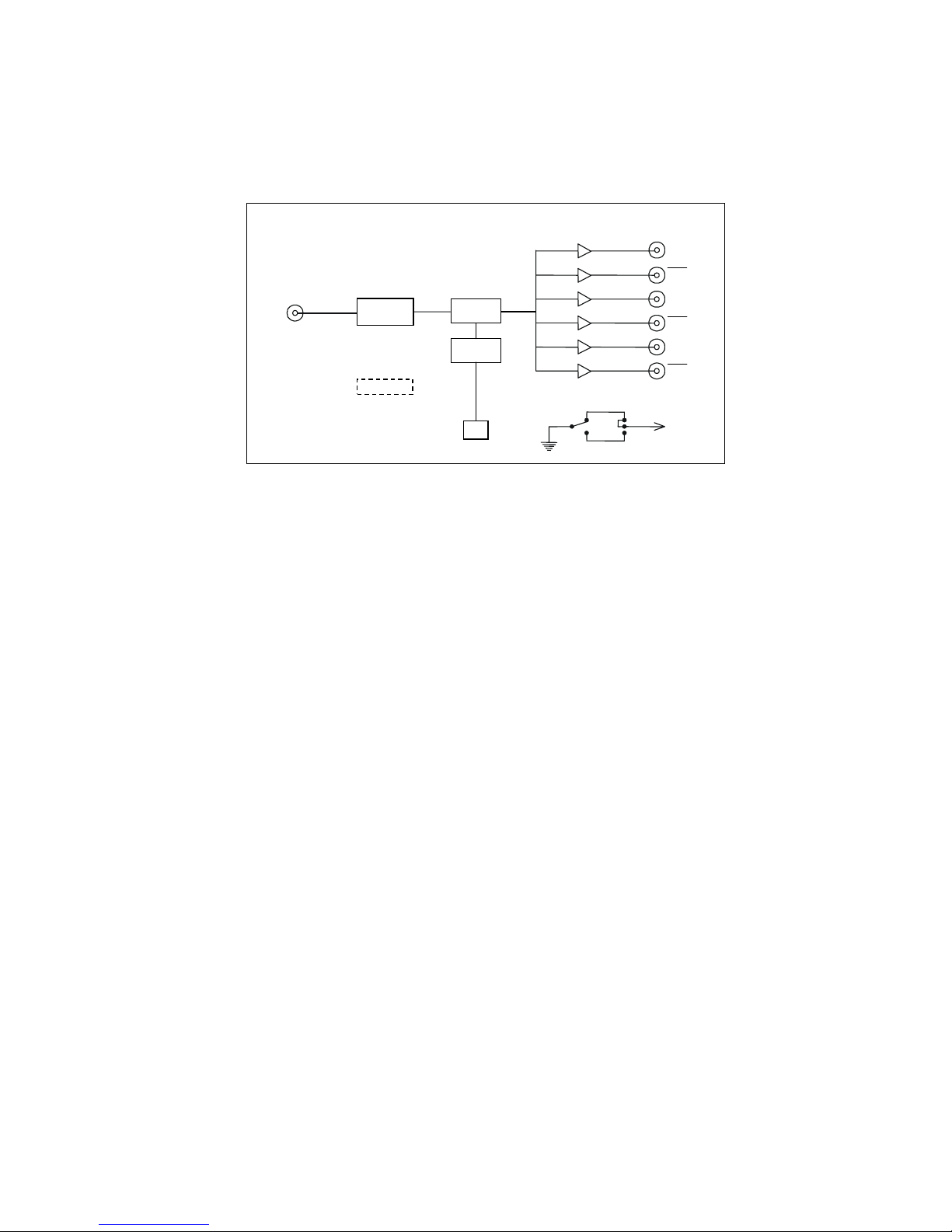

BLOCK DIAGRAM HDA-4510 SIGNAL PATH
O/P 1
RL1
SNMP
RECLOCKER

4510-HDA.ib.Rev0.doc Page 4 of 12 19/07/2006
Technical Specifications
IRT Eurocard module
Type HDA-4510
Input:
Number 1.
Type 1.485 Gb/s High Definition, or
270 Mb/s Standard Definition.
Impedance 75 Ohm.
Return loss*>20 dB 5 MHz to 270 MHz, >15 dB to 1.485Gb/s.
Equalisation Automatic, >250 metres at 270 Mb/s, >100 metres at 1.485 Gb/s
for Belden 8281 or equivalent cable.
Outputs:
Number 6 HD or SD, output slew rate automatically selected.
Signal level 800 mV ± 10%
Impedance 75 Ohm.
Return loss*>20 dB 5 MHz to 270 MHz, >15 dB to 1.485Gb/s.
DC offset Nil.
Performance:
Output rise time <200 ns, (180 ns typically).
Residual Jitter <0.15 UI at 1.485 Gb/s (measured with up to 100m of Belden 8281 or equivalent
cable)
Connectors: BNC.
Indicators:
Power LED (green) for +5 Vdc.
Signal present LED (green) when signal present.
HD LED (green) when input signal is 1.485 Gb/s HD.
SD LED (yellow) when output signal is 270, 360 or 540 Mb/s SD.
Power requirement:
Voltage 28 Vac CT (14-0-14) or ±16 Vdc
Consumption 4.0 VA.
General:
Temperature range 0 - 50° C ambient
Mechanical Suitable for mounting in IRT 19" rack chassis with input, output and power
connections on the rear panel.
Dimensions 6 HP x 3U Extended Eurocard (220 mm x 100 mm).
Weight With rear assembly 385g.
Finish: Front panel Grey background, silk-screened black lettering & red IRT logo
Rear assembly Detachable silk-screened PCB with direct mount connectors to Eurocard and external
signals
Supplied accessories Rear connector assembly with matching connector for alarm outputs.
Optional accessories SMU-4000 SNMP plug-in module for use with 4000 series frame fitted with SNMP
“Agent”
* Note: When mounted in an IRT 1000 or 4000 series frame.
Due to our policy of continuing development, these specifications are subject to change without notice.

4510-HDA.ib.Rev0.doc Page 5 of 12 19/07/2006
Configuration
Link Settings:
LK2 IN Reclocker set for HD or SD operation (Default position IN).
OUT Reclocker automatically bypassed on lock loss.
LK3 IN Selects Manual PLL rate.
OUT Selects Auto PLL rate (Default position OUT, LK3 not installed).
LK4, LK5, LK6 Set manual PLL rate.
Must be left open when Auto PLL selection (LK3 OUT) used.
Rate (Mb/s) LK4 LK5 LK6
143 0 0 0
270 0 1 0
360 1 1 0
540 0 0 1
1485 1 0 1
LK7 N.C. Output alarm switches to ground on loss of input, or loss of power.
N.O. Output alarm switches (breaks) from ground on loss of input, or
loss of power.
Location of links & user settings
The following location diagram is not to scale and is intended only to assist in finding the location of links and other
settings, which may need to be changed by the user during Configuration.
Plug-in
SNMP
LK2
LK7
N.C.
N.O.
LK3
LK4 LK5 LK6
GND
COM.
+3V

4510-HDA.ib.Rev0.doc Page 6 of 12 19/07/2006
Installation
Pre-installation:
Handling:
This equipment may contain or be connected to static sensitive devices and proper static free handling precautions
should be observed.
Where individual circuit cards are stored, they should be placed in antistatic bags. Proper antistatic procedures
should be followed when inserting or removing cards from these bags.
Power:
AC mains supply: Ensure that operating voltage of unit and local supply voltage match and that correct rating fuse
is installed for local supply.
DC supply: Ensure that the correct polarity is observed and that DC supply voltage is maintained within the
operating range specified.
Earthing:
The earth path is dependent on the type of frame selected. In every case particular care should be taken to ensure that
the frame is connected to earth for safety reasons. See frame manual for details.
Signal earth: For safety reasons a connection is made between signal earth and chassis earth. No attempt should be
made to break this connection.
Installation in frame or chassis:
See details in separate manual for selected frame type.
Digital Input and Outputs:
Input and outputs are all 75 ΩBNC type for connection with high quality 75 Ωcoaxial cable suitable for either
1.485 Gb/s high definition digital signals for HD use, or for 270 Mb/s standard definition signals for SD use.
Ensure that links settings are correctly set for the mode of operation required as described in the Configuration
section of this manual.
Alarm Output Connection:
A normally open, or normally closed, 2-pin connector is provided on the rear assembly for an alarm connection on
loss of signal input or loss of power. Pin 1 is permanently tied to ground. During an alarm condition an on board
relay contact either shorts or open circuits pin 2 to/from ground dependent on the position of link LK7, as described
in the Configuration section of this manual.
Front Panel Indicators:
Front panel LED’s indicate the presence of an input signal (SIG – Green); whether the input signal is an HD signal
(HD – Green) or an SD signal (SD – Yellow); and the presence of power to the module (DC – Green).

4510-HDA.ib.Rev0.doc Page 7 of 12 19/07/2006
SMU-4000 Installation
The SMU-4000 plug-in SNMP management controller module can only be fitted to IRT’s 4000 series modules that
are capable of being SNMP upgradeable. To determine whether a module is SNMP upgradeable, a square section on
the main PCB is silk screened and fitted with three multipin sockets – as shown below:
This is where the SMU-4000 plug-in SNMP management controller module is fitted. The three sets of multipins on
the underside of the SMU-4000 line up with the three sets of multipin sockets on the main PCB module. Align all
pins and then gently press the SMU-4000 all the way down into place.
If the SMU-4000 is not already programmed with the correct firmware to match the module that it is being plugged
into, it then needs to be programmed via the pins on the topside of the SMU-4000.
Note that installation will generally be done by IRT Electronics at the time of ordering.
Note also that an SMU-4000 will only be functionally operational when the main module that it is plugged into is
fitted into an IRT 4000 series frame fitted with a CDM-4000 SNMP agent and being interrogated by a suitable
Network Management System.
HDA-4510 SNMP Functions:
With the HDA-4510 installed in an IRT 4000 series frame with SNMP capability, the HDA-4510 can be interrogated
by an SNMP Network Management System (NMS).
The following SNMP functions are capable of being monitored by an NMS:
An indication that an input signal is present;
An indication of the current state of the Urgent Alarm;
Trap automatically sent, if enabled, when an Urgent Alarm occurs or is restored;
Unit reset control.
1J2
1J1 1J3
Figure 1: SMU-4000 module

4510-HDA.ib.Rev0.doc Page 8 of 12 19/07/2006
DC
SD
HD
SIG
HDA-4510
N140
Front & rear panel connector diagrams
The following front panel and rear assembly drawings are not to scale and are intended to show connection order and
approximate layout only.
SK1 2
1
SK10 2 = Alarm
SK10 1 = Gnd
OUTPUTS
SK6
SK4
SK2
SK7
SK5
SK3
OUTPUTS
INPUT
SK10
6 O/P HD/SD D.A.
P3
P2

4510-HDA.ib.Rev0.doc Page 9 of 12 19/07/2006
SNMP
What Is It?
SNMP stands for Simple Network Management Protocol. It is an application layer protocol for managing IP
(Internet Protocol) based systems. SNMP enables system administrators to manage system performance, and to find
and solve system problems. SNMP runs over UDP (User Datagram Protocol), which in turn runs over IP.
Three types of SNMP exist: SNMP version 1 (SNMPv1), SNMP version 2 (SNMPv2) and SNMP version 3
(SNMPv3). It is not the intention here to discuss the differences between various versions, only to bring attention to
the fact that IRT Electronics modules, fitted with SNMP capability, use SNMPv1.

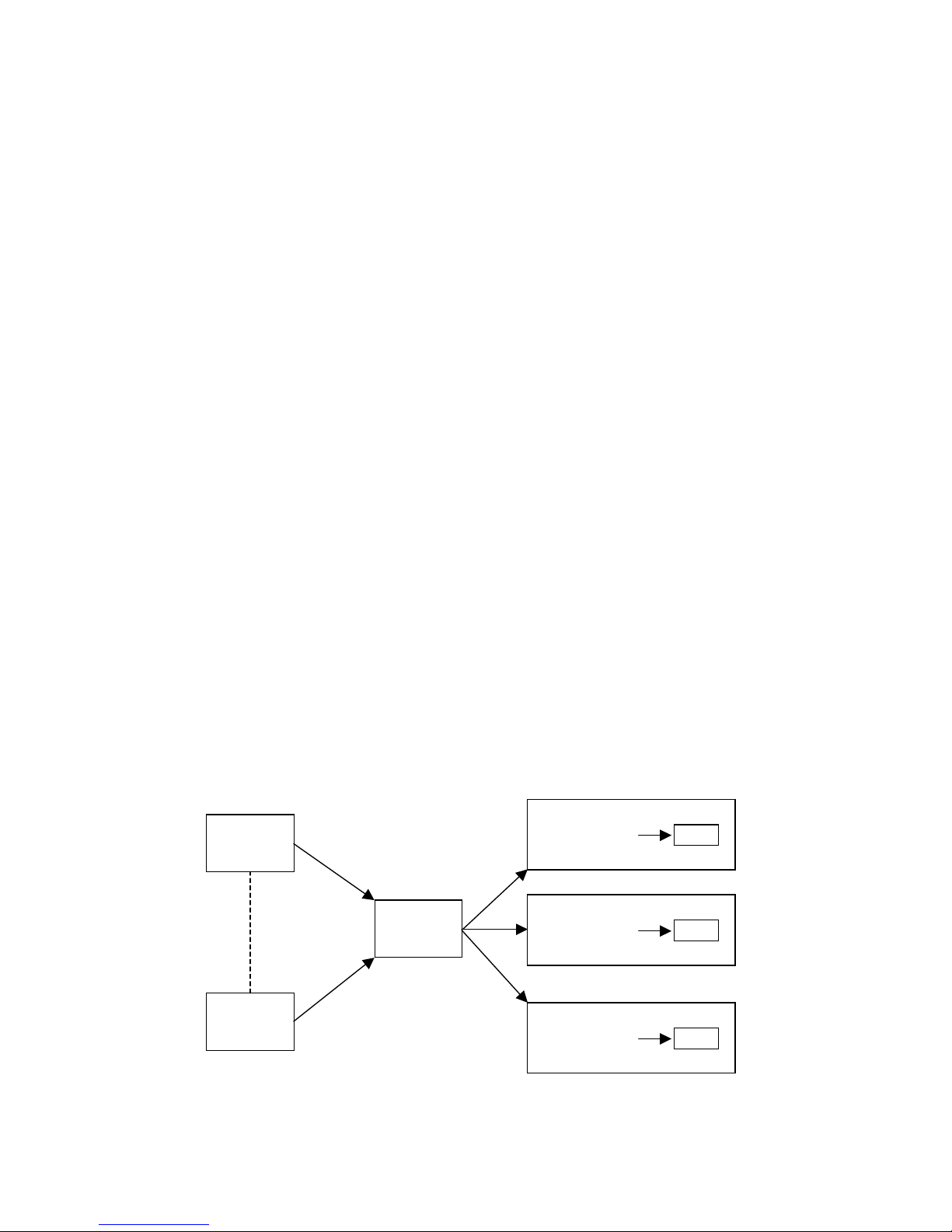

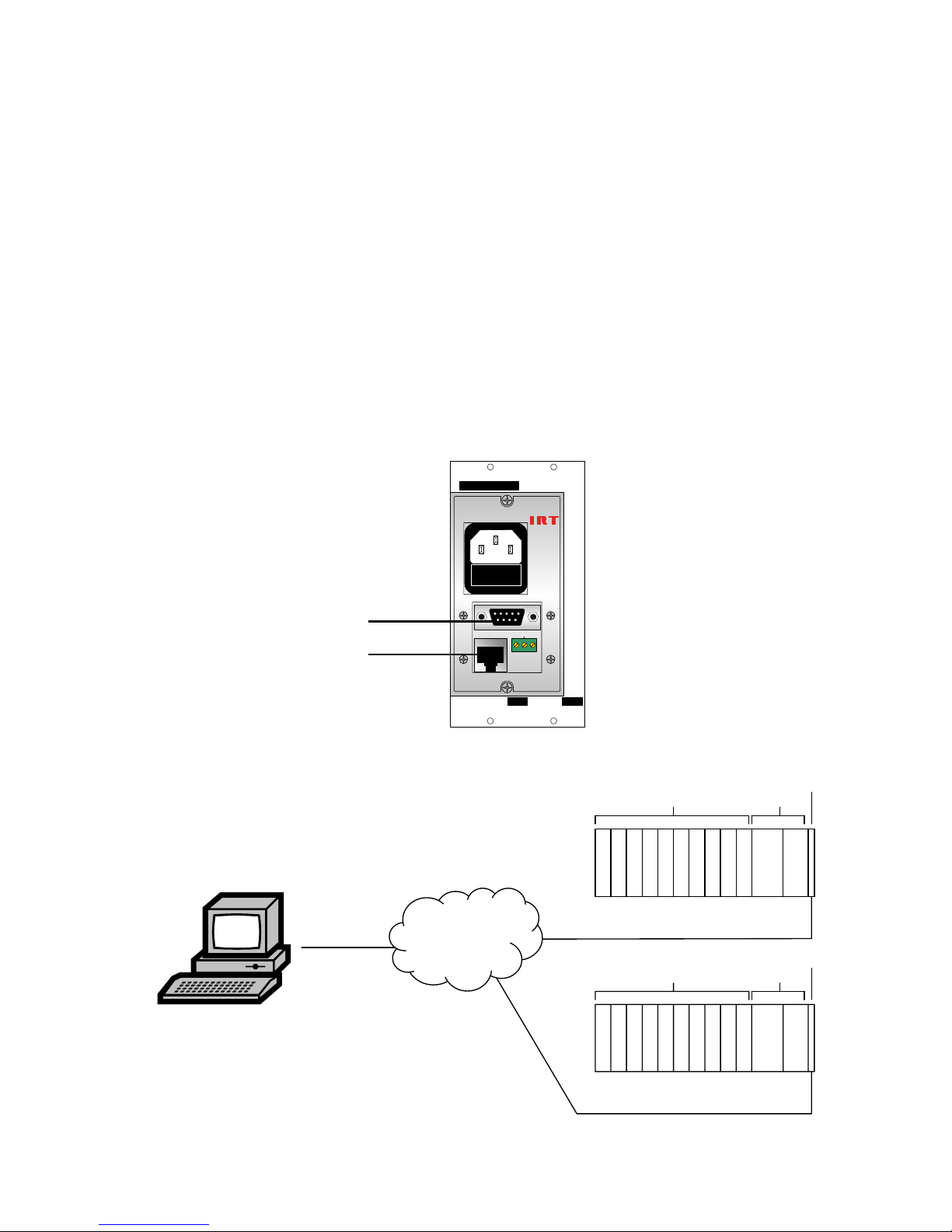

An SNMP managed network consists of three key components: Network Management Systems (NMS), agents, and
managed devices.
An NMS is the console through which the network administrator performs network management functions, such as
monitoring status (e.g. alarm states) and remote controlling, of a set of managed devices. One or more NMSs must
exist on any managed network. Generally the NMS is a computer running third party SNMP control software. There
are a number of third party SNMP software applications currently available on the market.
An NMS polls, or communicates with, an agent. An agent is a network management software module that resides in
a managed device. An agent has local knowledge of management information and translates that information into a
form compatible with SNMP. The agent, therefore, acts as an interface between the NMS and the managed devices.
The NMS sends a request message, and control commands for the managed devices, to the agent, which in turn sends
a response message, containing information about the managed devices, back to the NMS.
A managed device contains an SNMP agent and resides on a managed network. Managed devices collect and store
management information and make this information available to NMSs using SNMP.
Managed device agent variables are organised in a tree structure known as a Management Information Base (MIB).
Within the MIB are parameters pertaining to the managed device. An Object Identifier (OID) number within the MIB
defines the managed device type. This is a unique number specific to the model of managed device. Other
information relating to the device is also stored, information such as alarm states, controllable settings, etc. The MIB
tree is organised in such a way that there will be no two MIB files with conflicting placements.
Normally an NMS polls an agent for information relating to the MIB in a managed device to be sent back to the
NMS. When certain conditions are met within the MIB, such as major alarm conditions, for example, the agent
automatically sends what is known as a trap to the NMS without any prompting from the NMS. This allows automatic
notification of a predetermined event.
NMS
NMS
IP
Network
MIB
SNMP Agent
Protocol Engine SNMP Agent
MIB
SNMP Agent
Protocol Engine SNMP Agent
MIB
SNMP Agent
Protocol Engine SNMP Agent
SNMP Block Diagram

4510-HDA.ib.Rev0.doc Page 10 of 12 19/07/2006
SNMP with IRT Products:
IRT Electronics currently employs SNMPv1 with its 4000 series frame. The frame acts as an agent when fitted with
a CDM-4000 module. This module has its own designated slot next to the power supply so as to not affect the
number of modules that the frame will take. Communication between the NMS, the frame and its loaded modules are
via this CDM-4000 module. Note that the NMS software is third party and not supplied by IRT Electronics.
Ethernet connection for SNMP operation is via an RJ45 connector on the rear of the frame, below the mains inlet.
Ethernet rate runs at either 10 baseT or 100 baseT.
Frame parameters, such as Name, Address and Location, are set via an RS232 interface, a D9 connector on the rear
of the frame below the mains inlet. A software terminal emulator, such as Tera Term or HyperTerminal, is used for
setting and reading the parameters of the frame.
IRT modules that are SNMP compatible need a plug-in SMU-4000 module with a program relevant to the module
that it is plugged into. Depending on the module, besides the module identification, parameters such as alarm states,
inputs and controls etc. are communicated to the CDM-4000 agent via a data bus on the rear of the frame. Thus the
CDM-4000 collects information on what is loaded within the frame, what positions they occupy, and their current
status for communication to the NMS when the NMS sends a request for information.
In the event of a major alarm from any of the SNMP compatible modules, or power supplies, a trap is automatically
sent by the CDM-4000 agent to the NMS without any prompting by the NMS. This alerts the operator to any fault
conditions that may exist that need immediate attention.
FRU-4000
FRAME
110/240 V 50/60 Hz
0.7 A (max.)
FUSES
110/120 Vac
1A S.B.
220/240 Vac
500 mA S.B.
AS3260 approval no.: CS6346N
Ass. no.: 804692
+-
48Vdc
Alarm
RS232
Ethernet
IRT SNMP Connections
IRT modules fitted
with SMU-4000 PSU’s
CDM-4000
IRT 4000 Series
IRT 4000 Series
IRT modules fitted
with SMU-4000 PSU’s
CDM-4000
Network Ethernet Cable
Ethernet Cable
Ethernet Cable
NMS
IRT 4000 Series SNMP Setu
p

4510-HDA.ib.Rev0.doc Page 11 of 12 19/07/2006
Maintenance & Storage
Maintenance:
No regular maintenance is required.
Care however should be taken to ensure that all connectors are kept clean and free from contamination of any kind.
This is especially important in fibre optic equipment where cleanliness of optical connections is critical to
performance.
Storage:
If the equipment is not to be used for an extended period, it is recommended the whole unit be placed in a sealed
plastic bag to prevent dust contamination. In areas of high humidity a suitably sized bag of silica gel should be
included to deter corrosion.
Where individual circuit cards are stored, they should be placed in antistatic bags. Proper antistatic procedures
should be followed when inserting or removing cards from these bags.
Warranty & Service
Equipment is covered by a limited warranty period of three years from date of first delivery unless contrary
conditions apply under a particular contract of supply. For situations when “No Fault Found” for repairs, a
minimum charge of 1 hour’s labour, at IRT’s current labour charge rate, will apply, whether the equipment is within
the warranty period or not.
Equipment warranty is limited to faults attributable to defects in original design or manufacture. Warranty on
components shall be extended by IRT only to the extent obtainable from the component supplier.
Equipment return:
Before arranging service, ensure that the fault is in the unit to be serviced and not in associated equipment. If
possible, confirm this by substitution.
Before returning equipment contact should be made with IRT or your local agent to determine whether the
equipment can be serviced in the field or should be returned for repair.
The equipment should be properly packed for return observing antistatic procedures.
The following information should accompany the unit to be returned:
1. A fault report should be included indicating the nature of the fault
2. The operating conditions under which the fault initially occurred.
3. Any additional information, which may be of assistance in fault location and remedy.
4. A contact name and telephone and fax numbers.
5. Details of payment method for items not covered by warranty.
6. Full return address.
7. For situations when “No Fault Found” for repairs, a minimum charge of 1 hour’s labour will apply,
whether the equipment is within the warranty period or not. Contact IRT for current hourly rate.
Please note that all freight charges are the responsibility of the customer.
The equipment should be returned to the agent who originally supplied the equipment or, where this is not
possible, to IRT direct as follows.
Equipment Service
IRT Electronics Pty Ltd
26 Hotham Parade
ARTARMON
N.S.W. 2064
AUSTRALIA
Phone: [phone] Fax: [phone]
Email: [email protected]

4510-HDA.ib.Rev0.doc Page 12 of 12 19/07/2006
Drawing List Index
Drawing # Sheet # Description

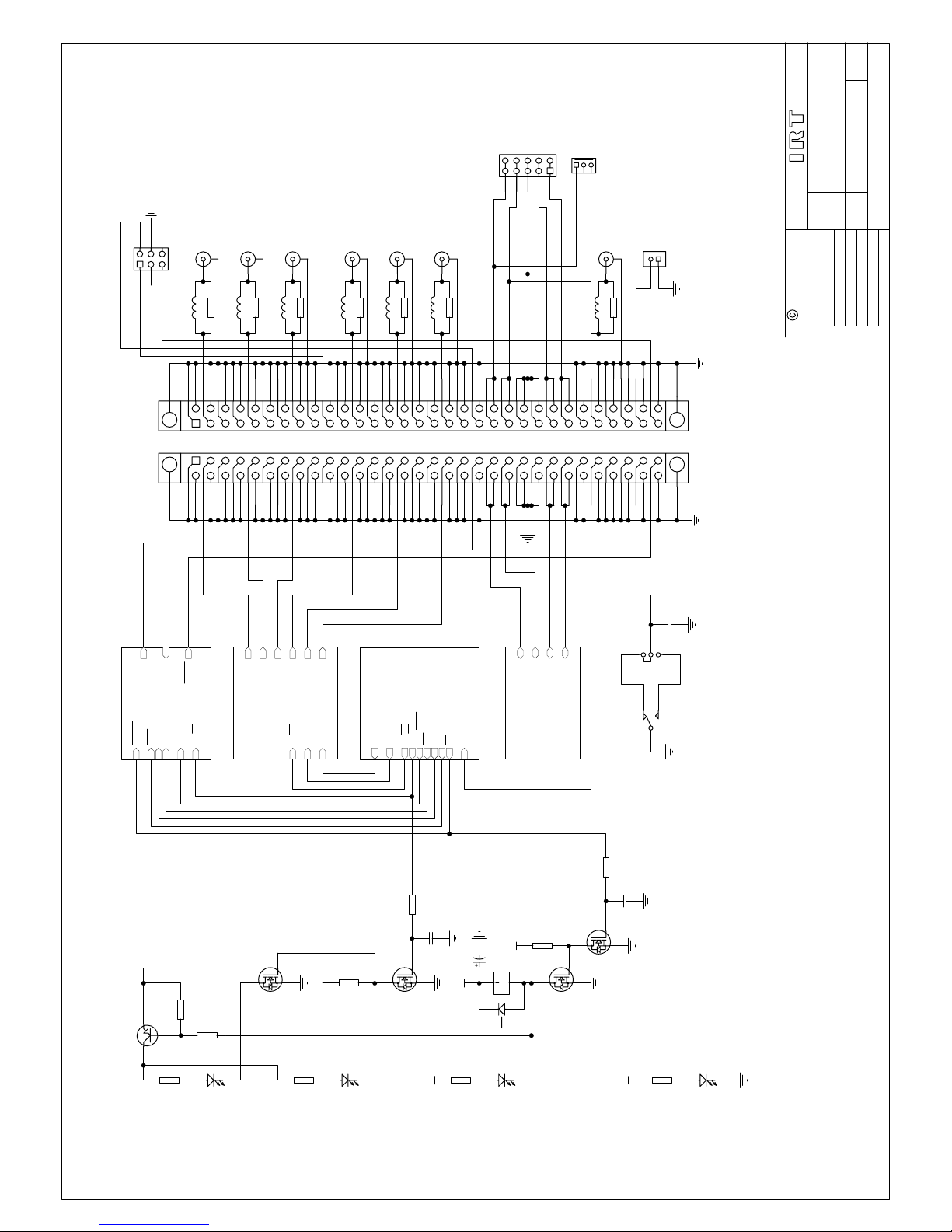

804999 1 HDA-4510 HD/SD Distribution Amplifier Schematic Diagram

Title
SCALE
SIZE
Sheet
DRAWN CHECKED ENG. APP. Revision:
DO NOT COPY NOR
DISCLOSE TO ANY
THIRD PARTY
WITHOUT WRITTEN
CONSENT
of1
IRT Electronics Pty. Ltd.
Drawing No.
COPYRIGHT
ARTARMON NSW AUSTRALIA 2064
A3
N.T.S. 5
HDA-4510
804999
Date:
2
18-Jul-2006
HD/SD Distribution Amplifier
K.N.
DDI Output 1
Output 6 Output 2 Output 5 Output 4 Output 3SD/HD
DDI
Output Drivers 804999i3s3.sch
AC 1 AC 4 AC 2 AC 3
Power Supply Circuit
804999i3s4.sch
3 1
2
LK7
'DC' 'grn'
2 1
R49
330R
n.c. n.o.
1A 1B 2A 2B 3A 3B 4A 4B 5A 6A 6B 7A 7B 8A 8B
10A 10B
5B
11A 11B 12A 12B 13A 13B 14A 15A 15B 17A 17B 18A 18B
9A 9B
20A 20B 14B 21A 21B 22A 22B 23A 24B 24A 25B 26A 27A 27B 28A 23B 19A 19B 30A 30B 26B 31A 31B 32A 32B 25A 16A 16B 28B 29A 29B
P1 DIN64RA
21
LD1
1 11-10-2004
PCB 805000
2 1
R42
4K7
1 2
C34
47nF
+5V
+3V3
'SIGNAL' 'grn'
2 1
R46
470R
21
LD2
+5V
ALARM CIRCUIT
CONTACT CLOSURE (OR BREAK)
TO GROUND ON ALARM, AS SET BY LK7
32
1
Q2
BSS123
1 2
C36
4.7uF
38
RL1A
V23026
10 1
5
RL1B
1 3
2
D2
BAS16
1 2
C37
47nF
ALARM
RX
TX
SIGNAL SEL2 SEL1 SEL0 HD/SD MAN
Control Interface
804999i3s5.sch
Input SD/HD DDO DDO LD SS2 SS1 SS0 MAN/AUTO HD/SD
Input and Reclocking 804999i3s2.sch
2 1
R44 4K7
1 2
C35
47nF
32
1
Q3
BSS123
'SD' 'yell'
2 1
R48
470R
21
LD4
+5V
'HD' 'grn'
2 1
R47
470R
21
LD3
32
1
Q4
BSS123
2 1
R45 4K7
+5V
32
1
Q1
BSS123
+5V
21
R43 4K7
1
3 2
Q5
BC807
21 R51
22K
21
R50 4K7
J2 optional power in
2 08-06-2005 ECR1794
(used when fitted to FRU-1030 frame)
1A 1B 2A 2B 3A 3B 4A 4B 5A 6A 6B 7A 7B 8A 8B 10A 10B 5B 11A 11B 12A 12B 13A 13B 14A 15A 15B 17A 17B 18A 18B 9A 9B 20A 20B 14B 21A 21B 22A 22B 23A 24B 24A 25B 26A 27A 27B 28A 23B 19A 19B 30A 30B 26B 31A 31B 32A 32B 25A 16A 16B 28B 29A 29B
J1 DIN64
OUTPUTS
1 2
L7R
1 2
L6R
1 2
L5R
1 2
L4R
1 2
L3R
1 2
L2R
1 2
L1R
TX RX1 2
3 4 5 6
P3
1 3 5 7 9P2
1 2 3
J2
INPUT
2 1
SK10
SK7 SK6 SK5 SK4 SK3 SK2
SK1
21 R7R 21 R1R 21 R2R 21 R3R 21 R6R 21 R4R 21 R5R
3 18-10-2005 ECR1823
