ISLABIKES Beinn User manual

www.islabikes.com www.islabikes.com
Beinn
Owner’s manual

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
6
5
1
7
8
10
11
12
4
15
14
19
17
20
21
22
23
3
2
9
13
16
18
Setting up your Islabike
You can view our “how to set up your Beinn” video guides on the
Islabikes YouTube channel.
Or follow the steps in this booklet...
E-mail: [e-mail] Telephone: [phone]

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Serial number
Please make a record of your serial number. This is a combination of
letters and numbers unique to your bike stamped to the underside of the
frame. This is required by police and insurance companies in case of loss.
Serial
number
E-mail: [e-mail] Telephone: [phone]

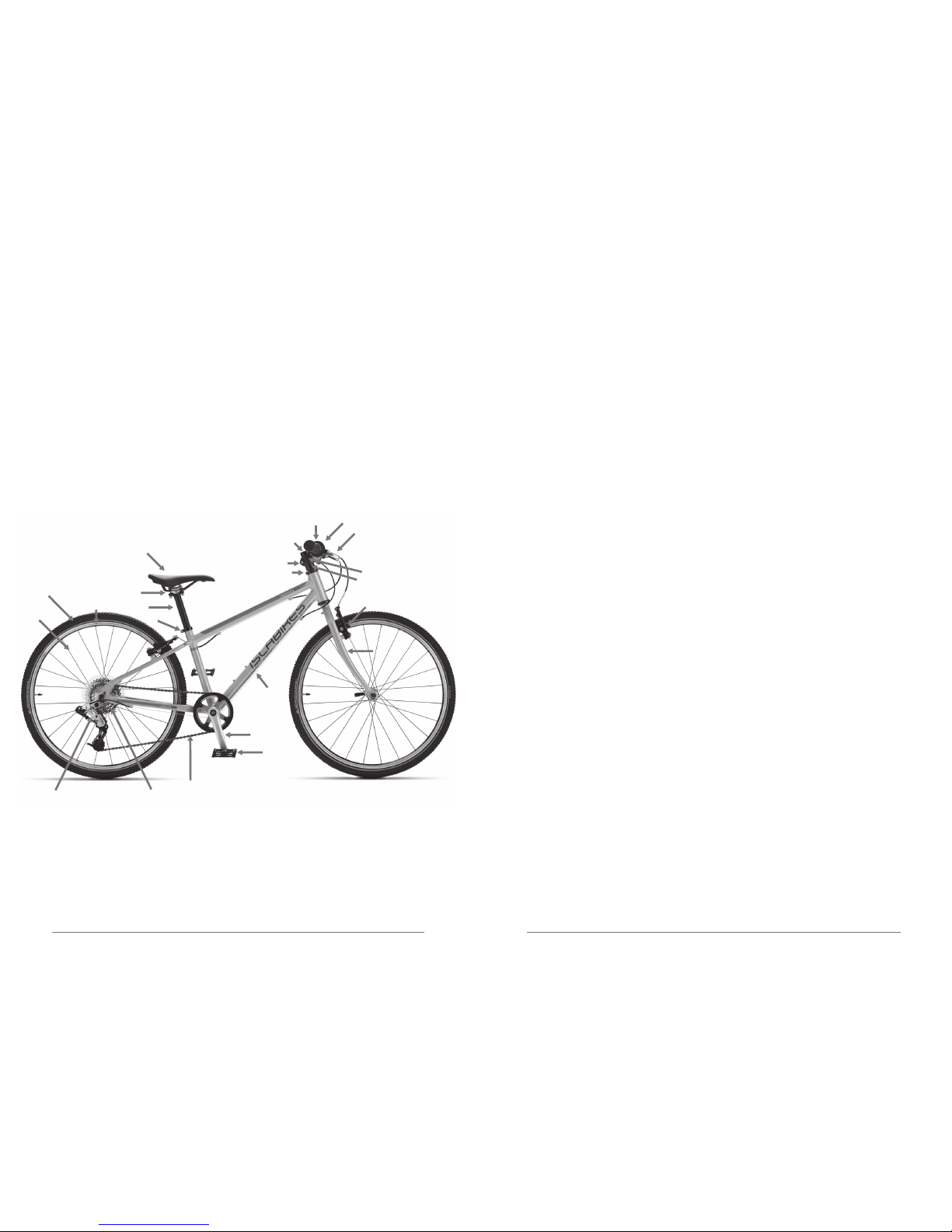

1. Brake levers
2. Brake pads
3. Saddle
4. Seatpost
5. Seatpost clamp
6. Saddle clamp
7. Stem
8. Stem bolts
9. Headset
10. Headset spacers
11. Headset adjuster bolt
12. Handlebars
13. Grip shift
14. Rim
15. Spokes
16. Tires
17. Chain
18. Rear derailleur
19. Cassette
20. Frame
21. Fork
22. Cranks
23. Pedals

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Step 1 of 6
Remove front wheel packaging
and unhook the front brake
a. Remove front wheel protection packaging.
b. Remove fork plastic protection packaging.
E-mail: [e-mail] Telephone: [phone]
Recommended torque settings
All stem bolts 7Nm
Saddle clamp bolts 7Nm
Seatpost collar bolt 4Nm
Crank bolts 35Nm
Pedals 30Nm
Wheel bolts 8Nm
Brake pads 6Nm
Brake cable pinch bolt 6Nm
Brake arm fixing bolts 6Nm
Rear derailleur 6Nm
Spares and replacement parts
We carry stock of replacement parts for your Islabike including inner
tubes, tyres and grips. Please visit our website for a list of readily
available spares or contact us at 503 954 2410 or email
[e-mail].
We only recommend using genuine parts for safety critical
components e.g. brake cables, brake blocks and bolts.
If you can’t find what you are looking for or are unsure of any
compatibility for older models, please contact our technical support
team by phone or email.
[e-mail]
503 954 2410
For support on teaching your child to ride, please see our Info Hub.
www.islabikes.com/info-hub

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Drivetrain
The drivetrain is a category of components made up of the chain,
cranks, cassette and pedals. These components work together to
drive your Islabike forward and are crucial in maintaining the optimum
performance and life of your Islabike. To keep these running smoothly
we advise the following.
1. Chain cleaning and lubricating – We recommend
cleaning and lubricating your chain weekly or after washing/
rain. Simply use soapy water to wipe over your chain and rear
derailleur then dry with a cloth. Then gently apply any general
bicycle oil direct while simultaneously turning the cranks
backwards to ensure full chain coverage. Wipe off any surplus
with a cloth.
Gears
Your Islabike has had its gears adjusted prior to delivery. These
should be checked periodically or after a fall to ensure they are
operating correctly.
Quick check:
Ensure your rear derailleur hanger is not twisted or bent.
Place your Islabike in gear 1 or the biggest sprocket and look
from the rear. Look out to see if the rear derailleur is damaging
the spokes or looks twisted.
If the gears are not working correctly contact our technical support
team at 503 954 2410 or email [e-mail].
E-mail: [e-mail] Telephone: [phone]
c. Unhook front brake hinge.

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Step 2 of 6

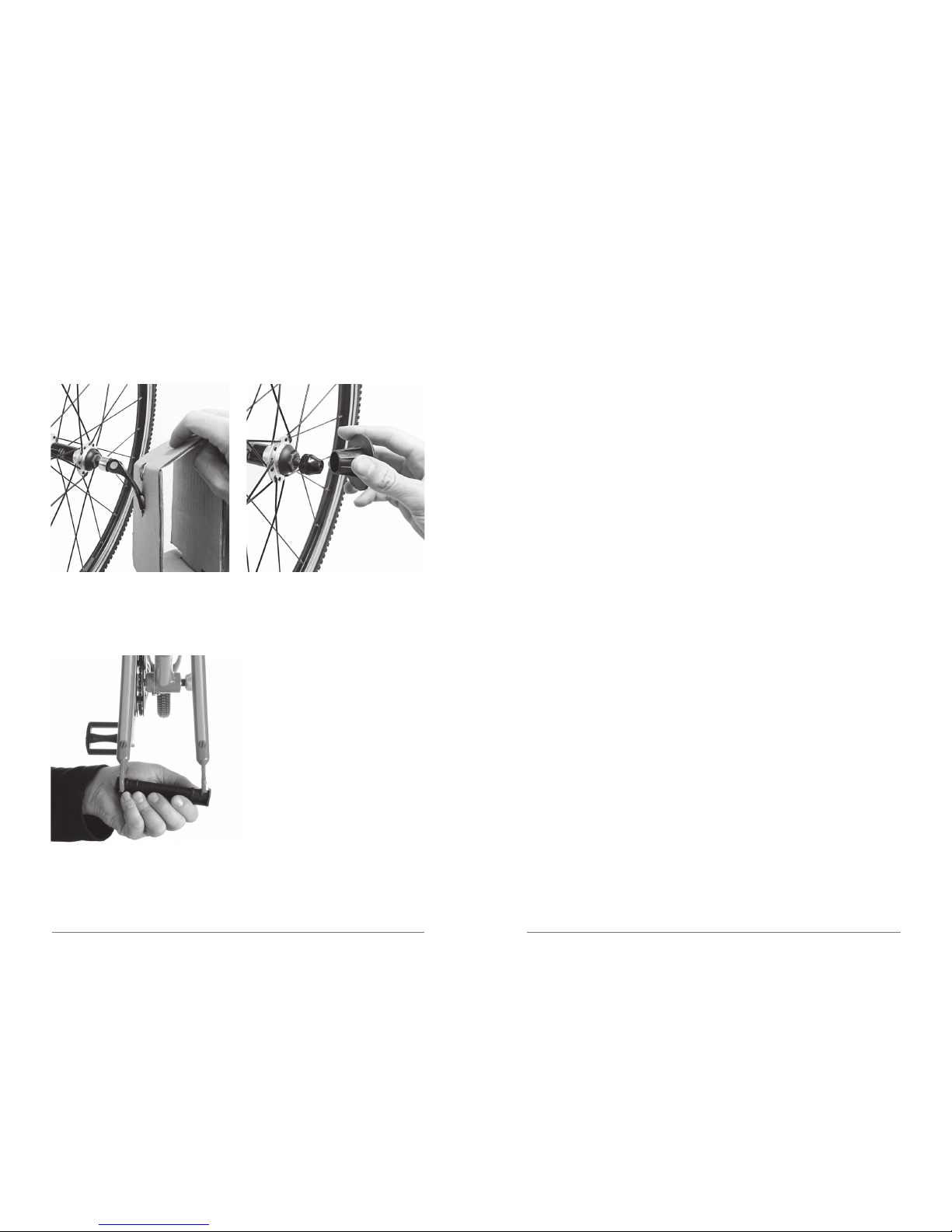

Securing front wheel
a. Put front wheel into the fork. Ensure quick release (QR) lever
is not on drive side. Check this matches rear.
b. Hold QR lever in fully ‘open’ position and turn nut clockwise.
Do not fully tighten nut.
Tighten
E-mail: [e-mail] Telephone: [phone]
Tires and Tubes
Tire wear - Regularly check tires for general wear and tear. Over
time your tires will become more worn and can become more
susceptible to punctures.
Tire pressure - Regularly check your Islabike tire pressure as they
slowly go down over time. To check, simply push your thumb hard onto
the tire or use a pressure gauge fitted to most quality bicycle track
pumps. If you can touch the rim this probably needs some more air.
You should not exceed the maximum tire pressure printed on
the sidewall of the tire. We recommend approx. 70% of the
maximum tyre pressure illustrated on your tire. To inflate
presta valves you must first open the valve by unscrewing and
tapping the valve end to relieve it if stuck. Inflate to correct
pressure and then carefully re-tighten to close the valve.
Use our guide to inflate your tires, http://www.islabikes.co.uk/info-hub/
how-to-inflate-your-tires-video.
Valve closed Valve open

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Wear
indicator
Wheels
Rim wear - Routinely check your bicycle rims for any wear. Our bikes
have an indicator line that runs the circumference of the rim. When this
becomes flush with the rest of the rim or disappears it is time to replace
the wheel. For new wheels contact our customer service team at 503
954 2410.
Rim trueness - Depending on the type of riding your child does,
your bikes wheels may become untrue or damaged when riding. This
means they will not spin straight and will wobble. To check this please
see step 3 Brakes. If for any reason they are untrue our wheels can
be easily repaired. Please contact our technical support team
at 503 954 2410 or email [e-mail].
Hubs - Your hubs are fitted with cup and cone bearings. Although
they are sealed, water and grit can enter your hubs and cause
premature wear. To prolong the life and keep them running smooth
and efficient, we recommendvannual maintenance and re-greasing of
hub bearings.
E-mail: [e-mail] Telephone: [phone]
The QR lever should start to feel tight at 90 degrees as you
close – if it is too tight or too loose you can adjust by holding lever
‘open’ again and turning nut.
Check front wheel is correctly installed by lifting the
handlebar and holding the wheel at the fork. Firmly push
from side to side. If there is no movement the wheel is fitted
correctly.
c. Clamp the QR lever to fully ‘closed’ position towards
rear of bike.

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Step 3 of 6

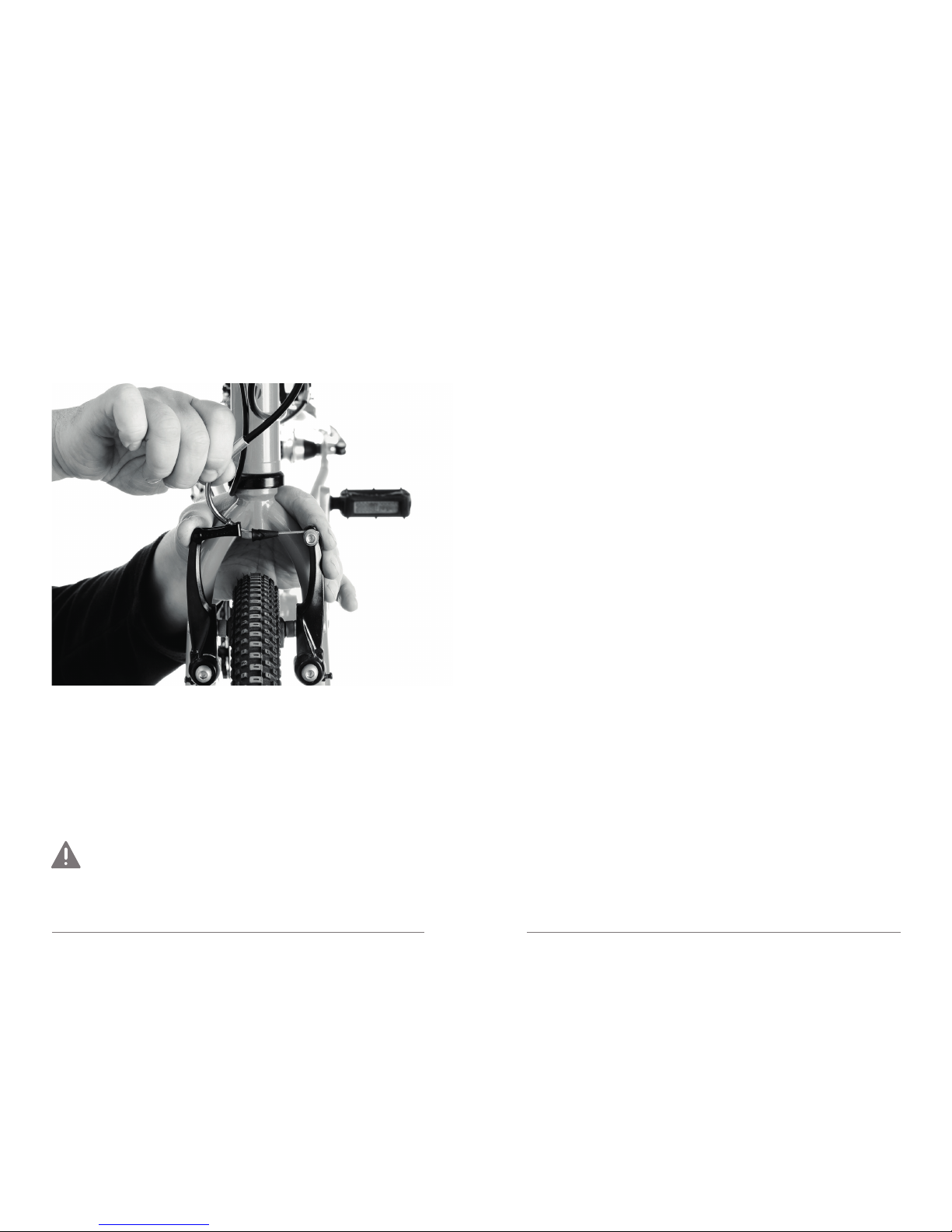

Re-connecting front brake
a. Re-connect front brake by hooking the silver metal
cable hose (noodle) back into the hinge. Check this matches
the rear.
b. Pull the right brake lever on to check brake works correctly.
Both brake pads should contact the rim.
Check front brake operates correctly before allowing child to
ride. If unsure contact our technical support team
at 503 954 2410 or email [email protected].
E-mail: [e-mail] Telephone: [phone]
Brakes
Considered one of the most important safety features of your Islabike.
It is a good habit to check the brakes on a regular basis. This should
be done depending on the type, frequency or duration of riding. If your
bike has not been used for a period of time we recommend a quick
check before riding.
Give the brakes a few pulls to check they are working - If the
brakes feel smooth and the brake levers are not moving all the way
back to the handlebar this is a good sign. If the brakes contact the
handlebar or are difficult to operate please view the “how to check
your brakes” video on the Islabikes You Tube station.
Check pads contact the rim correctly when braking - Pull on one
brake at a time and check the brake pads touch the rims nice and
evenly. If the pads are not contacting the rims, are uneven or touching
the tire please contact our technical support team at 503 954 2410 or
email [e-mail].
Check pads are not rubbing on the rim - Lift the front of the bike off
the ground with the handlebars and give the front wheel a spin. If the
wheel spins freely your brakes are not rubbing. Repeat the process
for the rear ensuring you spin the wheel forwards and your child does
not put his/her hands in the wheel. If for any reason the wheels do not
spin please contact our technical support team at 503 954 2410 or
email [e-mail].
Check pads are not worn out - Brake pads do not last forever.
Eventually they will need replacing. Again, this will depend on the
type, frequency and duration of riding. Our brake pads come with a
wear indicator line. If your brakes are now worn down to this line you
should consider replacing your brake pads. If you cannot find the line,
please replace immediately by
calling us at 503 954 2410.

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Maintenance
Keeping your bike clean and maintained comes with many benefits.
Not only will your Islabike perform better but it will be safer, last
longer and look great. To do this we have listed some regular checks
to help you along the way. Of course, if you are unsure of anything
we strongly recommend you seek professional advice or contact our
technical support team at 503 954 2410 or email
[e-mail].
Firstly, moving parts on your bike will need lubricating from time to
time. Weather conditions are generally the biggest factor that
determine frequency of maintenance and lubrication. However, it is
also heavily dependent on the frequency, type and duration of riding.
Component Lubricant Frequency
Chain Oil Weekly or after washing / rain
Brake cables Oil Weekly or after washing / rain
Wheel bearings Grease 6 months
Pedals n/a Sealed bearings
Headset n/a Sealed bearings
Bottom bracket n/a Sealed bearings
E-mail: [e-mail] Telephone: [phone]
Step 4 of 6
Handlebar set up
(Only required if fenders are fitted)
a. Turn handlebars clockwise and align with front wheel
b. Tighten stem clamp bolt max. 7Nm
Failure to correctly tighten stem clamp bolt may result in serious
injury or death. If in doubt, please consult our technical support
team at 503 954 2410 or email [email protected].
Tur n
Do Not
Tighten
Tighten

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Step 5 of 6
Pedal installation
a. Left pedal – rotate pedal axle clockwise towards front of bike
b. Right pedal – rotate axle counter-clockwise towards front of bike
Tighten max. 30Nm
Please ensure you identify the left and right pedals
before installing.
Tighten
Tighten
a. Left pedal
b. Right pedal
E-mail: [e-mail] Telephone: [phone]
Guarantee
Your Islabike comes with a 5-year guarantee on frame and forks and
a 2-year guarantee on parts. This covers faulty manufacturing but
not normal wear and tear. This guarantee only applies to the original
purchaser of the bike.
Your statutory rights are not affected by the guarantee.
Ex-display / Demo: 5-years frame and forks / 2-year parts
Second hand: 12-months frame and forks
As with all mechanical components, the bicycle is subjected
to wear and stress. Materials and components may react to
wear or stress fatigue in different ways. If the design life of a
component has been exceeded it may suddenly fail, possibly
causing injuries to the rider. Cracks, scratches or a change of
color could indicate that the design life of the component has
been reached and it should be replaced. Extra care should be
taken in inspection of parts that are subjected to high levels
of stress.
Our bikes are not guaranteed for racing in sanctioned or
competitive events. The use of a bicycle in hazardous
conditions including changeable and uneven surfaces can put
high, unpredictable loads on the bicycle and its components.
Lack of rider skill and experience can further increase these
loads leading to the possibility of serious damage to the
bicycle and/or injury to the rider. If you choose to participate in
these events, please carry out more frequent and thorough
maintenance and checks, including regularly inspecting the
frame, fork, stem, cranks and handlebars for signs of damage.
Discontinue use immediately if anything untoward is spotted
and contact our technical support team at 503 954 2410 or
email [e-mail].

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
User guidelines
Your Beinn has been designed to be ridden on paved,
unpaved, gravel roads and off-road trails with moderate
gradients. Contact with irregular terrain and loss of tire
contact with the ground may occur. Drops are intended to be
limited to less than 30cm (12in). The maximum safe combined
rider and luggage weight limits are as follows:
• Beinn 20 Small = 66 lbs
• Beinn 20 Large = 77 lbs
• Beinn 24 = 88 lbs
• Beinn 26 Small = 99 lbs
• Beinn 26 Large = 123 lbs
It is not possible to make a bike that is never going to be
damaged in an accident. If your child uses their bike beyond
its limitations, there is a high risk of failure which could result
in serious injury or death. Bikes that are used competitively
should be subject to more frequent and rigorous checks. Take
particular care to check the frame tube junctions and welds
as well as all the components for damage or excessive wear.
If in any doubt, please contact our technical support team
at 503 954 2410 or take it to a qualified bicycle mechanic for
inspection.
Please note your bike is not intended for the following types
of riding:
• Dirt jumping • Downhill
• BMX • Slalom
• Four-cross
E-mail: [e-mail] Telephone: [phone]

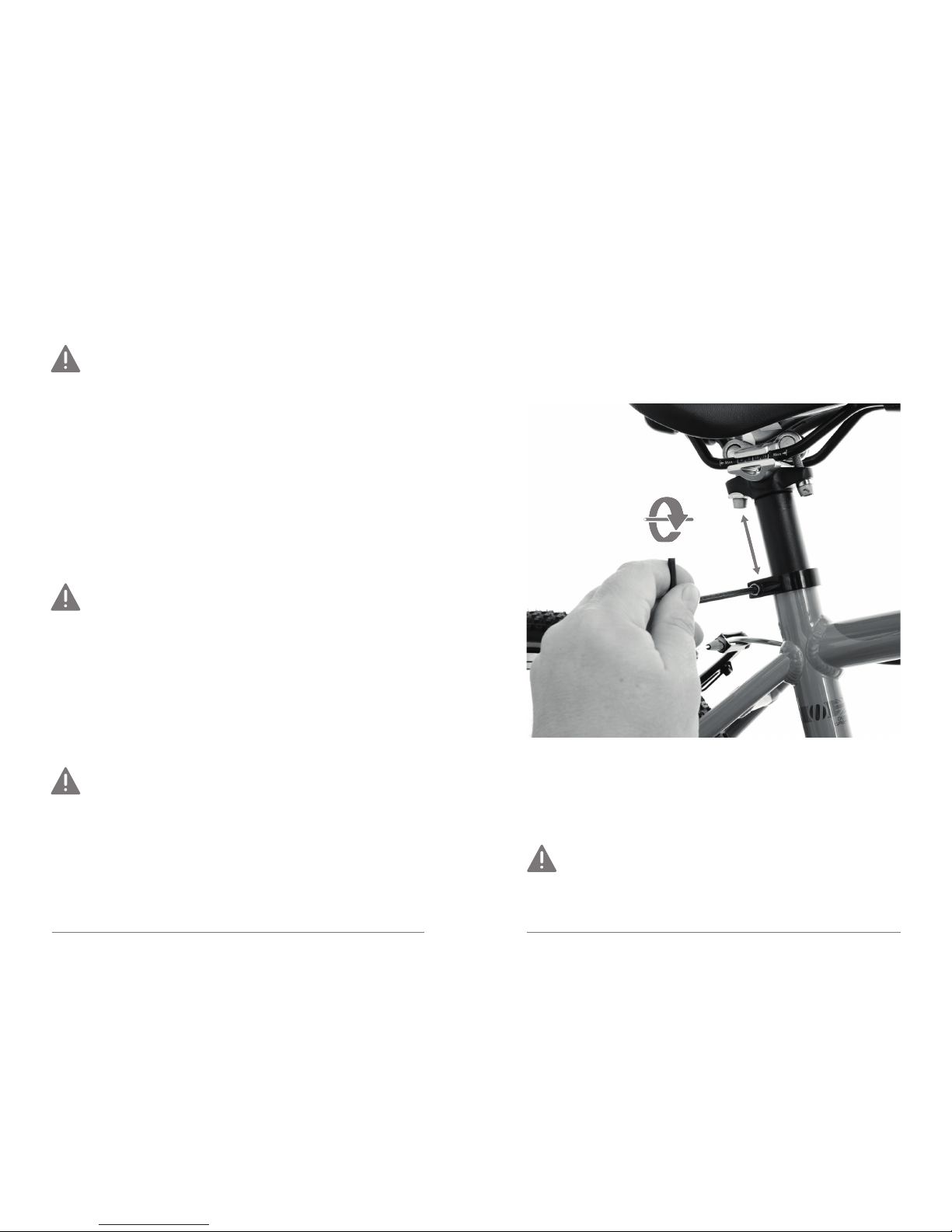

Step 6 of 6
Adjust saddle height
a. Loosen seatpost clamp
b. Move to desired height
c. Tighten clockwise max. 4Nm
Seatposts are clearly marked with minimum insertion mark.
Please do not raise saddle above this line.
Tighten

Beinn 20 Small / Beinn 20 L / Beinn 24 / Beinn 26 S / Beinn 26 L
Safety first
Before you head off, please read our advice for safe cycling. If you
are the responsible adult, parent or guardian we recommend the
following precautions.
Ensure that a helmet is adjusted correctly in accordance with
the manufacturer’s instructions.
Ensure your child is wearing sturdy footwear and nothing can
become entangled in the pedal or drivetrain.
Ensure that your child familiarizes themselves with their new
bicycle in a safe environment.
We pride ourselves on light action brakes. Check your child
can come to a stop safely using the brakes. Walk beside them
and assist them in pulling the brake lever to allow them to feel
its responsiveness.
Your Islabike is set up so that the left hand brake lever
operates the front brake.
Be aware braking performance and grip will be drastically
reduced in wet conditions.
E-mail: [e-mail] Telephone: [phone]
Avoid riding on busy streets or highways.
Always observe local legal requirements when riding on public
roads. If you are cycling in any other countries or in the EU,
please check national guidelines.
Tumbles are an inevitable part of riding a bike and sometimes
the bike can get damaged. It is very important that a bike is
inspected if an accident occurs. Here are some things to look
out for:
1. Handlebar ends becoming exposed from repeated contact
with the ground or heavy fall. Never let a child ride a bike
with an unplugged handlebar end. You can buy
replacement handlebar grips on our website
www.islabikes.com or call 503 954 2410.
2. Front brake damage can occur in a crash. If the handlebars
become twisted from a crash the cable can wrap itself
tightly and damage the noodle hinge dock. This has been
reinforced on our bikes but they are not indestructible.
Always check the front brake operates correctly and the
brake hinges were not damaged after a crash. You can
easily perform a visual inspection by comparing to the rear
brake. If you are unsure please contact our technical
support team on [phone] or email
[e-mail].
