j5 create JUD530SE User manual

jUD530 Ver1.0
User Manual
Manuel de l'utilisateur
Bedienungsanleitung
Manual del usuario
ユーザー
使用手冊
USB 3.0 Docking Station
USB 3.0 mini ultra station
Universal USB Docking Station
JUD530SE/GE

User Manual
USB 3.0 Docking Station
USB 3.0 mini ultra station
Universal USB Docking Station
JUD530SE/GE

USB3.0 mini ultra station User Manual
2
Table of Contents
Introduction.........................................................................3
Package Contents.............................................................3
System Requirements........................................................ 3
JUD530 .................................................................................4
Driver Installation................................................................5
Windows XP/7/8 ................................................................................................................................... 5
Mac 10.6~10.9 ......................................................................................................................................6
Display Settings ..................................................................8
Windows 7/8:......................................................................................................................................... 8
Windows XP:.......................................................................................................................................... 8
Mac: ........................................................................................................................................................ 9
Specifications................................................................... 10
Video Resolutions and Color Depth.............................. 11
TROUBLE SHOOTING......................................................... 12
Media Playback.............................................................................................................................13
Other.................................................................................................................................................. 14
TECHNICAL SUPPORT........................................................ 14
LIMITED WARRANTY.......................................................... 15

USB3.0 mini ultra station User Manual
3
Introduction
Thank you for purchasing the j5create USB3.0 Docking Station! j5create's
USB3.0 Docking Station enables you to add a 2nd monitor instantly via HDMI
or VGA connectors. When you need to get things done fast, simply connect
your monitor, keyboard, mouse, Ethernet, speakers, microphone, etc. to your
laptop with a single USB3.0 cable. It is the perfect solution for expanding your
Ultrabook or MacBook® into a full sized workstation.
Package Contents
mini ultra station (JUD530)
USB 3.0 cable
Power Adapter (5V/3A or 5V/4A)
Driver CD with E-manual
Quick Installation Guide
System Requirements
Microsoft Windows 8.1 / 8 / 7 / XP (32-bit or 64-bit)
Mac OS X 10.9 / 10.8 / 10.7 / 10.6 Compatible
Available port (USB 3.0 is recommended)
Minimum System Requirements
CPU: Intel i3 Dual Core 1.5 GHz/ Intel Atom “Bay Trail" Quad Core 1.33
GHz
RAM: 2 GB or higher
※Windows XP users: “Windows Media Player” is recommended
※Windows XP & MAC USB 2.0 for "office applications only" is
recommended

USB3.0 mini ultra station User Manual
4

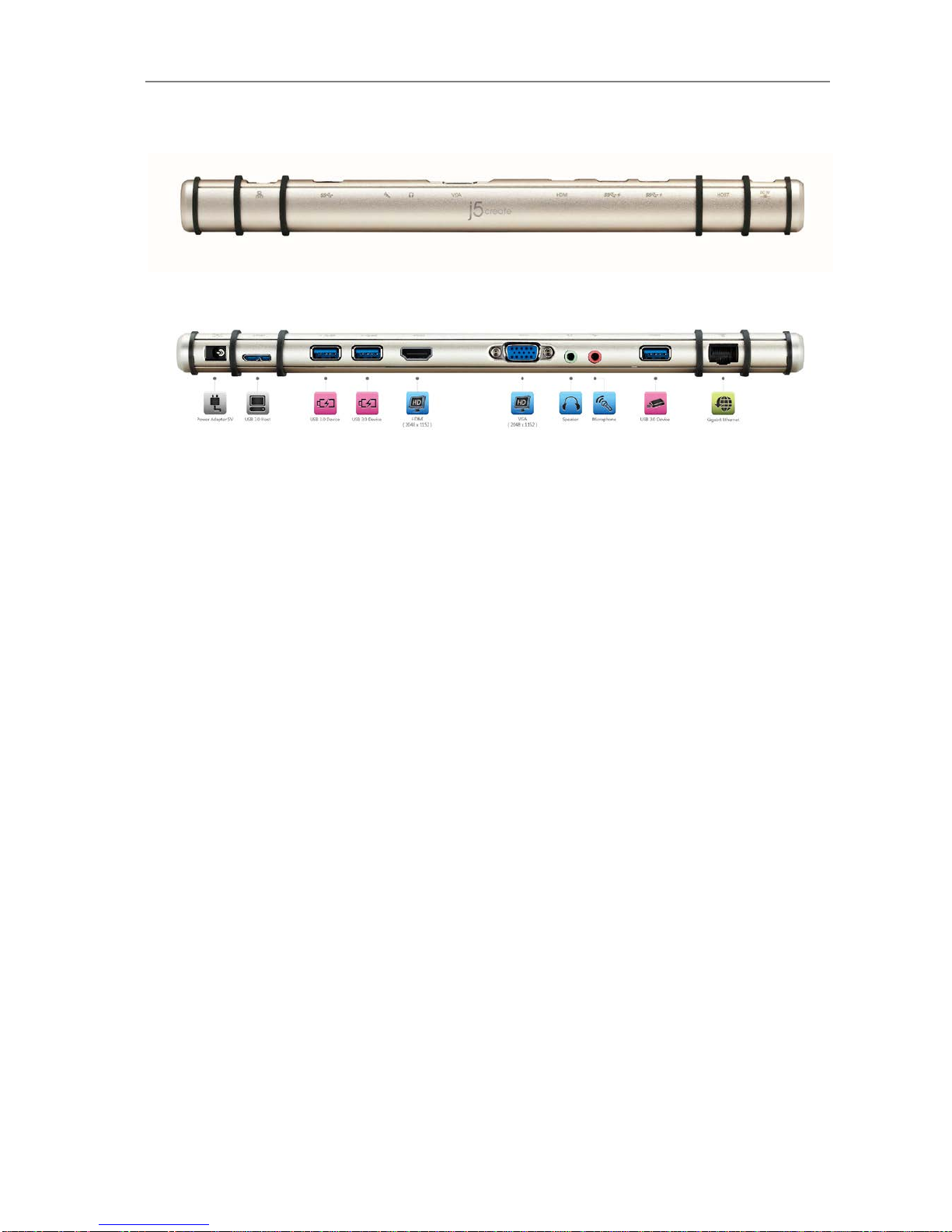

JUD530
①Power Adapter
②USB3.0 Host
③USB3.0 with Battery Charging
④USB3.0 with Battery Charging
⑤HDMI
⑥VGA
⑦Speaker/Microphone
⑧USB3.0
⑨Gigabit Ethernet
①②③④⑤⑥⑦⑧⑨

USB3.0 mini ultra station User Manual
5
Driver Installation
Windows XP/7/8
Step 1.
If you have internet access it is highly recommended that you download the
latest driver from www.j5create.com under Support & Services – scroll down
to the product’s driver you are installing and download the latest driver for
your operating system (Note: If possible run as an administrator).
If you do not have internet access insert the Driver CD into your computer’s
CD-ROM drive. (The setup program should launch automatically) If not, go to
My Computer and click on your optical drive and manually run the setup CD
by double-clicking on Setup.exe (the prompt may take a minute to appear).

USB3.0 mini ultra station User Manual
6
Step 2.
Follow the prompts to install the driver (You may have to click on My
Computer >downloads and choose j5Usb3.0MultiAdapter to begin
installation).
Step 3.
Once initial installation has completed, click Restart to finish installing the
software. After your computer has restarted, first connect the j5create USB3.0
Docking Station to your power adapter, HDMI, VGA, Ethernet, audio, etc.
and then to your computer. Now you are ready to use your j5create USB3.0
Docking Station!

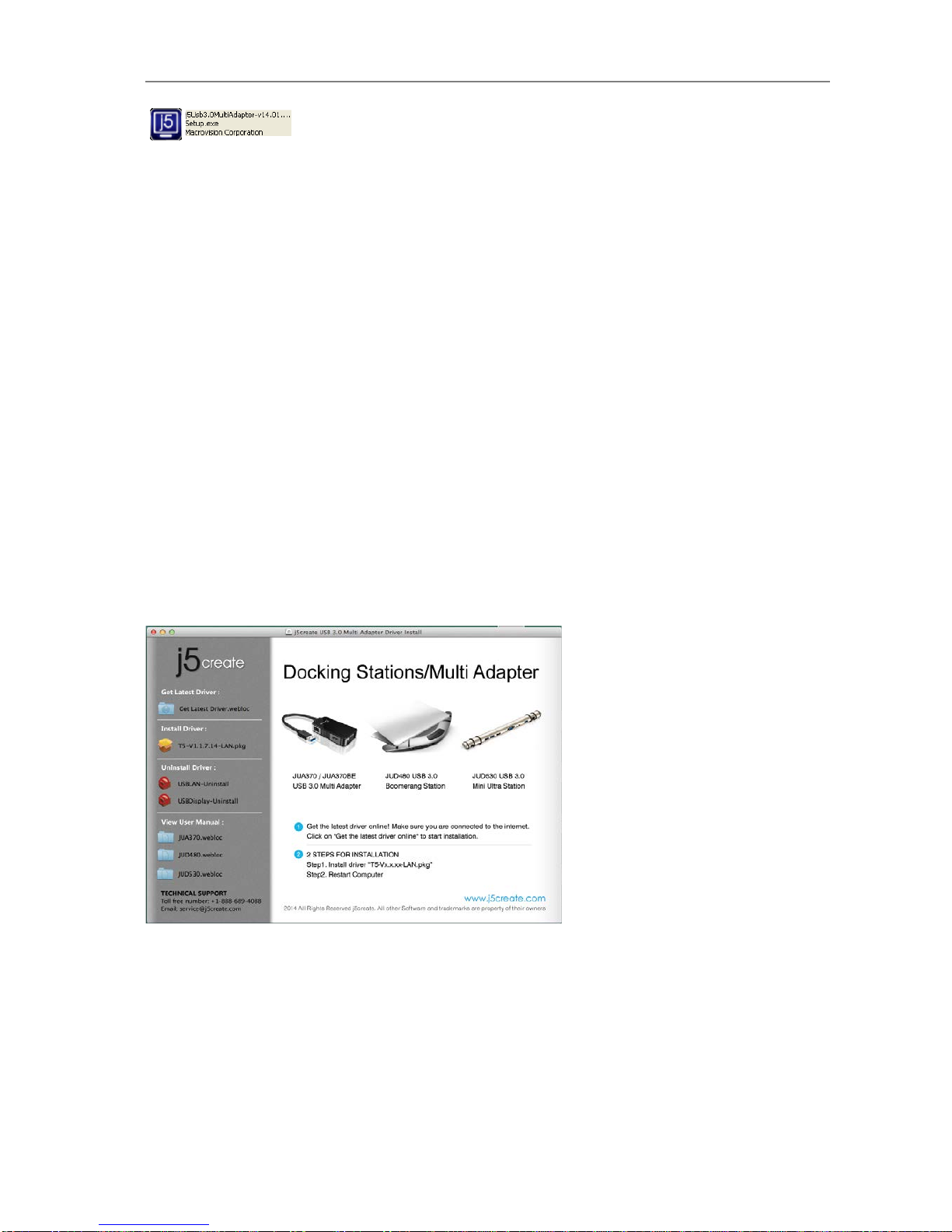

Mac 10.6~10.9

USB3.0 mini ultra station User Manual
7
Step 1.
If you have internet access it is highly recommended that you download the
latest driver from www.j5create.com under Support & Services –scroll down to
the product’s driver you are installing and download the latest driver for your
operating system.
(Note: If you have trouble downloading this driver your security settings may
need to be adjusted to allow for “downloading from anywhere”)
If you do not have internet access, insert the Driver CD into your computer's
CD-ROM drive. Click on Finder under Devices and choose j5create. Then
select the mac-install folder and open the dmg file.
Step 2.
Follow the prompts to install the driver (You may have to click on
Finder>downloads and choose j5Usb3.0MultiAdapterto begin installation).
Step 3.
Once initial installation has completed, click Restart to finish installing the
software. After your computer has restarted, first connect the j5create USB3.0
Docking Station to your power adapter, HDMI, VGA, Ethernet, audio, etc.
and then to your computer. Now you are ready to use your j5create USB3.0
Docking Station!

USB3.0 mini ultra station User Manual
8
Step 4.
Go to , and then System Preferences and select Sound and speaker
Output options. Here you can select which device has sound output.
Display Settings
Windows 7/8:
To gain quick access to your display settings right-click on your desktop and
choose Screen Resolution. This window allows you to adjust your screen
resolution, display orientation, monitor assignment and you can choose to
switch one of the monitors off. You can also choose to extend or mirror your
primary monitor.
Windows XP:
To gain quick access to your displays settings simply click on the j5 icon ( )
in the lower right-hand side of the toolbar. This screen allows you to adjust
your screen resolution, display mode (extended or mirror), and monitor
assignment.

USB3.0 mini ultra station User Manual
9

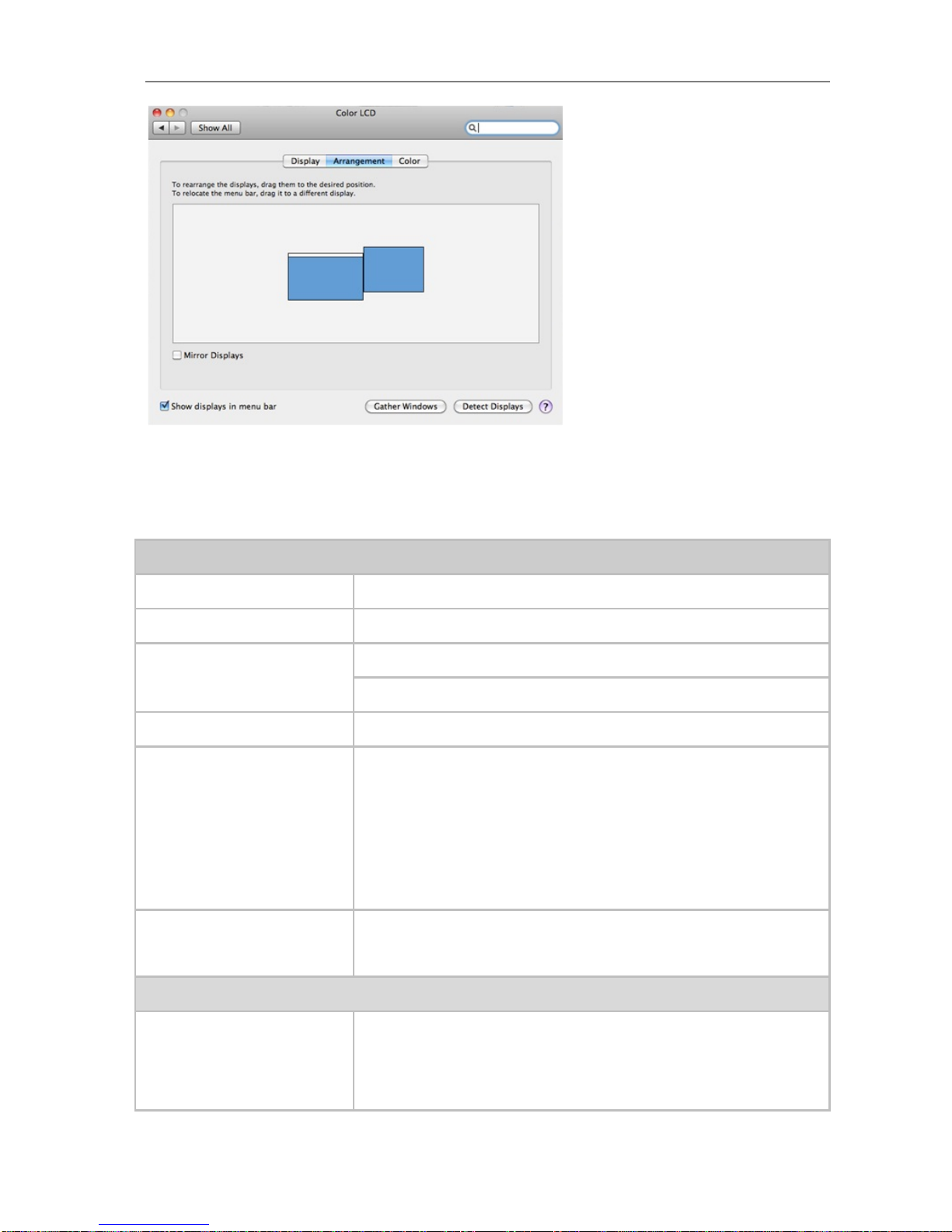

Mac:
To gain access to your system preferences go to , System Preferences,
and then click on the Display tab. From this screen you can adjust the screen
resolution, display mode, and color range.

USB3.0 mini ultra station User Manual
10
Specifications
Interface
Host Interface
USB3.0 Micro B Connector
Cable
USB3.0 Micro B to Type A
Video Interface VGA-DB 15 pin Female Connector
Standard HDMI Female Connector (with Audio)
Ethernet RJ-45 FemaleConnector(Gigabit Ethernet)
USB Port
USB3.0 Female Connector x 3
USB3.0 Battery Charging V.1.2 Charging port x 2
(Two ports that provide additional power of up to 2A
for fast-charging an iPad®,
smart phones, tablets or similar products.)
Audio Jack
Microphone: 3.5 mm stereo audio in
Speaker: 3.5 mm stereo audio out
Power
Power Adapter
Input: AC 100-240V, 50~60 Hz
Output: DC 5V/3A (US/JP/TW) or 5V/4A
(EU/UK/AU/CN)

USB3.0 mini ultra station User Manual
11
Power Mode Bus-Powered & Self-Powered
Functions
Display
Video Playback:
1080P
Display resolution: 2048 x 1152 @ 32bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°
Ethernet
Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE
802.3x
Modes:
- Supports Wake on LAN function, suspend mode and
remote wakeup via link-change, magic packet, or
Microsoft wakeup frame
-
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID
filtering
- Supports Jumbo Frame
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP)
and TCP Large Send Offload
Physical Specifications
Dimensions Main body: 301.1(W)x 28.5(H)x22 (D) mm
Cable length: 60cm
Weight
Approximately 106.5g
Housing Material Aluminum
Video Resolutions and Color Depth
Aspect Ratio
Resolution
Color Depth
Wide Screen Display
16:9 2048 x 1152 16,32 bits

USB3.0 mini ultra station User Manual
12
16:10 1920 x 1200 16,32 bits
16:9 1920 x 1080 16,32 bits
16:10 1680 x 1050 16,32 bits
16:9 1600 x 900 16,32 bits
16:10 1440 x 900 16,32 bits
16:9 1360 x 768 16,32 bits
16:10 1280 x 800 16,32 bits
15:9 1280 x 768 16,32 bits
16:9 1280 x 720 16,32 bits
Standard Display
4:3 1600 x 1200 16,32 bits
4:3 1400 x 1050 16,32 bits
5:4 1280 x 1024 16,32 bits
4:3 1280 x 960 16,32 bits
4:3 1152 x 864 16,32 bits
4:3 1024 x 768 16,32 bits
4:3 800 x 600 16,32 bits
TROUBLE SHOOTING
If you have any questions about the use of the j5createUSB 3.0 Docking
Station, please follow the instructions below. If any further assistance is
needed, please visit our website or call j5create’s support hotline.
Please Note
-Direct 3D is not supported under XP. It is supported under Win 7 Aero
mode.
General Recommendations
-Incompatibilities exist when using other video over USB devices on a

USB3.0 mini ultra station User Manual
13
single system. Please ensure that all other video over USB drivers are
uninstalled before continuing with your j5create installation.
-Check to make sure that the device is plugged in correctly to the host
system.
-Make sure that the USB portyou are using is USB3.0.
-Unplug the USB cable of the USB display device and re-insert it.
-Check to see that the monitor is connected correctly and is powered
ON.
-Make sure to restart your computer after the driver installation.
-Try a different USB port and/or computer.
-Unplug all other USB devices from the system.
-Try connecting the USB cable of USB display device directly to the
computer instead of through a hub.
-Reset/refresh/resynchronize your monitor.
Media Playback
-During video playback on all platforms, please do not change the
display mode, position or arrangement of the video player window
(such as dragging the video player window between the main display
and attached display). This may cause the video player to stop playing.
We suggest stopping the video playback, moving the window to the
attached USB graphics display device and then selecting the video clip
to start playing.
-Cursor movement is slower when the mouse hovers on the video region
of the Flash player,
-Downsizing your screen landscape lower than 50 % will help smooth out
jumpy video playback for videos running in Full Screen Mode.
-You may experience poor video performance on USB graphics devices
with low spec PC systems.
-Video rendering using hardware overlays is supported.
-Some DVD playback software packages do not support playing on a
second display adapter of any kind. You may try to open the media
player in the secondary display first before you start playing the DVD.

USB3.0 mini ultra station User Manual
14
-Your PC may lack certain media codec to support the playback of
certain video formats. Please use the link below to install license free
media codec.
K- Lite:http://www.free-
codecs.com/download/K_Lite_Codec_Pack.htm
-Video/Media players have different decoding capabilities under
different display modes. For better performance while watching DVDs
or certain video formats on the attached USB graphics display, it is
recommended that you use the following license free software:
Media Player Classic: http://sourceforge.net/projects/guliverkli/
Other
-Some graphic cards (i.e. Intel)prevent other secondary graphic chipsets
from being set as the primary card. As a result of this, primarymode
might not work or the display maybe disabled.
-If you have problems during the boot up process, start your computer in
Safe Mode and uninstall the driver. To enter safe mode hold the CTRL
key until the Windows’ startup menu appears and select Safe Mode.
-To verify the driver version that you installed, please click Control
Panel→Add or Remove Programs to check the program: USB Display
Device (Trigger 2) 9.xx.xxxx.0159 (the number is the driver version). Some
limitations exist on supported file formats in different media players. We
have enclosed our compliance test results in the tables according to
different operating systems, main system graphic cards/chipsets, media
players, and the supported media format. It will be updated
periodically with newversions of media players and/or with our latest
driver.
TECHNICAL SUPPORT
If you have any issues using this product please follow the instructions below
before returning this product to the store.
1. The User Manual

USB3.0 mini ultra station User Manual
15
It contains detailed instructions and a troubleshooting section. Many
common issues can be easily resolved by reading the user manual.
2. Online Support
Please visit the j5create website (www.j5create.com) to find the latest
software for your device. If you are still experiencing the same issue,
you can submit a description of your problem via
email [email protected]. Our j5create technical service support
team will reply to you within the next 24 business hours.
3. Telephone Support
Please feel free to call us at 888-689-4088 and one of our support
technicians will be happy to assist you.
Customer Service: Toll free number: 888-988-0488
Technical Support: Toll free number: 888-689-4088
Email: [e-mail]
Please contact Technical Support during business hours. 10:00AM-6:00PM
E.S.T Monday- Friday for further assistance.
LIMITED WARRANTY
j5create offers a limited 1-year warranty. User’s wear & tear damage is
notincluded.The user shall call or e-mail j5create's customer service with
information regarding the defect(s) of the product and obtain a return
authorization number.Users are responsible for one way return freight cost
and we will take care of one way freight back. In order to obtain a return
authorization number, users should have the following informationhandy
when calling or emailing the service team:
(i) a copy of the original purchase invoice to verify your warranty
(ii) a product serial number
(iii) a description of the problem

USB3.0 mini ultra station User Manual
16
(iv) customer’s name, address, and telephone number
j5createdoes not warrant that the operation of the product will be
uninterrupted or error-free. j5createis not responsible for damage arising from
failure to follow instructions relating to the product’s use. This warranty does
not apply to:(a) consumable parts, unless damage has occurred due to a
defect in materials or workmanship; (b) cosmetic damage, including but not
limited to scratches, dents ,and broken plastic on ports; (c) damage caused
by use with non-j5create products; (d) damage cause by natural disasters
(flood, fire, earthquake, lighting strike, typhoon etc.,); (e) damage caused by
human misuse (lost, accident, abuse, misuse or other external causes); (f)
damage caused by operating the product outside the permitted or intended
uses described by j5create; (g) damage caused by service (including
upgrades and expansions) performed by anyone who is not a representative
of j5create or a j5create Authorized Service Provider; (h) a product or part
that has been modified to alter functionality or capability without the written
permission of j5create; or (i) if any j5create serial number on the product has
been removed or defaced. If such a situation occurs, j5create will calculate
the cost of materials and repair for your reference. This warranty is given by
j5create in lieu of any other warranties expressed or implied.
Copyright© 2014 j5create. All rights reserved. All trade names are
registeredtrademarks of their respective owners. Features and specifications
are subject tochange without notice. Product may not be exactly as shown
in the diagrams.
REGULATORY COMPLIANCE
FCC
This equipment has been tested and found to comply with FCC Part 15
Subpart B § 15.109/15.107 Class B.

USB3.0 mini ultra station User Manual
17
Operation is subject to the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference, including interference that may
cause undesired operation of the device.
CE
This equipment is in compliance with the requirements of the following
regulations:
European Standard EN 55022:2010/AC:2011 Class B,
EN 61000-3-2:2006/A1:2009 and /A2:2009, EN 61000-3-3:2008 and
EN 55024:2010(IEC 61000-4-2:2008 ED. 2.0, IEC 61000-4-3:2010 ED. 3.2,
IEC 61000-4-4:2012 ED. 2.1, IEC 61000-4-5:2005 ED. 2.0, IEC 61000-4-6:2008 ED.
3.0,
IEC 61000-4-8:2009 ED. 2.0, IEC 61000-4-11:2004 ED. 2.0).
C-Tick
This equipment is in compliance with the requirements of the following
regulations:
AS/NZS CLSPR 22:2009/Amdt 1:2010
VCCI
This equipment is in compliance with the requirements of the following
regulations:
VCCI V-3/2014.04 Class B ITE
BSMI
This equipment is in compliance with the requirements of the following
regulations:
CNS 134338
Disclaimer
Information in this document is subject to change without notice. The
manufacturer does not make any representations or warranties (implied or
otherwise) regarding the accuracy and completeness of this document and
shall in no event be liable for any loss of profit or any commercial damage,

USB3.0 mini ultra station User Manual
18
including but not limited to special, incidental, consequential, or other
damage. No part of this document may be reproduced or transmitted in any
form by any means, electronic or mechanical, including photocopying,
recording or information recording and retrieval systems without the
expressed written permission of the manufacturer.

JUD530 Ver1.0
Manuel de l'utilisateur
USB 3.0 Docking Station
USB 3.0 mini ultra station
Universal USB Docking Station
JUD530SE/GE
