The JA-162A-US Internal wireless siren
The JA-162A-US Internal wireless siren 1 / 2 MNJ51504
The JA-162A-US is a component of the JABLOTRON 100
system. It is intended for wall plug type A, B. It is used for alarm
indication inside a building. It can also be used for other acoustic
indications (PG outputs, entry/exit delays and doorbell). Pressing
the siren button can silence the alarm (= confirmation of a person’s
presence in the building) or trigger a panic alarm (optional function).
The siren is equipped with a backup battery for cases when AC
dropouts can happen. It has also got a built-in detector of siren
tampering by disconnection from its electrical socket. The siren
should be installed by a trained technician with a valid
manufacturer’s certificate.

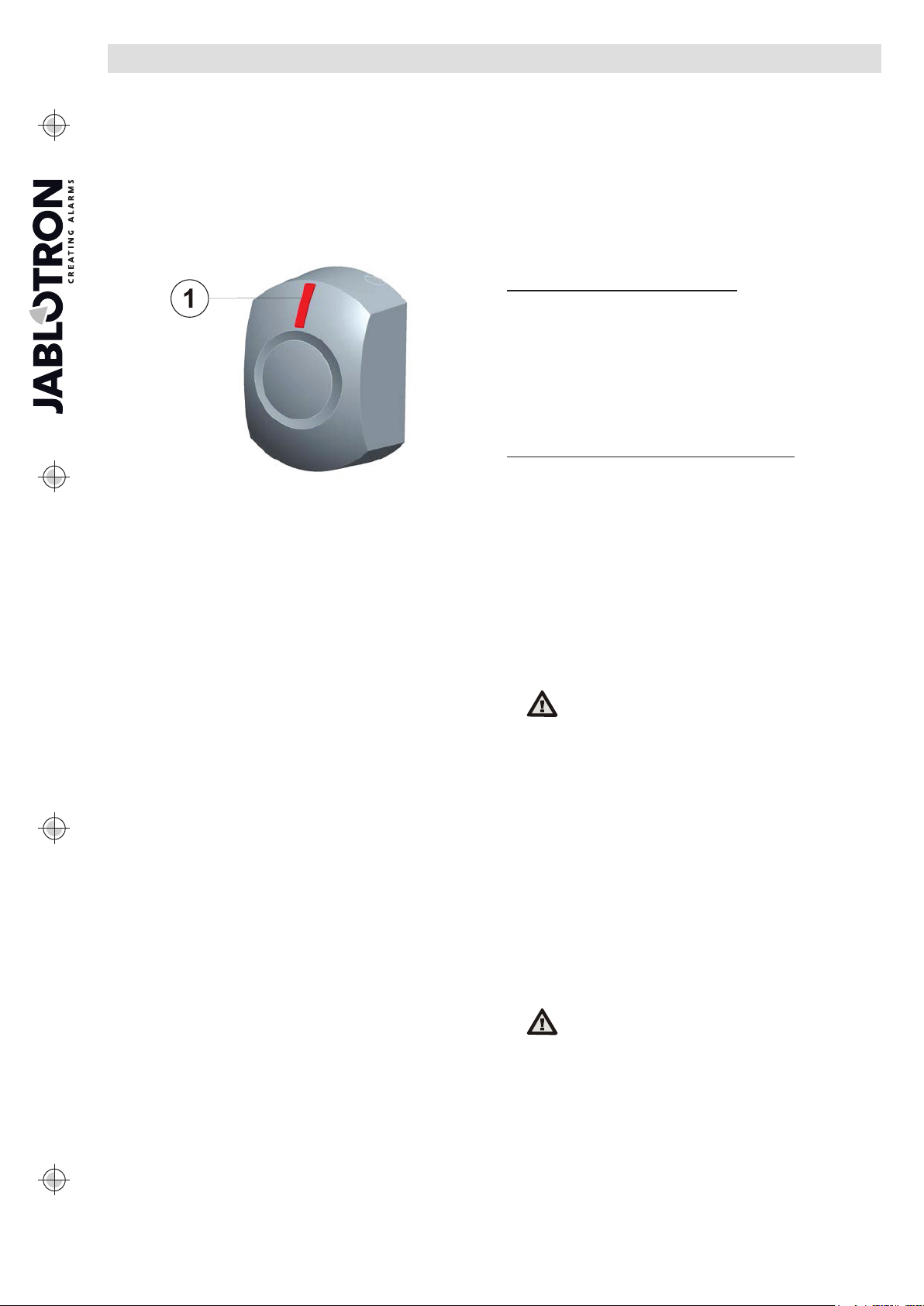

Figure 1: 1 – transparent control button
Installation and enrolling the siren to the
control panel
It is necessary to perform the enrollment procedure in service mode
and the system has to be equipped with an JA-110R radio module.
1. Plug the siren into the required electrical socket where there is
still a good RF range to the control panel.
2. The control button (1) lights permanently with a yellow colour
and it means the siren is ready to be enrolled. If the control
button (1) doesn´t light permanently, then follow the Warning
below.
3. Go to the F-link software, select the required position in the
Devices window and click on the Enroll option – enrollment
mode is then launched.
4. Press the control button (1) on the siren. The siren is thus
enrolled to required position and the yellow LED goes off.
5. Set the siren properties (see the Internal setting chapter)
Warning: If the battery is low then the siren can´t be enrolled to
the control panel. This status is indicated by the periodical flashing
of the yellow LED each 15 s. It is strictly necessary to wait (usually
a few minutes) until the backup battery is charged to the point when
it is able to transmit the enrolling signal. When the backup battery is
fully charged (permanently lit yellow LED), open the enrollment
mode and then press the control button (1) to transmit an enrolling
signal.
If the siren is unplugged from the electricity then it will be able to
work for 12 hrs from the backup battery. When the backup battery
voltage reaches the critical level, then the siren is turned off to
protect the backup battery against damage.
Internal settings of the siren
Go to the Devices tab in the F-Link software. When you are at
the siren position, use the Internal settings option to open a dialog
window where you can set: (* indicates default settings).
Sections: defines for which sections the siren should indicate an
alarm and possibly also entrance / exit delays and system setting. The
default setting is indication disabled for all sections.*
Reaction: defines whether the siren should indicate an IW*
(internal warning) or EW (external warning) signal. Alarm indication with
siren chirps can also be completely disabled (other functions remain
active).
Siren tones: intermittent*, continuous
Maximum siren time: 1, 2, 3*, 4, 5 minutes.
Detection of tampering:by the built-in accelerometer the siren
detects its disconnection from electrical socket. Options Disabled,
Always*, During alarm.
Higher volume: YES / NO* - affects only entrance/exit delay
signalling and sounds indicating PG output triggering.
Beeps during section control: YES / NO* - if enabled, the siren
chirps once after setting, twice after unsetting and three times when
unsetting after an alarm. It only does so for selected sections.
Entrance delay beeping: YES / NO* if enabled, it indicates the
entrance delays of the selected sections.
Entrance delay beeping with a partially set system: YES / NO* if
enabled, it indicates the exit delays of the selected sections when
partially set.
Exit delay beeping: YES / NO* if enabled, it indicates the exit delays
of the selected sections.
Flash when button is pressed: YES / NO* if enabled, it indicates
pressing the button by quick flash of the LED.
Acoustic signalling of PG output activity:
Sound indication can be set for each PG output:
No - PG output generates no sound
Slow beeping - slow chirping – 1 per second (for the whole period
when the PG is active)
Quick beeping rapid chirping – 2 per second (for the whole period
when the PG is active)
One beep - 1 chirp when the PG is activated, 2 chirps when
the PG is deactivated
20 sec of beeping 20 sec long chirp when the PG is activated
Melodies 1,2,3,4 - doorbell melody selection
Control panel reaction to pressing the siren button:
The default setting is that pressing the siren button (1) during an
alarm mutes the siren and concurrently confirms a person’s
presence in the building (a report is sent).
It is possible to change the siren button reaction in order to function
as a panic alarm button (1) in the Devices window in the F-Link
software. In such a case the system responds to the pressing with a
panic alarm in the section to which the siren has been assigned.
Test –by pressing the TEST button you can test the siren function
and the siren reacts to this pressing by 3 s alarm sound.
Note:
The siren sound has the highest priority, the chirps during control
have a lower priority and the PG output activity indication has the
lowest priority (PG1 has a higher priority than PG2 etc). The chirp
with higher priority always terminates the chirp with a lower priority.
To set the siren to comply with security grade 2
according to the EN50131 norm, use F-Link SW (1.4.0
and higher), the Parameters tab and the option System
profiles.
Backup battery replacement
The siren checks the backup battery status automatically. The
current status can be checked by the F-link software tab called
Diagnostics (current battery status, its voltage when loaded and
unloaded). When a backup battery fault is triggered, then it is
necessary to replace it as fast as possible to avoid siren
malfunctioning.
The control panel must be in service mode (see control panel
installation manual) then it is possible to open the siren cover,
before you start changing the battery. Valid when Detection of
tampering is enabled. Always use a 3,6 V, 170 mAh (BAT-3V6-
N170) backup battery.
Note: If the battery is low (as reported to the control panel) the
siren is not able to fully perform all its functions
Battery replacement procedure:
Battery replacement can only be done by a
person with an adequate electrotechnical
qualification and only when the siren is
disconnected from its electrical socket.
1. Unplug the siren from the electrical socket.
2. Unscrew the 4 locking screws on the siren’s rearside and remove
the rearside carefuly.
3. Take out the PCB from the Front part.
4. Now it is possible to replace the old backup battery. Fix the new
backup battery by the ties and connect it by connector to the PCB.
5. Re-assemble the siren in reverse order of the points (1 – 3) – be
careful, the spring has to be correctly assembled on the LED’s
body otherwise the button will not work (1).

The JA-162A-US Internal wireless siren
The JA-162A-US Internal wireless siren 2 / 2 MNJ51504
Technical specifications
Power supply 110 V – 120 V/60 Hz, 0.5 W, protection class II,
plug type A, B
Nominal current 41 mA
Maximal current 150 mA
Backup battery / lifetime 3.6 V; 170 mAh/3 years
Battery low voltage 3,2 V
Communication frequency 868.1 MHz, JABLOTRON protocol
Communication range approx. 300 m (unrestricted area)
Sounds (melodies) 8 optional for PG output indication
Classification Security grade 2/Environmental class II.
- according to EN 50131-1, EN 50131-4, EN 50131-5-3
- acoustic level 90 dB / 1 m
- back-up supply type W / 12 hour back-up
- operational environment indoor general
- operational temperature range -10 °C to +40 °C
- average humidity 75 % RH, non-condensing
- certification body Trezor Test s.r.o. (no. 3025)
Siren cover conformance IP40 according to EN 60529
Mechanical resistance IK08 according to EN 50102
Dimensions, weight 90 x 64 x 80 mm, 110 g
Also complies with ETSI EN 300 220, EN 50130-4,
EN 55022, EN 60950-1
Can be operated according to ERC REC 70-03
JABLOTRON ALARMS a.s. hereby declares that the JA-162A-US is in
a compliance with the relevant Union harmonisation legislation:
Directives No: 2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU.
The original of the conformity assessment can be found at
www.jablotron.com - Section Downloads.
Note: Although this product does not contain any harmful materials we
suggest you return the product to the dealer or directly to the producer
after use.
