Installation
Choosing a location
Place your sauna on a dry and level surface for best results. Garage, basement, attic, playroom, bedroom, or garden
house are just a few of the possible locations for your sauna.
Your sauna’s natural cedar or basswood exterior will beautifully compliment any location.
Outside, place the sauna on a deck or concrete pavers, available at your local building supply store, to protect it from
moisture in the ground which can wick up through the wooden feet. Outside installation also requires our optional
canvas cover.
Installation requirements for your sauna are as follows:
1. Your Jacuzzi® sauna is a self-contained and freestanding unit. It should not be built into any structure without
prior authorization.
2. Please maintain a minimum of 4-inch clearance on all sides of the unit to allow air to circulate while giving
access for the power cord..
Cleaning and maintenance
1. Before using your sauna for the rst time, clean the inside of the sauna with a damp cloth.
Use your favorite furniture polish on the exterior.
2. Place a towel on the floor and bench to absorb any perspiration. Wash these often to maintain a clean and
pleasant environment inside your sauna.
3. Perspiration may darken the wood over time. This can be removed by a light sanding with ne grit sandpaper.
Please be careful when carrying and installing the glass pieces to avoid breakage. Make certain the glass is securely fastened
during installation before letting go of any individual piece that could break.

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
5
SANCTUARY 101
Packaging - - - - - - - - - - - - - - - - - - - - - - - 06
Assembly Instructions - - - - - - - - - - - - - - - - - 07

6
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
.

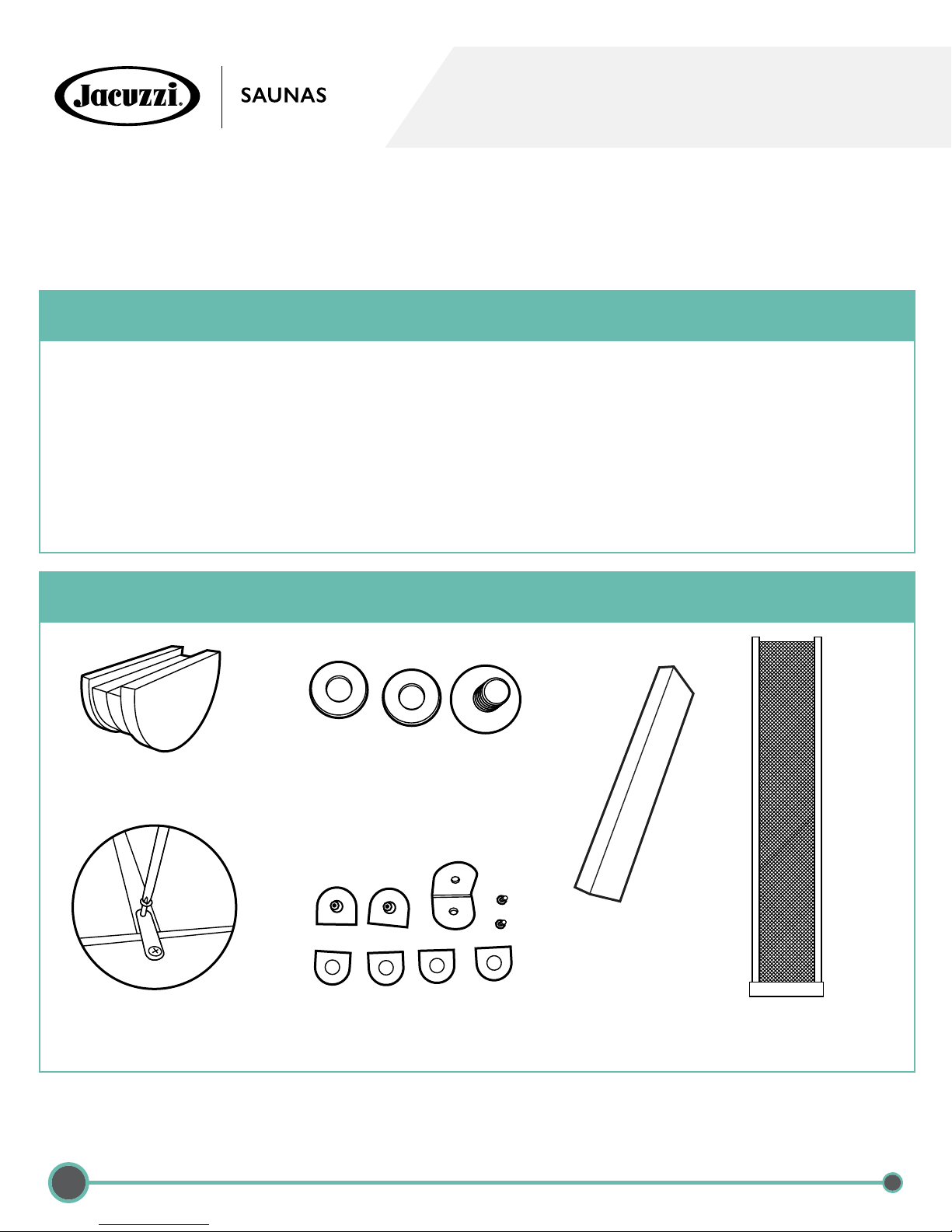

Packaging
Box 1 of 4 Box 2 of 4 Box 3 of 4 Box 4 of 4
1. Floor Panel 1. Left Side Wall 1. Front Wall Glass 1. Front Heaters
2. Ceiling Panel 2. Right Side Wall 2. Back Wall
3 . A c c e s s o r i e s 3. Bench & Bench Support
4. Installation Manual
CONTENTS OF BOXES
ACCESSORY BOX CONTENTS
Door Handle
Wall Security
Bracket (4 pieces)
Glass Security
Brackets (2 sets)
Wood piece
(2 pieces)
Full Spectrum
Heater Guard (2 pieces)
Front Heater
Mouting Screws
(4 sets)

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
7
Assembly Instructions
Assembly of the sauna requires two adults to complete. Please read the instructions thoroughly before and during
assembly to ensure proper installation of the unit. If you encounter any problems or have questions during assembly,
please feel free to call our Customer Service department at 1-800-798-1779 or [phone].
When determining a location for your sauna, please keep in mind the following:
1. The main power cord on the sauna must be easily accessible.
2. The location must be dry and level.
3. Panels should be installed in the following order:
1) Floor 4) Right Side Wall 7) Wood Roof
2) Back Wall 5) Under Bench Support 8) Glass Roof
3) Left Side Wall 6) Bench 9) Front Wall Glass
1. Place the bottom floor panel on the ground
near the location you will using the sauna.
Make sure the front of the floor is in the
desired location of the door. The two floor
receptacles and the door magnet indicate
the front of the sauna.
1. Place the back panel on the floor panel by placing it in
the groove of the floor panel.
1 - LOCATION OF SAUNA & INSTALLATION ORDER
2 - PLACING FLOOR PANEL 3 - CONNECTING THE BACK PANEL
TO THE FLOOR PANEL

8
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d

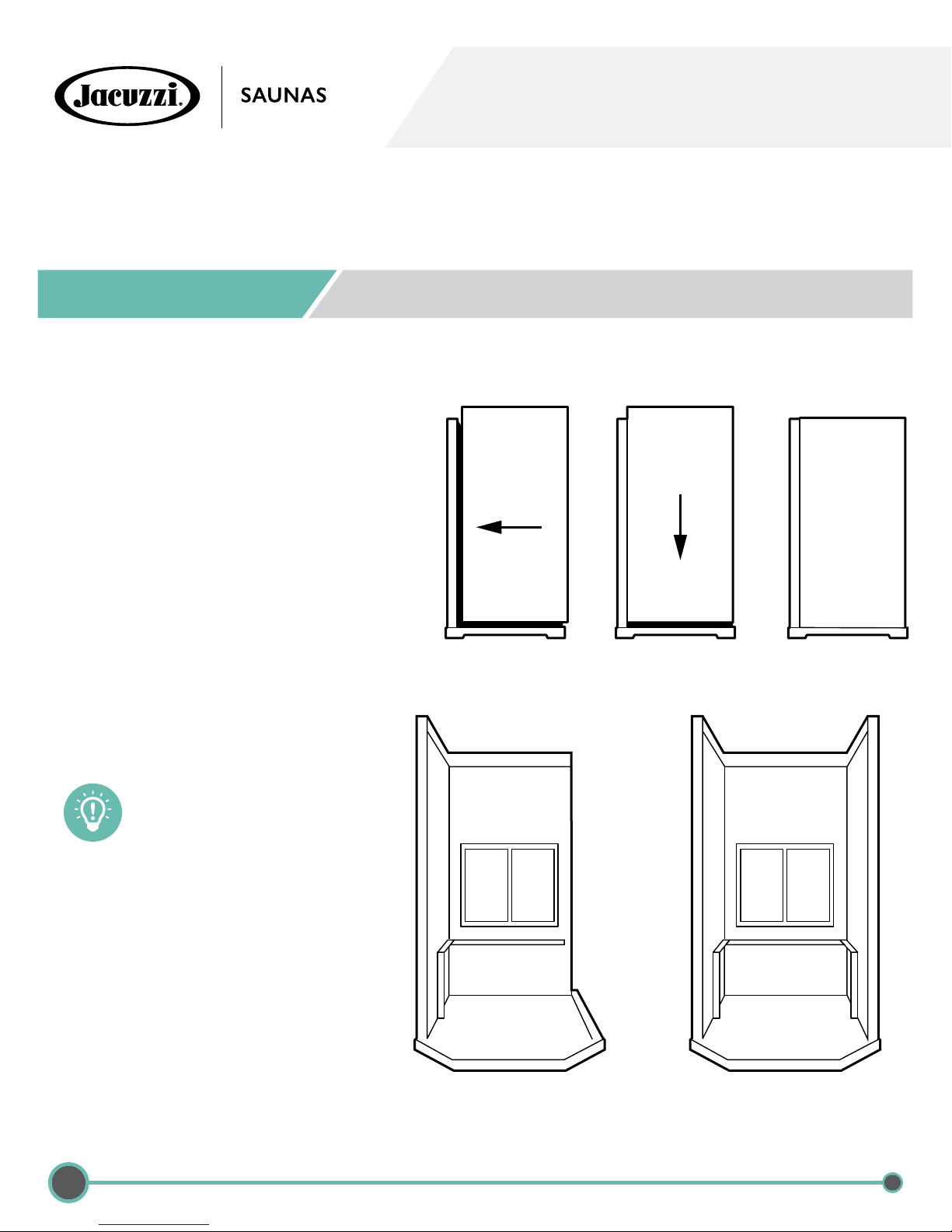

The side wall panels connect to the back wall with the installed locking brackets. There are mating brackets on
the side of each panel.
1. Place the left side wall in the slot in the floor.
Lift the side wall up about 4” (10cm) higher
than the backwall panel (See Picture 1).
2. Place the side wall panel against the back
wall (See Picture 2), then slide down side
wall panel until the two panels are equal
height. (See Picture 3).
3. If the panels are not equal height or there is
an obvious gap between the two panels, this
means they are not propery attached and
you should try again.
4. Repeat the steps above for the right side
wall panel.
4 - CONNECTING SIDE WALLS
Picture 1 Picture 2 Picture 3
Right Side Wall InstalledLeft Side Wall Installed
If the panels still seem too tight to come
down all the way, try backing off the
bracket screws by one half turn with a
Phillips head screwdriver on the female
bracket.

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
9
Assembly Instructions Cont’d
Slide down the bench heater panel by lining up its sides with the vertical guides on the left and right side wall
panel.
1. Be careful not to scratch the side panels when positioning the heater panel.
2. Push the bench heater panel all the way down until it is touching the floor panel and securely in place.
5 - INSTALLING UNDER BENCH SUPPORT
Vertical bench heater
panel guides are found
on the side panels.
Heater must be
facing outward

10
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d
Follow the connections as in the following illustration:
1. Connect the black and white cable coming out of the back of the under bench support to one of the left side
wall connectors.
2. Connect the side black and white wall cable to one of the floor connectors.
3. Connect the black and white back wall cable to the other floor connector.
4. Connect the green ground connectors together.
5. The two remaining cables labeled “VRT” will be connected if Vibrational Resonance Therapy is being added to
the sauna. If you did not add this to your sauna, these cables will not be used.
6 - CONNECT HEATER CONNECTION UNDER BENCH
You can plug any male connector to any female one as long as the colors match.

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
11
Assembly Instructions Cont’d
Install the bench panel by sliding it over the horizontal bench guides on the side panels. Be careful not to scratch
the adjacent panels when sliding in the bench.
Push the bench all the way in until it touches the back panel and is securely in place.
The bench is reversible. One side is ergonomic and one side is flat. You can reverse the bench after the sauna
installation is nished. Be sure that the bench is pushed all the way back until it slides under the heater guard
to secure the bench in place.
Optional: After the bench is installed, you can
slide in the included wood pieces to prevent
the bench from sliding left to right. One piece
can be placed on each side next to the bench.
If you decide to flip the reversible bench over,
please remove the wood pieces rst.
7 - INSTALLING THE BENCH
LEFT
TOP
BOTTOM
FRONT
BLACK
LEFT
TOP
BOTTOM
FRONT
BLACK
1. Set the wood portion of the
roof on the back roof guide.
Besure to slide the roof back
against the back wall.
8 - INSTALLING WOOD PORTION OF ROOF

12
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d

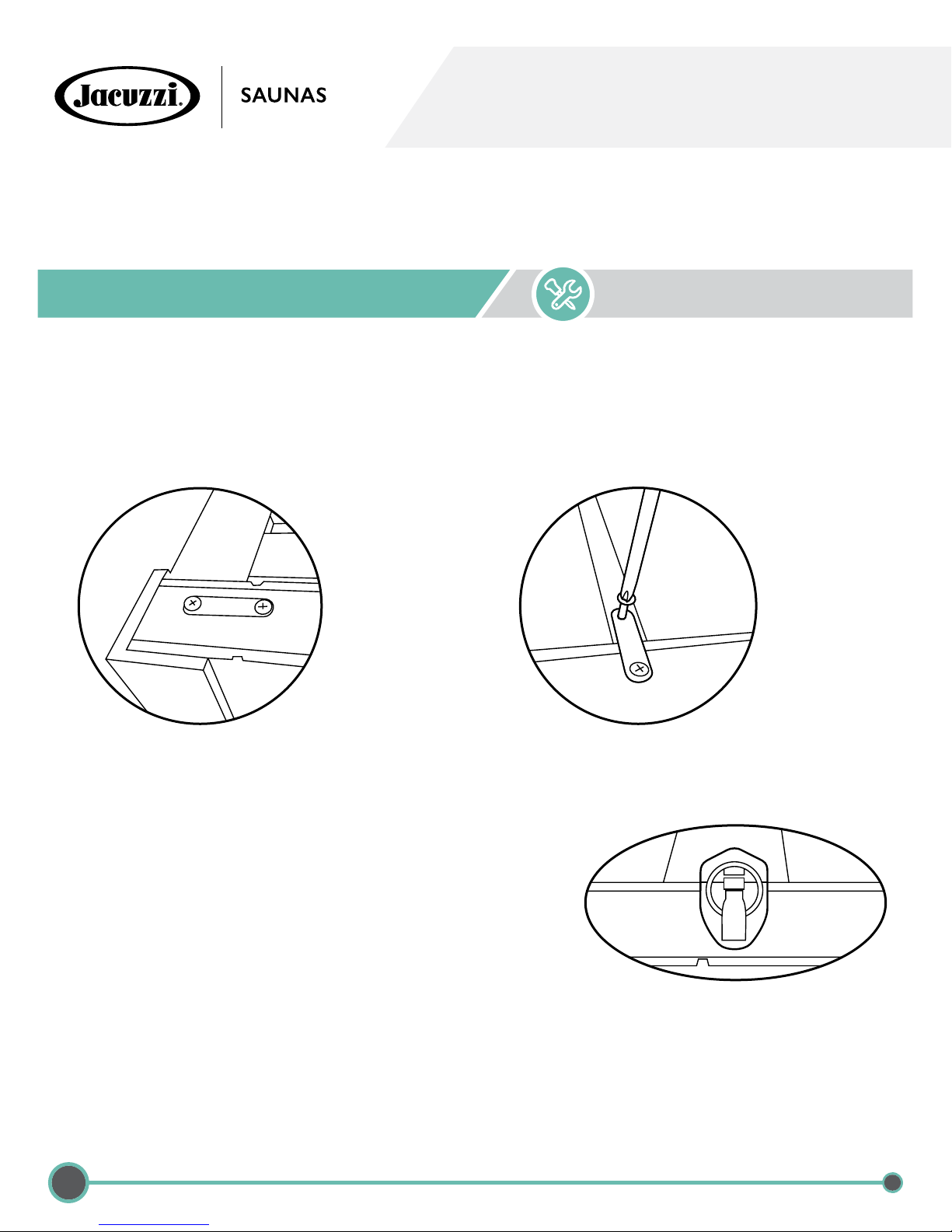

1. The side walls must be secured to the back wall and wood roof piece using the attached eye hooks.
2. Screw in one of the eye hooks between the left side wall and backwall and one between the right side wall and
backwall.
3. Secure one of the eye hooks between the left side wall and top front of the wood roof piece and one between
the right side wall and the top front of the wood roof piece.
9 - INSTALLING WALL LOCKS THIS STEP IS VERY IMPORTANT.
PLEASE DO NOT OMIT THIS STEP.
Attach eye hook so
that it is screwed
into both the side
walls and back walls.
Attach the eye hook
so that it is screwed
into side walls and
the wood roof piece.
4. Latch the three buckles that connect the
wood roof piece to the back and side walls.

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
13
Assembly Instructions Cont’d
10 - INSTALLING GLASS PORTION OF ROOF AND RIGHT FRONT WALL
1. Locate the glass roof piece as in
the photo below.
2. Locate the 4 sets of roof locking
brackets with washers and
screws.
3. Attach the brackets to the roof piece as shown
below using the enclosed Allen Wrench.
4. Place the long edge of the glass roof piece
into the groove in the wood roof piece.
Center this piece in the wood roof piece.
HOLD THIS PIECE IN PLACE UNTIL
THE RIGHT SIDE FRONT WALL AND
DOOR ARE INSTALLED

14
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d
1. Locate the right front wall with right
door.
2. Place the right front wall into the groove
in the floor and align it under the glass
roof piece. Until this piece is secured
using the enlcosed brackets, someone
should hold the wall and roof in place.
3. Secure the left front glass window to the
roof glass using the included brackets.
You will see pre-drilled holes in both the
front glass and roof glass.
4. Repeat this process for the left front
wall and door.
10 - INSTALLING GLASS PORTION OF ROOF AND RIGHT FRONT WALL

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
15
Assembly Instructions Cont’d
1. Locate the “trap” doors that open in the wood roof.
2. Connect the black and white cables that that
come out of the side wall to the connector
located in the wood roof.
3. Connect the green ground wire that come out of
the side wall to the green ground wire that is in
the wood roof.
Push the wiring inside the roof area and close the
roof door compartments.
4. In the left side wall compartment, there will be
two connectors: 1) Heater connector. 2) Keypad
connector. The heater connector is a two wire
connector. The keypad connector is a seven wire
connector.
1. Locate the two door handles.
2. Attach the right side door handle using the enclosed screws.
3. Attach the left side door handle using the enclosed screws.
11 - CONNECT HEATERS IN ROOF
12 - INSTALLING DOOR HANDLE
BE SURE TO MATCH THE COLORS IN THE CONNECTORS.
THE BLACK WIRE SHOULD MATCH UP WITH THE BLACK WIRE, ETC.
Note: If you are using a tablet or smartphone to control your sauna, the door handle will act as both
the door handle and tablet/smartphone holder when the door is closed.

16
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d
1. Locate the two front heaters.
2. Align the left front heater and plug the connector that comes out of the bottom of the heater into the plug
coming out of the in the floor.
3. Align the the hole in the back of the heater with the hole in the front wall glass Using the enlcosed screws and
washers, secure the heater to the glass through the pre-drilled hole. One washer will be placed on the inside
and one on the outside glass. The heater will be secured with these screws in two locations.
4. Repeat this step for the right front heater.
13 - INSTALLING FRONT HEATERS
Front
Heater
Installed

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
17
Assembly Instructions Cont’d
5. Once both heaters are installed carefully push the included Full Spectrum Heater guards securely over each
of the front heaters. The full spectrum heaters are hot to the touch when running and this will prevent burning
should you get close to the heater.
14 - LOCATING AND PLUGGING IN POWER CORD
The power cord comes out of the roof of the sauna. If you are standing facing the sauna, it comes out of the rear
left corner of the roof. Open the trap door to access the power cord and run the cord down the back of the sauna.
The power cord will plug into the appropriate electrical receptacle.
Note: We do not recommend using an extension cord for your sauna.
Please plug the sauna directly into the wall receptacle.
Warning Notice: The infrared heaters in your sauna are
a potential BURN HAZARD. Do NOT touch the infrared
heaters when they are in operation and allow to cool before
servicing.
13 - INSTALLING FRONT HEATERS

18
CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
Assembly Instructions Cont’d
Installation of your sauna is now complete. Using a damp cloth, wipe out the sauna to remove any excess
saw dust that may have settled on the wall & floor panels and the heater panels during manufacturing and
shipment.
Please refer to usage instructions located later on in this manual.
15 - INSTALLATION IS COMPLETE

CALL NOW 800.798.1779
SANCTUARY 1
www.infraredsauna.com
19
SANCTUARY 202
Packaging - - - - - - - - - - - - - - - - - - - - - - - 20
Assembly Instructions - - - - - - - - - - - - - - - - - 21

20
CALL NOW 800.798.1779
www.infraredsauna.com
SANCTUARY 2
Packaging
.
Box 1 of 4 Box 2 of 4 Box 3 of 4 Box 4 of 4
1. Floor Panel 1. Left Side Wall 1. Front Wall Glass 1. Front Heaters
2. Ceiling Panel 2. Right Side Wall 2. Back Wall
3 . A c c e s s o r i e s 3. Bench & Bench Support
4. Installation Manual
CONTENTS OF BOXES
ACCESSORY BOX CONTENTS
Door Handle
Wall Security
Bracket (4 pieces)
Glass Security
Brackets (2 sets)
Wood piece
(2 pieces)
Full Spectrum
Heater Guard (2 pieces)
Front Heater
Mouting Screws
(4 sets)
