Jarvis Buster IX User manual

JARVIS
TABLE OF
CONTENTS Page............................
Buster IX Band Saw
480V, 60Hz 4006196............
415V, 50Hz 4006204............
380--400V, 50Hz 4006195.......
380V, 60Hz 4006197............
240V, 60Hz 4006209............
230V, 50Hz 4006210............
208V, 60Hz 4006220............
42V, 50Hz 4006194.............
Spring Balancer 4042023.............
Air Balancer
48 in (1219 mm) body 4042016.....
120 in (3048 mm) body 4042020....
Blades:
Standard 1023159.................
Cut Tooth 1023338................
Jet 1023620......................
Cut Tooth Jet 1023623.............
Model Buster IX
Carcass Splitting Band Saw
EQUIPMENT
SELECTION Ordering No............
•Notice to Employer and Safety
Director 2...........................
•Notice to Operators, Maintenance
and Cleanup Personnel 3..............
•Parts Diagram and List 4..............
•Part Number Table 12.................

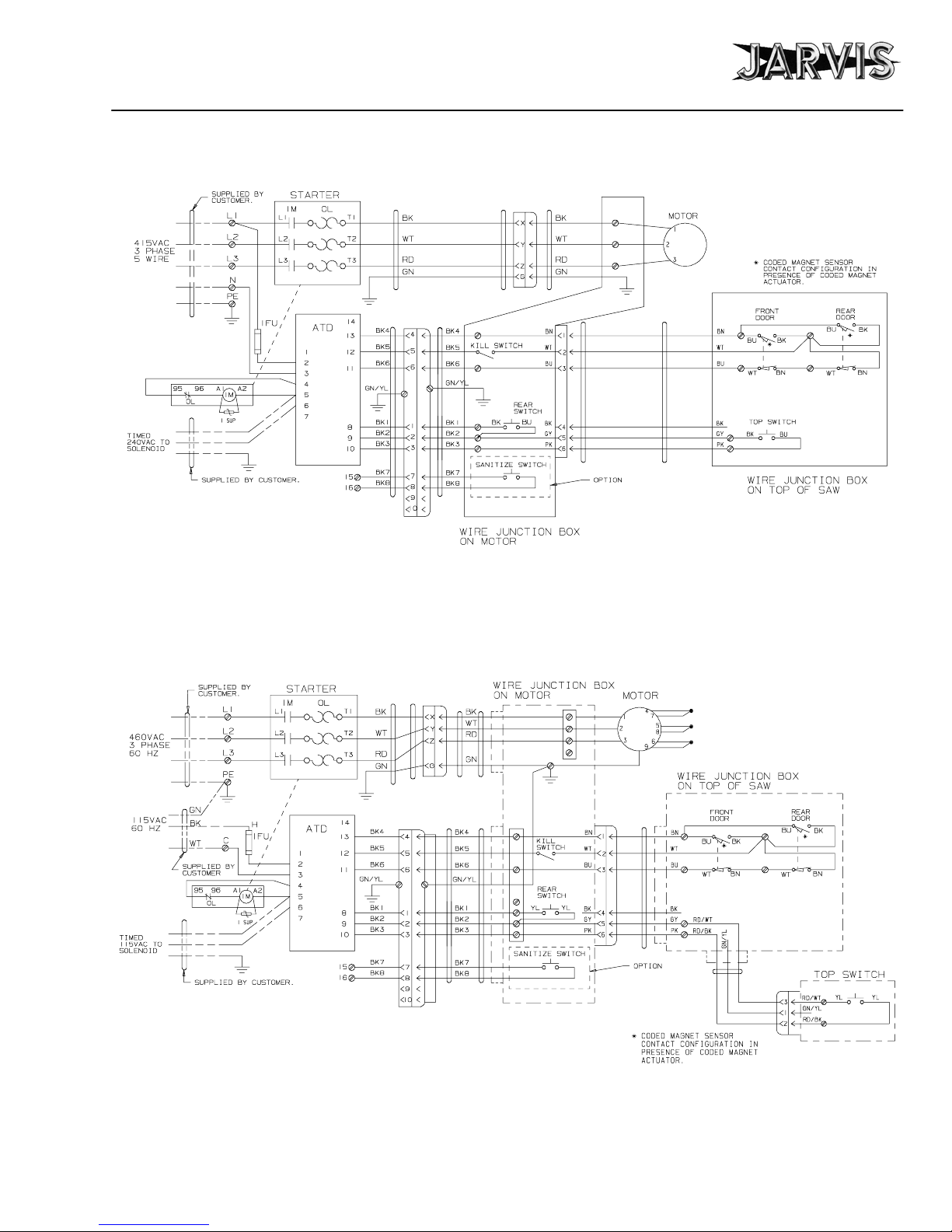

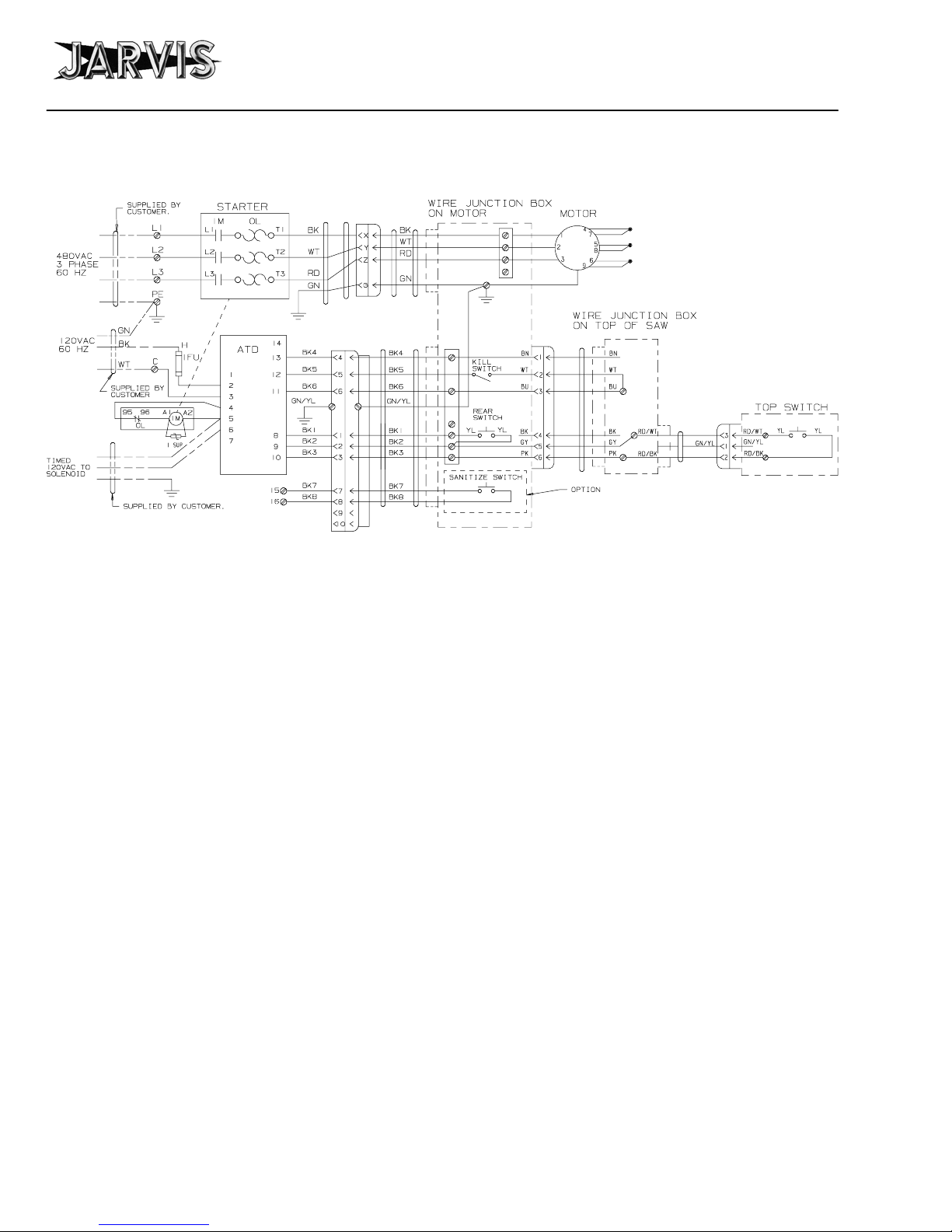

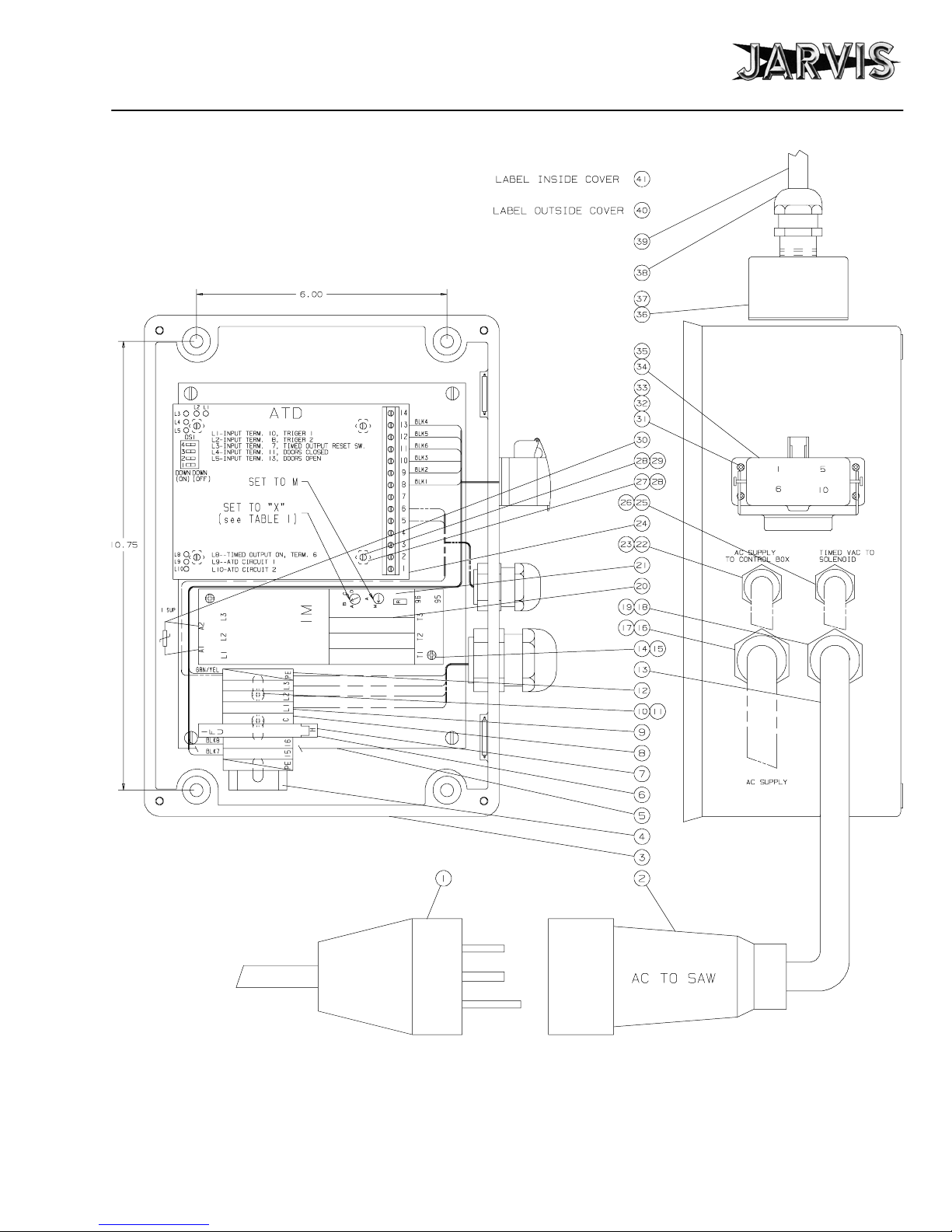

•Wiring Diagrams 13..................
•Specifications 17.....................
•Installation Instructions 17.............
•Operating Instructions 17..............
•Maintenance Instructions 18...........
®
6206026
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com

Model Buster IX page 2 of 20
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
®
6206026
noticetoemployer
and safety director
1 Remove and repair any tool that malfunctions. All personnel must be instructed to remove any
malfunctioning equipment.
2 Ensure that all employees who use this tool are trained in the proper use of this tool and are aware of
the dangers that may arise if they do not follow the procedure outlined in this brochure.
3Enclosedare four (4) copies of “NOTICE TO OPERATORS, MAINTENANCE AND CLEANUP
PERSONNEL.” Post one copy on the employees’ bulletin board; give one copy to the operator(s);
give one copy to the maintenance foreman; and give one copy to the sub-contract cleanup / internal
cleanup foreman. Additional copies will be provided upon request.
4The tool is designed and intended to be powerful. This fact should be obvious to your employees, but
you must emphasize it to them.
5 Never make modifications or alterations to the tool. Replace any missing or illegible labels.
6 Ensure that proper procedures are established in accordance with OSHA’s lockout/tagout procedures
(29 CFR 1910.147) to prevent accidental startup or release of stored energy.
7 Follow our installation and maintenance instructions for proper installation and care of the tool.
8 Avoid injury. Do not permit the tool to be misused.
9Ifyou resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safety
sheets and tool brochure. Additional copies of safety sheets and tool brochures will be provided upon
request.
NOTICE TO EMPLOYER AND SAFETY DIRECTOR
AVOID INJURY
Keep hands clear.

Model Buster IX
page 3 of 20
JARVIS®
6206026
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
notice to operators, maintenance
and cleanup personnel
1. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR
1910.147) before making any blade changes.
2. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR
1910.147) before performing any repairs or maintenance.
3. Disconnect the power supply -- or have the power supply disconnected -- in accordance with OSHA’s
lockout/tagout procedures (29 CFR 1910.147) before performing any cleanup.
4. Disconnect the power supply when the tool is not in use.
5. Never put fingers, hands or other parts of the body on the cutting edge or within the cutting path of the
tool when it is connected to the power supply.
6. Test the tool prior to use or daily. Depress each trigger separately and the tool should not start. Depress
one trigger, then pause one second and depress the other trigger and the tool should notstart. Repeat
this procedure reversing the triggers. Depress both triggers simultaneously and the tool should start.
With the tool running, release one trigger and the tool should stop. Continue holding the depressed
trigger and then depress the other trigger. The tool should not start. Repeat this procedure holding
the other trigger. If the tool malfunctions, remove it from service and report or repair it immediately.
7. Test the door interlocks prior to use or daily. Open both the idler and drive end doors individually be-
fore depressing both triggers simultaneously. The tool should not start with either or both doors open.
If the tool malfunctions, remove it from service and report or repair it immediately.
8. Never depress the triggers unless you want to use or test the tool.
9. Never make modifications or alterations to the tool. Report or replace any missing or illegible labels.
10. Never remove any safety devices on the tool.
NOTICE TO OPERATORS, MAINTENANCE AND CLEANUP PERSONNEL
REMOVE ANY MALFUNCTIONING TOOL FROM SERVICE
REPORT ANY PROBLEMS TO YOUR SUPERVISOR
Keep hands clear.

Model Buster IX page 4 of 20
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
®
6206026

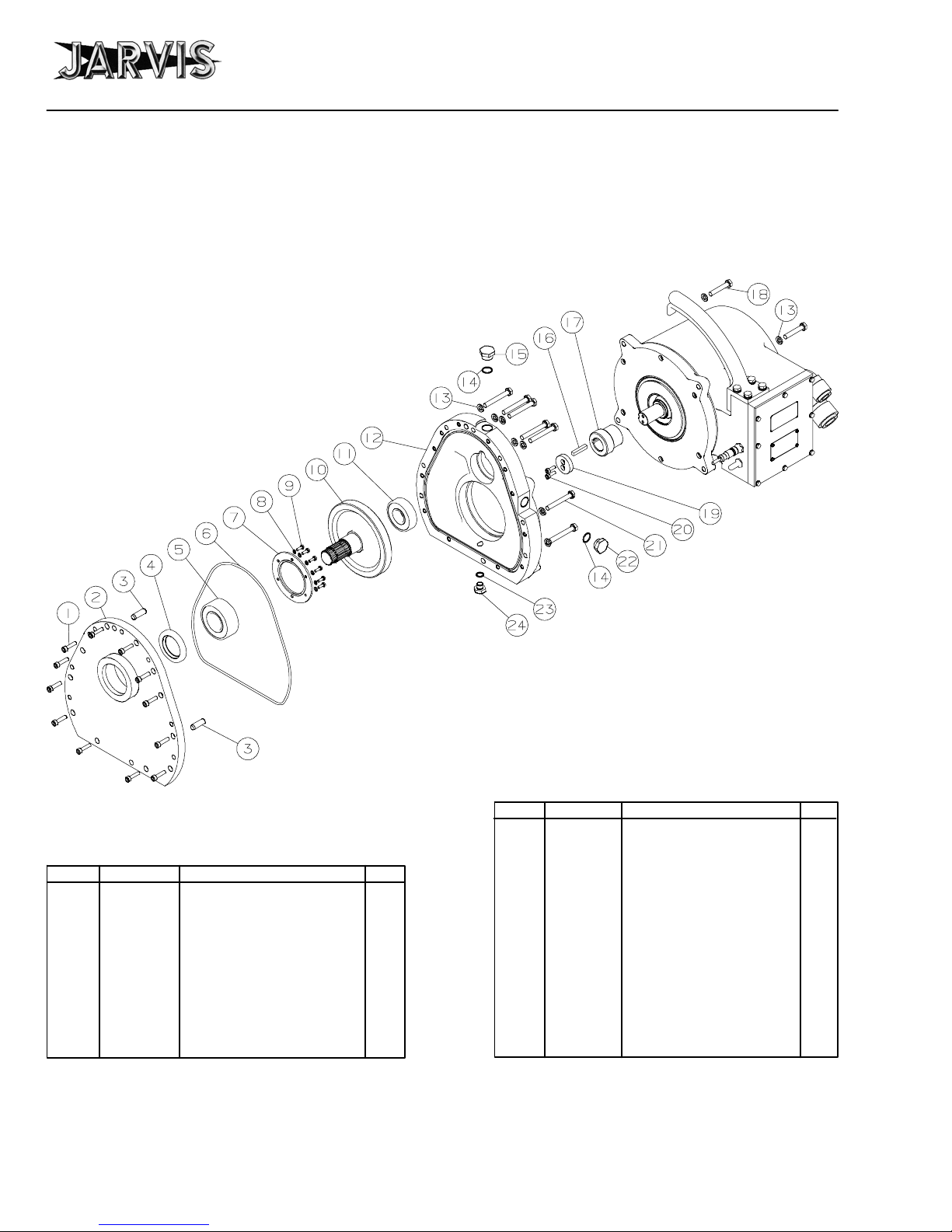

parts diagram and list
Figure A
Idler End
1 1055916 Flat Head Screw 7
2 1006052 Door Locking Knob 1
3 1014154 Wave Spring 1
4 1002544 Idler End Door 1
1002622 Idler End Door (no interlock)
5 1036352 Bushing 1
6 1061852 Coded Magnet 1
7 1055777 Cheese Head Screw 2
8 1013238 External Retaining Ring 1
9 1053011 Door Latch Pawl 1
10 1055915 Cheese Head Screw 1
11 1068018 Door Latch Socket 1
12 1051193 Spray Nozzle 3
13 1004399 Washer 2
14 1016685 Idler End Housing 1
ITEM PART NO. PART NAME QTY
15 1004154 Washer 5
16 1055056 Hex Head Screw 5
17 1055752 Hex Head Screw 4
18 1004231 Split Lock Washer 4
19 1010411 Dowel Pin 1
20 1073126 Socket Head Cap Screw 1
21 1035580 Manifold Gasket 1
22 1058061 Blade Guide 1
23 1055931 Cheese Head Screw 3
24 1010503 Roll Pin 2
25 1032766 Hinge Plate 1
26 1055088 Flat Head Slotted Screw 5
27 1055784 Flat Head Philip Screw 4
28 1032710 Wear Plate 1
29 1050612 Nozzle Fitting 1
30 1071112 Idler End Manifold 1
31 1032709 Wear Plate 1
32 1032683 Hinge Plate 1
33 1067030 Idler End Hinge 1
34 1010534 Roll Pin 2
ITEM PART NO. PART NAME QTY

Model Buster IX
page 5 of 20
JARVIS®
6206026
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
parts diagram and list
Figure B
Drive End
1 1055872 Hex Head Screw 4
2 1004467 Spring Washer 4
3 1002545 Junction Box Cover 1
4 1055613 Hex Head Screw 9
5 1004231 Split Lock Washer 15
6 1011427 Strain Relief Connector 2
7 1055945 Hex Head Screw 7
8 1072069 Conduit Assy 1
9 1055056 Hex Head Screw 5
10 1004154 Washer 5
11 1063876 Terminal Block 1
12 1016684 Drive End Housing 1
13 1055752 Hex Head Screw 4
14 1017416 Danger Label 1
15 1055616 Cheese Head Screw 4
16 1004399 Washer 2
17 1055916 Flat Head Slotted Screw 7
18 1035265 O--ring 1
19 1035728 Rear Manifold Gasket 1
20 1010411 Dowel Pin 1
21 1073126 Socket Head Cap Screw 1
22 1051193 Spray Nozzle 5
23 1071113 Drive End Manifold 1
24 1002543 Drive End Door 1
1002621 Drive End Door (no interlock)
25 1055777 Cheese Head Screw 2
26 1061852 Coded Magnet 1
27 1036353 Bushing 1
ITEM PART NO. PART NAME QTY
28 1014154 Wave Spring 1
29 1006052 Door Locking Knob 1
30 1013238 External Retaining Ring 1
31 1053011 Door Latch Pawl 1
32 1068018 Door Latch Socket 1
33 1010534 Roll Pin 4
34 1055784 Flat Head Philip Screw 4
35 1032712 Wear Plate 1
36 1050612 Nozzle 1
37 1032711 Wear Plate 1
38 1061580 Adjustable Nozzle 1
39 1055910 Pan Head Slotted Screw 1
40 1067030 Drive End Hinge 1
41 1032683 Hinge Plate 1
42 1055931 Cheese Head Screw 3
43 1058061 Blade Guide 1
44 1050674 Plug 2
45 1036302 Threaded Bushing 3
46 1032608 Hanger Bracket Mtg Plate 1
47 1055020 Socket Head Cap Screw 8
48 1055744 Socket Head Cap Screw 2
49 1035041 O--ring 1
50 1035579 Exterior Manifold Gasket 1
51 1061842 External Manifold 1
52 1004262 Washer 5
53 1016686 Junction Box 1
54 1050489 Close Pipe Nipple 2
55 1022212 Ball Valve 2
56 1035482 O--ring 1
57 1050484 Hose Fitting 2
58 1012121 Clamp 1
59 1055193 Pan Head Screw 1
ITEM PART NO. PART NAME QTY
Hot Cold
Drain
Coupling

Model Buster IX page 6 of 20
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
®
6206026

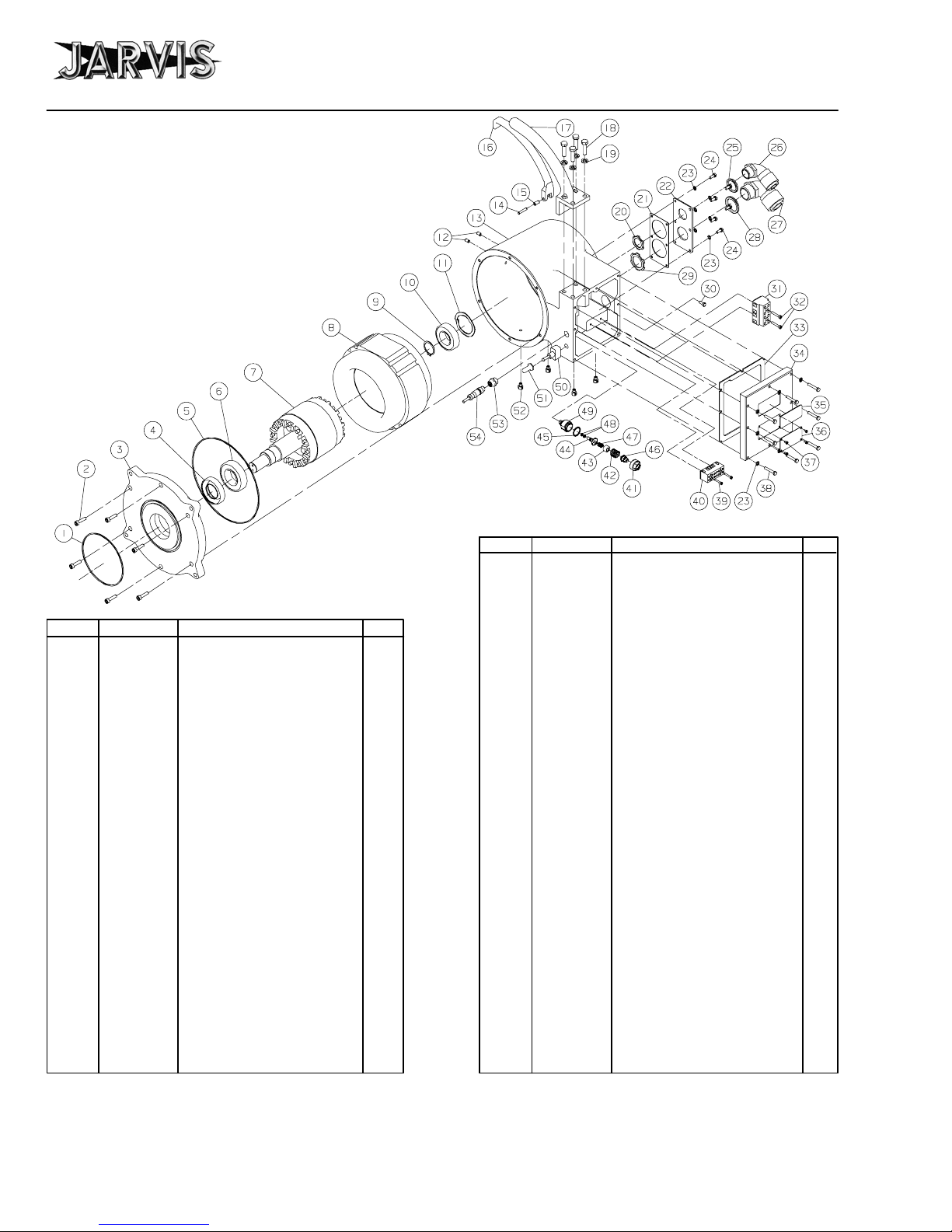

parts diagram and list
Figure C
Motor and Handle
Assembly
1 1035615 O--ring 1
2 1055095 Socket Head Cap Screw 6
3 1002438 Motor Front Cover 1
4 1035216 Seal 1
5 1035456 O--ring 1
6 1021240 Ball Bearing 1
7 1064066 Rotor and Shaft Assembly 1
8 1063576 Stator, 480/240V, 60Hz 1
1063780 Stator, 415V, 50Hz
1063773 Stator, 400--380/230V, 50Hz
1063778 Stator, 380V, 60Hz
1063779 Stator, 208V, 60Hz
1063712 Stator, 42 V, 50 Hz
9 1013211 External Ring 1
10 1021302 Ball Bearing 1
11 1014141 Wave Spring 1
12 1055938 Set Socket Screw, Cup Pt. 2
13 1016649 Motor Housing 1
14 1010145 Dowel Pin 1
15 1036132 Cylindrical Bushing 1
16 1018085 Trigger Lever 1
17 1019210 Rear Handle 1
18 1055753 Hex Head Screw 4
19 1004232 Split Lock Washer 4
20 1007268 Locking Nut 1
21 1035701 Connector Plate Gasket 1
22 1032743 Connector Plate 1
23 1004467 Spring Washer 14
24 1055755 Hex Head Screw 6
25 1004445 Sealing Washer 1
26 1011182 Strain Relief Connector 1
ITEM PART NO. PART NAME QTY
27 1011376 Strain Relief Connector 1
28 1004463 Sealing Washer 1
29 1007280 Locking Nut 1
30 1055758 Cheese Head Screw 1
31 1063954 Terminal Block 1
32 1055996 Socket Head Cap Screw 2
33 1035584 Junction Box Gasket 1
34 1002437 Junction Box Cover 1
35 1017085 Electric Danger Label 1
36 1017188 Name and Info Label 1
37 1055616 Cheese Head Screw 4
38 1055055 Hex Head Screw 8
39 1055744 Socket Head Cap Screw 2
40 1063876 Terminal Box 1
41 1016632 Switch Housing 1
42 1014185 Compression Spring 1
43 1039074 Secondary Plunger 1
44 1039073 Switch Plunger 1
45 1035165 O--ring 1
46 1005163 Push Button Switch 1
47 1014186 Compression Spring 1
48 1035645 O--ring 2
49 1016633 Plunger Housing 1
50 1005112 Toggle Switch 1
51 1063148 Switch Boot 1
52 1051151 Threaded Fitting 4
53 1063909 Electrical Connector 1
54 1063910 Wire with Molded Plug 1
Motor Assembly (items 2--13,
30--32, 39, 40 and 52)
3008503 480/240V, 60Hz
3008507 415V, 50Hz
3008500 400--380V, 50Hz
3008501 380V, 60Hz
3008497 208V, 60Hz
3008502 42V, 50Hz
ITEM PART NO. PART NAME QTY

Model Buster IX
page 7 of 20
JARVIS®
6206026
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com

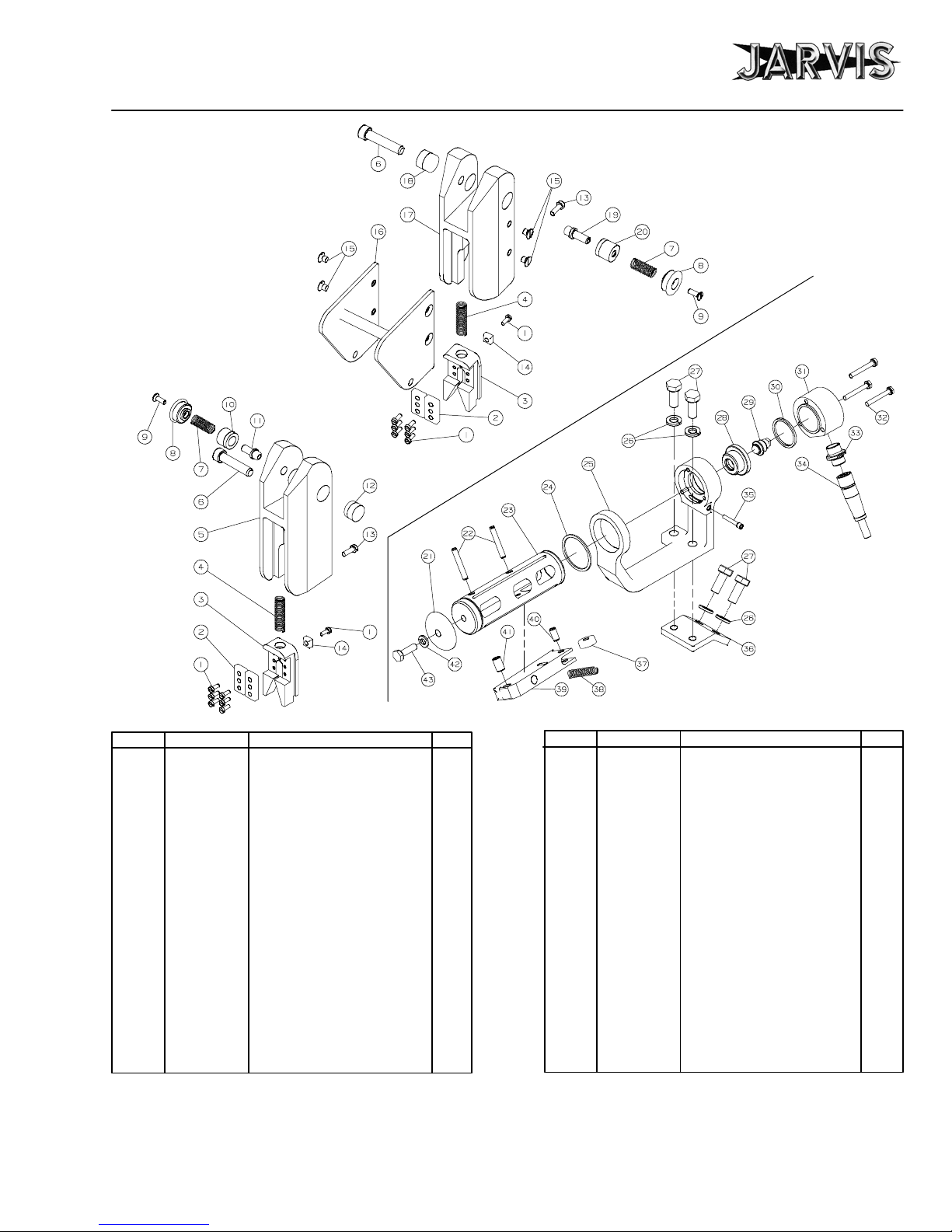

parts diagram and list
Figure D
Blade Guide
Assemblies
1 1055931 Cheese Head Screw 14
2 1058061 Blade Guide 4
3 1032548 Blade Guide Plate 2
4 1014083 Compression Spring 2
5 1058202 Idler End Blade Guide 1
6 1010473 Drive Guide Pivot Pin 2
7 1014059 Compression Spring 2
8 1006063 Guide Lock Knob 2
9 1055828 Oval Head Slot Screw 2
10 1036270 Lock Pin Bushing 1
11 1010474 Idler Guide Lock Pin 1
12 1061844 Idler Guide End Plug 1
13 1055364 Cheese Head Screw 2
14 1058078 Backup Blade Guide 1
15 1055917 Flat Head Slotted Screw 4
16 1024281 Blade Guard 1
17 1058171 Drive End Blade Guide 1
18 1061202 Guide Plug 1
19 1010475 Drive Guide Lock Pin 1
20 1036283 Lock Pin Bushing 1
21 1004182 Washer 1
22 1010502 Dowel Pin 2
23 1019257 Handle 1
ITEM PART NO. PART NAME QTY
24 1013181 External Retaining Ring 1
25 1042577 Handle Bracket 1
26 1004232 Split Lock Washer 4
27 1055802 Hex Head Screw 4
28 1016608 Switch Housing 1
29 1005163 Push Button Switch 1
30 1035282 O--ring 1
31 1002548 Handle End Cover 1
32 1055927 Hex Head Screw 3
33 1063220 Electrical Connector 1
34 1001049 Wire with Molded Plug 1
35 1010404 Threaded Pin 1
36 1042591 Handle Bracket 1
37 1061953 Trigger Roller 1
38 1014097 Compression Spring 1
39 1018161 Trigger Lever with item 41 1
40 1010402 Dowel Pin 1
41 1021314 Cylindrical Bearing 1
42 1004231 Split Lock Washer 1
43 1055613 Hex Head Screw 1
3058100 (items 1--14)
3058092 (items 1--4, 6--9, 13--20)
3019307 (Items 21--43)
ITEM PART NO. PART NAME QTY
3058100
Idler End
3058092
Drive End
Figure E
Upper Trigger Handle Assy
3019307

Model Buster IX page 8 of 20
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
®
6206026
parts diagram and list
1 1042592 Hanger Bracket. 1
2 1061855 Cylindrical Insert 3
3 1055087 Socket Set Screw, Cup Pt. 2
4 1028130 Hanger Link 1
5 1028040 Clevis Assembly 1
6 1016583 Hanger Housing 1
7 1021383 Flanged Bushing 1
8 1055096 Socket Head Cap Screw 1
9 1050243 Plug and Handle 1
10 1055928 Hex Head Screw 2
11 1055097 Wing Screw 1
12 1036271 Hanger Bracket Bushing 2
13 1071111 Rail 1
1071349 Rail (no interlocks)
14 1010542 Locator Pin 2
15 1005146 Coded Magnet Switch 2
16 1073030 Cheese Head Screw 4
17 1073031 Flat Head Screw 8
18 1002541 Wire Cover 2
ITEM PART NO. PART NAME QTY

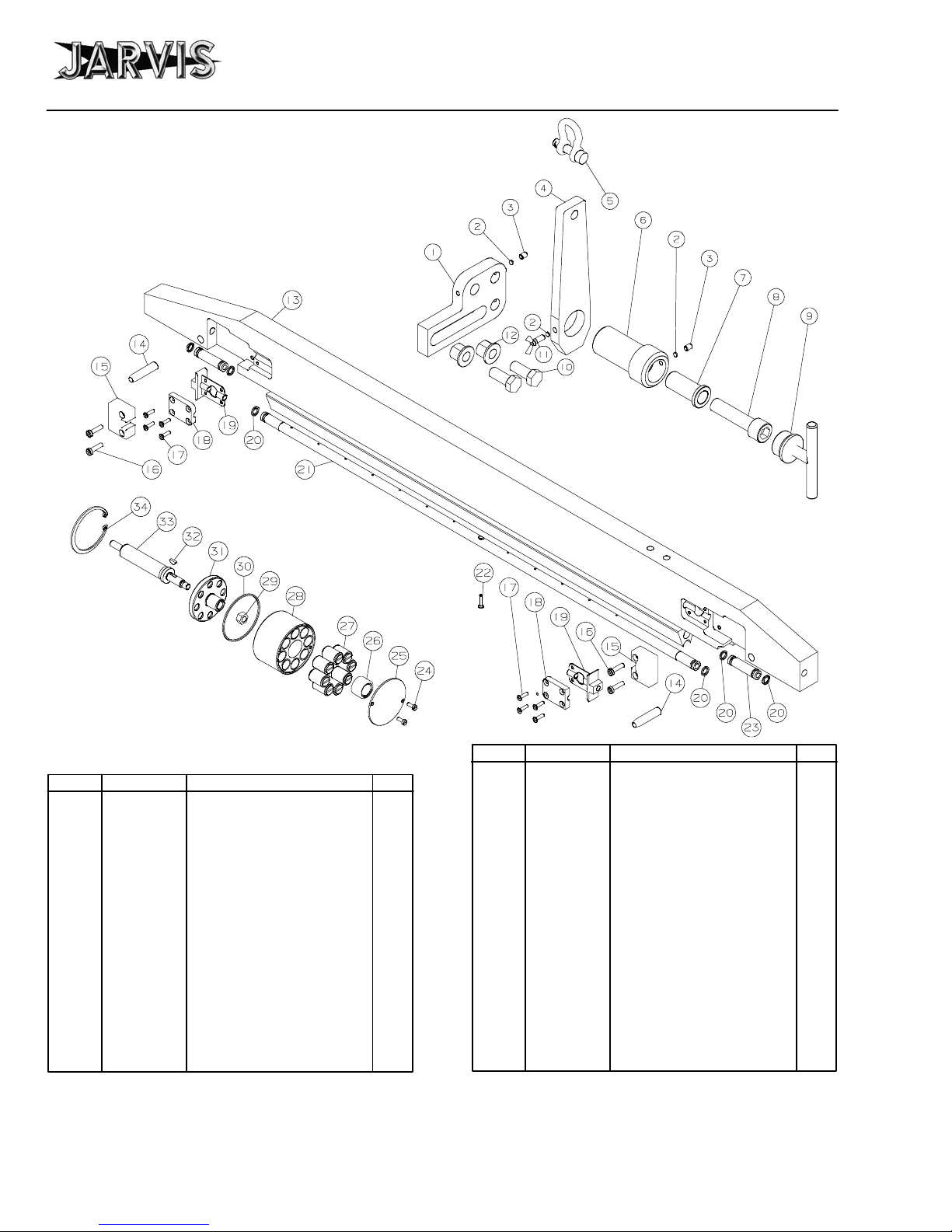

Figure F
Hanger Assembly
3080101
Figure G
Rail Assembly
3080081
*
19 1035679 Wire Gasket 2
20 1035128 O--ring 6
21 1071131 Spray Tube, Export 1
1071214 Spray Tube, Domestic
22 1055173 Oval Head Slotted Screw 1
23 1071158 Tube 2
24 1055931 Cheese Head Screw 2
25 1002239 Torque Knob Cover 1
26 1021106 Roller Bearing 1
27 1039024* Ball Plunger 8
28 1006054 Torque Knob 1
29 1007274 Hex Nut 1
30 1035163 O--ring 1
31 1021259 Inner Bearing Race 1
32 1030067 Key 1
33 1020328 Torque Knob Shaft 1
34 1013244 Internal Retaining Ring 1
3080101 (Items 1--12
3080081 (items 13--20, 22 and 23)
3006010 (items 24--34)
ITEM PART NO. PART NAME QTY
Figure H
Torque Knob
Assembly
3006010
*Set torque knob to slip at 60--65 Ibf--in (6.8--7.3 N--m).
Nut adapter 8030056 and wrench 8039138 are available.
*

Model Buster IX
page 9 of 20
JARVIS®
6206026
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
Idler Wheel Assembly
3080087
1 1029187 Flanged Spacer 1
2 1057026 Drive End Wheel 1
3 1007173* Bearing Lock Nut 1
4 1038006 Grease Fitting 1
5 1007354 Idler Wheel Nut with item 4 1
6 1073082 Cheese Head Screw 1
7 1042450 Idler Wheel Bracket w/item 6 1
8 1035587 Seal 2
9 1021235 Roller Bearing Cone 2
10 1021234 Roller Bearing Cup 2
ITEM PART NO. PART NAME QTY
11 1013141 Internal Retaining Ring 1
12 1057023 Idler End Wheel 1
13 1055945 Hex Head Screw 4
14 1032551 Slide Plate 1
15 1071096 Cap Screw Cover 10
16 1055746 Socket Head Cap Screw 10
17 1061848 Slide Rail 2
18 1029376 Slide Rail Spacer 2
19 1020329 Idler Wheel Shaft 1
20 1055087 Socket Set Screw, Cup Pt 1
21 1036103 Torque Knob Bushing 1
22 1055929 Hex Head Screw 2
3080087 items 4--22
3080088 items 1--3
ITEM PART NO. PART NAME QTY
Figure I
Wheel Assemblies
*
*Tighten to 80 Ibf--ft (108.5 N--m); Wrench 8039120 is available
Drive Wheel Assembly
3080088
parts diagram and list

Model Buster IX page 10 of 20
JARVIS PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926
UNITED STATES OF AMERICA E--MAIL. [e-mail]
TEL. [phone] FAX. [phone] WWW.jarvisproducts.com
®
6206026
1 1055095 Socket Head Cap Screw 12
2 1002546 Gear Box Cover 1
3 1010495 Dowel Pin 2
4 1035207 Oil Seal 1
5 1021424 Ball Bearing 1
6 1035711 O--ring 1
7 1002547 Bearing Cover 1
8 1004452 Split Lock Washer 6
9 1055754 Hex Head Screw 6
10 1026274 Driven Gear, 50 Hz, 85 teeth 1
1026270 Driven Gear, 60 Hz, 89 teeth
ITEM PART NO. PART NAME QTY
11 1021399 Ball Bearing 1
12 1016687 Gear Box Housing 1
13 1004232 Split Lock Washer 11
14 1035308 O--ring 2
15 1054204 Fill Plug 1
16 1030096 Square Key 1
17 1026273 Drive Gear, 50 Hz, 31 teeth 1
1026269 Drive Gear, 60 Hz, 27 teeth
18 1055874 Hex Head Screw 4
19 1004451 Gear Retainer Washer 1
20 1055157 Socket Head Cap Screw 2
21 1055254 Hex Head Screw 7
22 1054147 Sight Glass Plug 1
23 1035132 O--ring 1
24 1054146 Oil Drain Plug 1
ITEM PART NO. PART NAME QTY
Figure J
Gearbox Assembly
parts diagram and list
