OLS-34/-35/-36
Optical Laser Sources
BN 2303/98.11
2010.10
English
BN 2303/01
BN 2303/02
BN 2303/03
BN 2303/04
BN 2303/11
BN 2303/12
BN 2303/13
BN 2303/15
BN 2303/21
BN 2303/22
BN 2303/23
BN 2303/25
Operating Manual

Please direct all enquiries to your local
JDSU sales company.
The addresses can be found at:
http://www.jdsu.com/test
The description of additional features of the
device can be found at:
http://www.jdsu.com/tm
Copyrights
This product or parts of this product are based on
the Recommendations and/or Standards issued by
the Standardization Sector of the International
Telecommunication Union - ITU-T and/or the
European Telecommunications Standards Institute
- ETSI. These Recommendations and Standards
are copyright to these organizations. ITU-T
Recommendations or ETSI Standards may not be
copied and/or made available to third parties in
whole or in part without the written agreement of
ITU-T and/or ETSI.
© Copyright 2010 JDSU Deutschland GmbH
All rights reserved.
JDSU and JDSU logo are trademarks of JDS
Uniphase Corporation. Other trademarks are the property
of their respective holders.
JDSU Deutschland GmbH
Mühleweg 5, 72800 Eningen u. A.
Note: Changes may be made to specifications,
descriptions and delivery information.
Printed in Germany
Order no.: BN 2303/98.11
Version: 2010.10
Previous Version: 2010.08

JDSU OLS-34/-35/-36 I
CONTENTS
1INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . 1
OLS-34/-35/-36 Optical Laser Sources . . . . . . . . . 1
Operating manual update . . . . . . . . . . . . . . . . . . . 3
Symbols used in this operating manual . . . . . . . . 4
2SAFETY INFORMATION. . . . . . . . . . . . . . . . . . 6
Warning symbols on the unit. . . . . . . . . . . . . . . . . 6
Proper usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Laser safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Battery operation. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3GETTING STARTED . . . . . . . . . . . . . . . . . . . . 9
Unpacking the device . . . . . . . . . . . . . . . . . . . . . . 9
Device overview OLS-34/35 . . . . . . . . . . . . . . . . 10
Device overview OLS-36. . . . . . . . . . . . . . . . . . . 12
Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4OPERATION . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching the device on/off . . . . . . . . . . . . . . . . . 17
Display elements. . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting a wavelength . . . . . . . . . . . . . . . . . . . . 20
Changing the port . . . . . . . . . . . . . . . . . . . . . . . . 20
Enabling signal modulation . . . . . . . . . . . . . . . . . 20
Auto-Lambda mode. . . . . . . . . . . . . . . . . . . . . . . 21
Multi-Lambda mode . . . . . . . . . . . . . . . . . . . . . . 21
5MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the test port . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the instrument . . . . . . . . . . . . . . . . . . . 23

CONTENT
II OLS-34/-35/-36 JDSU
6SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . 24
OLS-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
OLS-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
OLS-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General specifications . . . . . . . . . . . . . . . . . . . . . 27
7ORDERING INFORMATION . . . . . . . . . . . . . . 28
Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

JDSU OLS-34/-35/-36 1
1INTRODUCTION
OLS-34/-35/-36
Optical Laser Sources
The Test Sets are specially designed for high
performance testing of all systems, i.e. broadband,
PONs, and Gigabit Ethernet.
Battery operation from two AA batteries and the robust,
shock-proof design provide long operating time in the
field even under tough conditions. AC line operation via
a separate AC adapter and the USB interface ensure
ease of use in the laboratory or production environment.
Differences between the devices
The OLS-34/-35/-36 family covers all the modes,
wavelengths and fiber types needed. The table below
lists the differences between the devices:
OLS-34
Model
BN...
Fiber
type
Wave-
lengths
Connector
type
2303/01 MM 50/125 850/1300 nm Interchange.
adapter
BN 2150/00.xx
2303/02 MM 50/125 850/1300 nm FC/PC
2303/03 MM 50/125 850/1300 nm SC/PC
2303/04 MM 50/125 850/1300 nm ST

2 OLS-34/-35/-36 JDSU
1 INTRODUCTION
OLS-35
OLS-36
Test adapters
The OLS-34/-35/-36 is looped into the test configuration
using test adapters which are available for all common
connector systems (e.g. FC, ST).
Model
BN...
Fiber
type
Wave-
lengths
Connector
type
2303/11 SM 9/125 1310/1550 nm Interchange.
adapter
BN 2150/00.xx
2303/12 SM 9/125 1310/1550 nm FC/PC
2303/13 SM 9/125 1310/1550 nm SC/PC
2303/15 SM 9/125 1310/1550 nm LC/PC
Model
BN...
Fiber
type
Wave-
lengths
Connector
type
2303/21 MM 50/125
SM 9/125
850/1300 nm
1310/1550 nm
Interchange.
adapter
BN 2150/00.xx
2303/22 MM 50/125
SM 9/125
850/1300 nm
1310/1550 nm
FC/PC
2303/23 MM 50/125
SM 9/125
850/1300 nm
1310/1550 nm
SC/PC
2303/25 MM 50/125
SM 9/125
850/1300 nm
1310/1550 nm
LC/PC

JDSU OLS-34/-35/-36 3
1 INTRODUCTION
Operating manual update
If the operating instructions about features provided by
your device are missing, please visit the JDSU web site
to check if additional information is available.
To download the latest operating instructions:
1. Visit the JDSU web site at www.jdsu.com/test.
2. Select your model from the product line or use the
search function.
3. Open the download area and download the operating
instructions if available.

4 OLS-34/-35/-36 JDSU
1 INTRODUCTION
Symbols used in this
operating manual
The following symbols, warnings and character formats
are used in this operating manual:
CAUTION
Follow the instructions carefully to
avoid damage to the device.
WARNING
Follow the instructions carefully to
avoid damage to the device or injury
to the person.
DANGER
Follow the instructions carefully to
avoid damage to the device or severe
injury to the person.
High Voltage
Follow the instructions carefully to
avoid damage to the device or severe
injury to the person.
This safety instruction is given if the
danger is due to high voltage.
Laser
Follow the instructions carefully to
avoid damage to the device or severe
injury to the person.
This safety instruction is given if the
danger is due to laser radiation.
Information specifying the laser class
is also given.
!Very important instruction
Follow this instruction carefully; e.g.
!Make sure you protect yourself and
others from exposure to laser light.

JDSU OLS-34/-35/-36 5
1 INTRODUCTION
✔Requirement
This requirement must be met first;
e.g.
✔The system is switched on
⇒
1.
2.
Instruction
Follow the instructions given (the
numbers indicate the order in which
the instructions should be followed);
e.g.
⇒Select mode.
Italics Result
Indicates the result of following an
instruction; e.g.
The page opens.
Bold type
face Pages, controls, and display
elements
Screen pages, controls, and display
elements are indicated in bold type.
[Store] Instrument keys
Instrument keys are indicated within
square brackets.

6 OLS-34/-35/-36 JDSU
2SAFETY
INFORMATION
Warning symbols on the unit
Proper usage
This instrument is intended for measurements on optical
fiber devices and systems.
⇒Please make sure the device is not operated outside
the permitted ambient conditions.
⇒Always make sure that the device is in proper working
order before switching it on.
Warning symbols indicating a
potential hazard
!In all cases where the unit is labeled with
a warning symbol, the operating manual
must be consulted to learn more about
the nature of the potential hazard and
any action that must be taken.

JDSU OLS-34/-35/-36 7
2 SAFETY INFORMATION
Laser safety
WARNING
Dangerous laser radiation
Laser radiation can cause irreparable
damage to the eye and skin.
This device is a Class 1 Laser product according to
IEC 60825-1:1993 + A1:1997 + A2:2001 and
IEC 60825-1:2007.
Observe the following instructions when working with this
device and laser systems in general:
!Connect all optical fibers before switching on the
radiation source.
!Switch off the radiation source before disconnecting
the optical fibers.
!Never look directly into the output of a laser source or
into an optical fiber connected to it.
!Always cover unused ports.
!Observe the normal precautions for working with laser
radiation and follow any local regulations.

8 OLS-34/-35/-36 JDSU
2 SAFETY INFORMATION
Battery operation
Ventilation
WARNING
Explosion danger
Short-circuiting the batteries can result
in overheating, explosion or ignition of
the batteries and their surroundings.
!Never short-circuit the battery contacts by touching
both contacts simultaneously with an electrical
conducting object.
!Only use AA size dry batteries or rechargeable
batteries.
!Make sure the batteries are inserted with the correct
polarity.
WARNING
Explosion danger
Dry batteries must not be recharged.
!The OLS-34/-35/-36 doesn’t have a recharge function
for rechargeable batteries, so there is no danger when
using dry batteries.
!Read the manual of the external charging device.
CAUTION
Insufficient ventilation
Insufficient ventilation can damage the
device or adversely affect its function
and safety.
!Ensure adequate ventilation when operating the
device.

JDSU OLS-34/-35/-36 9
3GETTING STARTED
Unpacking the device
Packing material
We suggest that you keep the original packing material.
It is designed for reuse (unless it is damaged during
shipping). Using the original packing material ensures
that the device is properly protected during shipping.
Checking the package contents
Your device is shipped with the following accessories:
• 2 dry batteries AA
• Operating manual
• Belt bag
Checking for shipping damage
After you unpack the device, check to see if it has been
damaged during shipping. This is particularly likely if the
packaging is visibly damaged. If there is damage, do not
attempt to operate the device. Doing so can cause
further damage. In case of damage, please contact your
local JDSU Sales Company. Addresses can be found at
www.jdsu.com.
Recovery following storage/shipping
Condensation can occur if a device that is stored or
shipped at a low temperature is brought into a warm
room. To prevent damage, wait until no more
condensation is visible on the surface of the device
before powering it up. Do not operate the device until it
has reached its specified temperature range and wait
until it has cooled down if the device was stored at a high
temperature (see “Ambient temperature” on page 27).

10 OLS-34/-35/-36 JDSU
3 GETTING STARTED

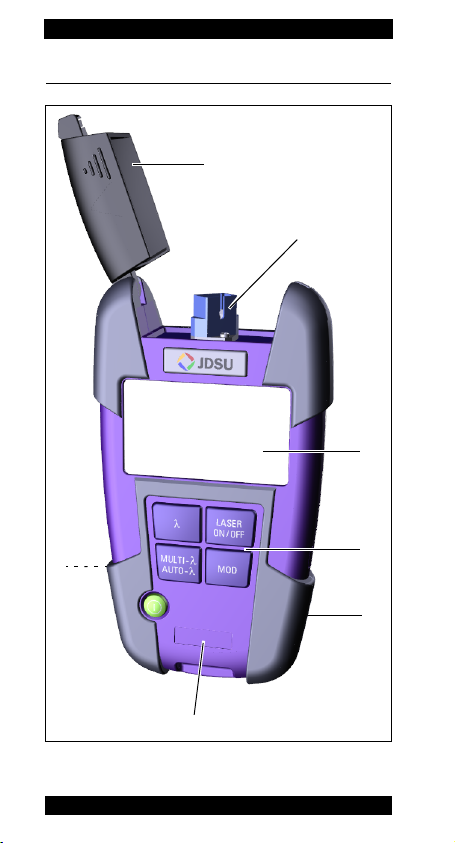

Device overview OLS-34/35
1
2
3
4
6
5
7

JDSU OLS-34/-35/-36 11
3 GETTING STARTED
Keys
1Test head cover
2Port
3Device label
4Display
5External power supply connector
USB interface for power supply only
6Battery compartment (on rear of the device)
7Key pad
First function: Press to switch the
device on and off (ECON).
Second function: Press and hold
the key for more than 2 seconds to
switch the device on (PERM).
Press to select a wavelength.
3 predefined wavelengths are
implemented.
Press to select wavelength coding:
• Auto-λ
•Multi-λ
• Single-λ
Press to switch the laser on and off.
Press to select modulation:
• CW (continuous wave)
• 270 HZ
• 1 kHz
• 2 kHz

12 OLS-34/-35/-36 JDSU
3 GETTING STARTED
Device overview OLS-36
1
2
3
4
65
7

JDSU OLS-34/-35/-36 13
3 GETTING STARTED
Keys
1Test head cover
2Ports A and B
3Device label
4Display
5External power supply connector
USB interface for power supply only
6Battery compartment (on rear of the device)
7Key pad
First function: Press to switch the
device on and off (ECON).
Second function: Press and hold
the key for more than 2 seconds to
switch the device on (PERM).
First function: Press to select a
wavelength.
Second function: Press and hold
the key for more than 2 seconds to
change the port.
Press to select wavelength coding:
• Auto-λ
•Multi-λ
• Single-λ
Press to switch the laser on and off.
Press to select modulation:
• CW (continuous wave)
• 270 HZ
• 1 kHz
• 2 kHz

14 OLS-34/-35/-36 JDSU
3 GETTING STARTED
Power supply
The following power sources can be used to operate the
OLS-34/-35/-36:
• two 1.5 V dry batteries
(Mignon AA size, alkaline type recommended)
• two 1.2 V NiMH rechargeable batteries
(Mignon AA size)
• via the AC adapter
Battery operation
Replacing batteries
The battery compartment is on the back of the
instrument.
1. Pull down the lid to open the battery compartment.
2. Fit new batteries or remove the used batteries and
replace them with fresh ones.
NOTICE: Take care to insert the batteries correctly. The
correct polarity is indicated by a diagram
inside the battery compartment.
3. Close the battery compartment.
4. Press [*]to switch on.
Note: The batteries can not be recharged with the
OLS-34/-35/-36.
CAUTION
Dangers when handling batteries
Handling batteries may be dangerous.
Please note the following safety
instructions.
!Please note the battery operation safety information in
the chapter “Battery operation” on page 8.
Replacing batteries
!Do not replace individual batteries. Always change all
two batteries at the same time.
!Always use two batteries of the same type; i.e. do not
mix rechargeable and non-rechargeable batteries.

JDSU OLS-34/-35/-36 15
3 GETTING STARTED
General tips on using batteries
• Always handle batteries with care.
• Do not drop or damage the batteries or expose them to
excessively high temperatures.
• Do not store the batteries for more than one or two days
at very high temperatures (e.g. in a vehicle), either
separately or fitted in the instrument.
• Do not leave discharged batteries in the instrument for
a long time if it is not being used.
• Do not store rechargeable batteries for more than 6
months without recharging them at intervals.
• Avoid deep discharging the batteries as this can cause
the cell polarity to reverse and make the battery
useless.
Protect the environment
Please dispose of any unwanted dry batteries and
rechargeable batteries carefully. They should also be
removed from the instrument if it is to be scrapped. If
facilities in your country exist for collecting such waste or
for recycling, please make use of these rather than
throwing the batteries in the normal trash. You will often
be able to return used batteries to the place where you
purchase new ones. Any dry or rechargeable batteries
that you purchased from JDSU can be returned to one of
our Service Centers for disposal.
