TICKET MINE SERVICE MANUAL

Warranty Information
Parts List
10
Electrical Requirements
25
Locating The I/O Board
8
UL 22 Safety Standards & Certificate
5
34
TABLE OF CONTENTS
Section
7
Testing The Sonic Sensor
11
Cabinet Dimensions
N/A
Warnings, Cautions, & Notices
FCC Compliance
Removing The Handle Motor
SEG Display Jumper Settings
9
RoHS Compliance
23
N/A
Troubleshooting Guide
4
2
3
N/A
Table of Contents
N/A
Selecting The Proper Voltage
Turning The Power On
N/A
N/A
New Jersey Software Settings
Board Inputs
N/A
Page
Section
Page
N/A
Safety Notifications
Epilepsy Warning
N/A
Inspecting For Shipping Damage
Opening The Box
N/A
Inspecting Components
Removing The Box From Skid
Inspecting The Unit
Removing The Game From Skid
Installing The Lighted Marquee
Locating The Cash Box
NOTE: SOME PAGES MAY BE INTENTIONALLY LEFT
OUT OF THIS MANUAL. SOME VERSIONS OF THE
MANUAL DO NOT INCLUDE A PARTS LIST. CONTACT
JET FOR CURRENT PARTS LIST IF NOT INCLUDED.
Installation Instructions
N/A
N/A
N/A
N/A
N/A
N/A
N/A
26
28
30
N/A
22
Board Outputs
Checking The LED Lights
Inserting Tickets Into Dispenser
Dip Switch Settings
Game Settings & Program
Program Setup
Jennison Entertainment Technologies Ticket Mine Service Manual Page 2

Through out the use of this manual, certain areas require special attention for the
safety of the service personal. Please take note of the following notifications and
be certain to read the information contained within. Failure to follow the given
information could lead to personal injury or property damage. Follow all
instructions contained within this manual and do not make any modifications to
the game without first contacting Jennison Entertainment Technologies.
ATTENTION
Attention boxes are in BLUE. These messages are provided in
cases where service personal must follow directions provided
by J.E.T.
NOTICE
Notices are given in GREEN boxes. These messages are
provided for the operator's convenience.
CAUTION
Caution messages are marked in YELLOW boxes. Failure to
follow these caution messages could result in damaging the
unit.
SAFETY NOTIFICATIONS
WARNING
All warnings will be marked in ORANGE boxes. Failure to
follow these warnings could lead to damage to the unit and or
personal property.
DANGER
All danger messages are marked in RED boxes. Failure to
adhere to these messages could result in personal injury or
injury to others.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 3

A very small percentage of people may experience a seizure when exposed
to certain visual images, including flashing lights or patterns that may
appear in video games. Even people who have no history of seizures or
epilepsy may have an undiagnosed condition that can cause these
"photosensitive epileptic seizures" while watching video games.
These seizures may have a variety of symptoms, including
lightheadedness, altered vision, eye or face twitching, jerking or shaking of
arms or legs, disorientation, confusion, or momentary loss of awareness.
Seizures may also cause loss of consciousness or convulsions that can lead
to injury from falling down or striking nearby objects.
Immediately stop playing and consult a doctor if you experience any of
these symptoms. Parents should watch for or ask their children about the
above symptoms - children and teenagers are more likely than adults to
experience these seizures.
The risk of photosensitive epileptic seizures may be reduced by taking the
following precautions:
Play in a well-lit room
Do not play when you are drowsy or fatigued
EPILEPSY DANGER
EPILEPSY WARNING
If you or any of your relatives have a history of seizures or epilepsy,
consult a doctor before playing.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 4

DANGER
DO NOT remove the game from its shipping pallet or skid
without first reading the entire installation guide in this
manual!
TICKET MINE CAUTIONS & NOTICES
DANGER
DO NOT perform repairs or maintenance on the game with
the power ON. Always turn the power OFF and unplug the
unit from the wall before servicing.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 5

Make sure that the 115/230 VAC selector switch is properly
selected on all power supplies for the correct line voltage at
the installation site.
WARNING
This unit is suitable for INDOOR use only. The game should
not be placed in damp environments or in areas within close
proximity to the ocean.
CAUTION
Only qualified service personal should service TICKET MINE.
Contact J.E.T. first with any questions before replacing any
part.
WARNING
If the power cord is damaged - replace it with a new one. DO
NOT attempt to use a damaged or repaired power cord.
WARNING
Always plug the game into a grounded circuit and verify the
total voltage draw on the circuit does not exceed its capacity.
CAUTION
Use appropriate care when servicing the game and ensure
that all removed components are away from facility guests
and children.
WARNING
TICKET MINE CAUTIONS & NOTICES
Jennison Entertainment Technologies Ticket Mine Service Manual Page 6

FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a
Class “A” digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
Canadian Emissions Statement
(According to Industry Canada Notice ICES-003, Issue 4)
This Class “A” digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique da la classe “A” respecte toutes les
exigences du Réglement sur le matériel brouilleur du Canada.
The Federal Communications Commission requires that all amusement
machine devices used in commercial applications comply with guidelines
for the amount of interference the internal components produce. TICKET
MINE complies with this requirement and the following statement is
posted on all units.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 7

RoHS COMPLIANCE
The RoHS Directive stands for "the restriction of the use of certain hazardous substances in electrical and
electronic equipment". This Directive bans the placing on the European Union market, new electrical and
electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium,
polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
Jennison Entertainment Technologies has taken steps to comply with this directive while sourcing the parts
for all machines. If available to the industry, these certified components were used in the construction on
TICKET MINE.
As of January 2016, Jennison Entertainment Technologies has tested all components used in the
manufacturing of TICKET MINE. All components have been found to be within the standards set forth for
RoHS compliance by the European Union. Test reports are available and will be provided upon request.
To verify that your machine has RoHS Compliant parts, look for the following logo on the information sticker
on the back of all our units.
With our unique testing equipment, Jennison Entertainment Technologies can test components from ANY
SUPPLIER from ANY COUNTRY where we source our parts. The tools we utilize allow us to spot check
suppliers who have also self declared their components to be compliant ensuring you and your guests
safety.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 8

INITIAL PROGRAM INSTALLED AT FACTORY
20151120
INITIAL
GAME SETTINGS & PROGRAM
TICKET MINE has been designed to include a software program where all game settings are easily managed
through the use of a simple dip switch changes Although the software is very simple to navigate, we highly
recommend reading the following programming section to fully understand how to make changes to the
software and how each change will affect the machine. Should you have any questions about changing the
programming, or need to make a change outside the capability of the current software, please contact
Jennison Entertainment directly.
SOFTWARE UPDATE RECORD
REASON FOR CHANGE
SOFTWARE VERSION
DATE
The chart below should be used to record an changes in the software and the reasons for the change. This
will allow you to track which software version is installed or allow another technician to service the unit and
quickly identify what has been changed since delivery.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 23

12) Device must retain tickets or tokens owed upon power interruption
Under the rules and regulations governed by the State of New Jersey Legalized Games of Chance Control Commission, there
are certain requirements for amusement and redemption games. A certain version of software has been designed to allow
Ticket Mine to be operated within the State of New Jersey. This version of the software complies with the following
requirements:
The above requirements are published here for your information and obtained from Eclipse Compliance Testing in
conjunction with the New Jersey Legalized Games of Chance Control Commission. In order to operate Ticket Mine within the
State of New Jersey - you must operate a version of the software which complies with the above requirements. Call your
local distributor to order this software before operating the game. The version of software which complies with these
requirements can be found below.
1) Maximum allowable wager per player dose not exceed $10.00 per game. In Ticket Mine (20160110) the game will
not accept more than 4 coins on $1.00 Play or 8 coins on $2.00 Play.
2) Maximum allowable accumulation of inserted credits does not exceed $10.00. In Ticket Mine (20160110) the
game will not accept more than 4 coins on $1.00 Play or 8 coins on $2.00 Play.
3) Device must lockout after $10.00 is inserted. Ticket Mine will not accept more than $2.00 maximum.
2 0 1 6 0 1 1 0
The installed software version can be viewed at any time by
viewing the label on the main IC.
State of New Jersey Approved Software
Verifying the installed software version
New Jersey Game Software Version

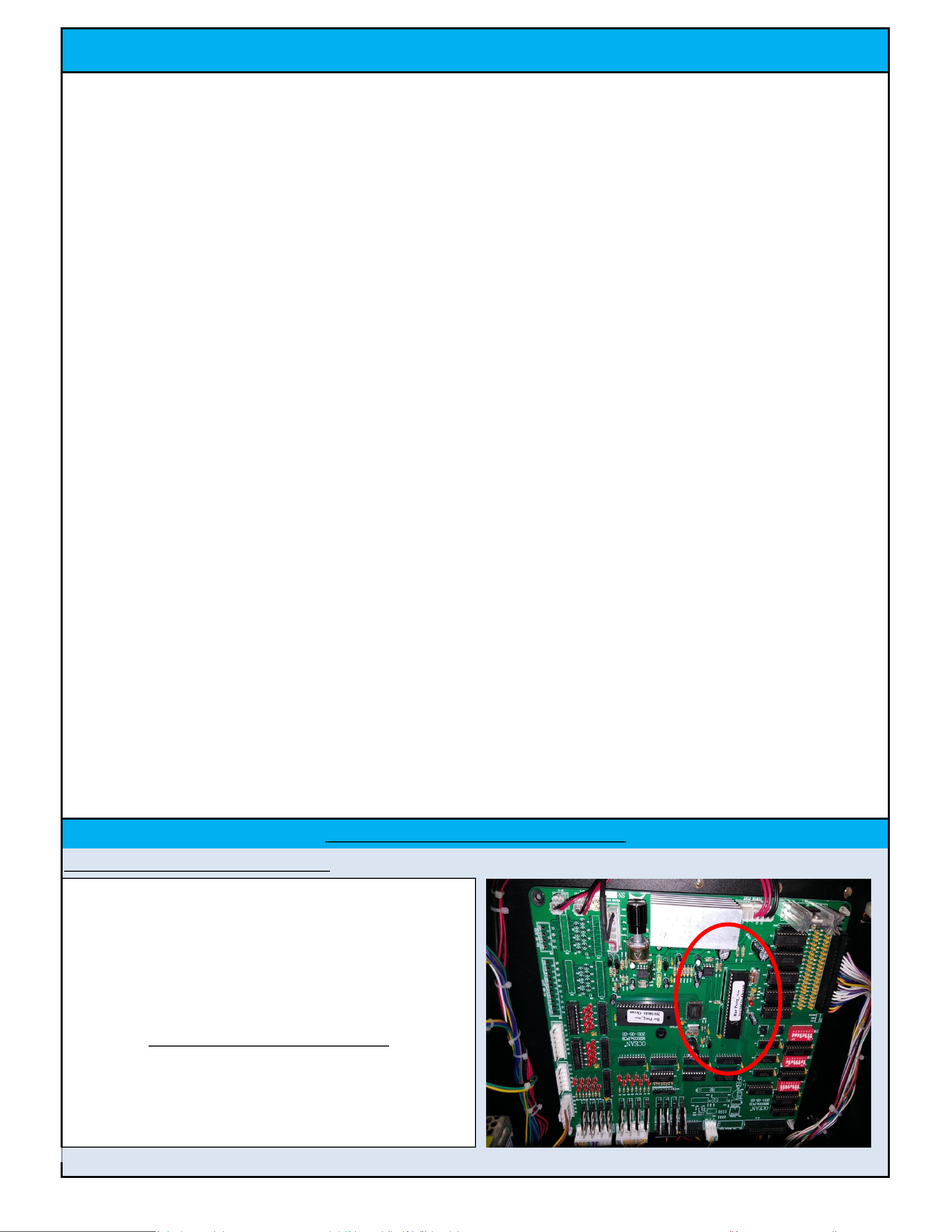

To view the installed software version, locate the main IC
chip on the I/O board and view the label printed onto the IC.
In order to operate the game in the State of New Jersey - you
must only use this version of software.
8) Device should possess meters for "Coin In" and "Token/Ticket Out"
9) Device must not award cash prizes - only tickets, vouchers or tokens which may be redeemed for prizes within the
facility.
10) Device must not be capable of awarding a prize in excess of $10,000.00.
11) Device must not incorporate a reflexive outcome determination or auto-percentaging
STATE OF NEW JERSEY APPROVED SOFTWARE
4) Device must lockout after maximum wager per game is inserted, unless a discount is offered. The coin mechanism
in Ticket Mine will not accept more than $2.00.
5) Device must not escrow inserted credits for more than one game's play unless a discount is offered.
6) Device must award tickets, tokens or prizes immediately upon completion of the game, or offer player an option
to collect or accumulate winnings.
7) Device must not possess a "Knock-Off" mechanism.
Jennison Entertainment Technologies Ticket Mine Service Manual Page 26

PICTURE TO FOLLOW
PICTURE TO FOLLOW
PICTURE TO FOLLOW
PICTURE TO FOLLOW
PICTURE TO FOLLOW
ADJUSTING THE PAYOUT PERCENTAGE
NOTICE
This ticket payout table is for reference only. These numbers have been determined after considerable
testing in field locations. This chart assumes a ticket cost of USD 0.01 (one Penney) and a desired payout
of 30-35%
USD $0.25 GAME PLAY (NOT CURRENTY USED)
VALUE # 1
N/A
VALUE # 2
N/A
VALUE # 3
N/A
VALUE # 4
N/A
USD $0.50 GAME PLAY - (SCORE STATE A)
VALUE # 1
5
VALUE # 2
10
VALUE # 3
20
VALUE # 4
35
USD $1.00 GAME PLAY - (SCORE STATE B)
VALUE # 1
5
VALUE # 2
15
VALUE # 3
25
VALUE # 4
50
USD $1.50 GAME PLAY - (SCORE STATE C)
VALUE # 1
10
VALUE # 2
25
VALUE # 3
35
VALUE # 4
50
USD $2.00 GAME PLAY - (SCORE STATE D)
VALUE # 1
10
VALUE # 2
25
VALUE # 3
50
VALUE # 4
75
Jennison Entertainment Technologies Ticket Mine Service Manual Page 27

Game Time
All game settings in Ticekt Mine can be programmed using the three dip switch banks on the I/O board. The switches are
Switch # 1 (SW1), Switch # 2 (SW2), and Switch # 3 (SW3). Reference the chart below to make program changes including
the number of coins required to start the game, the length of game play, and the score group options for SWITCH # 1
(SW1). To operate the program, move each switch to the ON or OFF position. Switches moved towards the word ON are
ON. Switches moved away from the ON towards the numbers are OFF.
ON
OFF
OFF
SW11
SW12
SW13
SW14
SW15
SW16
SW17
SW18
SWITCH # 1
CONTENT
ITEM DESCRIPTION
60
OFF
ON
ON
75
1
2
3
4
ON
OFF
ON
OFF
ON
45
ON
ON
ON
ON
OFF
ON
90
OFF
OFF
ON
99
ON
ON
OFF
GAME SETTINGS - DIP SWITCH SETTINGS (SWITCH # 1)
Coins, Credits,Tokens Required
This setting is to adjust the
number of coins or credits
required to start the game.
Operator can choose between 1
and 7 coin(s) or token(s) per game
Jennison Entertainment Technologies Ticket Mine Service Manual Page 28

OFF
OFF
Score Group
Silver Score
I
ON
ON
II
OFF
ON
III
ON
OFF
IV
All game settings in Ticket Mine can be programmed using the three dip switch banks on the I/O board. The switches are
Switch # 1 (SW1), Switch # 2 (SW2), and Switch # 3 (SW3). Reference the chart below to make program changes including
the number of tickets per score, shake time, and the handle speed frequency for SWITCH # 2 (SW2). To operate the
program, move each switch to the ON or OFF position. Switches moved towards the word ON are ON. Switches moved
away from the ON towards the numbers are OFF.
GAME SETTINGS - DIP SWITCH SETTINGS (SWITCH # 2)
ITEM DESCRIPTION
CONTENT
SWITCH # 2
SW21
SW22
SW23
SW24
SW25
SW26
SW27
SW28
50
ON
ON
ON
ON
75
OFF
ON
100
ON
OFF
ON
150
OFF
OFF
ON
250
OFF
ON
OFF
200
ON
ON
OFF
500
OFF
OFF
OFF
50
ON
ON
ON
300
ON
OFF
OFF
OFF
ON
OFF
800
100
OFF
ON
ON
150
ON
OFF
ON
200
ON
OFF
OFF
999
OFF
OFF
OFF
OFF
OFF
ON
250
ON
ON
OFF
500
Copper Score
Jennison Entertainment Technologies Ticket Mine Service Manual Page 29

NOT CURRENTLY USED
F
NOT CURRENTLY USED
G
$2.00 GAME PLAY
D
OFF
OFF
NOT CURRENTLY USED
E
$1.00 GAME PLAY
B
OFF
ON
$1.50 GAME PLAY
C
ON
OFF
GAME SETTINGS - DIP SWITCH SETTINGS (SWITCH # 2 CONTINUED)
ITEM DESCRIPTION
SCORE
STATE
SWITCH # 2 (EXPANDED)
SW21
SW22
SW23
SW24
SW25
SW26
SW27
SW28
$0.50 GAME PLAY
A
ON
ON
Jennison Entertainment Technologies Ticket Mine Service Manual Page 30

Gold Score
All game settings in Ticket Mine can be programmed using the three dip switch banks on the I/O board. The switches are
Switch # 1 (SW1), Switch # 2 (SW2), and Switch # 3 (SW3). Reference the chart below to make program changes including
double score play, duel meters, and various testing options for SWITCH # 3 (SW3). To operate the program, move each
switch to the ON or OFF position. Switches moved towards the word ON are ON. Switches moved away from the ON
towards the numbers are OFF.
250
ON
OFF
ON
500
OFF
OFF
ON
GAME SETTINGS - DIP SWITCH SETTINGS (SWITCH # 3)
ITEM DESCRIPTION
CONTENT
SWITCH # 3
SW31
SW32
SW33
SW34
SW35
SW36
SW37
SW38
100
ON
ON
ON
200
OFF
ON
ON
1000
OFF
ON
OFF
1250
ON
OFF
OFF
ON
ON
ON
800
ON
ON
OFF
OFF
OFF
Must Remain ON
1500
OFF
Jennison Entertainment Technologies Ticket Mine Service Manual Page 31

5
TICKET FEEDBACK # 2
28
29
9
31
TICKET MINE - MAIN BOARD INPUT IC (74HC245N) CHART
IC
CONTENT
INPUT #
18
13
14
15
10
11
12
7
32
U08
U09
U10
U11
22
23
24
19
6
START BUTTON
20
21
16
30
25
26
27
8
COIN UP SIGNAL
BILL ACCEPTOR
TICKET SIGNAL
TICKET FEEDBACK # 1
1
2
3
4
MAIN BOARD INPUTS
17
Jennison Entertainment Technologies Ticket Mine Service Manual Page 32

37
34
35
MAIN BOARD INPUTS - CONTINUED
36
38
39
40
The Ticket Mine input/output board utilizes 5 input IC's to control all inputs used within the game. In Ticket
Mine, only ONE of the FIVE IC's are used. You may use the FOUR spare input IC's in U09, U10, U11, & U12 on
the board in order to replace the other input IC's should one become corrupt.
TICKET MINE - MAIN BOARD INPUT IC (74HC245N) CHART
IC
INPUT #
CONTENT
U12
33
Jennison Entertainment Technologies Ticket Mine Service Manual Page 33

U25
9
4
5
6
14
15
16
11
12
13
10
# 1 GOLD LED
# 1 SILVER LED
# 1 COPPER LED
# 1 DISPLAY BOARD LED
# 1 FAN DEMO OUTPUT
# 2 FAN DEMO OUTPUT
# 1 GOLD SEG LIGHTING 1
# 1 GOLD SEG LIGHTING 2
# 1 SILVER SEG LIGHTING 1
# 1 SILVER SEG LIGHTING 2
# 1 COPPER SEG LIGHTING 1
# 1 COPPER SEG LIGHTING 2
7
8
# 2 COPPER SEG LIGHTING 2
# 2 GOLD SEG LIGHTING
# 2 SILVER SEG LIGHTING
27
28
29
30
31
32
# 2 GOLD SEG LIGHTING 1
# 2 GOLD SEG LIGHTING 2
# 2 SILVER SEG LIGHTING 1
# 2 SILVER SEG LIGHTING 2
U27
U29
25
26
# 2 COPPER SEG LIGHTING 1
1
2
3
17
18
19
20
21
22
23
24
MAIN BOARD OUTPUTS
TICKET MINE - MAIN BOARD IC (ULN2803) OUTPUT CHART
IC
OUTPUT #
CONTENT
U23
# 3 COPPER SEG LIGHTING
# 2 DISPLAY BOARD LED
Jennison Entertainment Technologies Ticket Mine Service Manual Page 34

MAIN BOARD OUTPUTS - CONTINUED
TICKET MINE - MAIN BOARD IC (ULN2803) OUTPUT CHART
IC
OUTPUT #
CONTENT
Q1-Q8
33
34
35
36
37
38
39
40
COIN COUNTER # 1
TICKET COUNTER
TICKET DRIVE # 1
TICKET DRIVE # 2
COIN LOCK
PLAY BUTTON LED
CLUTCH CONTROL
FAN CONTROL
Q9 - Q16
41
COIN COUNTER # 2
42
43
TOP SPOT LAMP - BLUE
44
TOP SPOT LAMP - RED
45
TOP SPOT LAMP - WHITE
46
GROUND LED - RED
47
GROUND LED - GREEN
48
GROUND LED - BLUE
Jennison Entertainment Technologies Ticket Mine Service Manual Page 35

COMM
COMM
GROUND
ULTRASONIC RANGE SENSOR INFORMATION
ULTRASONIC RANGE SENSOR INFORMATION
VCC
I/O BOARD - 5 VOLTS
TRIG/T
I/O BOARD - TX
ECNO/RX
I/O BOARD - RD
Jennison Entertainment Technologies Ticket Mine Service Manual Page 36
