Universal Space Wildlife PICs User manual

Operation Manual
www.universal-space.com

Wildlife PICs (Card ver.) Manual
01/18/2018
1
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ...............................................................2
1. SPECIFICATIONS.............................................................................................4
2. PACKAGE CONTENTS .....................................................................................6
3. PART NAME.....................................................................................................7
4. SET UP & INSTALLATION ...............................................................................8
5. HOW TO PLAY............................................................................................... 12
6. GAME OPTION.............................................................................................. 13
7. TROUBLE SHOOTINGS................................................................................. 15
8. MAINTENANCE & INSPECTION.................................................................. 19

Wildlife PICs (Card ver.) Manual
01/18/2018
2
Thank you for purchasing Wildlife PICs. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Wildlife PICs (Card ver.) Manual
01/18/2018
3
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install
outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Wildlife PICs (Card ver.) Manual
01/18/2018
4

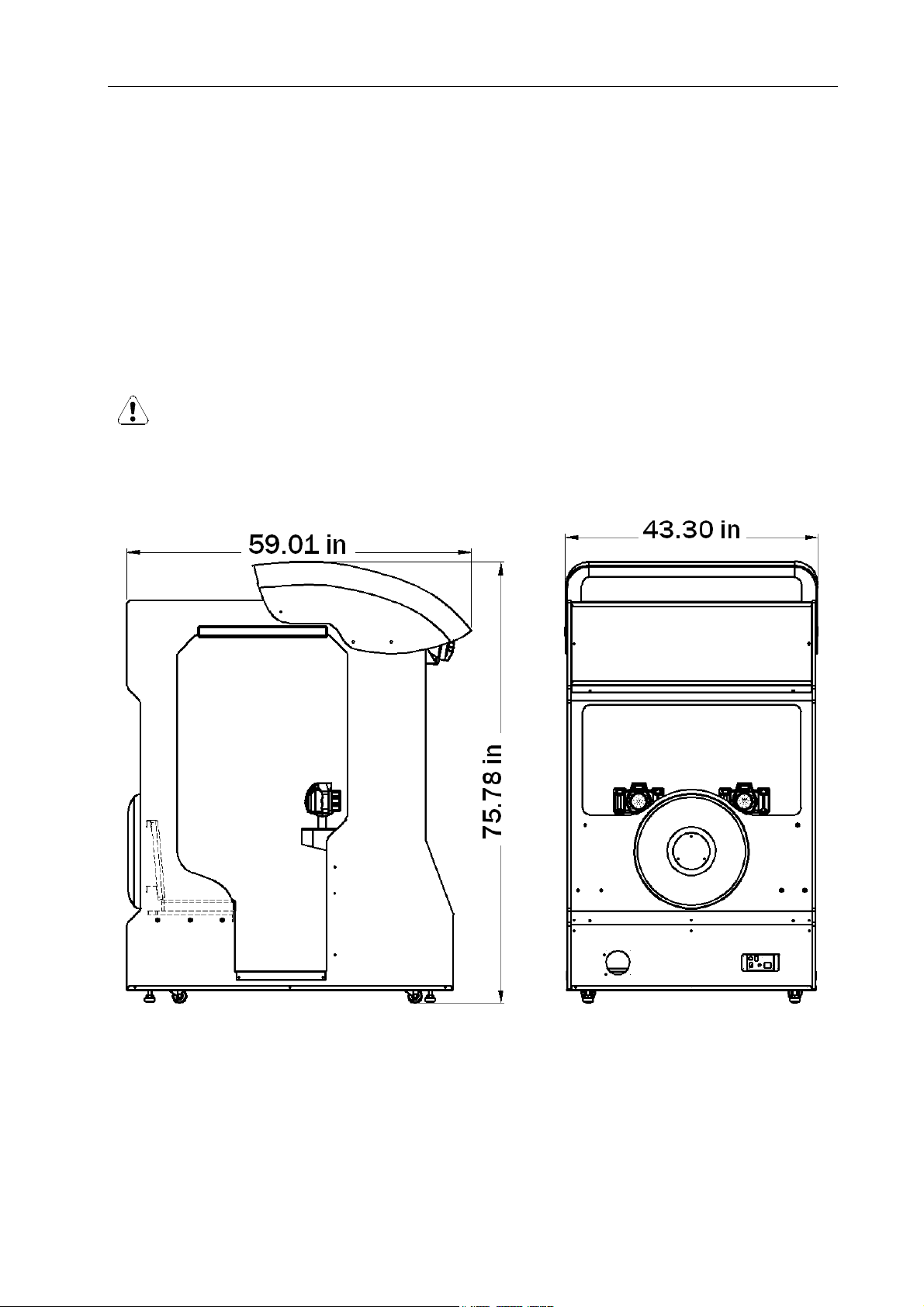

1. SPECIFICATIONS
Rated power supply: AC220V 50/60Hz; AC110V 50/60Hz
Min. Power consumption: 250W
Max. Power consumption: 220W
Dimension: W43.30×D59.01×H75.78 in
Weight: 507 lb
Part No: W116
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game parameters are subject to change without notice.

Wildlife PICs (Card ver.) Manual
01/18/2018
5
This is the dimension after unpacking. (Top shed assy. need to install)
Dimension: W42.51×D56.06×H69.15 in

Wildlife PICs (Card ver.) Manual
01/18/2018
6

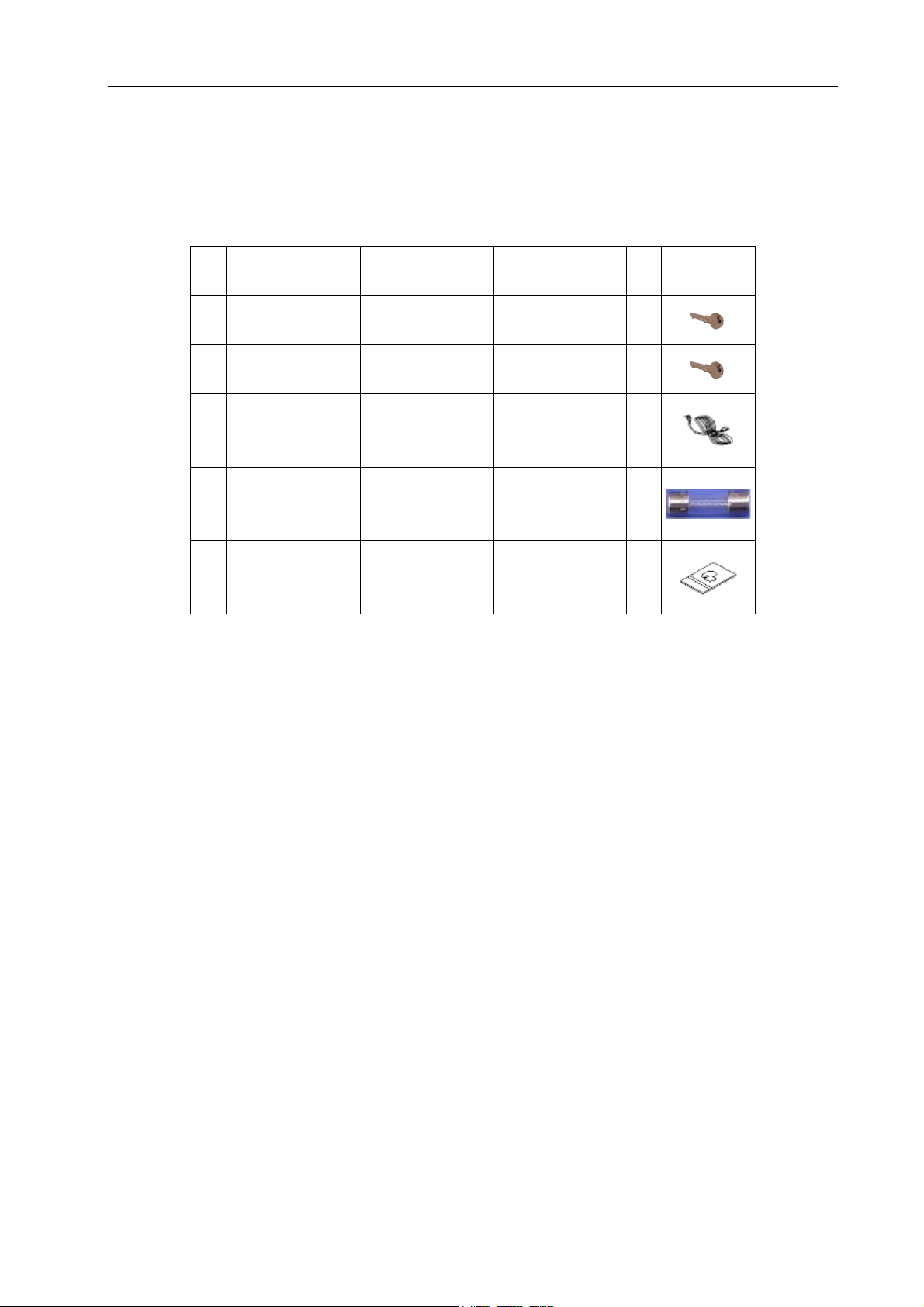

2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1. Following accessories
NOTE: Part models are subject to change without notice.
No. Part No Code Name Qty Picture
1 W116-802-000 25300171002 Key 6
2 W116-803-000 25300172002 Key 1
3 W116-804-000 23301000001
Power cord
3×16AWG
1.8M
1
4 W116-416-000 21901000012
Fuse
T5A 250VAC 1
5 W116-801-000 Manual 1

Wildlife PICs (Card ver.) Manual
01/18/2018
7

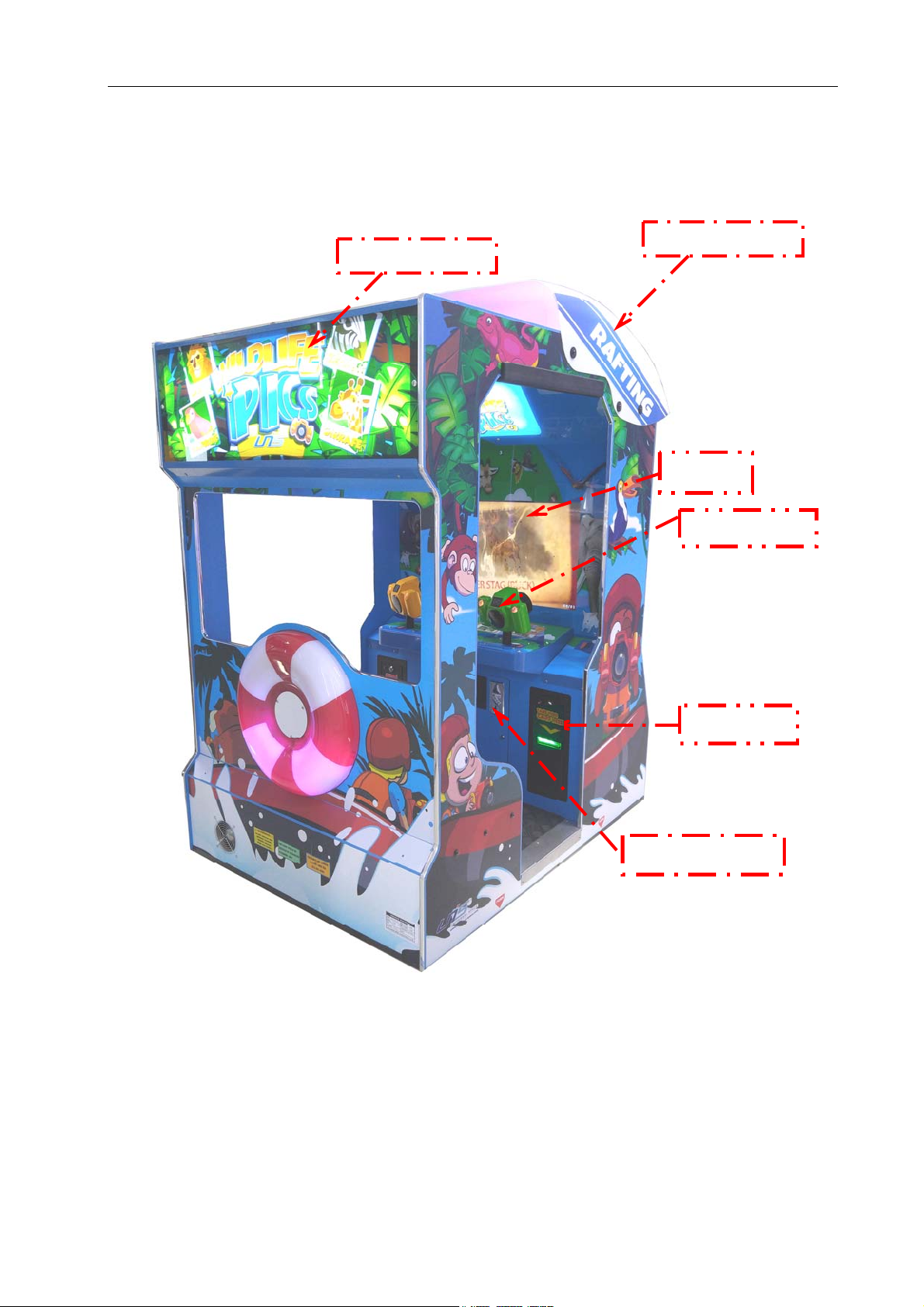

3. PART NAME
Coin mech. Assy.
Mar
q
uee Ass
y
.
Monitor
Camera Assy.
To
p
shed ass
y
.
Card Assy.

Wildlife PICs (Card ver.) Manual
01/18/2018
8
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install
outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move F
i
Caster Leveler
About 0.2 in
Move Fix
NOTICE
Make sure the machine is level.

Wildlife PICs (Card ver.) Manual
01/18/2018
9

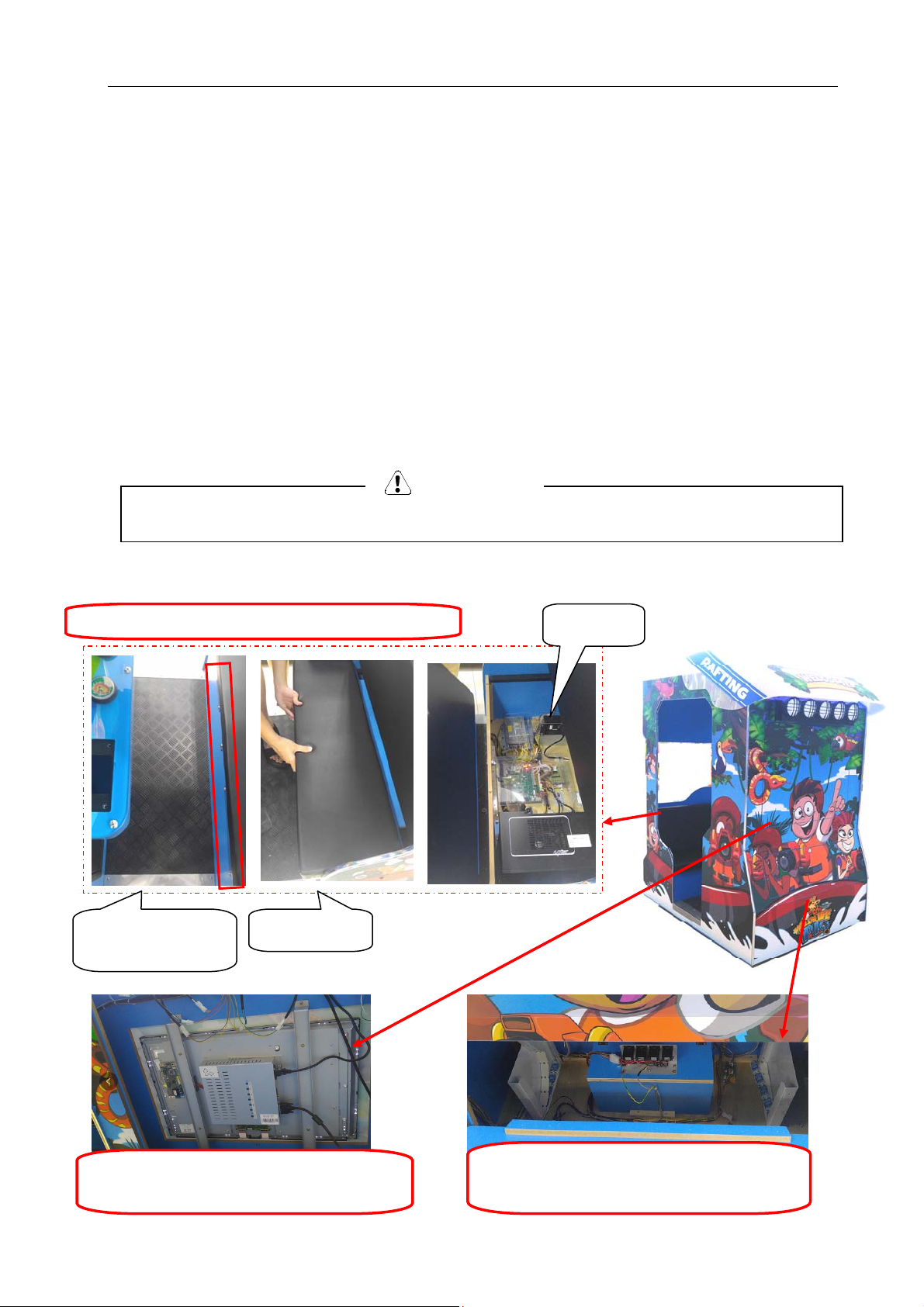

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Notice: Please open the seat for service electrical parts and find the POWER SWITCH of the
game,
Service area
Play area
Loose four screws
and open the lock.
Pull out seat.
Power SW

Wildlife PICs (Card ver.) Manual
01/18/2018
10

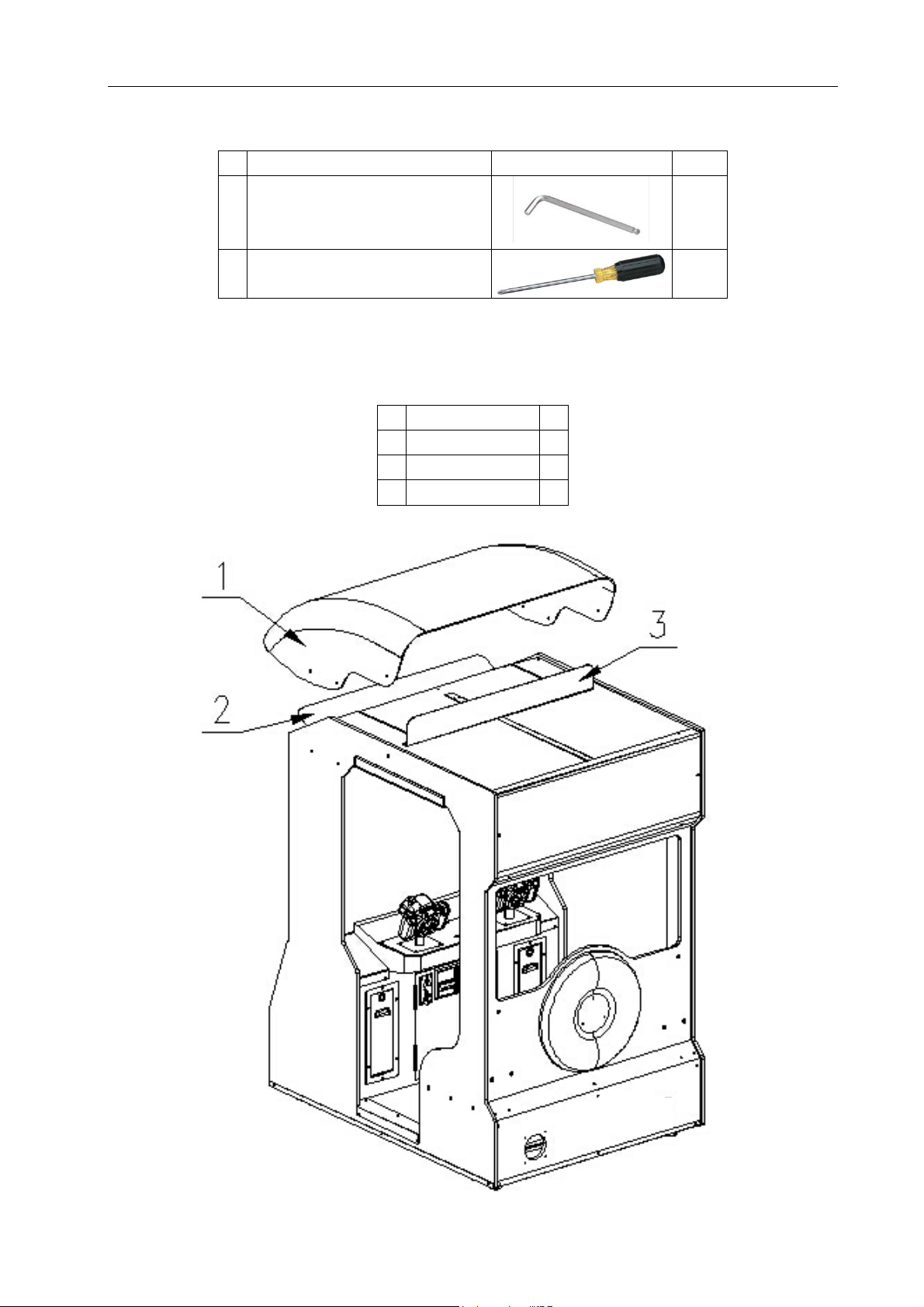

4.4Top shed assy. Installation Instruction
Please prepare the following tools before installation.
No. Name Qty
1 Top plastic shed 1
2 Top shed plate 1 1
3 Top shed plate 1
No. Name Picture Qty
1 Allen key 1
2 Cross screwdriver 1
Unpack the machine and install the following 3 parts.

Wildlife PICs (Card ver.) Manual
01/18/2018
11
Step 1 Place and install Top shed plate 1& Top shed plate as following picture.
No. Name Qty
1 Cross recessed pan head screw 8
2 Top shed plate 1 1
3 Top shed plate 1
Step 2 Place and install Top plastic shed as following picture.
No.
Name Qty
1 Top plastic shed 1
2 Rubber washer 6
3 Hexagon flat round head screws 6
2
3
1
4 screws
4 screws
2
3
6 screws
1

Wildlife PICs (Card ver.) Manual
01/18/2018
12
5. HOW TO PLAY
5.1 Press left or right button to snap a photo
5.2 Aim perfectly to get 3 stars
5.3 Complete tasks to earn MEDALS!
5.4 Take your card!

Wildlife PICs (Card ver.) Manual
01/18/2018
13
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Customized Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
Bookkeeping
Daily Record
Camera Calibration
About This Game
Back to game
6.2.2 Basic Setting
6.2.5 Output Test
1P Camera Light
1P Start Light
2P Camera Light
2P Start Light
1P Card Light
2P Card Light
Game Horn Test
1P Ticket out
2P Ticket out
1P Card Out
2P Card Out
Back
Open the coin door and there is a
meter panel. Press test button to get
into the setting menu.
Settin
g
s Test Reset
Free Play OFF/ON
Demo Audio OFF/ON
Volume 1
Coins Per Game 2
Play Mode Insert coin and play one stage
/Insert coin and play five stage
Difficulty 1
Out of Ticket Call the Attendant/Store in memory
Memory Save OFF/ON
Reward mode OFF/ticket out
Timing Mode OFF/ON
Back_ Save OFF/ON
Back
6.2.3 Customized Setting
Fix Ticket 0
Divided by 2 False
Snapshot Master Ticket 2
Photography Genius Ticket 4
Shooting Expert Ticket 6
Little photographer Ticket 8
Photography Artist Ticket 10
Fixed card 1
Back_ Save
Back

Wildlife PICs (Card ver.) Manual
01/18/2018
14
6.2.4Input Test
6.2.8Bookkeeping
6.2.9 Daily Record
1P Coin In OFF/ON
1P confirm button OFF/ON
1P Left Button OFF/ON
1P Right Button OFF/ON
2P Coin In OFF/ON
2P confirm button OFF/ON
2P Left Button OFF/ON
2P Right Button OFF/ON
Setting Button OFF/ON
Reset Button OFF/ON
1P Position
2P Position
Back
6.2.6 Game Reset
Restore Factory Settings
Restore Basic Settings
Restore Customized Setting
Clear Unused Coin
Clear Owed Ticket
Clear All Records
Back
6.2.7 Date/Time Setting
Year 2010-2100
Month 1-12
Day 1-31
Hour(24) 0-23
Minute 0-59
Second 0-59
Back & Save 
Back 

Date Weekday RunTime Coins Tickets Payout
2014-06-061 Fri 00:01 0 0 0.00
Prev. Page
Next Page
Clear
Back


Player1 Coins Tickets Payout
1 0 0 0.00
Back

6.2.10 About This Game
CPU
Main board
HDD
RAM
Video Card
Screen
Version Ver1.1
Back

Wildlife PICs (Card ver.) Manual
01/18/2018
15

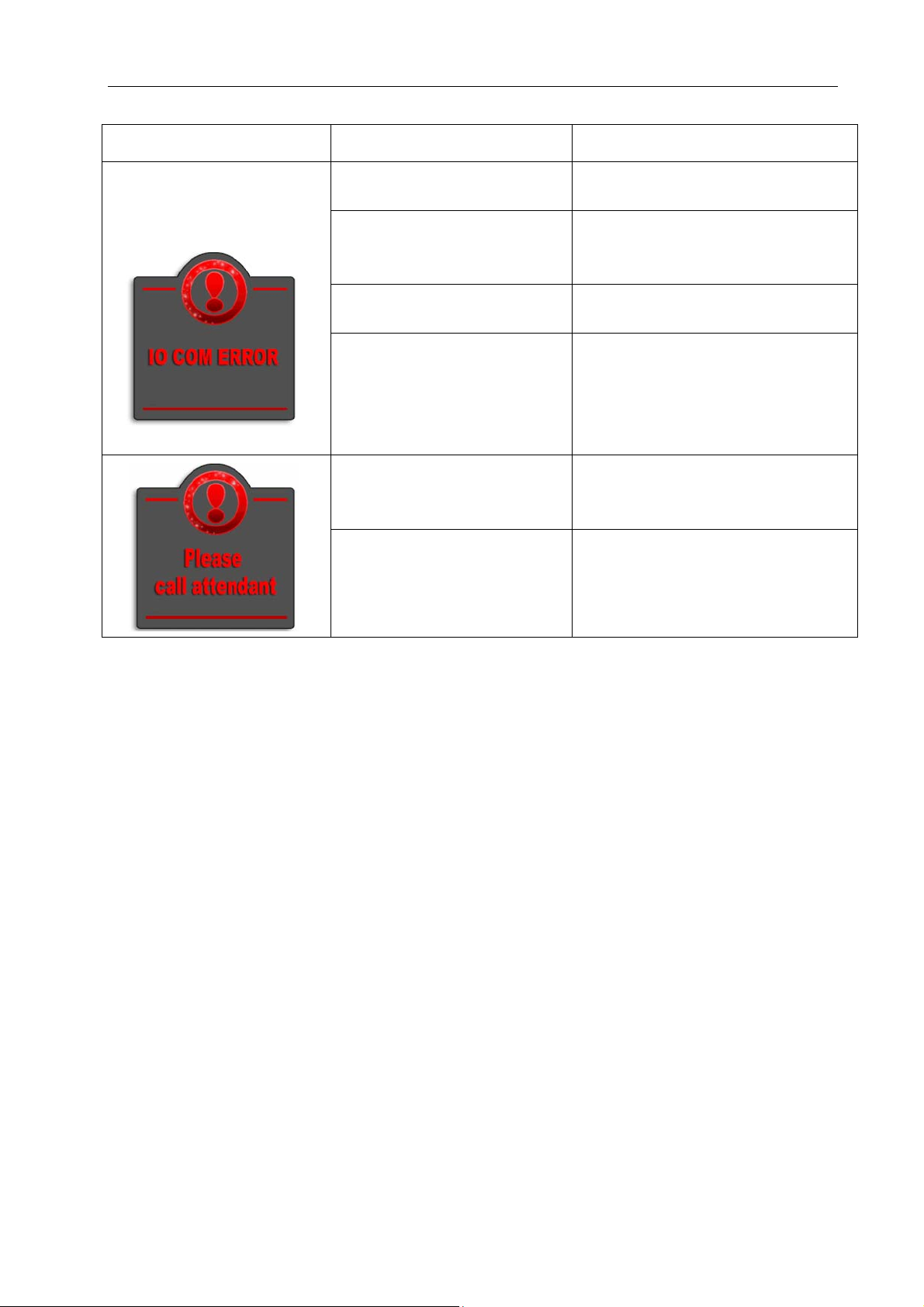

7. TROUBLE SHOOTINGS
7.1 Common Problem
Please confirm whether every connector connected tightly.
Symptom Possible Cause Recommended action
Game will not
start
Frame assembly connector is
loose. Plug the connector tightly.
Frame assembly fault Contact with UNIS Service.
Power cutting Circuit protector make power SW
in cutting state
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
Game will not
coin up
Coin mech. fault or sample coin
not installed. Change coin mech. or sample coin.
Coin mech. signal cable loose. Check coin mech. signal cable loose.
IO control board no signal. Change IO board.
No ticket
dispensing
Out of ticket. Add ticket and press reset button
Ticket jamming. Remove the jammed tickets and press
reset button.
Wrong connection. Check the connections.
No sound
Volume set too low. Raise the volume.
Connector loose. Plug in connector tightly.
PCB fault. Change PCB.
Speaker fault. Change speaker.
POT installation error. Install POT correctly.
POT fault. Change POT.
Audio cable problem. Reconnect the audio cable or change
it.
PC crash. Restart or system recovery.
Driver problem Restart the audio driver.
Display black
screen
Check connectors. Plug in connector tightly
Display fault. Vitalize another source such as a PC to
verity if the display is operational.
RAM is loose. Pull it out and insert it again or change
main board or RAM.
Display blue
screen
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA cable
PC video card is loose. Reseat video card.
PC into protection
Open front cover, if power on, light
flash all the time. Press power button
30s, then restart.
“0X000000A” code appears.
Conflict between computer drive
and software.
Uninstall or disable the new drivers or
software.

Wildlife PICs (Card ver.) Manual
01/18/2018
16
Symptom Possible Cause Recommended action
Display blue screen
when playing
Software problem. Update the driver of the video card or
reinstall the system.
Hardware problem. Check the hardware one by one.
Playing normal, but
appear system
halted
Video card is loose or poor
contact Plug video card again.
PC crash Restart or system recovery
Display abnormal
color
Bad connection between the
video card and the display
video cable.
Reconnect the video card and the
display video cable.
Video card driver problem. Restart the video driver.
Display can not
show the whole
desktop.
Screen resolution problem.
For WIN 7, right-click in the blank
space at the desktop
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen
resolution.
Bouncing motion of
the display Screen resolution problem.
---Click “screen resolution”
---Click “change the appearance of the
display” to adjust the screen refresh
rate.
No response in
BIOS
Battery is loose. Reinstall the battery of the main board
and restart the game or change the
main board.
Main board fault.
Fail to save the
BIOS setting Battery fault. Change the battery of the main board.
PC restart or crash
repeatedly
Poor heat dissipation
Add silicon on the cooling fin.
Check or change the CPU fan if
needed.
RAM or main board fault. Change the RAM or change the main
board.
Power source problem. Change the power source.
Fail to install the
driver Driver fault. Download “Driver Genius” or something similar and try again.
CPU fan off and on. Main board fault. Change the main board.
Slow computer
start-up times after
reinstalling the
system.
Hard disk problem. Please let the PC automatically run the
software, or change the hard disk.

Wildlife PICs (Card ver.) Manual
01/18/2018
17
If you see following error signs showing on the display, please try the recommended action.
Display Possible Cause Recommended action
The connection part of the
IO board and PC are loose.
Check and reconnect the loose
ports of the PC or IO board.
USB cable quality problem
Change the USB cable after
checking the connection between
IO board and PC.
USB cable is loose during
transportation.
Check and reconnect the loose
ports of the PC or IO board.
IO board broken.
Reboot the game after checking
USB connection and USB cable
problem, if the problem remains
unresolved, please call after sale
department for help.
Out of ticket. Same as above-mentioned.
Ticket dispenser broken. Change the ticket dispenser.

Wildlife PICs (Card ver.) Manual
01/18/2018
18

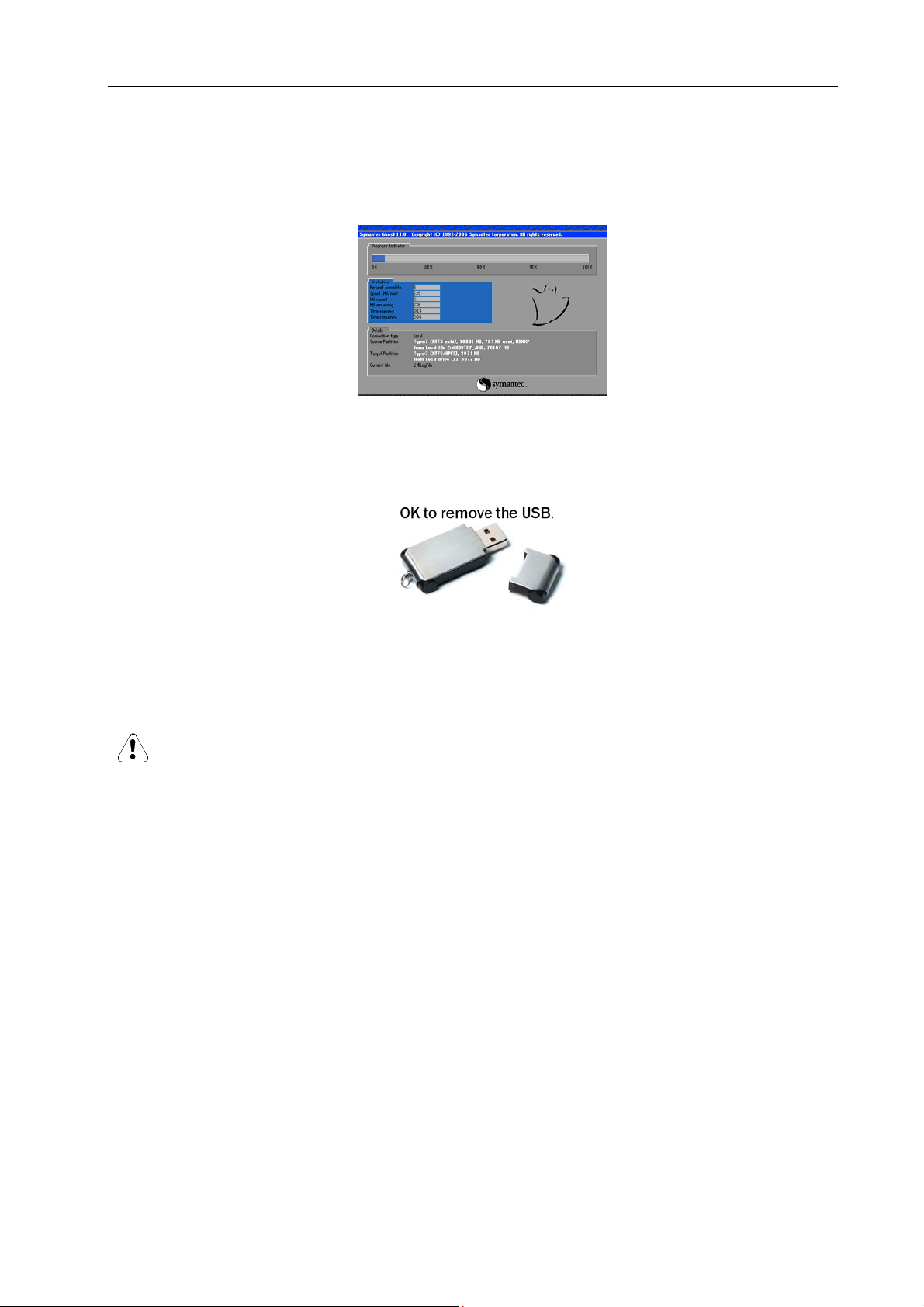

7.2 System Recovery Operation
1. Turn off the game. Remove recovery USB from the cabinet. (Note: This process may take
30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the
computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery.
4. Once system recovery is finished (as shown below), and the remove screen appears,
remove the USB flash drive from the computer. The game will run automatically without
power off and on the machine.
5. Assure that the recovery USB has been properly secured for future use.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.

Wildlife PICs (Card ver.) Manual
01/18/2018
19
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Test game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper
operation.
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
8.3 Service doors
2. Open the door to service display assy.
3. Open the door to service ticket
dispenser and coin mech.
Loose four screws
and open the lock.
Pull out seat.
1. O
p
en the seat of service PC and others
p
arts.
Power SW
We do not recommend using power tools as they may cause damage.
NOTICE
