Sega World Series Baseball Super Major League User manual

1ST PRINTING MAY 01
MANUAL NO. 999-1288
Owner’s Manual
SEGA ENTERPRISES, INC. USA
Upright Version

Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman-
ship or materials under normal operating conditions. This also certifies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating condi-
tions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to
replace or repair the defective part during the warranty period. For Warranty claims, contact your
Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne-
glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam-
ages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
To maintain the safety:
To ensure the safe usage of the product, be sure to read the following before using the product. The following
instructions are intended for the users, operators and the personnel in charge of the operation of the product.
After carefully reading and sufficiently understanding the warning displays and cautions, handle the product
appropriately. Be sure to keep this manual nearby the product or elsewhere convenient for referring to it
when necessary.
Herein, explanations which require special attention are enclosed with dual lines. Depending on the poten-
tially hazardous degrees, the terms of WARNING, CAUTION, etc. are used. Be sure to understand the
contents of the displays before reading the text.
Indicates that mishandling the
product by disregarding this
warning will cause a potentially
hazardous situation which can
result in death or serious injury.
Indicates that mishandling the product
by disregarding this caution will cause
a slight hazardous situation which can
result in personal injury and or material
damage.
For the sage usage of the product, the following pictographs are used:
Indicates “HANDLE WITH CARE.” In order to protect the human body an equipment, this
display is attached to places where the Owner’s Manual and or Service Manual should be referred
to.
Perform work in accordance with the instructions herein stated.
Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to
perform work as per the instructions can cause accidents. In the case where only those who have techni-
cal expertise should perform the work to avoid hazardous situation, the instructions herein state that the
serviceman should perform such work.
Be sure to turn off power before working on the machine.
To prevent electric shock, be sure to turn off power before starting the work in which the worker touches
the interior of the product. If the work is to be performed in the power-on status, the Instruction Manual
herein always states to that effect.
Be sure to ground the Earth Terminal (this, however, is not required in the case where a power cord
with earth is used).
This product is equipped with the Earth Terminal. When installing the product, Connect the Earth Termi-
nal to the “accurately grounded indoor earth terminal” by using an earth wire. Unless the product is
grounded appropriately, the user can be subject to electric shock. After performing repair, etc. for the
Control equipment, ensure that the Earth Wire is firmly connected to the Control equipment.
Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.
This product does not incorporate the Earth Leakage Breaker. Using a power supply which is not
equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.
Be sure to use fuses which meet the specified rating. (only for the machines which use fuses).
Using fuses exceeding the specified rating can cause a fire and electric shock.

Specification changes (removal of equipment, conversion and addition) not designated by SEGA
are not allowed.
The parts of the product include warning labels for safety, covers for personal protection, etc. It is very
hazardous to operate the product by removing parts and or modifying the circuits. Should doors, lids
and protective parts be damaged or lost, refrain from operating the product, and contact where the
product was purchased from or the office herein stated. SEGA shall not be held responsible for any
accidents, compensation for damage to a third party, resulting from the specifications not designated by
SEGA.
Ensure that the product meets the requirements of appropriate Electrical Specifications.
Before installing the product, check for Electrical Specifications. SEGA products have a nameplate on
which Electrical Specifications are described. Ensure that the product is compatible with the power
supply voltage and frequency requirements of the location. Using any Electrical Specifications different
from the designated Specifications can cause a fire and electric shock.
Install and operate the product in places where appropriate lighting is available, allowing warning
labels to be clearly read.
To ensure safety for the customers, labels and printed instructions describing potentially hazardous
situation are applied to places where accidents can be caused. Ensure that where the product is operated
has sufficient lighting allowing the warnings to be read. If any label is peeled off, apply it again imme-
diately. Please place an order with where the product was purchased from or the office herein stated.
When handling the Monitor, be very careful. (Applies only to the product w/monitor.)
Some of the monitor (TV) parts are subject to high tension voltage. Even after running off power, some
portions are still subject to high tension voltage sometimes. Monitor repair and replacement should be
performed only be those technical personnel who have knowledge of electricity and technical expertise.
Be sure to adjust the monitor (projector) properly. (Applies only to the product w/monitor.)
Do not operate the product leaving on-screen flickering or blurring as it is. Using the product with the
monitor not properly adjusted may cause dizziness or a headache to an operator, a player, or the custom-
ers.
When transporting or reselling this product, be sure to attach this manual to the product.
In the case where commercially available monitors and printers are used in this product, only the
contents relating to this product are explained herein. Some commercially available equipment has
functions and reactions not stated in this manual. Read this manual together with the specific Instruc-
tion Manual of such equipment.
Descriptions herein contained may be subject to improvement changes without notice.
The contents described herein are fully prepared with due care. However, should any question arise or
errors be found, please contact SEGA.
•
•
INSPECTIONS IMMEDIATELYAFTER TRANSPORTING THE PRODUCT TO THE LOCATION.
Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after
transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before
turning on power, check the following points to ensure that the product has been transported in a satisfac-
tory status.
Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?
Are Casters and Adjusters, damaged?
Do the power supply voltage and frequency requirements meet with those of the location?
Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,
connector connections can not be made accurately. Do not insert connectors forcibly.
Do power cords have cuts and dents?
Do the fuses used meet specified rating? Is the Circuit Protector in an energized status?
Are all accessories available?
Can all Doors and Lids be opened with the Accessory keys? Can Doors and Lids be firmly closed?

1
When using the cabinet that shares the coin chute between 1P and
2P (such as the NAOMI CABINET, B AST CITY, etc.), change
the setting of the COIN CHUTE TYPE item in the COIN
ASSIGNMENTS screen, from INDIVIDUA to COMMON.
Using these cabinets with the setting of INDIVIDUA disables to
play from the 2P side.
For more information about the COIN ASSIGNMENTS screen,
see the NAOMI Service Manual.
When having connected the power for the first time, open the
SYSTEM MENU - GAME TEST MODE - INPUT TEST screen
and test the input devices; thereby make sure that they can
function normally.
This game is available only with the NAOMI GD-ROM system. It
is not available with other hardware.
TABLE OF CONTENTS
Use of this product is unlikely to cause physical injuries or damages to
property. However, where special attention is required this is indicated by a
thick line, the word "IMPORTANT" and its sign in this manual.
Indicates that mishandling the product by disregarding this
display can cause the product's intrinsic performance not to be
obtained, resulting in malfunctioning.
STOP
IMPORTANT
STOP
IMPORTANT
BEFORE USING THE PRODUCT, BE SURE TO READ THE FO OWING:
1. HAND ING PRECAUTIONS ............................................................................ 2
2. SPECIFICATIONS .............................................................................................. 3 - 4
3. CONTENTS OF GAME ...................................................................................... 5 - 10
4. TEST MODE ........................................................................................................ 11 - 19
A.SYSTEM MENU
B.GAME TEST MODE
a.INPUT TEST
Switch input test is performed.
b.GAME ASSIGNMENTS
Various settings such as game difficulty, etc. can be set.
c.VO UME SETTING
This page allows you to adjust the volume settings used for
the ANA OG STICKS and BAT MECHA.
d.BOOKKEEPING
Allows for checking data such as operation time,
game time, etc.
e.BACKUP DATA C EAR
Clears the contents of BOOKKEEPING.
5. GAME BOARD ................................................................................................... 20 - 21
6. SOFT KIT............................................................................................................. 22 - 23
7. COIN SE ECTOR ............................................................................................... 24 - 27
8. DESIGN RE ATED PARTS ............................................................................... 28
9. PARTS IST (CONTRO PANE ) .................................................................... 29 - 35
10. WIRE CO OR CODE TAB E.......................................................................... 36
11. WIRING DIAGRAM (CONTRO PANE ) ..................................................... 37

2
To prevent electric shock or IC Board malfunctioning, be sure to turn
off the power for the cabinet when installing or removing the IC Board.
Extraneous matter such as dust on the IC Board can cause the IC Board
to generate heat and result in a fire due to short circuit, etc. Ensure the
IC Board surfaces are always kept clean.
Use NAOMI for the cabinets compatible with JVS. Using NAOMI for
the cabinet other than those compatible with JVS can cause generation
of heat and a fire.
Be sure to connect the IC Board and connectors completely.
Insufficient insertion can damage IC Board, etc.
For the IC Board circuit inspection, only the use of ogic Tester is
permitted.
The use of ordinary testers is not permitted as these can damage the IC
Board.
Do not subject the IC Board to static electricity when installing the IC
Board in the cabinet or when connecting wire harness connectors to the
IC Board.
When soldering buttons, etc. to the wire harnesses, be sure to remove
the wire harnesses from the IC Board so as not to subject the IC Board
to heat.
Using NAOMI without the Shield Case can cause electric wave trouble.
Be sure to use NAOMI together with the accessory Shield Case.
The monitor frequency corresponding to NAOMI is 15kHz or 31kHz.
NAOMI can not be used for the cabinet incorporating a monitor or
projector not corresponding to 15kHz or 31kHz.
1. HANDLING PRECAUTIONS
STOP
IMPORTANT
Concerning the display of JAMMA VIDEO STANDARD:
JAMMA VIDEO STANDARD adopted by NAOMI is referred to as JVS. As
against this Standard, the conventional JAMMA STANDARD which employs
56P Edge Connectors adopted by ST-V, etc. is displayed as Old JAMMA
STANDARD.
The specific Manual attached to each game sometimes displays JVS as JV
STANDARD, New JAMMA STANDARD, or JAMMA 2 STANDARD against
O D JAMMA STANDARD as JAMMA STANDARD, JS, etc.
The contents herein described are subject to change without notice.

3
2. SPECIFICATIONS
MONITOR
Horizontal Synchronous Frequency
15/31 kHz

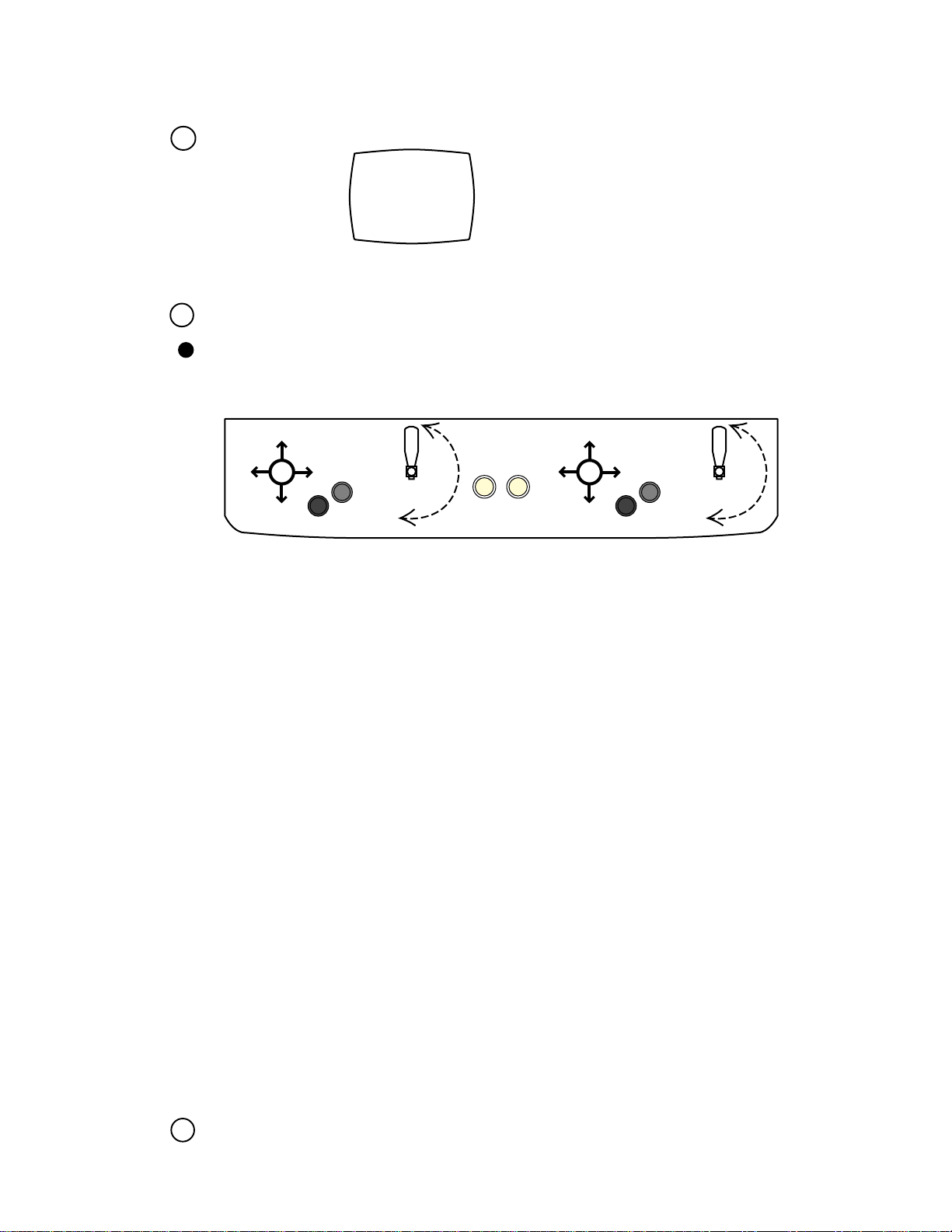

CONTRO PANE
NEW ASTRO CITY, NAOMI CABINET, NET CITY, B AST CITY
(PART NO. HOT-20011 or NOA-20010-01)

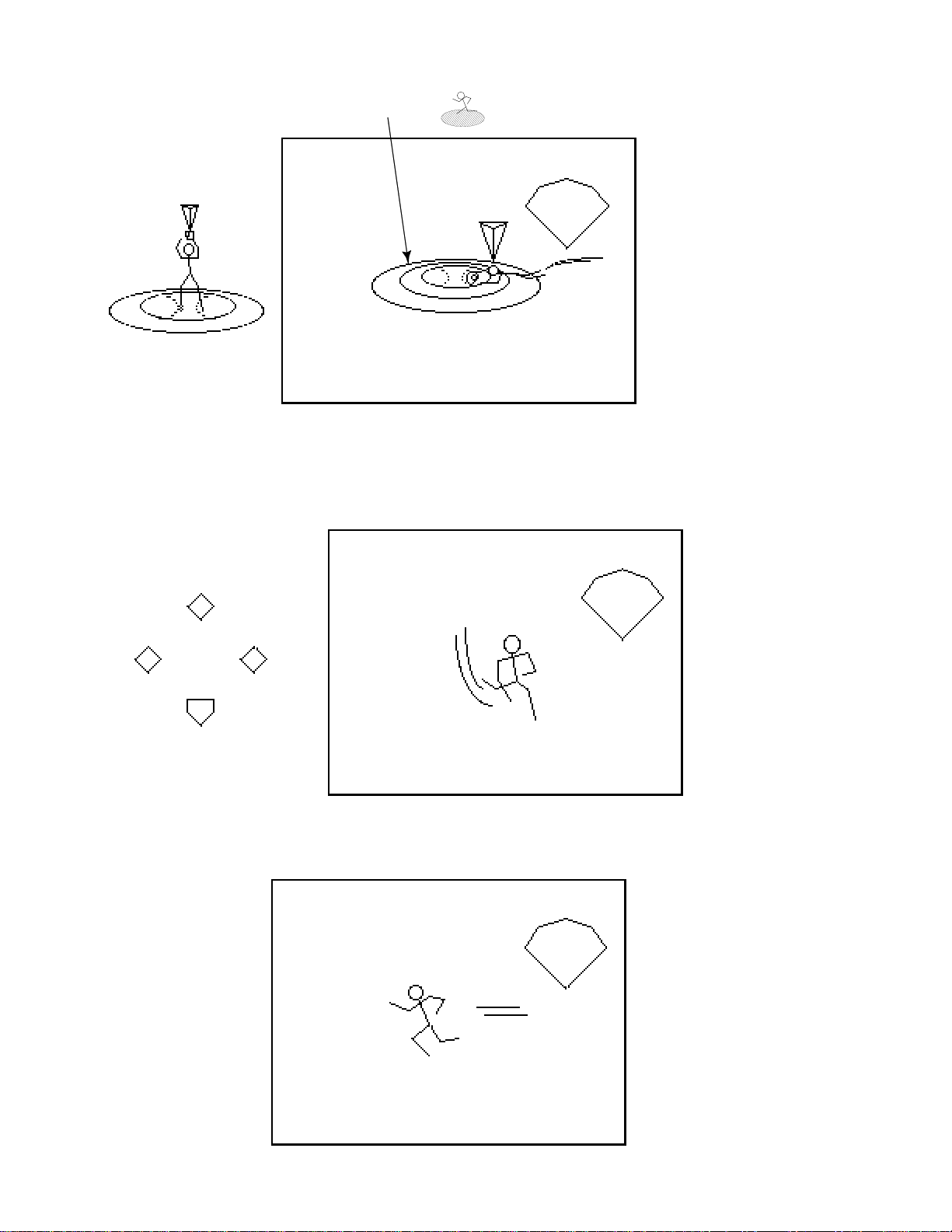

ANA OG EVER: Move cursor (for throwing, batting); Specify base (for
defense, base running)
A BUTTON: Throw (for defense); Steal base (for batting); Advance to
next base (for base running)
Enter command (within command acceptance time)
B BUTTON: Check runner (for throwing); Move between bases (for
defense); Return to base (for running)
Enter command (within command acceptance time)
BAT MECHA: Swing
START: Start game; Time out (for throwing, batting)
The analog input on the I/O board uses the following channels:
CH0 : 1P ANA OG EVER VO UME VERTICA UP(FFH) DOWN(00H)
CH1 : 1P ANA OG EVER VO UME HORIZONTA EFT(FFH)
RIGHT(00H)
CH2 : 1P BAT MECHA VO UME STANDARD POS.(00H) MAX(FFH)
CH3 : (RESERVE)
CH4 : 2P ANA OG EVER VO UME VERTICA UP(FFH) DOWN(00H)
CH5 : 2P ANA OG EVER VO UME HORIZONTA EFT(FFH)
RIGHT(00H)
CH6 : 2P BAT MECHA VO UME STANDARD POS.(00H) MAX(FFH)
CH7 : (RESERVE)
HORIZONTAL
Monitor Position
FFH
START
1P 2P
00H ABUTTON
BBUTTON
FFH 00H
FFH
00H
FFH
00HABUTTON
BBUTTON
FFH 00H
FFH
00H
ANALOG
LEVER BAT MECHAANALOG LEVER BAT MECHA
PLAYER 1 PLAYER 2
Minimum DIMM Memory Capacity
256 MB
1
2
3

4
Removing and Attaching the BAT MECHA
If you need to remove the BAT MECHA as in the case of a failure, open the
control panel base and remove the BAT MECHA through the following
procedure.
To reinstall the BAT MECHA, reverse the removing procedure, being certain that
the BAT MECHA is faced in the correct direction.
For instructions on opening the control panel base, refer to the Instruction Manual
of the cabinet.
To prevent electric shock, be sure to turn off the power for the cabinet when
removing or attaching the BAT MECHA.
The above figure does not show the wiring of the volume and its connector (AMP
3P, white).
Remove the wiring connector (AMP 3P, white) located near the volume.
Remove the tamperproof screw clamping the bat center axis on the front side of
the control panel.
Tightening/loosening of the tamperproof screw should use the tamperproof screw
M4 wrench (540-0006-01) that is included as an accessory for the NAOMI
CABINET, NET CITY, and NEW ASTRO CITY cabinet.
The tamperproof screw M4 wrench is not included with the following cabinets:
Versus CITY, New VERSUS CITY, and B AST CITY.
If the wrench is not available, please order the following part numbers:
• Wrench type (M4): 540-0006-01
• Screwdriver type (M4): 540-0018
Remove the four flange nuts clamping the BAT MECHA body on the back side of
the control panel.
BAT MECHA Part number: 610-0409
Part name: ASSY BAT MECHA
123
123
1
2
3

5
3. CONTENTS OF GAME
• This is a sports action game where the Major eague Baseball in the United States
of America was taken as a subject matter.
• In this game, the following teams appear: 14 American and 16 National teams,
and two all-star teams from the two leagues.
• The number of players appearing in the game is over 700. All of the 30 really
existing ballparks also appear there.
• The game player or players operate their favorite teams to participate in the
baseball game, aiming at the win.
• The following play modes are available: Player vs. CPU, Player vs. Player, and
Game of Intrusion.
• First select your favorite from the 32 teams.
Use the lever to designate the selected team, and use the A Button for
determination. This applies also to all the subsequent operations.
• Next select the desired one from the 30 ballparks.
• Then select the starting pitcher. You can select the desired pitcher from the five
candidates appearing on the screen.
• Finally select one of three levels: Easy, Standard, and Hard. The fielding strategy
you use depends on the level you selected.
EGEND - HARD -: Hard.
Both catching and throwing the ball are operated by the
player. The speed of the pitched ball, i.e., pace, is the
maximum.
VETERAN - MEDIUM -: Standard.
Both catching and throwing the ball are operated by the
player. The pace is the standard.
ROOKIE - EASY -: Easy.
All the operations to catching the ball are made by the
CPU. All the subsequent operations are made by the
player.
The pace is the minimum.
• The game start.
The shortest way to the win is to take advantage of the strong points of the
individual baseball players to play the game.
• Apart from the score of the actual baseball game, game points may increase or
decrease, depending on the contents of the baseball game.
If the resulting number of game points is listed at an upper rank when the game is
cleared, your name is included in the entry.
• In the Player vs. CPU or Player vs. Player mode, the game is cleared if the play
continues until the entire baseball game ends, and if you have won, you see the
ending.
• If the difference in score reaches the preset value during the progress of the game,
the game is immediately treated as a called game, resulting in Game Over.
HOW TO P AY THE GAME

6
Pitching & Batting Screen
Batter's (Batting) Team
By operating the lever,
select the direction of the
Pitch Type Marker arrow
to select the expected
pitch type.
Pull the batting switch
toward you and keep it
there until the pitcher
pitches the ball.
Pitcher's (Fielding) Team
By operating the lever,
select the pitch type by the
direction of the Pitch Type
Marker arrow.
Press the A Button to
initiate the pitch.
The pitching gauge
appears next to the pitcher
on the screen.
1P 123000080 RECORD 200378000 2P 8921000
ABC
XYZ
The baseball player and ball
positions on the ground.
Information in Game
Game Points
(Differs from the actual score
of the baseball game.)
First Base Window
Third Base Window Pitch Type Marker
• The settings in GAME ASSIGNMENTS in the Test Mode control how the game
ends:
EXTRA INNING: If this is ON, the extra part of the baseball game continues to
a maximum of 12th innings.
If this is OFF, the baseball game ends when the bottom of the
ninth inning ends (even if the score is even, i.e., the game is
drawn).
CA ED GAME: Can be set in the 5 to 10 range.
When the difference in score reaches the setting, the baseball
game ends (even if the bottom of that inning is not yet
completed).
• If the game play begins at the other seat while a player is in progress at either 1P
or 2P seat, you enter the Game of Intrusion Mode.
For any play in the Game of Intrusion Mode, the starting inning varies with the
GAME ASSIGNMENTS settings.
INNINGS: For 1 inning, the game begins at the top of the ninth inning.
For 2 innings, the game begins at the top of the eighth inning.
For 3 innings, the game begins at the top of the seventh inning.
For all innings, the game begins at the top of the first inning.
In the Game of Intrusion Mode, the game may continue to up to the bottom of the
ninth inning. The winner can subsequently continue the play in the Player vs.
CPU Mode.
If a draw results from a baseball game in the Game of Intrusion Mode, Game
Over results for both of the players.
GAME SCREEN

7
Batter's (Batting) Team
By operating the lever,
move the batting
cursor to aim at the
ball.
Release the batting
switch timely to hit the
ball.
Pitcher's (Fielding) Team
Select the course of the
ball using the lever.
While observing the
pitching gauge, press the
A Button timely (best
when MAX appears at the
top of the game).
1P 123000080 RECORD 200378000 2P 8921000
ABC
XYZ
1P 123000080 RECORD 200378000 2P 8921000
ABC
XYZ
Pitching Gauge
Batting CursorStrike Zone
Batter's (Batting) Team
If your expectation
turns out right, the
batting cursor is
highlighted and the
probability of hit
increases.
Pitcher's (Fielding) Team
Pressing the button timely
improves all of the speed
and control of the ball and
the sharpness of breaking
balls.
If you press the button
untimely (too early or late),
all of the speed and control
of the ball and the
sharpness of breaking balls
will be poor reversely.
The cursor shape changes depending on the
expected pitch type.
If your expectation turns out right, the ball
will be hit more easily and to a further
point, with the cursor color changed.

8
Fielding Screen
1P 123000080 RECORD 200378000 2P 8921000
1P 123000080 RECORD 200378000 2P 8921000
1P 123000080 RECORD 200378000 2P 8921000
anding Point
OUT
OUT
Fielding Team
Using the lever, move a
fielder to the expected
landing point of the ball.
By pressing the B Button, you
can replace the field you want
to move.
When approximating to the
ball, the fielder automatically
catches the ball.
For example, the ball is
occasionally carried away by
wind.
If you press the A Button
timely, the fielder exhibits a
super catch by fine play.
If you selected ROOKIE-
EASY- for the level at the
start of the game, the above
operations are unnecessary.
Throw/Shift
Select the desired
base using the lever.
Pressing the A Button
causes the fielder to
throw the ball to the
base you selected.
Pressing the B Button
causes the fielder to
run toward the base
you selected.
HOME BASE
ever Down: Home Base
1st BASE
ever Right: 1st Base
2nd BASE
ever Up: 2nd Base
3rd BASE
ever eft: 3rd Base
Base running
Select the desired base using
the lever.
Pressing the A Button causes
the fielder to run toward the
base you selected.
Pressing the B Button causes
the fielder to return to the
previous base.
While you hold the A and B
Buttons together, the field
stays there.

9
Pitch Type Marker
The pitch type marker shows the available pitch types.
FAST BA
S IDER
SCREW
BA
CURVE
SINKER
CHANGE-UP
FORKBA
ETC.
FAST BA
S IDER SCREW
BA
CURVE SINKER
CHANGE-UP
FORKBA
ETC.
For left-handerFor right-hander
Original ability of pitcher
Batting Cursor
If you successfully expect the actual pitch type, the shape of the batting cursor
changes.
If your entered expectation turns
right, the cursor turns red.
If you expect and enter FAST BA
(or enter nothing):
If you expect and enter CURVE
(or SINKER for left-hander):
If you successfully
expect the actual pitch
type, the shape of the
batting cursor changes.
Currently remaining ability

10
NAMES AND ABBREVIATIONS OF THE TEAMS AND BA PARK NAMES
APPEARING IN THE GAME
The team names are listed alphabetically.
American eague
1. Anaheim Angels/ANA
:Edison International Field
2. Baltimore Orioles/BA
:Oriole Park at Camden Yards
3. Boston Red Sox/BOS
:Fenway Park
4. Chicago White Sox/CHW
:Comiskey Park
5. Cleveland Indians/C E
:Jacobs Field
6. Detroit Tigers/DET
:Comerica Park
7. Kansas City Royals/KC
:Kauffman Stadium
8. Minnesota Twins/MIN
:Hubert H.Humphrey Metrodome
9. New York Yankees/NYY
:Yankee Stadium
10. Oakland Athletics/OAK
:Network Associates Coliseum
11. Seattle Mariners/SEA
:SAFECO Field
12. Tampa Bay Devil Rays/TB
:Tropicana Field
13. Texas Rangers/TEX
:The Ballpark in Arlington
14. Toronto Blue Jays/TOR
:SkyDome
National eague
1. Arizona Diamondbacks/ARI
:BankOne Ballpark
2. Atlanta Braves/AT
:Turner Field
3. Chicago Cubs/CHC
:Wrigley Field
4. Cincinnati Reds/CIN
:Cinergy Field
5. Colorado Rockies/CO
:Coors Field
6. Florida Marlins/F A
:Pro Player Stadium
7. Houston Astros/HOU
:Enron Field
8. os Angeles Dodgers/ A
:Dodger Stadium
9. Milwaukee Brewers/MI
:Miller Park
10. Montreal Expos/MON
:Olympic Stadium
11. New York Mets/NYM
:Shea Stadium
12. Philadelphia Phillies/PHI
:Veterans Stadium
13. Pittsburgh Pirates/PIT
:PNC Park
14. St. ouis Cardinals/ST
:Busch Stadium
15. San Diego Padres/SD
:Qualcomm Park at Jack Murphy Stadium
16. San Francisco Giants/SF
:Pacific Bell Park

11
4. TEST MODE
A. SYSTEM MENU
When settings are changed in SYSTEM ASSIGNMENTS, COIN
ASSIGNMENTS, and GAME ASSIGNMENTS of GAME TEST MODE,
be sure to exit from the test mode of SYSTEM MENU screen. The contents
of setting changes are stored in the IC on the BOARD when exiting from
the Test Mode. If the power is turned off in the Test Mode (before exiting),
the contents of setting changes are ineffective. In this case, the settings
remain unchanged.
This test mode mainly allows the IC Board to be checked for accurate functioning,
monitor color to be adjusted as well as COIN ASSIGNMENTS and GAME
ASSIGNMENTS to be adjusted.
1) After turning power on, press the TEST Button to have the following SYSTEM
MENU displayed.
2) Press the SERVICE Button to move the arrow. Bring the arrow to the desired
item and press the TEST Button.
3) Press the TEST Button in the GAME TEST MODE to display the GAME
TEST MENU peculiar to this game. See the next page onward.
4) Upon finishing the test, bring the arrow to EXIT and press the TEST Button to
return to the Game mode.
For detailed explanations as regards the SYSTEM TEST MODE, refer to
GD-ROM SERVICE MANUA (420-6620-01).
SYSTEM MENU
RAM TEST
JVS TEST
SOUND TEST
C.R.T. TEST
SYSTEM ASSIGNMENTS
COIN ASSIGNMENTS
BOOKKEEPING
BACKUP DATA C EAR
C OCK SETTING
DIMM BOARD TEST
GAME TEST MODE
[XXXXXXXXX ]
-> EXIT
SE ECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
1 2 3 144424444443
In the SYSTEM ASSIGNMENTS,
CABINET TYPE is set to 2 P AYER(S),
MONITOR TYPE is set to HORIZONTA ,
and SERVICE TYPE is set to COMMON.
CCOIN ASSIGNMENTS settings as follows:
COIN CHUTE TYPE: COMMON
COIN/CREDIT SETTING:
You may set COIN/CREDIT SETTING and/or SEQUENCE
optionally.
SEQUENCE SETTING of COIN ASSIGNMENTS functions
as follows:
SEQUENCE 1: Number of credits required for game start
(1~5)
SEQUENCE 2: Number of credits required for CON-
TINUE(1~5)
SEQUENCE 3 ~ 8: NOT USED.
STOP
IMPORTANT

12
B. GAME TEST MODE
By selecting "GAME TEST MODE" and pressing the TEST Button on the
System Test Menu Screen, the Test Mode Menu Screen (Game Test Mode Menu
Screen) appears, which is unique to this game.
• Pressing the SERVICE Button moves the arrow (->) on the screen. By moving the
arrow, select the item you want to run.
• Pressing the TEST Button runs the currently selected item. You are brought to the
screen for that item, and can change or adjust the settings.
• With "EXIT" selected, pressing the TEST Button returns you to the System Test
Menu Screen.
• All the subsequent GAME TEST MODE operations can basically be made using
the B and A Buttons instead of the SERVICE and TEST Buttons.
SERVICE Button - B Button
TEST Button - A Button
GAME TEST MENU
INPUT TEST
GAME ASSIGNMENTS
VO UME SETTING
BOOKKEEPING
BACKUP DATA C EAR
-> EXIT
SE ECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
GAME TEST MENU Screen

13
This test checks the input devices.
Using this screen, check the input devices periodically.
Pressing the TEST and SERVICE Buttons together returns you to the Game Test
Menu Screen.
INPUT TEST
1P_START :OFF 2P_START :OFF
1P_ABUTTON:OFF 2P_ABUTTON:OFF
1P_BBUTTON:OFF 2P_BBUTTON:OFF
TEST-SW :OFF SERVICE-SW:OFF
1P_ EVER:(80,80) 2P_ EVER:(80,80)
1P_BAT : 80 2P_BAT : 80
PRESS TEST AND SERVICE BUTTON TO EXIT
INPUT TEST Screen
a. INPUT TEST
Operate each of the input devices. If the indication at the right of the device label
changes from OFF to ON, the device is normal.
EVER and BAT indicate the lever and batting switch volume control values,
respectively. Check whether each of the values changes and the cursor moves
smoothly according to the lever or batting switch operations you make.
• ever and batting switch settings
EVER:Check that, when you move the lever fully to the top, bottom, left, or
right, the cursor, marked by a circle (Åõ) in the figure, moves securely
from an end to another in the frame while the value below the frame is
changing.
BAT: Check that, when you move the batting switch fully from an end to
another in the movable range, the cursor, marked by horizontal bars in
the figure, moves securely from the top (or bottom) to the bottom (or
top) while the value below the frame is changing.
If the cursor does not move from an end to another, retry to set a proper value
with VO UME SETTING and then perform the recheck on this Test Screen.

14
Once you have made change to the settings, select and run EXIT and
exit the GAME TEST MODE. The new settings do not take effect
until this mode is exited.
b. GAME ASSIGNMENTS
This screen lets you make change to the game difficulty and other settings.
Changing Procedure
Press the SERVICE Button to move the arrow to the item to which you want to
make change.
Pressing the TEST Button changes the indication located at the right of the
currently selected item. Change it to the desired one.
Press the SERVICE Button to select EXIT, and press the TEST Button. This
returns you to the Game Test Menu Screen.
GAME ASSIGNMENTS
DIFFICU TY NORMA
INNINGS 2 INNINGS
EXTRA INNING ON
CA ED GAME 10
INITIA TEAM 1P NYY
2P NYM
-> EXIT
SE ECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
GAME ASSIGNMENTS Screen
STOP
IMPORTANT
1
2
3

15
• DIFFICU TY: Set the difficulty by changing the pitching speed of the
pitcher or modifying the CPU's routine of thinking. Set one
of the following five levels:
VERY EASY - EASY - NORMA - HARD - VERY HARD
Easier Harder
• INNINGS: Set the number of innings you can play with the start-enabled
(or continuable) credits.
When each setting has been made, an additional credit is
required each time any inning in parentheses (Å@) ends.
1 INNING setting: (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12)
2 INNINGS setting: (1, 2) (3, 4) (5, 6) (7, 8, 9) (10, 11, 12)
3 INNINGS setting: (1, 2, 3) (4, 5, 6) (7, 8, 9) (10, 11, 12)
A INNINGS setting: No additional credit is required even if you play the
extra part of the baseball game to a maximum of
12th innings.
• EXTRA INNING: Set whether the game may continue to extra innings.
If this is OFF, the game ends even if the score is even after
the end of the bottom of the ninth inning.
• CA ED GAME: Set the difference in score that allows the game to be
established as a called game. The value may be 5 to 10.
When the difference in score reaches the setting, the game
ends.
• INITIA TEAM: Set the team that is first selected on the Select Team Screen.

16
c. VO UME SETTING
Normal play is guaranteed only after all the input devices have been set
up properly.
Be sure to make the proper settings before you begin demonstration for
the selling purpose.
Once you have made change to the settings, select and run EXIT WITH
SAVE and exit the GAME TEST MODE. The new settings do not take
effect until this mode is exited.
This screen lets you set the sensitivity of the input devices.
If you are unsatisfied with the operability or have adjusted or replaced the volume
control of an input device, make the settings on this screen.
VO UME SETTING Screen
VO UME SETTING
P AYER1
EVER_H MAX(FFH) MIN(00H) NOW(80H)
EVER-V MAX(FFH) MIN(00H) NOW(80H)
BAT MAX(FFH) MIN(00H) NOW(00H)
P AYER2
EVER-H MAX(FFH) MIN(00H) NOW(80H)
EVER-V MAX(FFH) MIN(00H) NOW(80H)
BAT MAX(FFH) MIN(00H) NOW(00H)
EXIT WITH SAVE
-> EXIT WITHOUT SAVE
SE ECT WITH SERVICE BUTTON
AND
PRESS TEST BUTTON
STOP
IMPORTANT
