MD SPORTS 54805 User manual

MODEL/MODÈLE: 54805
S'il vous plaît nous contacter avant de retourner le produit
au magasin.
Numéro sans frais: 877-472-4296
Please contact us before returning the product to the store.
Toll Free: 877-472-4296
INSTRUCTIONS D`ASSEMBLAGE

LIMITED 90 DAYS WARRANTY
1
This product is covered by a limited warranty that is effective for 90 days
from the date of purchase. The warranty covers any defects in parts and
workmanship.
This Limited Warranty gives you specific legal rights and you may also have
other rights which very from one state (province) to another.
If, during the limited warranty period, a part is found to be defective or
breaks, we will offer replacement part at no cost to you, the customer. The
only exceptions to the warranty include main frames, tabletops, playing
surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper
usage, alteration, misuse, abuse, accidental damage or neglect.
Attention: Since you build all tables upside down, please inspect table tops
and playing surfaces right away before putting together.
“PLEASE SAVE THESE INSTRUCTIONS
AND PURCHASE RECEIPT!”
A PURCHASE RECEIPT (or other proof of purchase date) will be required
before any warranty service is initiated. All requests for warranty service can
be submitted by email, in writing or by contacting our Consumer service
Department at:
TOLL FREE: 877-472-4296
WEBSITE: www.medalsports.com.tw
*Please do not call our 800 NUMBER as well as email us. This will result in
duplicate orders and charges will occur.
*Please note that all damaged table tops need to be returned to the store.
We do not replace any tabletops or playing surfaces.
PLEASE CONTACT US BEFORE RETURNING THE
PRODUCT TO THE STORE. THANK YOU VERY MUCH!

Phillips Screwdriver – Not Included
Standard (Flat Head Screwdriver) – Not Included
Allen Wrench - Included
TOOLS REQUIRED:
ASSEMBLY TIPS:
:

!



!
2

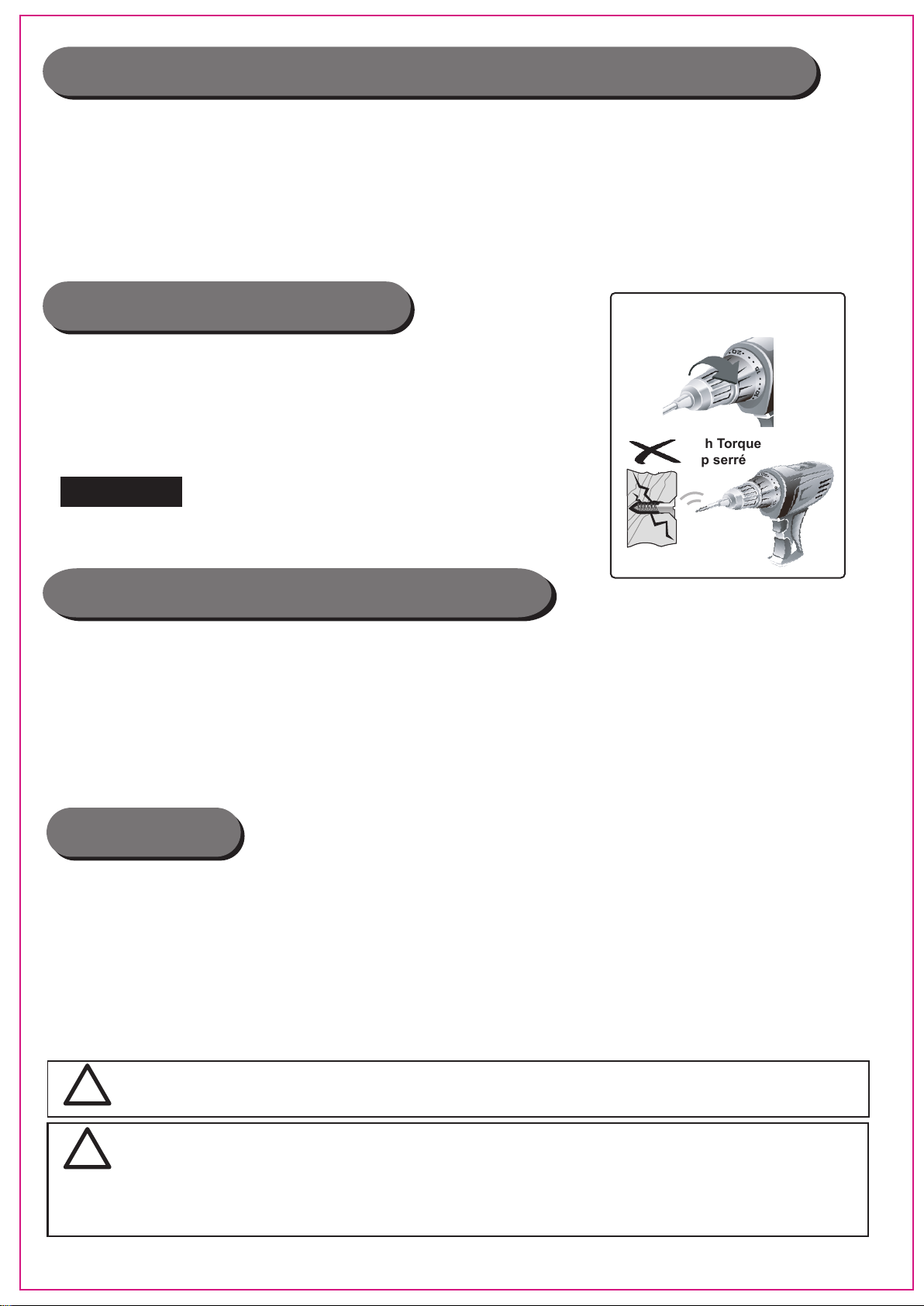

IMPORTANT NOTICE! Please contact us before returning the product to the store.
Please read the instructions carefully, and follow all assembly, operation or safety instructions
properly in order to avoid damage or injury. For the assembly, at least two adults are required.
Some figures or drawings may not look exactly like your product. Please read and understand
the text before beginning each assembly step.
1 -
2 -
Please Keep Your Instructions! Your Model number is necessary should you need to contact
us. Please read through this instruction manual book to familiarize yourself with all parts and
assembly steps. Kindly refer to the parts identifier below and be sure that all parts have been
included.
Although we are dedicated to giving our customers the best product possible, a question may
arise or parts may be missing. If you are missing parts, or, if you have any questions, please
contact our fast and friendly service centre on:
1 - This product is intended for INDOOR use only.
2 - Please Do Not sit, climb or lean on the game table.
3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.
4 - Please only use spray furniture polish to clean the exterior surfaces on the game table.
5 - This is not a child's toy, adult supervision is required for children playing this game.
877-472-4296
Power Tools
- Set Low Torgue
High Torque
over tightened
CAUTION !
Electric Screwdrivers may be helpful during
assembly; however, please set a low torque
and use extreme caution.

3

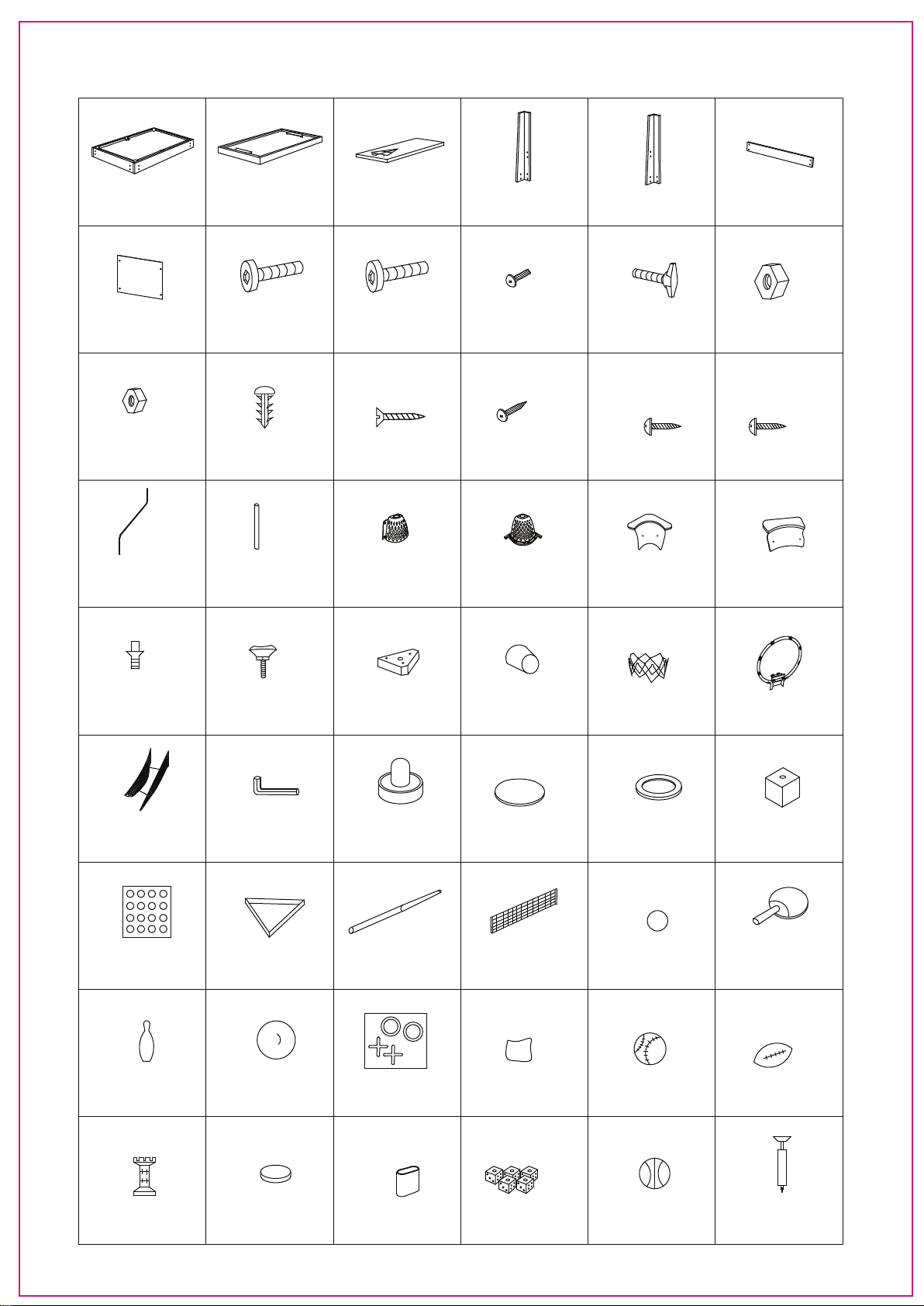

54805 PARTS IDENTIFIER
1 Piece
1 Piece
5 Pieces
1 Piece
1 Set
Chess Set
1 Set
8 Pieces4 Pieces 16 Pieces
8 Pieces 12 Pieces
4 Pieces
2 Pieces
2 Pieces 2 Pieces
1 Piece
1 Piece 2 Pieces
#53 #54#52#51#50#49
Dice Box
Backgammon
Checker Set Basketball
Dice Air Pump
1 Set
Tic-Tac-Toe
Bowling Pin Bowling
1 Set 1 Piece
Baseball
1 Piece
4 Pieces
Bean Bag
1 Piece
Foot Ball
2 Pieces
36'' Cues
#43 #45
#44
1 Set
1.5'' Pool Balls
1 Piece
1.5'' Triangle
#47
#46 #48
2 Pieces
Table Tennis Ball
Table Tennis Net
1 Piece 2 Pieces
Table Tennis Bat
#37 #38 #39 #41
#40 #42
Hockey Pusher
Basketball
Return Net Allen key Hockey Puck
Felt Pad Chalk
Plastic Leg Base
4 Pieces
8mm Leg Leveler
Rivet Plug
2 Pieces
#31 #32 #33
4 Pieces

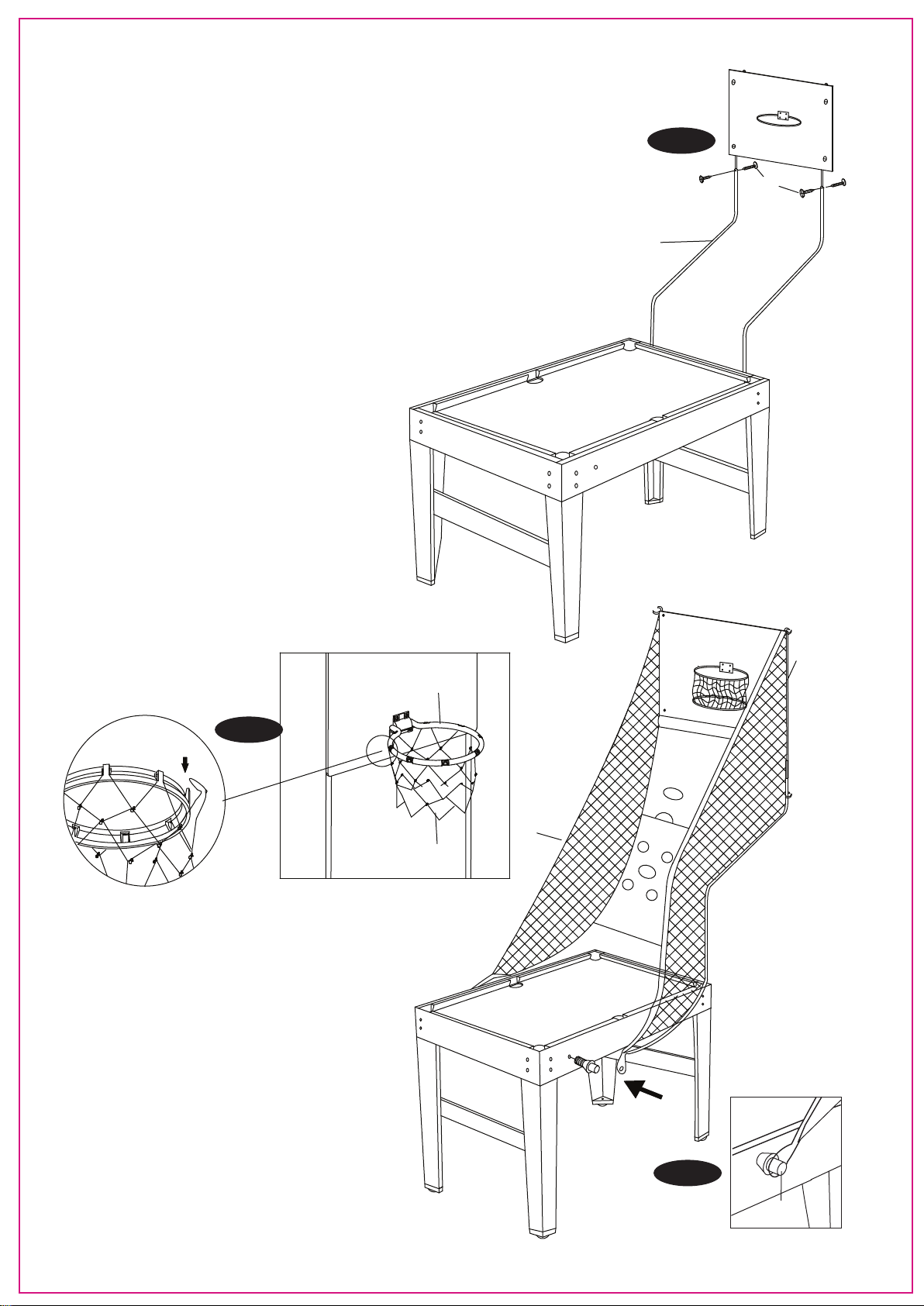

Basketball Net Rim
Rod Cap
1 Piece
#34 #35
2 Pieces
#36
1 Piece
2 Pieces
Corner Pocket
#27
#26
#25

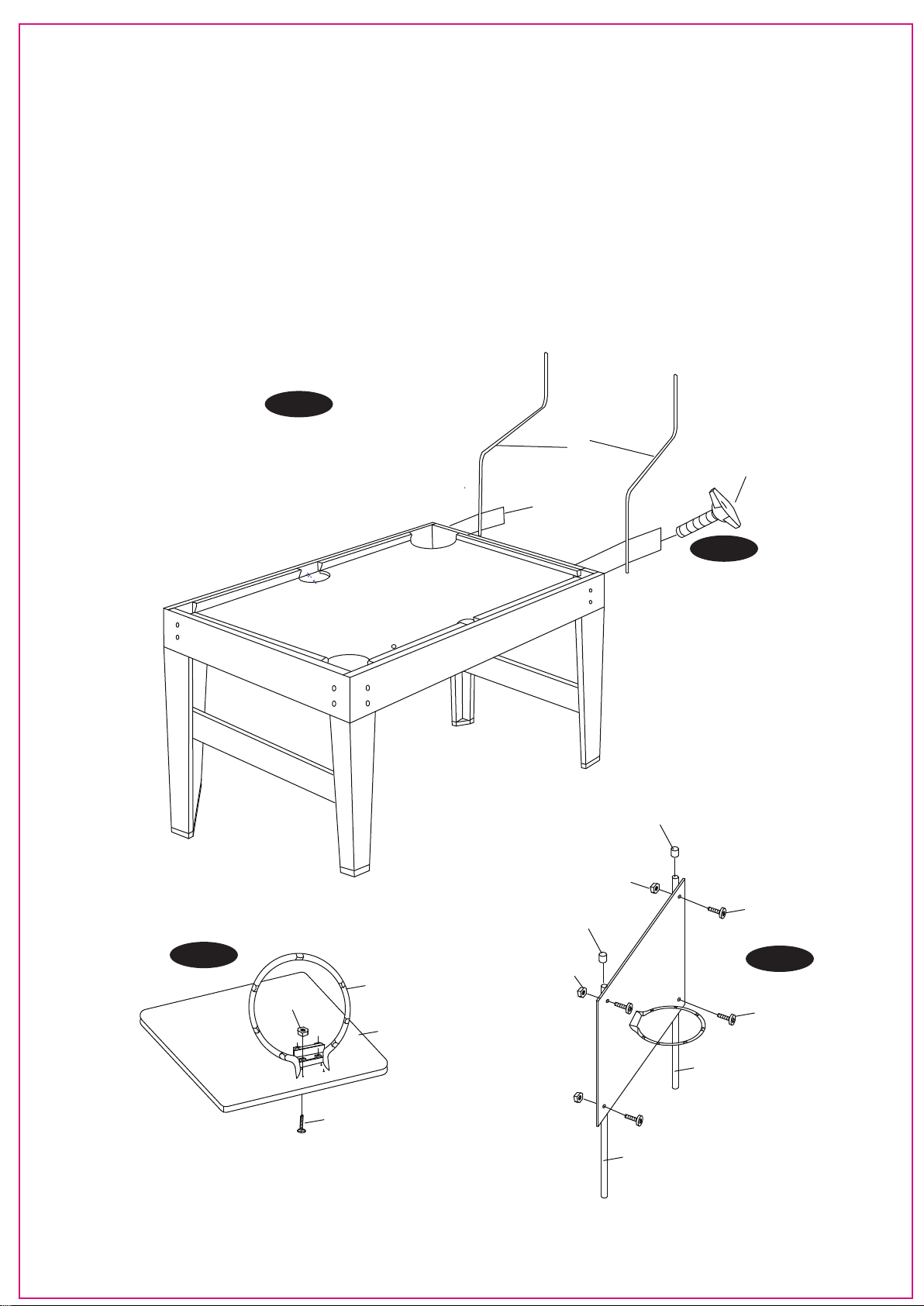

Crooked Pole
2 Pieces
Short Pole
2 Pieces
#30#29
#28
4 Pieces
Corner Basket
4 Pieces
Side Pocket
2 Pieces
Side Basket
#19 #21
#20 #22 #23 #24
F3*1/2" Screw
4mm Lock Nut Plastic Screw 4*15mm Screw
P3.5*8mm Screw 4*12mm Screw
4 Pieces
1/4''*1-1/8'' Bolt
Basketball Board 5/16'' *1'' Bolt
1 Piece
#13 #15
#14
12 Pieces
1/4'' Hex Nut
5/16'' Butterfly Bolt
4*12mm Bolt
4 Pieces
#17
#16
4 Pieces
#18
4 Pieces
Bowling Board
1 Piece
#9
#8
#7
1 Piece
Billiard Cabinet
1 Piece
#12
#11
#10
2 Pieces
Right Leg
2 Pieces
Left Leg
2 Pieces
Leg Side Panel
#1 #2 #3 #5
#4 #6
Hockey Table
With Table Tennis
Backgammon With

4

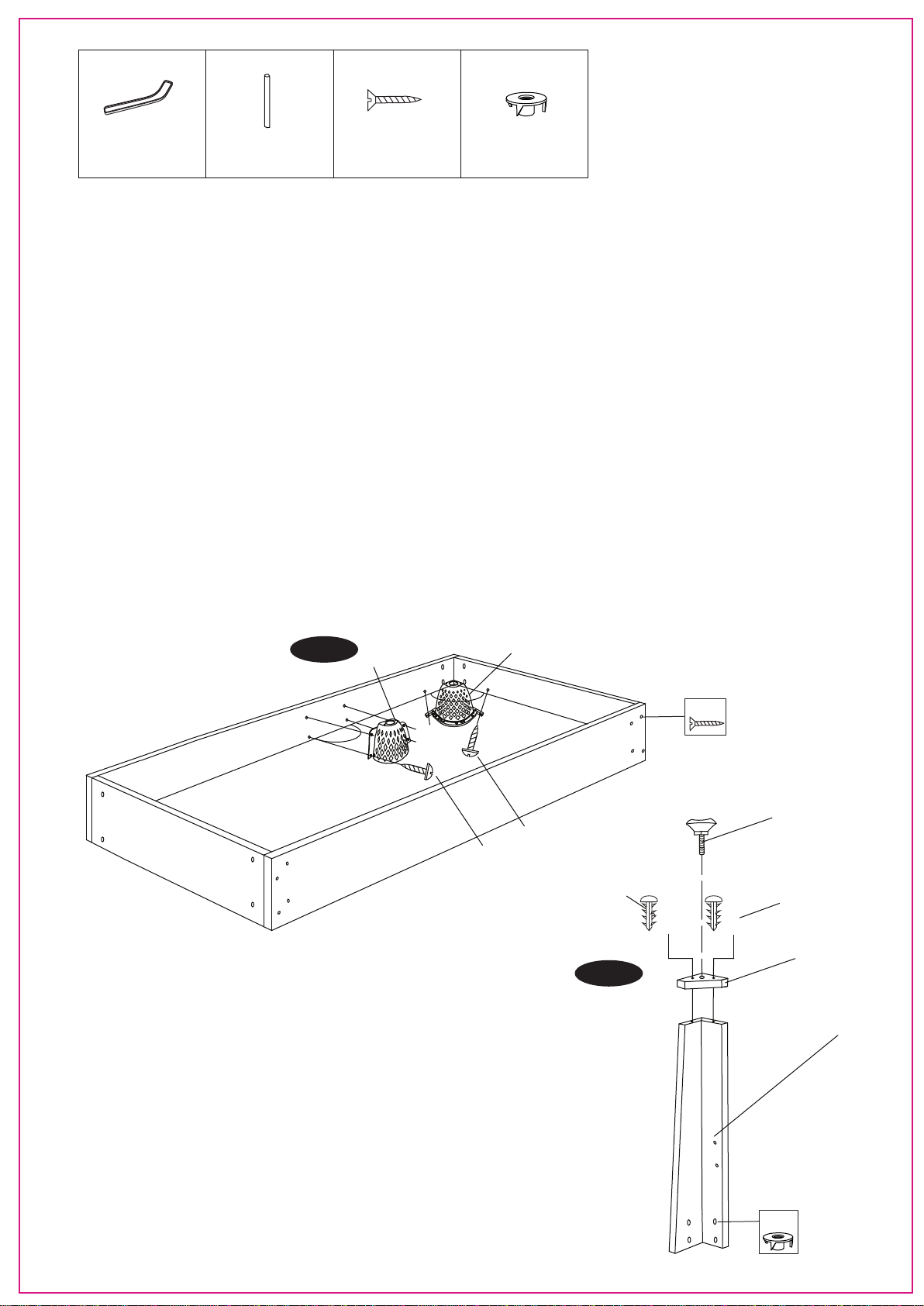

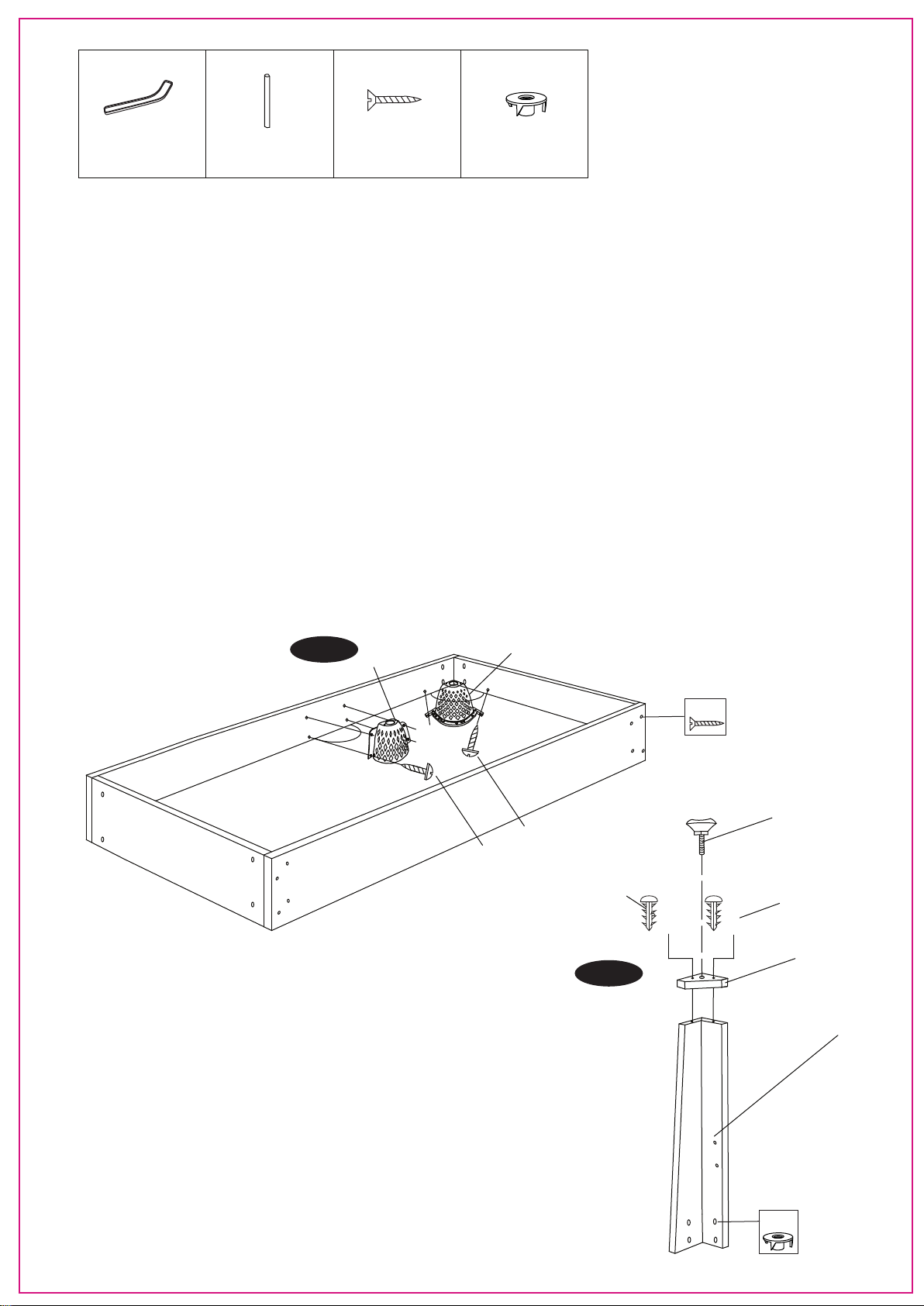

FIG.1 POCKET ASSEMBLY
FIG.2 LEG ASSEMBLY
ASSEMBLY INSTRUCTIONS
FIG.1
1. Find a clean, level place to begin the assembly of your Combo Table. The table will be
assembled upside down and then turned over on its legs once the assembly completed.
This game table is heavy, and turning it over will require at least two strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown
on the parts identifier below. Carefully cut or tear the four corners of the box so that the
bottom of the box can be used as your work surface.
3. Attach the Side Pocket (#21) to the bottom of Billiard Cabinet (#1) using four Screws (#17)
per Side Pocket. See FIG.1.
4. Attach the Corner Pocket (#22) to the bottom of Billiard Cabinet (#1) using two Screws (#18)
per Corner Pocket. See FIG.1.
5. Repeat the steps above for the other pockets.
6. Attach the Plastic Leg Base (#27) to bottom of the
Left (#4) and Right(#5) Leg using two Plastic Screws
(#14) per Leg Base. See FIG.2.
7. Next, screw the Leg Leveler (#26) into the top of the
Leg Base (#27). See FIG.2.
18
17
1
21 22
FIG.2
4
26
14
27
14
#55
Hockey stick
2 Pieces
#56
Table tennis post
2 Pieces
#1A
F4 x 1-1/4”
Flat Head Screw
8 Pieces
Pre-installed
Nut
16 Pieces
#4A Pre-installed
4A
1A
