Thank you for choosing a Jensen product. We hope you will nd the instructions
in this owner’s manual clear and easy to follow. If you take a few minutes to look
through it, you’ll learn how to use all the features of your new Jensen VM9725BT
Mobile Multimedia Receiver for maximum enjoyment.
CONTENTS
Features..................................................................................................................3
Controls and Indicators.........................................................................................6
Remote Control......................................................................................................8
Operating Instructions........................................................................................14
Steering Wheel Controls .....................................................................................22
Settings Menu......................................................................................................23
Tuner Operation ..................................................................................................31
DVD/VCD Video Operation .................................................................................37
DVD/CD Audio Operation ...................................................................................43
MP3/WMA Operation ..........................................................................................47
iPod®/iPhone® Operation....................................................................................53
Pandora Operation..............................................................................................57
Bluetooth Operation ...........................................................................................61
SiriusXM® Radio Operation.................................................................................70
Rear Camera Operation.......................................................................................80
Troubleshooting ..................................................................................................81
Care and Maintenance ........................................................................................85
Specications.......................................................................................................86
Common Replacement Parts ..............................................................................87

3
VM9725BT
FEATURES
Congratulations on your purchase of the Jensen VM9725BT Mobile Multimedia
Receiver. It’s a good idea to read all of the instructions before beginning the
installation. We recommend having your Jensen VM9725BT installed by a reputable
installation shop.
DVD
• Fast Forward/Reverse - 2X, 4X, 8X, and 20X
• Slow Motion Forward/Reverse - 1/2, 1/4, 1/6, and 1/8
• Play, Pause, Stop, Next Chapter, and Previous Chapter
CD / MP3 / WMA
• CD-Text Compatible
• ID3 Tag Compatible
• Directory Search (MP3 / WMA Only)
• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW
• Audible Forward / Reverse Track Search (CD-DA Only)
• Random, Repeat and Intro
• Play, Pause, Stop, Next Track, and Previous Track
AM-FM
• USA / Europe / Latin America / Asia Frequency Spacing
• 30 Station Presets (18 FM / 12 AM)
• Auto Stereo / Mono
• Local / Distance
• Auto Store / Preview Scan
iPod®/iPhone®
• iPod®/ iPhone® via USB
• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums
and Songs. Play music and view video/photo* les from your iPod®. *Video/photo
playback requires jLink-USB iPod® interface cable (sold separately).
• Power Management Charges iPod® while Connected
SiriusXM® Ready
• Satellite Channel Name, Artist, Song and Categories Displayed on Monitor

4
VM9725BT
Chassis
• 2.0 DIN (Import / ISO-DIN Mountable)
• Fixed Front Panel
• 6.2” High Denition TFT LCD
• 1,152,000 Sub Pixels (800 x 3 X 480)
• Beep Tone Conrmation (ON-OFF Option)
• Heat Management System - Forced-Air Cooling To Keep The Chip-Sets Operating
at Nominal Temperatures
General
• Built-In Bluetooth® with external microphone, providing Hands-Free operation
for safety and convenience and A2DP for streaming music from your
smartphone or other Bluetooth® device.
• One Composite Video Output for Additional Screens
• Front Panel Audio/Video Input
• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ Curves
• Front Panel A/V Aux Input for Portable Media Devices
• Rear Subwoofer Line Output
• Programmable Volume Control
• Rear Camera Input (Normal and Mirror Image View)
• Touch Screen Calibration Mode
• 4VRMS Line Output - All Channels
• Rotary Encoder Audio Control
• Front / Rear / Sub Line Output
• Rear USB Input
Navigation
• TTS Voice Guidance – Street Names Announced
• English, French and Spanish TTS Voice
• Tele Atlas Map Data
• 11 Million Points of Interest
• 4GB SD Card with Continental US, Alaska, Hawaii, and Puerto Rico
• Latest Map Guarantee (Limited time only - Must be used within 90 days of
initial activation)
Rear Camera
The VM9725BT is “camera ready.” Before accessing any camera features, you must
purchase and install a rear video camera. Once the camera is connected and
operating properly, the CAMERA source mode will become active. While the
camera is not installed, the CAMERA option appears gray, indicating the function
is not available.

5
VM9725BT
WARNING! Never install this unit where operation and viewing could interfere
with safe driving conditions.
WARNING! To reduce the risk of a trac accident (except when using for rear
view video camera) never use the video display function while driving the
vehicle. This is a violation of federal law.
WARNING! Never disassemble or adjust the unit.
WARNING! To prevent injury from shock or re, never expose this unit to
moisture or water.
WARNING! Never use irregular discs.

6
VM9725BT
CONTROLS AND INDICATORS
NAV
SRC
EJECT
1
2
3
4
7
11
10
12
5
OPEN
VM9725BT
8
9
14
13
6

7
VM9725BT
1. Disc Slot
2. EJECT Button
Press to eject a disc.
3. SRC Button
Press to switch between the available audio/video sources applied to the unit.
4. NAV Button
Press to toggle back and forth between the navigation and currently selected
source.
5. Internal Microphone
Internal microphone for Bluetooth calls.
6. Reset Button
Press to reset system settings to factory default (except password and parental
lock settings).
7. Rotary Encoder / Power On/O ( ) Button
Rotate to adjust the volume. Press momentarily to activate the MUTE function.
Press again to resume normal listening.
Press to turn the unit ON. Press and hold to turn the unit OFF.
8. Remote Sensor
9. USB/SD/AV Interface Connector Cover
10. USB Interface Connector
Connect a USB device for playback of music/video les.
11. SD Interface Connector
Insert an SD card for playback of music/video les.

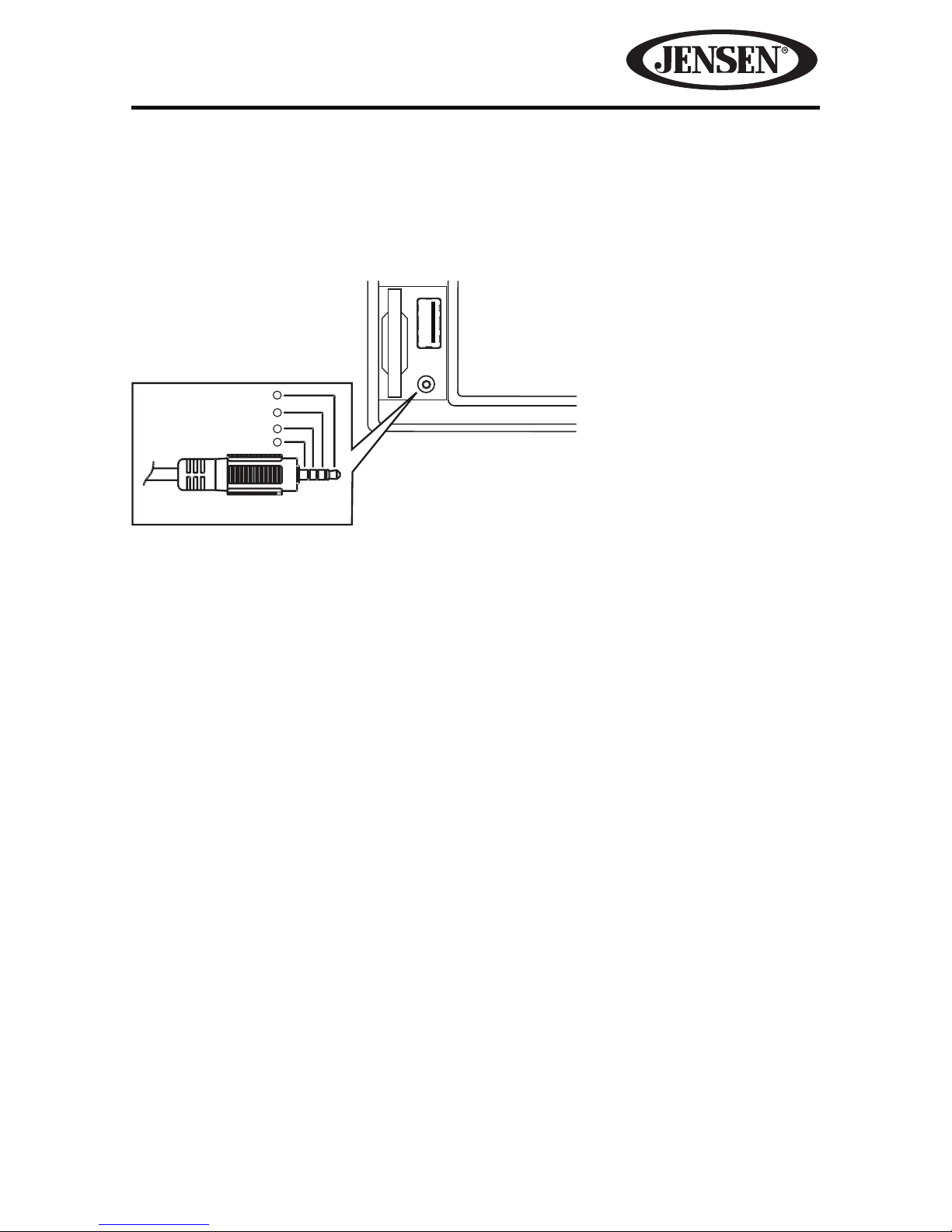

12. A/V Input
Accepts a 3.5mm jack through which signals from various audio/video devices
can be applied to the unit.
13. TFT Display
14. Map Cover
Covers the Mini SD card slot. The Mini SD card is used for the Navigation Map
only, not for music or other les. This may be used for rmware updates if
required.

8
VM9725BT
REMOTE CONTROL

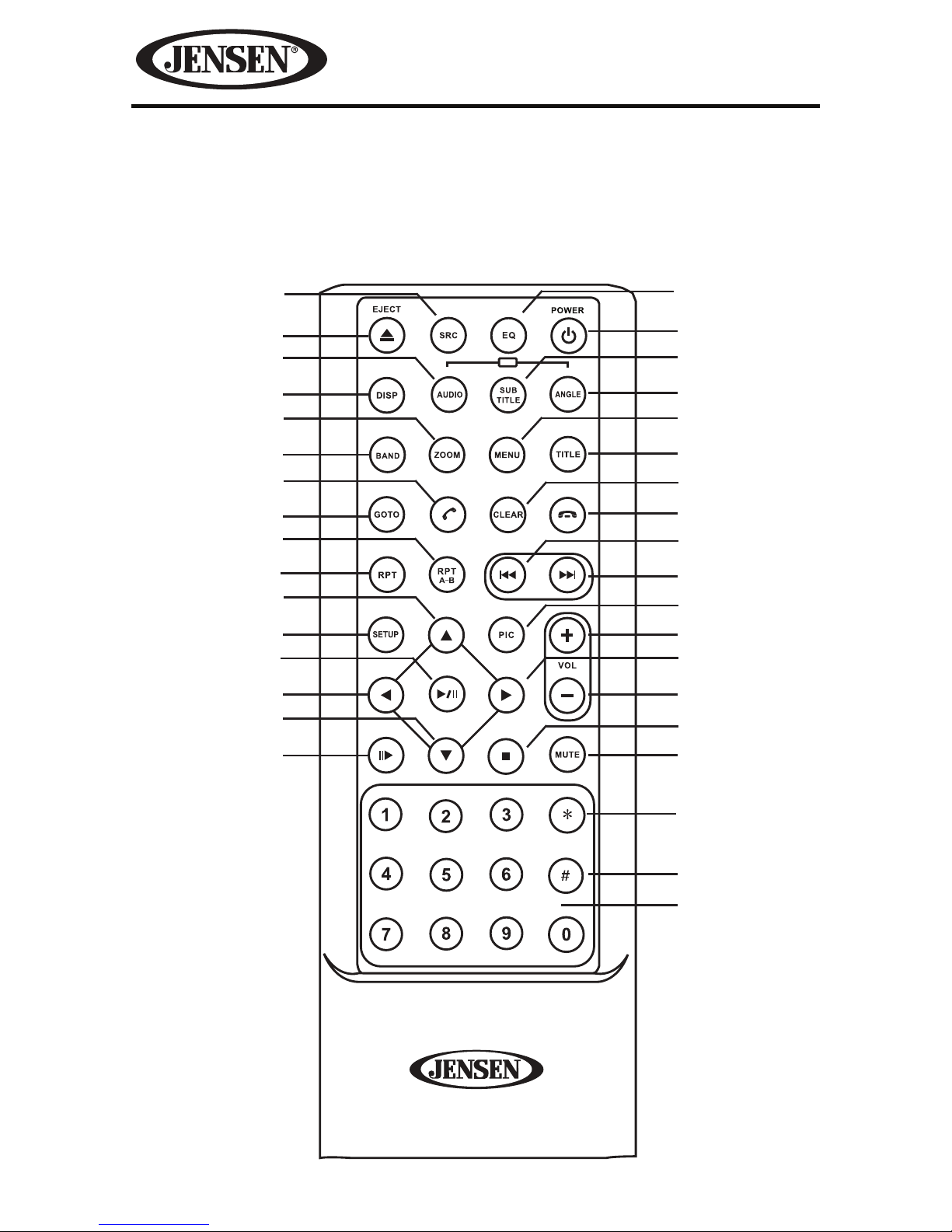

See Table 1 for remote control functions.
MUSIC PHOTO VIDEO
iPod
SCN
MIX
1
2
9
13
16
18
19
10
14
11
17
15
6
5
4
7
3
8
12
26
27
20
21
22
23
24
25
28
29
30
31
32
33
34
35

9
VM9725BT
Table 1: Remote Control Functions
Button Function
Name # DVD VCD TUNER CD/MP3/
USB
iPod
EQ 1 Accesses
equalizer
menu.
Accesses
equalizer
menu.
Accesses
equalizer
menu.
Accesses
equalizer
menu.
Accesses
equalizer
menu.
POWER
( ())
2 Turns the
power on/
o.
Turns the
power on/
o.
Turns the
power on/
o.
Turns the
power on/
o.
Turns the
power
on/o.
PHOTO/
SUBTITLE
3 Language
selection
for
subtitle.
Selects
mode.
VIDEO/
ANGLE
4 Plays back
disc in
dierent
angle for a
scene.
Plays back
CD with
dierent
angle of
displayed.
Selects
Video
mode.
MENU 5 Enters
the main
menu of
the disc.
Turns on/o
PBC when
playing
VCD.
Selects
mode.
TITLE 6 Enters the
title menu
of the disc.
Plays the
rst ten
seconds
of each
chapter/
title.
Selects
Music
mode.
CLEAR 7 Delete
entry or
move
backwards
to correct
error in
Direct
Access
mode.
Delete entry
or move
backwards to
correct error
in Direct
Access mode.
Delete entry
or move
backwards
to correct
error in
Direct
Access
mode.
Delete
entry or
move
backwards
to correct
error in
Direct
Access
mode.
Delete
entry or
move
backwards
to correct
error in
Direct
Access
mode.

10
VM9725BT
Table 1: Remote Control Functions
Button Function
Name # DVD VCD TUNER CD/MP3/
USB
iPod
8
9 Selects the
previous
chapter for
playback.
Selects the
previous
chapter for
playback.
Searches
for an
available
radio
station by
decreasing
tuning
frequency.
Selects the
previous
track for
playback.
Pauses
playback/
starts
playback.
10 Selects
the next
chapter for
playback.
Selects
the next
chapter for
playback.
Searches
an
available
radio
station by
increasing
the tuning
frequency.
Selects
the next
track for
playback.
Selects
the next
track for
playback.
PIC 11 Displays
set-up
parameters.
Displays
set-up
parameters.
VOL + 12 Increases
volume.
Increases
volume.
Increases
volume.
Increases
volume.
Increases
volume.
13 Fast
forwards
the disc
content.
Fast
forwards
the disc
content.
Fast
forwards
the disc
content.
Accesses
iPod
Menu..
VOL - 14 Decreases
volume.
Decreases
volume.
Decreases
volume.
Decreases
volume.
Decreases
volume.
15 Stops
playback.
Stops
playback.
Stops
playback.
