Jensen VM9314 User manual

VM9314
Operating Instructions
16040wx4

ii
VM9314

VM9314

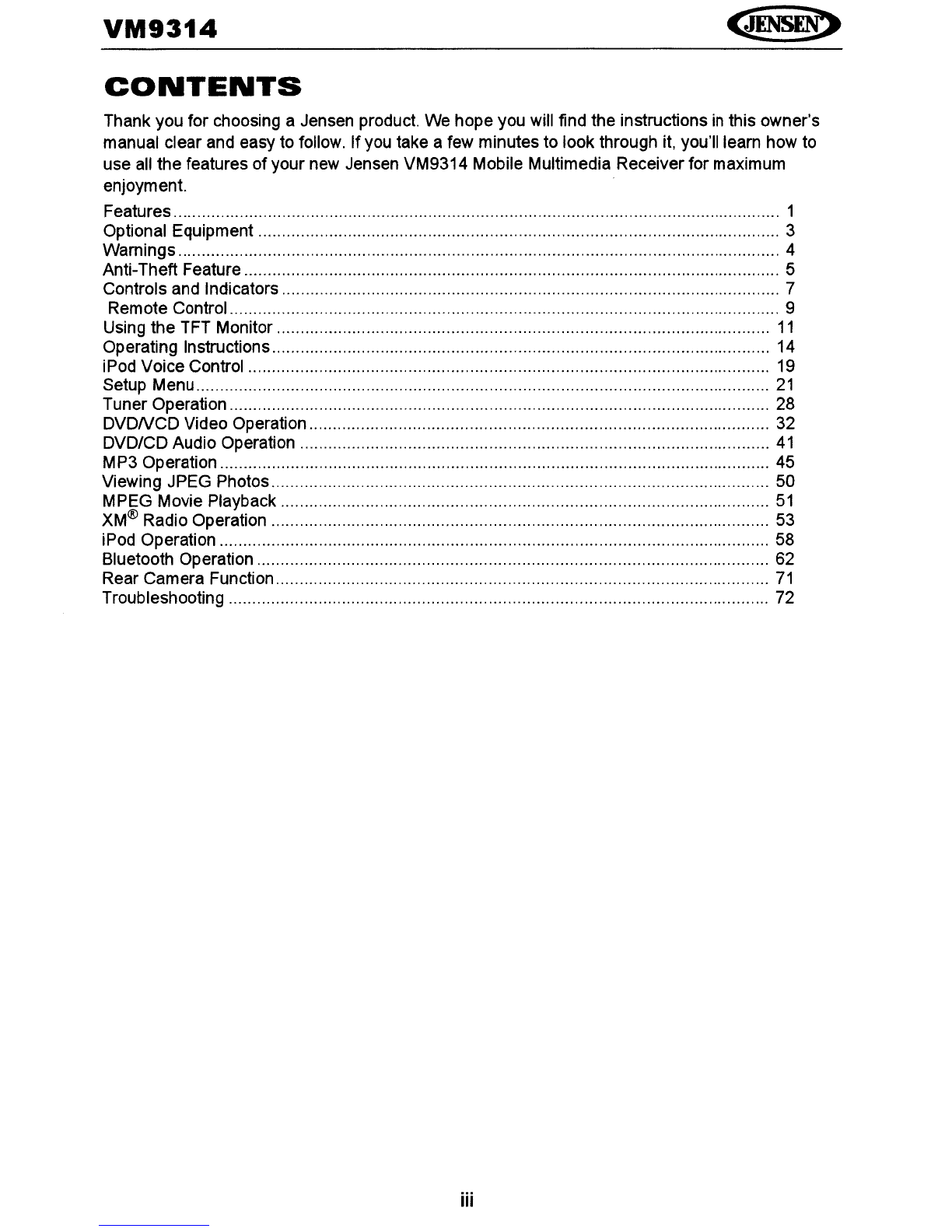

CONTENTS
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to
use all the features of your new Jensen VM9314 Mobile Multimedia Receiver for maximum
enjoyment.
Features 1
Optional Equipment 3
Wamings 4
Anti-Theft Feature 5
Controls and Indicators 7
Remote Control 9
Using the TFT Monitor 11
Operating Instructions 14
iPod Voice Control 19
Setup Menu 21
Tuner Operation 28
DVDNCD Video Operation 32
DVD/CD Audio Operation 41
MP3 Operation 45
Viewing JPEG Photos 50
MPEG Movie Playback 51
XM® Radio Operation 53
iPod Operation 58
Bluetooth Operation 62
Rear Camera Function 71
Troubleshooting 72
iii

VM9314

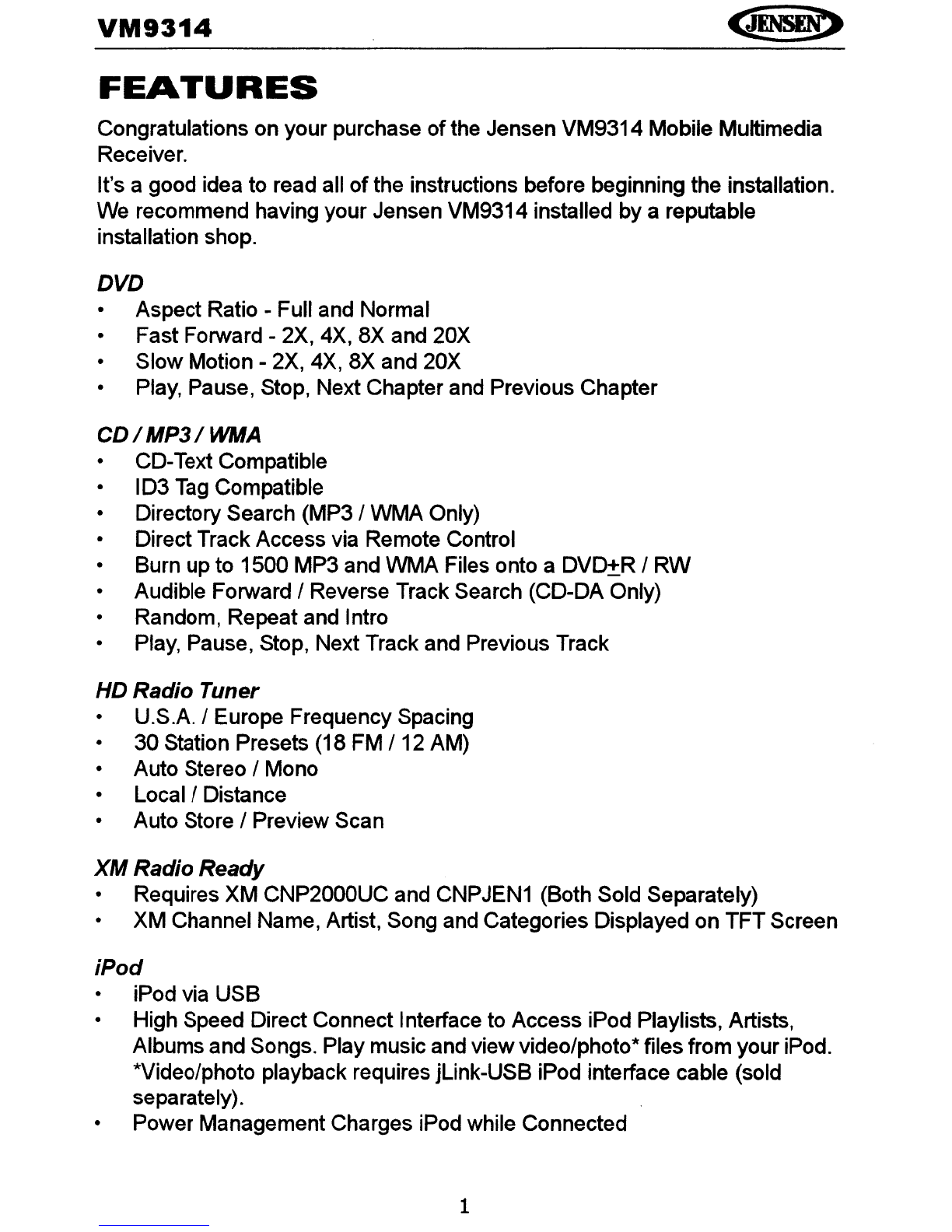

FEATURES
Congratulations on your purchase of the Jensen VM9314 Mobile Multimedia
Receiver.
It's agood idea to read all
of the instructions before beginning the installation.
We recommend having your Jensen VM9314 installed by areputable
installation shop.
DVD
•Aspect Ratio -Full and Normal
•Fast Forward -2X, 4X,
ax and 20X
•Slow Motion -2X, 4X, 8X and 20X
•Play, Pause, Stop, Next Chapter and Previous Chapter
CDIMP31WMA
•CD-Text Compatible
•103
Tag Compatible
•Directory Search (MP3 /WMA Only)
•Direct Track Access via Remote Control
•Burn up to 1500 MP3 and WMA Files onto aDVD+R /
RW
•Audible Forward /Reverse Track Search (CD-DA Only)
•Random, Repeat and Intro
•Play, Pause, Stop, Next Track and Previous Track
HD Radio Tuner
•U.S.A. /Europe Frequency Spacing
•30 Station Presets (18 FM /12 AM)
•Auto Stereo /Mono
•
Local/Distance
•Auto Store /Preview Scan
XM Radio Ready
•Requires XM CNP2000UC and CNPJEN1 (Both Sold Separately)
•XM Channel Name, Artist, Song and Categories Displayed on TFT Screen
iPod
•iPod via USB
•High Speed Direct Connect Interface to Access iPod Playlists, Artists,
Albums and Songs. Play music and viewvideo/photo* files from your iPod.
*Video/photo playback requires jUnk-USB iPod interface cable (sold
separately).
•Power Management Charges iPod while Connected
1

VM9314

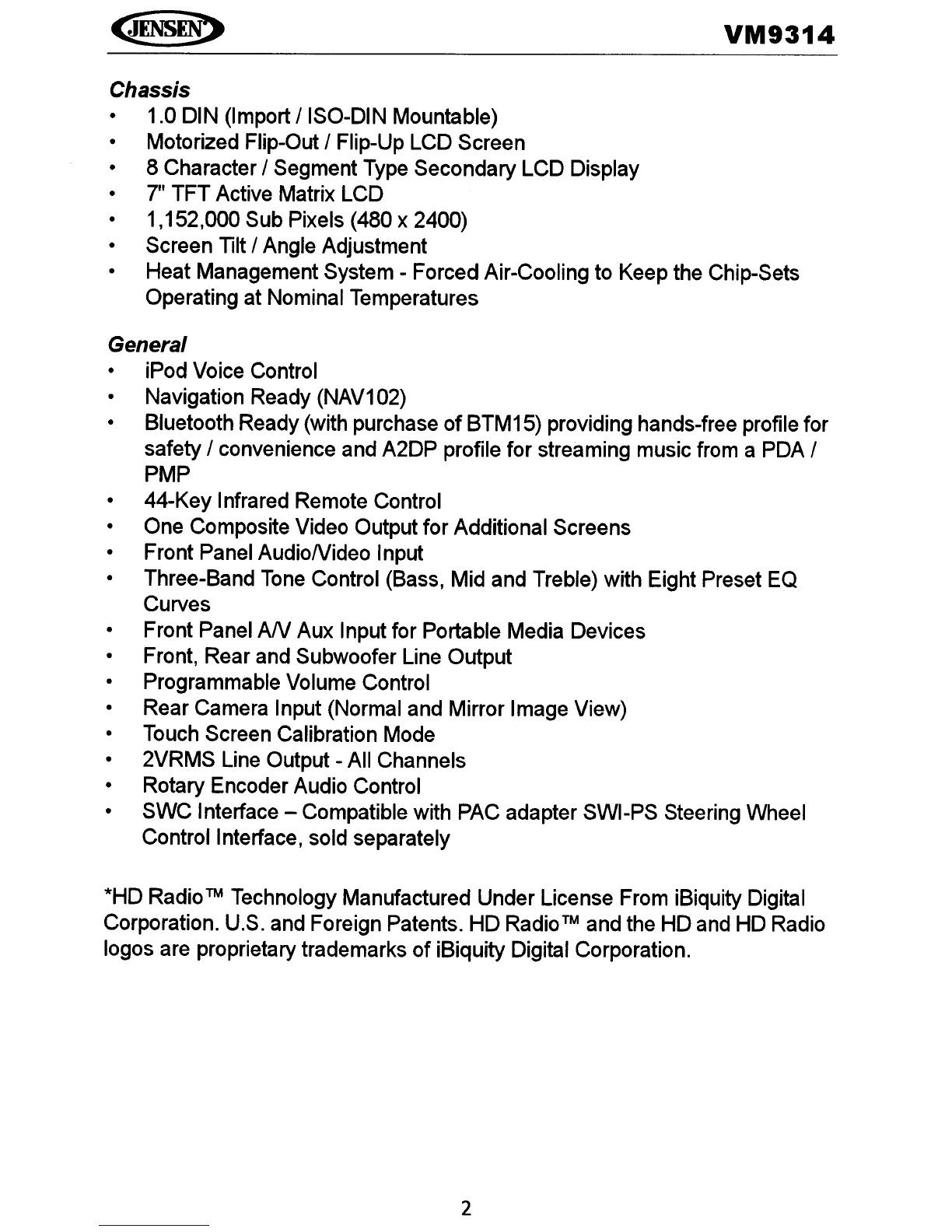

Chassis
•1.0 DIN (Import IISO-DIN Mountable)
•Motorized Flip-Out IFlip-Up LCD Screen
• 8 Character ISegment Type Secondary LCD Display
•7" TFT Active Matrix LCD
•1,152,000 Sub Pixels (480 x2400)
•Screen Tilt IAngle Adjustment
•Heat Management System -Forced Air-Cooling to Keep the Chip-Sets
Operating at Nominal Temperatures
General
•iPod Voice Control
•Navigation Ready (NAV102)
•Bluetooth Ready (with purchase
of BTM15) providing hands-free profile for
safety /convenience and A2DP profile for streaming music from aPDA /
PMP
•44-Key Infrared Remote Control
•One Composite Video Output for Additional Screens
•Front Panel AudioNideo Input
•Three-Band Tone Control (Bass, Mid and Treble) with Eight Preset EO
Curves
•Front Panel
AN Aux Input for Portable Media Devices
•Front, Rear and Subwoofer Line Output
•Programmable Volume Control
•Rear Camera Input (Normal and Mirror Image View)
•Touch Screen Calibration Mode
•2VRMS Line Output -All Channels
•Rotary Encoder Audio Control
•SWC Interface -Compatible with PAC adapter SWI-PS Steering Wheel
Control Interface, sold separately
*HD Radio
TM Technology Manufactured Under License From iBiquity Digital
Corporation. U.S. and Foreign Patents.
HD Radio TM and the HDand HD Radio
logos are proprietary trademarks
of iBiquity Digital Corporation.
2

YM9314

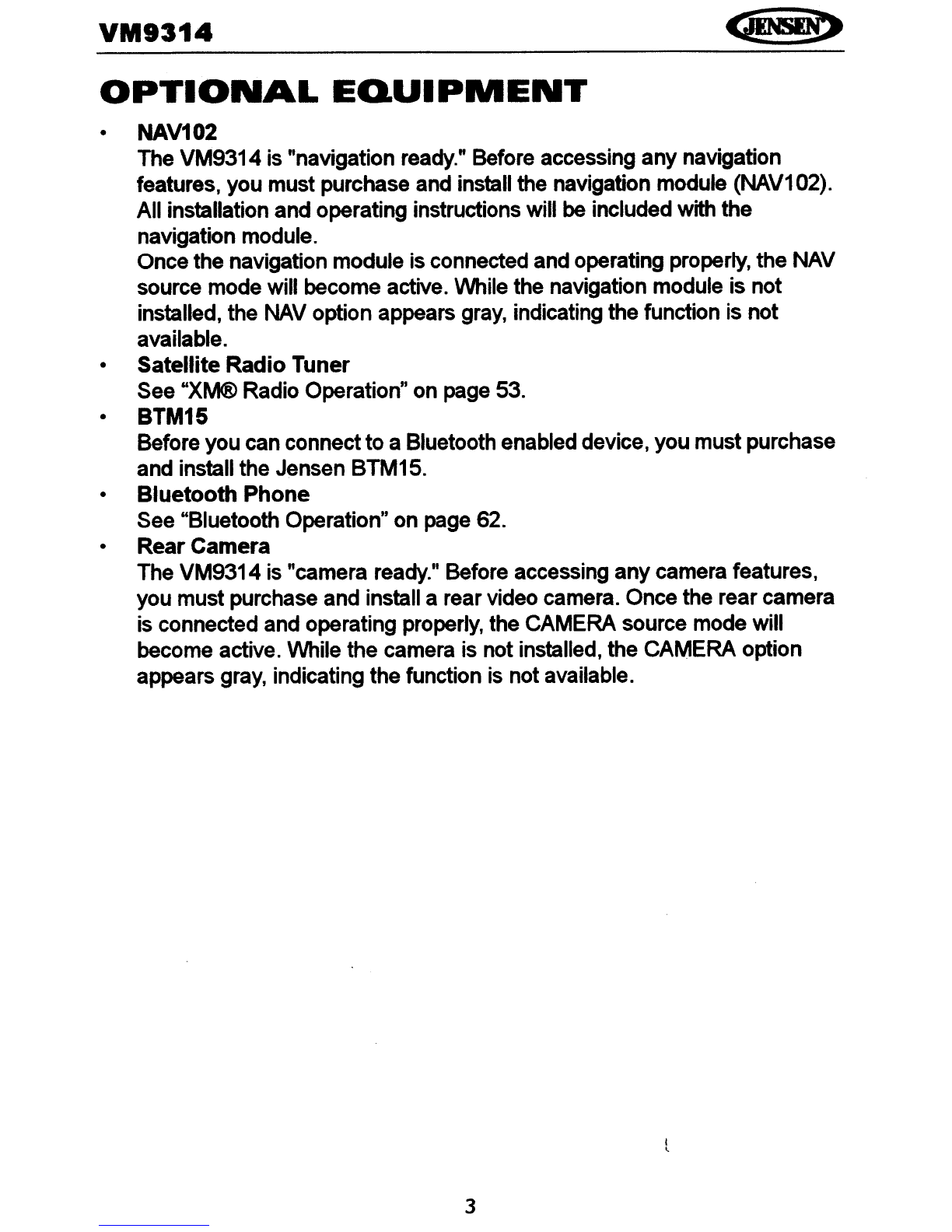

OPTIONAL EQUIPMENT
•NAV102
The VM9314 is "navigation ready." Before accessing
any navigation
features, you must purchase and install the navigation module (NAV102).
All installation and operating instructions will be included with the
navigation module.
Oncethe navigation module is connected and operating properly, the NAV
source mode will become active. While the navigation module is
not
installed, the NAV option appears gray, indicating the function is not
available.
•Satellite Radio Tuner
See "XM® Radio Operation" on page 53.
•BTM15
Before you can connectto aBluetooth enabled device, you mustpurchase
and install the Jensen BTM15.
• Bluetooth Phone
See "Bluetooth Operation" on page 62.
•Rear Camera
The VM9314 is "camera ready." Before accessing any camera features,
you must purchase and install arear video camera. Once the rear camera
is connected and operating properly, the CAMERA source mode will
become active. While the camera is not installed, the CAMERA option
appears gray, indicating the function is not available.
3

VM9314

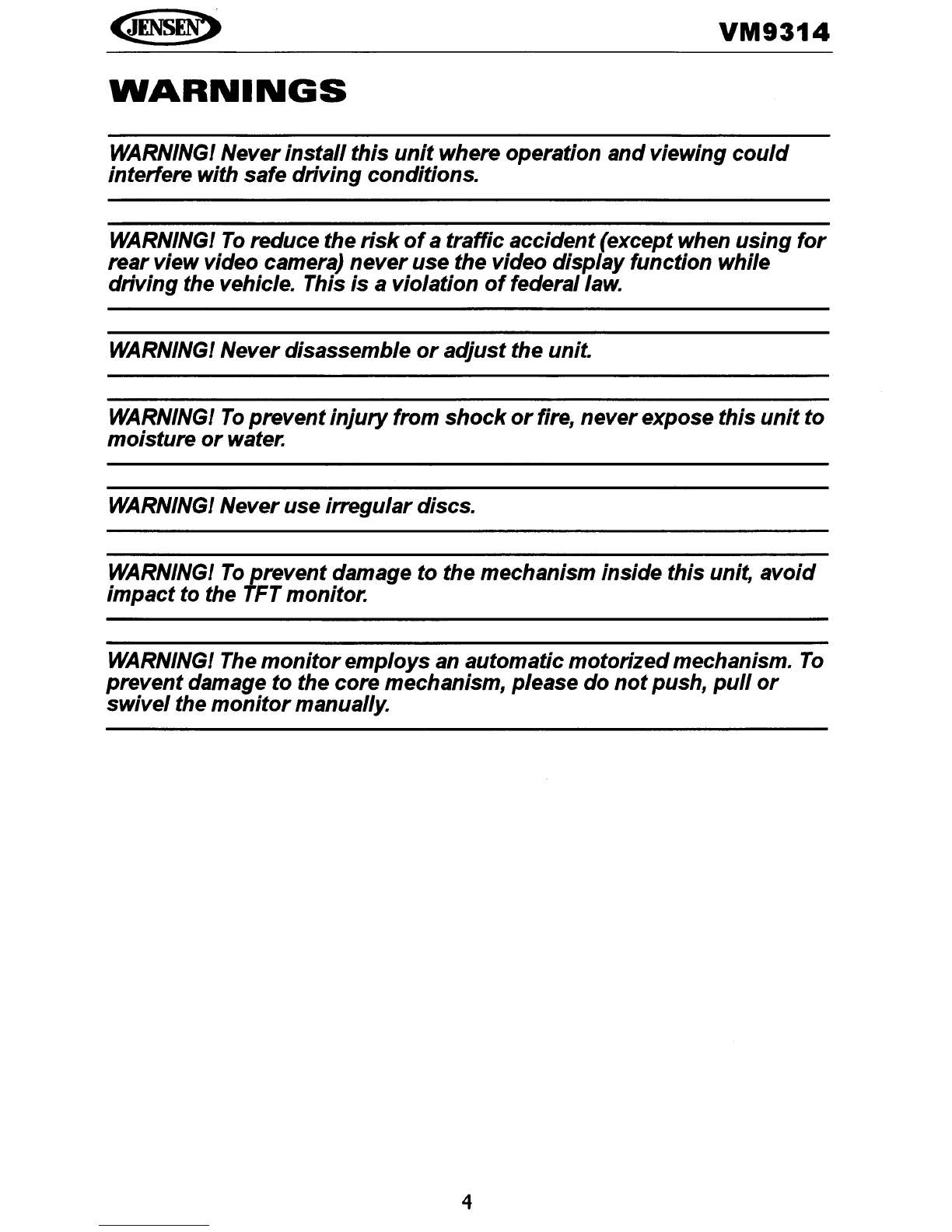

VVARNINGS
WARNING! Neverinstallthis unit where operation andviewing could
interfere with safe driving conditions.
WARNING! To reduce the risk of atraffic accident(exceptwhen using for
rearview video camera) never use the video display function while
driving the vehicle. This
is aviolation of federal law.
WARNING! Never disassemble or adjustthe unit.
WARNING! To prevent injury from shock or fire, neverexpose this unit to
moisture or water.
WARNING! Neveruse irregulardiscs.
WARNING! To preventdamage to the mechanism inside this unit, avoid
impact to the TFT monitor.
WARNING! The monitor employs an automaticmotorizedmechanism. To
preventdamage to the core mechanism, please do not push, pull or
swivelthe monitor manually.
4

VM9314
ANTI-THEFT FEATURE
The VM9314 is equipped with an anti-theftfeature requiring the userto enter a
password upon initial power on.
1\[
*If
Q]Q]w
000
000
k0EJ
Entering the Default Password
The default user password is 012345 (6 digits). Enterthe password using
the on-screen keypad and then press the arrow (enter) button. You can also
use the remote control keypad to enterthe password.
CD ®0
0®®
0®0
INT
ROM
0 CD 0
Press the >/11 button (30) on the remote control to confirm.
5

VM9314

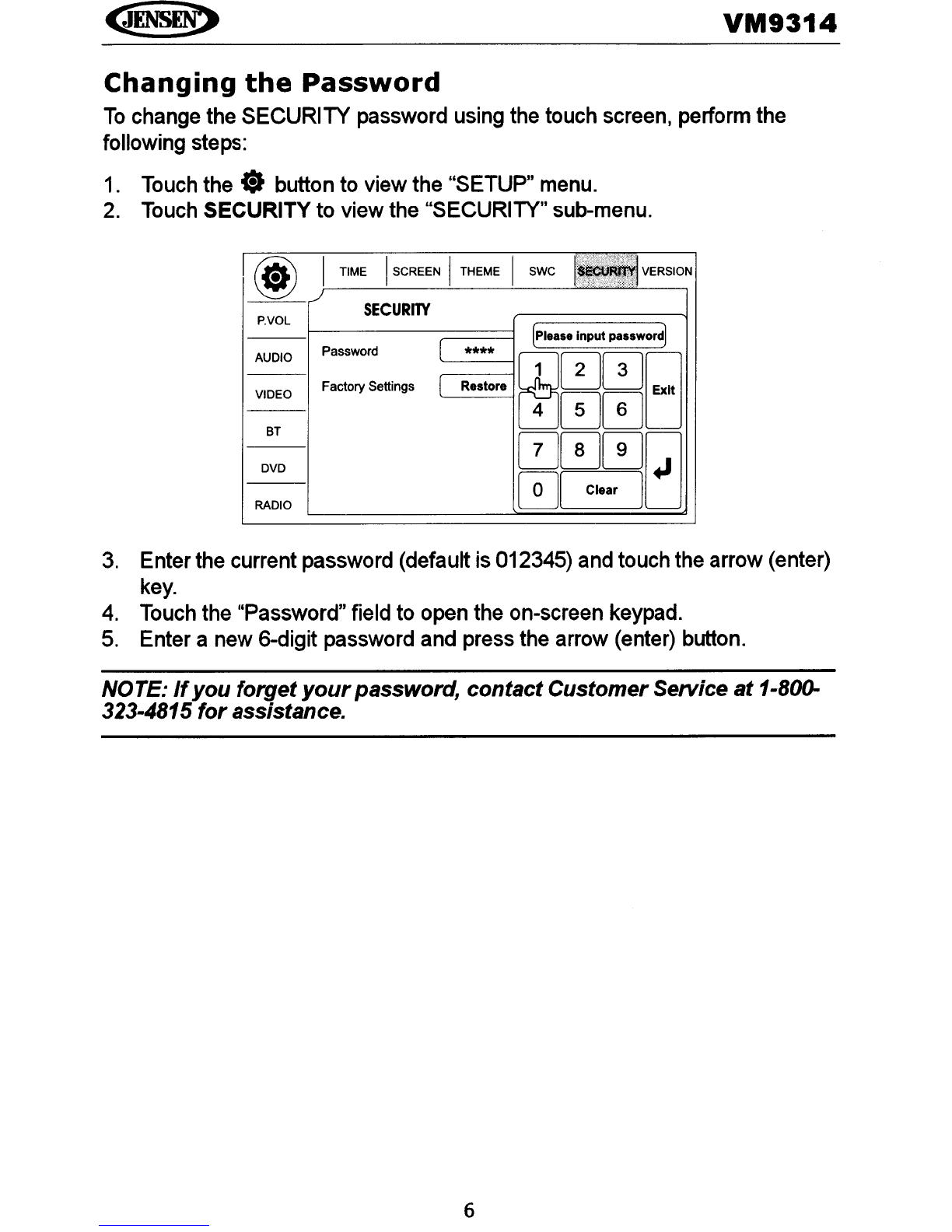

Changing the Password
To change the SECURITY password using the touch screen, perform the
following steps:
1. Touch the" button to view the "SETUP" menu.
2. Touch SECURITY to view the "SECURITY" sub-menu.
VERSION
[Please Input password]
: .. 0]000
~00D
000Q
[~] Clear )0
Password
Factory Settings
BT
DVD
P.vOL
VIDEO
AUDIO
RADIO
@ITIME ISCREEN ITHEME I swc
SECURIlY
3. Enterthe current password (default is 012345) and touch the arrow (enter)
key.
4. Touch the "Password" field to open the on-screen keypad.
5. Enter anew 6-digit password and press the arrow (enter) button.
NOTE: If you forget your password, contactCustomerService at 1-800-
323-4815
for assistance.
6

VM9314 <lENSEO

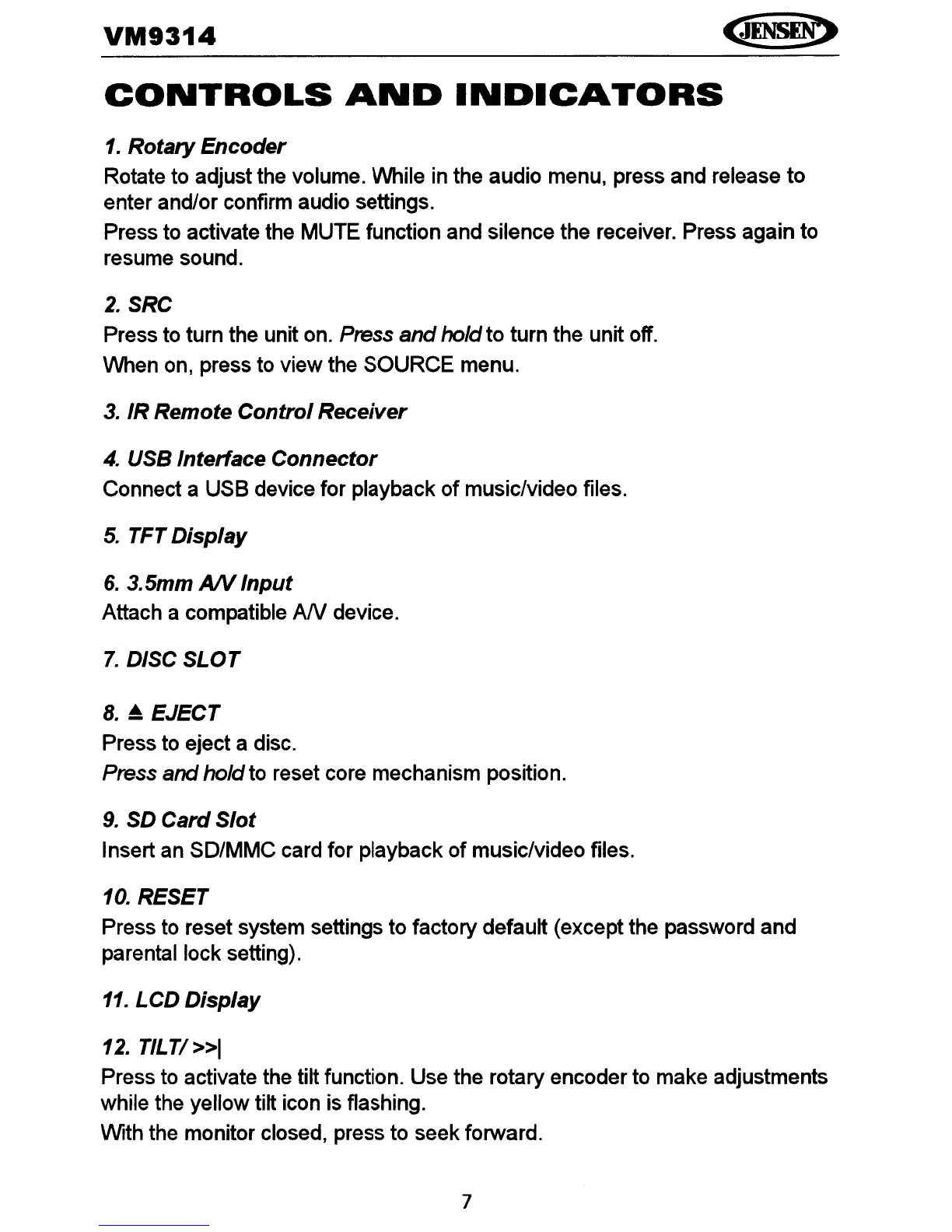

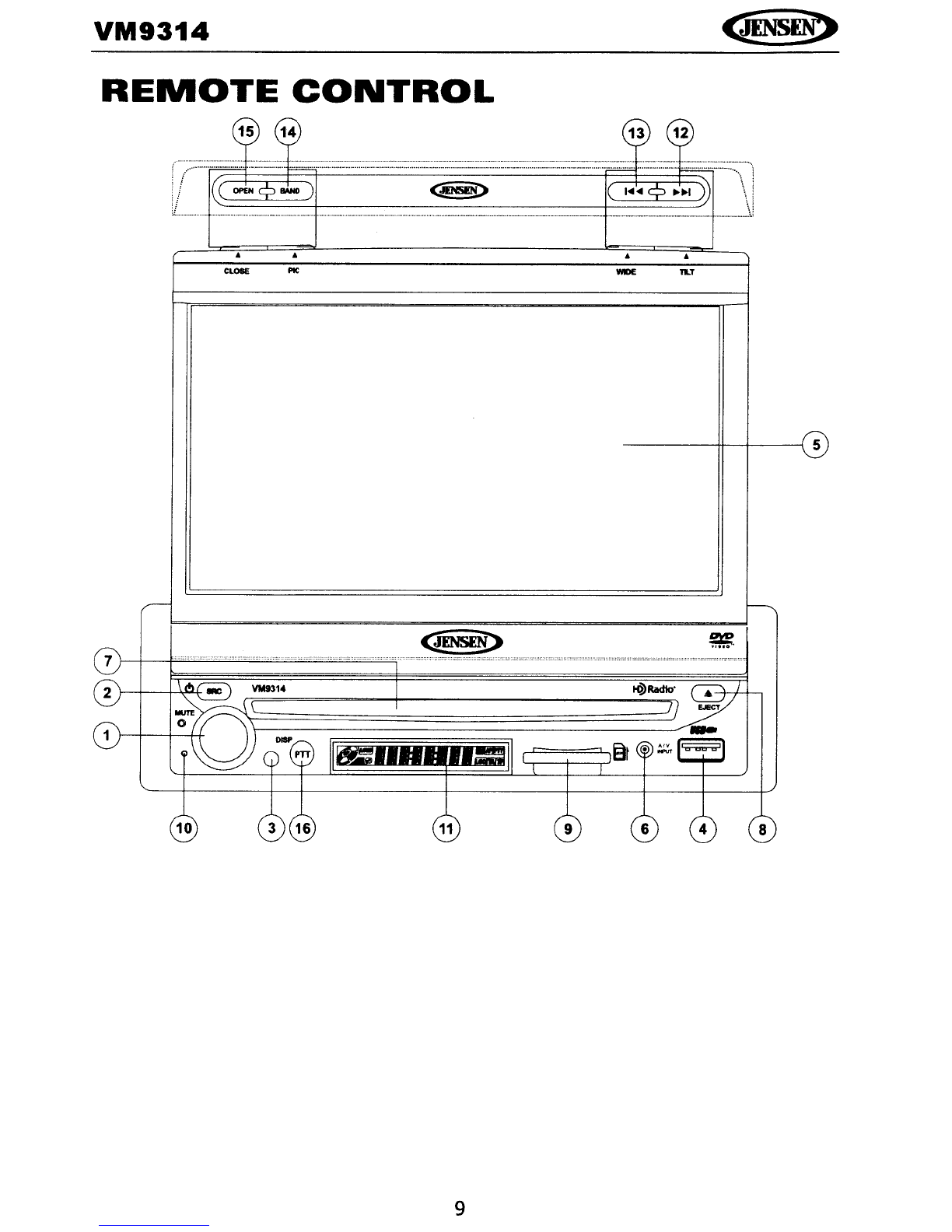

CONTROLS AND INDICATORS
1. Rotary Encoder
Rotate to adjustthe volume. While in the audio menu, press and release to
enter and/or confirm audio settings.
Press to activate the MUTE function and silence the receiver. Press again to
resume sound.
2. SRC
Press to turn the unit on. Press
and holdto turn the unit off.
When on, press to view the SOURCE menu.
3. IR Remote Control Receiver
4. USB Interface Connector
Connect aUSB device for playback of music/video files.
5. TFT Display
6. 3.5mm AN Input
Attach acompatible AN device.
7. DISC SLOT
8. AEJECT
Press to eject adisc.
Press and hold to reset core mechanism position.
9. SD Card Slot
Insert an SD/MMC card for playback of music/video files.
10. RESET
Press to reset system settings to factory default (except the password and
parental lock setting).
11. LCD Display
12. TILT/ »1
Press to activate the tilt function. Use the rotary encoder to make adjustments
while the yellow tilt icon is flashing.
With the monitor closed, press to seek forward.
7

VM9314

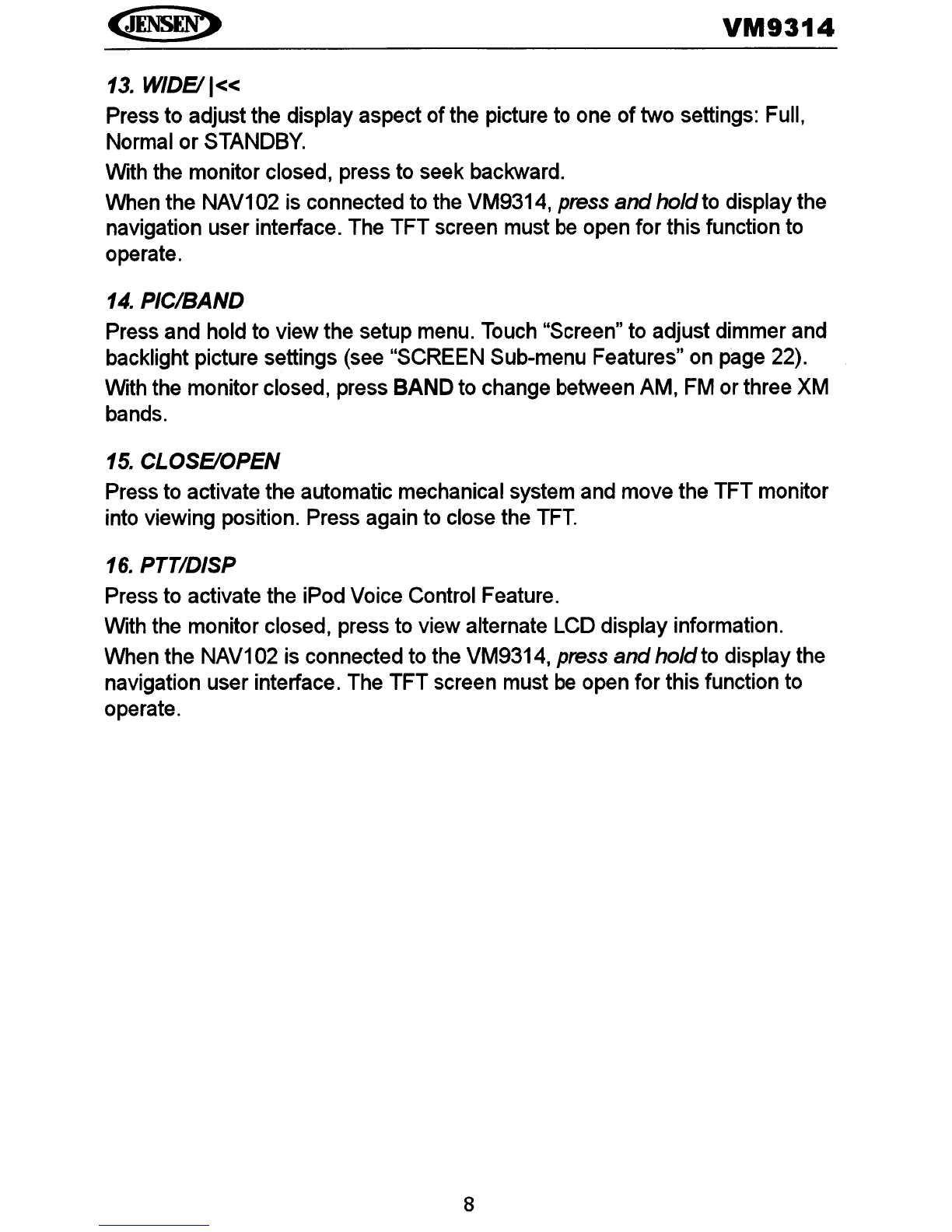

13. WIDElI«
Press to adjustthe display aspect of the picture to one oftwo settings: Full,
Normal or STANDBY.
With the monitor closed, press to seek backward.
When the NAV102 is connected to the VM9314, press and hold to display the
navigation user interface. The TFT screen must be open for this function to
operate.
14. PIC/BAND
Press and hold to view the setup menu. Touch "Screen" to adjust dimmer and
backlight picture settings (see "SCREEN Sub-menu Features" on page 22).
With the monitor closed, press BAND to change between AM, FM or three XM
bands.
15. CLOSEIOPEN
Press to activate the automatic mechanical system and move the TFT monitor
into viewing position. Press again to close the TFT.
16. PTT/DISP
Press to activate the iPod Voice Control Feature.
With the monitor closed. press to view alternate LCD display information.
When the NAV102 is connected to the VM9314. press and hold to display the
navigation user interface. The TFT screen must be open for this function to
operate.
8

VM9314
REMOTE CONTROL
44
PIC
4
WIDE
4
n..T
-----J+---+---{ 5
9

See remote control tables in various sections for button functions.
CD 0
CD
0 0 ®
29
0®034
RDM
0
10
VM9314

VM9314
USING THE TFT MONITOR
Open/Close TFT Monitor
Open TFT Monitor
Press the OPEN button (15) on the front panel or press the (tAJ) button (25) on
the remote control to activate the mechanism that movesthe display panel into
the viewing position.
Close TFT Monitor
Press the OPEN button (15) on the front panel or press the (tAJ) button (25) on
the remote control to load the display panel back into the compartment.
TFT Monitor Auto Open
If "TFTAuto Open" is set to "Auto" when the unit is turned on, the monitor
automatically moves to the viewing position.
If "TFTAuto Open" is "Off' when the unit is turned on, press the OPEN button
(15)
or (tAJ) button (25) on the remote control to move the monitor into the
viewing position.
If "TFTAuto Open" is set to "Manual", the TFT will not close when the key is
turned off.
Monitor Tilt Angle Adjustment
Aknown characteristic of LCD panels is the quality of the display in
relationship to the viewing angle. The monitor angle can be adjusted for
optimum viewing using one
of the following methods:
Step by Step Angle Adjustment
•Press the (26) or (27) button on the remote control to adjust the tilt angle of
the screen one step at atime.
•Press the TILT button (12) on the unit. While the yellow tilt icon is flashing,
turn the rotary encoderto adjust the screen angle.
Continuous Angle Adjustment
Press and holdthe (26) or (21) button on the remote control to adjust the tilt
angle in acontinuous motion.
11

VM9314

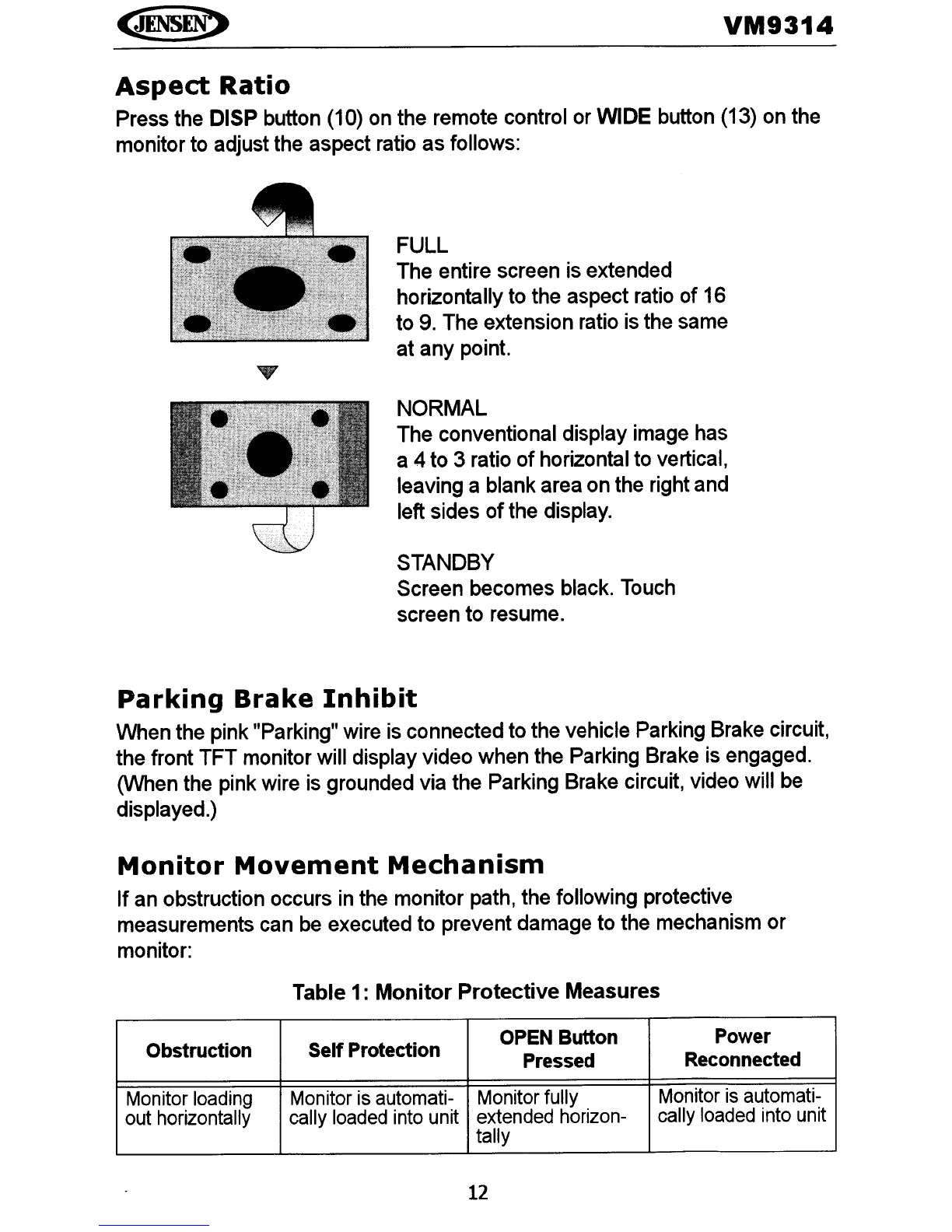

Aspect Ratio
Press the DISP button (10) on the remote control or WIDE button (13) on the
monitor to adjust the aspect ratio as follows:
FULL
The entire screen is extended
horizontally to the aspect ratio
of 16
to 9. The extension ratio is the same
at
any point.
NORMAL
The conventional display image has
a 4 to 3ratio
of horizontal to vertical,
leaving ablank area on the right and
left sides
of the display.
STANDBY
Screen becomes black. Touch
screen to resume.
Parking Brake Inhibit
When the pink "Parking" wire is connected to the vehicle Parking Brake circuit,
the front TFT monitor will display video when the Parking Brake is engaged.
(When the pink wire is grounded via the Parking Brake circuit, video will
be
displayed.)
Monitor Movement Mechanism
If an obstruction occurs in the monitor path, the following protective
measurements can be executed to prevent damage to the mechanism or
monitor:

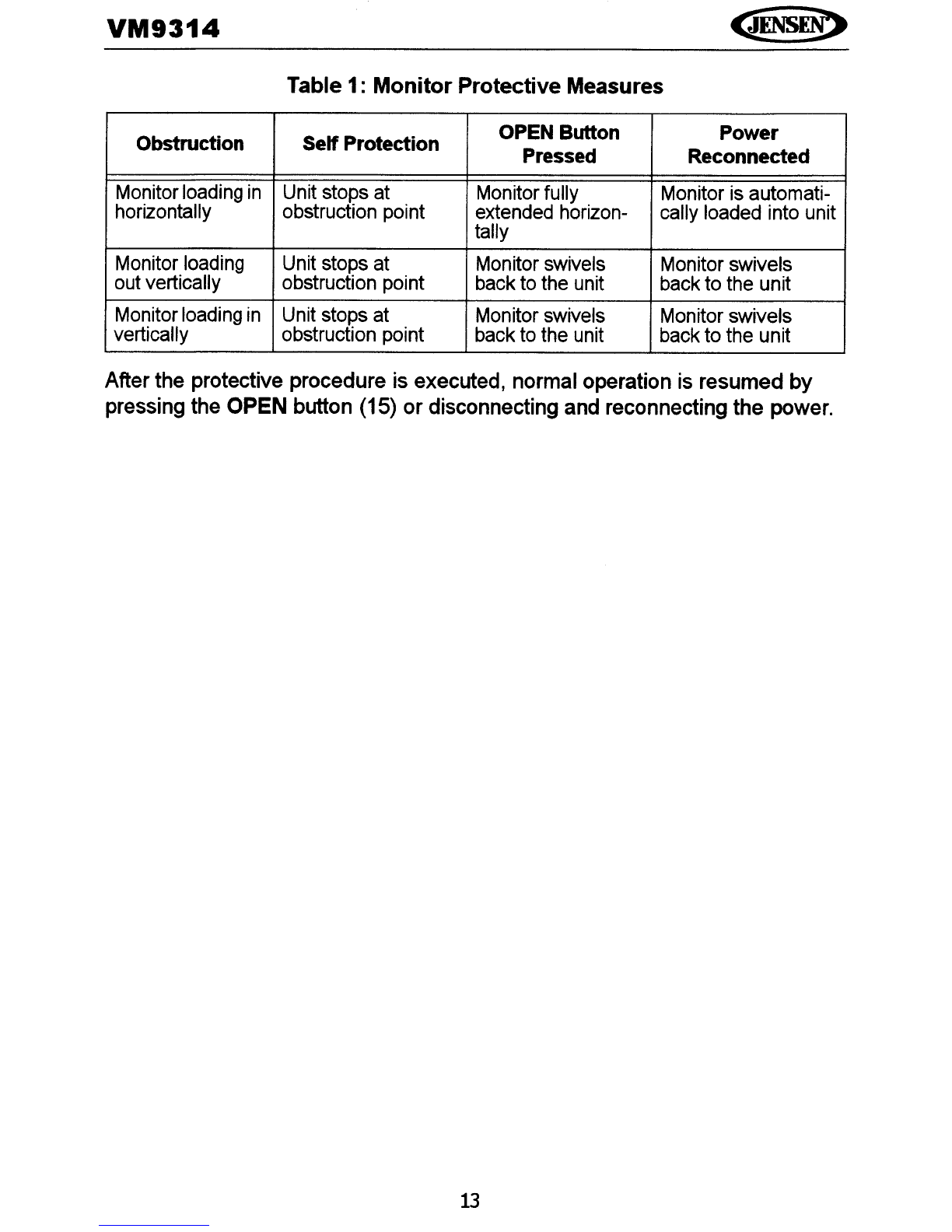

Table 1: Monitor Protective Measures
Obstruction SelfProtection
OPEN Button Power
Pressed Reconnected
Monitor loading
Monitor is automati- Monitor fully
Monitor is automati-
out horizontally cally
loaded into unit
extended horizon- cally
loaded into unit
tally
12

VM9314
Table 1: Monitor Protective Measures
Obstruction Self Protection
OPEN Button Power
Pressed Reconnected
Monitorloading in U nit stops at Monitor fully Monitor is automati-
horizontally obstruction point
extended horizon-
cally loaded into unit
tally
Monitor loading Unit stops
at
Monitor swivels Monitor swivels
out vertically obstruction point back to the unit back to the unit
Monitor loading in
Unit stops at
Monitor swivels Monitor swivels
vertically obstruction point
back to the unit
back to the unit
After the protective procedure is executed, normal operation is resumed by
pressing the OPEN button (15)
or disconnecting and reconnecting the power.
13

VM9314

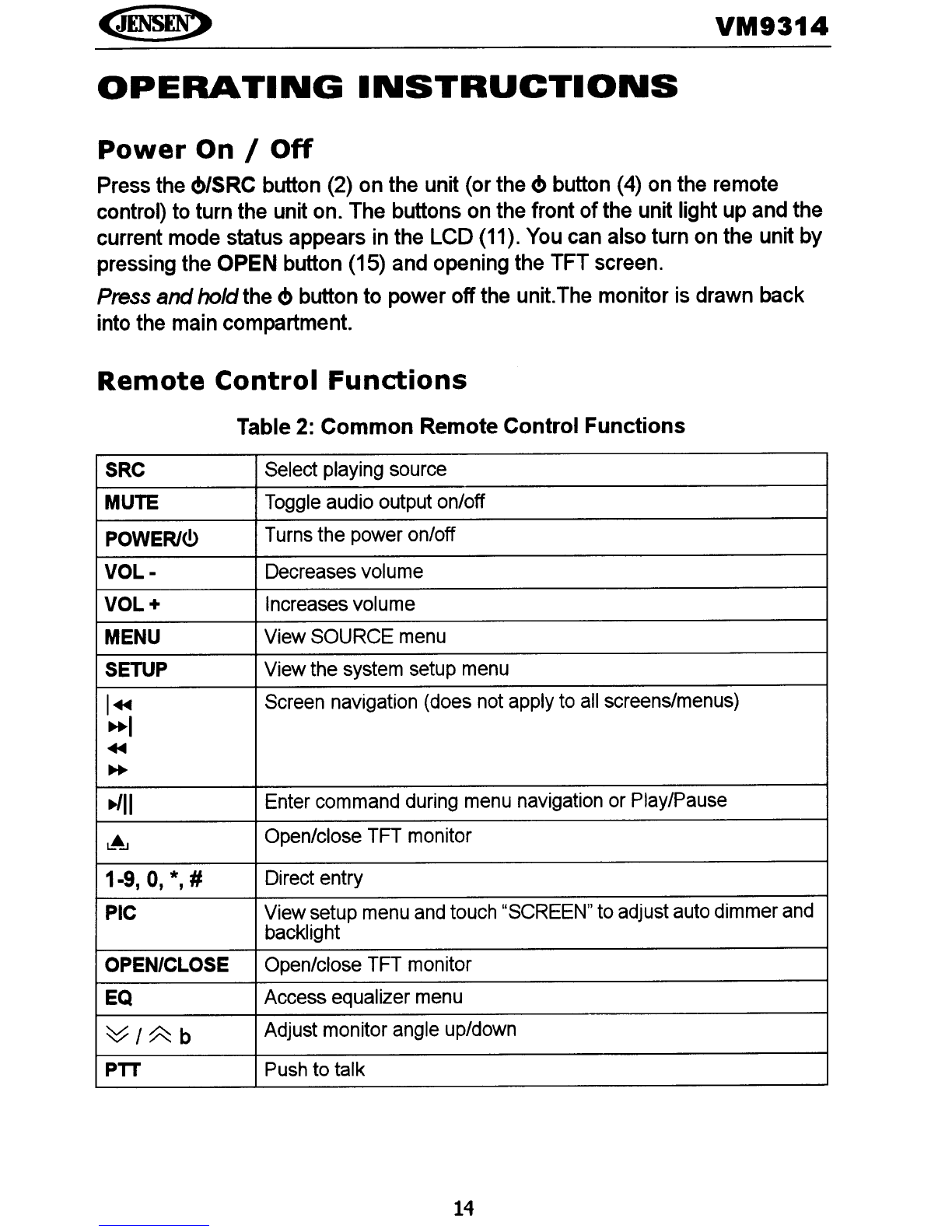

OPERATING INSTRUCTIONS
Power On I Off
Press the c!>/SRC button (2) on the unit (or the c!> button (4) on the remote
control) to turn the unit on. The buttons on the front of the unit light up and the
current
mode status appears in the LCD (11). You can also turn on the unit by
pressing the OPEN button (15) and opening the TFT screen.
Press and holdthe c!> button to power off the unit. The monitor is drawn back
into
the main compartment.
Remote Control Functions
Table 2: Common Remote Control Functions
SRC
select playing source
MUTE
Toggle audio output on/off
POWER/<!>
Turns the power on/off
VOL-
Decreases volume
VOL +Increases volume
MENU View SOURCE menu
SETUP View the system setup menu
I ..
Screen navigation (does not apply to all screens/menus)
.. I
..
..
~II
Enter command during menu navigation or PlaylPause
~
Open/close TFT monitor
1-9,0, *, #Direct entry
PIC
View setup menu and touch "SCREEN" to adjust auto dimmer and
backlight
OPEN/CLOSE
Open/close TFT monitor
EQ
Access equalizer menu
~/~b
Adjust monitor angle up/down
PTT
Push to talk
14

VM9314
Mute/Line Mute
Press the rotary encoder button (1) on the front panel orthe MUTE button (3)
on the remote to mute the volume from the unit. Press the rotary encoder
button again to restore the volume. "MUTE" is displayed on the LCD. Adjusting
the volume or using any
of the audio setup features cancels the mute function.
Ifthe "MUTE" wire is connected, audio output mutes when atelephone call is
received bythe car phone (using optional BTM15) orwhen verbal navigation is
played (using optional NAV102).
Playing Source Selection
When the monitor is closed, press the SRC button on the front panel (2) or
remote control (8) to change between available audio playing sources in the
following order: RADIO, DISC, USB/iPod, SD,
BT, NAV, SAT, AUX1, AUX2 and
CAMERA. The mode is displayed on the LCD screen.
SourceMenu
You can also use the touch screen to change the source through the SOURCE
MENU.
To access the SOURCE MENU, touch the top left corner of the screen
or press the SRC button on the front panel (2) or remote control (8).
@ SOURCE MENU
@
r@J
CV
®®
RADIO DISC USB/lPod SO
BT
~
@®
~
NAV SAT AUX1 AUX2 CAMERA
1;;;1
II "Q
e
Touch the RADIO, DISC, USB/iPod, SD, BT, NAV, SAT, AUX1 ,AUX2 or
CAMERA button to select the corresponding source.
You can also use voice control to select asource. See "iPod Voice Control" on
page 19.
NOTE: When an iPodliPhone is attachedto the USB port, "/POD"
appears instead
of the text "USBliPod."
15

VM9314

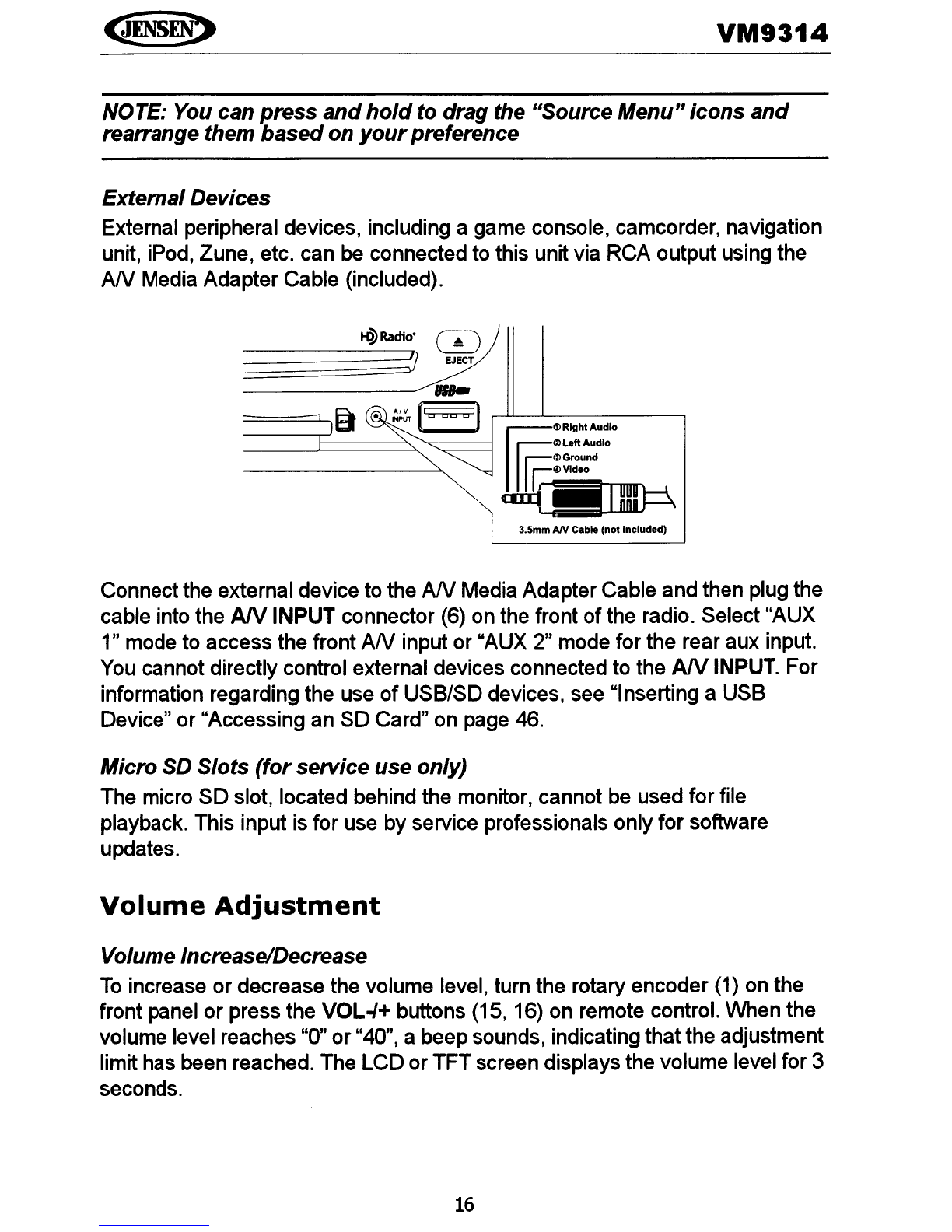

NOTE: You can press and hold to drag the "Source Menu" icons and
rearrange them basedon your preference
ExternalDevices
External peripheral devices, including agame console, camcorder, navigation
unit, iPod, Zune, etc. can be connected to this unit via RCA output using the
AN Media Adapter Cable (included).
~
iDRl9ht Audio
rfr§
12l Left Audio
r:::CJl Ground
I r:;: ~ Video
~~
3.5mm AN Cable (not Included)
Connectthe external device to the AN Media Adapter Cable and then plug the
cable into the
AN INPUT connector (6) on the front of the radio. Select "AUX
1" mode to access the front
AN input or "AUX 2" mode for the rear aux input.
You cannot directly control external devices connected to the
AN INPUT. For
information regarding the use
of USB/SD devices, see "Inserting aUSB
Device" or "Accessing an SD Card" on page 46.
Micro SD Slots (for service use only)
The micro SD slot, located behind the monitor, cannot be used for file
playback. This input is for use by service professionals only for software
updates.
Volume Adjustment
Volume Increase/Decrease
To increase or decrease the volume level, turn the rotary encoder (1) on the
front panel
or press the VOL-/+ buttons (15, 16) on remote control. When the
volume level reaches
"a" or "40", abeep sounds, indicating that the adjustment
limit has been reached. The LCD orTFT screen displays the volume level for 3
seconds.
16

VM9314

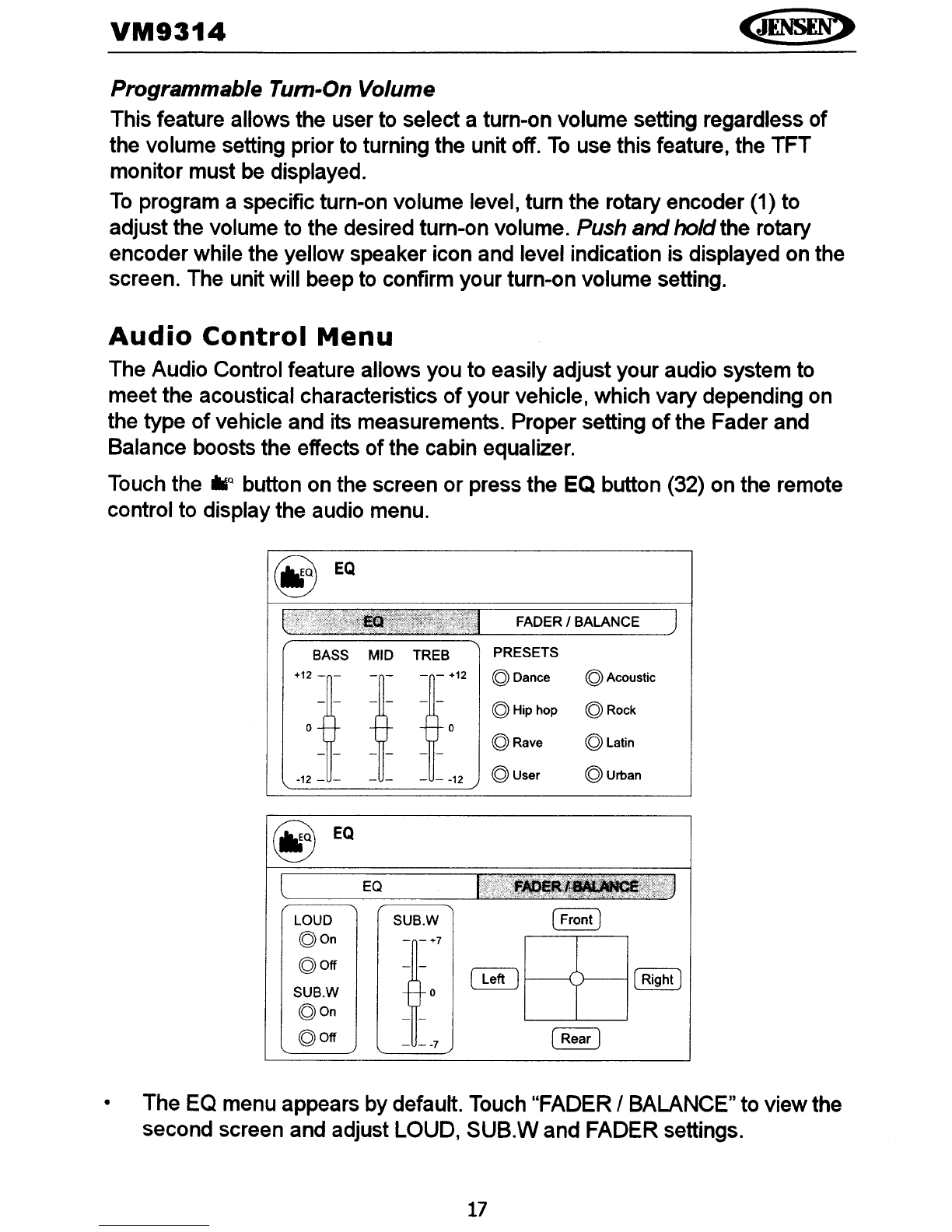

Programmable Tum-On Volume
This feature allows the user to select aturn-on volume setting regardless of
the volume setting prior to turning the unit off. To use this feature, the TFT
monitor must be displayed.
To program aspecific turn-on volume level, turn the rotary encoder (1) to
adjust the volume to the desired turn-on volume. Push andholdthe rotary
encoder while the yellow speaker icon and level indication is displayed on the
screen. The unit will beep to confirm your turn-on volume setting.
Audio Control Menu
The Audio Control feature allows you to easily adjust your audio system to
meet the acoustical characteristics
of your vehicle, which vary depending on
the type
of vehicle and its measurements. Proper setting of the Fader and
Balance boosts the effects
of the cabin equalizer.
Touch the
*Q button on the screen or press the EQ button (32) on the remote
control to display the audio menu.
@ EQ
BASS MID TREB
@ EQ
FADER IBALANCE
PRESETS
©Dance ©Acoustic
©Hip hop ©Rock
©Rave ©Latin
©User ©Urban
LOUD
©On
©Off
SUBW
©On
©Off
EQ
SUBW
•The EO menu appears by default. Touch "FADER IBALANCE" to viewthe
second screen and adjust LOUD,
SUB.Wand FADER settings.
17
