Jensen JiMS-525i User manual

- 24 -
Docking Digital HD Radio™ System for iPod®and iPhone™
Please read and follow this Instruction Manual carefully before
using the unit and retain it for future reference
Owner's Manual
JiMS-525i
(iPodandiPhoneNotIncluded)
Made for
d o P
Works with
iPhone
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM24

- 1 -
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
The Caution marking is located at the bottom of the unit.
The rating plate is located at the bottom of the unit.
CAUTION:
PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS
OWNER'S MANUAL AND THOSE MARKED ON THE UNIT, KEEP THESE INSTRUCTIONS.
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can
result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you
if you observe the following procedures for installation, use and servicing. This unit does not
contain any parts that can be repaired by the user.
The symbol for class II (Double insulation)
DO NOT REMOVE THE CABINET COVER, OR YOU MAYBE EXPOSED TO DANGEROUS
VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
IMPORTANT SAFETY
INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
“dangerous voltage”
inside the product
The exclamation point
within the triangle is a
warning sign alerting you
of Important Instructions
accompanying the
product
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM1

- 2 -
IMPORTANT SAFETY
INSTRUCTIONS
9. Do not defeat the safety purpose of the polarized or grounding – type plug. Apolarized
plug has two blades with one wider than the other. Agrounding type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with a cart, stand, tripod, bracket, or table specified by the manu-
facturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in anyway, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver
is needed.
–Consult the dealer or an experienced radio/TV technician for help.
Warning:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
–The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on apparatus.
–Main plug is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the mains
plug should be disconnected form the mains socket outlet completely.
–Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM2

- 3 -
TABLE OF CONTENTS
WELCOME ........................................................................................................................................................................ 4
PROTECTYOUR FURNITURE ......................................................................................................................................... 4
ABOUTTHIS MANUAL...................................................................................................................................................... 4
LOCATION OF CONTROLS .............................................................................................................................................. 4
FRONT VIEW .............................................................................................................................................................. 4
REAR VIEW ................................................................................................................................................................ 5
DISPLAYUNIT............................................................................................................................................................ 5
REMOTE CONTROL SECTION ................................................................................................................................. 6
GETTING STARTED .......................................................................................................................................................... 6
UNPACKINGTHE HD RADIOTM RECEIVER ............................................................................................................ 6
CONNECTINGTHE FMANTENNAWIRE ................................................................................................................. 6
CONNECTING THE HD RADIOTM RECEIVER TOACABLE RADIO SIGNAL .......................................................... 7
ANTENNA GROUNDING ............................................................................................................................................ 7
NOTICE FOR CABLETV SYSTEM INSTALLER ........................................................................................................ 7
CONNECTINGTHEAM LOOPANTENNA................................................................................................................. 7
AUX LINE-IN CONNECTION ...................................................................................................................................... 7
CONNECTINGAC POWER SUPPLY........................................................................................................................ 8
ACTIVATINGTHE REMOTE CONTROL.................................................................................................................... 8
REPLACINGTHE REMOTE CONTROLBATTERY................................................................................................... 8
BATTERYPRECAUTIONS ......................................................................................................................................... 8
RADIO OPERATION .......................................................................................................................................................... 9
LISTENINGTOTHE RADIO ...................................................................................................................................... 9
TOPRESETCHANNELS ........................................................................................................................................... 10
TO RECEIVE PRESETSTATIONS ............................................................................................................................ 10
HD RADIOTM MULTICASTCHANNELS (FM ONLY) ................................................................................................ 10
SPECIAL INFORMATION ABOUT DELAYIN THE HD RADIOTM SYSTEM ............................................................. 11
RBDS (RADIO BROADCASTDATASYSTEM) ......................................................................................................... 11
iTunes Tagging ............................................................................................................................................................. 12
TOSTORE SONGTAG(S) ......................................................................................................................................... 12
PURCHASING SONG(S) WITH ITUNES ................................................................................................................... 12
AUXOPERATION .............................................................................................................................................................. 13
iPodADAPTORS .............................................................................................................................................................. 13
DOCKINGYOUR IPOD .............................................................................................................................................. 14
DOCKINGYOUR IPHONE ......................................................................................................................................... 15
CONNECTINGTHE S-VIDEO (FOR IPOD VIDEO OUTPUT) ......................................................................................... 16
GENERAL SET UP ..................................................................................................................................................... 16
FOR PHOTO VIEW (FOR IPOD WITH COLOR DISPLAYONLY– EXCLUDING IPOD NANO) ................................ 16
CONNECTINGTHE S-VIDEO (FOR IPHONE VIDEO OUTPUT) .................................................................................... 16
FOR VIDEO VIEW (FOR IPHONE WITH VIDEO ONLY) .......................................................................................... 16
USING HEADPHONES (NOT INCLUDED) ....................................................................................................................... 17
CLOCK SETTING ............................................................................................................................................................... 17
SETTINGTHETIME ................................................................................................................................................... 17
SETTINGTHEALARM (S) ......................................................................................................................................... 18
CLOCK LIGHT OPERATION ............................................................................................................................................. 18
ALARMOPERATION ......................................................................................................................................................... 19
WAKE TO RADIO, IPOD ORALARM ........................................................................................................................ 19
SNOOZE OPERATION ...................................................................................................................................................... 19
SLEEPOPERATION .......................................................................................................................................................... 20
SETTINGSLEEPTIMER ............................................................................................................................................ 20
ADJUSTINGTHE SLEEP PERIOD ............................................................................................................................ 20
SLEEPAND WAKETO BUZZER/iPod/RADIO ............................................................................................................... 20
CAREAND MAINTENANCE .............................................................................................................................................. 21
CLEANINGTHEUNIT ................................................................................................................................................ 21
SPECIFICATIONS .............................................................................................................................................................. 21
TROUBLESHOOTING GUIDE ........................................................................................................................................... 22
SERVICE ............................................................................................................................................................................ 23
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM3

- 4 -
WELCOME
Thank you for purchasing the JENSEN JiMS-525i HD RadioTM System.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
PROTECT YOUR FURNITURE!!
This system is equipped with non-skid rubber 'feet' to prevent the product from moving when you
operate the controls. These 'feet' are made from non-migrating rubber material specially formulated
to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture
polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks
or a rubber residue on the furniture.
To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive
felt pads, available at hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.
LOCATION OF CONTROLS
Front View
1. Volume +Button 10. ALARM 2 Button
2. STANDBY/ON Button 11. ALARM 1 Button
3. EQ Button 12. Skip :Forward/Tuning Up Button
4. Skip 9Backward/Tuning Down Button 13. SLEEP Button
5. FUNCTION Button 14. SET/FM MODE Button
6. BAND Button 15. Remote Sensor
7. Volume –Button 16. Display
8. SNOOZE/LIGHT Button 17. iPod Connector and Docking Bay
9. Play/Pause / iTunes®Tag Button
ABOUT THIS MANUAL
Instructions in this manual describe using the controls on the remote. You can also use the controls on
the main unit if they have the same or similar names as those on the remote.
1
2
3
4
5
6
9
10
11
12
13
7
8
14
15
16
17
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM4

- 5 -
LOCATION OF CONTROLS (Continued)
Rear View

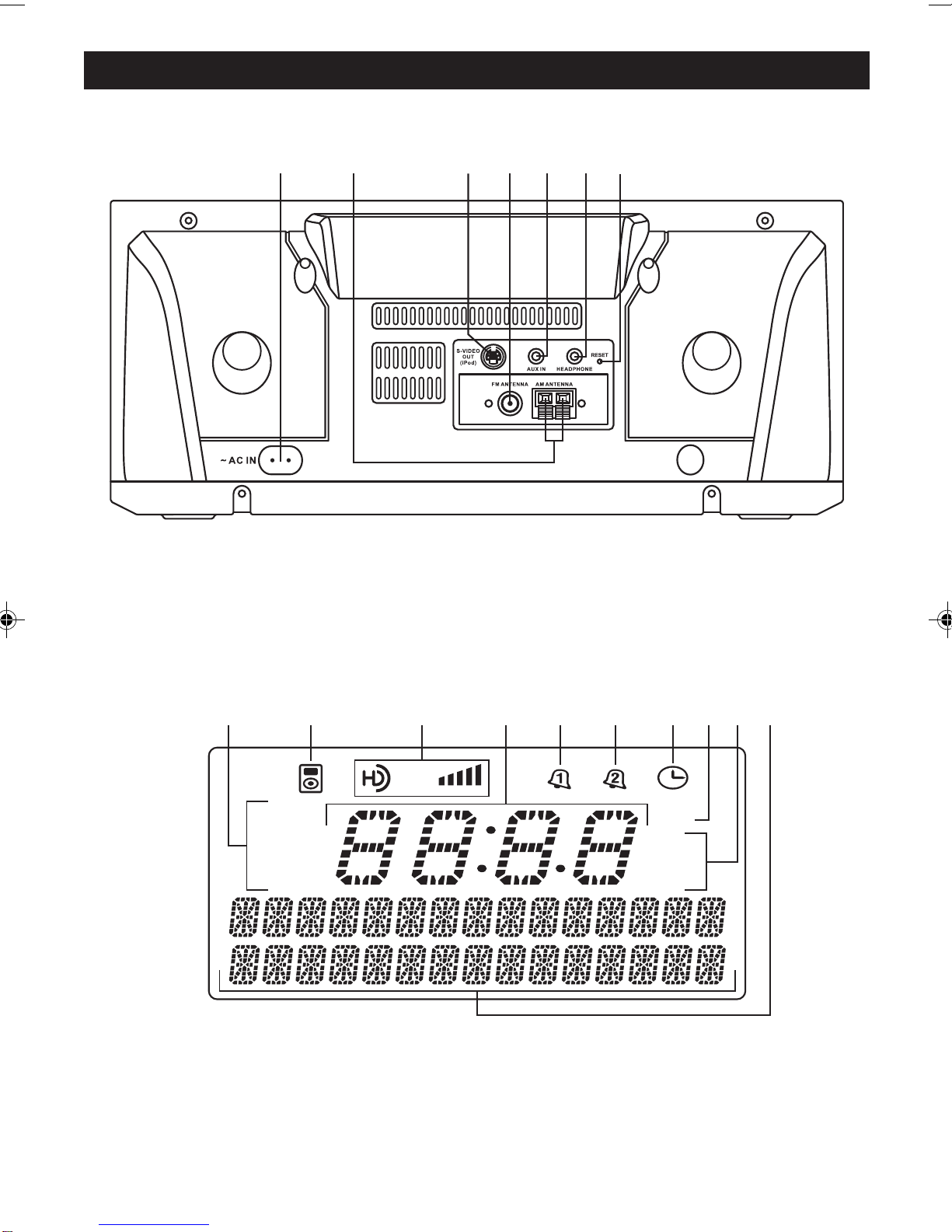

1. AC INPUT SOCKET 5. AUX LINE-IN Jack
2. AM Antenna Connector 6. HEADPHONE Jack
3. S-VIDEO Output (5th Gen iPod) 7. RESET Switch
4. FM Antenna Connector
Display Unit
1. Band/AM-PM Indicator 6. ALARM 2 Indicator
2. iPod Icon 7. SLEEP Indicator
3. HD RadioTM Icon 8. FM STEREO Indicator
4. Time/Frequency Reading 9. Frequency Unit
5. ALARM 1 Indicator 10. RBDS Messages/FUNCTION Indicator
M F
M P
M A
MHz
KHz
T S
1 2 345 6 78 9 10
56
147
3
2
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM5

- 6 -
LOCATION OF CONTROLS (Continued)
Remote Control Section
POWER Turn the Radio On/Off
BAND Select AM/FM Band
FUNCTION Selects Radio, iPod or Aux Modes
0 – 9 Numeric buttons
PRESET STATIONS 6Memory Stations Down
PRESET STATIONS 5Memory Stations Up
EQ Equalizer Options
MEMORYProgram Preset Stations
+, – Volume Up and Down
Play/Pause/ iTunes®Tag
:Skip Forward/Tuning Up
9Skip Backward/Tuning Down
SNOOZE/LIGHT Silences the Alarm Temporarily/
Switch Backlight On/Off
MUTE Mute the System Sound
SET/FM MODE Set Time/Select FM ST or MONO
ALARM 1 Set Alarm 1
ALARM 2 Set Alarm 2
SLEEP Set Sleep Timer On
GETTING STARTED
Unpacking the HD RadioTM Receiver
Please save all the original packaging. It provides the safest way to transport your unit.
Note: This HD RadioTM Receiver is not designed for automotive use.
NOTE: The JiMS-525i is not magnetically shielded and may cause color distortion on the screen of
some TVs or video monitors. To avoid this, you may need to move the unit further away from
the TV or monitor if unnatural color shifts or image distortion occurs.
Connecting the FM Antenna Wire (included)
1. Push the connector plug on the end of the antenna wire onto the FM Antenna Connector at the rear
of the radio.
2. Straighten out the Antenna to its full length and orient the wire for the best reception.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM6

- 7 -
AM outdoor
antenna
AM loop
antenna
Antenna
Discharge Unit
(Nec Section 810-20)
Electric Service
Equipment
Antenna Lead In Wire
Ground Clamp
Grounding Conductors
(Nec Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(Nec Art 250, Part H )
Nec-National
Electrical Code
GETTING STARTED (Continued)
Connecting FM / HD RadioTM ReceiverAntenna / to a Cable Radio Signal
This Radio's FM Antenna Connector is a standard connector that will accept
either the FM Antenna wire (included) or the cable FM feed from most cable
systems that provide FM programming. To connect the included FM Antenna
wire, slide the black plastic end of the antenna wire onto the center post of
the antenna connector on the back of the unit. To connect your Radio to the
FM signal available from some cable TV providers, contact your cable TV
provider for assistance and also to find out if HD RadioTM broadcast signals
are available through the cable line. As of the writing of this manual, HD
RadioTM signals are not being rebroadcast via cable providers.
Be sure that the installation includes a splitter that will filter the signal to prevent any
re-emission of the TV spectrum through the Radio, so that only the FM band, not the
cable TV signal, is transmitted to the Radio.

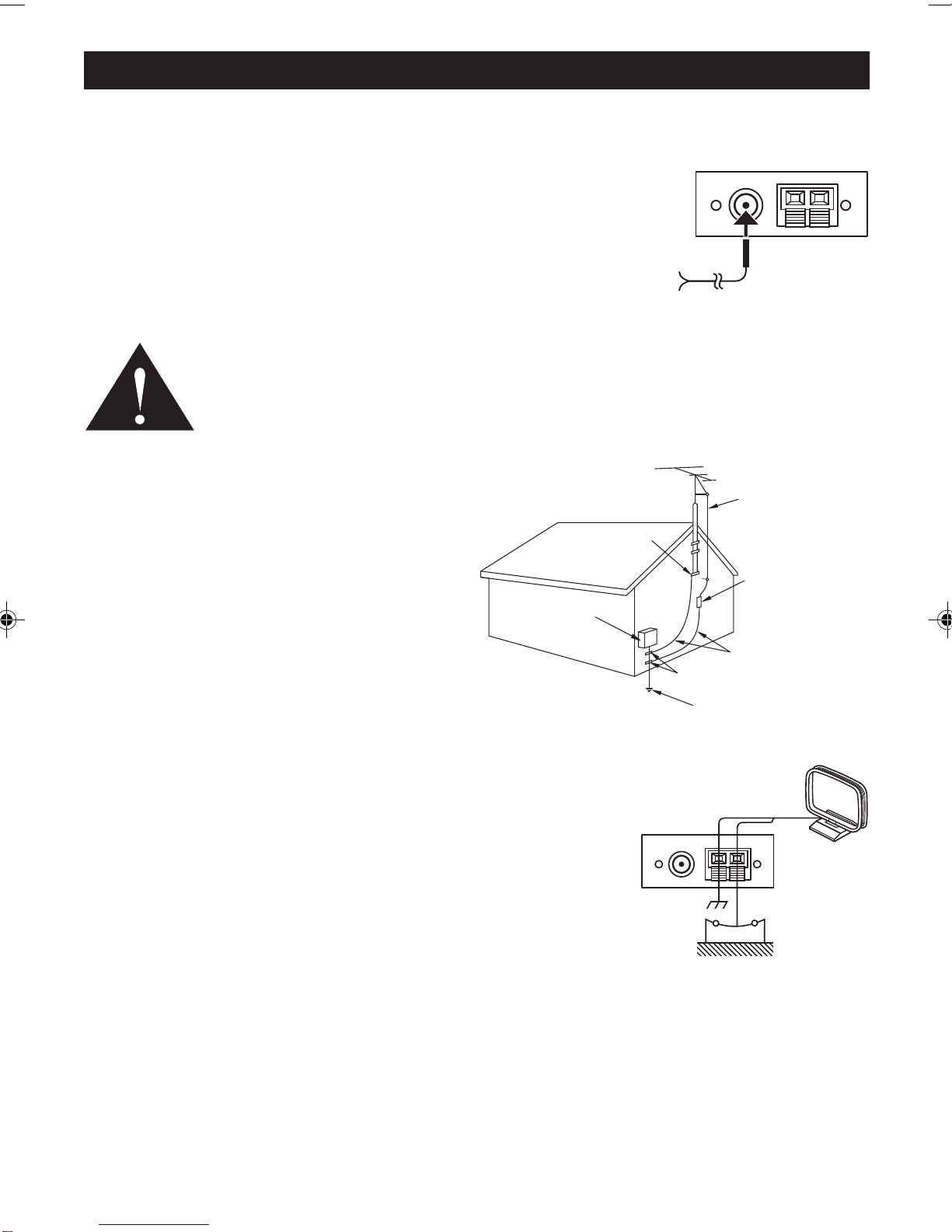

Antenna Grounding
Example of antenna grounding, per the National Electrical
Code, ANSI/NFPA70.
Notice for Cable TV System Installer
Please make note of Article 820-40 of the NEC
(of USA) that provides guidelines for proper
grounding. In particular, this standard specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of cable entry as is practical.
Connecting the AM Loop Antenna
If AM reception is weak for improvement connect the provided Loop
Antenna as describe below:
1. Push to open the 2 receptacles of the AM antenna terminals and
insert 2 open-end wires of the AM loop antenna into them.
2. Release the 2 AM antenna terminal handles to hold the AM loop
antenna wires in place.
3. Orient the AM loop antenna for the best reception.
AUX LINE-IN Connection
Connect one end of the Audio line cable (Included) to the AUX Input jack at the back of the Radio and
the other end of the Audio line cable to your external audio player, such as a CD, MP3 etc.
FM / HD RADIO
ANTENNA WIRE
FM / HD RADIO
ANTENNA
CONNECTOR
AM RADIO
ANTENNA
CONNECTOR
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM7

- 8 -
AC Outlet
AC Cord Inlet
RESET SWITCH
GETTING STARTED (Continued)

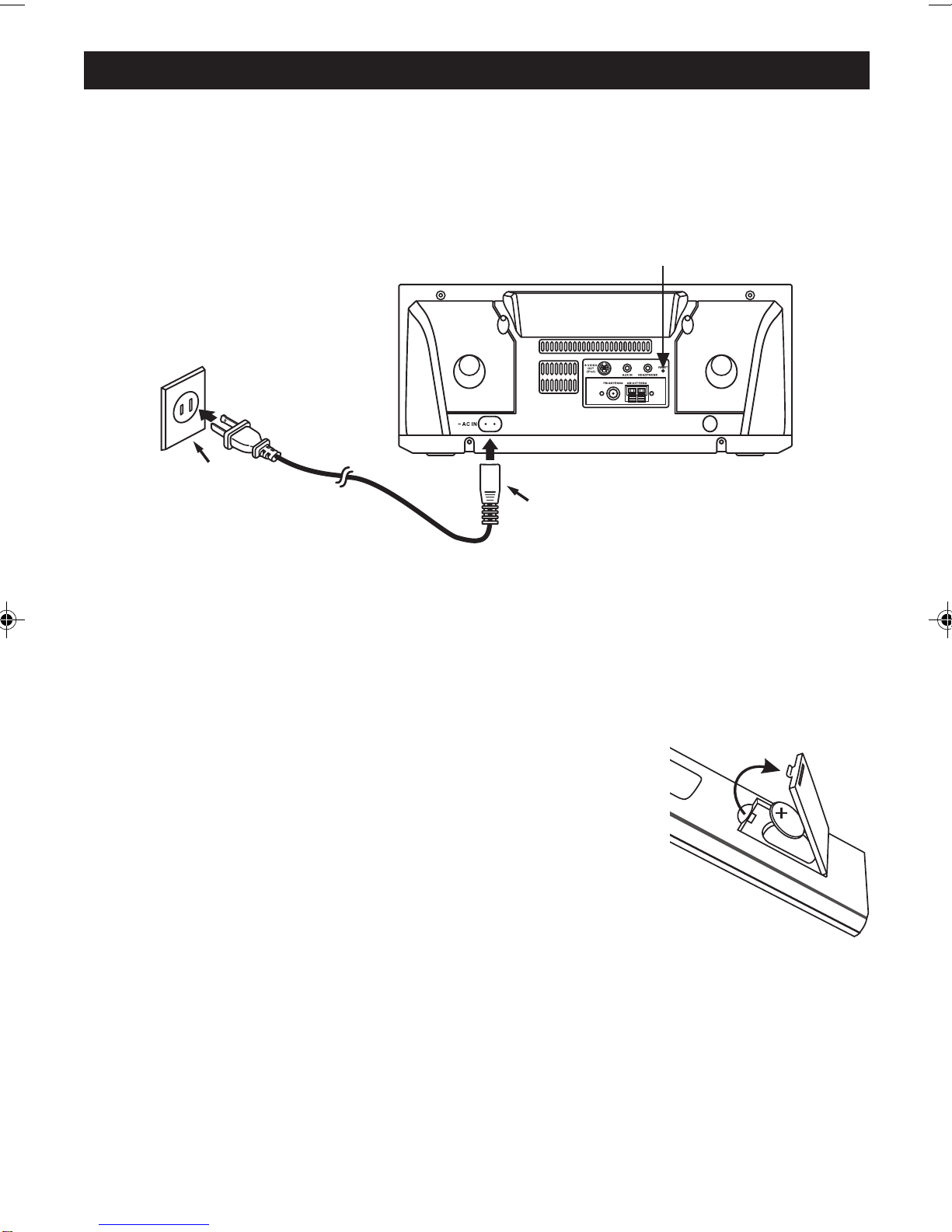

Connecting AC Power Supply
•This JiMS-525i HD RadioTM System operates from AC120V ~ 60Hz line power supply.
•The Remote Control operates on 1 Lithium battery, CR2025 (Included).
Insert the AC Cord Inlet into the AC cord socket on back of the Radio and the other end into a standard
120V AC outlet as shown in the diagram below.
The Radio will automatically go into standby mode.
Remark:
In the event of a malfunction due to electrostatic discharge (ESD), reset the unit by pressing the RESET
switch located on the back of the main unit with a ballpoint pen or similar object.
Activating the Remote Control
i. To activate the Remote Control, remove the protective film.
ii. Point remote control toward the front of the main unit. The effective range of the remote is about 19 ft
from the remote sensor and within an angle of about 45° from the front of the unit.
Replacing the Remote Control Battery
Please replace your battery if the operating distance of the
Remote Control drops drastically.
1. Remove the battery cover.
2. Install one new CR2025 Lithium battery into the battery
compartment as shown in the figure on the right.
3. Replace the cover.
Caution: The battery may leak or explode if incorrectly installed.
Battery Precautions
Follow these precautions when replacing the battery in this device.
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed battery may cause damage to the device.
3. If the device is not to be used for a long period of time, remove the battery to prevent damage or
injury from possible battery leakage.
4. Do not try to recharge. The battery is not intended to be recharged and can overhead and rupture.
(Follow battery manufacturer's directions.)
5. Do not dispose of battery in fire, battery may explode or leak.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM8

- 9 -
RADIO OPERATION
The following procedures can be accomplished by using either the remote or the controls on the main
unit.
Listening to the Radio
Note: When entering the Radio function mode, the words "PLEASE WAIT TO TURN ON RADIO" will
appear first on the bottom row of the Display and then the Band and Frequency Reading will be
shown in the Display after one or two seconds.
1. Press the Button to turn on the unit.
2. Press the FUNCTION Button to operate the unit in radio mode.
TO: PRESS:
Switch between AM/FM band BAND Button repeatedly
Select FM MONO or ST mode SET Button repeatedly
Scan radio station automatically :or 9Hold Buttons for 1 second
Stop auto-tuning :or 9Buttons again
Scan radio station manually :or 9Buttons repeatedly
Control the volume VOLUME + or – Buttons
Adjust the EQ EQ Button repeatedly until the desired EQ shown in the Display
Stop output from the speakers MUTE Button once
Resume output from the speakers MUTE Button again
Note:
1. Frequency reading will change to the time 1 minute after the system has entered the radio function
mode. The FM Stereo Indicator will stay on in the Display in FM stereo mode.
2. To check the station frequency, press the SET/FM MODE Button once and again in order to keep the
station in stereo mode. Station frequency will be displayed for about 1 minute and revert to current
time again.
3. When listening to an FM station, fully extend the antenna to insure maximum tuner sensitivity.
4. Automatic tuning depends on the signal strength of the broadcasting station, so weak stations are
sometimes skipped. Tune manually to find the weak stations. With stronger stations, the tuner may stop
before it reaches optimum setting for that station. Adjust manually for the best reception if needed.
5. For FM reception, the Radio provides FM MONO/STEREO selection. In stereo mode, the unit will
automatically switch to stereo when a strong FM stereo broadcast is received and will indicate "ST" in
the Display.
6. To receive a weaker (noisy) FM station, press the SET/FM MODE Button to switch to MONO mode.
The reception may improve, but the sound heard is monaural (MONO).
7. The sound equalization can be adjusted for optimum sound reproduction depending on the style of
music you are playing. By pressing the EQ button, you can switch between ROCK, POP, CLASSIC,
JAZZ, BASS or NORMAL equalization to suit your taste.
Radio iPod Aux
Rock Pop Classic Jazz Bass Normal
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM9

- 10 -
RADIO OPERATION (Continued)
To Preset Channels
This Radio is equipped with 10 preset memories for AM and 20 preset memories for FM. Once they are
preset, they can be instantly accessed by keying in the preset channel using the Numeric Buttons or
pressing the 5or 6Buttons on the Remote Control.
1. Press Button to turn on the unit.
2. Press the FUNCTION Button to switch the unit into radio mode.
3. Press the BAND Button to select AM or FM band as desired.
4. Tune to a desired station.
5. Press the MEMORYButton. Channel Indicator "01" appears and blinks.
6. While the Channel Indicator is blinking, press the 5or 6Buttons to select the desired preset
channel.
7. Press the MEMORYButton again to confirm when the desired preset channel appears in the Display.
8. Tune to another station and repeat steps 5 to 7 to store a new station in another preset channel.
To Receive Preset Stations
1. Press Button to turn on the unit.
2. Press the FUNCTION Button to operate the unit in the radio mode.
3. Press the BAND Button to select the AM or FM band as desired.
4. Press the 5or 6Buttons or key in the preset channels using the NUMERIC Buttons to select the
preset channels.
Note: HD RadioTM Multicast Channels (HD2, HD3, etc) can be added to the preset memory locations
for easy access, but there may be a delay before sound is heard when accessing the channels
from memory. See the section below "Special Information about Delay in the HD RadioTM System"
for more information on why this delay occurs.
HD RadioTM Multicast Channels (FM Only)
Together with digital sound quality, HD RadioTM technology gives broadcasters the opportunity to offer
more than one programming channel simultaneously using their existing frequency on the radio tuning
buttons.
If the HD RadioTM Receiver recognizes an HD Radio channel, the HD logo starts blinking until the signal
is tuned in. After the HD RadioTM Receiver is tuned to an HD channel, CH1 will indicate the existence of
multicast services. Use the 5or 6Buttons to select the multicast channels (i.e. CH2).
If you are listening to an HD RadioTM Multicast Channel (HD2, HD3, etc) and turn the radio power off or
switch to either iPod or Aux modes, the radio will default back to the main non-HD radio station when
the power is turned on again or if you switch back to the radio function. Example: You are listening to
"97.9FM HD2" and turn the power off or change to iPod or Aux mode. When you turn the power back on
or switch back to the radio mode, the station will be the 97.9FM and not the HD2 multicast channel. If
an HD signal is detected the station will automatically switch to 97.9FM HD1, but you will manually need
to change to 97.9FM HD2 if this is the channel you want to listen to again.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM10

- 11 -
RADIO OPERATION (Continued)
Special Information about Delay in the HD RadioTM System
Digital systems inherently produce a delay in audio. To overcome such delay, HD RadioTM broadcasting
uses a station's current analog signal to ensure fast tuning of an AM or FM station. After an estimated
5 seconds, the audio will change from analog to digital HD RadioTM broadcasting.
If the change is smooth, the radio station will implement the HD RadioTM broadcast correctly. But if the
station has no smooth change, you will experience a jump in content of an estimated 5 seconds. The
HD RadioTM Receiver is not a problem. It is an HD RadioTM broadcaster's implementation problem
which could be corrected by the station through time.
Today's analog is only present on the main channel. If you tune directly to a station's multicast channel
(CH2), there will have a delay of about 5 seconds before audio or content is heard. This operation is
normal.
RBDS (Radio Broadcast Data System)
This Radio supports RBDS, Program Identification and Radio Text. This function allows a radio station
to transmit free-form, static textual information. For example, station slogans are synchronized with the
programming and the title and artist of currently–playing songs are displayed along with the radio
program.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM11

- 12 -
iTunes Tagging
Note: iTunes Tagging®for iPod - Compatibility with iPod nano (3rd generation), iPod classic and iPod
(5th generation).
To Store Song Tag(s)
1. In Radio mode, "Tag Available" will appear on the display indicating that a song Tag is available for the
song that is currently playing. Briefly press the / Tag Button either on the main unit or on the remote
control to capture the song information Tag. Message "Storing Tag .........." will appear in the Display.
2. The Radio will check if its internal memory is full or not. If the internal memory is full, the Display will
show "Storage Full", and return to the previous display.
3. If the internal memory is not full, then the Radio will check if the radio station that is playing contains
a buying tag or not. If a buying tag is not available, the Display will show "Insufficient Data", and
return. If a buying tag is available, storage of that song tag will begin.
4. If the tag fails to be stored in the internal memory, the Display will show "Storage Failed", and return
to the previous display.
5. If storage of the tag is successful, the Display will show "Storage Success". The number of tags
stored will then be displayed, "Tag Stored: X", and balance of internal memory, "Free Space: X", will
also be displayed.
6. Docking your iPod: Whe you first dock your iPod, The JiMS-525i will check for the version iPod you
are using. "Reading iPod, "Please wait..........." will be shown on the Display.
7. Authentication will begin. Display will show "iPod AUTHEN PLEASE WAIT.........." If Authentication
fails, the Display will show "Authentication Failed", and return to the previous display.
8. If authentication is successfully, data transmission will start. The Display will show "Transfer Tags
Please wait.........."
9. If the internal memory of the iPod is not adequate for the Tags being transferred, the LCD will show
"Memory Not Enough", and return.
10.If internal memory is adequate to accept the Tags, the data transmitted to iPod will first be checked
for correctness. If the data is not correct, the Display will show "XML Write Failed", and return to the
previous display.
11. If data transmission is successful, the Display will show "XTags Sent". X signifies the number of Tags.
12.The Tags are automatically erased from the internal memory of the JiMS-525i once they are
transferred to the iPod.
Purchasing Song(s) with iTunes
1. Once the song Tags are stored on the iPod, you can now plug your iPod into your computer in the
same manner as you normally would when accessing iTunes.
2. You will need to make sure you are using the latest software version for both your iPod and iTunes.
3. Once your iPod mounts and appears in the iTunes window, you click on the "Sync" button to sync
your iPod with iTunes. IMPORTANT:Make sure you are working on the same computer you normally
use for your iPod or make sure that iTunes is manually managing the content on your iPod otherwise
you could wipe the content from your iPod and reload all the content from the iTunes library you are
now sync'd with. See your iTunes Help section before pressing "Sync" if you have any doubts about
working with Auto and Manual updating.
4. Once your iPod Syncs with iTunes, you will see a new tab on the left side of the screen called
"Tagged Songs". All the songs you Tagged will show in this tab when selected.
5. You can now select a Tagged song from the screen and you will automatically be taken to the iTunes
Store. Please note, you need an iTunes Store account in order to purchase Tagged songs, so see the
information that came with your iPod for information on how to create an account for iTunes.
6. If the song cannot be found in iTunes, you can use the advanced search feature in iTunes to locate
the songs manually.
7. Once a Tagged song is selected, you can now purchase the song through iTunes in the same way
you would normally purchase songs.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM12

- 13 -
AUX OPERATION
You can play other music sources (iPod shuffle, MP3, CD or other digital audio player) through the
speakers of this Radio by connecting the AUX LINE-IN Jack to your external player's audio out jack or
headphone jack.
1. Set up the Radio and your external player as described in the section AUX IN Connection.
2. Power up the Radio and the external player.
3. Press the FUNCTION Button to operate the Radio in AUX mode.
4. Start playing your MP3, CD or other digital audio player.
5. Press the + or – Buttons to obtain the desired sound level.
6. Press EQ Button to choose the desired equalizer effect.
iPodADAPTORS
Below are the iPod Adaptors included in the package.
It is always recommended you use the adaptor that comes with your iPod first. This will help maximize a
custom fit for your iPod when docked.
TABLE 1
Vi deo 80G
Vi deo 30G
Mi ni
Na no
Na no 2nd
iPod AdaptoriPod Models
iPod mini 4GB & 6GB
Video 80G
Video 30G
Mini
Nano
Nano 2nd
5 Gen iPod with
video 60GB & 80GB
5 Gen iPod & U2 iPod
with video 30GB
1 Gen iPod nano 1GB,
2GB & 4GB
2 Gen iPod nano 2GB,
4GB & 8GB
iTouch & iPhone
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM13

- 14 -
iPod
DOCKING YOUR iPod
1. Press the Button to turn on the unit.
2. Press the FUNCTION Button to select iPod mode.
3. According to TABLE 1, select a suitable adaptor
for your iPod and insert it into the docking bay.
Your iPod can now be inserted onto the iPod
connector by aligning the connector on the
bottom of the iPod onto the connector in
the docking bay.
Note: Please be careful when seating the iPod
onto the dock to avoid damaging the 30-pin
connector in the iPod or the docking system.
4. Authentication will begin once the iPod is docked.
The message "IPOD AUTHEN PLEASE WAIT......"
will be shown on the Display for a few seconds and
then the type of iPod will be shown on the Display.
5. The iPod will start playing automatically and will also charge.
6. Adjust the sound level by pressing the VOLUME +/– buttons on the JiMS-525i.
Note: The volume level cannot be adjusted using the volume control on your iPod after being docked.
7. Press EQ Button on the JiMS-525i to choose the desired equalizer effect.
Note: Set the EQ of your iPod to OFF so that it will not affect the correct operation of the EQ on this
unit.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM14

- 15 -
iPhone
DOCKING YOUR iPhone
1. Press the Button to turn on the unit.
2. Press the FUNCTION Button to select iPod mode.
3. According to TABLE 1, select the 30G adaptor and
insert it into the docking area. Your iPhone can now
be inserted into the docking port by aligning the
connector on the bottom of the iPhone onto the
connector in the docking.
Note: Please be careful when seating the iPhone
onto the dock to avoid damaging the 30-pin
connector in the iPhone or the docking system.
4. Authentication will begin once the iPhone
is docked. The message "IPOD AUTHEN
PLEASE WAIT ........" will be shown on the
Display for a few seconds and then "iPhone"
will be shown in the Display.
5. The iPhone will start playing iPod music automatically
and will charge.
6. Adjust the sound level by pressing the VOLUME +/– buttons on the JiMS-525i.
Note: The volume level cannot be adjusted using the volume control on your iPhone after being docked.
7. Press EQ Button on the JiMS-525i to choose the desired equalizer effect.
Note: Set the EQ of your iPhone to OFF so that it will not affect the correct operation of the EQ on this
unit.
8. Playback will be suspended if there is an incoming call. The iPhone will ring.
9. Touch the Answer icon once to pick up the call.
10.Touch the Speaker button once to answer the call in handsfree mode.
11. Press the End Call Icon when you have finished answering the call. Music will resume.
Note: To enhance sound quality in handsfree mode, you should always use the 30G adaptor for docking
the iPhone.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM15

- 16 -
CONNECTING THE S-VIDEO (for iPod Video Output)
You are able to view videos and photos stored in your 5th generation iPod, iPod classic, 3rd generation
IPod nano and iPod touch on a standard TV screen or video display using the S-Video OUT feature of
this unit.
General Set Up
1. Connect one end of the S-Video cable into the rear S-Video OUT
Jack on this unit and the other end to the VIDEO IN of your TV or
video display.
2. Switch on your TV or video display.
3. Press the FUNCTION button to select iPod mode.
4. Securely dock the iPod and select Videos mode.
5. Select Video Settings on your iPod and set TV Out options to "On".
6. Return to the Videos Menu and select your favorite movie or video clips.
7. Press the Play Button to start playing.
For Photo View (For iPod with color display ONLY –excluding
iPod nano)
1. Press the FUNCTION Button to select iPod mode.
2. Securely dock the iPod with color display.
3. iPod: At TV Out section, make sure it is set to "ON".
4. iPod: Go to Photo Library and then press play. The slideshow will play
on your device.
iPod
Music
Photos
Videos
Extras
Settings
Shuffle Songs
Videos
Video Playlists
Movies
Music Videos
TV Shows
Video Podcasts
Video Setting
Settings
TV Out
TV Signal
Wide Screen
On
NTSC
On
CONNECTING THE S-VIDEO (for iPhone Video Output)
You are able to view videos and photos stored in your iPhone on a standard TV or video display using
the S-Video OUT feature of this unit.
For Video View (For iPhone with video ONLY)
You can connect this unit to a TV or other video display that has S-video input.
1. Connect the S-Video cable into the rear S-Video OUT Jack on the unit.
2. Connect the other end of the S-Video cable to the VIDEO IN of your TV or video display.
3. Press the FUNCTION button to select iPod mode.
4. Securely dock the iPhone with the iPhone in Video mode. Touch the Video Icon on the iPhone to
enter Video mode if necessary.
5. Select a movie from your iPod menu.
6. To stop music playback, select your desired movie or video clip on the
touch screen. The following screen will pop up in the iPhone Display.
7. To view the movie on your TV, touch "Yes".
8. Adjust VOLUME +/– for the desired sound level.
Note: When playing slideshows or videos on your TV, the audio will only playback through the
JiMS-525i speakers.
Display on TV?
Yes No
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM16

- 17 -
USING HEADPHONES (NOT INCLUDED)
Inserting the plug of your headphones (not included) into the Headphone jack, on the back of the Radio,
will enable you to listen in private. When using headphones, the speakers will be disconnected
automatically.
NOTE: READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES
1. Avoid extended play at very high volume as it may impair your hearing.
2. If you experience ringing in your ears, reduce the volume or shut off your unit.
3. Keep the volume at a reasonable level even if your headset is an open-air type designed to allow you
to hear outside sounds. Please note that excessively high volume may still block outside sounds.
CLOCK SETTING
The following procedures can be accomplished by using either the remote or the controls on the main
unit.
Setting the Time
The Clock can only be set in POWER off mode.
1. Press and hold the SET Button for 2 seconds and the Hour digits of the clock will flash.
2. Press the :or 9Buttons until the correct Hour digits appear in the LCD.
Note: Make sure the hour is set so that AM or PM is correctly displayed. It is important that the "AM" or
"PM" setting is correct for proper operation of the Alarm function.
3. Press the SET Button to confirm. Minute digits will appear and flash in the LCD.
4. Press the :or 9Buttons to set the Minute digits.
5. Press the SET Button to exit and activate the new clock time to operate.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM17

- 18 -
CLOCK SETTING (Continued)
Setting the Alarm (s)
i. This Radio allows you to set two different wake-up times which can be used independently or
simultaneously AL1 or AL2 or AL1 and AL2.
ii. The procedure for setting the alarm time for ALARM 1 and ALARM 2 are the same.
iii. The following procedure describes how to set ALARM 1 alarm time:
1. In POWER off mode, press the ALARM 1 Button briefly. The ALARM 1 Alarm Indicator appears.
2. Press and hold the ALARM 1 Button until the wakeup sound source appears and flashes in the
display.
3. Press the :or 9Buttons repeatedly to select the Alarm1 wakeup mode (HD Radio FM, HD Radio
AM, iPod or Buzzer).
4. Press the ALARM1 Button to confirm when the desired wakeup mode appears in the Display. The
Display will then show the flashing Hour digits prompting for input.
5. Press the :or 9Buttons to select the desired wakeup Hour.
Note: Make sure the hour is set so that AM or PM is correctly displayed. It is important that the "AM" or
"PM" setting is correct for proper operation of the Alarm function.
6. Press the ALARM 1 Button again to confirm the wakeup Hour. Minute digits will appear and flash in
the Display.
7. Press the :or 9Buttons to select the desired Minutes.
8. Press the ALARM 1 Button again to confirm the Minutes. The Alarm sound level will then be displayed
and flash to prompt for input.
9. Press the VOLUME + or –Buttons to select the desired wakeup sound level.
10.Press the ALARM 1 Button to confirm and the alarm setting process is then completed.
HD Radio AM
HD Radio FM
iPod Buzzer
CLOCK LIGHT OPERATION
1. For a bright LCD Display under normal room illumination, press the SNOOZE/LIGHT Button once.
The LCD backlight will turn on.
2. For a dim LCD Display in the dark press the SNOOZE/LIGHT Button again to turn the LCD backlight
off.
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM18

- 19 -
ALARM OPERATION
This unit provides wake to HD Radio FM, HD Radio AM, iPod or ALARM.
Wake to Radio, iPod or Alarm
1. Refer to "SETTING THE ALARMS" on page 18 to set the desired wake up time (s), wakeup mode,
i.e. HD RADIO FM, HD Radio AM, iPod or ALARM and volume level.
2. When the preset wake up time is reached the selected wakeup mode turns "On". The respective
ALARM Indicator flashes. The alarm will continue to sound and last for 60 minutes and then turn off
automatically. The alarm remains set and will turn the radio on again at the same time on the
following day.
3. To stop the alarm sound before it turns off automatically, briefly press the ALARM1 or ALARM 2
Button once. The alarm sound stops but the alarm remain set and will turn the radio on again at the
same time on the following day.
4. To cancel the alarm function briefly press the ALARM1 and/or ALARM 2 Buttons again. The
respective ALARM indicator(s) goes off.
Notes:
i. If you have chosen "Wake to RADIO" alarm mode, make sure that you have tuned to a station and
adjusted the volume to a comfortable level.
HD RadioTM Multicast Channels (HD2, HD3, etc) cannot be used when "Wake to Radio" is selected.
If the FM radio station you select for wake up is a Multicast Channel, the radio will turn on at the
designated wake time, but the default main non-HD radio station will come on. Example: "97.9FM
HD2" is selected before going to sleep. When the wake time is reached the radio will turn on to
97.9FM and not to the HD2 multicast channel. If an HD signal is detected, the station will
automatically switch to the default 97.9FM HD1, but you will manually need to change to 97.9FM HD2
if this is the channel you want to listen to.
ii. If "Wake to iPod" alarm mode is selected, make sure that there is an iPod in the Radio and the
volume is set to a comfortable level.
iii. In "Wake to iPod" alarm mode, the ALARM will sound if no iPod is inserted in the Radio.
SNOOZE OPERATION
1. When the alarm sounds (alarm, radio or iPod), you can press the SNOOZE/LIGHT Button to extend
the alarm time by 9 minutes. The alarm, radio or iPod will then turn on again.
2. The SNOOZE operation can be repeated several times within the 60 minutes alarm duration.
HD Radio AM
HD Radio FM
iPod Buzzer
JENSEN JIMS-525i_Eng ib_Rev.p65 5/15/2008, 5:51 PM19
