Jensen FOX1000i User manual

Internet Radio
with DAB+, FM and Bluetooth
MODEL NO.: FOX1000i
M

1
Page index
1. Getting started
1.1 Appearance and key descriptions
1.2 Remote control
1.3 Display symbols
1.4 Connect to the wireless network
1.5 AirMusic Control app
2. Internet radio
2.1 Listen to radio station
2.2 My favorite
2.3 History
2.4 MyMediaU
3. DAB
4. FM
5. Bluetooth
6. Media Center
7. Music Streaming
8. Alarm and timer
9. Configuration
10. Troubleshooting
11. Specifications
1. Getting started
The packaging box contains the following items:
FOX1000i DAB+/FM/Internet Radio
Remote Control
AC Power Cord
User Manual (English, Norsk)

2
Thank you
for choosing Jensen of Scandinavia
At Jensen of Scandinavia satisfied customers mean everything
to us. We are therefore constantly seeking knowledge in order to
meet the requirements and expectations of our customers.
Our goal is to be the obvious first choice, the best provider of
customer service and offer products that are easy to use.
We would like to take this opportunity to once again thank you
for choosing our product!
Best Regards
Jensen of Scandinavia
Network Requirement
The FOX1000i is an internet radio and will require the following:
A wireless internet connection (Wi-Fi)
Smartphone or Tablet that runs iOS or Android system.
Please make sure that both FOX1000i and your
smartphone/tablet is connected to the same wireless network

3
1.1 Appearance and Key Description
FRONT VIEW
1. Home button
Press to return to the main menu
2. M - Mode button
Switch between audio sources like Bluetooth, FM, DAB etc.
3. 2.4”TFT full color display
4. Power on/Standby button
5. IR Remote Sensor

4
TOP VIEW
6. < Left cursor / Previous button
7. Play/Pause button
8. > Right cursor / Next button
9. Preset 1, 2, 3, 4
10. Preset button
Press and hold to save the stations.
11. Volume/Navigate + OK dial
Adjust volume;
Cursor up/down;
Confirm selection

5
BACK VIEW
12. USB port for charging (5V,1A)
13. 3.5mm head phone jack (Music out)
14. AC Socket
15. Telescopic Antenna
12 13 14
15
USB

6
1.2 Remote Control
1. Mute button
2. Power On/Standby
3. Button. Press to return to
the main menu.
4. Increase volume button
5. Decrease volume button
6. Button. Press to go back
to previous track
7. Button. Press to change
to next track
8. Play/Pause button
9. Mode button. Press to go to
main menu.
10. Up cursor button
11. Left cursor button
12. Right cursor button
13. Down cursor button
14. OK button
15. 0~9 call up favorites/memory; Input letters and numbers
16. EQ button
17. INFO button
18. PRESET button
19. Sleep button
20. ALARM button
21. TIMER button
Remember to pull out the clear plastic tab from the battery
compartment before using the remote.
To remove the battery from the remote, use your thumb to pull out the
battery tray. Replace it with 2 x AAA type battery.
Caution: Risk of explosion of battery is replaced by an incorrect type.
Please dispose used batteries to an environment station or to the local
consumer store.
1 2
3 4
6 9
810
7
5
1211
14
13
17
16
21
18
19
20
15

7
1.3 Display symbols
Connection is being established, device functioning
No wireless connection
Wireless connection established
Search
DAB/FM radio function selected
DAB/FM radio reception: Mono
DAB/FM radio reception: Stereo
Speaker off
Alarm on
Internet radio station saved as favorite
FM radio station saved
1.4 Connect to the wireless network
Note: Any walls or ceilings may reduce the strength of
the WiFi connectivity.
Therefore, try to locate the FOX1000i in a place it can
receive good Wi-Fi signals.
Plug the power cord into the AC socket on the FOX1000i
The first time you start the FOX1000i, the system will ask you
to set Language and Network Configurations.

8
Select language using remote
Control or the volume knob.
Select YES for the FOX1000i to
automatically connect to the
wireless network each time it is
powered on.
Select if you want to setup the
wireless connection now.
See next page for more
information.

9
There are two ways to connect FOX1000i to the wireless network:
Option 1 - Connect entering the wireless password:
Select Yes to connect the FOX1000i to the wireless network using the
normal wireless password.
Select No if you would prefer to listen to a terrestrial station (DAB/FM)
or to use the speaker with an external playback device.
If you answer Yes, the FOX1000i will scan for Wireless Network and
shortly afterwards a list of available wireless networks will appear.
Select wireless network and enter
password:
A. Select your network from the list
and confirm with OK
(use the remote control or the
volume knop).
B. If your WLAN is
password-protected, you will be
prompted to enter your password.
Entering password using volume
knob:
C. Rotate the volume knob to
choose the code.
D. Click the > on the FOX1000i to
enter next letter.
E. Press down the volume knob
when you are finished entering the
whole password.
F. It may take a few seconds to
establish the connection to the
network.

10
Entering password with Remote Control
Enter the password using the number and letter buttons of the remote
control. Note the use of upper and lower case when entering the
password. The cursor indicates the current entry space.
Press the corresponding number button repeatedly:
0 0(delete entry)
1 1(space) @! # $ % & ( ) + - . / : ; < = > ? [ \ ] ^ { | } ~
2 2 A B C a b c
3 3 D E F d e f
4 4 G H I g h i
5 5 J K L j k l
6 6 M N O m n o
7 7 P Q R S p q r s
8 8 T U V t u v
9 9 W X Y Z w x y z
Alternatively, you can enter the numbers and letter using only the cursor
buttons:
Go to previous entry space, entry can be overwritten
Go to next entry space, the last entry is saved
/ Select number / letter
OK confirm entire entry
It may take a few seconds to
establish the connection to the
network.

11
Option 2 - Connect using WPS:
Select Yes (WPS) (only for WPS routers).
A. Press the WPS button on your router within 120 seconds
Please refer to the manual of your wireless router for to activate
WPS.
B. Wait for the FOX1000i to connect.
Once the connection is established, the main menu appears with the
main menu items:
Internet Radio: Access to worldwide radio stations
Media Centre: Access to your UPnP devices via software with
straming capability.
Information Center: Access to weather, financial and system
information.
Bluetooth: Access to all devices connected via bluetooth.
Configuration: Various system settings
Local Radio: Access to radio stations in a particular region (e.g.
onlyGerman Stations)
FM
DAB
Press to enter standby mode.
The time, date and any active
alarm times display on the screen.
If you have setup a network
connection, and use FOX1000i
again within the network, it will
automatically establish the
connection. In case you desire to
change the network, enter
configuration to setup the corresponding connection.

12
1.5 AirMusic Control App
The FOX1000i can be controlled with your smartphone via Wi-Fi. We
recommend you to use the AirMusic Control App. Additionally to
controlling the radio, the app is able to play the smartphone’s local
music files on the FOX 1000i.
The AirMusic Control app is avaiable for both Andriod and iOS.
It can be downloaded using these QR codes, or you can just search for
AirMusic Control.
Main Menu
Start the desired function by tapping
on the appropriate symbol.

13
Internet Radio
In this mode, all the functions of internet
radio operation can be selected.
In the lower section, you can select the
saved stations with button 1-5.
Media Center
In this area, you can connect with media
serves in your network.

14
FM Radio
In this mode, you can operate the FM
radio.
DAB Radio
In this mode, you can operate the DAB
radio.

15
Bluetooth
In this mode, you can operate to play in
bluetooth.
Press the to operate the remote
control function.

16
Press to leave a message.
Press to record.

17
Press to play local music
(e. g. from your smartphone)
2. Internet Radio
Press the M button on the radio or the / MODE button on the remote
control, and use the to select Internet radio.

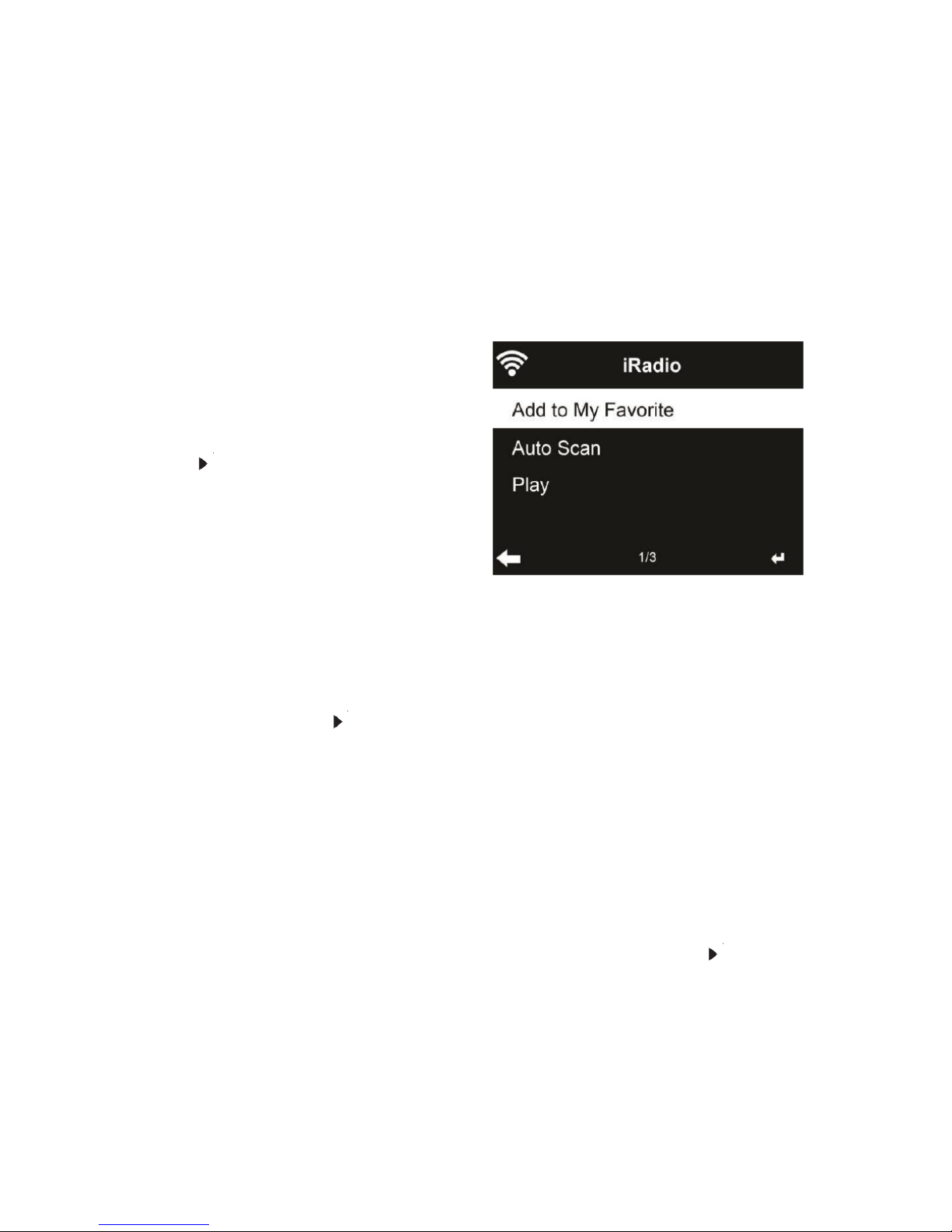

2.1Listen to internet radio
Stations are categorized into Global
Top 20, Genre, Country/Location
and Highlight. Enter to continue the
subcategories and choose the
station to listen.
For each station, press OK to play
directly. You may press to enter
its submenu. You can
Add to Favorite, Auto Scan or Play. When you choose Auto Scan, the
radio introduces every station in the list by playing it for 30 seconds.
This is stopped when every station is played or you press the OK
button.

18
2.2My Favorite
You can create a list of your favorite preset stations. FOX1000i supports
up to 250 favorite entries including station and folder.
When you listen to a radio station, press and hold Preset on the
FOX1000i and use the volume knop to find an available preset position.
Then push down the volume knob to save.
You also can save the station to
your favorite while scrolling
through the station list. When the
station is highlighted you can
press to enter this menu where
you can add the station to your
favorites.
If the selected station has been saved, you cannot save it again.
Under the preset station list, move to your station, press OK to listen.
You may also press to enter its submenu to Delete, Shift Up, Shift
Down along the list, Rename or Play.
2.3History
Shows you a list of last listened stations. It can save up to 10 history
stations.
For each station, press OK to play directly. You may press to enter
its submenu. You can Add to Favorite, Auto Scan or Play.
When you choose Auto Scan, the radio introduces every station in the
list by playing it for 30 seconds. This is stopped when every station is
played or you press the OK button.

19

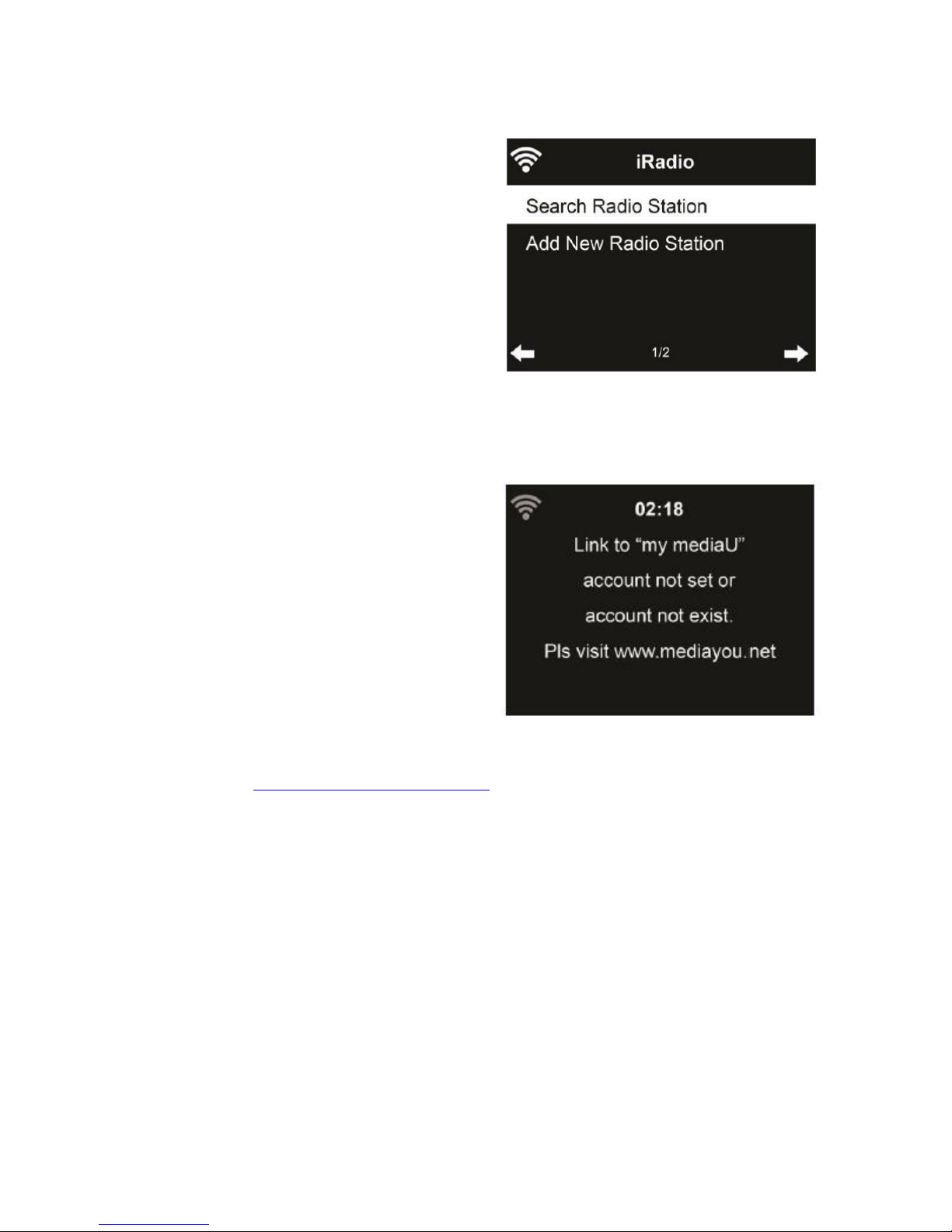

Service
Search Radio Station - Enter your
keyword by the remote control to
search radio station from the list.
Add New Radio Station - The
added stations will be stored in My
Favorite. Note that the maximum
character of the station name is
250.
2.4My mediaU
Display and playback your own
mediaU station list on the mediaU
server. Set your account first.
When it is enabled, My mediaU will
be shown on the main menu.
If various mediaU accounts exist in
the FOX1000i, select the default
login account in here.
To activate your own station list,
follow the steps below:
1. Access http://www.mediayou.net.
2. Join my mediaU membership
3. Login to the website
4. Enter the wireless MAC address of FOX1000i to the mediaU
website. This information can be obtained in Information Center >
System Information > Wireless Info
5. After successfully configuring, you are able to save and view your
own mediaU station playlist(s). Username and password are not
required to enter into the FOX1000i.
6. If there are different accounts stored in FOX1000i, you can choose
the one you currently use under Configuration menu.
