Jet JWP-12 User manual

GB - ENGLISH
Operating Instructions
Dear Customer,
Many thanks for the confidence you have shown in us with the purchase of your new JET-machine. This manual has been
prepared for the owner and operators of a JET JWP-12 planer to promote safety during installation, operation and maintenance
procedures. Please read and understand the information contained in these operating instructions and the accompanying
documents. To obtain maximum life and efficiency from your machine, and to use it safely, read this manual thoroughly and follow
instructions carefully.
…Table of Contents
1. Declaration of conformity
2. JET Warranty
3. Safety
Authorized use
General safety notes
Remaining hazards
4. Machine specifications
Technical data
Noise emission
Contents of delivery
Description of machine
5. Transport and start up
Transport and installation
Assembly
Mains connection
Dust connection
Starting operation
6. Machine operation
7. Changing the knives
8. Maintenance and adjustment
9. Troubleshooting
10. Available accessories
1. Declaration of conformity
On our own responsibility we hereby
declare that this product complies with
the regulations* listed on page 2.
Designed in consideration with the
standards**. CE type examination***
conducted by****
2. JET Group Warranty
The JET Group makes every effort to
assure that its products meet high
quality and durability standards and
warrants to the original retail
consumer/purchaser of our products
that each product be free from defects
in materials and workmanship as
follows:
2 YEARS ON ALL MECHANICAL
PARTS
1 YEAR ON ALL ELECTRICAL
PARTS:
This Warranty does not apply to
defects due to directly or indirectly
misuse, abuse, negligence or
accidents, normal wear-and-tear,
repair or alterations outside our
facilities, or to a lack of maintenance.
The Jet group limits all implied
warranties to the period specified
above, from the date the product was
purchased at retail.
To take advantage of this warranty, the
product or part must be returned for
examination, postage prepaid, to an
authorized repair station designated by
our office.
Proof of purchase date and an
explanation of the complaint must
accompany the merchandise.
If our inspection discloses a defect, we
will either repair or replace the product,
or refund the purchase price if we
cannot readily and quickly provide a
repair or replacement, if you are willing
to accept a refund.
We will return repaired product or
replacement at JET’S expense, but if it
is determined there is no defect, or that
the defect resulted from causes not
within the scope of JET’S warranty,
then the user must bear the cost of
storing and returning the product.
The JET Group reserves the right to
make alterations to parts, fittings, and
accessory equipment which they may
deem necessary for any reason
whatsoever.
3. Safety
3.1 Authorized use
This machine is designed for planing
wood and wood derived materials.
Machining of other materials is not
permitted and may be carried out in
specific cases only after consulting
with the manufacturer.
The proper use also includes
compliance with the operating and
maintenance instructions given in this
manual.
The machine must be operated only by
persons familiar with its operation,
maintenance and repair and who are
familiar with its hazards.
The required minimum age must be
observed
The machine must only be used in a
technically perfect condition
When working on the machine, all
safety mechanisms and covers must
be mounted.
In addition to the safety requirements
contained in this operating instructions
and your country’s applicable
regulations, you should observe the
generally recognized technical rules
concerning the operation of
woodworking machines.
Any other use exceeds authorization.
In the event of unauthorized use of the
machine, the manufacturer renounces
all liability and the responsibility is
transferred exclusively to the operator.
3.2 General safety notes
Woodworking machines can be
dangerous if not used properly.
Therefore the appropriate general
technical rules as well as the following
notes must be observed.
Read and understand the
entire instruction manual
before attempting
assembly or operation.

Keep this operating instruction close
by the machine, protected from dirt
and humidity, and pass it over to the
new owner if you part with the tool.
No changes to the machine may be
made.
Daily inspect the function and
existence of the safety appliances
before you start the machine.
Do not attempt operation in this case,
protect the machine by unplugging the
mains cord.
Remove all loose clothing and confine
long hair.
Before operating the machine, remove
tie, rings, watches, other jewellery, and
roll up sleeves above the elbows.
Wear safety shoes; never wear leisure
shoes or sandals.
Always wear the approved working
outfit
Do not wear gloves while operating
this machine.
Control the stopping time of the
machine, it may not be longer than 10
seconds.
Remove cut and jammed workpieces
only when motor is turned off and the
machine is at a complete standstill.
Install the machine so that there is
sufficient space for safe operation and
workpiece handling.
Keep work area well lighted.
The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
Make sure that the power cable does
not impede work and cause people to
trip.
Keep the floor around the machine
clean and free of scrap material, oil
and grease.
Stay alert!
Give your work undivided attention.
Use common sense. Do not operate
the machine when you are tired.
Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication
can change your behaviour.
Never reach into the machine while it
is operating or running down.
Never leave a running machine
unattended. Before you leave the
workplace switch off the machine.
Keep children and visitors a safe
distance from the work area.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the machine in a dump
environment and do not expose it to
rain.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.
Always use a suitable dust extraction
device
Before machining, remove any nails
and other foreign bodies from the
workpiece.
Never operate with the guards not in
place – serious risk of injury!
All anti-kickback fingers must
automatically return to their rest
position (downwards)
Never reach with your hands into the
machine when guiding or sorting the
workpiece.
Use a feeding aid (push wood) if you
want to feed short stock into the
machine. Stock must have a minimum
length of 250mm.
Specifications regarding the maximum
or minimum size of the workpiece must
be observed.
Do not remove chips and workpiece
parts until the machine is at a complete
standstill.
Always use sharp cutter knives.
Do not machine more than two
workpieces at the same time.
To plane stock which surfaces are not
parallel, use suitable feeding aids
(make fitting templates).
Use roller supports on both sides of
the planer when working long stock.
Keep planer bed surface clean, in
particular remove resin residue.
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Have a damaged or worn cord
replaced immediately.
Make all machine
adjustments or
maintenance with the
machine unplugged from
the power source.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards
may still exist
Touching the cutter block in the
machining area can cause injury.
Drawing-in/trapping hazard by power
feed mechanism.
Squeezing hazard by workpiece
power-outfeed.
Thrown workpiece parts can lead to
injury
Sawdust and noise can be health
hazards. Be sure to wear personal
protection gear such as safety goggles
and ear protection. Use a suitable dust
exhaust system.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
4. Machine specifications
4.1 Technical data
Planing width max 318 mm
Planing thickness 6 to 153 mm
Depth of cut max. 2,5 mm
Number of knives 2
Cutterhead diameter 48 mm
No-load speed no9000 rpm
Cuts per minute 18000
Cutter knife length 319mm
Cutter knife width 18mm
Cutter knife thickness 3mm
Feed rate 7 m/min
Weight 27 kg
Mains 230V ~1L/N/PE 50-60Hz
Motor input power 2000W
Reference current 9 A
Extension cord H05W-F 3G1mm²
Installation fuse protection 16A
4.2 Noise emission
Determined according to EN 1807:1999
(Inspection tolerance 4 dB)
Acoustic power level (acc. EN 3746):
Idling 101,5 dB (A)

Acoustic pressure level (EN 11202):
Idling 88,7 dB (A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
This information is intended to allow
the user to make a better estimation of
the hazards and risks involved.
4.3 Content of delivery
Planer
Dust chute 100mm
Thickness crank
Knife setting gauge
4 Rubber feet
Assembly kit
Operating manual
Spare parts list
4.4 Description of machine
Fig 1
A….ON/OFF Switch
B….Overload cut-off
C….Transport rollers
D….Motor brushes
E....Thickness crank
F….Carrying handles
G….Thickness scale
H….Mounting holes
I…..Support infeed roller
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
The machine can be bolted down if
required.
Fold the infeed and outfeed rollers up
when the planer is not in use and
during storing.
Wrap the power cord around the
hangers under the infeed table(Fig2)
Fig 2
For packing reasons the machine is
not completely assembled.
5.2 Assembly
If you notice any transport damage
while unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with a
mild solvent.
Install rubber feet (J) and Thickness
crank (B).
Fig 3
5.3 Mains connection
Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine licence
plate.
The mains connection must have a 16
A surge-proof fuse.
Only use connection cables marked
H05VV-F
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.
5.4 Dust connection
Before initial operation, the machine
must be connected to a dust extractor.
5.5 Starting operation
You can start and stop the machine
with the ON/OFF-button(A).
Fig 4
In case of machine overload the motor
overload cut-off (B) will react.
After appr.5 min of cooling the
overload cut off can be reset.
Attention: The machine will start
when you reset the overload push
button!
6. Machine operation
Correct operating position:
To feed the workpiece into the
machine, position yourselves offset to
one side of the feed opening.
Workpiece handling:
Adjust the planer table to the
workpiece thickness.

Fig 5
Feed workpiece slowly and straight
into the thicknesser. It will then be
automatically fed through the
thicknesser.
Guide workpiece straight through the
thicknesser.
To remove the workpiece from the
machine, position yourselves offset to
one side of the outfeed opening.
Support long workpieces with helping
roller stands.
Operating notes:
Always use sharp cutter knives!
Feed with thicker workpiece end at the
front, hollow side downward.
Max. 2,5mm depth of cut.
If a workpiece gets stuck raise the
cutterhead by app. 1mm (1 crank turn).
Plane the stock with the grain, if
possible (Fig 6).
Fig 6
You get a better surface when planing
several passes with less chip removal.
Switch machine off if no further
planning is to be done immediately
afterwards.
Workpieces shorter than 250mm may
not be processed.
Machine max. 2 workpieces at one
time. Feed on both outer sides.
7. Changing cutter knives
The cutter knives may
only be changed when the
mains plug is pulled!
Risk of personal injury by cuts from the
cutter knives. Wear suitable gloves
when changing cutter knives.
Knife removal:
Raise the cutterhead to its highest
position.
Remove the thickness crank (E) and
the planer cover screws(K).
Fig 7
Remove the planer cover.
Remove the cutter block cover (L)
Fig 8
Turn the hex-head bolts (M) of the
cutter knife lock bar all the way in
(wear gloves!).
Fig 9
At first remove cutter knife, then cutter
knife lock bar from the cutter block.
Clean all surfaces of cutter block and
cutter knife lock bar with a suitable
solvent (do not use cleaning agents
that could corrode the light metal
components).
Knife installation:
Use only suitable cutter knives
conforming the technical specification
and EN 847-1
Unsuitable, incorrectly mounted, dull,
cracked of bent cutter knives can work
loose or increase the risk of kickback
considerably.
Always replace both cutter knives at
once.
The cutter knife lock bars are balanced
to each other and thus can randomly
be placed.
Only cutter knives marked “HSS” or
“HS” can be resharpened!
When resharpening, remove the same
amount of material from both cutter
knives, otherwise a balancing error
may cause damage to the bearings.
Cutter knives can only be resharpened
down to a minimum width of 14 mm.
Use genuine Jet replacement parts
only.

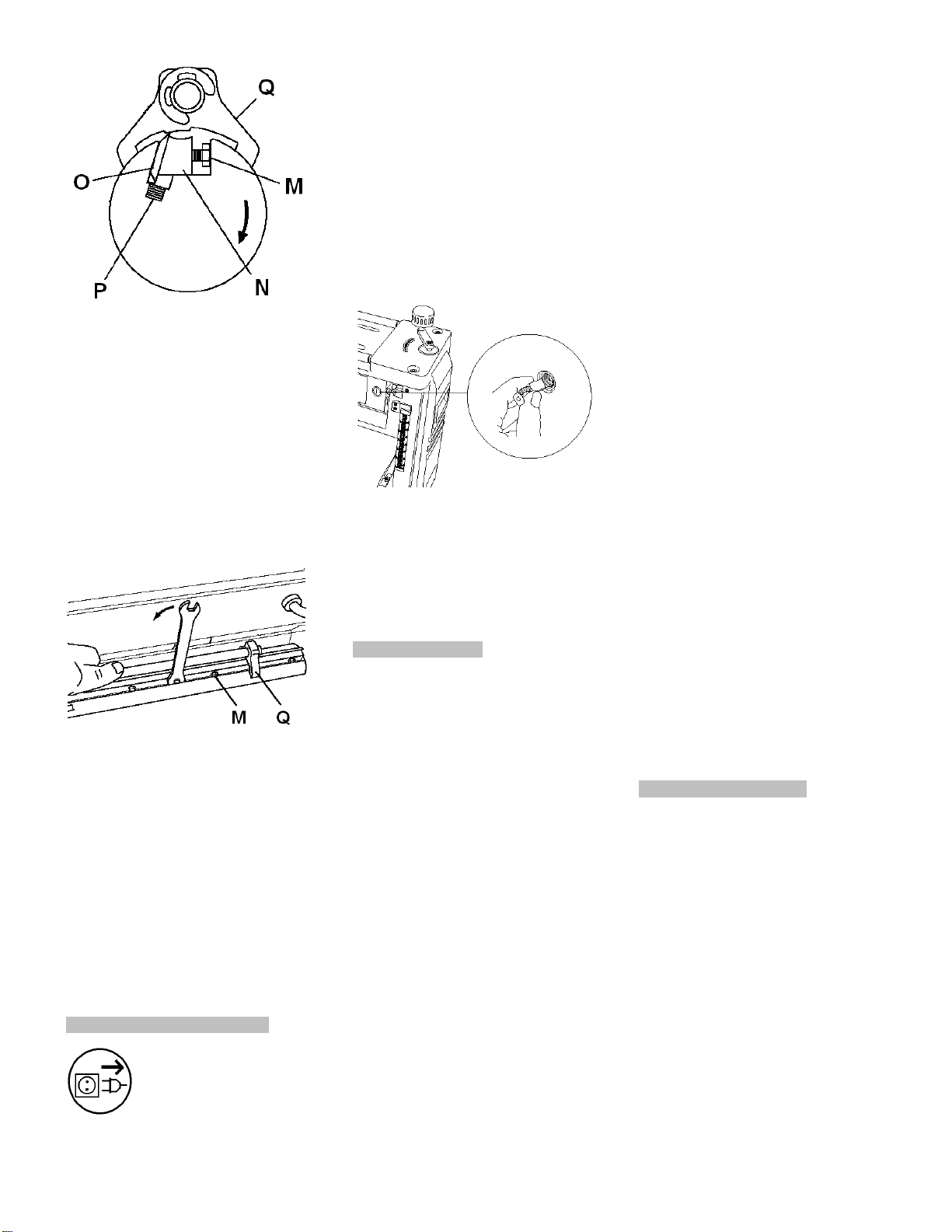

Fig 10
Place the cutter knife lockbar (N) in the
cutterblock´s groove.
Make sure the springs (P) are in place.
Turn the hex-head bolts so far that the
cutter knife will just slide in.
Insert a sharp cutter knife (O) and
adjust position with the cutter knife
lockbar, so that neither protrudes over
the edge of the cutter block.
Use the knife setting gauge (Q) to
adjust the knife.
Fig 11
To tighten the cutter knife, turn the
hex-head bolts (M) of the cutter knife
lockbar.
Start tightening with the two outer
bolts. Do not extend tool when
tightening the bolts, do not tighten
bolts by striking the wrench.
Install the cutter block cover, planer
cover and adjustment crank after knife
changing has been completed.
Connect to the dust extraction system.
8. Maintenance and inspection
Make all machine
adjustments or
maintenance with the
machine unplugged from
the power source.
Clean the machine regularly
Inspect the proper function of the dust
extraction daily.
Defective safety devices must be
replaced immediately.
Before starting any work, check the
mobility of the anti-kickback fingers
(must fall down by their own weight).
Changing of brushes:
Disconnect from power source, unplug!
Inspect the brushes after 50 hours of
use.
Fig 12
If the brushes are worn to 3mm
replace them.
(Jet Article No: JWP12-096…2 pcs
needed)
9. Trouble shooting
Carry out maintenance, cleaning and
repair work only when the motor is
switched off and machine has come to
a full stop. Pull the mains plug.
All protective and safety devices must
be re-attached immediately after
completed cleaning, repair and
maintenance work.
Repair and maintenance work on the
electrical system may only be carried
out by a qualified electrician.
Motor doesn’t start
*No electricity-
check mains and fuse.
*Defective switch, motor or cord-
consult an electrician.
*Overload has reacted-
Wait 5 minutes, push overload button
and start again.
Machine vibrates excessively
*Stand on uneven floor-
adjust stand for even support.
*knives of different seize-
all knives must have same width.
*damaged knife-
replace knives set immediately
Cutting surfaces is bad
*dull knives-
sharpen knives
*Cutter knives blocked by chips-
remove chips.
*Too heavy a cut-
make several passes.
*knives cutting against grain-
plane workpiece in opposite direction.
*workpiece inhomogeneous
*Moisture content too high
Snipe
*Inadequate support of long boards-
use extension roller.
*dull knives-
sharpen knives.
Unparallel side to side
*knife projection not uniform-
adjust knives with setting gauge.
Workpiece jams
*Too much material removed in one
pass-
make several passes.
Cutterhead difficult to adjust
*Lack of lubrication-
lubricate corner posts and screws.
Poor workpiece feeding
*motor belt slipping-
tighten or replace belt.
*Resin build up on planer bed-
clean and wax planer bed.
*surface of feed rollers too smooth-
lightly roughen with sandpaper.
10. Available accessories
Stock number 10000841
Set of 2 high speed steel (HSS)
reversible knives
Stock number 10000842
Open machine stand
Stock number 708495
Helping roller stand
