20" HH PLANER
STOCK NO. 900460
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.

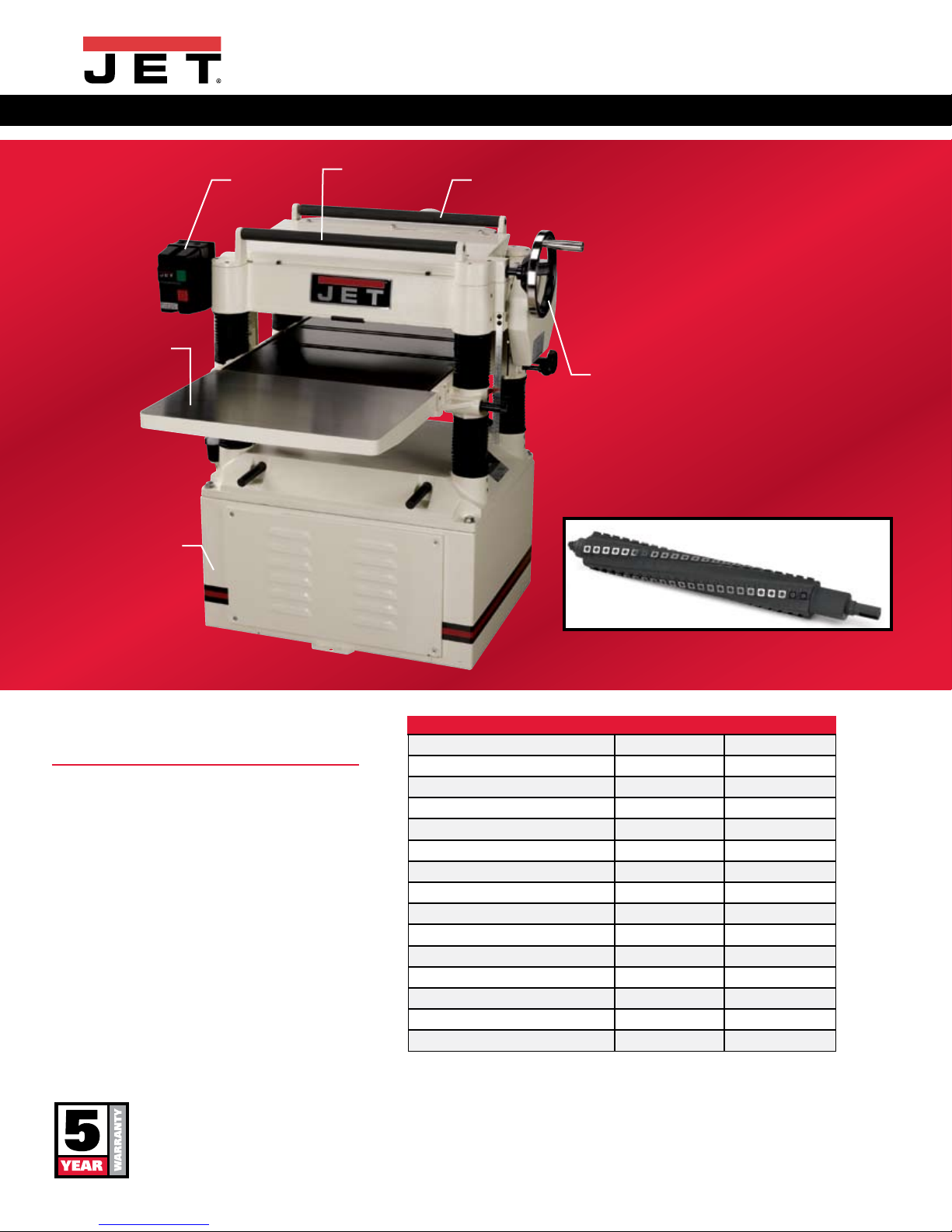

This new 20" planer has a helical style
cutterhead that provides unmatched surface
finish and much quieter operation. The
indexable carbide inserts make
blade changes easier than ever
before. A 5HP motor and solid
cast iron infeed and outfeed
tables are just a few of the other
features that round out this well
designed machine.
Helical head with indexable carbide inserts makes better
finish cuts in material.

jettools.com
20" HH PLANER
•Helical insert cutterhead with staggered carbide
inserts for a superior finish and quieter cut
•Heavy-duty cast iron and steel contruction for added
strength and durability
•Two-speed gear box with automatic chain tensioner
lets you adjust the feed rate to meet your needs
•Helical head with indexable carbide inserts makes
better finish cuts in material.
•Powerful 5 HPTEFC induction motor with three V-belt
transmssion for smooth and consistent power
•Large handwheel with positive gear drive allows for
quick and accurate table adjustments
•Solid cast iron infeed and outfeed extension tables
20" PLANER,
5HP 1PH HELICAL HEAD
STOCK NUMBER 708544 708545
Model Number JWP-208HH-1 JWP-208HH-3
Net Weight (lbs.) 765 765
Maximum Planing Width (in.) 20 20
Maximum Planing Thickness (in.) 6 6
Maximum Full Width Depth of Cut (in.) 3/32 3/32
Minimum Planing Depth (in.) 6-3/4 6-3/4
Cutterhead Diameter (in.) 3-3/16 3-3/16
Cutterhead Speed (RPM) 5000 5000
Feed Rate (FPM) 24 and 31 24 and 31
Number of Knives 92 carbide inserts 92
Dust Port Diameter (OD/in.) 5 4
Dust Collection Minimum CFM Required 400 400
Motor HP 5 5
Motor Phase 1 3
Motor Voltage 230V 230
Return
Rollers
Industrial
Magnetic
Controls
Height
Adjustment
Handwheel
Solid Cast
Iron Table
Extension
Heavy-Duty
Closed
Steel Stand
Helical
cutterhead
Helical head with indexable carbide inserts makes
better finish cuts in material.
