Jet JPM-13CS Service manual

Operating Instructions and Parts Manual
Planer/Molder
Model JPM-13CS
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-708524
Ph.: 800-274-6848 Revision G3 10/2018
www.jettools.com Copyright © 2014 JET

2
1.0 Warranty and Service
JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
JET branded website.
•JET products carry a limited warranty which varies in duration based upon the product. (See chart below)
•Accessories carry a limited warranty of one year from the date of receipt.
•Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood.
Use of these machines in the processing of metal, plastics, or other materials outside recommended guidelines may
void the warranty. The exceptions are acrylics and other natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the
United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor
or visit the JET website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are
given as general information and are not binding. JET reserves the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET®branded products are not sold in Canada by JPW Industries, Inc.
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors; Machine Accessories
2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used
for industrial or commercial purposes
5 Year – Woodworking Machinery
Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries,
Inc., or any of its successors in interest to the JET brand.

3
2.0 Table of contents
Section Page
1.0 Warranty and Service.....................................................................................................................................2
2.0 Table of contents............................................................................................................................................3
3.0 Safety warnings..............................................................................................................................................4
4.0 About this manual ..........................................................................................................................................5
5.0 Electrical connections ....................................................................................................................................6
5.1 Grounding instructions ...............................................................................................................................6
5.2 115 Volt operation......................................................................................................................................6
5.3 230 Volt operation......................................................................................................................................6
6.0 On-Off Switch Padlock...................................................................................................................................7
7.0 Specifications.................................................................................................................................................8
8.0 Glossary.........................................................................................................................................................9
9.0 Setup and assembly.....................................................................................................................................10
9.1 Shipping contents.....................................................................................................................................10
9.2 Unpacking and cleanup............................................................................................................................10
9.3 Assembly..................................................................................................................................................10
10.0 Adjustments: Planing .................................................................................................................................10
10.1 Depth of cut............................................................................................................................................10
10.2 Adjusting depth of cut scale ...................................................................................................................10

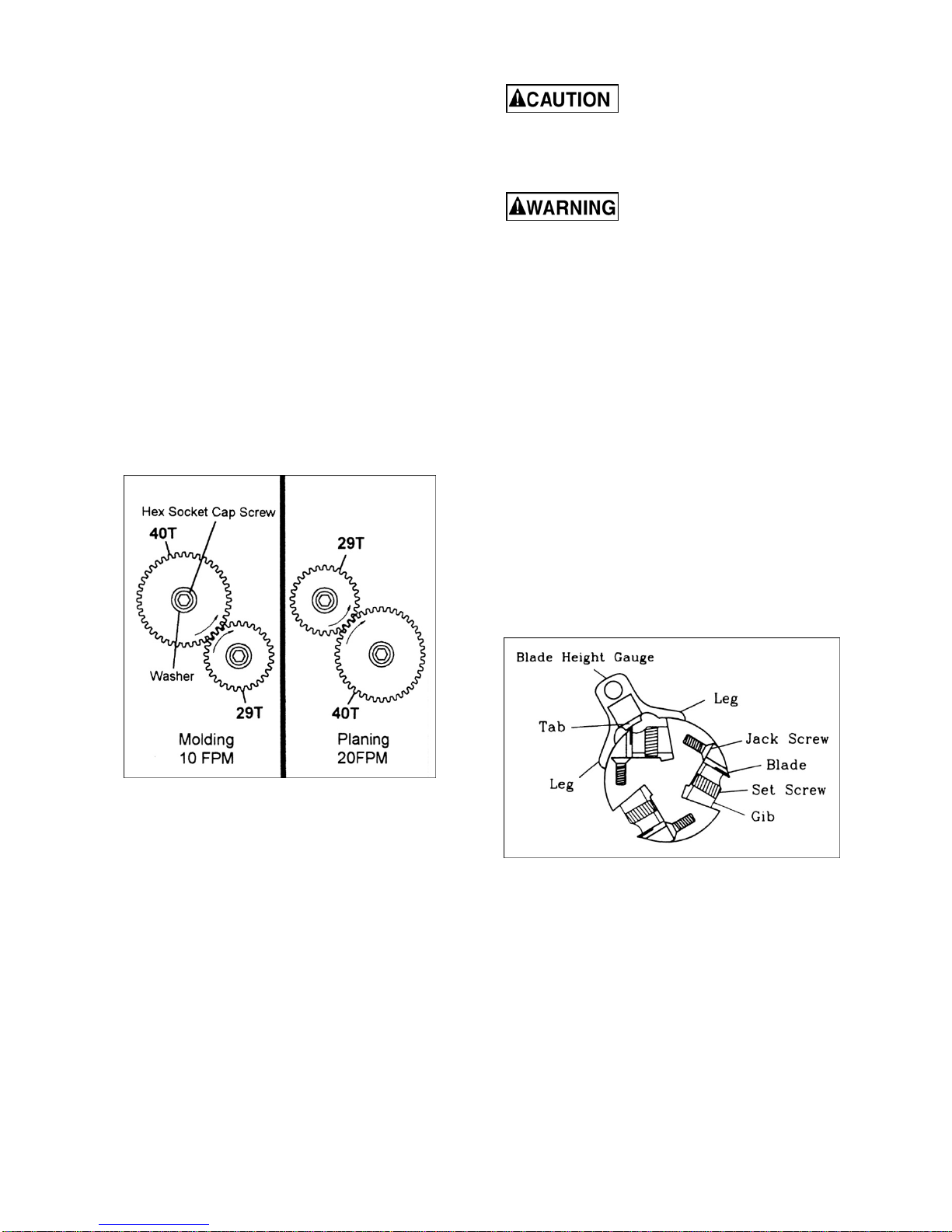

10.3 Feed rate adjustment .............................................................................................................................11
10.4 Adjusting V-Belt Tension........................................................................................................................11
10.5 Knife adjustment.....................................................................................................................................11
10.6 Knife replacement ..................................................................................................................................12
10.7 Adjusting infeed roller and outfeed rollers for planing............................................................................12
10.8 Adjusting chip deflectors for planing.......................................................................................................13
11.0 Planing procedure......................................................................................................................................13
11.1 Dealing with warped wood .....................................................................................................................13
11.2 Wood Grain............................................................................................................................................14
12.0 Molding setup and adjustments .................................................................................................................14

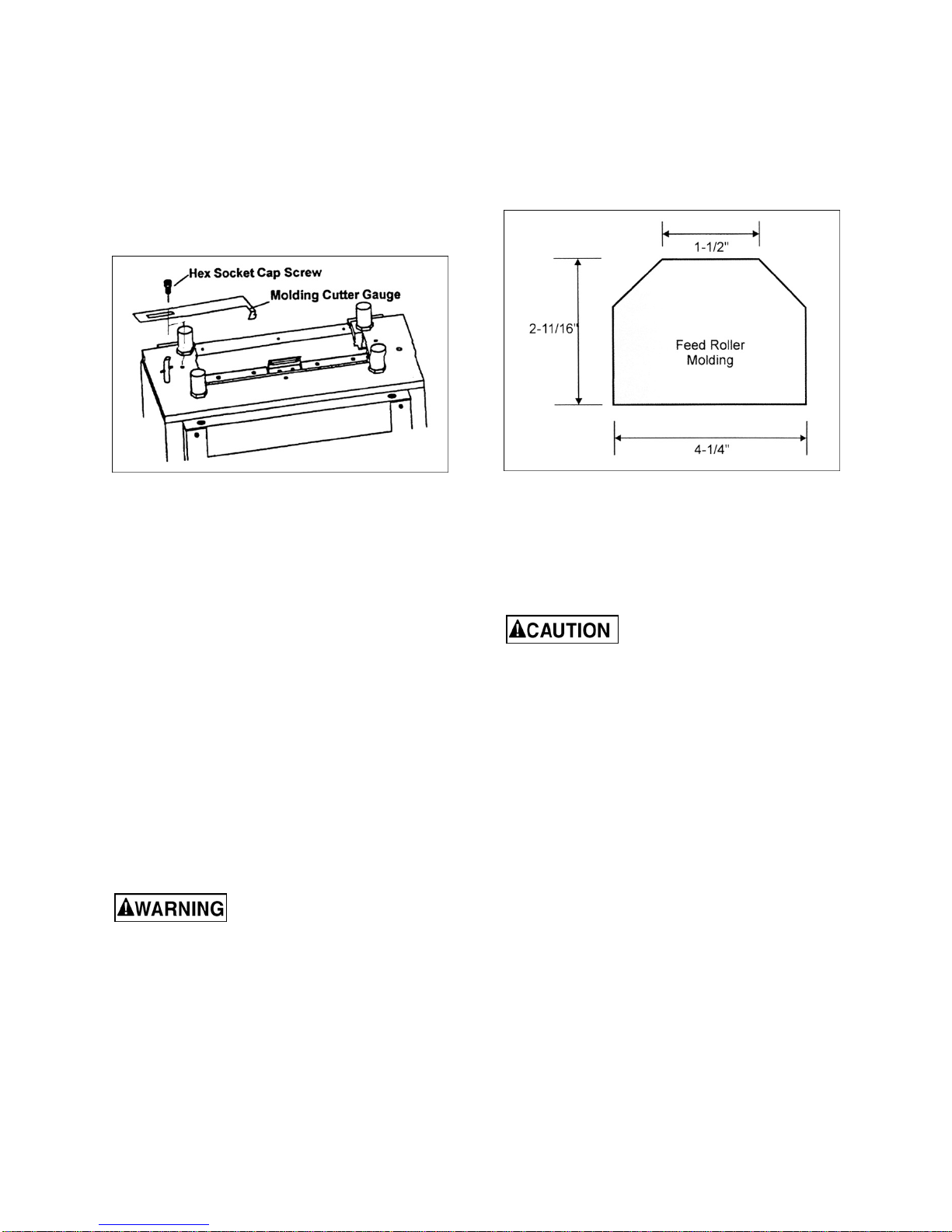

12.1 Installing molding cutters........................................................................................................................14
12.2 Setting feed rollers for molding...............................................................................................................15

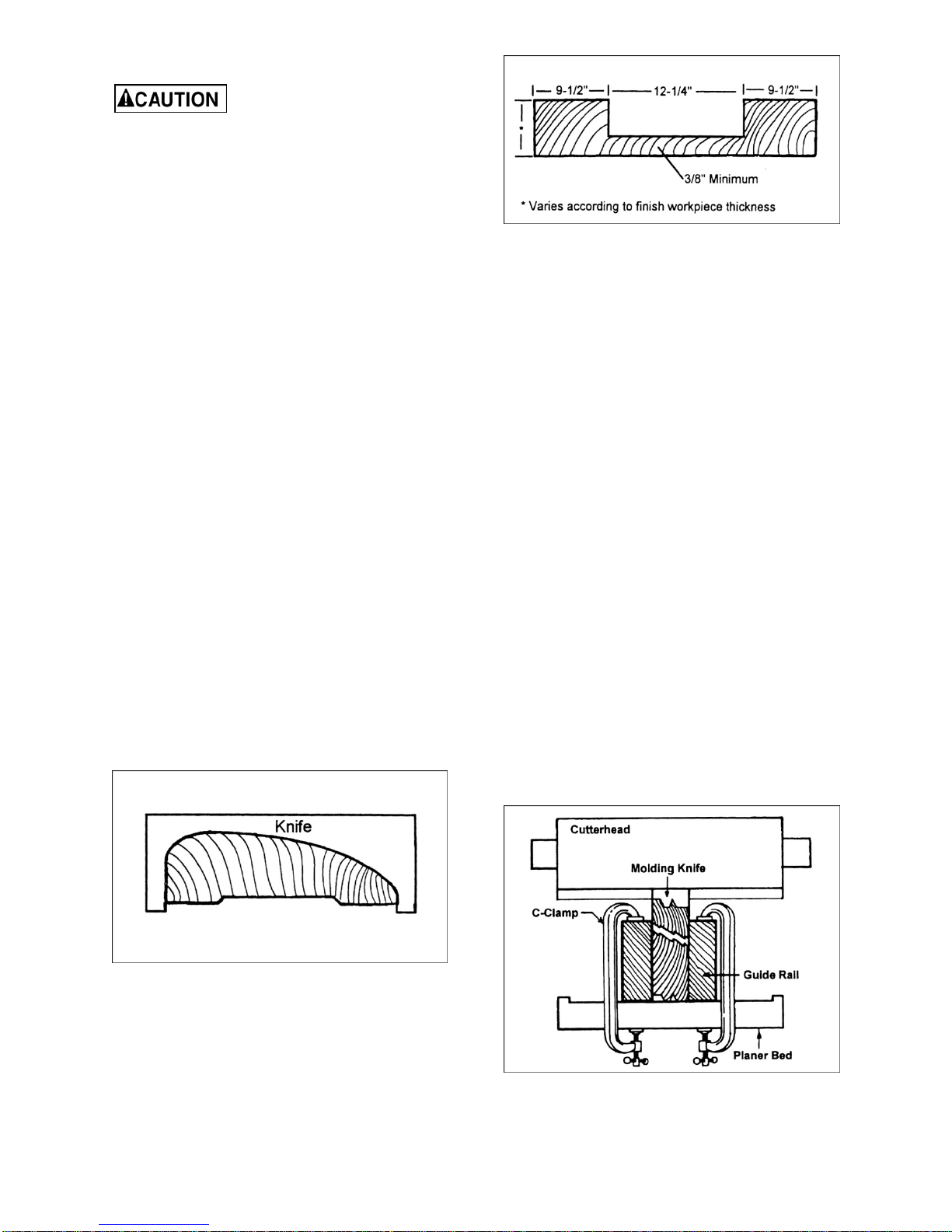

12.3 Making & installing a bedboard..............................................................................................................16
12.4 Making guide rails ..................................................................................................................................16
12.5 Guide rail placement and attachment.....................................................................................................16
13.0 Molding procedure .....................................................................................................................................17
13.1 Setting table height for first pass............................................................................................................17
13.2 Back Relief Molding................................................................................................................................18
13.3 Tongue and Groove Molding..................................................................................................................18
14.0 Maintenance...............................................................................................................................................18
14.1 Lubrication..............................................................................................................................................18
15.0 Troubleshooting the JPM-13CS.................................................................................................................19
15.1 Mechanical and electrical problems.......................................................................................................19
15.2 Performance problems...........................................................................................................................20
16.0 Replacement Parts.....................................................................................................................................21
16.1.1 Table and Base Assembly – Exploded View.......................................................................................22
16.1.2 Table and Base Assembly – Parts List................................................................................................23
16.2.1 Cutterhead and Roller Assembly – Parts List......................................................................................24
16.2.2 Cutterhead and Roller Assembly – Parts List......................................................................................24
16.3.1 Gearbox Assembly – Parts List...........................................................................................................26
16.3.2 Gearbox Assembly – Parts List...........................................................................................................27
16.4.1 Stand and Motor Assembly – Parts List..............................................................................................28
16.4.2 Stand and Motor Assembly – Parts List..............................................................................................29
17.0 Electrical Connections................................................................................................................................30

4
3.0 Safety warnings
For your own safety, read this instruction manual before operating the tool.
Wear Eye Protection
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES. Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before turning it on.
3. KEEP THE WORK AREA CLEAN. Cluttered areas and benches invite accidents.
4. DO NOT USE IN A DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
5. KEEP CHILDREN AWAY. All visitors should be kept at safe distance from the work area.
6. MAKE THE WORKSHOP KID PROOF with padlocks, master switches, or by removing starter keys.
7. DON’T FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
8. USE THE RIGHT TOOL. Don’t force a tool or attachment to do a job for which it was not designed.
9. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in the line voltage resulting in loss of power and overheating. The table
below shows the correct size to use depending on the cord length and name plate ampere rating. If in
doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
Volts Total Length of Cord in Feet
120V 25 50 100 150
240V 50 100 200 300
AWG
14 12 Not recommended
Table 1
10. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts. Nonslip footwear is recommended. Wear protective hair
covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also use face or dust masks if the cutting operation is dusty.
Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold the work when its practical. It’s safer than using your hand
and it frees both hands to operate the tool.
13. DON’T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits cutters, and the
like.
16. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure the switch is in the off position before
plugging in the machine.
17. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recommended accessories. The
use of improper accessories may cause a risk of injury.

5
18. NEVER STAND ON A TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should
be carefully checked to determine that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that is damaged should be properly repaired or
replaced.
20. DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or
cutter only.
21. NEVER LEAVE THE TOOL RUNNING UNATTENDED. TURN THE POWER OFF. Don’t leave the tool
until it comes to a complete stop.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly even
death.
4.0 About this manual
This manual is provided by JET covering the safe operation and maintenance procedures for a JET Model
JPM-13CS Planer-Molder. This manual contains instructions on installation, safety precautions, general
operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and
constructed to provide consistent, long-term operation if used in accordance with the instructions as set forth in
this document.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our
web site: www.jettools.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Read and understand the entire contents of this manual before attempting assembly
or operation! Failure to comply may cause serious injury!
WARNING: This product can expose you to chemicals including titanium dioxide which is known to the
State of California to cause cancer, and lead which is known to the State of California to cause cancer and
birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other
substances known to the State of California to cause cancer. Avoid inhaling dust generated from wood
products or use a dust mask or other safeguards for personal protection.
Wood products emit chemicals known to the State of California to cause birth defects or other reproductive
harm. For more information go to http://www.p65warnings.ca.gov/wood.

6
5.0 Electrical connections
5.1 Grounding instructions
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor
with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding
conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions
are not completely understood, or if in doubt as to whether the tool is properly grounded. Failure to
comply may cause serious or fatal injury.
Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the
tool's plug.
5.2 115 Volt operation
As received from the factory, your planer/molder is ready to run at 115 volt operation. This planer/molder, when
wired for 115 volt, is intended for use on a circuit that has an outlet and a plug that looks like the one illustrated
in Figure 1a. A temporary adapter, which looks like the adapter as illustrated in Figure 1b, may be used to
connect this plug to a two-pole receptacle, as shown in Figure 1b if a properly grounded outlet is not available.
The temporary adapter should only be used until a properly grounded outlet can be installed by a qualified
electrician. This adapter is not applicable in Canada. The green colored rigid ear, lug, or tab, extending from
the adapter, must be connected to a permanent ground such as a properly grounded outlet box, as shown in
Figure 1b.
Figure 1a Figure 1b
5.3 230 Volt operation
If 230V, single phase operation is desired, the following instructions must be followed:
1. Disconnect the machine from the power source.
2. This planer/molder is supplied with four motor leads that are connected for 115V operation, as shown in
Figure 2a. Reconnect these four motor leads for 230V operation, as shown in Figure 2b.
3. The 115V attachment plug, supplied with the planer/molder, must be replaced with a UL/CSA listed plug
suitable for 230V operation, similar to the one shown in Figure 3. Contact your local Authorized JET
Service Center or qualified electrician for proper procedures to install the plug. The planer/molder must
comply with all local and national codes after the 230 volt plug is installed.

7
4. The planer/molder with a 230 volt plug should only be connected to an outlet having the same
configuration as illustrated by the grounded outlet box in Figure 3. No adapter is available or should be
used with the 230 volt plug.
Important: In all cases (115 or 230 volts), make certain the receptacle in question is properly grounded.
If you are not sure, have a registered electrician check the receptacle.
Figure 2a Figure 2b
Figure 3
6.0 On-Off Switch Padlock
To safeguard your machine from unauthorized operation and to avoid accidental starting by young children, the
use of a padlock (not provided) is highly recommended.
To lock out an on-off switch (see Figure 4):
1. Open the padlock.
2. Insert through holes in the start button.
3. Close the padlock.
4. Place the key in a safe location.
Figure 4

8
7.0 Specifications
Model number........................................................................................................................................JPM-13CS
Stock Number .............................................................................................................................................708524
Capacities:
Maximum Cutting Width................................................................................................................. 13” (330 mm)
Maximum Thickness..................................................................................................................6-1/8” (156 mm)
Full Width Depth of Cut................................................................................................................................1/16”
Minimum Planing Length............................................................................................................... 14” (356 mm)
Cuts per Minute ........................................................................................................................................13,500
Feed Rate, Planing...................................................................................................................................20 fpm
Feed Rate, Molding ..................................................................................................................................10 fpm
Cutterhead:
Number of Knives ..............................................................................................................................................3
Knife Size....................................................................................................................13-1/16”L x 1/8”W x 5/8”H
Cutterhead Diameter ................................................................................................................................2-9/16”
Cutterhead Speed (RPM) ............................................................................................................................4500
Motor and controls:
Motor type................................................................totally enclosed fan cooled, induction, capacitor start
Horsepower....................................................................................................................................1-1/2 HP
Phase..................................................................................................................................................single
Voltage...............................................................................................................115/230V (prewired 115V)
Cycle....................................................................................................................................................60Hz
Listed FLA (full load amps).............................................................................................................15/7.5 A
RPM.....................................................................................................................................................3450
Start capacitor.................................................................................................................400MFD, 125VAC
Power transfer..................................................................................................................................... v-belt
On/off switch.............................................................................................................................push button
Motor speed................................................................................................................................3450 RPM
Power plug installed.............................................................................................................................120V
Recommended circuit and fuse/breaker size1..................................................30A (115V), or 15A (230V)
1 subject to local/national electrical codes.
Dust collection:
Dust port outside diameter........................................................................................................ 4” (100mm)
Minimum extraction volume required............................................................................350 CFM (18CMM)
Dimensions and weights:
Overall Dimensions........................................................................................23-31/32”W x 36-1/2”D x 43-1/2”H
Net Weight (approx.)....................................................................................................................225 lb (102 kg)
Shipping Weight (approx.)...........................................................................................................262 lb (119 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.
IMPORTANT:
∗The use of a dust chute and adequate dust collection system is highly recommended but not
required for most planing operations.
∗The use of a dust chute and adequate dust collection system is required for all molding operations.
For a complete line of woodworking dust collectors, contact your local JET distributor, or visit our website at
www.jettools.com.

9
8.0 Glossary
•Cutterhead (A, Figure 5) – metal cylinder that
holds the planer knives or the molding cutters.
•Table – part of machine over which the lumber
passes.
•Feed Rollers – two rubber covered cylinders
that push lumber through the machine.
•Planer Knife – one of three knives found in
the cutterhead used for planing. (B, Figure 5)
•Molding Cutter – one of three cutters in a set
with a patterned edge used for cutting a
decorative design into wood.
•Gib – metal bar with adjusting screws that
holds planer knives or molding cutters in the
cutterhead.
•Depth of Cut – depth of cut from workpiece on
a single pass through the machine. (Figure 6)
•Snipe – depression on either end of a planed
board caused by feeding the board into the
machine at an angle to the table or letting the
board end drop down when exiting the planer.
Figure 5
Figure 6

10
9.0 Setup and assembly
9.1 Shipping contents
1 Molder/Planer
1 Dust Chute
2 Extension Roller Assemblies
1 Accessory Package, containing:
1 Handle Assembly
1 10/12mm Wrench*
1 11/13mm Wrench*
1 Screwdriver*
1 3mm Hex Wrench*
1 4mm T-Handle Hex Wrench*
1 5mm Hex Wrench*
1 Knife Setting Gauge*
1 Molding Cutter Gauge*
1 Feed Roller Adjustment Wrench*
1 Brass Bar*
1 DVD instructional disk
1 Hardware Bag #2 (p/n MHD-17S-A)
1 Operator’s Manual
1 Warranty Card
* included in Hardware Bag #1 (p/n MHD-17S)
Read and understand all
assembly instructions before attempting
assembly. Failure to comply may cause serious
injury.
9.2 Unpacking and cleanup
1. Finish removing all contents from the shipping
container. Do not discard any shipping
material until the planer/molder is set up and
running properly.
2. Inspect contents for shipping damage. Report
damage, if any, to your distributor.
3. Compare contents of shipping carton with the
contents list in this manual. Report shortages,
if any, to your distributor.
4. Clean all rust protected surfaces with a mild
solvent or kerosene. Do not use lacquer
thinner, paint thinner, or gasoline; these will
damage painted surfaces.
5. To prevent rust, apply a light coating of paste
wax to the table surface.
9.3 Assembly
1. Remove dust hood. Check gib screws on
cutterhead for tightness. Reinstall dust hood.
Note: Recheck after five minutes of operation.
Recheck again after every 2 hours of use.
2. Attach the handle to the post with a hex socket
cap screw.
3. Attach the top side of dust chute with three
M5x10 machine screws, and three M5
washers.
4. Attach lower section of dust chute with three
M6x8 machine screws, and three M6 washers.
5. Mount extension roller assembly to the middle
table with four M8x12 hex cap bolts, and four
M8 flat washers. The frame is adjustable using
these bolts.
6. Use a straight edge to make sure rollers are
level with middle table.
7. The first roller is adjustable by loosening the
hex cap bolts that hold the roller on the frame
supports.
8. Repeat steps 5-7 for opposite side roller
assembly.
Never run machine with dust
hood loose or removed. Failure to comply may
cause serious injury.
10.0 Adjustments: Planing
10.1 Depth of cut
Maximum depth of cut is 1/8”
up to 5-1/2” wide, and 1/16” on stock over 5-
1/2” wide. Trying to cut more in one pass will
cause stress on machine and could damage
cutterhead.
Thickness planing refers to the sizing of lumber to
a desired thickness while creating a level surface
parallel to the opposite side of the board.
The quality of thickness planing depends on the
operator’s judgment about the depth of cut. Depth
of cut depends upon the width, hardness,
dampness, grain direction, and grain structure of
the wood.
The maximum thickness of wood that can be
removed in one pass is 1/8” on wood up to 5-
1/2” wide and 1/16” on wood wider than 5-1/2”.
When planing hard wood, take light cuts or plane
wood in thin widths.
Make a test cut when working with a new type of
board or different kind of operation. Check the
accuracy of the test cut before working on the
finished product.
10.2 Adjusting depth of cut scale
Use caution when placing
hands near cutterhead. Knives are extremely
sharp. Failure to comply may cause serious
injury.
1. Take a test cut.
