Operating Instructions and Parts Manual

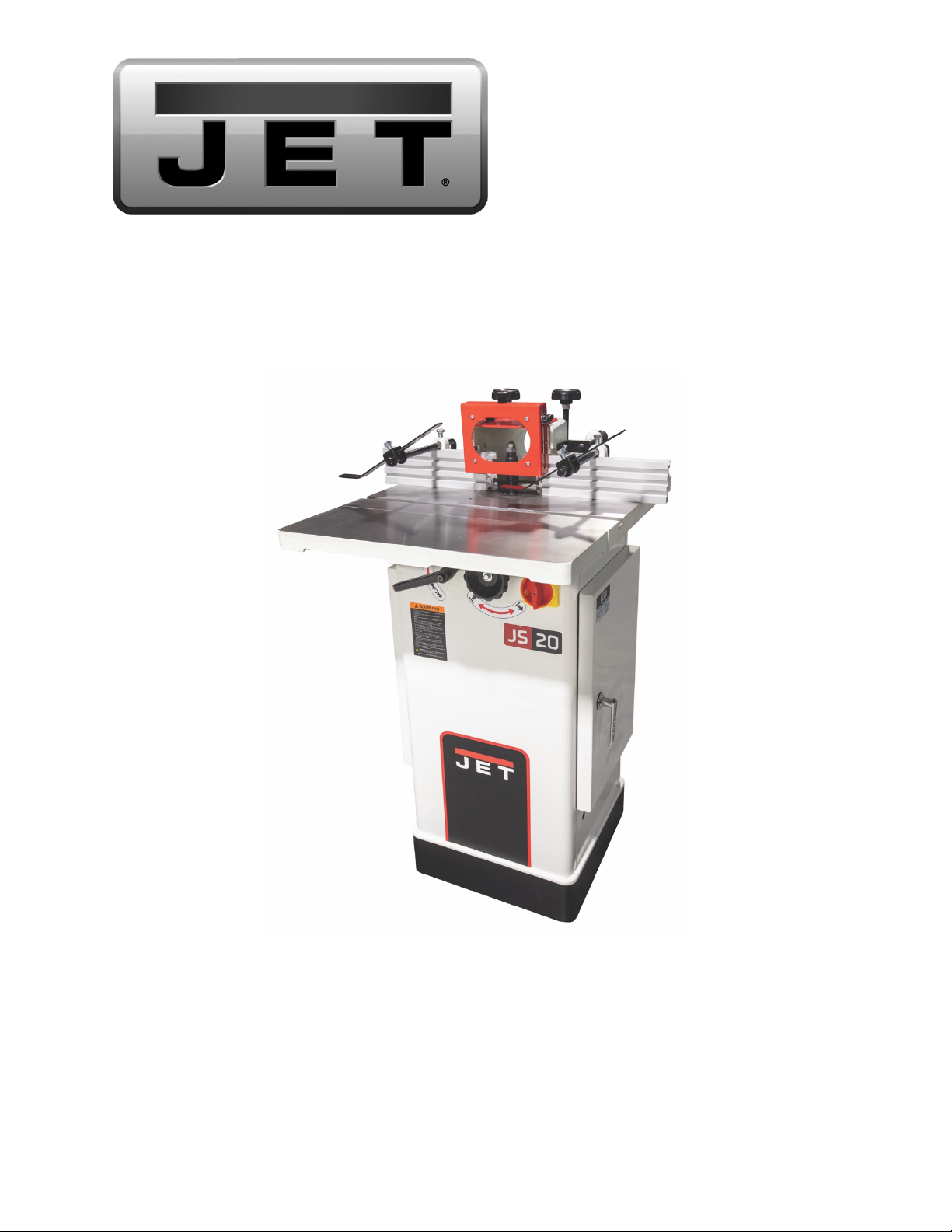

JWS-20CS Spindle Shaper

Shown with optional extension table #724021 (ordered separately)

JET

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-724020

Ph.: 800-274-6848 Edition 1 11/2022

Warranty and Service

JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please

contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.

Warranty Period

The general warranty lasts for the time period specified in the literature included with your product or on the official

JET branded website.

• JET products carry a limited warranty which varies in duration based upon the product. (See chart below)

• Accessories carry a limited warranty of one year from the date of receipt.

• Consumable items are defined as expendable parts or accessories expected to become inoperable within a

reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.

Who is Covered

This warranty covers only the initial purchaser of the product from the date of delivery.

What is Covered

This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty

does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,

improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood.

Use of these machines in the processing of metal, plastics, or other materials may void the warranty. The exceptions

are acrylics and other natural items that are made specifically for wood turning.

Warranty Limitations

Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a

Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.

How to Get Technical Support

Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof

of initial purchase when calling. If a product requires further inspection, the Technical Service representative will

explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the

United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service

Center Locator on the JET website.

More Information

JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor

or visit the JET website.

How State Law Applies

This warranty gives you specific legal rights, subject to applicable state law.

Limitations on This Warranty

JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.

EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN

IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR

INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR

PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are

given as general information and are not binding. JET reserves the right to effect at any time, without prior notice,

those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason

whatsoever. JET® branded products are not sold in Canada by JPW Industries, Inc.

Product Listing with Warranty Period

90 Days – Parts; Consumable items; Light-Duty Air Tools

1 Year – Motors; Machine Accessories; Heavy-Duty Air Tools; Pro-Duty Air Tools

2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used

for industrial or commercial purposes

5 Year – Woodworking Machinery

Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist

Accessories; Shop Tools; Warehouse & Dock products; Hand Tools

NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries,

Inc., or any of its successors in interest to the JET brand.

Table of Contents

Warnings ......................................................................................................................................... 4

Electrical Connections ........................................................................................................................ 6

Specifications ...................................................................................................................................... 7

Unpacking and Cleanup ...................................................................................................................... 8

Setup and Adjustment ......................................................................................................................... 9

Spindle Removal and Installation .................................................................................... 9

Collet Installation ............................................................................................................. 9

Fence Placement and Adjustment ................................................................................... 10

Table Ring Removal and Installation ............................................................................... 10

Operation ......................................................................................................................................... 11

Spindle Control ................................................................................................................ 11

Using the Fence as a Guide ............................................................................................ 11

Shaping with Collars and Starting Pin ............................................................................. 11

Collar Positioning ............................................................................................................. 12

Starting Pin ...................................................................................................................... 13

Lubrication ....................................................................................................................... 13

Troubleshooting .................................................................................................................................. 14

Replacement Parts ............................................................................................................................. 15

JWS-20CS Base Assembly-Exploded View .................................................................... 16

JWS-20CS Base Assembly-Parts List ............................................................................. 17

JWS-20CS Motor Assembly-Exploded View ................................................................... 18

JWS-20CS Motor Assembly-Parts List ............................................................................ 19

JWS-20CS Spindle Assembly-Exploded View ................................................................ 20

JWS-20CS Spindle Assembly-Parts List ......................................................................... 21

JWS-20CS Fence Assembly-Exploded View .................................................................. 22

JWS-20CS Fence Assembly-Parts List ........................................................................... 23

JWS-20CS Safety Guard Assembly-Exploded View & Parts List .................................... 24

JWS-20CS Extension Table-Exploded View & Parts List ................................................ 25

JWS-20CS Electrical Connections .................................................................................. 26

Warning

Wear eye protection.

Be sure keyed washer is directly under the spindle nut and the spindle nut is tight.

Feed the workpiece against the rotation of the cutter.

Do not use awkward hand positions.

Keep fingers away from the revolving cutter. Use fixtures when necessary.

Use the overhead guard when the adjustable fence is not in place.

• KEEP GUARDS IN PLACE and in working order.

• REMOVE ADJUSTING KEYS AND WRENCHES. Form a habit of checking to see that keys and

adjusting wrenches are removed from the machine before turning it on.

• KEEP THE WORK AREA CLEAN. Cluttered areas and benches invite accidents.

• DON’T USE IN A DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations,

or expose them to rain. Keep work area well lighted.

• KEEP CHILDREN AWAY. All visitors should be kept a safe distance from the work area.

• MAKE THE WORKSHOP KIDPROOF with padlocks, master swatches, or by removing starter keys.

• DON’T FORCE THE MACHINE. It will do the job better and safer at the rate for which it was

designed.

• USE THE RIGHT MACHINE. Don’t force a machine or attachment to do a job for which it was not

designed.

• USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When

using an extension cord, be sure to use one heavy enough to carry the current your machine will

draw. An undersized cord will cause a drop in the line voltage resulting in power loss and

overheating. The table below shows the correct size to use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge, the heavier the cord.

Volts

Total Length of Cord in Feet

120V

100

150

240V

100

200

300

AWG

• WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other

jewelry which may get caught in moving parts. Nonslip footwear is recommended. Wear protective

hair covering to contain long hair.

• ALWAYS USE SAFETY GLASSES. Also use face or dust masks if the cutting operation is dusty.

Everyday eyeglasses only have impact resistant lenses; they are not safety glasses.

• SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand

and it frees both hands to operate the tool.

• DON’T OVERREACH. Keep proper footing and balance at all times.

• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance.

Follow instructions for lubricating and changing accessories.

• ALWAYS DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE SERVICING.

• REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure the switch is in the off position

before plugging in.

• USE RECOMMENDED ACCESSORIES. Consult the operator’s manual for recommended

accessories. The use of improper accessories may cause risk of injury to persons.

• NEVER STAND ON A MACHINE. Serious injury could occur if the machine tips or if the blade/cutter

is unintentionally contacted.

• CHECK DAMAGED PARTS. Before further use of the machine, a guard or other part that is

damaged should be carefully checked to determine that it will operate properly and perform its

intended function - check for alignment of moving parts, binding of moving parts, breakage of parts,

mounting, and any other conditions that may affect its operation. A guard or other part that is

damaged should be properly repaired or replaced.

• DIRECTION OF FEED. Feed work into the cutter against the direction of rotation of the cutter only.

• NEVER LEAVE THE MACHINE RUNNING UNATTENDED. TURN POWER OFF. Don’t leave the

machine until it comes to a complete stop.

• DO NOT OPERATE this machine while tired or under the influence of drugs, alcohol, or any medication.

Familiarize yourself with the following safety notices used in this manual:

This means that if precautions are not heeded, it may result in minor injury and/or possible

machine damage.

This means that if precautions are not heeded, it may result in serious or even fatal injury.

- - SAVE THESE INSTRUCTIONS - -

WARNING: This product can expose you to chemicals including lead which is known to the

State of California to cause cancer and birth defects or other reproductive harm. For more

information go to http://www.p65warnings.ca.gov.

WARNING: Drilling, sawing, sanding, or machining wood products generates wood dust and

other substances known to the State of California to cause cancer. Avoid inhaling dust generated

from wood products or use a dust mask or other safeguards for personal protection.

Wood products emit chemicals known to the State of California to cause birth defects or other

reproductive harm. For more information go to http://www.p65warnings.ca.gov/wood.

Electrical Connections

Electrical connections must

be made by a qualified electrician in

compliance with all relevant codes. This

machine must be properly grounded to help

prevent electrical shock and possible fatal

injury.

IMPORTANT: Before connecting the saw to power

source, be sure the power switch is in off position.

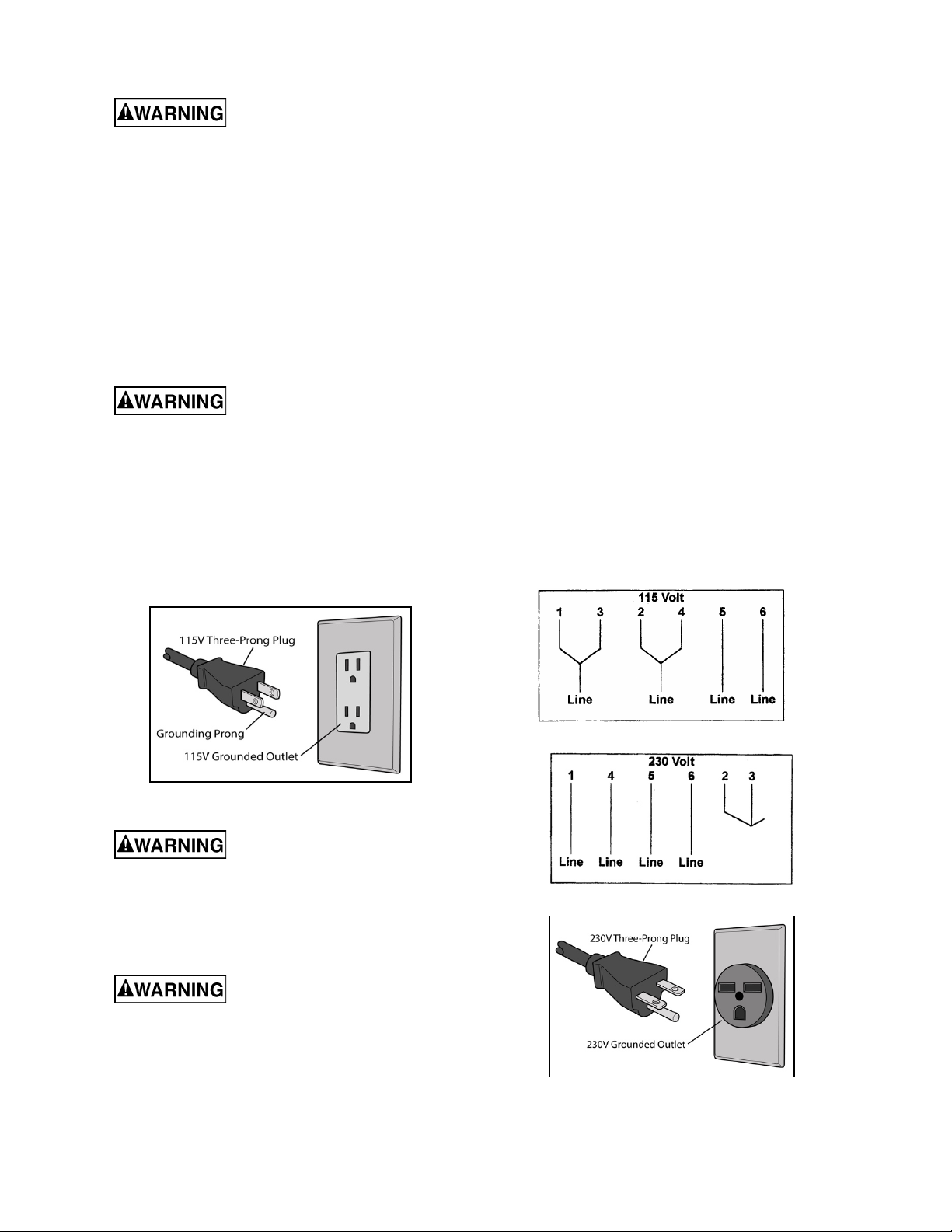

115-Volt Operation

When shipped, this shaper is ready for 115V

operation and must be grounded. If a malfunction

or breakdown occurs, proper grounding reduces

the risk of electric shock. This shaper has a

grounded three-prong electrical plug.

You must connect the

electrical plug to a properly grounded, three-

wire electrical outlet as shown in Figure A. If

you do not have a properly grounded, three-

wire electrical outlet, you must contact a

qualified electrician to install one. Installation

must comply with all local codes and

ordinances. Do not use this shaper until a

properly grounded, three-wire electrical outlet

is installed and ready for use.

Figure A

Never use an adapter to

connect the three-prong electrical plug to a

non-grounded, 2-pole receptacle. Do not

modify the plug provided. Improper connection

of the grounding conductor can result in a risk

of electric shock.

Check with a qualified

electrician or service person if you do not

completely understand these grounding

instructions or if the proper grounding of this

tool is in doubt. Failure to comply may cause

serious or fatal injury.

Repair or replace damaged or worn cord

immediately.

230-Volt Operation

To convert this shaper to 230V, single phase

operation, follow these steps:

1. Disconnect the shaper from the power source.

2. This shaper is supplied with six motor leads.

They are connected at the factory for 115V

operation, as shown in Figure B. For 230V

operation, reconnect these six motor leads as

shown in Figure C.

3. IMPORTANT: With the leads connected for

230V operation, DO NOT use the 115V

electrical plug supplied with the shaper. You

must replace the shaper’s 115V electrical

cord/plug with a UL/CSA-listed cord/plug

designed for 230V operation (see Figure D).

Contact your local Authorized JET Service

Center or a qualified electrician for proper

procedures to install the cord/plug. Follow all

local and national codes after installing the

230V cord/plug.

4. After installing the 230V cord/plug, only

connect to a properly installed 230V electrical

outlet. This outlet must have the same

configuration as the 230V plug (see Figure D).

Never use an adapter to connect the 230V

plug to the electrical outlet.

Figure B

Figure C

Figure D

Introduction

The JET JWS-20CS woodworking shaper you have purchased is a high-quality machine tool that will give you

years of superior service. You will get maximum performance and enjoyment from your new shaper if you will

take a few moments now to review the entire manual before beginning assembly and operation. Become

familiar with the details of operation.

The JET JWS-20CS, as well as all JET products, are backed by a nationwide network of authorized distributors

and/or service centers. Please contact your nearest distributor should you require parts or service. Parts are

also available directly from JET by calling 1-800-274-6848.

Now that you have purchased a shaper, it is a good time to consider a dust collection system. See your local

JET distributor for the complete line of dust collectors and the full line of JET Dust Collector Hoses and

Accessories. Customize your installation and obtain maximum performance with JET dust hoods, hoses,

clamps, fittings, and blast gates.

Specifications

Model Number ...................................................................................................................................... JWS-20CS

Stock Number ............................................................................................................................................. 724020

Cutterhead Speed(reversible)(RPM) ..................................................................................... 8,000 & 10,000 RPM

Table Size (in.) ................................................................................................................................ 18 (L) x 20 (W)

Table Slot (in.) ................................................................................................................................. 3/4 x 3/8 T-slot

Table Opening Diameter (in.) ........................................................................................................................ 5-3/16

Insert Opening Diameter (in.) ................................................................................................................ 1-5/8 and 3

Fence Size (2) (in.) ....................................................................................................................................... 10 x 3

Spindle Capacity (in.) ............................................................................................................................ 1/2 and 3/4

Router Bit Collet Capacity (in.) .............................................................................................................. 1/4 and 1/2

Under Nut Capacity (in.) ................................................................................ 1/2" Spindle: 2-3/4 ; 3/4" Spindle: 3

Spindle Travel (in.) ................................................................................................................................................ 2

Table Height (in.) .......................................................................................................................................... 33-1/2

Overall Dimensions (in.) ............................................................................................................ 18 L x 20 W x 42 H

Dust Chute Diameter (in.) ..................................................................................................................................... 4

Motor ................................................................ TEFC, 1 1/2 HP, 1Ph, 115/230V (prewired 115V), 15/7.5 A, 60Hz

Net Weight (approx.) ................................................................................................................................... 201 lbs.

Shipping Weight (approx.) .......................................................................................................................... 226 lbs.

The above specifications were current at the time this manual was published, but because of our policy of

continuous improvement, JET reserves the right to change specifications at any time and without prior notice,

without incurring obligations.

Unpacking and Cleanup

1. Finish removing all contents from the shipping

container. Do not discard any shipping

material until the shaper is set up and running.

2. Inspect contents for shipping damage and

report any damage or missing parts to your

distributor.

3. Clean all protected parts with kerosene. Do

not use gasoline, paint thinner, or any

cellulose-based solvent. These will damage

painted surfaces and melt plastic.

Tools Required for Assembly

3mm Angle Wrench

12/14mm Wrench

Contents of the Shipping Container

1 Shaper

Accessory Package

1 Dust Chute

1 Miter Gauge

1 Draw Bar & Nut

1 1/2” Spindle Assembly

1 3/4” Spindle Assembly

1 1/4" Router Collet

1 1/2" Router Collet

1 Arbor Wrench

1 3mm Hex Key Wrench

1 12mm / 14mm Open End Wrench

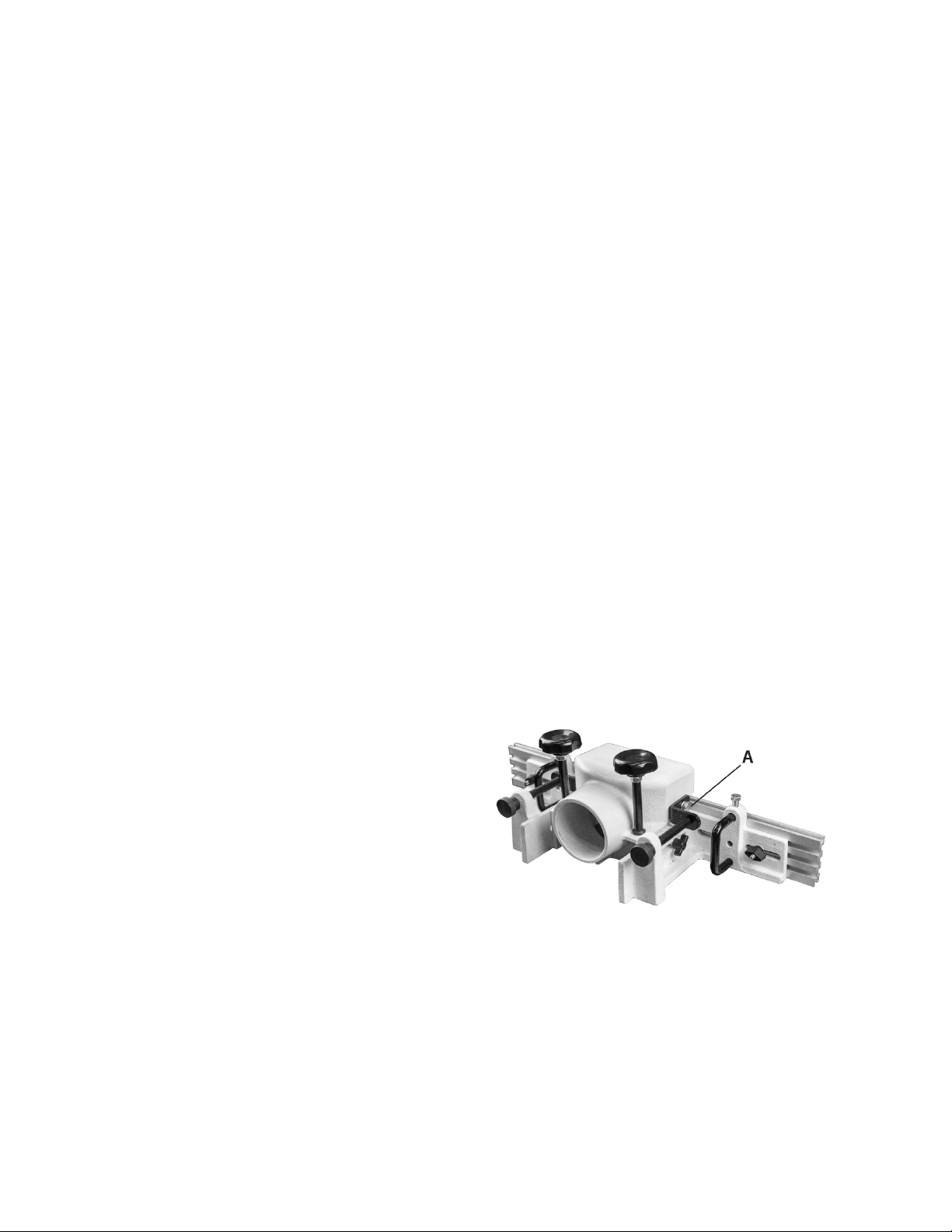

Dust Chute Assembly

Install dust chute to the fence body with two

3/8”-16 x 3/4" Hex Cap Screw (A, Fig. 1).

Figure 1

Setup and Adjustments

Spindle Removal and Installation

All adjustments to the

machine must be made with the power off and

unplugged from the power source. Failure to

comply may result in serious injury.

The spindle guard has been

removed for illustration purposes only! Never

operate the shaper without the spindle guard.

Failure to comply may result in serious injury.

The arbor is mounted to the main spindle with a

draw bar and a nut. Use the following procedure to

remove the arbor. Reverse the steps to install the

arbor.

1. Disconnect the machine from the power

source.

2. Loosen spindle lock handle (A, Figure 2). Turn

handle counterclockwise to loosen.

3. Raise the lower spindle fully by turning

handwheel (B, Figure 2) clockwise. Turn

spindle lock handle clockwise to tighten and

lock the spindle height.

4. Open the door by turning the latch (A, Figure

3).

5. Pull the spindle locking mandrel out and turn

to lock the main spindle (A, Figure 4).

6. Loosen and remove the draw bar nut (B,

Figure 4) with a 14mm box wrench or

adjustable wrench.

7. Grasp the spindle and remove by pulling up

(Figure 5).

8. Remove the draw bar (B, Figure 5) from the

spindle.

9. Pull the spindle locking mandrel out and turn

to release the main spindle (A, Figure 4).

10. Close the door.

Collet Installation

1. Disconnect machine from the power

source.

2. Set up the shaper for collet use. Follow steps

1–9 under Spindle Removal and Installation

(above) to remove the spindle. Clean the

spindle taper (A, Figure 5).

3. Raise the spindle fully by turning handwheel

clockwise.

Figure 2

Figure 3

Figure 4

Figure 5

4. Pull the spindle locking mandrel out (A, Figure

4) and turn to lock the main spindle.

5. Place collet assembly with draw bar into the

main spindle.

6. Insert a router bit into the collet and tighten the

draw bar nut (B, Figure 4).

7. Pull the spindle locking mandrel out and turn

to release the main spindle.

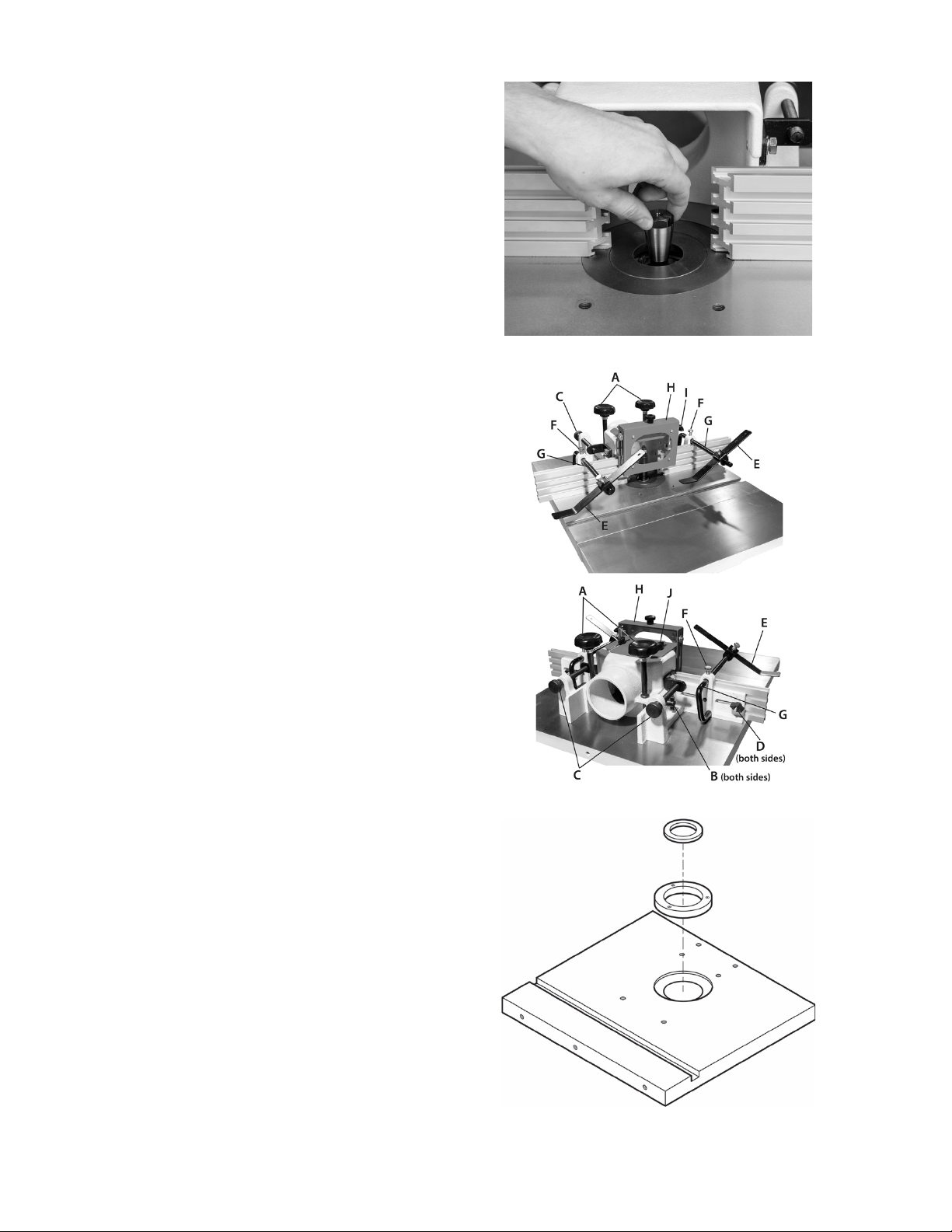

Fence Placement and Adjustment

1. To adjust the position of the entire dust

chute/fence assembly, loosen and remove the

two lock bars (A, Figure 7) from the table.

Reposition and align the dust chute/fence

assembly over the threaded lock bar holes on

the table. Insert the two lock bars through the

dust chute housing and tighten into the

threaded holes.

2. To adjust fence halves in and out, loosen wing

screws (B, Figure 7) and turn knurled knobs

(C, Figure 7). When positioned, tighten the

wing screws to lock fence halves in place.

3. To adjust the fence widths, loosen the wing

knob (D, Figure 7) and move the fence half

closer to or farther away from the spindle.

When positioned, tighten the wing knob to lock

fence in place.

4. Adjust spindle guard (H, Figure 7) height by

loosening wing nut (I, Figure 7), sliding guard

up or down to desired height, and then

tightening wing nut.

5. Adjust spindle guard depth by loosening two

lock knobs (J, Figure 7), moving spindle guard

to desired position, and then tightening two

lock knobs.

6. To adjust guide plate position and height (E,

Figure 7), loosen hex cap screw (F, Figure 7).

Slide guide support bar (G, Figure 7) in or out

and rotate to adjust guide plate height. When

positioned, tighten hex cap screw.

Table Ring Removal and Installation

To remove the table insert(s):

1. Remove any collet or spindle assembly in the

spindle.

2. Lower the spindle assembly completely.

3. Loosen and remove the three 1/4-20 x 1/2 set

screws from the ring (Figure 8).

4. Lift ring.

5. Align screw holes and install the rings back

into the table.

Figure 6

Figure 7

Figure 8

Operation

Spindle Control

To raise or lower spindle:

1. Loosen spindle lock handle (A, Figure 9). Turn

handle counterclockwise to loosen.

2. Raise or lower spindle to desired height by

turning handwheel (B, Figure 9).

3. Turn spindle lock handle clockwise to tighten.

Using the Fence as a Guide

Shaping with the fence is the safest and most

satisfactory method of working. This method

should always be used when work permits. Almost

all straight work can be used with the fence.

1. For most work, where a portion of the edge of

the work is not touched by the cutter, both the

front and rear fences are in a straight line, as

shown in Figure 10.

2. When removing the entire edge of the work

piece (i.e., jointing or making a full bead), the

shaped edge will not be supported by the rear

fence when both fences are in line (see Figure

11). In this case, the work piece should be

advanced to the position shown in Figure 11

and stopped.

3. Advance the rear fence to contact the work as

shown in Figure 12. This places the rear fence

in line with the cutting circle.

Shaping with Collars and Starting Pin

Follow these rules when shaping with collars and

starting pin for safest operation and best results:

1. Collars must be smooth and free from all gum

or other substances.

2. The edge of the work must be smooth. Any

irregularity in the surface which rides against

the collar will be duplicated on the shaped

surface.

3. A portion of the work's edge must remain

untouched by the cutter so that the collar will

have sufficient bearing surface. See Figure 13

for an example of insufficient bearing surface.

Figure 14 shows sufficient bearing surface.

4. The work must be heavy in proportion to the

cut being made (see Figure 15). Under no

circumstances should a small workpiece be

shaped against the collars as shown in Figure

16.

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

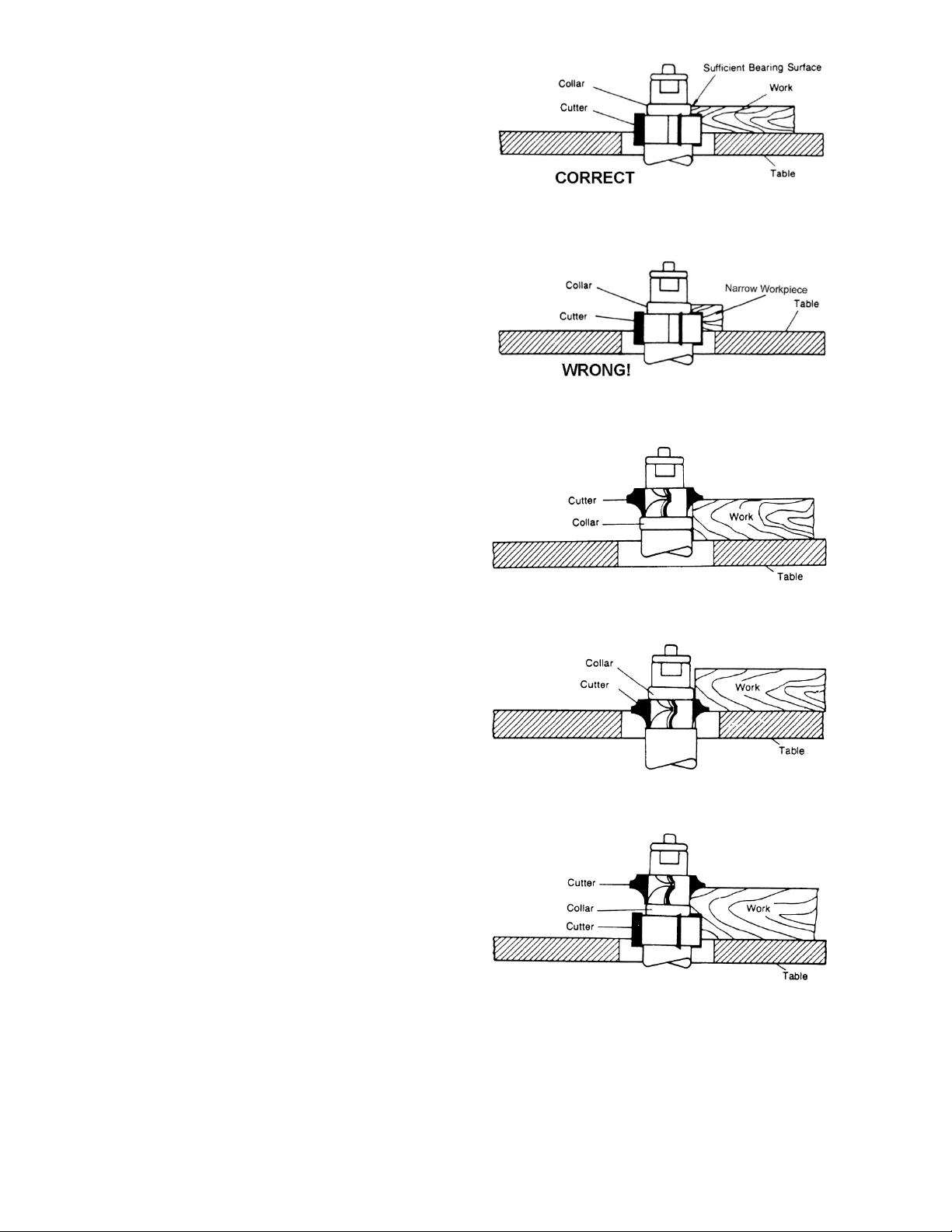

Collar Positioning

Collars may be positioned above, below, or

between two cutters:

1. When using the collar below the cutter (Figure

17), you can always observe the progress of

the cut. A disadvantage of this method is any

accidental lifting of the work will gouge the

wood and ruin the workpiece.

2. Using the collar above the cutter (Figure 18),

the cut is not affected by slight variations in the

stock's thickness. However, the cut is not

visible during the operation. Another

advantage is accidental lifting of the work

piece will not gouge the work piece. Simply

correct the mistake by repeating the operation.

3. The collar between cutters method (Figure 19)

has both the advantages and disadvantages of

the first two methods. This method is used

primarily when shaping both edges of the work

piece.

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Starting Pin

Only experienced, advanced

users should attempt starting pin shaping! If

you have never used this method, get training

from a qualified person who is knowledgeable

in starting pin shaping!

Failure to comply may cause serious injury!

Place the starting pin in one of the two threaded

holes in the table in front of the table rings.

1. Place work piece in the first position using the

starting pin as support (see Figure 20). Swing

the work into the cutter as shown in the

second position. The work is now supported

by the collar and starting pin.

2. After starting the cut, swing the work free of

the starting pin so it rides only against the

collar (see the third position, Figure 21).

Always feed against the action of the cutter.

Lubrication

To ensure easy movement when raising and

lowering spindle, occasionally apply a drop of light

oil on outside of spindle cartridge.

Spindle cartridge bearings are pre-lubricated and

sealed. They need no further care.

Figure 20

Figure 21

Troubleshooting

Trouble

Probable Cause

Remedy

Shaper will not start.

Cord unplugged from the power source.

Plug in power cord.

Fuse blown, or circuit breaker tripped.

Replace fuse, or reset circuit breaker.

Cord damaged.

Replace cord.

Reversing switch is in the OFF position.

Turn switch to forward or reverse.

Overload tripped.

Reset overload by depressing red stop

button.

Overload kicks out

frequently.

Extension cord or wiring inadequate

size.

Replace cord or wiring with proper

gauge wiring.

Feeding stock too fast.

Reduce stock feed rate.

Cutter head is dull.

Use only sharp cutters.

Cutter does not come

up to full speed.

Shop wire gauge is too small.

Replace cord or wiring with proper

gauge wire.

Extension cord too light or too long.

Replace with adequate size cord.

Power source is not adequate.

Contact local electrical utility.

Motor not wired for correct voltage.

Refer to motor name plate for correct

wiring.

Spindle is locked with mandrel lever.

Unlock spindle - see label next to lever

on base.

Cuts are unsatisfactory

Dull cutter.

Replace cutter.

Gum or pitch on cutter.

Remove cutter and clean with solvent.

Cutterhead rotating in the wrong

direction.

Check for proper rotation at start up.

Feeding work in the wrong direction.

Feed work against the cutter rotation.

Machine vibrates.

Cutterhead damaged.

Replace cutterhead.

Stand on uneven surface.

Stand must rest solidly on level surface,

bolt to floor if necessary.

Defective V-belt.

Replace V-belt.

V-belt incorrectly tensioned.

Apply proper tension.

Bent pulley.

Replace pulley.

Motor mounted improperly.

Motor must be properly mounted with

snug nuts and bolts.

Edge splits off on

cross grain cut.

Characteristic of this type of cut.

Make cross grain cuts first, then finish

cut with the grain.

Use scrap block to support end of cut.

Raised areas on

shaped edge.

Variation of pressure holding work

against cutter.

Hold work firmly against table and

fence. Use hold-downs.

Trouble

Probable Cause

Remedy

Work pulled from

hand.

Feeding work in the wrong direction.

Always feed work against the rotation of

the cutterhead.

Depth of cut not

uniform.

Fence misalignment.

Align outfeed fence.

Side pressure not uniform.

Use hold-downs; keep constant

pressure against fence.

Work burns.

Cutting too deep on one pass.

On hardwoods take light cuts; attain full

depth with several passes.

Forcing work.

Feed work slowly and steadily.

Cut height not uniform.

Variation in pressure holding work to

table.

Keep pressure firm throughout pass.

Use hold-downs. Make pass slowly

and steadily. Keep work under cutter

whenever possible.

Cuts not smooth.

Wrong R.P.M.

Use faster speed.

Feeding too fast.

Slow feed speed.

Working against the grain.

Work with the grain whenever possible.

Cutting too deep on one pass.

Take several passes on very deep cuts.

Spindle does not raise

freely.

Sawdust or dirt in raising mechanism.

Brush or blow out dirt and saw dust.

Lubricate regularly.

Replacement Parts

Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-

800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial

Number of your machine available when you call will allow us to serve you quickly and accurately.

Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET.

Some parts are shown for reference only and may not be available individually.

JWS-20CS Base Assembly – Exploded View

JWS-20CS Base Assembly – Parts List

Index No Part No Description Size Qty

1 ................ JWS20-101 ................ Cabinet .................................................................... ...................................... 1

2 ................ JWS20-102 ................ JET Stripe ............................................................... 98mm ............................ 1

3 ................ JWS20-103 ................ Name Plate .............................................................. ...................................... 1

4 ................ JWS20-104 ................ Cabinet Door ........................................................... ...................................... 1

5 ................ JWS20-105 ................ Handle Assembly .................................................... ...................................... 1

6 ................ JWS20-106 ................ I.D. Label ................................................................. ...................................... 1

7 ................ JWS20-107 ................ Door Pivot ................................................................ ...................................... 2

8 ................ JWS20-108 ................ Strain Relief ............................................................. ...................................... 1

9 ................ JWS20-109 ................ Power Cord ............................................................. ...................................... 1

10 .............. JWS20-110 ................ Motor Cord .............................................................. ...................................... 1

11 .............. TS-0060031 ............... Hex Cap Bolt ........................................................... 3/8-16 x 3/4 ................... 3

12 .............. TS-0720091 ............... Lock Washer ........................................................... 3/8 ................................. 3

13 .............. TS-0680041 ............... Flat Washer ............................................................. 3/8 ................................. 3

14 .............. JWS20-114 ................ Table ....................................................................... ...................................... 1

15 .............. JWS20-115 ................ Table Insert ............................................................. ...................................... 1

16 .............. TS-0267051 ............... Set Screw ................................................................ 1/4-20 x 1/2 ................... 3

17 .............. JWS20-117 ................ Table Ring ............................................................... ...................................... 1

18 .............. TS-081F021 ............... Pan Head Screw ..................................................... 1/4-20 x 3/8 ................... 2

19 .............. JWS20-119 ................ Motor Door .............................................................. ...................................... 1

20 .............. TS-0560071 ............... Hex Nut ................................................................... #10 ................................ 1

21 .............. TS-0733031 ............... Tooth Washer .......................................................... #10 ................................ 1

22 .............. TS-081C042 ............... Pan Head Screw ..................................................... #10-24 x 5/8 .................. 1

23 .............. JWS20-123 ................ Label (spindle lock) ................................................. ...................................... 1

24 .............. JWS20-124 ................ Label (spindle direction) .......................................... ...................................... 1

25 .............. JWS20-125 ................ Warning Label ......................................................... ...................................... 1

26 .............. JWS20-126 ................ Model Decal ............................................................ JS-20 ............................ 1

27 .............. JWS20-127 ................ Strain Relief Bushing ............................................... ...................................... 2

28 .............. TS-1540021 ............... Hex Nut ................................................................... M4 ................................. 4

29 .............. JWS20-129 ................ Forward-Reverse Switch Assembly ........................ ...................................... 1

30 .............. JWS20-130 ................ Pan Head Screw ..................................................... M4 x 100 ....................... 2

31 .............. TS-1532052 ............... Pan Head Screw ..................................................... M4 x 14 ......................... 2

32 .............. JWS20-132 ................ Switch Box ............................................................... ...................................... 1

33 .............. JWS25-142 ................ Starting Pin .............................................................. ...................................... 1

34 .............. JWS20-134 ................ Miter Gauge Assembly ............................................ ...................................... 1

JWS-20CS Motor Assembly – Exploded View

JWS-20CS Motor Assembly – Parts List

Index No Part No Description Size Qty

1 ................ JWS20-201 ................ Spindle Bracket ....................................................... ...................................... 1

2 ................ JWS20-202 ................ Gear Shaft ............................................................... ...................................... 1

3 ................ JWS20-203 ................ Lock Handle ............................................................ ...................................... 1

4 ................ TS-0050051 ............... Hex Cap Screw ....................................................... 1/4-20 x 1 ...................... 1

5 ................ TS-0720071 ............... Lock Washer ........................................................... 1/4 ................................. 3

6 ................ TS-0680021 ............... Flat Washer ............................................................. 1/4 ................................. 2

7 ................ JWS20-207 ................ Handle Wheel .......................................................... ...................................... 1

8 ................ JWS20-208 ................ Extension Bar .......................................................... ...................................... 1

9 ................ TS-0561021 ............... Hex Nut ................................................................... 5/16-18 ........................ 1

10 .............. TS-0051021 ............... Hex Cap Screw ....................................................... 5/16-18 x 5/8 ................ 1

11 .............. JWS20-211 ................ Spindle Lock Assembly ........................................... ...................................... 1

12 .............. VB-K23 ....................... V-Belt ....................................................................... K-23 .............................. 1

13 .............. JWS20-213 ................ Motor Pulley ............................................................ ...................................... 1

14 .............. TS-0267021 ............... Socket Set Screw .................................................... 1/4-20x1/4 ..................... 1

15 .............. JWS20-215 ................ Key .......................................................................... 5x5x40 .......................... 1

16 .............. JWS20-216 ................ Motor (Included #23) ............................................... 1HP, 1Ph 120V/240V ... 1

.................. JWS20-216SC ........... Starting Capacitor .................................................... 200uf 125VAC .............. 1

17 .............. TS-0152011 ............... Carriage Bolt ........................................................... 5/16-18 x 3/4 ................. 4

18 .............. TS-0561021 ............... Hex Nut ................................................................... 5/16-18 ......................... 6

19 .............. TS-0720081 ............... Lock Washer ........................................................... 5/16 ............................... 6

20 .............. TS-0680031 ............... Flat Washer ............................................................. 5/16 ............................... 4

21 .............. JWS20-221 ................ Motor Plate Bracket ................................................. ...................................... 1

22 .............. JWS20-222 ................ Motor Plate .............................................................. ...................................... 1

23 .............. JWS20-223 ................ Motor Label ............................................................. ...................................... 1

24 .............. JWS20-224 ................ Hex Cap Screw ....................................................... 5/16-18 x 3/4 ................. 2

25 .............. JWS20-225 ................ Knob ........................................................................ 1/4-20 x 1/2 ................... 1

26 .............. JWS20-226 ................ Hex Cap Screw ....................................................... 1/4-20 x 1/2 ................... 1

27 .............. 6296083 ..................... Hex Nut ................................................................... 1/2-12 ........................... 3

28 .............. JWS20-228 ................ Lock Washer ........................................................... 1/2 ................................. 3

29 .............. TS-0640112 ............... Nylon Nut ................................................................. 1/2-20 ........................... 1

30 .............. TS-0680061 ............... Flat Washer ............................................................. 1/2 ................................. 3

31 .............. JWS20-231 ................ Bolt .......................................................................... ...................................... 3
