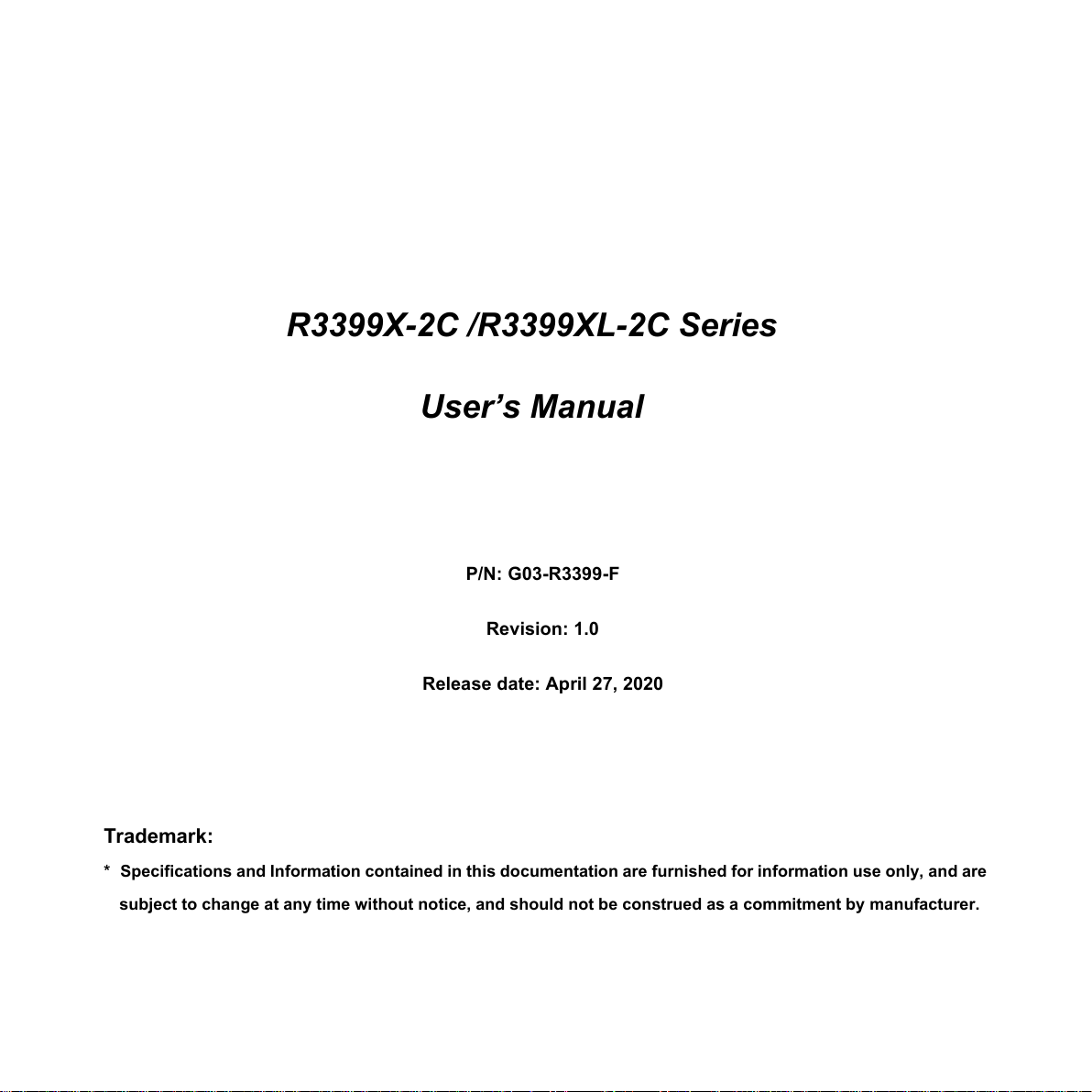

JETWAY R3399X-2C Series User manual

R3399X-2C /R3399XL-2C Series
User’s Manual
P/N: G03-R3399-F
Revision: 1.0
Release date: April 27, 2020
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
All manuals and user guides at all-guides.com

i

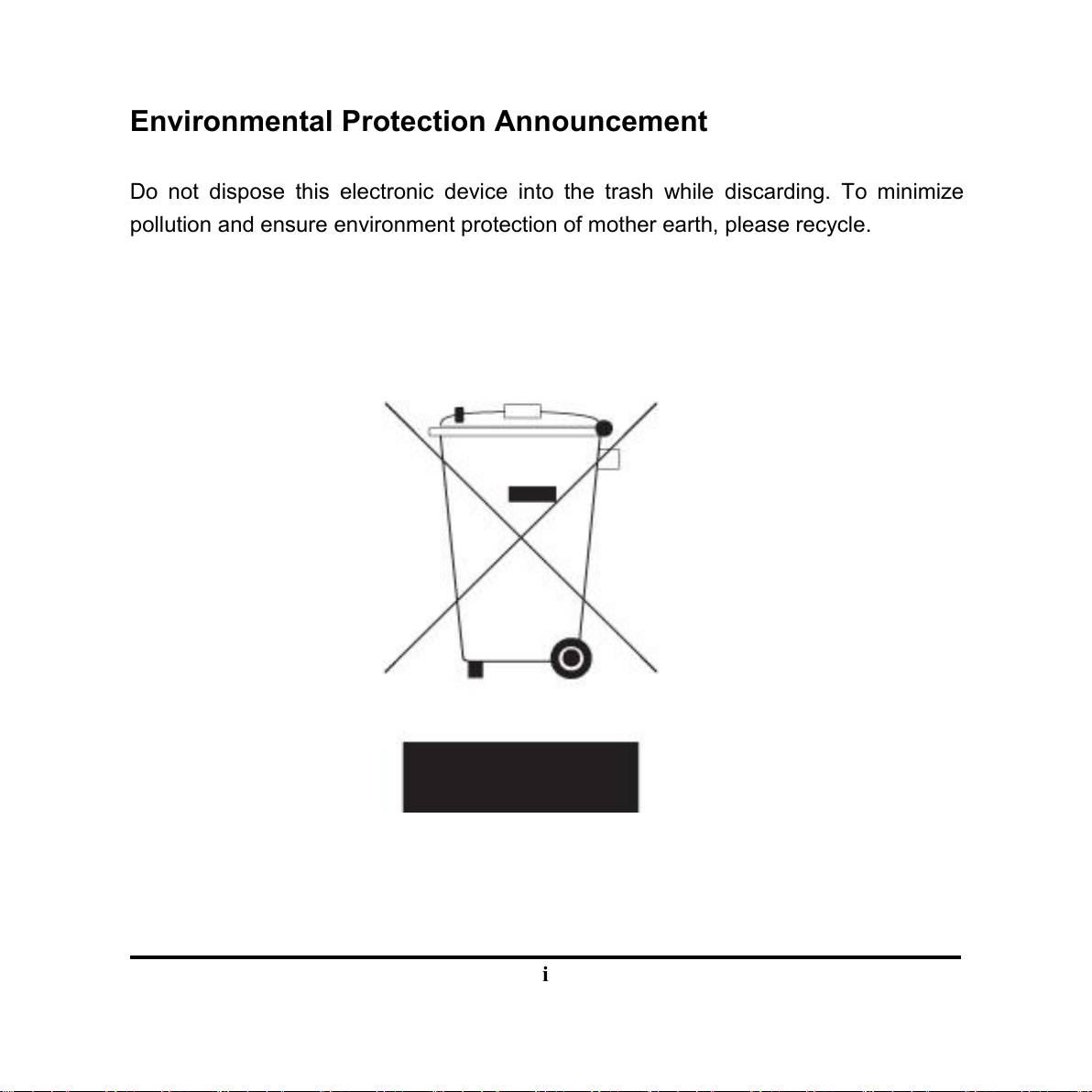

Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
All manuals and user guides at all-guides.com

ii

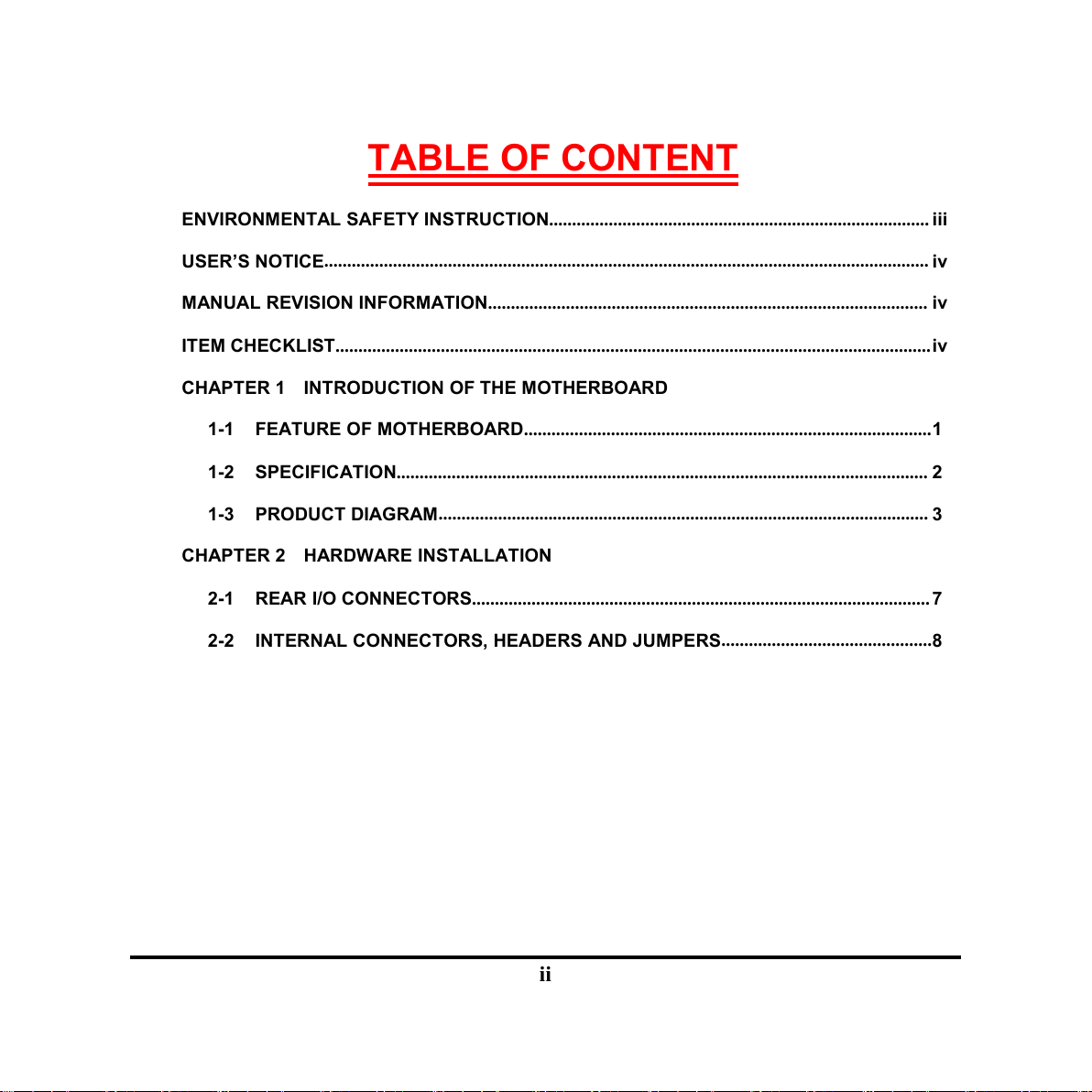

ENVIRONMENTAL SAFETY INSTRUCTION................................................................................... iii
USER’S NOTICE.................................................................................................................................... iv
MANUAL REVISION INFORMATION................................................................................................ iv
ITEM CHECKLIST..................................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD.........................................................................................1
1-2 SPECIFICATION.................................................................................................................... 2
1-3 PRODUCT DIAGRAM........................................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 REAR I/O CONNECTORS.................................................................................................... 7
2-2 INTERNAL CONNECTORS, HEADERS AND JUMPERS..............................................8
TABLE OF CONTENT
All manuals and user guides at all-guides.com

iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 40 centigrade is the suitable temperature. (The temperature comes from the
request of the chassis and thermal solution)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
All manuals and user guides at all-guides.com

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition April 27, 2020
Item Checklist
Motherboard
All manuals and user guides at all-guides.com

1
Chapter 1
Introduction of the Motherboard

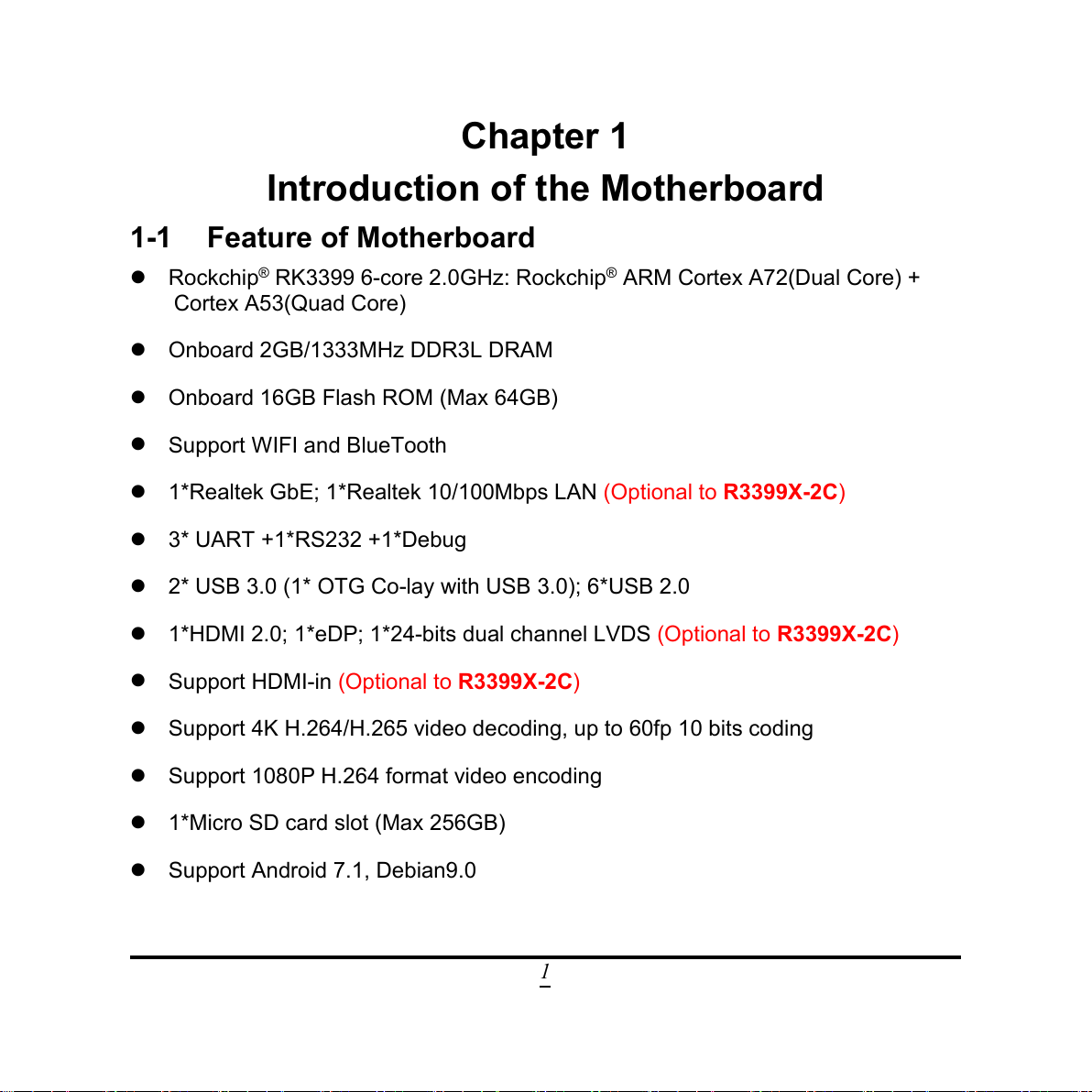

1-1 Feature of Motherboard
Rockchip®RK3399 6-core 2.0GHz: Rockchip®ARM Cortex A72(Dual Core) +
Cortex A53(Quad Core)
Onboard 2GB/1333MHz DDR3L DRAM
Onboard 16GB Flash ROM (Max 64GB)
Support WIFI and BlueTooth
1*Realtek GbE; 1*Realtek 10/100Mbps LAN (Optional to R3399X-2C)
3* UART +1*RS232 +1*Debug
2* USB 3.0 (1* OTG Co-lay with USB 3.0); 6*USB 2.0
1*HDMI 2.0; 1*eDP; 1*24-bits dual channel LVDS (Optional to R3399X-2C)
Support HDMI-in (Optional to R3399X-2C)
Support 4K H.264/H.265 video decoding, up to 60fp 10 bits coding
Support 1080P H.264 format video encoding
1*Micro SD card slot (Max 256GB)
Support Android 7.1, Debian9.0
All manuals and user guides at all-guides.com

2
1-2 Specification
Spec
Description
From Factor
102 * 146mm
CPU
Rockchip®RK3399 6-core 2.0GHz:
Rockchip®ARM Cortex A72(Dual Core) +Cortex A53(Quad Core)
PMU
Rockchip®RK808-D PMU
Memory
Onboard 2GB/1333MHz DDR3L DRAM
Storage
Onboard 16GB EMMC Flash ROM (Max. 64GB)
Expansion
1* Micro SD (TF) Card Socket (Max 64GB)
1* SIM Card Holder
1* Full-size Mini PCIe slot by USB interface (R3399X-2C)
Network
1* Realtek RTL8211E-VB 10/100/1000Mbps LAN
1* Realtek RTL8152B-VB-CG 10/100Mbps LAN (R3399X-2C)
1* AMPAK AP6356S 802.11 a/b/g/n/ac 2.4/5G WIFI and BT-V4.1
Audio
Integrated with Realtek ALC5640 2-CH HD audio chip
Rear I/O
1* 12V DC-In Power Jack
1* HDMI-In Port & 1* HDMI-Out Port
2* USB 3.0 Port (Top one co-lay OTG function)
2* USB 2.0 Port + 1* RJ-45 Port (R3399XL-2C)
or 2* RJ-45 Port (R3399X-2C)
1* Audio Jack (Line-Out & MIC Combo)
Internal I/O
1* Power Switch & Recover Button Connector
1* Reset Button Connector
1* CPUFAN Connector
3* UART, 1* RS232, 1* Debug
2* USB 2.0 Header (R3399XL-2C)or 3 * USB 2.0 header
(R3399X-2C)
1* Speaker Connector (3W Amplifier)
1* GPIO & I2C Combo Header Block
1* GPIO_VCC Jumper
1* MIPI CSI Connector(R3399X-2C)
1* eDP Header
All manuals and user guides at all-guides.com

3
1* EDP_VCC Jumper
1* LVDS Header &1* Inverter Connector(R3399X-2C)
1* LVDS_BKLT Jumper(R3399X-2C)
1* LVDS_POWER Jumper(R3399X-2C)
1-3 Product Diagram
Rear IO Panel Diagram
R3399X-2C:
R3399XL-2C:
HDMI-In
Port
HDMI-Out
Port
HDMI-Out
Port
USB 3.0 Port
*USB 2.0 Port
USB 3.0 Port
*LAN2
RJ-45 Port
(10/100Mbps)
LAN
RJ-45 Port
(10/100/1000Mbps)
12V DC-in
Power Jack
12V DC-in
Power Jack
Line-Out & MIC
Combo Jack
Line-Out & MIC
Combo Jack
LAN
RJ-45 Port
(10/100/1000Mbps)
All manuals and user guides at all-guides.com

4

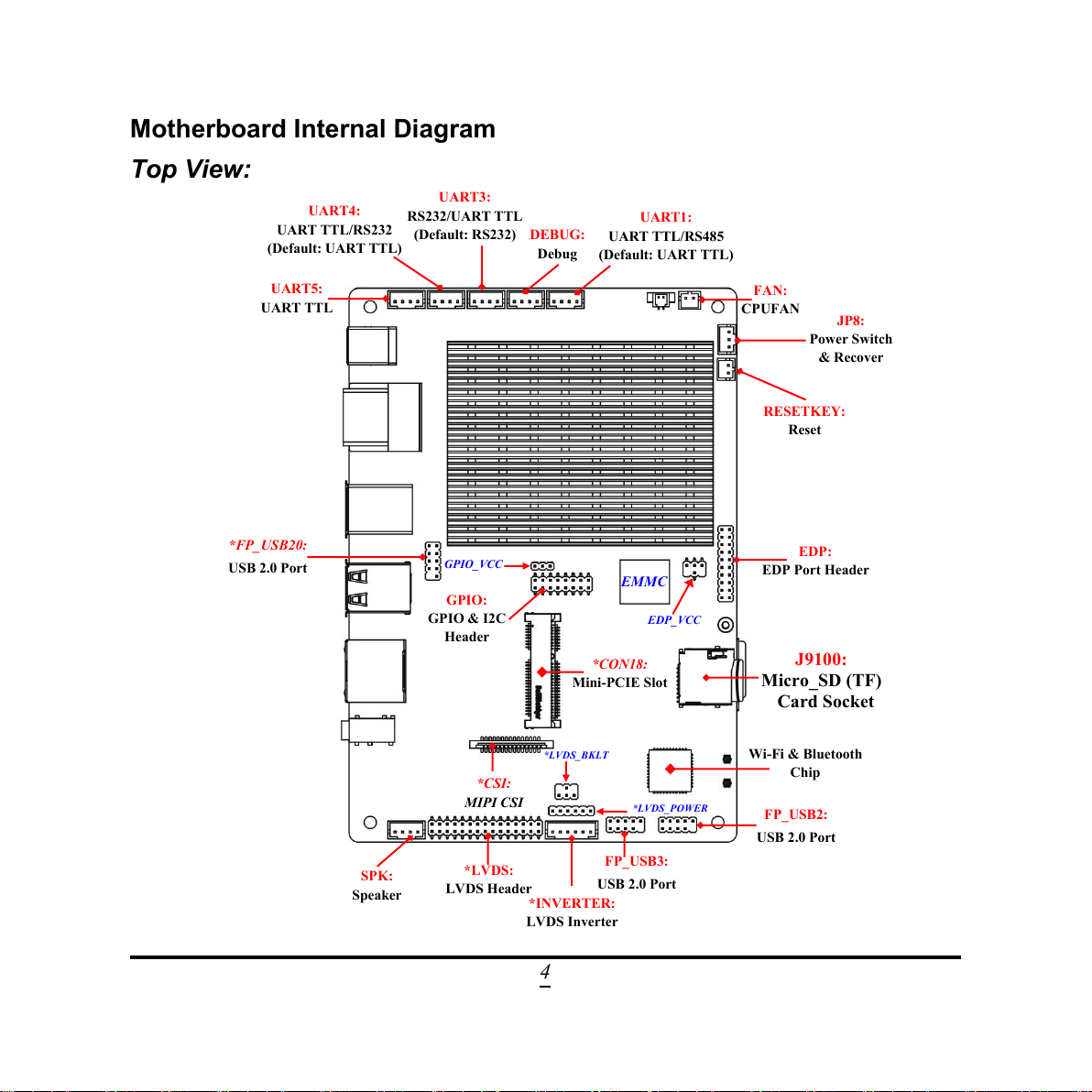

Motherboard Internal Diagram
Top View:
SPK:
Speaker
*LVDS:
LVDS Header
*INVERTER:
LVDS Inverter
UART5:
UART TTL
UART4:
UART TTL/RS232
(Default: UART TTL)
UART3:
RS232/UART TTL
(Default: RS232)
DEBUG:
Debug
UART1:
UART TTL/RS485
(Default: UART TTL)
FAN:
CPUFAN
JP8:
Power Switch
& Recover
RESETKEY:
Reset
EDP:
EDP Port Header
Wi-Fi & Bluetooth
Chip
J9100:
Micro_SD (TF)
Card Socket
FP_USB2:
USB 2.0 Port
FP_USB3:
USB 2.0 Port
*FP_USB20:
USB 2.0 Port
*CSI:
MIPI CSI
*CON18:
Mini-PCIE Slot
GPIO:
GPIO & I2C
Header
GPIO_VCC
*LVDS_BKLT
*LVDS_POWER
EDP_VCC
EMMC
All manuals and user guides at all-guides.com

5
*Note: The product diagrams are for illustration purpose only and mostly come from Model R3399X-2C,
unless otherwise noted. Differences from R3399X-2C &R3399XL-2C are listed as below:
Optional Item
R3399X-2C
R3399XL-2C
Mini-PCIE Slot
1
N/A
MiPi CSI
1
N/A
LVDS
1
N/A
LVDS Inverter
1
N/A
LVDS_BKLT
1
N/A
LVDS_POWER
1
N/A
RJ-45
1*Giga +1*Mega
1*Giga
USB 2.0
6*Internal
2* Rear +4*Internal
Bottom View:
SIM1 (Bottom):
SIM Card Socket
All manuals and user guides at all-guides.com

6

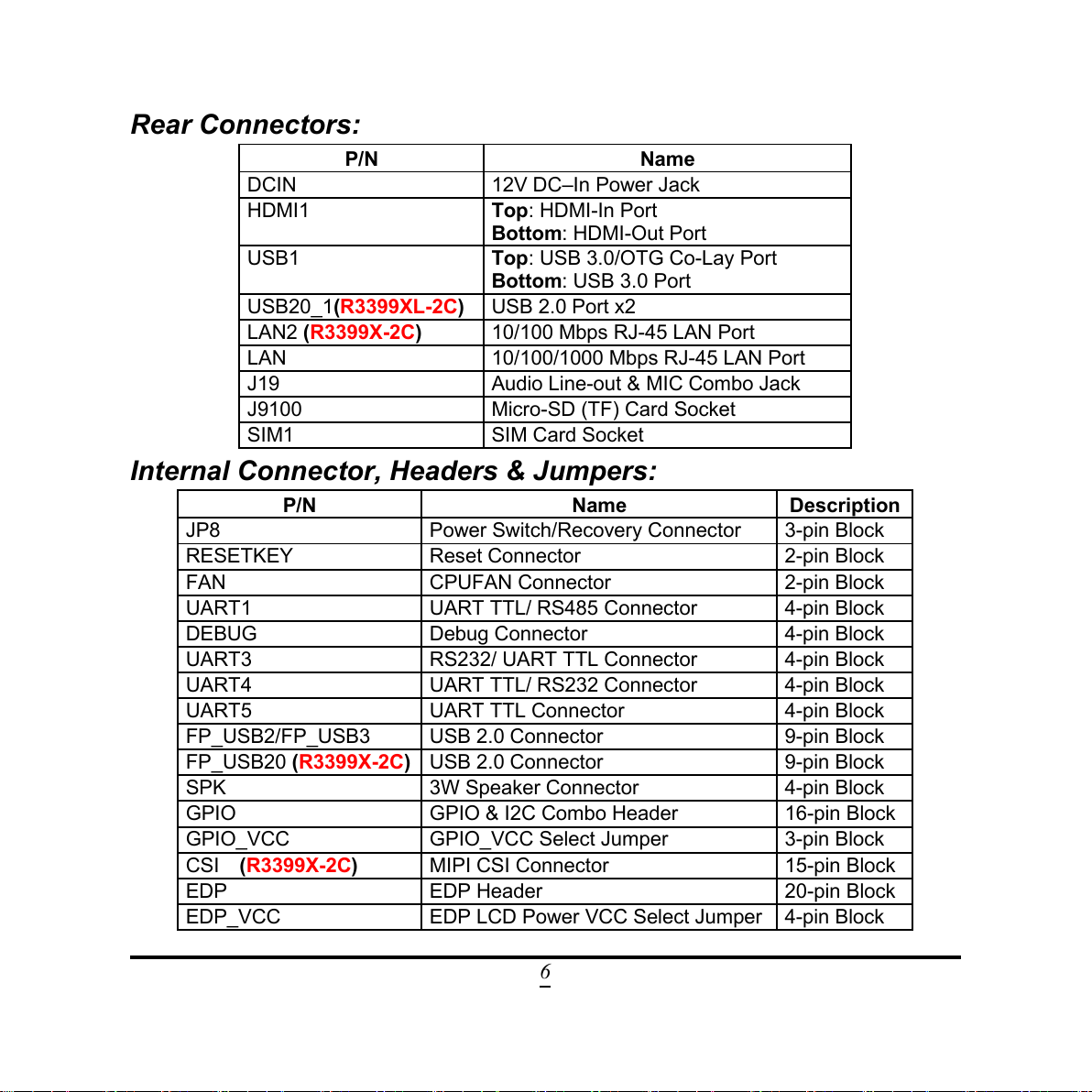

Rear Connectors:
P/N
Name
DCIN
12V DC–In Power Jack
HDMI1
Top: HDMI-In Port
Bottom: HDMI-Out Port
USB1
Top: USB 3.0/OTG Co-Lay Port
Bottom: USB 3.0 Port
USB20_1(R3399XL-2C)
USB 2.0 Port x2
LAN2 (R3399X-2C)
10/100 Mbps RJ-45 LAN Port
LAN
10/100/1000 Mbps RJ-45 LAN Port
J19
Audio Line-out & MIC Combo Jack
J9100
Micro-SD (TF) Card Socket
SIM1
SIM Card Socket
Internal Connector, Headers & Jumpers:
P/N
Name
Description
JP8
Power Switch/Recovery Connector
3-pin Block
RESETKEY
Reset Connector
2-pin Block
FAN
CPUFAN Connector
2-pin Block
UART1
UART TTL/ RS485 Connector
4-pin Block
DEBUG
Debug Connector
4-pin Block
UART3
RS232/ UART TTL Connector
4-pin Block
UART4
UART TTL/ RS232 Connector
4-pin Block
UART5
UART TTL Connector
4-pin Block
FP_USB2/FP_USB3
USB 2.0 Connector
9-pin Block
FP_USB20 (R3399X-2C)
USB 2.0 Connector
9-pin Block
SPK
3W Speaker Connector
4-pin Block
GPIO
GPIO & I2C Combo Header
16-pin Block
GPIO_VCC
GPIO_VCC Select Jumper
3-pin Block
CSI (R3399X-2C)
MIPI CSI Connector
15-pin Block
EDP
EDP Header
20-pin Block
EDP_VCC
EDP LCD Power VCC Select Jumper
4-pin Block
All manuals and user guides at all-guides.com

7
LVDS (R3399X-2C)
LVDS Header
30-pin Block
INVERTER (R3399X-2C)
LVDS /EDP Inverter
6-pin Block
LVDS_BKLT
(R3399X-2C)
LVDS Backlight VCC Select Jumper
4-pin Block
LVDS_POWER
(R3399X-2C)
LVDS LCD Power VCC Select Jumper
6-pin Block
Chapter 2
Hardware Installation

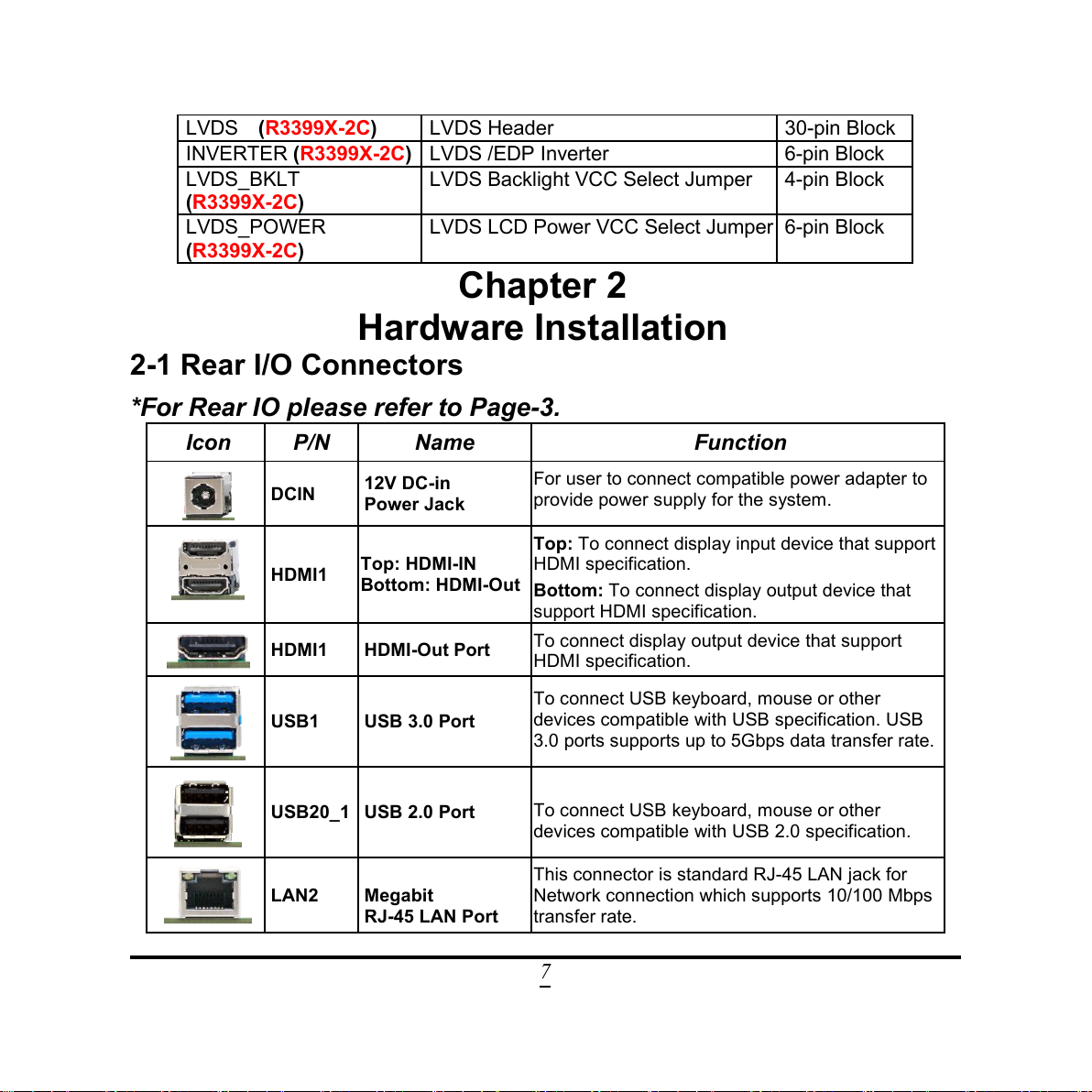

2-1 Rear I/O Connectors
*For Rear IO please refer to Page-3.
Icon
P/N
Name
Function
DCIN
12V DC-in
Power Jack
For user to connect compatible power adapter to
provide power supply for the system.
HDMI1
Top: HDMI-IN
Bottom: HDMI-Out
Top: To connect display input device that support
HDMI specification.
Bottom: To connect display output device that
support HDMI specification.
HDMI1
HDMI-Out Port
To connect display output device that support
HDMI specification.
USB1
USB 3.0 Port
To connect USB keyboard, mouse or other
devices compatible with USB specification. USB
3.0 ports supports up to 5Gbps data transfer rate.
USB20_1
USB 2.0 Port
To connect USB keyboard, mouse or other
devices compatible with USB 2.0 specification.
LAN2
Megabit
RJ-45 LAN Port
This connector is standard RJ-45 LAN jack for
Network connection which supports 10/100 Mbps
transfer rate.
All manuals and user guides at all-guides.com

8
LAN
Gigabit
RJ-45 LAN Port
This connector is standard RJ-45 LAN jack for
Network connection which supports 10/100/1000
Mbps transfer rate.
J19
Audio Connector
Line-out & MIC audio jack.
J9100
(Top)
Macro-SD (TF)
Card Socket
For user to insert compatible micro-SD (TF) card
into the socket.
SIM1
(Bottom)
SIM Card Socket
For user to install compatible SIM card.

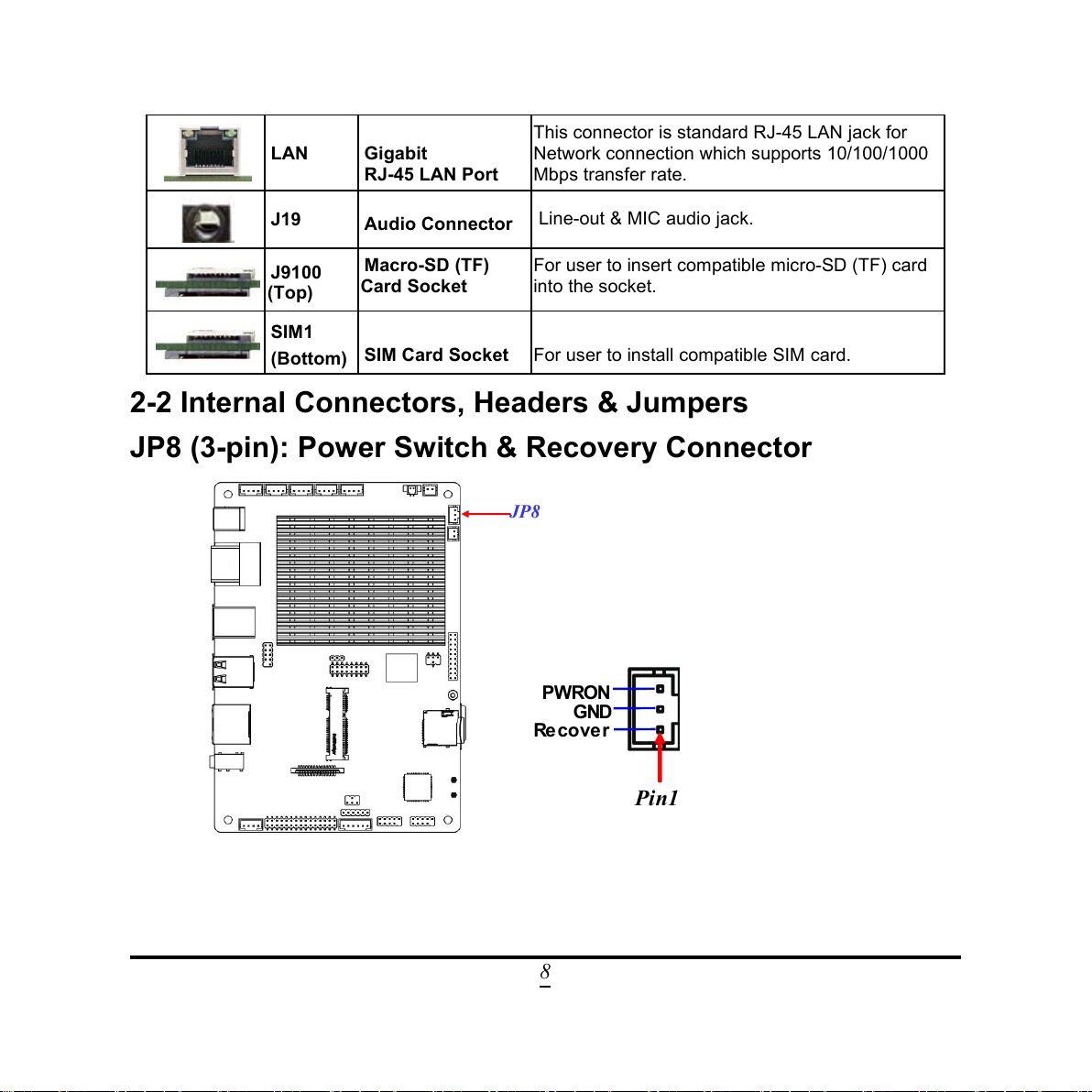

2-2 Internal Connectors, Headers & Jumpers
JP8 (3-pin): Power Switch & Recovery Connector
PWRON
GND
Pin1
Recover
JP8
All manuals and user guides at all-guides.com

9
RESETKEY (2-pin): Reset Connector
RESET
GND
Pin1
FAN (2-pin): CPUFAN Connector
5V
GND
Pin1
RESETKEY
FAN
All manuals and user guides at all-guides.com

10
UART1 (4-pin): UART TTL/ RS485 Connector
Pin1
3V3
TX
RX
GND
UART1=TTL
(Default)
GND
A
Pin1
B
UART1=RS485
(Optional)
3V3
DEBUG (4-pin): Debug Connector
Pin1
3V3
TX
RX
GND
UART1
DEBUG
All manuals and user guides at all-guides.com

11
UART3 (4-pin): RS232/UART TTL Connector
Pin1
3V3
TX
RX
GND
UART3=RS232 (Default);
UART3=TTL (Optional).
UART4 (4-pin): UART TTL/RS232 Connector
Pin1
3V3
TX
RX
GND
UART4=TTL (Default);
UART4=RS2332 (Optional).
UART3
UART4
All manuals and user guides at all-guides.com

12
UART5 (4-pin): UART TTL Connector
Pin1
3V3
TX
RX
GND
UART5=TTL.
FP_USB2/FP_USB3 (9-pin): USB 2.0 Header
VCC
Pin1
2
-DATA
+DATA
GND
VCC
-DATA
+DATA
GND
NC
UART5
FP_USB2
FP_USB3
All manuals and user guides at all-guides.com

13
*FP_USB20 (9-pin): USB 2.0 Header
*Note: FP_USB20 is optional to R3399X-2C series only.
SPK (4-pin): 3W Speaker Connector
Pin1
SPK_ROUT+
SPK_ROUT-
SPK_LOUT-
SPK_LOUT+
*FP_USB20
SPK
All manuals and user guides at all-guides.com

14
GPIO (16-pin): 8-bit GPIO & I2C Combo Header Block
I2C2SDA_GP2_A0
GND
GPIO_VCC
Pin1
GND
2
3V3
GPIO_VCC
GP2-A2
GP2_A6
GP2_A7
GP2_A3
GP2_A4
GND
I2C2SCL_GP2_A1
GP2_A5
GND
EMMC_CLKO
*Note:Pin 15 & 16 short = EMMC_UPDATE (If EMMC_CLKO=0V after power-on
reset, then system will enter into Maskrom mode).
GPIO_VCC (3-pin): GPIO_VCC Select Jumper
GPIO
GPIO_VCC
All manuals and user guides at all-guides.com

15

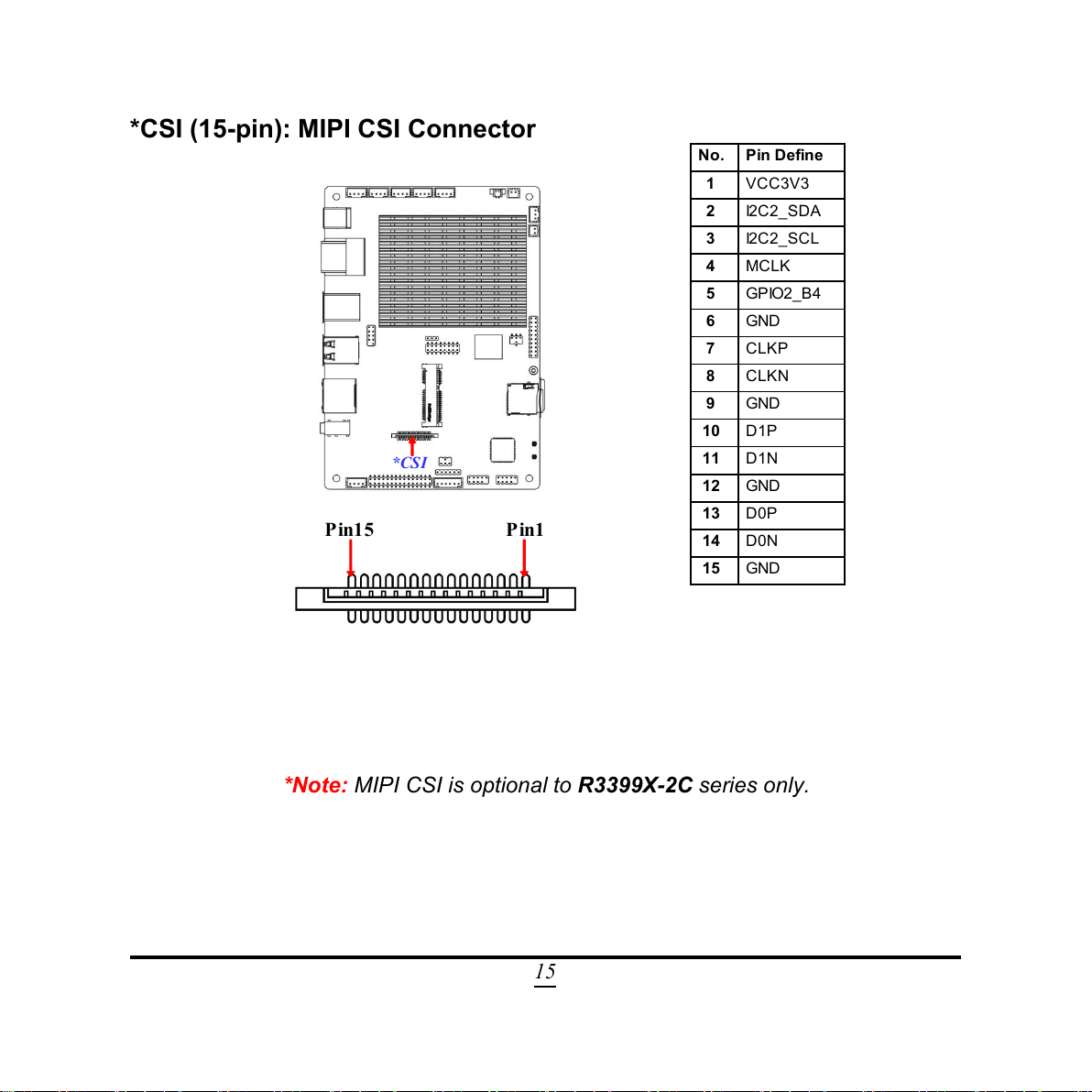

*CSI (15-pin): MIPI CSI Connector
Pin15
Pin1
*CSI
No.
Pin Define
1
VCC3V3
2
I2C2_SDA
3
I2C2_SCL
4
MCLK
5
GPIO2_B4
6
GND
7
CLKP
8
CLKN
9
GND
10
D1P
11
D1N
12
GND
13
D0P
14
D0N
15
GND
*Note: MIPI CSI is optional to R3399X-2C series only.
All manuals and user guides at all-guides.com
