Jinko Solar JKM***PP-60 User manual

JinkoSolar
Photovoltaic Module
Installation Manual

Contents
1
1
20
1
3
3
4
4
4
5
5
6
16
18
19
19
Edition 01/2022
18
20
19
10
Appendix2：Electrical Specifications 23
1 General Information
2. Installation
1.1 Overview
1.2 Warnings
2.1 Installation Safety
2.2 Installation Condition
2.3 Mechanical Installation Introduction
2.2.1 Climate Condition
2.2.2 Site Selection

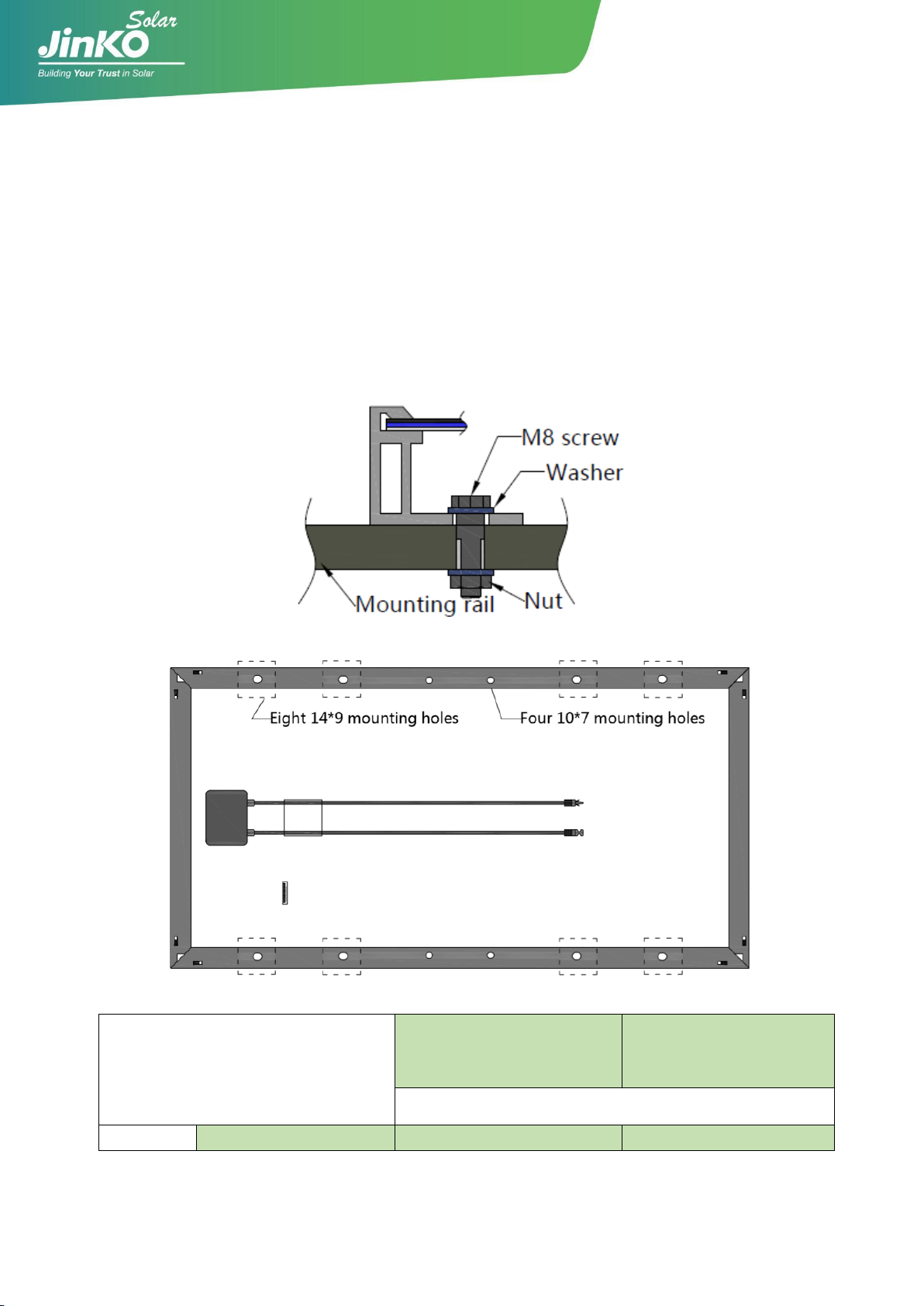

2.3.1 Mounting with Bolts
2.2.3 Tilt Angle Selection
4 Maintenance and Care
5 Electrical Specification
4.1 Visual Inspection
4.3 Inspection of Connector and Cable
6 Disclaimer of Liability
4.2 Cleaning

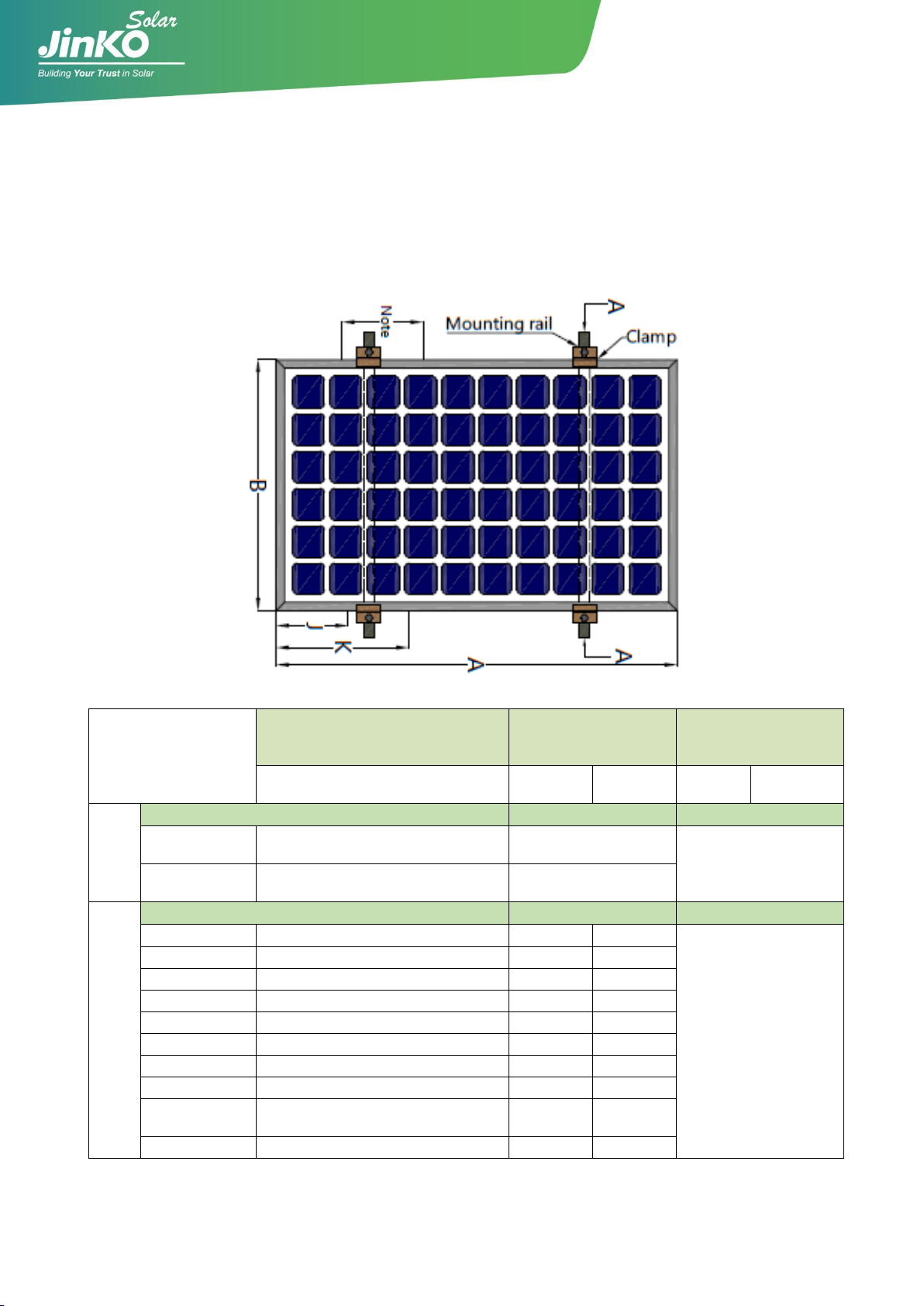

2.3.2 Mounting with Clamps
Appendix1：Applicable Products
3 Wiringand Connections
IEC 2016

-1-
1. General Information
1.1 Overview
Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules are installed correctly,
please read the following installation instructions carefully before modules are installed and used.
Please remember that these products generate electricity and certain safety measures need to be taken
to avoid danger.
Make sure the module array is designed in such a way not to exceed the maximum system voltage of
any system component such as connectors or inverters.
The assembly is to be mounted over a fire resistant roof covering rated for the application. Before
mounting the module, please consult your local building department to determine approved roofing
materials.
The modules are qualified for application class A: Hazardous voltage (IEC 61730: higher than 50V DC;
EN 61730: higher than 120V), hazardous power applications (higher than 240W) where general contact
access is anticipated. Modules qualified for safety through EN IEC 61730 -1 and - 2 within this application
class are considered to meet the requirements for Safety Class II.
1.2 Warnings
PV modules generate DC electrical energy when exposed to sunlight or other light sources. Active
parts of module such as terminals can result in burns, sparks, and lethal shock.
Artificially concentrated sunlight shall not be directed on
the module or panel.
Front protective glass is utilized on the module. Broken
solar module glass is an electrical safety hazard (may
cause electric shock or fire). These modules cannot be
repaired and should be replaced immediately.
To reduce the risk of electrical shocks or burns, modules
may be covered with an opaque material during installation to avoid injury.
The installation work of the PV array can only be done under the protection of sun-sheltering covers
or sunshades and only qualified person can install or perform maintenance work on this module.
Follow the battery manufacture’s recommendations if batteries are used with modules.
Do not use this module to replace or partly replace roofs and walls of living buildings.
Do not install modules where flammable gas may be present.
Do not remove any part installed by Jinko Solar or disassemble the module.

-2-
All instructions should be read and understood before attempting to install, wire, operate and
maintain the module.
Don’t lift up PV modules using the attached cables or the junction box.
Do not touch live terminals with bare hands. Use insulated tools for electrical connections.
Do not use water to extinguish the fire when the power supply is not disconnected.
All PV systems must be grounded to earth. If thereis no special regulation, please follow the National
Electrical Code or other national code.
Under normal conditions, a photovoltaic module is likely to experience conditions that produce more
current and/or voltage than reported at standard test conditions. Accordingly, the value of Isc and
Voc marked on the module should be multiplied by 1.25 when determining PV system component
voltage ratings, conductor current ratings, fusesizes, and size of controls connected tothePV output.
Once the PV module has been shipped to the installation site, all of the parts should be unpacked
properly with care.
Do not stand or step on the PV module like below pictures show. This is prohibited and there is a
risk of damage to the module and cause injury for you.
Only PV modules with the same cell size should be connected in series.
During transporting modules, please attempt to minimize shock or vibration to the module, as this
may damage the module or lead to cell micro cracks.
During all transportation situations, never drop the module from a vehicle, house or hands. This will
damage module.
Modules (glass, junction boxes, connectors, etc.) shall be protected from long-term exposure to
environments containing sulfur, strong acid, strong alkaline, etc., which may pose a risk of corrosion

-3-
to the product.
Do not clean the glass with chemicals. Only use tap water. Make sure the module surface
temperature is cool to the touch. Cleaning modules with cool water when module surface temp is
high may result in glass breakage. Do not brush paint or corrosive substances on the surface of the
modules.
Do not disconnect any of the modules when under load. If you need to disconnect the connector,
you must first close the DC and AC converter or disconnect junction box master switch.
When looking at PV modules with anti-reflection (AR) coating technology, it will be normal to see
some cells with a slight color difference at different angles. Modules with LRF(light reflective film)
and without LRF should not be built in the same array or roof.
The junction box connector should not be in contact with oily substances, organic solvents and other
corrosive materials to avoid damage to the connector. For example, alcohol, gasoline, lubricants,
rust inhibitors, herbicides and so on. If the connector is polluted, need to replace new connector to
use again.
Before the installation of modules, it is recommended to add rainproof facilities in the project site to
avoid direct open-air placement.
The maximum altitude the PV module is designed for ≤ 2000m.
The maximum irradiance is 1300W/m2for module with transparent rear.
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.
Contact your local government for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally
obligated to take back your old appliance for disposals at least free of
charge.
2. Installation
2.1 Installation Safety
Always wear protective head gear, insulating gloves and safety shoes (with rubber soles) and other
protective measures during installation.

-4-
When installing or maintaining the photovoltaic system, please do not wear metal rings, watches and
other metal products, so as not to cause electric shock danger and damage the modules.
Keep the PV module packed in the carton until installation. Once the modules are removed from the
packing box, they should be installed and connected to the bus box in time. If they are not installed
immediately, protective measures (such as adding rubber joint cover, etc.) should be taken on the
connection head.
Do not touch the PV module unnecessarily during installation. The glass surface and the frame may
be hot. There is a risk of burns and electric shock.
Do not work in rain, snow or windy conditions.
Due to the risk of electrical shock, do not perform any work if the terminals of the PV module are wet.
Use insulated tools and do not use wet tools.
When installing PV modules, do not drop any objects (e.g., PV modules or tools).
Make sure flammable gasses are not generated or present near the installation site.
Insert module connectors fully and correctly. An audible "click" sound should be heard. This sounds
confirms the connectors are fully seated. Check all connections.
Connect the male and female connectors correctly, check the wiring condition, all wires shall not be
separated from the modules, and secure the wires with cable ties so that the wires do not scratch or
squeeze the back sheet of the modules.
Do not touch the junction box and the end of the interconnect cables (connectors) with bare hands
during installation or under sunlight, regardless if the PV module is connected to or disconnected
from the system.
The junction box must be protected from direct sunlight and water. The connector must meet the
IP68 water-tight standard after being connected. However, it is not recommended to use the
connector under water for a long time.
Do not expose the PV module to excessive loads on the surface of the PV module or twist the frame.
Do not hit or put excessive load on the glass or back sheet, this may break the cells or cause micro
cracks.
During the installation or operation, don’t use sharp tools to wipe the back sheet and glass. Scratches
can appear on the module.
Do not drill holes in the frame. It may cause corrosion of the frame.
When installing modules on roof mounted structures, please try to follow the “from top to bottom”
and/or “from left to right” principle, and don’t step on the module. This will damage the module and
would be dangerous for personal safety.
Modules will have thermal expansion and cold contraction effect. When installing, the interval
between two adjacent conventional modules is recommended > 10mm.The minimum clearance
between two adjacent double-sided modules is recommended > 20mm;If there are special

-5-
requirements, please confirm with Jinko and install it;
During the installation, disassembly, maintenance and any other related processes of the product, it
is recommended that the force applied between the cable and the connector, the cable and the
junction box be no more than 60N.
2.2 Installation Condition
2.2.1 Climate Condition
Please install the modules in the following conditions:
a) Operating temperature: within –40°C(-40℉) to 85°C (185℉)
b) Humidity: < 85RH%
﹡Note: The mechanical load bearing (include wind and snow loads) of the module is based on the
approved mounting methods. The professional system installer must be responsible for mechanical load
calculation according to the system design.
2.2.2 Site Selection
In most applications, Jinko solar PV modules should be installed in a location where they will receive
maximum sunlight throughout the year. In the Northern Hemisphere, the module should typically face
south, and in the Southern Hemisphere, the modules should typically face north. Modules facing 30
degrees away from true South (or North) will lose approximately10 to 15 percent of their power output. If
the module faces 60 degrees away from true South (or North), the power loss will be 20 to 30 percent.
When choosing a site, avoid trees, buildings or obstructions, which could cast shadows on the solar
photovoltaic modules especially during the winter months when the arc of the sun is lowest over the
horizon. Shading causes loss of output, even though the factory fitted bypass diodes of the PV module
will minimize any such loss.
Do not install the PV module near open flame or flammable materials.
When solar modules are used to charge batteries, the battery must be installed in a manner, which will
protect the performance of the system and the safety of its users. Follow the battery manufacturer’s
guidelines concerning installation, operation and maintenance recommendations. In general, the battery
(or battery bank) should be away from the main flow of people and animal traffic. Select a battery site
that is protected from sunlight, rain, snow, debris, and is well ventilated. Most batteriesgenerate hydrogen
gas when charging, which can be explosive. Do not light matches or create sparks near the battery bank.
When a battery is installed outdoors, it should be placed in an insulated and ventilated battery case
specifically designed for the purpose.
Do not install the PV module in a location where it would be immersed in water or continually exposed to
water from a sprinkler or fountain etc.
The PV module can be installed at a distance of 50 m to 500m from the seashore. However, when

-6-
installing module within the distance, protect the connectors or add dust plugs. After removing the dust
plugs, connect the connectors immediately and take other anti-rust measures to prevent rust.
When the modules are installed on the roof, they must be separated from the roof by more than 10cm to
facilitate air circulation and heat dissipation.
2.2.3 Tilt Angle Selection
The tilt angle of the PV module is measured between the surface of the PV module and a horizontal
ground surface (Figure 1). The PV module generates maximum output power when it faces the sun
directly.
For standalone systems with batteries where the PV modules are attached to a permanent structure, the
tilt angle of the PV modules should be selected to optimize the performance based on seasonal load and
sunlight. In general, if the PV output is adequate when
irradiance is low (e.g., winter), then the angle chosen
should be adequate during the rest of the year. For grid-
connected installations where the PV modules are
attached to a permanent structure, PV modules should be
tilted so that the energy production from the PV modules
will be maximized on an annual basis.
Figure1: PV module tilt angle
2.3 Mechanical Installation Introduction
Solar PV modules usually can be mounted by using the following methods: bolts and clamps.
﹡Note:
1) All installation methods herein are only for reference, andJinko solar will not providerelated mounting
components, the system installer or trained professional personnel must be responsible for the PV
system’s design, installation, and mechanical load calculation and security of the system.
2) Before installation, the following items should be addressed:
a) Visually check the module for any damage. Clean the module if any dirt or residue remains from
shipping.
b) Check if module serial number stickers match.
3) Jinko modules are designed to meet a maximum positive (or downward) pressure of 3600Pa (Only
refer to the mentioned module type in this manual) and negative (or upward) pressure of 1600Pa.
This design load was then tested with a safety factor of 1.5 times. So Jinko modules are tested under
a maximum downward pressure of 5400Pa and upward pressure of 2400Pa. When mounting
modules in snow-prone or high-wind environments, special care should be taken to mount the
modules in a manner that provides sufficient design strength while meeting local code requirements.

-7-
2.3.1 Mounting with Bolts
For mounting with bolts, the following modules in tables 1 are applicable.
The frame of each module has 8 mounting holes (Length* Width: 14mm*9mm) used to secure the
modules to support structure. Always use all the eight mounting holes to secure the modules. The module
frame must be attached to a mounting rail using M8 corrosion-proof bolts together with spring washers
and flat washers in eight symmetrical locations on the PV module. The applied torque value should be
big enough to fix themodules steadily. Thereference value forM8 bolt is 16~20N*m. As to special support
system or special installation requirement, please reconfirm with the support’s supplier for the torque
value. Please find detailed mounting information in the below illustration as Figure 2&3&4.
2.3.1.1 Mounting with Bolts（eight mounting holes）
Figure 2: PV module installed with bolt fitting method（eight mounting holes）
Module type
Max. Design Pressure: 3600Pa
(positive ) &1600Pa (negative)
mechanical load
Max. Design Pressure: 3600Pa
(positive ) &1600Pa (negative)
mechanical load
Module dimensions(mm)
A*B
54P
Height of the frame（mm）
/
30

-8-
Group 65 & 74
/
1701*1122 &1717*1132 &
1718*1134 & 1719*1134*30
Group 66 & 75
/
1669*1122 &1685*1132 &
1686*1134 &1687*1134*30
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
/
Group 2
1665*992 & 1684*1002
/
Group 3
1650*992 & 1665*1002
/
Group 4
1665*992 & 1684*1002
/
Group 5
1650*992 & 1665*1002
/
Group 6
1665*992 & 1684*1002
/
Group 7
1650*992 & 1665*1002
/
Group 8
1665*992 & 1684*1002
/
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
/
Group 20
1704*1008
/
Group 22
1684*1002
/
Group 30
1704*1008
/
Group 46
1684*1002
/
Group 57
/
1693*1029
Group 58
/
1693*1029
Group 59
/
1716*1032
Group 60
/
1716*1032
Group 56
/
1684*1002
Group 64
/
1756*1039 & 1750*1039 &
1750*1038
Group 61
/
1693*1029 & 1692*1029
Group 62
/
1693*1029 & 1692*1029
Group 67 & 76
/
1884*1122 & 1901*1132 &
1903*1134 & 1904*1134
Group 68 & 77
/
1868*1134 & 1865*1132 &
1848*1122 & 1868*1134
Group 86
1726*1023
/
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
/
Group 11
1987*992 & 2008*1002
/
Group 12
1956*992 & 1979*1002
/
Group 13
1987*992 & 2008*1002
/
Group 14
1956*992 & 1979*1002
/
Group 15
1987*992 & 2008*1002
/
Group 16
1956*992 & 1979*1002
/
Group 17
1987*992 & 2008*1002
/
Group 18
1987*992 & 2008*1002 &
2031*1008
/
Group 19
2031*1008
/

-9-
Group 21
2008*1002
/
Group 29
2031*1008
/
Group 45
2008*1002
/
Group 55
2008*1002
/
Height of the frame（mm）
35
/
Group 63
2096*1039 & 2090*1039 &
2090*1038
/
Group 85
2061*1023
66P
Height of the frame（mm）
35
30
Group 24
1796*995 & 1796*998
/
Group 26
1822*1008
/
Group 28
1822*1008
/
Group 32
1840*998 & 1841*1002
/
Group 34
1868*1008 & 1865*1005
/
Group 36
1868*1008 & 1865*1005
/
Group 38
1840*998 & 1841*1002
/
Group 40
1842*1021 & 1842*1024
1855*1029 & 1855*1032
/
Group 42
1868*1034 & 1878*1032
/
Group 44
1868*1034 & 1878*1032
/
Group 48
1842*1021 & 1842*1024
1855*1029 & 1855*1032
/
78P
Height of the frame（mm）
40
35
Group 23
2113*995 & 2113*998
/
Group 25
2130*1002 & 2139*1008
/
Group 27
2130*1002 & 2139*1008
/
Group 31
2163*995 & 2167*997 &
2167*998 & 2166*1002
/
Group 33
2194*1008 & 2190*1005
/
Group 35
2194*1008 & 2190*1005
/
Group 37
2163*995 & 2167*997 &
2167*998 & 2166*1002
/
Group 39
2168*1021 & 2168*1024
2182*1029 & 2182*1032
/
Group 41
2194*1034 & 2205*1032
/
Group 43
2194*1034 & 2205*1032
/
Group 47
2168*1021 & 2168*1024
2182*1029 & 2182*1032
/
Group 49
2168*1021 & 2168*1024
& 2182*1029 & 2182*1032
/
Group 51
2168*1021 & 2168*1024
& 2182*1029 & 2182*1032
/
Group 83 & 84
/
2465*1134
Table 1: Mechanical dimensions for bolt fitting method（eight mounting holes）
Notes：Group 1~73 refer to appendix 1 for details.

-10-
The load described in this manual is the design load. When calculating the maximum test load, 1.5 times of
safety factor should be considered.
2.3.1.2 Mounting with Bolts（four mounting holes）
Figure 3: PV module installed with bolt fitting method（four mounting holes）
Module type
Max. Design Pressure: 3600Pa (positive ) &1600Pa
(negative) mechanical load
Module dimensions(mm)
A*B
60P
Height of the frame（mm）
30
/
Group 1
1650*992 & 1665*1002
/
Group 2
1665*992 & 1684*1002
/
Group 3
1650*992 & 1665*1002
/
Group 4
1665*992 & 1684*1002
/
Group 5
1650*992 & 1665*1002
/
Group 6
1665*992 & 1684*1002
/
Group 7
1650*992 & 1665*1002
/
Group 8
1665*992 & 1684*1002
/
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
/
Group 20
1704*1008
/
Group 22
1684*1002
/
Group 30
1704*1008
/
Group 46
1684*1002
/
Group 56
1684*1002
/
72P
Height of the frame（mm）
30
35
Group 10
1956*992 & 1979*1002
/
Group 11
1987*992 & 2008*1002
/
Group 12
1956*992 & 1979*1002
/
Group 13
1987*992 & 2008*1002
/
Group 14
1956*992 & 1979*1002
/

-11-
Group 15
1987*992 & 2008*1002
/
Group 16
1956*992 & 1979*1002
/
Group 17
1987*992 & 2008*1002
/
Group 18
1987*992 & 2008*1002 &
2031*1008
/
Group 19
2031*1008
/
Group 21
2008*1002
/
Group 29
2031*1008
/
Group 45
2008*1002
/
Group 55
2008*1002
/
Group 71 & 80
/
2274*1134 & 2278*1134
Group 72 & 81
/
2230*1134
66P
Height of the frame（mm）
30
35
Group 24
1796*995 & 1796*998
/
Group 26
1822*1008
/
Group 28
1822*1008
/
Group 32
1840*998 & 1841*1002
/
Group 34
1868*1008 & 1865*1005
/
Group 36
1868*1008 & 1865*1005
/
Group 38
1840*998 & 1841*1002
/
Group 40
1842*1021 & 1842*1024
1855*1029 & 1855*1032
/
Group 42
1868*1034 & 1878*1032
/
Group 44
1868*1034 & 1878*1032
/
Group 48
1842*1021 & 1842*1024
1855*1029 & 1855*1032
/
Group 50
/
1842*1021 & 1842*1024
& 1855*1029 & 1855*1032
Group 52
/
1842*1021 & 1842*1024
& 1855*1029 & 1855*1032
Group 54
/
1840*998*35（NP）
Group 69 & 78
/
2067*1122 & 2086*1132 &
2089*1134
Group 70 & 79
/
2027*1122 & 2046*1132 &
2049*1134
78P
Height of the frame（mm）
30
35
Group 23
/
2113*995 & 2113*998
Group 25
/
2130*1002 & 2139*1008
Group 27
/
2130*1002 & 2139*1008
Group 31
/
2163*995 & 2167*997
2167*998 & 2166*1002
Group 33
/
2194*1008 & 2190*1005
Group 35
/
2194*1008 & 2190*1005
Group 37
/
2163*995 & 2167*997
2167*998 & 2166*1002
Group 39
/
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Group 41
/
2194*1034 & 2205*1032
Group 43
/
2194*1034 & 2205*1032

-12-
Group 47
/
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Group 49
/
2182*1029
Group 51
/
2182*1029
Group 53
/
2166*1002
Group 73 & 82
/
2393*1130 & 2385*1122 &
2408*1132 & 2411*1134
Group 87
2465*1134
2465*1134
Table 2: Mechanical dimensions for bolt fitting method（four mounting holes）
Note：The installation method of bolt fitting（four mounting holes）is based on the internal results in Jinko.
The load described in this manual is the design load. When calculating the maximum test load, 1.5 times of
safety factor should be considered.
2.3.1.3 Mounting with Bolts（NEXTracker four mounting holes）
Figure 4: PV module installed with bolt fitting method (NEXTracker)
Module type
Module dimensions(mm)
A*B
Maximum
designed
mechanical
load and
Method of
installation
（400mm）
72P
Height of the frame（mm）
40
30
JKMxxxM-72-V
1956*992 & 1979*1002
+1067/-1067
JKMxxxM-72H
1987*992 & 2008*1002
+1067/-1067
JKMxxxM-72H-TV
1987*992 & 2008*1002
+1067/-1067
JKMxxxM-72HL4-V
2274*1134*35 & 2278*1134*35
+1400/-1400
78P
Height of the frame（mm）
30
35
JKMxxxM-78H-V
/
2167*998 &
2166*1002
+1600/-1600
JKMxxxM-78H-TV
/
2194*1008
+1600/-1600
JKMxxxM-7RL3-V
/
2182*1029
+1600/-1600
JKMxxxM-7RL3-TV
/
2205*1032
+1600/-1600

-13-
JKMxxxN-78HL4-V
2465*1134
2465*1134
+1600/-1600
Table 3: Mechanical dimensions for bolt fitting method (NEXTracker)
Note：The installation method of bolt fitting (NEXTracker) is based on the experimental results in Jinko.
The design of the NexTracker tracking bracket, the selection of accessories and the installation of modules
should be completed by a professional system installer, which can refer to Jinko's mechanical load.
The load described in this manual is the design load. When calculating the maximum test load, 1.5 times of
safety factor should be considered.
If the design load is greater than 1067Pa (test load is 1600Pa), please consult the NEXTracker supplier.
2.3.2 Mounting with clamps
The module clamps should not come into contact with the front glass and must not deform the frame. Be
sure to avoid shadowing effects from the module clamps. The module frame is not to be modified under
any circumstances. When choosing this type of clamp-mounting method, please be sure to use at least
four clamps on each module, two clamps should be attached on each long sides of the module.
Depending on the local wind and snow loads, if excessive pressure load is expected, additional clamps
or support would be required to ensure the module can bear the load. The applied torque value should
be big enough to fix the modules steadily (Please consult with the
clamp or support’s supplier for the specific torque value, Such as M8
Screw torque reference value is 16~20N*M). Please find detailed
mounting information in the below illustration, the mounting place
distance is suggested bigger than J and less than K. The installation
diagram of clamp is shown in figure 5.
Note: The Movement of the mounting rail and the clamps center line
are recommended to be within the black arrow area.
As shown in the figure on the right, the minimum length L of the
clamps is 50mm.

-14-
Figure 5: PV module installed at the side with Clamp fitting method
Clamp type
Dimension(mm)
Composition
material
End Clamp
(40 mm thickness)
39 x 50 x 42
39 x 60 x 42(For 1.5mm thickness frame)
Aluminum-alloy
End Clamp
(35 mm thickness)
41.5 x 50 x 40
End Clamp
(30 mm thickness)
41.5 x 50 x 35
Middle Clamp
(40 mm & 35 mm
thickness)
42 x 50 x 28
42 x 60 x 28(For 1.5mm thickness frame)
Q
R
P
13.5
15
2.5
Middle Clamp
(30 mm thickness)
42 x 50 x 29.5
Q
R
P
14
14
3
Table 4: Mechanical dimensions, specification and material when modules installed with mid Clamp
When installing modules using clamps on the long side of the frame, the applicable product types and
installation locations are shown in figure 6 and table 5.
When installing modules using clamps on the short side of the frame, the applicable product types and
installation locations are shown in figure 7 and table 6.
When installing modules using clamps on the long side & short side of the frame, the applicable product
Middle modules installation
Fringe modules installation

-15-
types and installation locations are shown in figure 8 and table 7.
When installing modules using clamps on the long side of the frame, the applicable product types and
installation locations (The without C transparent backsheet series module) are shown in figure 9 and
table 8.
2.3.2.1 Clamp Mounting on Long Sides of the Frames
Figure 6: Installation of clamps on long side of frames
Module type
Max. Design Pressure:
3600Pa (positive )
&1600Pa (negative)
mechanical load
3600Pa (positive )
&1600Pa (negative)
mechanical load
Module dimensions(mm)
A*B
J
K
J
K
54P
Height of the frame（mm）
35
30
Group 65 & 74
1701*1122 &1717*1132 & 1718*1134
& 1719*1134*30
/
L/4±50mm
( L is the length of the
long side of the module)
Group 66 & 75
1669*1122 &1685*1132 & 1686*1134
&1687*1134*30
/
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
280
420
L/4±50mm
( L is the length of the
long side of the module)
Group 2
1665*992 & 1684*1002
280
420
Group 3
1650*992 & 1665*1002
280
420
Group 4
1665*992 & 1684*1002
280
420
Group 5
1650*992 & 1665*1002
280
420
Group 6
1665*992 & 1684*1002
280
420
Group 7
1650*992 & 1665*1002
280
420
Group 8
1665*992 & 1684*1002
280
420
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
280
420
Group 20
1704*1008
280
420

-16-
Group 22
1684*1002
280
420
Group 30
1704*1008
280
420
Group 46
1684*1002
280
420
Group 57
1693*1029
/
/
Group 58
1693*1029
/
/
Group 59
1716*1032
/
/
Group 60
1716*1032
/
/
Group 56
1684*1002
280
420
Group 64
1756*1039 & 1750*1039 &
1750*1038
/
/
Group 61
1693*1029 & 1692*1029
/
/
Group 62
1693*1029 & 1692*1029
/
/
Group 67 & 76
1884*1122 & 1901*1132 &
1903*1134 & 1904*1134
/
/
Group 68 & 77
1868*1134 & 1865*1132 &
1848*1122 & 1868*1134
/
/
Group 86
1726*1023
L/4±50mm
( L is the length of the
long side of the module)
/
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
280
420
L/4±50mm
( L is the length of the
long side of the module)
Group 11
1987*992 & 2008*1002
280
420
Group 12
1956*992 & 1979*1002
280
420
Group 13
1987*992 & 2008*1002
280
420
Group 14
1956*992 & 1979*1002
280
420
Group 15
1987*992 & 2008*1002
280
420
Group 16
1956*992 & 1979*1002
280
420
Group 17
1987*992 & 2008*1002
280
420
Group 18
1987*992 & 2008*1002 & 2031*1008
280
420
Group 19
2031*1008
280
420
Group 21
2008*1002
280
420
Group 29
2031*1008
280
420
Group 45
2008*1002
280
420
Group 55
2008*1002
280
420
Height of the frame（mm）
35
/
Group 63
2096*1039 & 2090*1039 &
2090*1038
L/4±50mm
( L is the length of the
long side of the module)
/
Group 85
2061*1023
/
Group 71 & 80
2274*1134 & 2278*1134
400
500
/
Group 72 & 81
2230*1134
400
500
/
66P
Height of the frame（mm）
35
30
Group 24
1796*995 & 1796*998
280
420
L/4±50mm
( L is the length of the
long side of the module)
Group 26
1822*1008
280
420
Group 28
1822*1008
280
420
Group 32
1840*998 & 1841*1002
280
420
Group 34
1868*1008 & 1865*1005
280
420
Group 36
1868*1008 & 1865*1005
280
420
Group 38
1840*998 & 1841*1002
280
420

-17-
Group 40
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
280
420
Group 42
1868*1034 & 1878*1032
280
420
Group 44
1868*1034 & 1878*1032
280
420
Group 48
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
280
420
Group 50
1842*1021 & 1842*1024
& 1855*1029 & 1855*1032
280
420
Group 52
1842*1021 & 1842*1024
& 1855*1029 & 1855*1032
280
420
Group 54
1840*998*35（NP）
1841*1002*30（CDF）
280
420
Group 69 & 78
2067*1122 & 2086*1132 &
2089*1134
L/4±50mm
( L is the length of the
long side of the module)
/
Group 70 & 79
2027*1122 & 2046*1132 &
2049*1134
/
78P
Height of the frame（mm）
40
35
Group 23
2113*995 & 2113*998
380
520
L/4±50mm
( L is the length of the
long side of the module)
Group 25
2130*1002 & 2139*1008
380
520
Group 27
2130*1002 & 2139*1008
380
520
Group 31
2163*995 & 2167*997
2167*998 & 2166*1002
380
520
Group 33
2194*1008 & 2190*1005
380
520
Group 35
2194*1008 & 2190*1005
380
520
Group 37
2163*995 & 2167*997
2167*998 & 2166*1002
380
520
Group 39
2168*1021 & 2168*1024 &
2182*1029 & 2182*1032
385
530
400
500
Group 41
2194*1034 & 2205*1032
390
540
400
500
Group 43
2194*1034 & 2205*1032
390
540
400
500
Group 47
2168*1021 & 2168*1024 &
2182*1029 & 2182*1032
385
530
400
500
Group 49
2168*1021 & 2168*1024
&2182*1029 & 2182*1032
385
530
400
500
Group 51
2168*1021 & 2168*1024
&2182*1029 & 2182*1032
385
530
400
500
Group 53
2166*1002
/
/
L/5~L/4
( L is the length of the
long side of the module)
Group 73 & 82
2393*1130 & 2385*1122 &
2408*1132 & 2411*1134
/
/
Group 83 & 84
2465*1134
/
/
Group 87
2465*1134*30 & 2465*1134*35
L/5~L/4
( L is the length of the long side of the module)
Table 5: Mechanical dimensions of modules installed with clamps on long side of frame
The load described in this manual is the design load. When calculating the maximum test load, 1.5 times of
safety factor should be considered.
Note: The Group 39 & 41 & 43 & 47 & 49 & 51 35 frame (400-500 installation position) and the Group 71 & 72
& 80 & 81 35 frame (400-500 installation position) in the installation method of long side clips are based on
the internal results of Jinko.

-18-
2.3.2.2 Clamp Mounting on Short Sides of the Frames
Figure 7: Installation of clamps on short side of frames
Module type
Max. Design Pressure:
1067Pa (positive )
&1067Pa (negative)
mechanical load
1067Pa (positive )
&1067Pa (negative)
mechanical load
Module dimensions(mm)
A*B
J
K
J
K
54P
Height of the frame（mm）
35
30
Group 65 & Group 74
1722*1134
/
/
100
240
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
50
240
100
240
Group 2
1665*992 & 1684*1002
50
240
100
240
Group 3
1650*992 & 1665*1002
50
240
100
240
Group 4
1665*992 & 1684*1002
50
240
100
240
Group 5
1650*992 & 1665*1002
50
240
100
240
Group 6
1665*992 & 1684*1002
50
240
100
240
Group 7
1650*992 & 1665*1002
50
240
100
240
Group 8
1665*992 & 1684*1002
50
240
100
240
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
50
240
100
240
Group 20
1704*1008
50
240
100
240
Group 22
1684*1002
50
240
100
240
Group 30
1704*1008
50
240
100
240
Group 46
1684*1002
50
240
100
240
Group 67& Group
76
1903*1134
/
/
100
240
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
50
240
100
240
