Jinko Solar JKM***P-60 User manual

JinkoSolar
Photovoltaic Module
User Manual (UL1703)

Contents
1 General Information
2. Installation
1
1
1
3
6
6
7
7
7
8
9
12
18
20
21
39
1.1 Overview
1.2 Applicable Products
1.3 Warnings
2.1 Installation safety
2.2 Installation Condition
2.3 Mechanical Installation introduction
2.2.1 Climate condition
2.2.2 Site selection

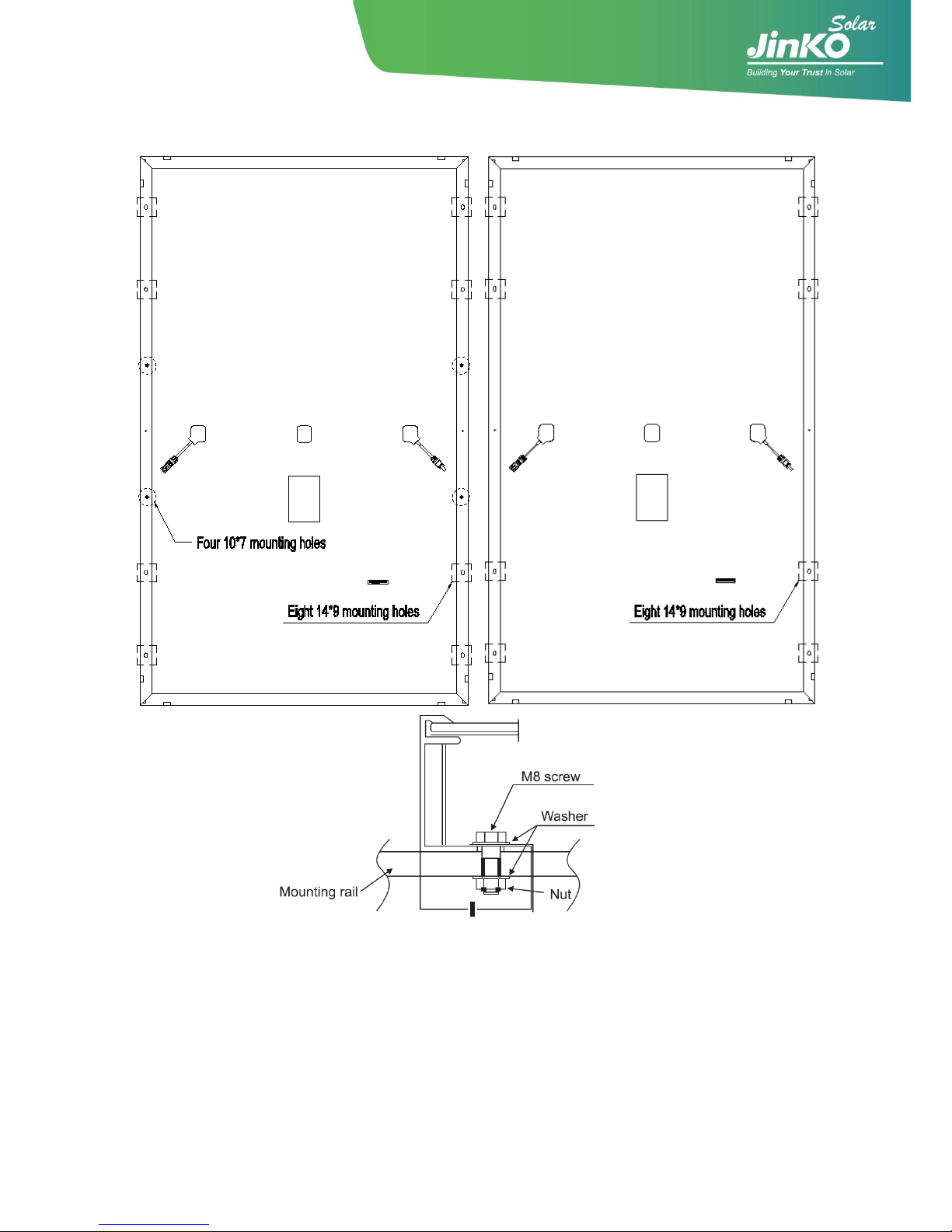

2.3.1 Fixation with screws
2.3.2 Fixation with clamps

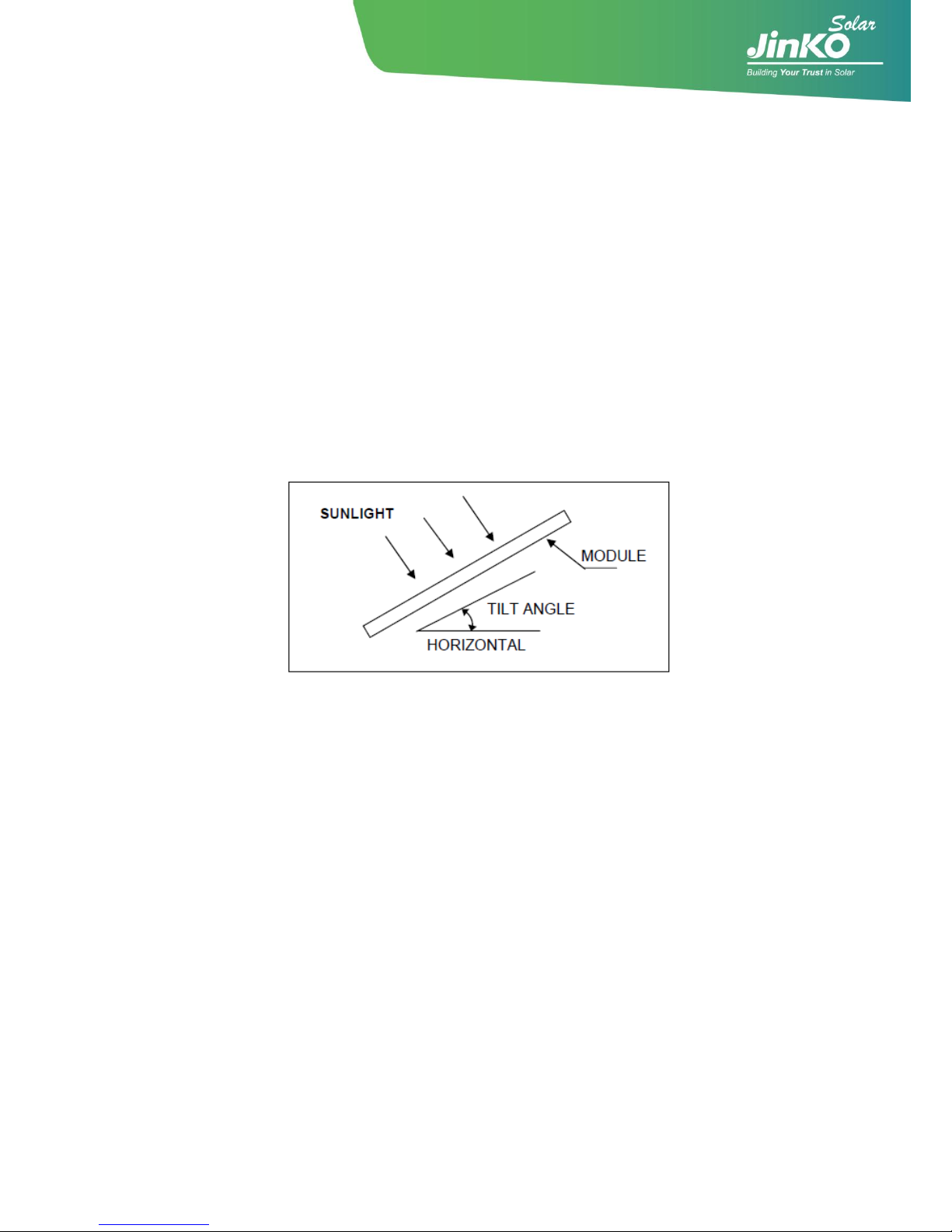

2.2.3 Tilt angle selection
3 Wiring and connection
4 Maintenance and care
5 Electrical specification
6 Disclaimer of Liability
2929
Edition 10/2018
41
7. Contact us
8
15
16

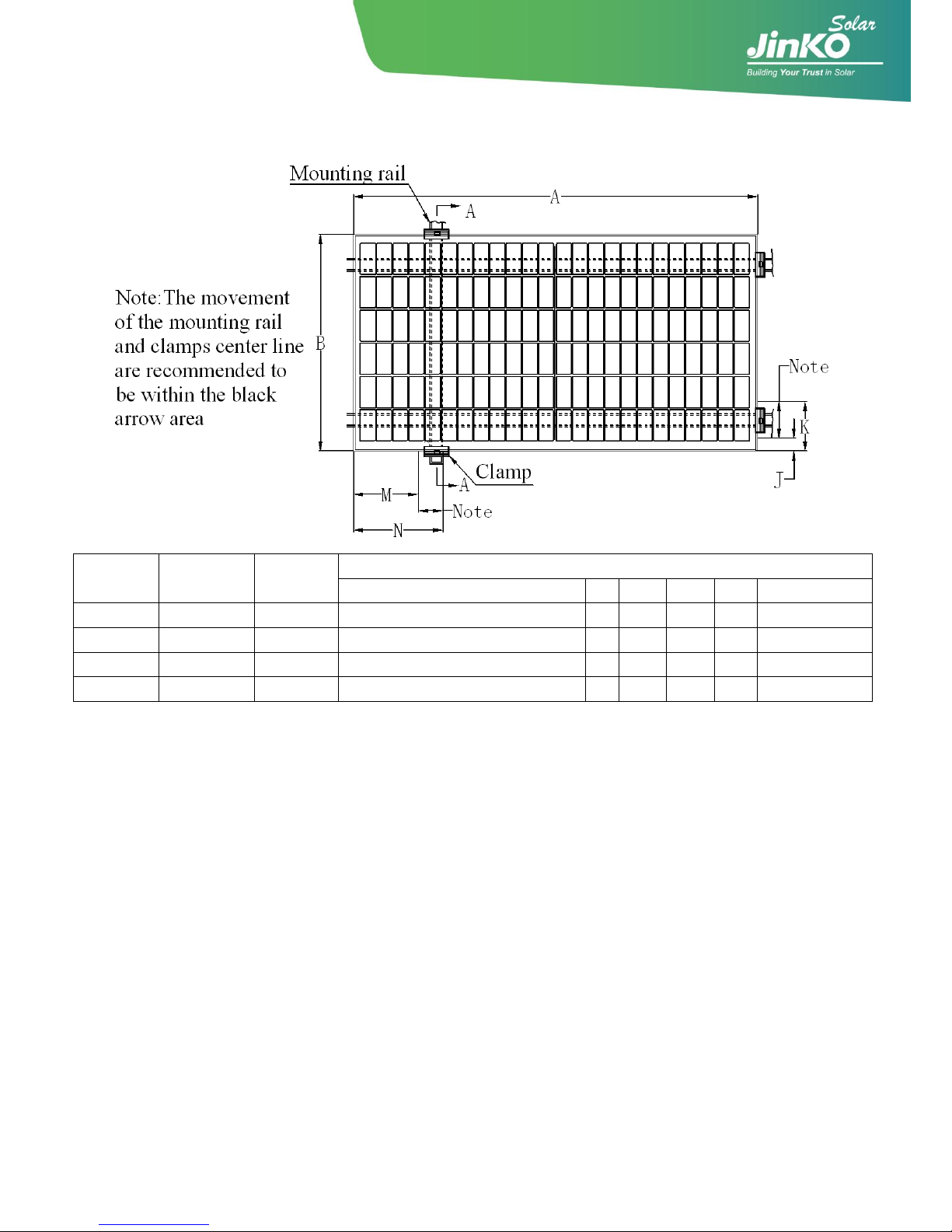

2.3.3 Fixation with clamps at short sides of the frames
2.3.4 Fixation with clamps at the long & short sides

- 1 -
1. General Information
1.1 Overview
Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules are installed
correctly, please read the following installation instructions carefully before modules are
installed and used.
Please remember that these products generate electricity and certain safety measures need
to be taken to avoid danger.
1.2 Applicable Products
This document is applicable to the series of solar modules as listed below:
UL1000V：Group 1
JKMxxxP-60
JKMxxxP-60B①
JKMxxxP-60-J4②
JKMxxxP-60B-J4
JKMxxxPP-60③
JKMxxxPP-60B
JKMxxxPP-60(Plus)④
JKMxxxPP-60-J4
JKMxxxPP-60B-J4
JKMxxxPP-60-W⑤
JKMxxxPP-60B-W
(xxx=200~300, in increment of 5) Group 2
JKMxxxPP-60H⑥
JKMxxxPP-60H-J4
JKMxxxPP-60HB
(xxx =200~310, in increment of 5) Group 3
JKMS⑦xxxP-60
JKMSxxxP-60-J4
JKMSxxxP-60B
JKMSxxxP-60B-J4
JKMSxxxPP-60
JKMSxxxPP-60-J4
JKMSxxxPP-60B-J4
JKMSxxxPP-60B
JKMSxxxPP-60-W
JKMSxxxPP-60B-W
(xxx =200~275, in increment of 5) Group 4
JKMxxxP-72
JKMxxxP-72B
JKMxxxP-72-J4
JKMxxxP-72B-J4
JKMxxxPP-72
JKMxxxPP-72B
JKMxxxPP-72(Plus)
JKMxxxPP-72-J4
JKMxxxPP-72B-J4
JKMxxxPP-72-W
JKMxxxPP-72B-W
(xxx =250~360, in increment of 5) Group 5
JKMxxxPP-72H
JKMxxxPP-72H-J4
JKMxxxPP-72HB
(xxx =250~370, in increment of 5) Group 6
JKMSxxxP-72
JKMSxxxP-72-J4
JKMSxxxP-72B-J4
JKMSxxxP-72B
JKMSxxxPP-72
JKMSxxxPP-72-J4
JKMSxxxPP-72B-J4
JKMSxxxPP-72B

- 2 -
JKMSxxxPP-72-W
JKMSxxxPP-72B-W
(xxx =250~330, in increment of 5) Group 7
JKMxxxM-60
JKMxxxM-60B
JKMxxxM-60-J4
JKMxxxM-60B-J4
JKMxxxM-60-W
JKMxxxM-60B-W
(xxx =200~330, in increment of 5)
JKMxxxM-60L⑧
JKMxxxM-60BL
(xxx =300~330, in increment of 5) Group 8
JKMxxxM-60H
JKMxxxM-60HB
(xxx =200~340, in increment of 5)
JKMxxxM-60HL
JKMxxxM-60HBL
(xxx =300~340, in increment of 5) Group 9
JKMSxxxM-60
JKMSxxxM-60-J4
JKMSxxxM-60-W
(xxx =200~295, in increment of 5) Group 10
JKMxxxM-72
JKMxxxM-72B
JKMxxxM-72-J4
JKMxxxM-72B-J4
JKMxxxM-72-W
JKMxxxM-72B-W
(xxx =250~400, in increment of 5)
JKMxxxM-72L
(xxx =370~400, in increment of 5) Group 11
JKMxxxM-72H
JKMxxxM-72HB
(xxx =250~410, in increment of 5)
JKMxxxM-72HL
(xxx =370~410, in increment of 5) Group 12
JKMSxxxM-72
JKMSxxxM-72-J4
JKMSxxxM-72-W
(xxx =250~355, in increment of 5)
Notes:①B: module with black back sheet
②J4: the eagle black series module
③PP: the eagle series module
④Plus: the eagle+ series module
⑤W: module with metal support bar
⑥H: Half-cut series module
⑦JKMS: the smart module
⑧L：large cell series module
Make sure the module array is designed in such a way not to exceed the maximum system
voltage of any system component such as connectors or inverters.

Rev. C
- 3 -
This module has a Class C Fire Rating(Canada)or Module Fire performance type 1 (United
States of America) and must be installed over a roof which has appropriate fire resistance.
Before mounting the module, please consult your local building department to determine
approved roofing materials.
The modules are qualified for application class A, and modules qualified for safety through
UL1703 within this application class are considered to meet the requirements of Safety Class
II.
The Fire rating is Class C in Canada, but the Module Fire performance is type 1 in America
with the specified construction in below table, when used with a listed mounting system that
has been rated as a Class A System when installed with type 1 modules, is suitable to
maintain the System Class A Fire Rating in America.
Module model
Specific construction
Marking
Group 1~Group 12
Superstrate: 3.2~4.0 mm thick;
EVA: 0.25~0.65 mm thick;
Substrate: 0.3 mm ~ 0.451 mm thick;
Frame: Types “40mm by 20mm” or
“40mm by 35mm” or “700-0218”
Module Fire Performance:
Type 1
1.3 Warnings
PV modules generate DC electrical energy when exposed to sunlight or other light
sources. Active parts of module such as terminals can result in burns, sparks and lethal
shock.
Artificially concentrated sunlight shall not be directed on the module or panel.
Front protective glass is utilized on the module. Broken solar module glass is an electrical
safety hazard (may cause electric shock or fire). These modules cannot be repaired and
should be replaced immediately.
To reduce the risk of electrical shocks or burns, modules may be covered with an opaque
material during installation to avoid injury.
Electric Shock and Burn Hazard
This photovoltaic module produces
electricity when exposed to the sun
Warning

- 4 -
The fire rating of this module is valid only when mounted in the manner specified in the
mechanical mounting instructions.
The module is considered to be in compliance with UL 1703 only when the module is
mounted in the manner specified by the mounting instructions below.The fixation with
bolts and/or the fixation with clamps at long side of frames of Jinko modules have been
UL approved. The fixation with clamps at short side of frames and/or at the long & short
sides of frames of Jinko modules have not been UL approved.
All installations must be performed in compliance with the National Electrical Code (NEC)
and modules installed in Canada need to follow Canadian Electric Code.
A module with exposed conductive parts is considered to be in compliance with UL 1703
only when it is electrically grounded in accordance with the instructions presented below
and the requirements of the National Electrical Code.
Any module without a frame (laminate) shall not be considered to comply with the
requirements of UL 1703 unless the module is mounted with hardware that has been
tested and evaluated with the module under this standard or by a field Inspection
certifying that the installed module complies with the requirements of UL 1703.
The installation work of the PV array can only be done under the protection of
sun-sheltering covers or sunshades and only qualified person can install or perform
maintenance work on this module.
Follow the battery manufacture‟s recommendations, if batteries are used with modules.
Do not use this module to replace or partly replace roofs and walls of living buildings.
Do not install modules where flammable gas may be present.
Do not touch live terminals with bare hands. Use insulated tools for electrical
connections.
Do not remove any part installed by Jinko Solar or disassemble the module.
All instructions should be read and understood before attempting to install, wire, operate
and maintain the module.
Don‟t lift up PV modules using the attached cables or the junction box.
All PV systems must be grounded to earth. If there is no special regulation, please follow
the National Electrical Code or other national code.
Common hardware items such as nuts, bolts, star washers, lock washers and the like
have not been evaluated for electrical conductivity or for use as grounding devices and
should be used only for maintaining mechanical connections and holding electrical
grounding devices in the proper position for electrical conductivity. Such devices, where
supplied with the module and evaluated through the requirements in UL 1703, may be

Rev. C
- 5 -
used for grounding connections in accordance with the instructions provided with the
module.
Under normal conditions, a photovoltaic module is likely to experience conditions that
produce more current and/or voltage than reported at standard test conditions. The
requirements of the National Electrical Code (NEC) in Article 690 shall be followed to
address these increased outputs. In installations, not under the requirements of the NEC,
the value of Isc and Voc marked on the module should be multiplied by a factor of 1.25
when determining component voltage ratings, conductor ampacities, overcurrent device
ratings, and size of controls connected to the PV output.
Once the PV module has been shipped to the installation site, all of the parts should be
unpacked properly with care.
Do not stand or step on the PV module like below pictures show. This is prohibited and
there is a risk of damage to the module and cause injury for you.
Only PV modules with the same cell size should be connected in series.
During transporting modules, please attempt to minimize shock or vibration to the module,
as this may damage the module or lead to cell micro cracks.
During all transportation situations, never drop the module from a vehicle, house or
hands. This will damage the module.
Do not clean the glass with chemicals. Only use tap water. Make sure the module surface
temperature is cool to the touch. Cleaning modules with cool water when module surface
temp is high may result in glass breakage.
Do not disconnect any of the modules when under load.
The recommended standoff height is 15cm. If other mounting means are employed this
may affect the UL Listing.
When looking at PV modules with anti-reflection (AR) coating technology, it will be normal
to see some cells with a slight color difference at different angles.
Connector of junction box can not be contacted with oily substances, for example,
lubricant, rust inhibitor etc.

- 6 -
2. Installation
2.1 Installation safety
Always wear protective head gear, insulating gloves and safety shoes (with rubber soles).
Keep the PV module packed in the carton until installation.
Do not touch the PV module unnecessarily during installation. The glass surface and the
frame may be hot. There is a risk of burns and electric shock.
Do not work in rain, snow or windy conditions.
Due to the risk of electrical shock, do not perform any work if the terminals of the PV
module are wet.
Use insulated tools and do not use wet tools.
When installing PV modules, do not drop any objects (e.g., PV modules or tools).
Make sure flammable gasses are not generated or present near the installation site.
The modules are equipped with PV wiring connectors that comply with UL 6703,
Standard for Connectors for use in Photovoltaic Systems. Connectors from other
manufactures should not be mated with each other connectors.
Connector model name
Allowable mating connector model name
TL-Cable01F
TL-Cable01M
PV-JK00MO
PV-JK00MO
UTXCFA4A*
UTXCMA4A*
Helios H4 Assembled
Helios H4 Assembled
PV-JK03M-1
PV-JK03M-1
PV-KST4/6II-UR
PV-KBT4/6II-UR
PV-JK03M-2
PV-JK03M-2
PV-JK03M-F/xy
PV-JK03M-M/xy
PV-KBT4-EVO2/6II-UR
PV-KST4-EVO2/6II-UR
Insert module connectors fully and correctly. An audible "click" sound should be heard.
This sounds confirms the connectors are fully seated. Check all connections.
The module leads should be securely fastened to the module frame. Wire Management
should be done in a way to avoid the connector from scratching or impacting the back
sheet of the module.
Do not touch the junction box and the end of the interconnect cables (connectors) with
bare hands during installation or under sunlight, regardless if the PV module is connected
to or disconnected from the system.
Do not expose the PV module to excessive loads on the surface of the PV module or
twist the frame.
Do not hit or put excessive load on the glass or back sheet, this may break the cells or
cause micro cracks.

Rev. C
- 7 -
During installation or operation, don‟t use sharp tools to wipe the back sheet and glass.
Scratches can appear on the module.
Do not drill holes in the frame, it may cause corrosion of the frame and void the warranty.
When installing modules on roof mounted structures, please try to follow the “from top to
bottom” and/or “from left to right” principle, and don‟t step on the module. This will
damage the module and would be dangerous for personal safety and roof mounting
applications the assembly is to be mounted over a fire resistant roof covering rated for the
application.
All PV systems must be grounded to earth (Refer to 3.“Wiring and connection” for specific
grounded).
2.2 Installation Condition
2.2.1 Climate condition
Please install the modules in the following conditions:
a) Operating temperature: within –40°C(-40°F) to 85°C (185°F).
b) Humidity: < 85RH%.
﹡Note:
The mechanical load bearing (include wind and snow loads) of the module is based on the
approved mounting methods. The professional system installer must be responsible for
mechanical load calculation according to the system design.
2.2.2 Site selection
In most applications, Jinko Solar PV modules should be installed in a location where they will
receive maximum sunlight throughout the year. In the Northern Hemisphere, the module
should typically face south, and in the Southern Hemisphere, the modules should typically
face north. Modules facing 30 degrees away from true South (or North) will lose
approximately 10 to 15 percent of their power output. If the module faces 60 degrees away
from true South (or North), the power loss will be 20 to 30 percent.
When choosing a site, avoid trees, buildings or obstructions, which could cast shadows on
the solar photovoltaic modules especially during the winter months when the arc of the sun is
lowest over the horizon. Shading causes loss of output, even though the factory fitted bypass
diodes of the PV module will minimize any such loss.
Do not install the PV module near open flame or flammable materials.
When solar modules are used to charge batteries, the battery must be installed in a manner,
which will protect the performance of the system and the safety of its users. Follow the
battery manufacturer‟s guidelines concerning installation, operation and maintenance
recommendations. In general, the battery (or battery bank) should be away from the main

- 8 -
flow of people and animal traffic. Select a battery site that is protected from sunlight, rain,
snow, debris, and is well ventilated. Most batteries generate hydrogen gas when charging,
which can be explosive. Do not light matches or create sparks near the battery bank. When a
battery is installed outdoors, it should be placed in an insulated and ventilated battery case
specifically designed for the purpose.
Do not install the PV module in a location where it would be immersed in water or continually
exposed to water from a sprinkler or fountain etc.
2.2.3 Tilt angle selection
The tilt angle of the PV module is measured between the surface of the PV module and a
horizontal ground surface (Figure 1). The PV module generates maximum output power
when it faces the sun directly.
Figure1: PV module title angle
For standalone systems with batteries where the PV modules are attached to a permanent
structure, the tilt angle of the PV modules should be selected to optimize the performance
based on seasonal load and sunlight. In general, if the PV output is adequate when
irradiance is low (e.g., winter), then the angle chosen should be adequate during the rest of
the year. For grid-connected installations where the PV modules are attached to a permanent
structure, PV modules should be tilted so that the energy production from the PV modules will
be maximized on an annual basis.
Only for UL listed products .The combination of module or panel + mounting system needs
to be considered when applying over specific roof material types / fire rating.
2.3 Mechanical Installation introduction
Solar PV modules usually can be mounted by using the following methods: bolts and clamps.
﹡Note:
(1) All installation methods herein are only for reference, and Jinko Solar will not provide
related mounting components, the system installer or trained professional personnel must

Rev. C
- 9 -
be responsible for the PV system‟s design, installation, and mechanical load calculation
and security of the system.
(2) Before installation, the following items should be addressed:
1) Visually check the module for any damage. Clean the module if any dirt or residue
remains from shipping.
2) Check if module serial number stickers match.
3) The minimum distance between modules should be more than 10mm for all installation
methods.
(3) The fixation with bolts and/or the fixation with clamps at long side of frames of Jinko
modules are designed to meet a maximum positive (or downward) pressure of 3600Pa
and negative (or upward) pressure of 1600Pa. The fixation with clamps at short side of
frames and/or at the long & short sides of frames of Jinko modules are designed to meet a
positive (or downward) pressure and negative (or upward) pressure of 1600Pa. When
mounting modules in snow-prone or high-wind environments, special care should be
taken to mount the modules in a manner that provides sufficient design strength while
meeting local code requirements.
(4) Where common grounding hardware (nuts, bolts, star washers, spilt-ring lock washers,
flat washers and the like) is used to attach a listed grounding/bonding device, the
attachment must be made in conformance with the grounding device manufacturer's
instructions.
(5) Common hardware items such as nuts, bolts, star washers, lock washers and the like
have not been evaluated for electrical conductivity or for use as grounding devices and
should be used only for maintaining mechanical connections and holding electrical
grounding devices in the proper position for electrical conductivity. Such devices, where
supplied with the module and evaluated through the requirements in UL 1703, may be
used for grounding connections in accordance with the instructions provided with the
module.
(6) The use of third party grounding device is not allowed unless the grounding device is
UL2703 certified with Jinko modules. The installation of that grounding hardware must
follow the grounding manufacture‟s installation manual.
(7) The clearance between the module and the roof deck should be a minimum of 15mm (6
inches).
2.3.1 Fixation with bolts
The frame of each module has 8 mounting holes (Length* Width: 14mm*9mm) used to
secure the modules to support structure. You can use the four symmetry holes close to the
inner side on module frame. If excessive wind or snow load are expected, you must use all
the eight mounting holes. The module frame must be attached to a mounting rail using M8
corrosion-proof bolts together with spring washers and flat washers in eight symmetrical
locations on the PV module. The applied torque value should be big enough to fix the

- 10 -
modules steadily. The reference value for M8 bolt is 16~20N*m. As to special support system
or special installation requirement, please reconfirm with the support‟s supplier for the torque
value. Please find detailed mounting information in the below illustration.
The following is M8 stainless steel mounting hardware.
*N. The installation instructions shall specify that the modules have been evaluated by UL
for bolting mounting method using the 8provided mounting holes in the frame with a torque of
16~20Nm. The following M8 stainless steel mounting hardware should be included in the
installation instructions:
For eight 14x9 holes, mounting hardware are shown as below:
Module
Mounting hardware configuration
Hardware
Material
Size
Number provided
Group
1~Group 12
Bolt
Stainless steel
M8
4
Spring washer
Stainless steel
M8
8
Nut
Stainless steel
M8
4
*Alternate Mounting Method –bolting mounting method using the 12provided mounting
holes in the frame with a torque of 16~20Nm. The following stainless steel mounting
hardware should be included in the installation instructions.
For eight 14x9 holes, mounting hardware are shown as below:
Module
Mounting hardware configuration
Hardware
Material
Size
Number provided
Group
1~Group 12
Bolt
Stainless steel
M8
4
Spring washer
Stainless steel
M8
8
Nut
Stainless steel
M8
4
For four 10x7 holes, mounting hardware are shown as below:
Module
Mounting hardware configuration
Hardware
Material
Size
Number provided
Group
1~Group 12
Bolt
Stainless steel
M6
4
Spring washer
Stainless steel
M6
8
Nut
Stainless steel
M6
4

Rev. C
- 11 -

- 12 -
Figure 2 above: Half-cut PV module installed with Bolt fitting method
2.3.2 Fixation with clamps
The applicable products only allow using clamps at long side of frames.
The module clamps should not come into contact with the front glass and must not deform
the frame. Be sure to avoid shadowing effects from the module clamps. The module frame is
not to be modified under any circumstances. When choosing this type of clamp-mounting

Rev. C
- 13 -
method, please be sure to use at least four clamps on each module, two clamps should be
attached on each long side of the module. The applied torque value should be big enough to
fix the modules steadily (Please consult with the clamp or support‟s supplier for the specific
torque value). Please find detailed mounting information in the below illustration, the
mounting place distance is suggested bigger than J and less than K, as showed below.
1)Half-cut
Figure 3: half-cut installed at long side with Clamp fitting method
Module type
Cell type
Cell quantity
Dimension(mm)
A*B
J
K
Group 2
6 inch Poly
6*20
1665*992 & 1684*1002
400
420
Group 5
6 inch Poly
6*24
1987*992 & 2000*992
& 2008*1002
400
480
Group 8
6 inch Mono
6*20
1665*992 & 1684*1002
400
420
Group 11
6 inch Mono
6*24
1987*992 & 2000*992
& 2008*1002
400
480
Table 1 above: Mechanical dimensions when modules installed at long side with Clamp

- 14 -

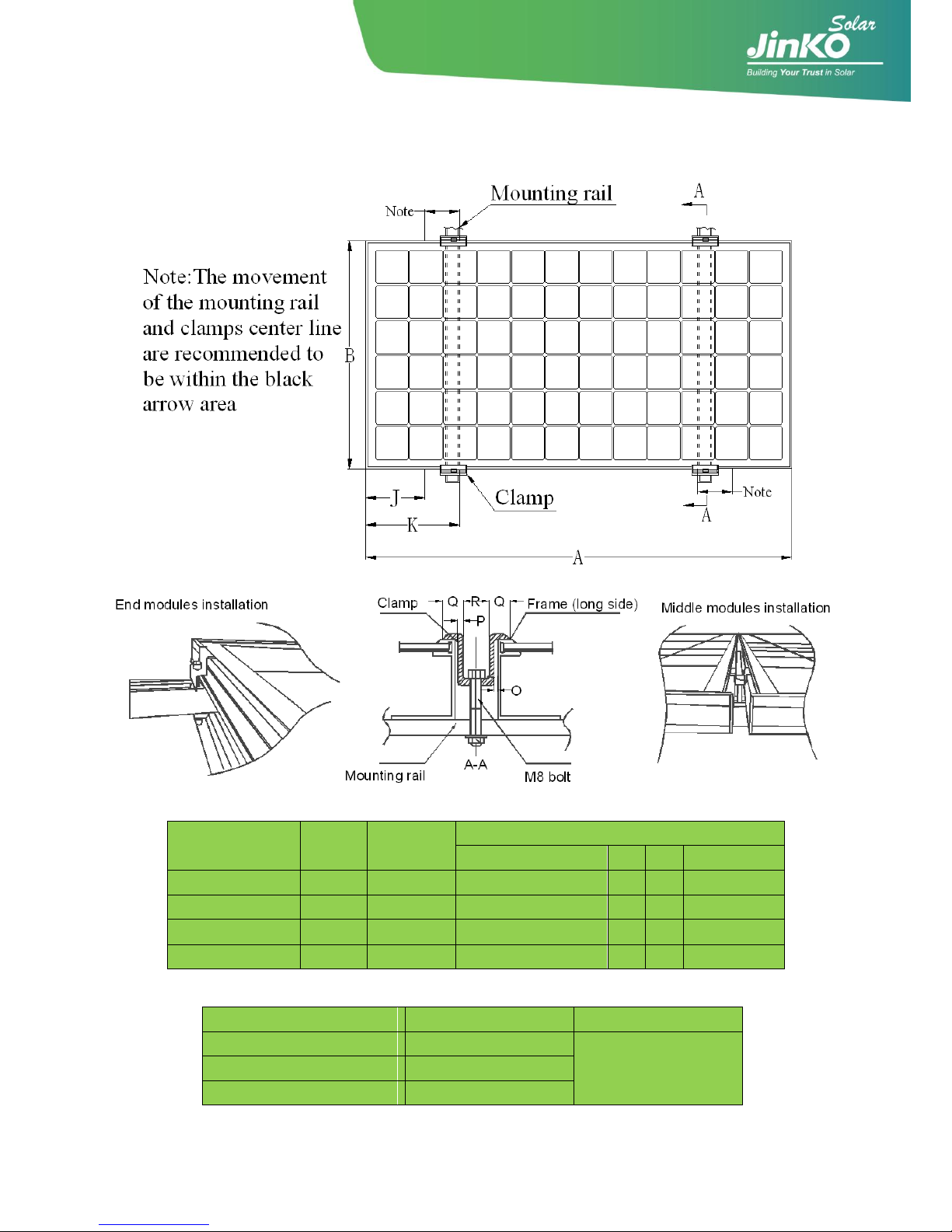

2)Normal PV module
Figure 4 above: PV module installed at long side with Clamp fitting method
Table 2 above: Mechanical dimensions when modules installed at the side with Clamp
Clamp type
Dimension
Composition material
End Clamp(40 mm thickness)
39 x 50 x 42 mm
Aluminum-alloy
End Clamp(35 mm thickness)
41.5 x 50 x 40 mm
Middle Clamp
42 x 50 x 28 mm
Table 3 above: The specification & material of clamp
Module type
Cell type
Cell quantity
Dimension(mm)
A*B
J
K
Frame
Group 1, Group 3
Poly
6*10
1650*992 & 1665*1002
400
420
40*35 & 35*35
Group 4, Group 6
Poly
6*12
1956*992 & 1979*1002
400
480
40*35
Group 7, Group 9
Mono
6*10
1650*992 & 1665*1002
400
420
40*35 & 35*35
Group 10, Group 12
Mono
6*12
1956*992 & 1979*1002
400
480
40*35

Rev. C
- 15 -
Clamp type
Dimension(mm)
Q
O
R
P
Middle Clamp
13.5
0.5~2
15
2.5
Table 4 above: Mechanical dimensions when modules installed with mid Clamp
2.3.3 Fixation with clamps at short sides of the frames (this method has not been UL
1703 certified)
When installing modules using clamps on the short side of the frame, the products in Table 5
& 6 and the clamp in Table 3 & 4 are applicable. The fixation with clamps at short sides of the
frames can‟t be used unless the fixation is UL certified with Jinko modules.
The considerations and requirements for mounting with clamps, please refer to the
instructions in 2.3.2, and find detailed mounting information in the below Figure 5 & 6. The
mounting place distance is suggested bigger than J and less than K, as shown below.
1)Half-cut
Figure 5 above: PV module installed at short side with Clamp fitting method
Module
type
Cell type
Cell
quantity
Dimension(mm)
A*B
J
K
Frame
Group 2
6 inch Poly
6*20
1665*992 & 1684*1002
50
240
40*35 & 35*35
Group 5
6 inch Poly
6*24
1987*992 & 2000*992 & 2008*1002
50
240
40*35 & 35*35
Group 8
6 inch Mono
6*20
1665*992 & 1684*1002
50
240
40*35
Group 11
6 inch Mono
6*24
1987*992 & 2000*992 & 2008*1002
50
240
40*35
Table 5 above: Mechanical dimensions when modules installed at short side with Clamp fitting method

- 16 -
2)Normal PV module
Figure 6 above: PV module installed at short side with Clamp fitting method
Module type
Cell type
Cell
quantity
Dimension(mm)
A*B
J
K
Frame
Group 1 & 3
6 inch Poly
6*10
1650*992 & 1665*1002
50
240
40*35 & 35*35
Group 7 & 9
6 inch Mono
6*10
1650*992 &1665*1002
50
240
40*35 & 35*35
Group 4 & 6
6 inch Poly
6*12
1956*992 & 1979*1002
50
240
40*35
Group 10 &12
6 inch Mono
6*12
1956*992 & 1979*1002
50
240
40*35
Table 6 above: Mechanical dimensions when modules installed at short side with Clamp fitting method
2.3.4 Fixation with clamps at the long & short sides (this method has not been UL 1703
certified)
When installing modules using clamps on the long side & short side of the frame, the
products in Table 7 & 8 the clamp in Table 3 & 4 are applicable. The fixation with clamps at

Rev. C
- 17 -
long & short sides of the frames can‟t be used unless the fixation is UL certified with Jinko
modules.
The considerations and requirements for mounting with clamps, please refer to the
instructions in 2.3.2, and find detailed mounting information in the below illustration as Figure
7 & 8. The mounting place distance is suggested bigger than J and less than K for short
sides，bigger than M and less than N for long sides, as shown below.
1)Normal PV module
Figure 7: PV module installed at long and short side with Clamp fitting method
Module type
Cell type
Cell
quantity
Dimension(mm)
A*B
J
K
M
N
Frame
Group 1 & 3
6 inch Poly
6*10
1650*992 & 1665*1002
50
240
400
420
40*35 & 35*35
Group 7 & 9
6 inch Mono
6*10
1650*992 &1665*1002
50
240
400
420
40*35 & 35*35
Group 4 & 6
6 inch Poly
6*12
1956*992 & 1979*1002
50
240
400
480
40*35
Group 10 &12
6 inch Mono
6*12
1956*992 & 1979*1002
50
240
400
480
40*35
Table 7: Mechanical dimensions when modules installed at long and short sides with Clamp fitting method

- 18 -
2)Half-cut
Figure 8: PV module installed at long and short side with Clamp fitting method
Module
type
Cell type
Cell
quantity
Dimension(mm)
A*B
J
K
M
N
Frame
Group 2
6 inch Poly
6*20
1665*992 & 1684*1002
50
240
400
420
40*35 & 35*35
Group 5
6 inch Poly
6*24
1987*992 & 2000*992 & 2008*1002
50
240
400
420
40*35 & 35*35
Group 8
6 inch Mono
6*20
1665*992 & 1684*1002
50
240
400
480
40*35
Group 11
6 inch Mono
6*24
1987*992 & 2000*992 & 2008*1002
50
240
400
480
40*35
Table 8: Mechanical dimensions when modules installed at long and short sides with Clamp fitting method
3. Wiring and connection
a) Before this procedure, please read the operation instructions of the PV system carefully.
Make wiring by Multi-connecting cables between the PV modules in series or parallel
connection, which is determined by user‟s configuration requirement for system power,
current and voltage.
b) PV modules connected in series should have similar current, and modules must not be
connected together to create a voltage higher than the permitted system voltage. The
maximum number of modules in series depends on system design, the type of inverter
used and environmental conditions.
c) The maximum fuse rating value in an array string can be found on the product label or in
the product datasheet. The fuse rating value is also corresponding to the maximum
reverse current that a module can withstand, i.e. when one string is in shade then the other
parallel strings of modules will be loaded by the shaded string and the current will pass
