Jinko Solar JKM PP-60 Series User manual

-1-
1. General Information
1.1 Overview
Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules are installed
correctly, please read the following installation instructions carefully before modules are
installed and used.
Please remember that these products generate electricity and certain safety measures need to
be taken to avoid danger.
Make sure the module array is designed in such a way not to exceed the maximum system
voltage of any system component such as connectors or inverters.
The assembly is to be mounted over a fire resistant roof covering rated for the application.
Before mounting the module, please consult your local building department to determine
approved roofing materials.
The modules are qualified for application class A: Hazardous voltage (IEC 61730: higher than
50V DC; EN 61730: higher than 120V), hazardous power applications (higher than 240W)
where general contact access is anticipated. Modules qualified for safety through EN IEC
61730 -1 and - 2 within this application class are considered to meet the requirements for
Safety Class II.
1.2 Warnings
PV modules generate DC electrical energy when exposed to sunlight or other light sources.
Active parts of module such as terminals can result in burns, sparks, and lethal shock.
Artificially concentrated sunlight shall not be
directed on the module or panel.
Front protective glass is utilized on the module.
Broken solar module glass is an electrical safety
hazard (may cause electric shock or fire). These
modules cannot be repaired and should be
replaced immediately.
To reduce the risk of electrical shocks or burns, modules may be covered with an opaque
material during installation to avoid injury.
The installation work of the PV array can only be done under the protection of
sun-sheltering covers or sunshades and only qualified person can install or perform
maintenance work on this module.
Follow the battery manufacture’s recommendations if batteries are used with modules.

-2-
Do not use this module to replace or partly replace roofs and walls of living buildings.
Do not install modules where flammable gas may be present.
Do not remove any part installed by Jinko Solar or disassemble the module.
All instructions should be read and understood before attempting to install, wire, operate
and maintain the module.
Don’t lift up PV modules using the attached cables or the junction box.

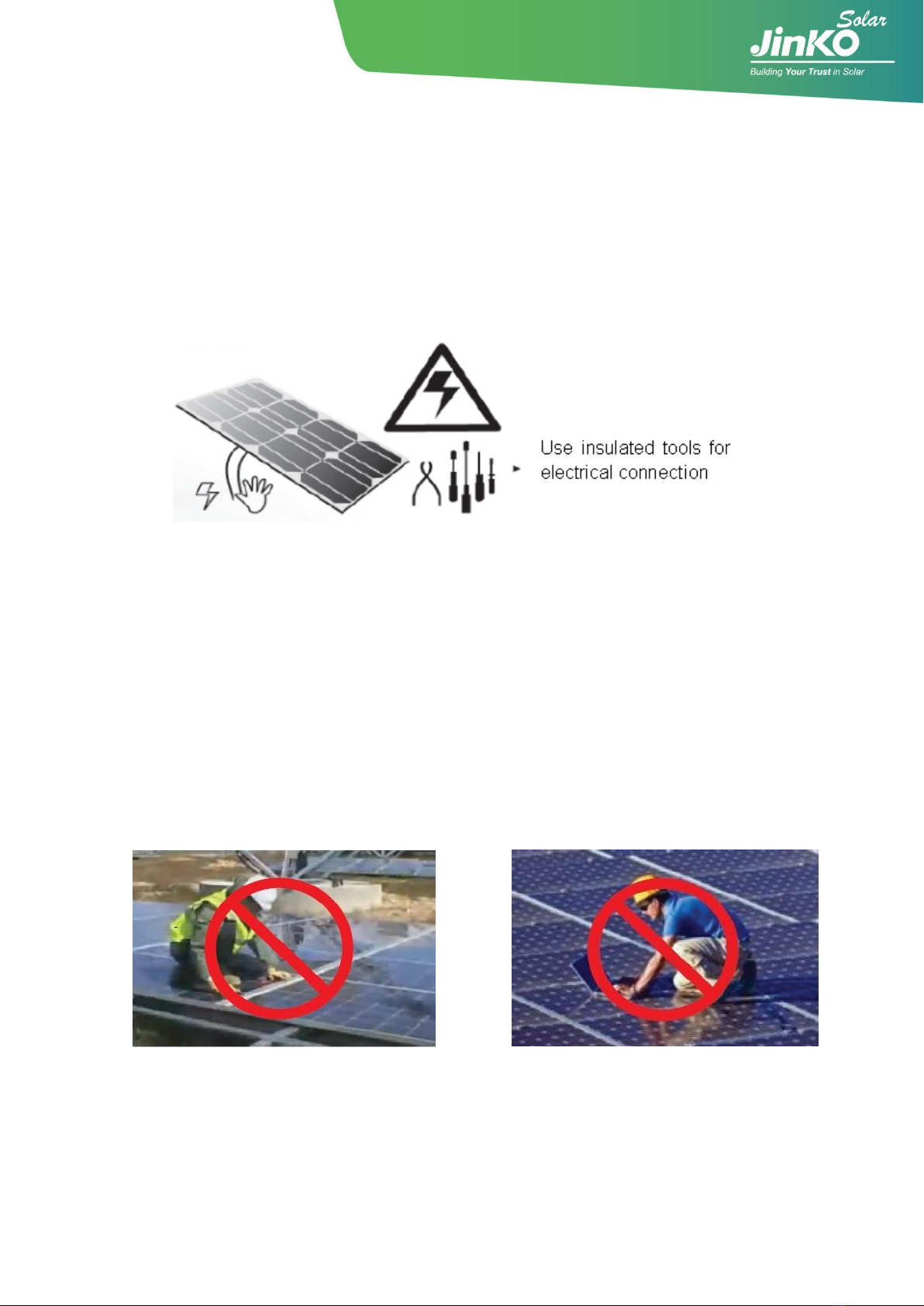

Do not touch live terminals with bare hands. Use insulated tools for electrical connections.
All PV systems must be grounded to earth. If there is no special regulation, please follow
the National Electrical Code or other national code.
Under normal conditions, a photovoltaic module is likely to experience conditions that
produce more current and/or voltage than reported at standard test conditions. Accordingly,
the value of Isc and Voc marked on the module should be multiplied by 1.25 when
determining PV system component voltage ratings, conductor current ratings, fuse sizes,
and size of controls connected to the PV output.
Once the PV module has been shipped to the installation site, all of the parts should be
unpacked properly with care.
Do not stand or step on the PV module like below pictures show. This is prohibited and
there is a risk of damage to the module and cause injury for you.
Only PV modules with the same cell size should be connected in series.
During transporting modules, please attempt to minimize shock or vibration to the module,
as this may damage the module or lead to cell micro cracks.
During all transportation situations, never drop the module from a vehicle, house or hands.

-3-
This will damage module.
Do not clean the glass with chemicals. Only use tap water. Make sure the module surface
temperature is cool to the touch. Cleaning modules with cool water when module surface
temp is high may result in glass breakage.
Do not disconnect any of the modules when under load.
When looking at PV modules with anti-reflection (AR) coating technology, it will be normal
to see some cells with a slight color difference at different angles.
Connector of junction box can not be contacted with oily substances, for example, lubricant,
rust inhibitor etc.
2. Installation
2.1 Installation safety
Always wear protective head gear, insulating gloves and safety shoes (with rubber soles).
Keep the PV module packed in the carton until installation.
Do not touch the PV module unnecessarily during installation. The glass surface and the
frame may be hot. There is a risk of burns and electric shock.
Do not work in rain, snow or windy conditions.
Due to the risk of electrical shock, do not perform any work if the terminals of the PV module
are wet.
Use insulated tools and do not use wet tools.
When installing PV modules, do not drop any objects (e.g., PV modules or tools).
Make sure flammable gasses are not generated or present near the installation site.
Insert module connectors fully and correctly. An audible "click" sound should be heard. This
sounds confirms the connectors are fully seated. Check all connections.
The module leads should be securely fastened to the module frame, Wire Management
should be done in a way to avoid the connector from scratching or impacting the back sheet
of the module.
Do not touch the junction box and the end of the interconnect cables (connectors) with bare
hands during installation or under sunlight, regardless if the PV module is connected to or
disconnected from the system.
Do not expose the PV module to excessive loads on the surface of the PV module or twist
the frame.
Do not hit or put excessive load on the glass or back sheet, this may break the cells or
cause micro cracks.
During the installation or operation, don’t use sharp tools to wipe the back sheet and glass.

-4-
Scratches can appear on the module.
Do not drill holes in the frame. It may cause corrosion of the frame.
When installing modules on roof mounted structures, please try to follow the “from top to
bottom”and/or “from left to right”principle, and don’t step on the module. This will damage
the module and would be dangerous for personal safety.
2.2 Installation Condition
2.2.1 Climate condition
Please install the modules in the following conditions:
a) Operating temperature: within –40°C (-40℉) to 85°C (185℉)
b) Humidity: < 85RH%
﹡Note: The mechanical load bearing (include wind and snow loads) of the module is based on
the approved mounting methods. The professional system installer must be responsible for
mechanical load calculation according to the system design.
2.2.2 Site selection
In most applications, Jinko solar PV modules should be installed in a location where they will
receive maximum sunlight throughout the year. In the Northern Hemisphere, the module should
typically face south, and in the Southern Hemisphere, the modules should typically face north.
Modules facing 30 degrees away from true South (or North) will lose approximately10 to 15
percent of their power output. If the module faces 60 degrees away from true South (or North),
the power loss will be 20 to 30 percent.
When choosing a site, avoid trees, buildings or obstructions, which could cast shadows on the
solar photovoltaic modules especially during the winter months when the arc of the sun is
lowest over the horizon. Shading causes loss of output, even though the factory fitted bypass
diodes of the PV module will minimize any such loss.
Do not install the PV module near open flame or flammable materials.
When solar modules are used to charge batteries, the battery must be installed in a manner,
which will protect the performance of the system and the safety of its users. Follow the battery
manufacturer’s guidelines concerning installation, operation and maintenance
recommendations. In general, the battery (or battery bank) should be away from the main flow
of people and animal traffic. Select a battery site that is protected from sunlight, rain, snow,
debris, and is well ventilated. Most batteries generate hydrogen gas when charging, which can
be explosive. Do not light matches or create sparks near the battery bank. When a battery is
installed outdoors, it should be placed in an insulated and ventilated battery case specifically
designed for the purpose.

-5-
Do not install the PV module in a location where it would be immersed in water or continually
exposed to water from a sprinkler or fountain etc.
2.2.3 Tilt angle selection

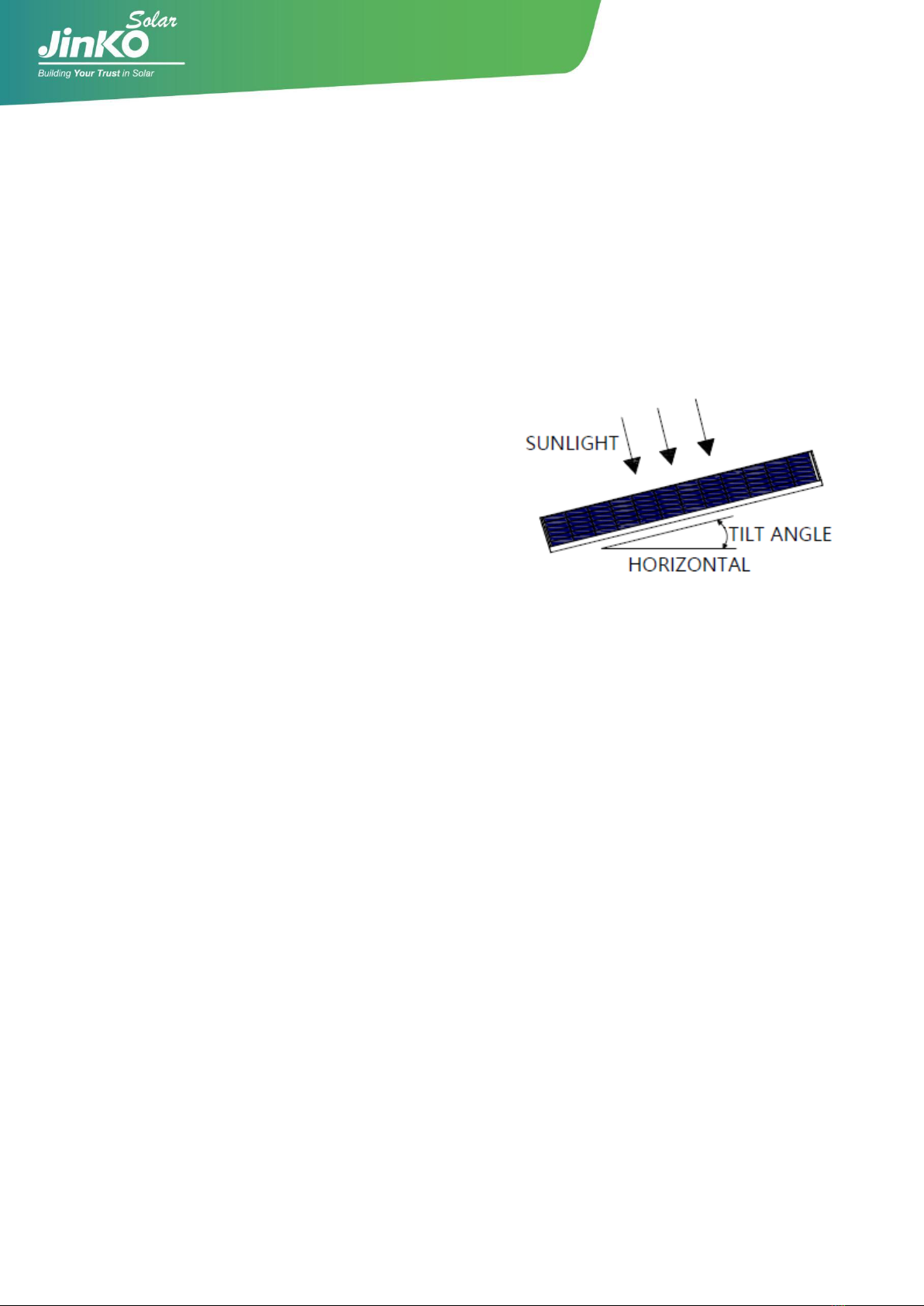

The tilt angle of the PV module is measured between the surface of the PV module and a
horizontal ground surface (Figure 1). The PV module generates maximum output power when it
faces the sun directly.
For standalone systems with batteries where the PV modules are attached to a permanent
structure, the tilt angle of the PV modules should be selected to optimize the performance
based on seasonal load and sunlight. In general, if
the PV output is adequate when irradiance is low
(e.g., winter), then the angle chosen should be
adequate during the rest of the year. For
grid-connected installations where the PV modules
are attached to a permanent structure, PV modules
should be tilted so that the energy production from
the PV modules will be maximized on an annual
basis. Figure1: PV module tilt angle
2.3 Mechanical Installation introduction
Solar PV modules usually can be mounted by using the following methods: bolts and clamps.
﹡Note:
1) All installation methods herein are only for reference, and Jinko solar will not provide related
mounting components, the system installer or trained professional personnel must be
responsible for the PV system’s design, installation, and mechanical load calculation and
security of the system.
2) Before installation, the following items should be addressed:
a) Visually check the module for any damage. Clean the module if any dirt or residue
remains from shipping .
b) Check if module serial number stickers match.
3) Jinko modules are designed to meet a maximum positive (or downward) pressure of 3600Pa
(Only refer to the mentioned module type in this manual) and negative (or upward) pressure
of 1600Pa. This design load was then tested with a safety factor of 1.5 times. So Jinko
modules are tested under a maximum downward pressure of 5400Pa and upward pressure
of 2400Pa. When mounting modules in snow-prone or high-wind environments, special
care should be taken to mount the modules in a manner that provides sufficient design

-6-
strength while meeting local code requirements.
2.3.1 Fixation with bolts
For mounting with bolts, the following modules in tables 1 are applicable.
The frame of each module has 8 mounting holes (Length* Width: 14mm*9mm) used to secure
the modules to support structure. Always use all the eight mounting holes to secure the
modules. The module frame must be attached to a mounting rail using M8 corrosion-proof bolts
together with spring washers and flat washers in eight symmetrical locations on the PV module.
The applied torque value should be big enough to fix the modules steadily. The reference value
for M8 bolt is 16~20N*m. As to special support system or special installation requirement,
please reconfirm with the support’s supplier for the torque value. Please find detailed mounting
information in the below illustration as Figure 2&3.

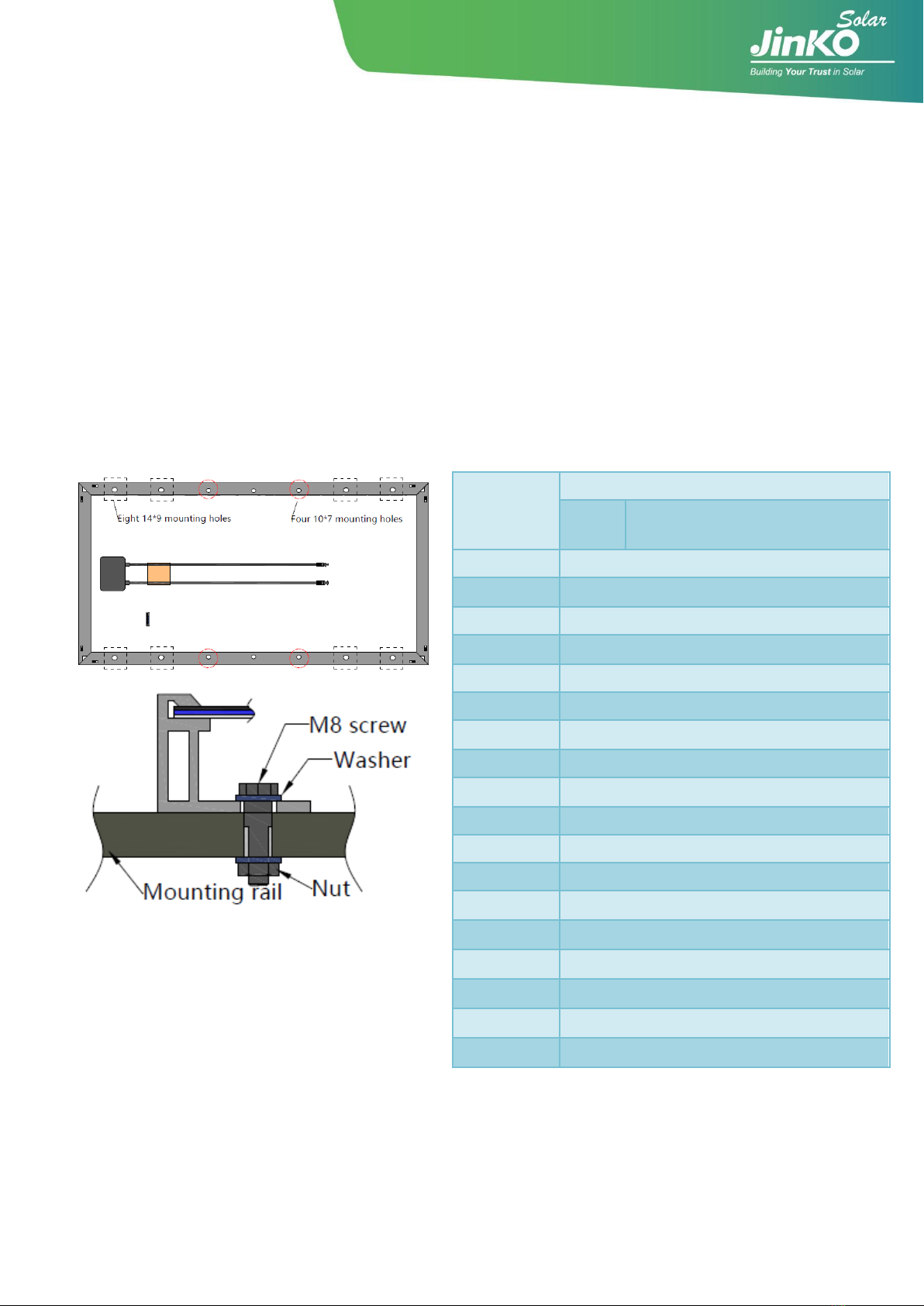

Figure 2: PV module installed with bolt fitting
method
Table 1: Mechanical dimensions for bolt fitting method
Notes：Group 1~10 refer to appendix 1 for details.
Module type
Dimensions(mm)
A*B
Max. Test Pressure: 5400Pa (positive )
& 2400Pa (negative) mechanical load
Group 1&3
1650*992 & 1665*1002
Group 2&4
1665*992 & 1684*1002
Group 5&7
1650*992 & 1665*1002
Group 6&8
1665*992 & 1684*1002
Group 9
1665*992 & 1684*1002 & 1672*992 & 1704*1008
Group 10&12
1956*992 & 1979*1002
Group 11&13
1987*992 & 2008*1002
Group 14&16
1956*992 & 1979*1002
Group 15&17
1987*992 & 2008*1002
Group 18
1987*992 & 2008*1002 & 2031*1008
Group 11/21
2031*1008
Group 12/22
1704*1008
Group 13
2008*1002
Group 14
1684*1002
Group 15
2113*995 & 2113*998
Group 16
1796*995 & 1796*998
Group 17/19
2130*1002 & 2139*1008
Group 18/20
1822*1008

-7-

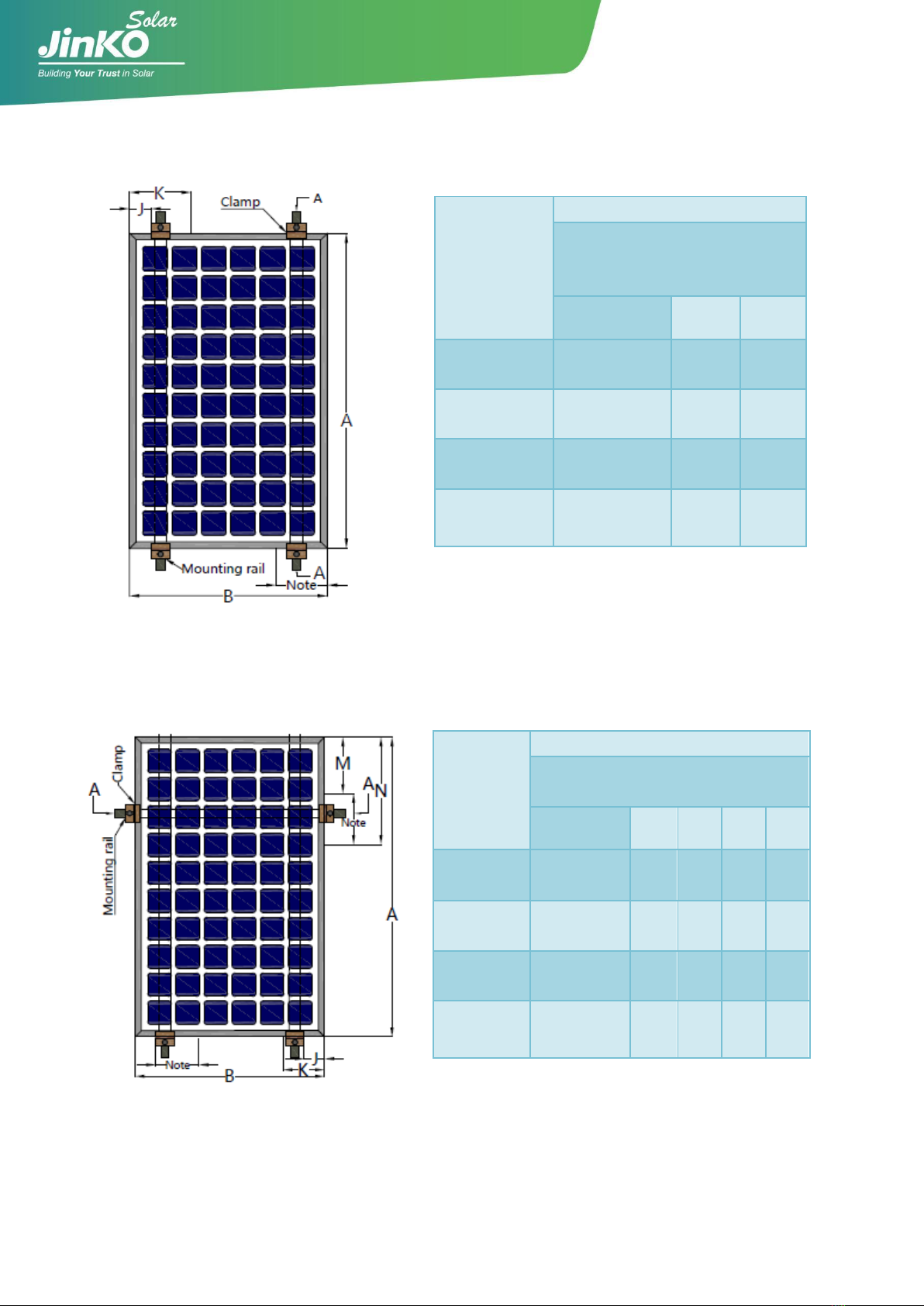

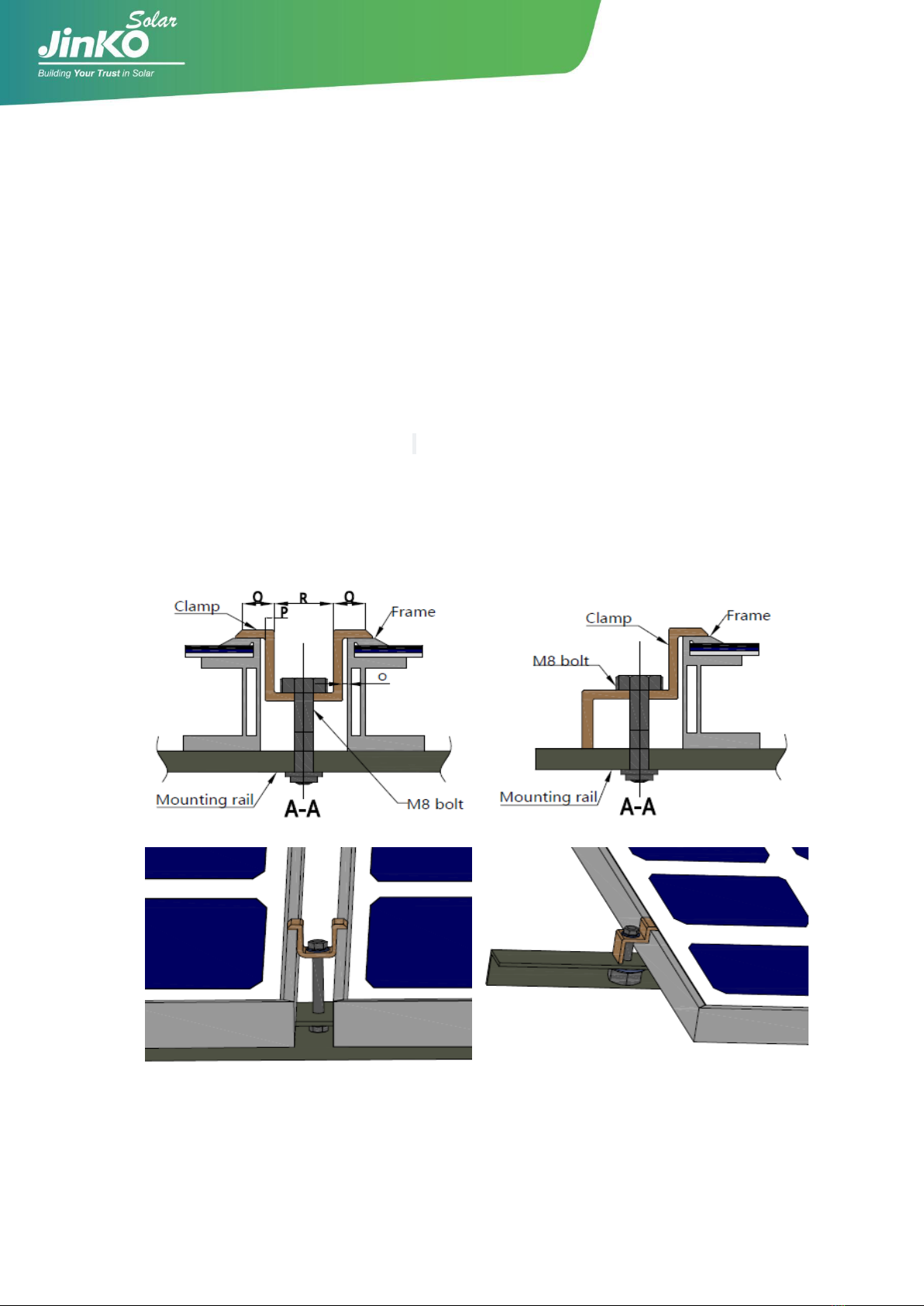

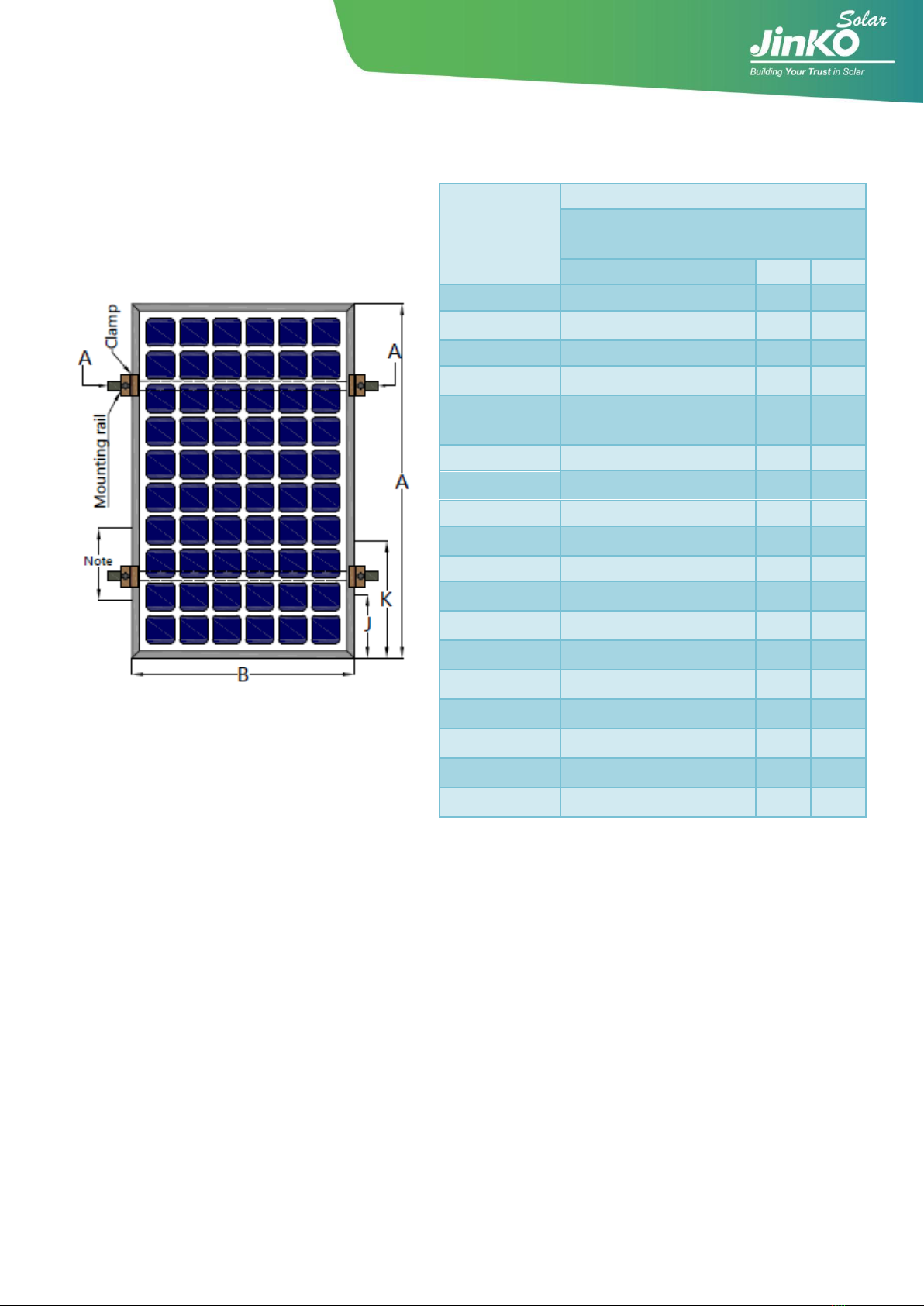

2.3.2 Fixation with clamps
The module clamps should not come into contact with the front glass and must not deform the
frame. Be sure to avoid shadowing effects from the module clamps. The module frame is not to
be modified under any circumstances. When choosing this type of clamp-mounting method,
please be sure to use at least four clamps on each module, two clamps should be attached on
each long sides of the module. Depending on the local wind and snow loads, if excessive
pressure load is expected, additional clamps or support would be required to ensure the module
can bear the load. The applied torque value should be big enough to fix the modules steadily
(Please consult with the clamp or support’s supplier for the specific torque value). Please find
detailed mounting information in the below illustration, the mounting place distance is
suggested bigger than J and less than K. The installation diagram of clamp is shown in figure 3.
Note: The Movement of the mounting rail and the clamps center line are recommended to be
within the black arrow area.
When installing modules using clamps on the long side of the frame, the applicable product
types and installation locations are shown in figure 4 and table 2.
Figure 3: PV module installed at the side with Clamp fitting method
Middle modules installation
Fringe modules installation

-8-
2.3.2.1 Fixation with clamps on long sides of frames
Table 2: Mechanical dimensions when modules
installed at long side with Clamp fitting method
Module type
Dimensions(mm)
Max. Test Pressure: 5400Pa (positive ) &
2400Pa (negative) mechanical load
A*B
J
K
Group 1&3
1650*992 & 1665*1002
280
420
Group 2&4
1665*992 & 1684*1002
280
420
Group 5&7
1650*992 & 1665*1002
280
420
Group 6&8
1665*992 & 1684*1002
280
420
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
280
420
Group 10&12
1956*992 & 1979*1002
280
420
Group 11&13
1987*992 & 2008*1002
280
420
Group 14&16
1956*992 & 1979*1002
280
420
Group 15&17
1987*992 & 2008*1002
280
420
Group 18
2031*1008
280
420
Group 19&29
2031*1008
280
420
Group 20&30
1704*1008
280
420
Group 21
2008*1002
280
420
Group 22
1684*1002
280
420
Group 23
2113*995 & 2113*998
380
520
Group 24
1796*995 & 1796*998
280
420
Group 25&27
2130*1002 & 2139*1008
380
520
Group 26&28
1822*1008
280
420
Figure 4: Installation methods of clamps on
long sides

-9-
2.3.2.2Fixation with clamps at short sides of the frames
Table 3: Mechanical dimensions when modules installed
at short side with Clamp fitting method
2.3.2.3 Fixation with clamps at the long & short sides
Table 4: Mechanical dimensions when modules installed at
long and short sides with Clamp fitting method
Module type
Dimensions(mm)
Max. Test Pressure: 2400Pa
(positive) & 2400Pa (negative)
mechanical load
A*B
J
K
Group 1
1650*992
1665*1002
50
240
Group 5
1665*992
1684*1002
50
240
Group 10
1956*992
1979*1002
50
240
Group 14
1987*992
2008*1002
50
240
Module
type
Dimensions(mm)
Max. Test Pressure: 2400Pa (positive)
& 2400Pa (negative) mechanical load
A*B
J
K
M
N
Group 1
1650*992
1665*1002
50
240
280
420
Group 5
1665*992
1684*1002
50
240
280
420
Group 10
1956*992
1979*1002
50
240
280
480
Group 14
1987*992
2008*1002
50
240
280
480
Figure 6: Installation methods of clamps on
long and short sides
Figure 5: Installation methods of clamps
on short sides

-10-
Note：
The installation method of clamps on short sides is based on the internal results in Jinko.
The installation method of clamps on long and short sides is based on the internal results in
Jinko.
3. Wiring and connection
a) Before this procedure, please read the operation instructions of the PV system carefully.
Make wiring by Multi-connecting cables between the PV modules in series or parallel
connection, which is determined by user’s configuration requirement for system power,
current and voltage.
b) PV modules connected in series should have similar current, and modules must not be
connected together to create a voltage higher than the permitted system voltage. The
maximum number of modules in series depends on system design, the type of inverter used
and environmental conditions.
c) The maximum fuse rating value in an array string can be found on the product label or in the
product datasheet. The fuse rating value is also corresponding to the maximum reverse
current that a module can withstand, i.e. when one string is in shade then the other parallel
strings of modules will be loaded by the shaded string and the current will pass through to
create a current circuit. Based on the maximum series fuse rating of module and local
electrical codes and standards, make sure the modules strings in parallel are protected with
the appropriate in-line string fusing.
d) Open the combiner box of the control system and connect the conductor from the PV arrays
to the combiner box in accordance with the the design and local codes and standards. The
cross-sectional area and cable connector capacity must satisfy the maximum short-circuit of
the PV system (for a single component, we recommended that the cross-sectional area of
cables be 4mm2and the rated current of connectors be more than 10A), otherwise cables
and connectors will become overheating for large current. Please pay attention to the
temperature limit of cables is 85℃.
e) All module frames and mounting racks must be properly grounded in accordance with local
and national electrical codes. Attach the equipment grounding conductor to the module
frame using the hole and hardware provided. Note that a stainless steel star washer is used
between the ground wire and module frame (see Figure 7 below).This washer is used to
avoid corrosion due to dissimilar metals. Tighten the screw securely.

-11-
Figure 7: The graph of Grounding
f) Follow the requirements of applicable local and national electrical codes.
g) These modules contain factory installed bypass diode .If these modules are incorrectly
connected to each other, the bypass diodes, cable or junction box may be damaged.
h) The cable of the junction box is defined as L, as showed below in Figure 8. For Jinko
standard module, L is 900; 1200mm; and for customized module, L can be based on your
condition. Please take the cable length into consideration before designing the wiring layout.
Figure 8: Junction box
i) It is recommend to use negatively grounded inverters to avoid the PID effect for non-PID
free modules.
4. Maintenance and care
It is required to perform regular inspection and maintenance of the modules, especially during
the warranty period. To ensure optimum module performance, Jinko recommends the following
maintenance measures:
4.1 Visual Inspection
Inspect the modules visually to find if there are any visual defects, If there are, the following
items should be evaluated:
a) If modules are observed having slight cell color differences at different angles, this is a
normal phenomenon of modules with anti-reflection coating technology.
b) Whether the glass is broken.

-12-
c) No sharp objects are in contact with the PV module surfaces.
d) PV modules are not shaded by unwanted obstacles and; or foreign material.
e) Corrosion along the cells’ bus-bar. The corrosion is caused by moisture intrusion thought
the module back sheet. Check the back sheet for damage.
f) Check whether the back sheet is burn out.
g) Check if screws and mounting brackets are tight, adjust and tighten as necessary.
4.2 Cleaning
a) A build up of dust or dirt on the module(s) front face will result in a decreased energy output.
Clean the panel(s) preferably once per annum if possible (depend on site conditions) using
a soft cloth dry or damp, as necessary. Water with high mineral content may leave deposits
on the glass surface and is not recommended.
b) Never use abrasive material under any circumstances.
c) In order to reduce the potential for electrical and thermal shock, Jinko recommends
cleaning PV modules during early morning or late afternoon hours when solar radiation is
low and the modules are cooler, especially in regions with hotter temperatures.
d) Never attempt to clean a PV module with broken glass or other signs of exposed wiring, as
this presents a shock hazard.
e) Never use chemicals when cleaning modules as this may affect the module warranty and
energy output.
4.3 Inspection of Connector and Cable
It’s recommended to implement the following preventive maintenance every 6 months:
a) Check the sealing gels of the junction box for any damage.
b) Examine the PV module(s) for signs of deterioration. Check all wiring for possible rodent
damage, weathering and that all connections are tight and corrosion free. Check electrical
leakage to ground.
5. Electrical specification
The module electrical rating are measured under Standard Test Conditions, which are
1000W;m2, irradiance with AM 1.5 spectrum and 25 deg (77°F) ambient temperature. The
module might produce more or less voltage or current than rated value in uncertainty condition.
6. Disclaimer of Liability
Because the use of the manual and the conditions or methods of installation, operation, use and

-13-
maintenance of photovoltaic (PV) product are beyond Jinko’s control, Jinko does not accept
responsibility and expressly disclaims liability for loss ,damage, or expense arising out of or in
any way connected with such installation, operation, use or maintenance.
No responsibility is assumed by Jinko for any infringement of patents or other rights of third
parties, which may result from use of the PV product. NO license is granted by implication or
otherwise under any patent or patent rights.
The information in this manual is based on Jinko’s knowledge and experience and is believed to
be reliable, but such information including product specification (without limitations) and
suggestions do not constitute a warranty, expresses or implied. Jinko reserve the right to
change the manual, the PV produce, the specifications, or product information sheets without
prior notice.

-14-
Appendix 1：Applicable Products
This document is applicable to the series of solar modules as listed below:
With 6” poly and mono c-Si: Group 1
JKMxxxPP①-60
JKMxxxPP-60(Plus) ②
JKMS③xxxPP-60
JKMSxxxPP-60-J
JKMxxxPP-60-V④
JKMxxxPP-60(Plus) -V
JKMSxxxPP-60-V
JKMSxxxPP-60-V-J
JKMxxxPP①-60B
(xxx=260~290,in increment of 5) Group 2
JKMxxxPP-60H⑤
JKMxxxPP-60H-V
JKMxxxPP-60HB
(xxx =260~315,in increment of 5) Group 3
JKMSxxxPP-60-V-MX3
JKMSxxxPP-60B-V-MX3
JKMSxxxPP-60-MX3
JKMSxxxPP-60B -MX3
(xxx =260~290,in increment of 5)
JKMSxxxPP-60L-V-MX3
JKMSxxxPP-60BL-V-MX3
JKMSxxxPP-60L -MX3
JKMSxxxPP-60BL -MX3
(xxx =260~290,in increment of 5) Group 4
JKMSxxxPP-60H-V-MX3
JKMSxxxPP-60HB-V-MX3
JKMSxxxPP-60H-MX3
JKMSxxxPP-60HB -MX3
(xxx =260~315,in increment of 5)
JKMSxxxPP-60HL-V-MX3
JKMSxxxPP-60HBL-V-MX3
JKMSxxxPP-60HL -MX3
JKMSxxxPP-60HBL -MX3
(xxx =260~315,in increment of 5) Group 5
JKMxxxM-60
JKMxxxM-60(Plus)
JKMSxxxM-60
JKMSxxxM-60-J
JKMxxxM-60-V
JKMxxxM-60(Plus)- V
JKMSxxxM-60-V
JKMSxxxM-60-V-J
JKMxxxM-60B
(xxx =270~340,in increment of 5)
JKMxxxM-60L⑥
JKMxxxM-60L-V
JKMxxxM-60BL
(xxx =270~340,in increment of 5) Group 6
JKMxxxM-60H
JKMxxxM-60H-V
JKMxxxM-60HB
(xxx =270~350,in increment of 5)
JKMxxxM-60HL
JKMxxxM-60HL-V
JKMxxxM-60HBL
(xxx =270~350,in increment of 5) Group 7
JKMSxxxM-60-V-MX3
JKMSxxxM-60B-V-MX3
JKMSxxxM-60-MX3
JKMSxxxM-60B -MX3
(xxx =270~340,in increment of 5)
JKMSxxxM-60L-V-MX3
JKMSxxxM-60BL-V-MX3
JKMSxxxM-60L- MX3
JKMSxxxM-60BL -MX3
(xxx =270~340,in increment of 5) Group 8

-15-
JKMSxxxM-60H-V-MX3
JKMSxxxM-60HB-V-MX3
JKMSxxxM-60H-MX3
JKMSxxxM-60HB-MX3
(xxx =270~340,in increment of 5)
JKMSxxxM-60HL-V-MX3
JKMSxxxM-60HBL-V-MX3
JKMSxxxM-60HL-MX3
JKMSxxxM-60HBL-MX3
(xxx =270~340,in increment of 5) Group 9
JKMxxxM-60H-TV
JKMxxxM-60HL-TV
JKMxxxM-60H-T
JKMxxxM-60HL-T
(xxx =315~355,in increment of 5)
JKMxxxN-60H-TV
JKMxxxN-60HL-TV
JKMxxxN-60H-T
JKMxxxN-60HL-T
(xxx =315~355,in increment of 5) Group 10
JKMxxxPP-72
JKMxxxPP-72(Plus)
JKMSxxxPP-72
JKMSxxxPP-72-J
JKMxxxPP-72-V
JKMxxxPP-72(Plus)-V
JKMSxxxPP-72-V
JKMSxxxPP-72-V-J
JKMxxxPP-72B
(xxx =320~355,in increment of 5) Group 11
JKMxxxPP-72H
JKMxxxPP-72H-V
JKMxxxPP-72HB
(xxx =330~380,in increment of 5) Group 12
JKMSxxxPP-72-V-MX3
JKMSxxxPP-72B-V-MX3
JKMSxxxPP-72-MX3
JKMSxxxPP-72B-MX3
(xxx =320~355,in increment of 5)
JKMSxxxPP-72L-V-MX3
JKMSxxxPP-72BL-V-MX3
JKMSxxxPP-72L-MX3
JKMSxxxPP-72BL-MX3
(xxx =320~355,in increment of 5) Group 13
JKMSxxxPP-72H-V-MX3
JKMSxxxPP-72HB-V-MX3
JKMSxxxPP-72H-MX3
JKMSxxxPP-72HB-MX3
(xxx =330~380,in increment of 5)
JKMSxxxPP-72HL-V-MX3
JKMSxxxPP-72HBL-V-MX3
JKMSxxxPP-72HL-MX3
JKMSxxxPP-72HBL-MX3
(xxx =330~380,in increment of 5) Group 14
JKMxxxM-72
JKMxxxM-72(Plus)
JKMSxxxM-72
JKMSxxxM-72-J
JKMxxxM-72-V
JKMxxxM-72(Plus)-V
JKMSxxxM-72-V
JKMSxxxM-72-V-J
JKMxxxM-72B
JKMxxxM-72BL
(xxx =335~410，in increment of 5)
JKMxxxM-72L
JKMxxxM-72L-V
JKMxxxM-72BL
(xxx =335~410，in increment of 5) Group 15
JKMxxxM-72H
JKMxxxM-72H-V
JKMxxxM-72HB
(xxx =335~425,in increment of 5)
JKMxxxM-72HL
JKMxxxM-72HL-V
JKMxxxM-72HBL
(xxx =335~425,in increment of 5) Group 16
JKMSxxxM-72-V-MX3
JKMSxxxM-72B-V-MX3
JKMSxxxM-72-MX3
JKMSxxxM-72B-MX

-16-
(xxx =335~395,in increment of 5)
JKMSxxxM-72L-V-MX3
JKMSxxxM-72BL-V-MX3
JKMSxxxM-72L-MX3
JKMSxxxM-72BL-MX3
(xxx =335~395,in increment of 5) Group 17
JKMSxxxM-72H-V-MX3
JKMSxxxM-72HB-V-MX3
JKMSxxxM-72H-MX3
JKMSxxxM-72HB-MX3
(xxx =335~395,in increment of 5)
JKMSxxxM-72HL-V-MX3
JKMSxxxM-72HBL-V-MX3
JKMSxxxM-72HL-MX3
JKMSxxxM-72HBL-MX3
(xxx =335~395,in increment of 5) Group 18
JKMxxxM-72H-TV
JKMxxxM-72HL-TV
JKMxxxM-72H-T
JKMxxxM-72HL-T
(xxx =375~425,in increment of 5)
JKMxxxN-72H-TV
JKMxxxN-72HL-TV
JKMxxxN-72H-T
JKMxxxN-72HL-T
(xxx =375~425,in increment of 5) Group 19
JKMxxxN-72H-MBB-TV
JKMxxxN-72H-MBB-T
(xxx =390~420,in increment of 5) Group 20
JKMxxxN-60H-MBB-TV
JKMxxxN-60H-MBB-T
(xxx =330~350,in increment of 5) Group 21
JKMxxxM-72H-MBB
JKMxxxM-72H-MBB-V
(xxx =385~415,in increment of 5) Group 22
JKMxxxM-60H-MBB
JKMxxxM-60H-MBB-V
(xxx =320~345,in increment of 5) Group 23
JKSM3-DACA-xxx
JKSM3-DFCA-xxx
(xxx =400~440,in increment of 5) Group 24
JKSM3-CACA-xxx
JKSM3-CFCA-xxx
(xxx =335~370,in increment of 5) Group 25
JKSM3-DCCA-xxx
JKSM3-DHCA-xxx
(xxx =400~450,in increment of 5) Group 26
JKSM3-CCCA-xxx
JKSM3-CHCA-xxx
(xxx =340~380,in increment of 5) Group 27
JKSN3-DCCA-xxx
JKSN3-DHCA-xxx
(xxx =410~440,in increment of 5) Group 28

-17-
JKSN3-CCCA-xxx
JKSN3-CHCA-xxx
(xxx =345~370,in increment of 5) Group 29
JKMxxxM-72H-MBB-TV
JKMxxxM-72H-MBB-T
(xxx =385~405,in increment of 5) Group 30
JKMxxxM-60H-MBB-TV
JKMxxxM-60H-MBB-T
(xxx =320~335,in increment of 5)
Notes:
PP: the eagle series module
Plus: the eagle+ series module
JKMS: the smart module
V:module with 1500V
H:half-cut series module
L: large cell series module
Jinko
Module
Wafer type
Technology
Cell
Number
Module Type
Cell
Junction
Box
STC condition:
JKS
p-type Mono: M
Full cell: 1
60: A
1500V Normal
mono-facial: A
158 5BB
Mono-facial: A
Normal: A
BSTC
condition: JKB
Poly: P
Half cell: 2
72: B
1500V All black
mono-facial: B
158 5BB
Bi-facial: B
MX: B
N-type Mono: N
TR: 3
66: C
1500V
Transparent back
sheet: C
158 9BB
Bi-facial: C
MX3: C
Shingling: 4
78: D
1500V Bifacial
dual glass: D
161 9BB
Bi-facial: D
EP: D
1500V
mono-facial dual
glass: E
163 9BB
Bi-facial: E
TI: E
1000V Normal
mono-facial: F
1000V All black
mono-facial: G
1000V
Transparent back
sheet: H
1000V Bifacial
dual glass: I
1000V
mono-facial dual
glass: J

-18-
Note
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
