Jinko Solar JKM***P-60 User manual

JinkoSolar
Photovoltaic Module
Installation Manual

Contents
1
1
26
1
3
3
4
4
4
5
5
6
22
24
25
25
Edition 04/2020
24
25
24
12
Appendix2：Electrical Specifications 31
1 General Information
2. Installation
1.1 Overview
1.2 Warnings
2.1 Installation Safety
2.2 Installation Condition
2.3 Mechanical Installation Introduction
2.2.1 Climate Condition
2.2.2 Site Selection
2.3.1 Mounting with Bolts
2.2.3 Tilt Angle Selection
4 Maintenance and Care
5 Electrical Specification
4.1 Visual Inspection
4.3 Inspection of Connector and Cable
6 Disclaimer of Liability
4.2 Cleaning
2.3.2 Mounting with Clamps
Appendix1：Applicable Products
3 Wiringand Connections

-1-
1. General Information
1.1 Overview
Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules are installed correctly,
please read the following installation instructions carefully before modules are installed and used.
Please remember that these products generate electricity and certain safety measures need to be taken
to avoid danger.
Make sure the module array is designed in such a way not to exceed the maximum system voltage of
any system component such as connectors or inverters.
The assembly is to be mounted over a fire resistant roof covering rated for the application. Before
mounting the module, please consult your local building department to determine approved roofing
materials.
The modules are qualified for application class A: Hazardous voltage (IEC 61730: higher than 50V DC;
EN 61730: higher than 120V), hazardous power applications (higher than 240W) where general contact
access is anticipated. Modules qualified for safety through EN IEC 61730 -1 and - 2 within this application
class are considered to meet the requirements for Safety Class II.
1.2 Warnings
PV modules generate DC electrical energy when exposed to sunlight or other light sources. Active
parts of module such as terminals can result in burns, sparks, and lethal shock.
Artificially concentrated sunlight shall not be directed on
the module or panel.
Front protective glass is utilized on the module. Broken
solar module glass is an electrical safety hazard (may
cause electric shock or fire). These modules cannot be
repaired and should be replaced immediately.
To reduce the risk of electricalshocks or burns, modules
may be covered with an opaque material during installation to avoid injury.
The installation work of the PV array can only be done under the protection of sun-sheltering covers
or sunshades and only qualified person can install or perform maintenance work on this module.
Follow the battery manufacture’s recommendations if batteries are used with modules.
Do not use this module to replace or partly replace roofs and walls of living buildings.
Do not install modules where flammable gas may be present.
Do not remove any part installed by Jinko Solar or disassemble the module.

-2-
All instructions should be read and understood before attempting to install, wire, operate and
maintain the module.
Don’t lift up PV modules using the attached cables or the junction box.
Do not touch live terminals with bare hands. Use insulated tools for electrical connections.
All PVsystems must begrounded to earth. If thereis no special regulation,please followthe National
Electrical Code or other national code.
Under normal conditions, a photovoltaic module is likely to experience conditions that produce more
current and/or voltage than reported at standard test conditions. Accordingly, the value of Isc and
Voc marked on the module should be multiplied by 1.25 when determining PV system component
voltage ratings, conductor current ratings, fusesizes, and size of controls connected tothePV output.
Once the PV module has been shipped to the installation site, all of the parts should be unpacked
properly with care.
Do not stand or step on the PV module like below pictures show. This is prohibited and there is a
risk of damage to the module and cause injury for you.
Only PV modules with the same cell size should be connected in series.
During transporting modules, please attempt to minimize shock or vibration to the module, as this
may damage the module or lead to cell micro cracks.
During all transportation situations, never drop the module from a vehicle, house or hands. This will
damage module.
Do not clean the glass with chemicals. Only use tap water. Make sure the module surface
temperature is cool to the touch. Cleaning modules with cool water when module surface temp is
high may result in glass breakage.

-3-
Do not disconnect any of the modules when under load.
When looking at PV modules with anti-reflection (AR) coating technology, it will be normal to see
some cells with a slight color difference at different angles. Modules with LRF(light reflective film)
and without LRF should not be built in the same array or roof.
Connector of junction box can not be contacted with oily substances, for example, lubricant, rust
inhibitor etc.
The maximum altitude the PV module is designed for ≤ 2000m.
The maximum irradiance is 1300W/m2for module with transparent rear.
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.
Contact your local government for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally
obligated to take back your old appliance for disposals at least free of
charge.
2. Installation
2.1 Installation Safety
Always wear protective head gear, insulating gloves and safety shoes (with rubber soles).
Keep the PV module packed in the carton until installation.
Do not touch the PV module unnecessarily during installation. The glass surface and the frame may
be hot. There is a risk of burns and electric shock.
Do not work in rain, snow or windy conditions.
Due to the risk of electrical shock, do not perform any work if the terminals of the PV module are wet.
Use insulated tools and do not use wet tools.
When installing PV modules, do not drop any objects (e.g., PV modules or tools).
Make sure flammable gasses are not generated or present near the installation site.
Insert module connectors fully and correctly. An audible "click" sound should be heard. This sounds
confirms the connectors are fully seated. Check all connections.
The module leads should be securely fastened to the module frame, Wire Management should be

-4-
done in a way to avoid the connector from scratching or impacting the back sheet of the module.
Do not touch the junction box and the end of the interconnect cables (connectors) with bare hands
during installation or under sunlight, regardless if the PV module is connected to or disconnected
from the system.
Do not expose the PV module to excessive loads on the surface of the PV module or twist the frame.
Do not hit or put excessive load on the glass or back sheet, this may break the cells or cause micro
cracks.
During the installation or operation, don’t use sharp tools to wipe the back sheet and glass. Scratches
can appear on the module.
Do not drill holes in the frame. It may cause corrosion of the frame.
When installing modules on roof mounted structures, please try to follow the “from top to bottom”
and/or “from left to right” principle, and don’t step on the module. This will damage the module and
would be dangerous for personal safety.
2.2 Installation Condition
2.2.1 Climate Condition
Please install the modules in the following conditions:
a) Operating temperature: within –40°C(-40℉) to 85°C (185℉)
b) Humidity: < 85RH%
﹡Note: The mechanical load bearing (include wind and snow loads) of the module is based on the
approved mounting methods. The professional system installer must be responsible for mechanical load
calculation according to the system design.
2.2.2 Site Selection
In most applications, Jinko solar PV modules should be installed in a location where they will receive
maximum sunlight throughout the year. In the Northern Hemisphere, the module should typically face
south, and in the Southern Hemisphere, the modules should typically face north. Modules facing 30
degrees away from true South (or North) will lose approximately10 to 15 percent of their power output. If
the module faces 60 degrees away from true South (or North), the power loss will be 20 to 30 percent.
When choosing a site, avoid trees, buildings or obstructions, which could cast shadows on the solar
photovoltaic modules especially during the winter months when the arc of the sun is lowest over the
horizon. Shading causes loss of output, even though the factory fitted bypass diodes of the PV module
will minimize any such loss.
Do not install the PV module near open flame or flammable materials.
When solar modules are used to charge batteries, the battery must be installed in a manner, which will
protect the performance of the system and the safety of its users. Follow the battery manufacturer’s

-5-
guidelines concerning installation, operation and maintenance recommendations. In general, the battery
(or battery bank) should be away from the main flow of people and animal traffic. Select a battery site
that is protected from sunlight, rain, snow, debris, and is well ventilated. Most batteriesgenerate hydrogen
gas when charging, which can be explosive. Do not light matches or create sparks near the battery bank.
When a battery is installed outdoors, it should be placed in an insulated and ventilated battery case
specifically designed for the purpose.
Do not install the PV module in a location where it would be immersed in water or continually exposed to
water from a sprinkler or fountain etc.
2.2.3 Tilt Angle Selection
The tilt angle of the PV module is measured between the surface of the PV module and a horizontal
ground surface (Figure 1). The PV module generates maximum output power when it faces the sun
directly.
For standalone systems with batteries where the PV modules are attached to a permanent structure, the
tilt angle of the PV modules should be selected to optimize
the performance based on seasonal load and sunlight. In
general, if the PV output is adequate when irradiance is
low (e.g., winter), then the angle chosen should be
adequate during the rest of the year. For grid-connected
installations where the PV modules are attached to a
permanent structure, PV modules should be tilted so that
the energy production from the PV modules will be
maximized on an annual basis.
Figure1: PV module tilt angle
2.3 Mechanical Installation Introduction
Solar PV modules usually can be mounted by using the following methods: bolts and clamps.
﹡Note:
1) All installation methods herein are only for reference, andJinko solar will not provide relatedmounting
components, the system installer or trained professional personnel must be responsible for the PV
system’s design, installation, and mechanical load calculation and security of the system.
2) Before installation, the following items should be addressed:
a) Visually check the module for any damage. Clean the module if any dirt or residue remains from
shipping .
b) Check if module serial number stickers match.
3) Jinko modules are designed to meet a maximum positive (or downward) pressure of 3600Pa (Only

-6-
refer to the mentioned module type in this manual) and negative (or upward) pressure of 1600Pa.
This design load was then tested with a safety factor of 1.5 times. So Jinko modules are tested under
a maximum downward pressure of 5400Pa and upward pressure of 2400Pa. When mounting
modules in snow-prone or high-wind environments, special care should be taken to mount the
modules in a manner that provides sufficient design strength while meeting local code requirements.
2.3.1 Mounting with Bolts
For mounting with bolts, the following modules in tables 1 are applicable.
The frame of each module has 8 mounting holes (Length* Width: 14mm*9mm) used to secure the
modules to support structure. Always use all the eight mounting holes to secure themodules.The module
frame must be attached to a mounting rail using M8 corrosion-proof bolts together with spring washers
and flat washers in eight symmetrical locations on the PV module. The applied torque value should be
big enough to fix themodules steadily. Thereference value forM8 bolt is 16~20N*m. As to special support
system or special installation requirement, please reconfirm with the support’s supplier for the torque
value. Please find detailed mounting information in the below illustration as Figure 2&3&4.

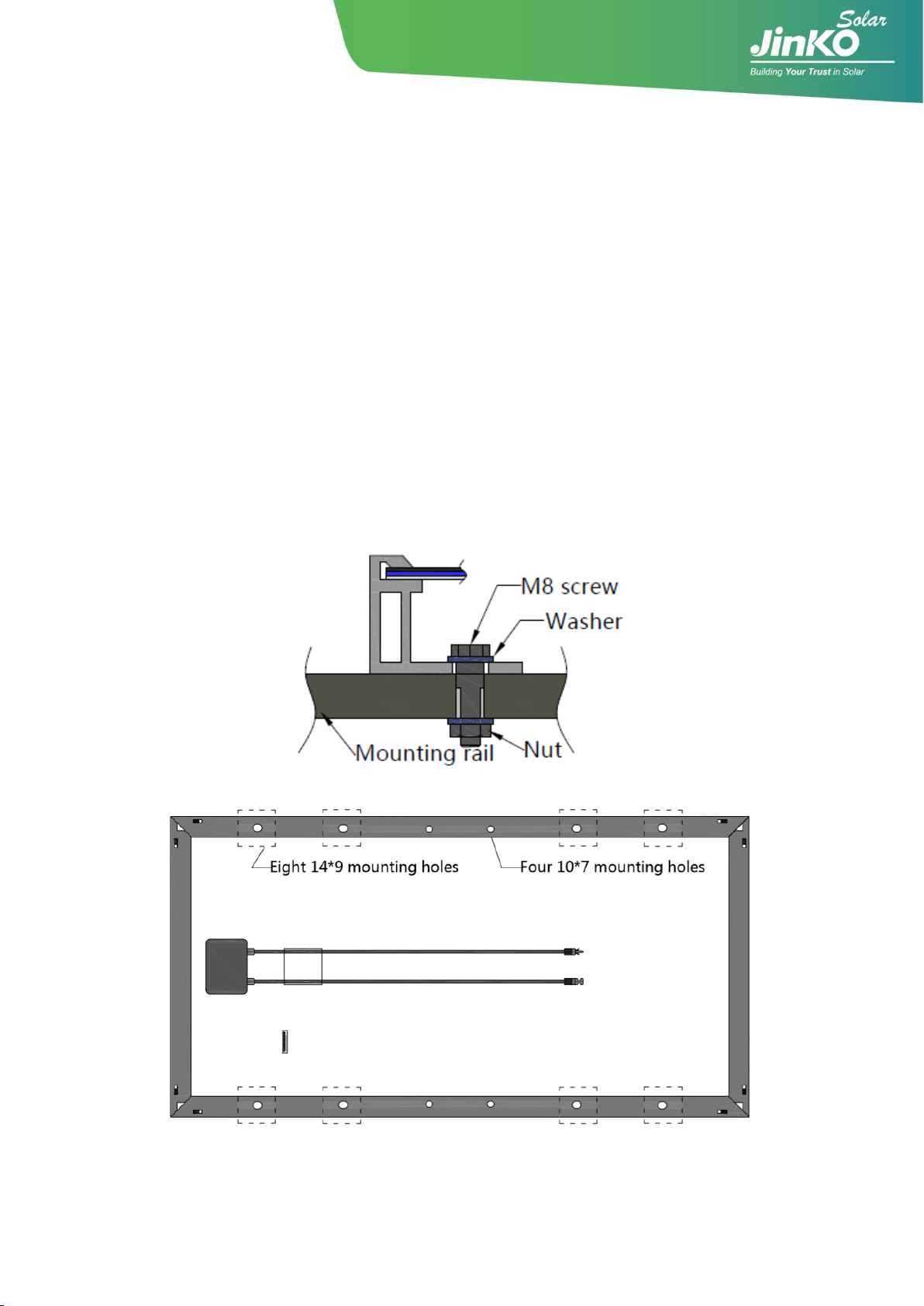

2.3.1.1 Mounting with Bolts（eight mounting holes）
Figure 2: PV module installed with bolt fitting method（eight mounting holes）

-7-
Module type
Max. Design Pressure:
3600Pa (positive ) &1600Pa
(negative) mechanical load
Max. Design Pressure: 3600Pa (positive )
&1600Pa (negative) mechanical load
Note：The installation method is based
on the internal results in Jinko.
Module dimensions(mm)
A*B
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
Group 2
1665*992 & 1684*1002
Group 3
1650*992 & 1665*1002
Group 4
1665*992 & 1684*1002
Group 5
1650*992 & 1665*1002
Group 6
1665*992 & 1684*1002
Group 7
1650*992 & 1665*1002
Group 8
1665*992 & 1684*1002
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
Group 20
1704*1008
Group 22
1684*1002
Group 30
1704*1008
Group 46
1684*1002
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
Group 11
1987*992 & 2008*1002
Group 12
1956*992 & 1979*1002
Group 13
1987*992 & 2008*1002
Group 14
1956*992 & 1979*1002
Group 15
1987*992 & 2008*1002
Group 16
1956*992 & 1979*1002
Group 17
1987*992 & 2008*1002
Group 18
1987*992 & 2008*1002 & 2031*1008
Group 19
2031*1008
Group 21
2008*1002
Group 29
2031*1008
Group 45
2008*1002
66P
Height of the frame（mm）
35
30
Group 24
1796*995 & 1796*998
Group 26
1822*1008
Group 28
1822*1008
Group 32
1840*998 & 1841*1002
Group 34
1868*1008 & 1865*1005

-8-
Group 36
1868*1008 & 1865*1005
Group 38
1840*998 & 1841*1002
Group 40
1842*1021 & 1842*1024
1855*1029 & 1855*1032
Group 42
1868*1034 & 1878*1032
Group 44
1868*1034 & 1878*1032
Group 48
1842*1021 & 1842*1024
1855*1029 & 1855*1032
78P
Height of the frame（mm）
40
35
Group 23
2113*995 & 2113*998
Group 25
2130*1002 & 2139*1008
Group 27
2130*1002 & 2139*1008
Group 31
2163*995 & 2167*997 & 2167*998 & 2166*1002
Group 33
2194*1008 & 2190*1005
Group 35
2194*1008 & 2190*1005
Group 37
2163*995 & 2167*997 & 2167*998 & 2166*1002
Group 39
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Group 41
2194*1034 & 2205*1032
Group 43
2194*1034 & 2205*1032
Group 47
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Table 1: Mechanical dimensions for bolt fitting method（eight mounting holes）
Notes：Group 1~48 refer to appendix 1 for details.
According to IEC 61215 for a maximum positive design loading of below 3600Pa, and negative design
loading 1600Pa, with 1.5 times safety factor.
2.3.1.2 Mounting with Bolts（four mounting holes）
Figure 3: PV module installed with bolt fitting method（four mounting holes）

-9-
Module type
Max. Design Pressure: 3600Pa (positive )
&1600Pa (negative) mechanical load
Module dimensions(mm)
A*B
60P
Height of the frame（mm）
30
Group 1
1650*992 & 1665*1002
Group 2
1665*992 & 1684*1002
Group 3
1650*992 & 1665*1002
Group 4
1665*992 & 1684*1002
Group 5
1650*992 & 1665*1002
Group 6
1665*992 & 1684*1002
Group 7
1650*992 & 1665*1002
Group 8
1665*992 & 1684*1002
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
Group 20
1704*1008
Group 22
1684*1002
Group 30
1704*1008
Group 46
1684*1002
72P
Height of the frame（mm）
30
Group 10
1956*992 & 1979*1002
Group 11
1987*992 & 2008*1002
Group 12
1956*992 & 1979*1002
Group 13
1987*992 & 2008*1002
Group 14
1956*992 & 1979*1002
Group 15
1987*992 & 2008*1002
Group 16
1956*992 & 1979*1002
Group 17
1987*992 & 2008*1002
Group 18
1987*992 & 2008*1002 & 2031*1008
Group 19
2031*1008
Group 21
2008*1002
Group 29
2031*1008
Group 45
2008*1002
66P
Height of the frame（mm）
30
Group 24
1796*995 & 1796*998
Group 26
1822*1008
Group 28
1822*1008
Group 32
1840*998 & 1841*1002
Group 34
1868*1008 & 1865*1005
Group 36
1868*1008 & 1865*1005
Group 38
1840*998 & 1841*1002

-10-
Group 40
1842*1021 & 1842*1024
1855*1029 & 1855*1032
Group 42
1868*1034 & 1878*1032
Group 44
1868*1034 & 1878*1032
Group 48
1842*1021 & 1842*1024
1855*1029 & 1855*1032
78P
Height of the frame（mm）
35
Group 23
2113*995 & 2113*998
Group 25
2130*1002 & 2139*1008
Group 27
2130*1002 & 2139*1008
Group 31
2163*995 & 2167*997
2167*998 & 2166*1002
Group 33
2194*1008 & 2190*1005
Group 35
2194*1008 & 2190*1005
Group 37
2163*995 & 2167*997
2167*998 & 2166*1002
Group 39
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Group 41
2194*1034 & 2205*1032
Group 43
2194*1034 & 2205*1032
Group 47
2168*1021 & 2168*1024
2182*1029 & 2182*1032
Table 2: Mechanical dimensions for bolt fitting method（four mounting holes）
Note：The installation method of bolt fitting（four mounting holes）is based on the internal results in Jinko.
According to IEC 61215 for a maximum positive design loading of below 3600Pa, and negative design
loading 1600Pa, with 1.5 times safety factor.

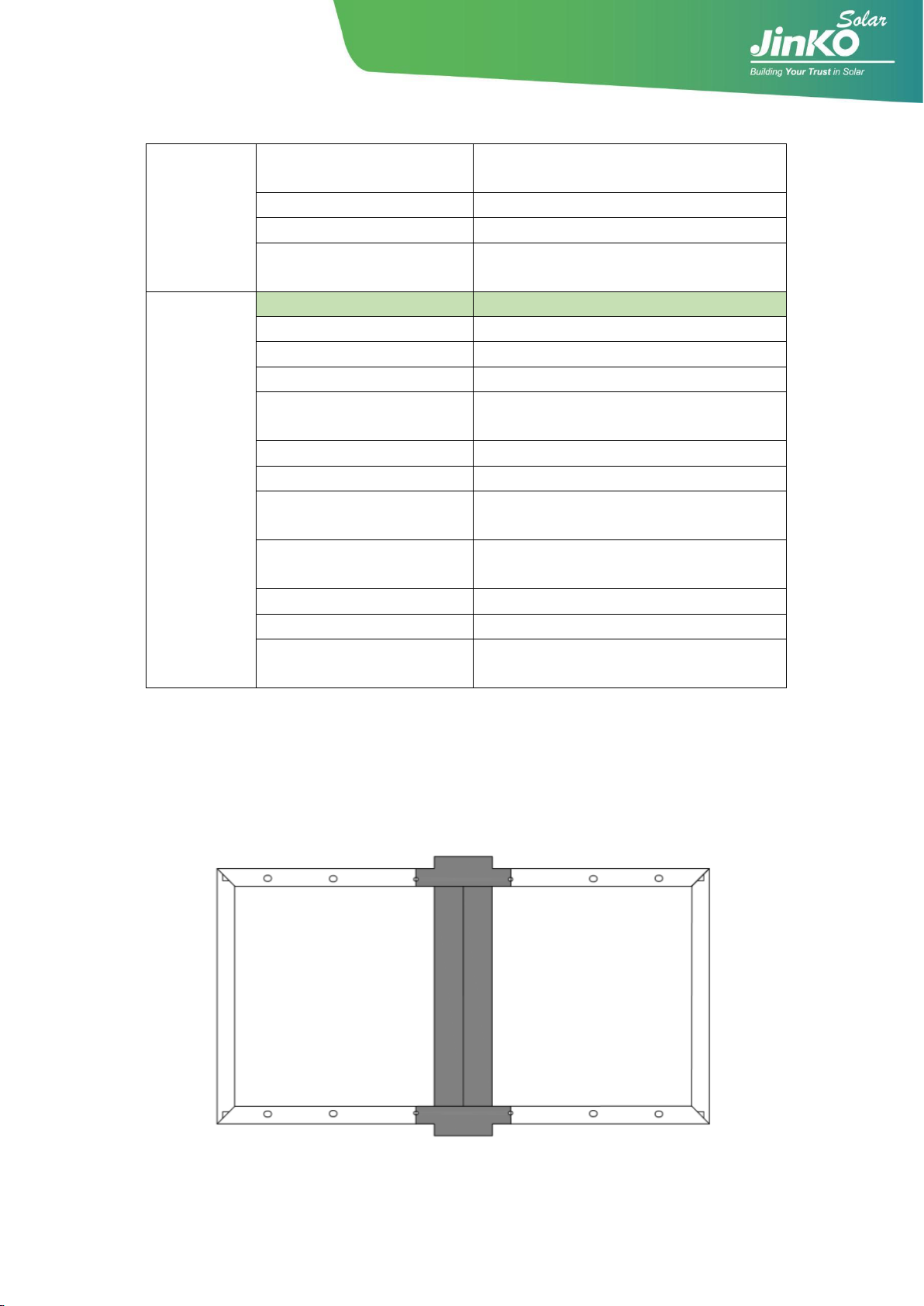

2.3.1.3 Mounting with Bolts（Nextracker four mounting holes）
Figure 4: PV module installed with bolt fitting method (NEX)

-11-
Module type
Max. Design Pressure: 1067Pa (positive ) &1067Pa
(negative) mechanical load
Module dimensions(mm)
A*B
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
Group 2
1665*992 & 1684*1002
Group 3
1650*992 & 1665*1002
Group 4
1665*992 & 1684*1002
Group 5
1650*992 & 1665*1002
Group 6
1665*992 & 1684*1002
Group 7
1650*992 & 1665*1002
Group 8
1665*992 & 1684*1002
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
Group 20
1704*1008
Group 22
1684*1002
Group 30
1704*1008
Group 46
1684*1002
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
Group 11
1987*992 & 2008*1002
Group 12
1956*992 & 1979*1002
Group 13
1987*992 & 2008*1002
Group 14
1956*992 & 1979*1002
Group 15
1987*992 & 2008*1002
Group 16
1956*992 & 1979*1002
Group 17
1987*992 & 2008*1002
Group 18
1987*992 & 2008*1002 2031*1008
Group 19
2031*1008
Group 21
2008*1002
Group 29
2031*1008
Group 45
2008*1002
78P
Height of the frame（mm）
40
35
Group 23
2113*995 & 2113*998
Group 25
2130*1002 & 2139*1008
Group 27
2130*1002 & 2139*1008
Group 31
2163*995 & 2167*997 & 2167*998 & 2166*1002
Group 33
2194*1008 & 2190*1005
Group 35
2194*1008 & 2190*1005
Group 37
2163*995 & 2167*997 & 2167*998 & 2166*1002

-12-
Group 39
2168*1021 & 2168*1024 & 2182*1029 & 2182*1032
Group 41
2194*1034 & 2205*1032
Group 43
2194*1034 & 2205*1032
Group 47
2168*1021 & 2168*1024 & 2182*1029 & 2182*1032
Table 3: Mechanical dimensions for bolt fitting method (NEX)
Note：The installation method of bolt fitting (NEX) is based on the experimental results in Jinko.
According to IEC 61215 for a maximum positive design loading of below 1067Pa, and negative design
loading 1067Pa, with 1.5 times safety factor.
2.3.2 Mounting with clamps
The module clamps should not come into contact with the front glass and must not deform the frame. Be
sure to avoid shadowing effects from the module clamps. The module frame is not to be modified under
any circumstances. When choosing this type of clamp-mounting method, please be sure to use at least
four clamps on each module, two clamps should be attached on each long sides of the module.
Depending on the local wind and snow loads, if excessive pressure load is expected, additional clamps
or support would be required to ensure the module can bear the load. The applied torque value should
be big enough to fix the modules steadily (Please consult with the clamp or support’s supplier for the
specific torque value). Please find detailed mounting information in the below illustration, the mounting
place distance is suggested bigger than J and less than K. The installation diagram of clamp is shown in
figure 5.
Note: The Movement of the mounting rail and the clamps center line are recommended to be within the
black arrow area.
The min length of clamps is 50mm.

-13-
Figure 5: PV module installed at the side with Clamp fitting method
When installing modules using clamps on the long side of the frame, the applicable product types and
installation locations are shown in figure 6 and table 4.

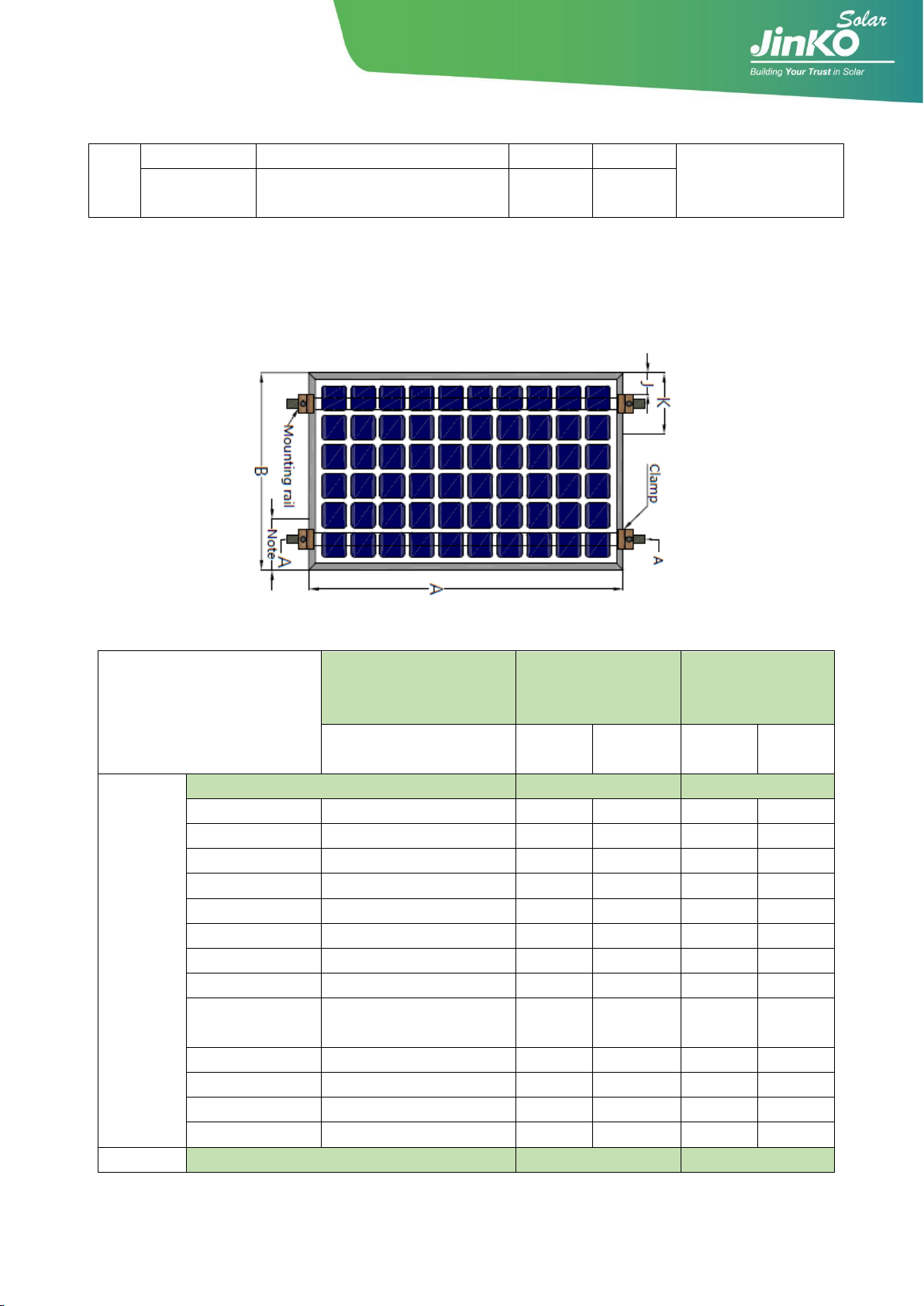

When installing modules using clamps on the short side of the frame, the applicable product types and
installation locations are shown in figure 7 and table 5.
When installing modules using clamps on the long side & short side of the frame, the applicable product
types and installation locations are shown in figure 8 and table 6.
When installing modules using clamps on the long side of the frame, the applicable product types and
installation locations (The without C transparent backsheet series module) are shown in figure 9 and
table 7.
Middle modules
Fringe modules

-14-

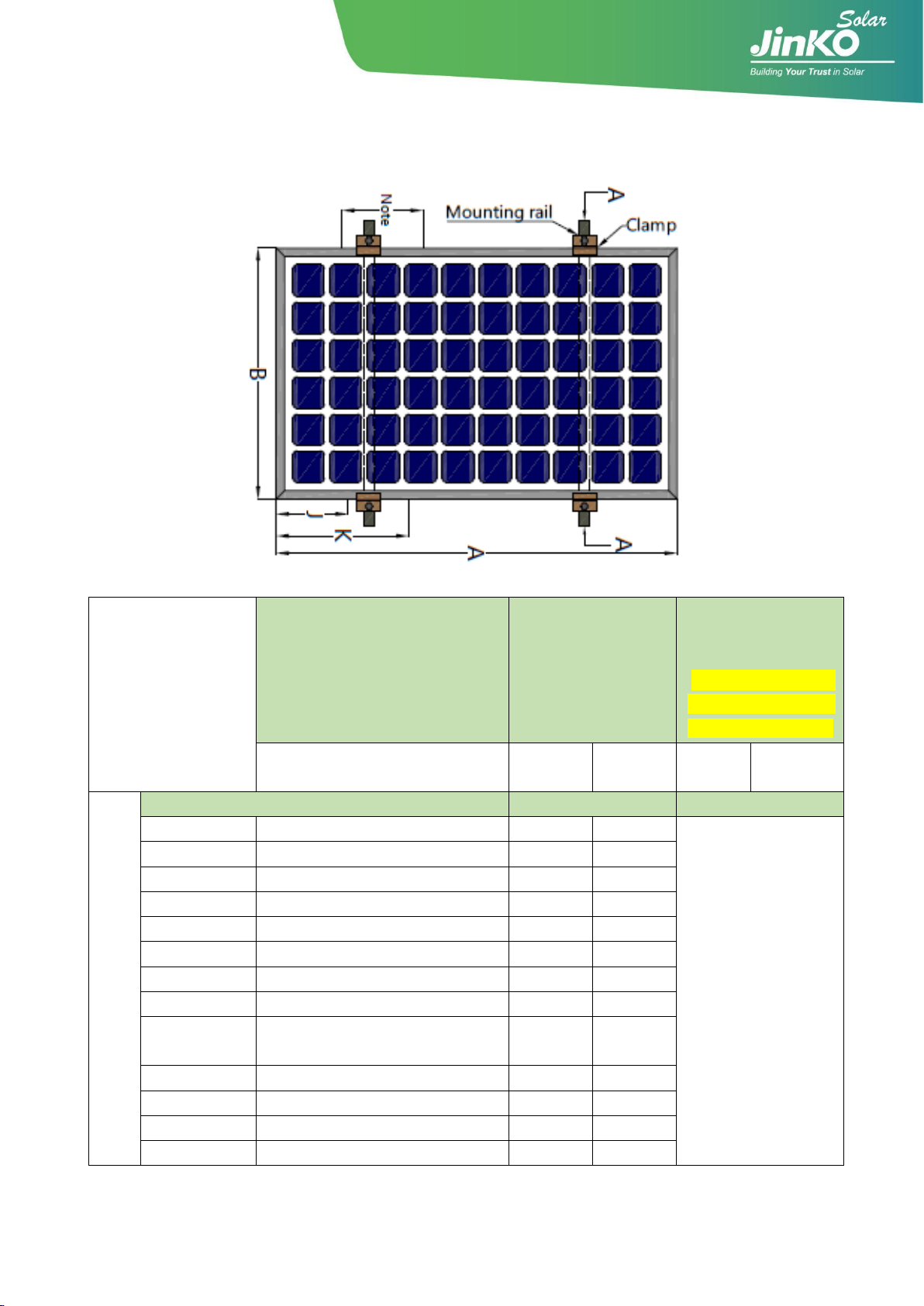

2.3.2.1 Clamp Mounting on Long Sides of the Frames
Figure 6: Installation of clamps on long side of frames
Module type
Max. Design Pressure:
3600Pa (positive )
&1600Pa (negative)
mechanical load
3600Pa (positive )
&1600Pa (negative)
mechanical load
Note：The installation
method is based on the
internal results in Jinko.
Module dimensions(mm)
A*B
J
K
J
K
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
280
420
L/4±50mm( L is the
length of the long side
of the module)
Group 2
1665*992 & 1684*1002
280
420
Group 3
1650*992 & 1665*1002
280
420
Group 4
1665*992 & 1684*1002
280
420
Group 5
1650*992 & 1665*1002
280
420
Group 6
1665*992 & 1684*1002
280
420
Group 7
1650*992 & 1665*1002
280
420
Group 8
1665*992 & 1684*1002
280
420
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
280
420
Group 20
1704*1008
280
420
Group 22
1684*1002
280
420
Group 30
1704*1008
280
420
Group 46
1684*1002
280
420

-15-
72P
Height of the frame（mm）
40
30
Group 10
1956*992 & 1979*1002
280
420
L/4±50mm( L is the
length of the long side
of the module)
Group 11
1987*992 & 2008*1002
280
420
Group 12
1956*992 & 1979*1002
280
420
Group 13
1987*992 & 2008*1002
280
420
Group 14
1956*992 & 1979*1002
280
420
Group 15
1987*992 & 2008*1002
280
420
Group 16
1956*992 & 1979*1002
280
420
Group 17
1987*992 & 2008*1002
280
420
Group 18
1987*992 & 2008*1002 & 2031*1008
280
420
Group 19
2031*1008
280
420
Group 21
2008*1002
280
420
Group 29
2031*1008
280
420
Group 45
2008*1002
280
420
66P
Height of the frame（mm）
35
30
Group 24
1796*995 & 1796*998
280
420
L/4±50mm( L is the
length of the long side
of the module)
Group 26
1822*1008
280
420
Group 28
1822*1008
280
420
Group 32
1840*998 & 1841*1002
280
420
Group 34
1868*1008 & 1865*1005
280
420
Group 36
1868*1008 & 1865*1005
280
420
Group 38
1840*998 & 1841*1002
280
420
Group 40
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
280
420
Group 42
1868*1034 & 1878*1032
280
420
Group 44
1868*1034 & 1878*1032
280
420
Group 48
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
280
420
78P
Height of the frame（mm）
40
35
Group 23
2113*995 & 2113*998
380
520
L/4±50mm( L is the
length of the long side
of the module)
Group 25
2130*1002 & 2139*1008
380
520
Group 27
2130*1002 & 2139*1008
380
520
Group 31
2163*995 & 2167*997
2167*998 & 2166*1002
380
520
Group 33
2194*1008 & 2190*1005
380
520
Group 35
2194*1008 & 2190*1005
380
520
Group 37
2163*995 & 2167*997
2167*998 & 2166*1002
380
520
Group 39
2168*1021 & 2168*1024 &
2182*1029 & 2182*1032
385
530
Group 41
2194*1034 & 2205*1032
390
540

-16-
Group 43
2194*1034 & 2205*1032
390
540
Group 47
2168*1021 & 2168*1024 &
2182*1029 & 2182*1032
385
530
Table 4: Mechanical dimensions of modules installed with clamps on long side of frame
According to IEC 61215 for a maximum positive design loading of below 3600Pa, and negative design
loading 1600Pa, with 1.5 times safety factor.
2.3.2.2 Clamp Mounting on Short Sides of the Frames
Figure 7: Installation of clamps on short side of frames
Module type
Max. Design Pressure:
1067Pa (positive )
&1067Pa (negative)
mechanical load
1067Pa (positive )
&1067Pa (negative)
mechanical load
Module dimensions(mm)
A*B
J
K
J
K
60P
Height of the frame（mm）
35
30
Group 1
1650*992 & 1665*1002
50
240
100
240
Group 2
1665*992 & 1684*1002
50
240
100
240
Group 3
1650*992 & 1665*1002
50
240
100
240
Group 4
1665*992 & 1684*1002
50
240
100
240
Group 5
1650*992 & 1665*1002
50
240
100
240
Group 6
1665*992 & 1684*1002
50
240
100
240
Group 7
1650*992 & 1665*1002
50
240
100
240
Group 8
1665*992 & 1684*1002
50
240
100
240
Group 9
1665*992 & 1684*1002
1672*992 & 1704*1008
50
240
100
240
Group 20
1704*1008
50
240
100
240
Group 22
1684*1002
50
240
100
240
Group 30
1704*1008
50
240
100
240
Group 46
1684*1002
50
240
100
240
72P
Height of the frame（mm）
40
30

-17-
Group 10
1956*992 & 1979*1002
50
240
100
240
Group 11
1987*992 & 2008*1002
50
240
100
240
Group 12
1956*992 & 1979*1002
50
240
100
240
Group 13
1987*992 & 2008*1002
50
240
100
240
Group 14
1956*992 & 1979*1002
50
240
100
240
Group 15
1987*992 & 2008*1002
50
240
100
240
Group 16
1956*992 & 1979*1002
50
240
100
240
Group 17
1987*992 & 2008*1002
50
240
100
240
Group 18
1987*992 & 2008*1002 &
2031*1008
50
240
100
240
Group 19
2031*1008
50
240
100
240
Group 21
2008*1002
50
240
100
240
Group 29
2031*1008
50
240
100
240
Group 45
2008*1002
50
240
100
240
66P
Height of the frame（mm）
35
30
Group 24
1796*995 & 1796*998
130
240
130
240
Group 26
1822*1008
130
240
130
240
Group 28
1822*1008
130
240
130
240
Group 32
1840*998 & 1841*1002
130
240
130
240
Group 34
1868*1008 & 1865*1005
130
240
130
240
Group 36
1868*1008 & 1865*1005
130
240
130
240
Group 38
1840*998 & 1841*1002
130
240
130
240
Group 40
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
130
240
130
240
Group 42
1868*1034 & 1878*1032
130
240
130
240
Group 44
1868*1034 & 1878*1032
130
240
130
240
Group 48
1842*1021 & 1842*1024 &
1855*1029 & 1855*1032
130
240
130
240
Table 5: Mechanical dimensions of modules installed with clamps on short side of frame
Note：The installation method of clamps on short sides is based on the internal results in Jinko.
According to IEC 61215 for a maximum positive design loading of below 1067Pa, and negative design
loading 1067Pa, with 1.5 times safety factor.

-18-
2.3.2.3 Clamp Mounting on Long & Short Sides
Figure 8: Installation methods of clamps on long and short sides
Module type
Max. Design
Pressure:
1600Pa (positive ) &1600Pa
(negative) mechanical load
1600Pa (positive ) &1600Pa (negative)
mechanical load
Module
dimensions(mm)
A*B
J
K
M
N
J
K
M
N
60P
Height of the frame（mm）
35
30
Group 1
1650*992 &
1665*1002
50
240
280
420
100
240
L/4±50mm( L is
the length of the
long side of the
module)
Group 2
1665*992 &
1684*1002
50
240
280
420
100
240
Group 3
1650*992 &
1665*1002
50
240
280
420
100
240
Group 4
1665*992 &
1684*1002
50
240
280
420
100
240
Group 5
1650*992 &
1665*1002
50
240
280
420
100
240
Group 6
1665*992 &
1684*1002
50
240
280
420
100
240
Group 7
1650*992 &
1665*1002
50
240
280
420
100
240
Group 8
1665*992 &
1684*1002
50
240
280
420
100
240
Group 9
1665*992 &
1684*1002
50
240
280
420
100
240
