Series DS-1 Dry-Type Sprinklers
5.6K Pendent, Upright, and Horizontal Sidewall
Quick Response, Standard Coverage
Page 1 of 10 NOVEMBER 2019 TFP510
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the “INSTALLER
WARNING” that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Worldwide
Contacts
www.tyco-fire.com
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condi-
tion. Contact the installing contrac-
tor or product manufacturer with any
questions.
The Series DS-1 Dry-Type Sprinklers
must only be installed in fittings that
meet the requirements of the Design
Criteria section.
Sprinkler
Identification
Numbers (SINs)
3/4 in. NPT:
TY3935 – Pendent
TY3735 – Horizontal Sidewall
1 in. NPT:
TY3235 – Pendent
TY3135 – Upright
TY3335 – Horizontal Sidewall
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
NYC Approved under MEA 352-01-E
Previous New York City Approval and
MEA certification numbers apply to
product as shown in this data sheet.
In accordance with Section BC 3502
of the Construction Code, current NYC
Approvals for use in the City of New
York apply to all products that contain
UL or FM Approvals and Listings;
therefore, not all products currently
Approved for use in the City of New
York will carry an actual MEA Certifi-
cation number.
See Tables A and B.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connections
3/4 in. NPT
1 in. NPT or ISO 7-R 1
Discharge Coefficient
K=5.6 gpm/psi½ (80,6 lpm/bar½)
General
Description

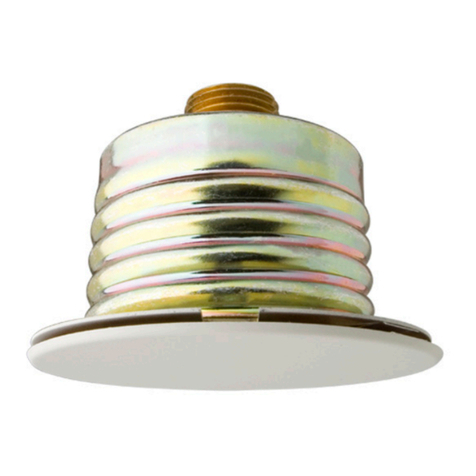

TYCO Series DS-1 Dry-Type Sprinklers,
5.6K Pendent, Upright, and Horizontal
Sidewall, Quick Response (3 mm bulb)
and Standard Coverage are decora-
tive glass bulb automatic sprinklers
designed for commercial use. Dry-type
sprinklers are typically used where:
• pendent sprinklers are required
on dry pipe systems that are
exposed to freezing temperatures
for example, sprinkler drops from
unheated portions of buildings
• sprinklers and/or a portion of the
connecting piping are exposed to
freezing temperatures; for example,
sprinkler drops from wet systems
into freezers, sprinkler sprigs from
wet systems into unheated attics, or
horizontal piping extensions through
a wall to protect an unheated areas
such as loading docks, overhangs,
and building exteriors
• sprinklers are used on systems that
are seasonally drained to avoid
freezing for example, vacation areas
NOTICE
The Series DS-1 Dry-Type Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any
Temperature Ratings
See Tables A and B
Finishes
Sprinkler: Natural Brass, Chrome Plated,
or Signal White
Escutcheon: Signal White, Chrome Plated,
or Brass Plated
Physical Characteristics
Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Yoke....................... Stainless Steel
Casing .............Galvanized Carbon Steel
Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Bulb Seat. . . . . . . . . . . . . . . . . . . Stainless Steel
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Guide Tube . . . . . . . . . . . . . . . . . Stainless Steel
Water Tube . . . . . . . . . . . . . . . . . Stainless Steel
Spring ..................... Stainless Steel
Plug Spring* . . . . . . . . . . . . . . . . Stainless Steel
Sealing Assembly . Beryllium Nickel w/TEFLON
Escutcheon ....Carbon Steel or Stainless Steel
* For 3/4 in. NPT only

TFP510
Page 2 of 10
WATER
TUBE
VENT HOLE
GUIDE
TUBE
SEALING
PLUG WITH
DEFLECTOR
SPRING
ASSEMBLY
FRAME
3 mm BULB
INSERT
YOKE
SCREW
INLET
CASING
BULB
COMPRESSION
SEAT
INLET
BAND
WATER
TUBE
VENT HOLE
GUIDE
TUBE
3 mm BULB
INSERT
SPRING
SCREW
INLET
SEALING
PLUG WITH
CASING
DEFLECTOR
BULB
YOKE
COMPRESSION
SEAT
ASSEMBLY
FRAME
SPRING
PLUG INLET
BAND
FIGURE 2
SERIES DS-1, 1 IN. NPT AND ISO 7-R 1 DRY-TYPE SPRINKLER
ASSEMBLY
FIGURE 1
SERIES DS-1, 3/4 IN. NPT, DRY-TYPE SPRINKLER
ASSEMBLY
Operation
When the TYCO Series DS-1 Dry-Type
Sprinklers, 5.6K Pendent, Upright, and
Horizontal Sidewall, Quick Response
(3 mm bulb) and Standard Coverage
are in service, water is prevented from
entering the assembly by the Plug with
Sealing Assembly in the Inlet of the
Sprinkler. See Figures 1 and 2.
The glass bulb contains a fluid that
expands when exposed to heat. When
the rated temperature is reached, the
fluid expands sufficiently to shatter
the glass Bulb, and the Bulb Seat is
released.
The compressed Spring is then able
to expand and push the Water Tube as
well as the Guide Tube outward. This
action simultaneously pulls inward on
the Yoke, withdrawing the Plug with
Sealing Assembly from the Inlet and
allowing the sprinkler to activate and
flow water.
Design
Criteria
The TYCO Series DS-1 Dry-Type Sprin-
klers, 5.6K Pendent, Upright, and Hor-
izontal Sidewall, Quick Response
(3 mm bulb) and Standard Cover-
age are intended for use in fire sprin-
kler systems designed in accordance
with the standard installation rules
recognized by the applicable Listing
or Approval agency; for example,
UL Listing is based on NFPA 13
requirements.
Sprinkler Fittings
Install the 3/4 or 1 in. NPT Series
DS-1 Dry-Type Sprinklers in the 3/4
or 1 in. NPT outlet or run of the follow-
ing fittings:
• malleable or ductile iron threaded
tee ttings that meet the dimen-
sional requirements of ANSI B16.3
(Class 150)
• cast iron threaded tee ttings that
meet the dimensional requirements
of ANSI B16.4 (Class 125)
Do not install the DS-1 Sprinklers
into an elbow fittings. The Inlet of the
sprinkler can contact the interior of the
elbow, potentially damaging the Inlet
seal.
The unused outlet of the threaded tee is
plugged as shown in Figure 13.
You can also install the Series DS-1
Dry-Type Sprinklers in the 3/4 or 1 in.
NPT outlet of a GRINNELL Figure 730
Mechanical Tee. However, the use of
the Figure 730 Tee for this arrangement
is limited to wet pipe systems.

TFP510
Page 3 of 10
1 in. NPT (and ISO 7-R 1)
TY3235 Pendent
with Recessed Escutcheon
(Figure 4)
TY3235 Pendent
with Standard Escutcheon
(Figure 3)
with Deep Escutcheon
(Figure 5)
without Escutcheon
(Figure 6)
TY3135 Upright
without Escutcheon5
(Figure 7)
TY3335 Horizontal Sidewall
with Top of Deector-to-Ceiling
Distance of 4 to 12 in.
(100 to 300 mm)
with Standard Escutcheon
(Figure 8)
with Deep Escutcheon
(Figure 9)
without Escutcheon
(Figure 10)
Temperature
Rating Bulb Color Code
Finish
Natural
Brass
Chrome
Plated
White
Polyester
Natural
Brass
Chrome
Plated
White
Polyester
Natural
Brass
Chrome
Plated
White
Polyester
135°F (57°C) Orange
1, 2, 3, 4 1, 2, 4 1, 2, 3, 4 1, 2, 4 1*, 2*, 3**, 4 1*, 2*, 4
155°F (68°C) Red
175°F (79°C) Yellow
200°F (93°C) Green
286°F (141°C ) Blue 1, 2, 4
Notes:
1. Listed by Underwriters Laboratories, Inc. (maximum order length of 48 in.)
2. Listed by Underwriters Laboratories for use in Canada (maximum order length of 48 in.)
3. Approved by Factory Mutual Research Corporation (maximum order length of 48 in.)
4. Approved by the City of New York under MEA 352-01-E
5. The Upright Sprinkler without an Escutcheon (TY3135) is available in 1 in. NPT only
* Light and Ordinary Hazard occupancies only
** Light Hazard occupancies only
3/4 in. NPT
TY3935 Pendent
with Recessed Escutcheon
(Figure 4)
TY3935 Pendent
with Standard Escutcheon
(Figure 3)
with Deep Escutcheon
(Figure 5)
without Escutcheon
(Figure 6)
TY3735 Horizontal Sidewall
with Top of Deector-to-Ceiling
Distance of 4 to 12 in.
(100 to 300 mm)
with Standard Escutcheon
(Figure 8)
with Deep Escutcheon
(Figure 9)
without Escutcheon
(Figure 10)
Temperature
Rating Bulb Color Code
Finish
Natural
Brass
Chrome
Plated
White
Polyester
Natural
Brass
Chrome
Plated
White
Polyester
Natural
Brass
Chrome
Plated
White
Polyester
135°F (57°C) Orange
1, 2 1, 2 1*, 2*
155°F (68°C) Red
175°F (79°C) Yellow
200°F (93°C) Green
286°F (141°C ) Blue
Notes:
1. Listed by Underwriters Laboratories, Inc. (maximum order length of 48 in.)
2. Listed by Underwriters Laboratories for use in Canada (maximum order length of 48 in.)
* Light and Ordinary Hazard occupancies only
TABLE A
3/4 IN. NPT SERIES DS-1 QUICK RESPONSE, STANDARD COVERAGE DRY-TYPE SPRINKLERS
LABORATORY LISTINGS AND APPROVALS
TABLE B
1 IN. NPT (AND ISO 7-R 1) SERIES DS-1 QUICK RESPONSE, STANDARD COVERAGE DRY-TYPE SPRINKLERS
LABORATORY LISTINGS AND APPROVALS

TFP510
Page 4 of 10
2-1/4" DIA.
(57,2 mm)
1-3/8" ± 1/8"
(34,9 ± 3,2 mm)
2-7/8" DIA.
(73,0 mm)
IN 1/4" (6,4 mm)
3-3/4" to 48"
INCREMENTS
(95,3 to 1219,2 mm)
ORDER LENGTHS:
SPRINKLER
FACE OF
FITTING
CEILING
FACE OF
CRITERIA SECTION)
(REFER TO DESIGN
SPRINKLER FITTING
ORDER LENGTHS:
INCREMENTS
4-1/4" ± 1/8"
(108,0 ± 3,2 mm)
IN 1/4" (6,4 mm)
(12,7 to 1168,4 mm)
1/2" to 46"
FACE OF
CEILING
(88,9 mm)
3-1/2" DIA.
2-1/2" DIA.
(63,5 mm)
FITTING
FACE OF
SPRINKLER
CRITERIA SECTION)
(REFER TO DESIGN
SPRINKLER FITTING
ORDER LENGTHS:
(69,9 to 1219,2 mm)
2-3/4" to 48"
IN 1/4" (6,4 mm)
INCREMENTS
FITTING
FACE OF
SPRINKLER
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
(76,2 mm)
3" DIA.
1-3/4" DIA.
(44,5 mm)
(55,6 ± 3,2 mm)
2-3/16" ± 1/8"
CEILING
FACE OF
SPRINKLER
FACE OF
FITTING
(127,0 to 1219,2 mm)
INCREMENTS
IN 1/4" (6,4 mm)
ORDER LENGTHS:
5" to 48"
DEFLECTOR
TO CEILING
1-3/4" (44,5 mm)
MINIMUM
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
TOP OF
DEFLECTOR
CRITERIA SECTION)
(REFER TO DESIGN
SPRINKLER FITTING
SPRINKLER
FITTING
FACE OF
IN 1/4" (6,4 mm)
INCREMENTS
(127,0 to 1219,2 mm)
5" to 48"
ORDER LENGTHS:
FIGURE 5
PENDENT TY3235 AND TY3935
WITH DEEP
ESCUTCHEON
FIGURE 6
PENDENT TY3235 AND TY3935
WITHOUT
ESCUTCHEON
FIGURE 3
PENDENT TY3235 AND TY3935
WITH STANDARD
ESCUTCHEON
FIGURE 4
PENDENT TY3235 AND TY3935
WITH RECESSED
ESCUTCHEON
FIGURE 7
UPRIGHT TY3135
WITHOUT ESCUTCHEON
1 IN. NPT ONLY

TFP510
Page 5 of 10
3.5° 5/16"
(7,9 mm)
CENTERLINE
OF WATERWAY
FITTING
SPRINKLER
FACE OF
2-1/4" (57,2 mm)
DEFLECTOR TO
5-1/2" to 48" (139,7 to 1219,2 mm)
IN 1/4" (6,4 mm) INCREMENTS
ORDER LENGTHS:
MINIMUM
MOUNTING
SURFACE
SPRINKLER FITTING
CRITERIA SECTION)
(REFER TO DESIGN
FACE OF
SPRINKLER
FITTING
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
CENTERLINE
OF WATERWAY
FACE OF
MOUNTING
SURFACE
ORDER LENGTHS:
1/2" to 45-3/4" (12,7 to 1162,1 mm)
IN 1/4" (6,4 mm) INCREMENTS
5/16"
(7,9 mm)
3.5°
2-1/2" DIA.
(63,5 mm)
4-1/4" ± 1/8"
(108,0 ± 3,2 mm)
3-1/2" DIA.
(88,9 mm)
FACE OF
SPRINKLER
FITTING
SPRINKLER FITTING
(REFER TO DESIGN
CRITERIA SECTION)
CENTERLINE
OF WATERWAY
1-3/4" DIA.
(44,5 mm)
FACE OF
MOUNTING
SURFACE
ORDER LENGTHS:
2-3/4" to 48" (69,9 to 1219,2 mm)
IN 1/4" (6,4 mm) INCREMENTS
3" DIA.
(76,2 mm)
5/16"
(7,9 mm)
2-3/8" ± 1/8"
(60,3 ± 3,2 mm)
3.5°
FIGURE 8
TY3335 AND TY3735 HORIZONAL SIDEWALL
WITH STANDARD ESCUTCHEON
FIGURE 9
TY3335 AND TY3735 HORIZONAL SIDEWALL
WITH DEEP ESCUTCHEON
FIGURE 10
TY3335 AND TY3735 HORIZONAL SIDEWALL
WITHOUT ESCUTCHEON
The configuration shown in Figure 12
is only applicable for wet pipe systems
where the sprinkler fitting and water-
filled pipe above the sprinkler fitting are
not subject to freezing and where the
length of the Dry-Type Sprinkler has the
minimum exposure length depicted in
Figure 11. See the Exposure Length
section.
For wet pipe system installations of the
1 in. NPT Series DS-1 Dry-Type Sprin-
klers connected to CPVC piping, use
only the following TYCO CPVC fittings:
• 1 in. x 1 in. NPT Female Adapter
(P/N 80145)
• 1 in. x 1 in. x 1 in. NPT Sprinkler
Head Adapter Tee (P/N 80249)
For wet pipe system installations of the
the 3/4 in. NPT Series DS-1 Sprinklers
connected to CPVC piping, use in the
3/4 in. x 3/4 in. NPT Female Adapter
(P/N 80142).
For dry pipe system installations, use
only the side outlet of maximum 2 1/2 in.
reducing tee when locating the Series
DS-1 Sprinklers directly below the
branch line. Otherwise, use the con-
figuration shown in Figure 13 to assure
complete water drainage from above
the Series DS-1 Dry-Type Sprinklers
and the branch line. Failure to do so
may result in pipe freezing and water
damage.
NOTICE
Do not install the Series DS-1 Dry-Type
Sprinkler into any other type fitting.
Failure to use the appropriate fitting
may result in one of the following:
• failure of the sprinkler to operate
properly due to formation of ice
over the inlet Plug or binding of the
Inlet Plug
• insufficient engagement of the
Inlet pipe threads with consequent
leakage
Drainage
In accordance with the minimum
requirements of the NATIONAL FIRE
PROTECTION ASSOCIATION for dry
pipe sprinkler systems, branch, cross,
and feed-main piping connected to Dry
Sprinklers and subject to freezing tem-
peratures must be pitched for proper
drainage.
Exposure Length
When using Dry Sprinklers in wet pipe
sprinkler systems to protect areas
subject to freezing temperatures, use

TFP510
Page 6 of 10
RECESS
WRENCH
FLAT
WRENCH
WITH SPRINKLER
ENGAGEMENT
IN TO ENSURE
WRENCHING AREA
PUSH WRENCH
SIDE
OUTLET
PLUGGED
TO WET
SYSTEM
FITTING
(SEE DESIGN
CRITERIA
SECTION)
SPRINKLER
DSB-2
INTENDED
FOR FREEZER
STRUCTURES
HEATED
AREA
RUN
OUTLET
PLUGGED
TO DRY
SYSTEM
DSB-2
INTENDED
FOR FREEZER
STRUCTURES
FITTING
(SEE DESIGN
CRITERIA
SECTION)
SPRINKLER
AREA
SUBJECT
TO
FREEZING
INSULATED
FREEZER
STRUCTURE
STRAP TIES
(ENDS ON
OPPOSING
SIDES OF
BOOT)
ADHESIVE
DS-1
SHOWN WITH
STANDARD
ESCUTCHEON
1-3/4" DIA.
(44,5 mm)
CLEARANCE
HOLE
DSB-2
BOOT
(SEE DESIGN
CRITERIA
SECTION)
FACE OF
SPRINKLER
FITTING
LENGTH
EXPOSURE
DSB-2
INTENDED
FOR FREEZER
STRUCTURES
HEATED
AREA
INSULATED
FREEZER
STRUCTURE
STRAP TIES
(ENDS ON
OPPOSING
SIDES OF
BOOT)
ADHESIVE
DS-1
SHOWN WITH
STANDARD
ESCUTCHEON
1-3/4" DIA.
(44,5 mm)
CLEARANCE
HOLE
DSB-2 BOOT
FIGURE 16
W-TYPE 7
SPRINKLER
WRENCH
FIGURE 12
SPRINKLER FITTING
HEATED AREA
FIGURE 15
MODEL DSB-2 SPRINKLER
BOOT WITH SIDEWALL SERIES
DS-1 DRY SPRINKLER
FIGURE 13
SPRINKLER FITTING
UNHEATED AREA
FIGURE 11
EXPOSURE
LENGTH
FIGURE 14
MODEL DSB-2 SPRINKLER
BOOT WITH PENDENT SERIES
DS-1 DRY SPRINKLER

TFP510
Page 7 of 10
Ambient Temperature
Exposed to
Discharge End of Sprinkler
Temperatures for Heated Area1
40°F
(4°C)
50°F
(10°C)
60°F
(16°C)
Minimum Exposed Barrel Length2,
in.
(mm)
40°F
(4°C) 0 0 0
30°F
(-1°C ) 0 0 0
20°F
(-7°C)
4
(100) 0 0
10°F
(-12°C )
8
(200)
1
(25) 0
0°F
(-18°C )
12
(305)
3
(75) 0
-10°F
(-23°C)
14
(355)
4
(100)
1
(25)
-20°F
(-29°C)
14
(355)
6
(150)
3
(75)
-30°F
(-34°C)
16
(405)
8
(200)
4
(100)
-40°F
(-40°C)
18
(455)
8
(200)
4
(100)
-50°F
(-46°C)
20
(510 )
10
(255)
6
(150)
-60°F
(-51°C)
20
(510 )
10
(255)
6
(150)
Notes:
1. For protected area temperatures that occur between values listed above, use the next
cooler temperature.
2. These lengths are inclusive of wind velocities up to 30 mph (18,6 kph).
TABLE C
EXPOSED SPRINKLER BARRELS IN WET PIPE SYSTEMS
MINIMUM RECOMMENDED LENGTHS
meet the requirements of the Design
Criteria section. See the Design Crite-
ria section for other important require-
ments regarding piping design and
sealing of the clearance space around
the Sprinkler Casing.
Do not install any bulb-type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 in.
(1,6 mm) for the 135°F (57°C) rating to
1/8 in. (3,2 mm) for the 286°F (141°C)
rating.
• A leak-tight 3/4 in. NPT sprinkler
joint should be obtained by applying
a minimum-to-maximum torque of
10 to 20 lb-ft (13,4 to 26,8 N·m).
• A leak-tight 1 in. NPT sprinkler joint
should be obtained by applying a
minimum-to-maximum torque of 20
to 30 lb-ft (26,8 to 40,2 N·m).
Higher levels of torque can distort the
sprinkler Inlet with consequent leakage
or impairment of the sprinkler.
Do not attempt to compensate for
insufficient adjustment in an Escutch-
eon Plate by under or over-tightening
the sprinkler. Re-adjust the position of
the sprinkler fitting to suit.
Step 1. Install pendent sprinklers only
in the pendent position, and install
upright sprinklers only in the upright
position. The deflector of a pendent or
upright sprinkler must be parallel to the
ceiling.
Install horizontal sidewall sprinklers in
the horizontal position with their cen-
terline of waterway perpendicular to
the back wall and parallel to the ceiling.
Ensure the word “TOP” on the Deflector
faces the ceiling.
Step 2. With a non-hardening pipe-
thread sealant such as TEFLON tape
applied to the Inlet threads, hand-
tighten the sprinkler into the sprinkler
fitting.
Step 3. Wrench-tighten the sprinkler
using either:
• a pipe wrench on the Inlet Band or
the Casing, see Figures 1 and 2
• the W-Type 7 Sprinkler Wrench on
the Wrench Flat, see Figure 16
Apply the Wrench Recess of the
W-Type 7 Sprinkler Wrench to the
Wrench Flat.
build-up can occur that might damage
the dry-type sprinkler and/or prevent
proper operation in a re situation.
Use of the Model DSB-2 Dry Sprin-
kler Boot, described in Technical Data
Sheet TFP591 and shown in Figures 14
and 15, can provide the recommended
seal.
Installation
The TYCO Series DS-1 Dry-Type Sprin-
klers, 5.6K Pendent, Upright, and Hori-
zontal Sidewall, Quick Response (3 mm
bulb) and Standard Coverage must
be installed in accordance with this
section.
General Instructions
The Series DS-1 Dry-Type Sprinklers
must only be installed in fittings that
Table C to determine a sprinkler’s
appropriate exposed barrel length to
prevent water from freezing in the con-
necting pipes due to conduction. The
exposed barrel length measurement
must be taken from the face of the
sprinkler fitting to the surface of the
structure or insulation that is exposed
to the heated area. See Figure 11 for
an example.
Clearance Space
In accordance with NFPA 13, when
connecting an area subject to freez-
ing and an area containing a wet pipe
sprinkler system, the clearance space
around the sprinkler barrel of Dry-Type
Sprinklers must be sealed. Due to
temperature differences between two
areas, the potential for the formation of
condensation in the sprinkler and sub-
sequent ice build-up is increased. If
this condensation is not controlled, ice

TFP510
Page 8 of 10
Care must be exercised to avoid
damage to the sprinklers before,
during, and after installation. Sprin-
klers damaged by dropping, striking,
wrench twist/slippage, or the like, must
be replaced. Also, replace any sprinkler
that has a cracked bulb or that has lost
liquid from its bulb. See the Installation
Section.
The owner is responsible for the
inspection, testing, and maintenance of
their fire protection system and devices
in compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION, such as NFPA 25, in
addition to the standards of any other
authorities having jurisdiction. Contact
the installing contractor or product
manufacturer with any questions.
Automatic sprinkler systems are rec-
ommended to be inspected, tested,
and maintained by a qualified Inspec-
tion Service in accordance with local
requirements and/or national codes.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-fire.com.
Note: If sprinkler removal becomes neces-
sary, remove the sprinkler using the same
wrenching method noted above. Sprinkler
removal is easier when a non-hardening
sealant was used and torque guidelines
were followed. After removal, inspect the
sprinkler for damage.
Step 4. After installing the ceiling or
wall and applying a ceiling finish, slide
on the outer piece of the escutcheon
until it comes in contact with the ceiling
or wall. Do not lift the ceiling panel out
of its normal position.
When using the Deep Escutcheon,
hold the outer piece in contact with the
mounting surface (ceiling or wall). Then
rotate the inner piece approximately 1/4
turn with respect to the outer piece,
to hold the Deep Escutcheon firmly
together.
Care and
Maintenance
The TYCO Series DS-1 Dry-Type Sprin-
klers, 5.6K Pendent, Upright, and Hori-
zontal Sidewall, Quick Response (3 mm
bulb) and Standard Coverage must be
maintained and serviced in accordance
with this section.
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system
that it controls, obtain permission to
shut down the affected fire protection
systems from the proper authorities
and notify all personnel who may be
affected by this action.
Absence of the outer piece of an
escutcheon, which is used to cover a
clearance hole, can delay the time to
sprinkler operation in a fire situation.
A Vent Hole is provided in the Bulb
Seat (see Figures 1 and 2) to indicate
if the Dry-Type Sprinkler is remaining
dry. Evidence of leakage from the Vent
Hole indicates potential leakage past
the Inlet seal and the need to remove
the sprinkler to determine the cause
of leakage for example, an improper
installation or an ice plug. Close the
fire protection system control valve and
drain the system before removing the
sprinkler.
Sprinklers which are found to be
leaking or exhibiting visible signs of
corrosion must be replaced.
Automatic sprinklers must never be
painted, plated, coated, or other-
wise altered after leaving the factory.
Modified sprinklers must be replaced.
Sprinklers that have been exposed to
corrosive products of combustion, but
have not operated, should be replaced
if they cannot be completely cleaned
by wiping the sprinkler with a cloth or
by brushing it with a soft bristle brush.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
DS-1 Dry-Type Sprinklers
When ordering TYCO Series DS-1
Dry-Type Sprinklers, 5.6K Pendent,
Upright, and Horizontal Sidewall,
Quick Response (3 mm bulb) and Stan-
dard Coverage, specify the following
information:
• SIN:
Pendent – TY3935 or TY3235
Sidewall – TY3735 or TY3335
Upright – TY3135
• 5.6 K-factor
• Deector Style:
Upright, Pendent, or Horizontal
Sidewall
• Quick Response, Standard Cover-
age, Dry-Type Sprinkler
• Order Length:
Dry-Type Sprinklers are furnished
based upon Order Length as
measured per Figures 3 through
10. After taking the measure-
ment, round it to the nearest 1/4 in.
increment.
• Inlet Connections:
3/4 in. NPT, 1 in. NPT, or ISO 7-R 1
• Temperature Rating
• Sprinkler Finish
• Escutcheon Style and Finish, as
applicable
• Part Number (P/N) from Table D
The Upright Sprinkler without an
Escutcheon (TY3135) is available in
1 in. NPT only.
Part Numbers are for 3/4 in. and
1 in. NPT standard order sprin-
klers. Orders for all other sprinkler
assemblies must be accompanied
by a complete description. Refer to
the Price List for a complete listing
of Part Numbers.
Sprinkler Wrench
Specify: W-Type 7 Sprinkler Wrench,
P/N 56-850-4-001
Sprinkler Boot
Specify: Model DSB-2 Dry Sprinkler
Boot, P/N 63-000-0-002
This Part Number includes one (1)
Boot, two (2) Strap Ties, and 1/3 oz
of Adhesive (a sufficient quantity for
installing one boot).

TFP510
Page 9 of 10
SAMPLE
ORDER
LENGTHS2
055 5.50 in.
082 8.25 in.
180 18.00 in.
187 18.75 in.
372 37. 2 5 i n .
480 48.00 in.
TEMPERATURE
RATINGS
0135°F (57°C)
1155°F (68°C)
2175°F (79°C)
3200°F (93°C)
4286°F (141°C )
SPRINKLER
FINISH
ESCUTCHEON
FINISH1
0CHROME PLATED SIGNAL WHITE
(RAL9003)
1NATURAL BRASS SIGNAL WHITE
(RAL9003)
2NATURAL BRASS BR ASS PLATED
4SIGNAL WHITE
(RAL9003)
SIGNAL WHITE
(RAL9003)
8CHROME PLATED STAINLESS STEEL
9CHROME PLATED CHROME PLATED
SIN
01 Pendent with Standard
Escutcheon (3/4 in. NPT)
TY3935
(Figure 3)
02 Pendent with Deep
Escutcheon (3/4 in. NPT)
TY3935
(Figure 5)
03 Pendent with Recessed
Escutcheon (3/4 in. NPT)
TY3935
(Figure 4)
04 Pendent without
Escutcheon (3/4 in. NPT)
TY3935
(Figure 6)
05 Sidewall with Standard
Escutcheon (3/4 in. NPT)
TY3735
(Figure 8)
06 Sidewall with Deep
Escutcheon (3/4 in. NPT)
TY3735
(Figure 9)
07 Sidewall without
Escutcheon (3/4 in. NPT)
TY3735
(Figure 10)
36 Pendent with Standard
Escutcheon (1 in. NPT)
TY3235
(Figure 3)
33 Pendent with Deep
Escutcheon (1 in. NPT)
TY3235
(Figure 5)
37 Pendent with Recessed
Escutcheon (1 in. NPT)
TY3235
(Figure 4)
32 Pendent without
Escutcheon (1 in. NPT)
TY3235
(Figure 6)
34 Sidewall with Standard
Escutcheon (1 in. NPT)
TY3335
(Figure 8)
43 Sidewall with Deep
Escutcheon (1 in. NPT)
TY3335
(Figure 9)
44 Sidewall without
Escutcheon (1 in. NPT)
TY3335
(Figure 10)
38 Upright without
Escutcheon (1 in. NPT)
TY3135
(Figure 7)
TABLE D
SERIES DS-1 DRY-TYPE SPRINKLERS
PART NUMBER SELECTION
P/N*60 – XXX – X – XXX
Notes:
1. Escutcheon Finish applies to sprinklers provided with escutcheons.
2. Dry-Type Sprinklers are furnished based upon “Order Length” as measured
per Figures 3 through 10, as applicable, and for each individual sprinkler
where it is to be installed. After the measurement is taken, round it to the
nearest 1/4 in. increment.
* Use Prex “I” for ISO 7-R 1 Connection (for example, I-60-360-4-055).

TFP510
Page 10 of 10
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;
TEFLON is a registered trademark of DuPont
1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone [phone]
© 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
