J-5600 MASSAGE CHAIR
SERVICE MANUAL
2014/03/17
EV 2

Johnson Health Tech. Co., Ltd.

Johnson Health Tech. Co., Ltd.
Summary
Summary
Ø1. Product specification
Ø2. Engineering mode introduction
Ø2-1. Motor testing (P1) 2-2. Sensor testing (P2) 2-3. Current testing (P3)
Ø2-4. Air pressure testing (P4) 2-5. Software version detection model (PU)
Ø3. Error codes
3-1. OF, 90 3-2. A0 3-3. A1 3-4. A2, A3, B0, B1
3-5. B2, B3, C0, C1 3-6. D0 3-7. E0 3-8. E1, E2
Ø4.Common troubleshooting
4.1 Fail to start 4.2 Pushrod motor 4.3 Single air bag
4.4 All air bags 4.5 All air bags 4.6 Machine core
Ø5. Appendices
Ø5.1 Replace the machine core 5.2 Software update 5.3 Adjust machine core motor current
Ø5.4 Complete machine breakdown drawing 5.5 Machine core breakdown drawing
Ø5.6 Lower control panel breakdown drawing
ØThank you! (Contact us)

Johnson Health Tech. Co., Ltd.
Foreword
Precautions during repairs and faults:
a. When disassembling, unplugging connectors and replacing parts, make
sure to unplug or turn off the power.
b. As semiconductors (IC, etc.) are prone to being damaged by static
electricity, please use human body electrostatic discharge ground wire if it
is required to directly contact the baseplate when performing operations, or
touch the ground wire (ground wires of fridges, washing machines, etc.)
with bare hands to discharge the static electricity of the human body before
carrying out operations.
c. The circuit baseplate mixes high voltage (AC110V, AC220V) and low
voltage (12V, 5V), which may cause electric shock accident; so please do
not have direct contact without preparations.

Johnson Health Tech. Co., Ltd.
1.Product SpecificationsΚ

Johnson Health Tech. Co., Ltd.
1.Product SpecificationsΚ

Johnson Health Tech. Co., Ltd.
In the engineering
mode,“ P0 ” will be
displayed
1. When the power is on and manual controller is not yet
actuated, press MANUAL MANUAL and LEG STRETCH LEG STRETCH on the
manual controller at the same time for 5 seconds and the
controller will display “ - - ”
2. Then press REPEAT REPEAT key to enter engineering mode
3. In the engineering mode,“ P0 ” will be displayed
2. Engineering mode introduction:

Johnson Health Tech. Co., Ltd.
ˇʳˁʳUse UP UP and DOWN DOWN to select 8 modes,
including P0~P4+P7+P8+PU
ˈʳˁʳIn mode selection state, press WIDE WIDE
to enter the mode to operate the
massage chair
ˉʳˁʳAfter mode selection, use
UP
UP and
DOWN
DOWN again to select the element
to be controlled, such as A0~A5
2. Engineering mode introduction:

Johnson Health Tech. Co., Ltd.

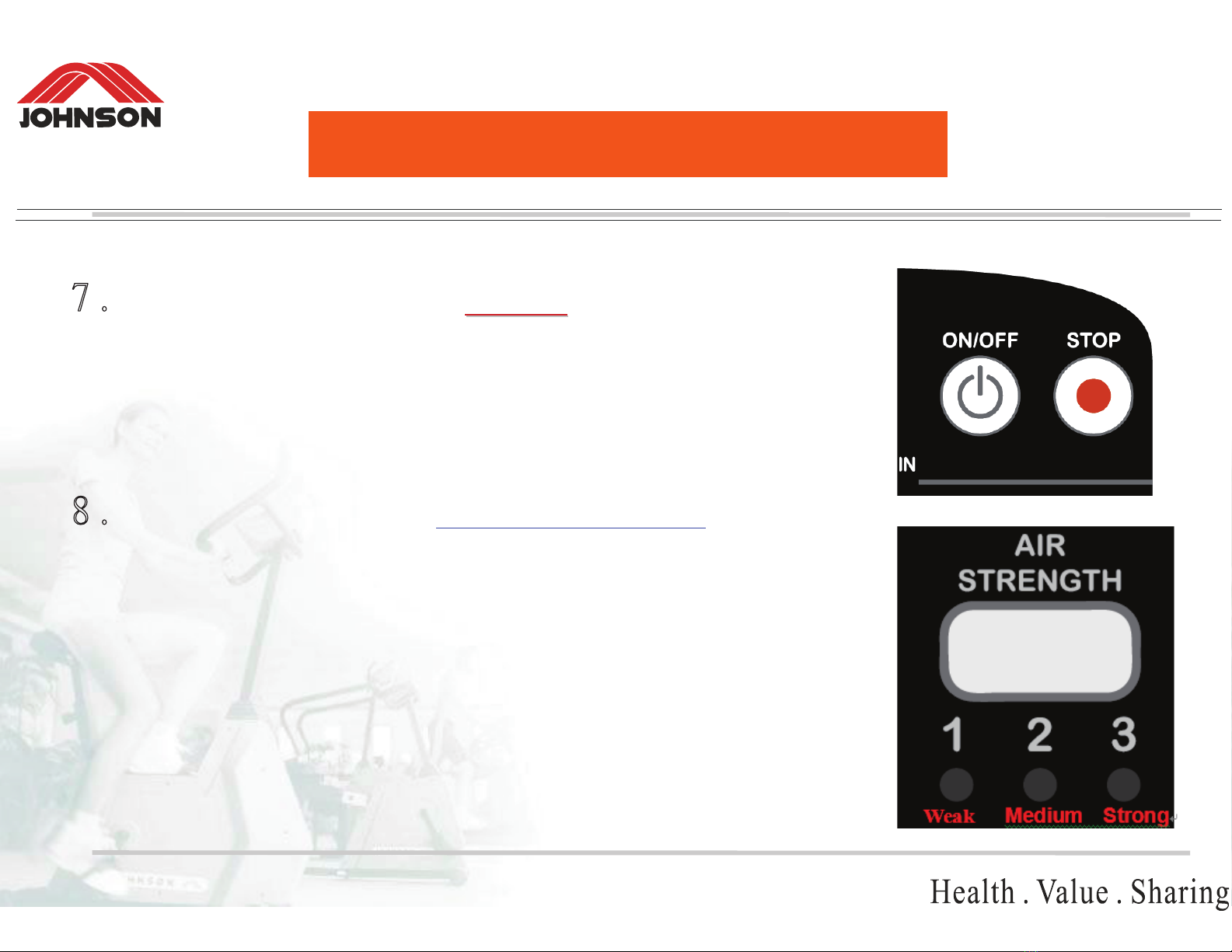

ˊʳˁʳAfter entering the mode, press STOP STOP key to return to the
previous layer of menu; this key has the same function as the
ESC key of the computer keyboard
ˋʳˁʳAfter element selection, use AIR STRENGTH to adjust the
element speed, and the intensity will be displayed as the air
pressure strength, with one to three representing from weak to
strong
2. Engineering mode introduction:

Johnson Health Tech. Co., Ltd.
Key Operation
Emergency stop Return to the previous layer of menu
Up Forward mode selection
GRZQ Reverse mode selection
:LGH Select ok and the air bag moves or motor rotates forward
1DUURZ Motor rotates reverse
Power switch Exit engineering mode
Air bag strength (panel) Speed selection (3: high, 2: medium, 1: low)
LCD
LCD Operation
Time window Display selected element number and corresponding current or
position
Air pressure strength Speed display (3: high, 2: medium, 1:low)
2. Engineering mode introduction: Engineering mode introduction:

Johnson Health Tech. Co., Ltd.
— —
P0 : Hand controllertestingmode
P1 : Motor testing mode
P2 : Sensor testing mode
P3 : Current testing mode
P4 : Air bag testing mode
P7 : Automatic testing mode
P8 : Life testing mode
PU : Software version check
2. Engineering mode introduction: Engineering mode introduction:
P0 : Manual controller testing mode
P1 : Motor testing mode
PU : Software version check
P7 : Automatic testing mode
P8 : Life testing mode
P4 : Air bag testing mode
P3 : Current testing mode
P2 : Sensor testing mode

Johnson Health Tech. Co., Ltd.
P1 Motor testing mode
A0 : Up and down movement of machine core
A5 : Machine core pounding motion
A4 : Kneading-Forward and reverse rotation of machine core
A3 : Front and back movement of machine core
A2 : Up and down movement of chair back
A1 : Up and down movement of foot machine
Motor test mode is mainly used to test if each motor works normally and to adjust
chair angle when replacing elements
2-1. Engineering mode: P1

Johnson Health Tech. Co., Ltd.
P2 sensor testing
C0 : Up and down movement of machine core
C4 : Kneading-Forward and reverse rotation of machine core
C3 : Front and back movement of machine core
C2 : Up and down movement of chair back
C1 : Up and down movement of foot machine
Sensor testing is mainly used to test and indicate limits and counts. When
operating motor in this mode, LCD time window will display the digit returned by the
sensor. When the digit exceeds 100, the carrying digit will display “massage intensity”
(100~500) and “motion menu”.
LCD sensing position display window will indicate whether the limit switch is
triggered
2-2. Engineering mode: P2

Johnson Health Tech. Co., Ltd.

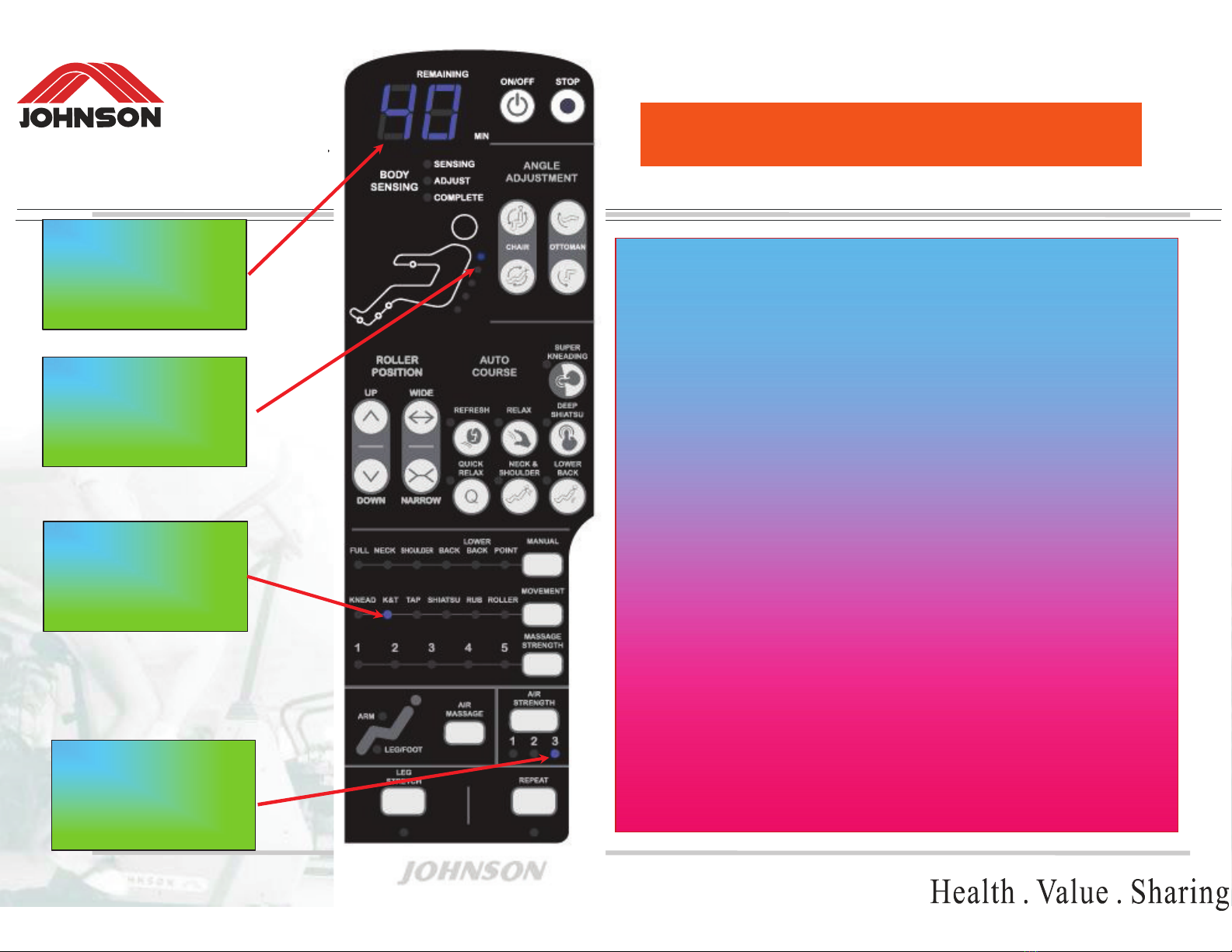

Upper limit is
triggered
Tens and ones
of returned
values
Hundreds of
returned
values
Current speed
of motor
motion
The left figure shows that the upper limit
is reached when the selected machine core
(C1) rises
When the upper limit light is, it means that
the machine core is unable to move upward;
when the lower limit light is on, the machine
core is unable to move downward
The “Massage Strength” lamp signal 1 of
massage intensity represents 100, 2 represents
200, and so on
“KNEAD” lamp represents 600,”KAT” lamp
represents 700.
We can tell by the above rules that the returned
value on the left figure is time window (40) +
motion menu lamp signal (700) =740
2-2. Engineering mode: P2

Johnson Health Tech. Co., Ltd.
P3 current testing
D0 : Up and down migration current of machine core
D4 : Kneading-Forward and reverse rotation current of
machine core
D3 : Front and back migration current of machine core
D2 : Up and down migration current of chair back
Current testing is mainly used to test if the motor current is too high
When the returned number exceeds 100, the carrying digit will display “massage intensity”
(100~500)
D3 is a major test item; if the intensity is set to medium (air bag strength 2) and machine
core forward value is greater than 50, it is likely to generate error code D0 because the
current is too high to lower the sensitivity of induction mechanism
2-3. Engineering mode: P3

Johnson Health Tech. Co., Ltd.

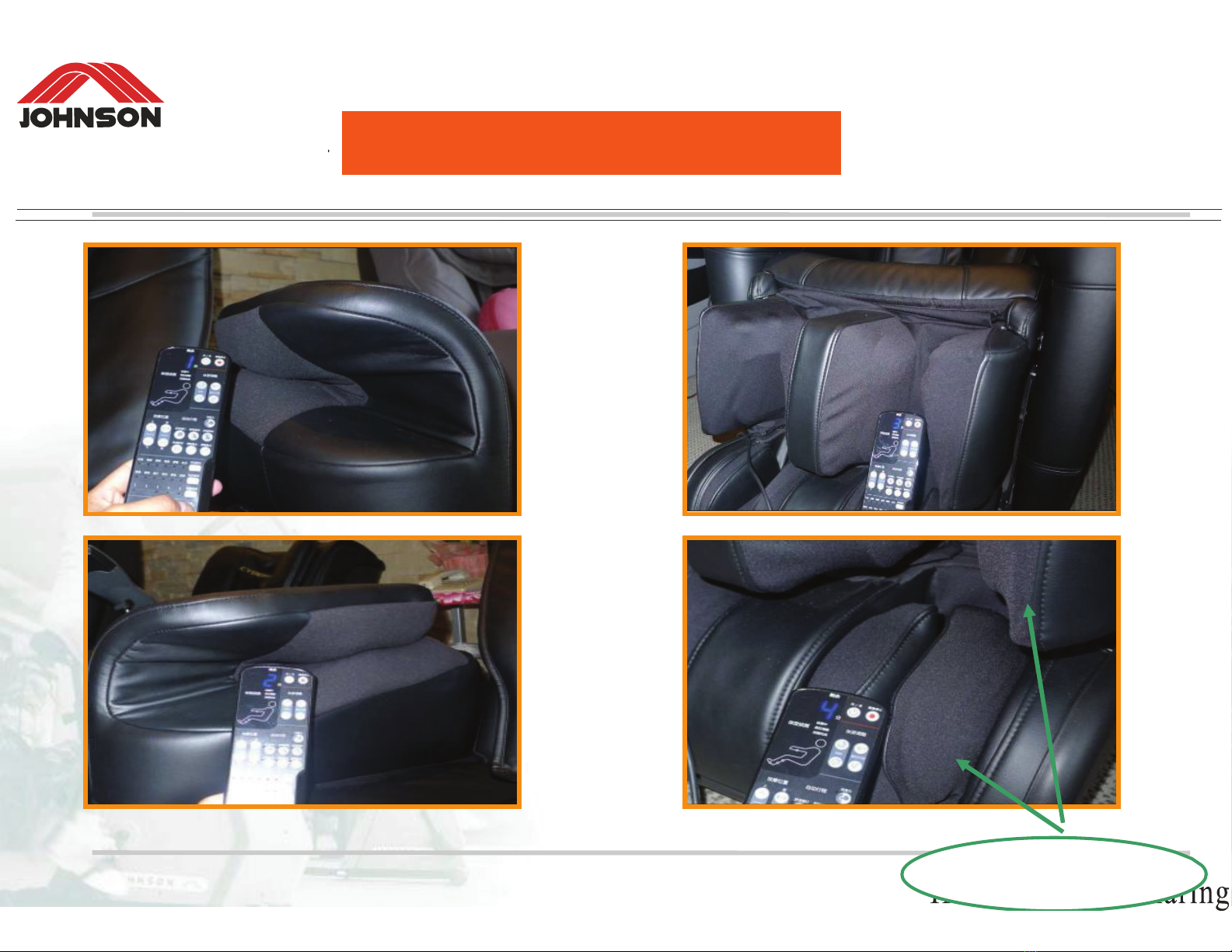

Air bag testing is mainly used to test if the air bag
works normally, the inflation rate is normal, there
is leakage, etc.
It can also distinguish the position of the air bag to
be tested via the pattern on the manual controller.
P4 air bag testing
1: left arm air bag
2: right arm air bag
3: air bag above the leg
4: instep air bag below the
leg
2-4. Engineering mode: P4

Johnson Health Tech. Co., Ltd. 4: instep air bag
below the leg
2-4. Engineering mode: P4

Johnson Health Tech. Co., Ltd.
PU software version
U0 : manual controller software
version
U1 : lower control panel
software version
Software version check mode is generally used to confirm current version of massage chair and
confirm again if the update is successful after updating software
a. Press “up” or “down” key to make the time window display “PU” to enter software version check
function
b. Press “ok” function, and the time window displays “U0” to enter manual controller software
version check function
c. Press “air pressure strength” key, and the time window displays in a jumping loop of “v1”-“04”-
“v1”-“04”...... indicating that the manual controller software version is v104
d. Press “up” or “down” key to make the time window display “U1” to enter lower control panel
software version check function
e. Press “air pressure strength” key, and the time window displays in a jumping loop of “v1”-“05”-
“v1”-“05”...... indicating that the lower control panel software version is v105
f. Then, the software version is 104105
2-5. Engineering mode: PU

Johnson Health Tech. Co., Ltd.
•The error codes will appear on the machine’s manual controller and the machine will stop
•Maintenance personnel can judge the fault conditions and anticipate maintenance
materials based on the error code reported by the customer
Error Code
3. Error codes

Johnson Health Tech. Co., Ltd.
Anomaly
code Code description Cause of anomaly Countermeasures
0F
Inconsistency
between manual
controller model
and master
control panel
model
1. Inconsistency between
manual controller
model and lower
control panel
2. Inconsistency of
software versions
1. Confirm manual controller model
2. Replace with correct model software and
then confirm if the machine is normal
3. Replace the lower panel and then confirm if
the machine is normal
4. Ask for assistance of original factory
90 Communication
error
Communication
timeout
between manual
controller and lower
control panel
1. Confirm if connection between manual
controller and lower control panel is normal
2. Update software and then confirm if the
machine is normal
3. Replace the manual controller then confirm
if the machine is normal
4. Replace the lower panel and then confirm if
the machine is normal
5. Ask for assistance of original factory
3-1. Error code (0F, 90)
