1 Safety
These operating instructions must always
be available at the place of use of the
device.
1.1 Intended use
The device is for the
•Filtration
of drinking water in domestic water piping-
for residential, commercial and industrial
use. It removes coarse and fine-grained
particles from the drinking water, which are
larger or equal to the mesh size of the filter,
in order to prevent
•pipe damage caused by corrosion
•malfunctions of fittings or control and
regulating devices caused by foreign
bodies.
The filter is suitable for use in cold drinking
water up to a maximum water temperature
of 30 °C (86 °F). The water to be filtered
must comply with the European Drinking
Water Directive.
The device can be installed in all commer-
cially available drinking water pipes. Both
installation and use of the device are sub-
ject to the applicable national regulations.
INFO_NO_HEADER
Particles that are smaller than the
mesh size of the filter supplied and
materials causing cloudiness cannot
be filtered out of the water.
1.2 Application limits
1.2.1 Water quality
The water to be filtered must comply with
the European Drinking Water Directive.
Before using the device with water that
does not comply with this Directive, it is
essential to consult the manufacturer.
1.2.2 Water pressure
CAUTION
The water pressure must not exceed
16 bar input pressure. The device
must not be installed if the mains
pressure is above 16 bar (even for a
short time)!
Nominal pressure PN 16
Operating pressure 1.5 bar - 16 bar
The water pressure must not fall below
1.5 bar as otherwise backwashing can be
impaired!
INFO_NO_HEADER
Starting at an operating pressure
of 10 bar increased wear can be
expected!
1.3 Safety instructions
1.3.1 Electrical danger
ELECTRO_NO_HEADER
Risk of electric shock
No electrical wiring or equipment that is
not splash-proof may run or be stored
below the device. Electrical devices/
equipment located in the vicinity of the
device must be splash-proof or comply
with the legal regulations for wet rooms.
Only the supplied power supply unit may
be used to connect the unit to the power
supply. This reduces the mains voltage
for operating the electronics to a harm-
less low voltage of 24 V.
A splash-proof socket is required for
connection to the electrical grid, in
accordance with the legal regulations for
wet rooms.
Only low voltages can be used for the
remote transmission of the fault indica-
tion via the potential-free output!

Safety
1701429 • 2018/12 JUDO JSY-LF-AT 5
Switching voltage: maximum 24 V
Amperage: maximum 1 A
1.3.2 Warning of property damage
WARNING
Risk of water damage or damage
to property
The device may only be installed by
qualified technical personnel.
The installation room must be dry and
free from frost.
The ambient temperature must not
exceed 30 °C! In higher temperatures
or direct sunlight, material damage may
occur up to and including breakage of
device parts.
An adequately sized waste water con-
nection (e.g. floor drain) in compliance
with DIN 1986 must be provided.
In order to ensure safe drinking water
hygiene, a free discharge of the waste
water acc. to DIN EN 1717 must be
ensured.
The pipe must be able to safely sup-
port the device (weight: see chapter 8).
If necessary, the pipes must be provided
with additional fastenings or support.
If no bypass valve is installed, a shut-
off valve must be installed upstream of
the unit in order to interrupt the water
supply during installation, maintenance,
repair or malfunction of the device.
A non-testable backflow prevention
device, complying with the performance
requirements of AS/NZS2845.1 must be
installed prior to the filter.
Install the device in a vertical position
(± 5°). Otherwise, water may escape and
cause water damage.
For the installation of the device in
domestic water piping, only use the sup-
plied built-in rotary flange (see chapter
3.2).
The flange surface of the rotary flange
fitting must be upright!
The rotary flange fitting must be fitted so
that it is free from mechanical stress or
strain. Otherwise mechanical damage to
the pipe or the rotary flange fitting up to
and including breaks can result.
For proper sealing the profile of the pro-
file flange seal must point towards the
rotary flange fitting (see Figure 2).
Prior to plugging in the device, ensure
that the wastewater connection is func-
tional.
Only operate the device in a technically
faultless condition:
•Check for damage prior to installa-
tion.
•Immediately have any malfunctions in
operation rectified by qualified tech-
nical personnel.
Persons who, due to their physical, sen-
sory or mental abilities or their inexperi-
ence or lack of knowledge, are unable to
operate the device safely may not oper-
ate it without supervision or instruction
from a responsible person.
Regular backwashing of the device is
required to ensure safe drinking water
hygiene (see chapter 4.2.1).
The mains voltage must not be inter-
rupted (e.g. via a light switch). If the filter
is not permanently supplied with power,
backwashing or a warning in case of
faults is not possible.
Do not use household cleaning agents
to clean the outside of the device, but
only use clear water to avoid embrittle-
ment of the plastic.
The device may only be repaired by
qualified technical personnel.
Only use original spare parts for repairs.

Safety
6 JUDO JSY-LF-AT 1701429 • 2018/12
Before performing work on the device
that goes beyond pure operational use,
the device must be depressurised! If
this is ignored, the result may be uncon-
trolled escape of water resulting in water
damage to the building/home.
If the device is removed due to an inter-
ruption of operation:
•Protect the flange surfaces against
damage to ensure proper sealing.
•Protect the device from dirt so as not
to impair drinking water hygiene.
•Store the device in a frost-free place
to prevent damage caused by freez-
ing water and leakage.
Unauthorised conversions and changes
are forbidden for safety reasons. These
can impair the functioning of the device,
leading to leaks and, in the worse case
scenario, to bursting of the device.
1.4 Symbols used
The safety instructions contained in these
operating instructions are labelled with the
following symbols:
Indication of existing dangers
Warning of electric voltage
User tips and other information
Instructions attached directly to the device,
e.g.:
•Direction of flow (arrow)
•Type label
•Cleaning information
must be observed and maintained in legible
condition.
1.5 Units used
Unit Conversion
bar 1 bar = 105 Pa = 0.1 N/mm2
¾" DN 20
1" DN 25
1¼" DN 32
1½" DN 40
2" DN 50
2 Product information
2.1 Scope of supply
•Automatic backwash protective filter,
completely preassembled
•Rotary flange fitting
•Installation and operating instructions
2.2 Function description
Unfiltered water flows into the device
through the rotary flange fitting . The water
flows from the outside to the inside through
a cylindrical sieve insert. Dirt particles
remain on the sieve fabric of the sieve
insert. The adhering residues are visible
from outside through the transparent filter
bowl.
SPEEDYMAT-LF ¾" - 1¼": The filter bowl
is visible through the viewing slot of the
UV protection screen. The UV protection
screen can be moved downwards to check
the contamination.
Subsequently the filtered water exits the
device again via the rotary flange fitting.

Product information
1701429 • 2018/12 JUDO JSY-LF-AT 7

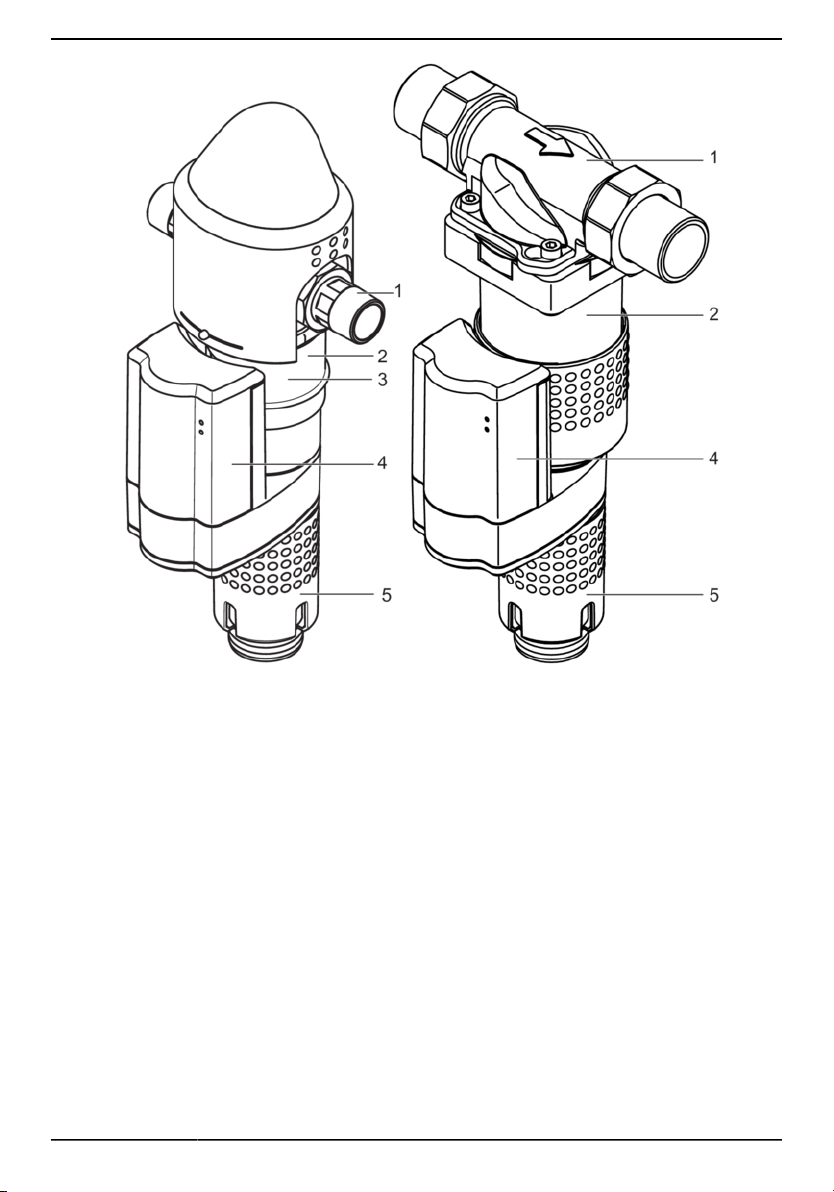

Fig. 1: Function description
1 Rotary flange fitting
2 Filter bowl
3 UV protection screen (only JSY-LF-AT ¾" - 1¼")
4 Automatic
5 Handwheel for backwashing actuation
2.3 Materials used
The materials used are resistant to the
physical, chemical and corrosive loads
expected to be encountered in drinking
water. They meet the requirements speci-
fied in the following standards:
•DIN EN 13443-1
•DIN 19628 ("Mechanical filters in drink-
ing water installations")
All materials are hygienically and phys-
iologically harmless. Plastics fulfil the
KTW Guideline (Guideline for the Hygienic
Assessment of Organic Materials in Contact
with Drinking water) of the German Fed-
eral Environmental Agency (UBA) W 270.
Metallic materials fulfil the requirements of
DIN 50930-6.

Product information
8 JUDO JSY-LF-AT 1701429 • 2018/12
2.4 Approval marks
The device complies with the technical
regulations for drinking water installation
according to DIN EN 806ff. and the national
supplement DIN 1988ff. as well as DIN EN
1717.
It has been tested and certified by the
DVGW (Deutsche Vereinigung des Gas-
und Wasserfaches e. V. - Technisch-wis-
senschaftlicher Verein) in accordance with
the requirements
• of the DIN EN 13443-1 and DIN 19628
for mechanically active filters.
The device bears the DIN-DVGW mark as
proof of certification.
3 Installation
CAUTION
The device may only be installed
by qualified technical personnel.
Installation of the device upstream of the
water meter is forbidden.
3.1 Conditions
CAUTION
Risk of property damage or water
damage!
The pipe must be able to safely
support the device (weight: see
chapter 8). If necessary, the pipes
must be provided with additional
fastenings or support.
To ensure convenient operation and main-
tenance of the device, always adhere to the
specified clearances in chapter 3.4.1).
3.2 Installation of the rotary
flange fitting
CAUTION
The flange surface of the rotary
flange fitting must be upright!
The rotary flange fitting must
be fitted so that it is free from
mechanical stress or strain. Oth-
erwise mechanical damage to the
pipe or the rotary flange fitting up
to and including breaks can result.
The built-in rotary flange serves as a con-
necting element between the domestic
water station and the device.
It consists of:
•rotary flange fitting
•profile flange seal
•two union nuts

Installation
1701429 • 2018/12 JUDO JSY-LF-AT 9
•two pipe sockets
•two flat seals.
Attention: Install the built-in rotary flange
in the flow direction! This is indicated by an
arrow integral with the casting.
INFO_NO_HEADER
If the installation is twisted, back-
washing the device is not possible.
1 2

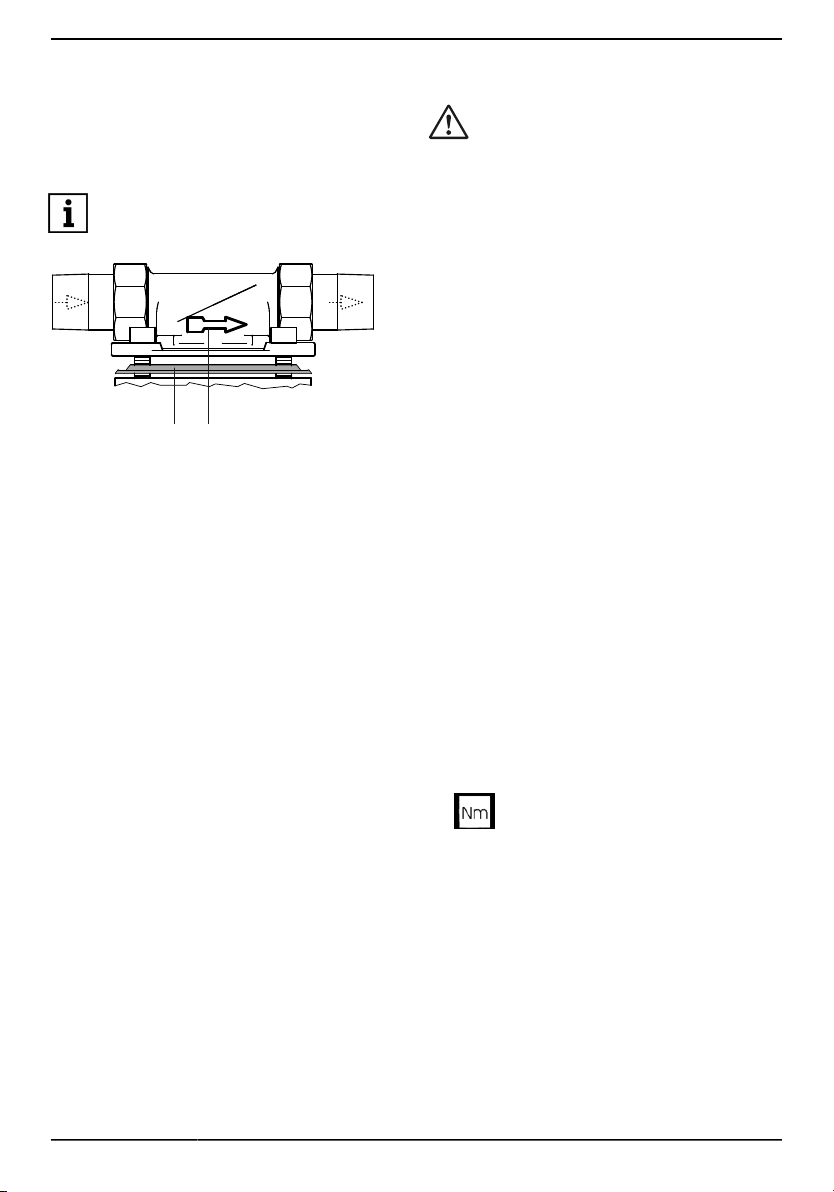

Fig. 2: Rotary flange fitting
1 Profile flange seal
2 Flow direction arrow
Procedure:
1. Pull the flange cover upwards (only for
JSY-LF-AT ¾" - 1¼").
2. Loosen the two union nuts of the built-
in rotary flange and remove them with
the pipe sockets from the built-in rotary
flange fitting.
3. Fit the two pipe sockets with union nut
into the pipeline.
3.3 Installation of the device
CAUTION
The pipe must be able to safely
support the device (weight: see
chapter 8). If necessary, the pipes
must be provided with additional
fastenings or support.
If no bypass valve is installed, a
shut-off valve must be installed
upstream of the unit in order to
interrupt the water supply during
installation, maintenance, repair or
malfunction of the device.
Install the device in a vertical posi-
tion (± 5°). Otherwise, water may
escape and cause water damage.
For the installation of the device
in domestic water piping, only use
the supplied built-in rotary flange
(see chapter 3.2).
The flange surface of the rotary
flange fitting must be upright!
For proper sealing the profile of
the profile flange seal must point
towards the rotary flange fitting
(see Figure 2).
1. Screw the rotary flange fitting back
onto the device using the four hexagon
socket head screws.
UNIT
Select the tightening torque
(about 4 Nm) so that the seal is
effective and the device is not
damaged or strained!
2. Position the device with the fitted rotary
flange fitting between the grommets and
insert the flat gaskets on both sides.
3. Screw the device with the union nuts on
both sides.
4. Place the flange cover back on.

Installation
10 JUDO JSY-LF-AT 1701429 • 2018/12
3.4 Draining of the backwash
water
CAUTION
An adequately sized waste water
connection (e.g. floor drain) in
compliance with DIN 1986 must be
provided.
In order to ensure safe drink-
ing water hygiene, a free dis-
charge of the waste water acc. to
DIN EN 1717 must be ensured.
Prior to plugging in the device,
ensure that the wastewater con-
nection is functional.
The drain must be large enough so that all
of the waste water can be drained simulta-
neously.
If a waste water connection directly beneath
the filter is not possible, the backwash
water can be drained away via a hose or a
pipe that is connected from the backwash-
ing water valve over a few meters to the
closest waste water connection. The dimen-
sioning of this pipe must correspond to the
backwashing water valve.

Installation
1701429 • 2018/12 JUDO JSY-LF-AT 11
3.4.1 Drainage options for the backwash water

Installation
12 JUDO JSY-LF-AT 1701429 • 2018/12
3.5 Commissioning
Prior to initial commissioning (or to com-
missioning after maintenance work) fill the
installed device with water and vent:
1. Open the upstream shut-off valve to fill
the device with water. The device is now
under mains pressure.
2. Attention: Immediately plug the power
supply unit in. This automatically carries
out backwashing and the trapped air can
escape. This prevents damage to the
installation due to pressure surges.
After backwashing, the device is vented
and ready for operation.
4 Operation
4.1 Warning lights
1
2
Fig. 3: Warning lights
1 Operation (green warning light)
The device is now ready for oper-
ation.
2 Fault (red warning light)
A fault exists (see chapter 6).
4.2 Cleaning of the sieve insert
(backwashing)
A regular cleaning process is necessary to
remove the residues from the sieve fabric
of the device. This process is called back-
washing.
Suction pipes are provided for backwash-
ing, which rotate around the sieve fabric
of the fine filter. The backwashing valve
opens on the bottom side of the device.
By reversing the water flow from inside to
outside, deposits on the sieve fabric are
carried away and rinsed out with the back-
wash water. The suction pipes also clean
the inside of the transparent filter bowl with
wiper lips during their movement.
The degree of contamination and cleaning
process can be observed from the outside.
INFO_NO_HEADER
The device is backwashed with
filtered water. The filtered water
supply of the domestic installation
remains intact during the backwash-
ing process. No dirty water can reach
the pure water side during the back-
washing.
If the mains voltage fails during the back-
wash process, the backwash is completed
using the built-in batteries. Prior to every
backwashing a battery test is performed.
On a missing, empty or defective battery a
fault indication appears (see chapter 4.4).
A backwashing is no longer possible
4.2.1 Backwashing interval
If cleaning is not performed soon enough,
the result may be damage to the sieve
insert. Large quantities of filtered particles
can deform the sieve fabric and in extreme
case lead to tearing of the sieve fabric.
In addition, larger deposit quantities can
impair the backwashing function mechani-
cally.
According to DIN EN 13443-1 backwashing
the device is required at the latest every six
months.
The manufacturer requires a backwash-
ing:
•at least every 2 months
•if the water pressure drops
•if the filter is visibly dirty
Experience has shown that new installa-
tions in the early stages of installation lead
to increased dirt deposits. In this case, a

Operation
1701429 • 2018/12 JUDO JSY-LF-AT 13
more frequent backwashing is necessary.
Temporarily set a shorter time interval!
4.2.2 Setting the backwashing
interval
A cleaning interval of 1 month is set ex-
works.
Selectable time intervals:
2 Months
1 Month
1 Week
1 Day
Fig. 4: Unplug and open cover
ELECTRO_NO_HEADER
Risk of electric shock!
Disconnect the power supply unit
from the socket.
1. Pull the power supply unit out of the
socket.
2. Remove the cover of the automatic unit
by pressing and pulling on the side.
3. Select the desired time interval for the
time-controlled automatic backwashing
process on the control electronics of the
automatic system. To do this, attach the
cable lug of the short cable strand to the
pin with the inscription corresponding to
the desired time interval (see Figure 5).
A
B
C
D
Fig. 5: Time control
A 2 months
B 1 month
C 1 week
D 1 day
4. Refit the cover of the automatic unit until
it audibly engages.
CAUTION
Escaping water!
Before connecting to the power
supply system, make sure that the
waste water connection is func-
tional.
5. Plug the power supply unit back into the
socket. Backwashing starts immedi-
ately!
After the backwashing process, the set-
ting of the new backwashing interval is
completed.
Fig. 6: Close cover and insert plug

Operation
14 JUDO JSY-LF-AT 1701429 • 2018/12
4.2.3 Start backwashing
Backwashing is triggered in the following
manner:
•automatically, after the set backwashing
interval has elapsed (see chapter 4.2.2).
•by unplugging and plugging in the power
supply unit (see chapter 4.2.4).
4.2.4 Manual backwash start
For manual activation of backwashing
1. Pull the plug of the device.
2. Wait until all warning lights are off.
3. Plug in the plug again.
Backwashing starts automatically.
4.3 Conversions, changes
WARNING
Unauthorised conversions and
changes are forbidden for safety
reasons. These can impair the
functioning of the device, leading
to leaks and, in the worse case
scenario, to bursting of the device.
Only the supplied power supply
unit may be used to connect the
unit to the power supply. This
reduces the mains voltage for
operating the electronics to a
harmless low voltage of 24 V.

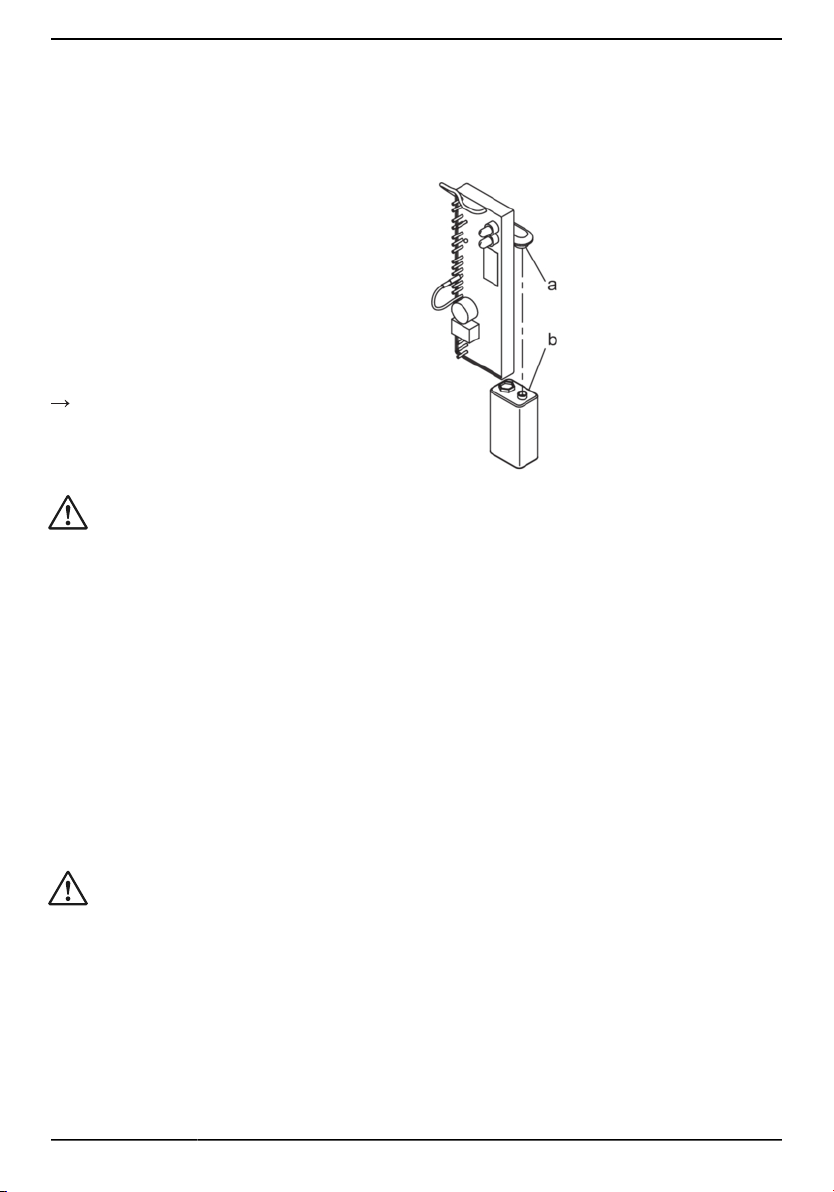

4.4 Battery replacement
CAUTION
Only use 9 V block batteries of alka-
line type (see battery marking).
The manufacturer recommends the use
of the following batteries:
•Energizer Industrial
•Energizer High Tech
•Energizer Ultra +
•Active Energy
•Conrad Energy
A necessary battery replacement is indi-
cated by a fault indication (see chapter 6).
Fig. 7: Battery replacement
a Connection clip
b Battery
1. Pull the power supply unit out of the
socket.
2. Remove the automatic controls cover by
pressing to the side and pulling.
3. Release the battery from the connection
clip of the connection cable behind the
electrical circuit.
4. Insert new battery into the connection
clip (see Figure 7).
5. Clip the cover of the automatic controls
back on so that it audibly engages.
6. Plug the power supply unit into the
socket.
The electrical circuit immediately performs
a battery test. After a successfully per-
formed battery test, backwashing is auto-
matically started.
Dispose of used batteries according to
valid regulations!

Operation
1701429 • 2018/12 JUDO JSY-LF-AT 15
4.5 Maintenance, repair,
spare parts
WARNING
The device may only be repaired
by qualified technical personnel.
Only use original spare parts for
repairs.
Before performing work on the
device that goes beyond pure
operational use, the device
must be depressurised! If this is
ignored, the result may be uncon-
trolled egress of water result-
ing in water damage to the build-
ing/home.
4.6 Integration in building control
systems
The device can be integrated into a build-
ing control system (e.g. EIB / KNX, LCN or
LON) via the floating signal relays .
The potential-free relay is connected to a
binary bus coupler.
In this way, fault messages can be for-
warded to the building control system.
4.7 Interruption of operation
WARNING
If the device is removed due to an
interruption of operation:
•Protect the flange surfaces
against damage to ensure proper
sealing.
•Protect the device from dirt so
as not to impair drinking water
hygiene.
•Store the device in a frost-free
place to prevent damage caused
by freezing water and leakage.
When recommissioning the device, proceed
as with a new installation.

Remote transmission of messages
16 JUDO JSY-LF-AT 1701429 • 2018/12
5 Remote transmission of
messages
ELECTRO_NO_HEADER
The device may only be installed
by qualified technical personnel.
Switching voltage: maximum 24 V
Amperage: maximum 1 A
5.1 Potential-free message
Devices with potential-free signal relay can
transmit fault indication messages.
a
b
c
zero-current
or fault
opera-
ting
Fig. 8: Relay contact assignments
Connect relay as: Contacts
NOC a and b
NCC b and c
In Figure 8 the contacts of the potential-free
relay are marked in the currentless state.
The relay can be connected as normally
closed contact or as normally open con-
tact :
When the power supply unit is plugged in,
the relay changes its switching state into
“operating”.
If there is a fault indication, the relay
switches to “zero-current or fault” state.

Fault
1701429 • 2018/12 JUDO JSY-LF-AT 17
6 Fault
Fault Possible cause Remedy
Backwash
valve is not fully
closed.
Backwash water contin-
ues running.
Dirt in backwash
valve.
Water flow decreases. Sieve clogged.
Red warning light illumi-
nates.
Fault in the
automatic con-
trols.
Red warning light illumi-
nates and signal tone
sounds. Backwash water
may still be running.
The backwash-
ing valve is not
fully closed.
Possibly dirt in
backwashing
valve.
Perform backwashing:
1. Pull the mains plug out of the socket.
2. Wait until all warning lights are off.
3. Plug the power supply unit into the
socket.
If the fault occurs again: Inform the installer
or the closest customer service point.
Simultaneous flashing of
the red and green warn-
ing lights (no backwash-
ing will be triggered).
Battery is empty
or incorrect bat-
tery type.
1. Pull the mains plug out of the socket.
2. Insert new 9V Alkaline battery
3. Plug in the plug again.
There are leaks in the fil-
ter bowl.
Filter bowl becomes
clouded.
Hairline cracks on the fil-
ter bowl.
Filter bowl was
exposed to high
temperatures or
solvents.
•Inform the installer or the closest cus-
tomer service point.
•If water escapes, close shut-off valves.
Have the filter bowl replaced immedi-
ately.
The downstream pres-
sure increases slowly at
zero flow.
Inadmissi-
ble pressure
increase due to
process water
heating.
Check the safety relief valve of the warm
water boiler.
Inform the installer or the closest customer
service point.
Troubleshooting

Servicing
18 JUDO JSY-LF-AT 1701429 • 2018/12
7 Servicing
7.1 Cleaning
CAUTION
Do not use household cleaning
agents to clean the outside of the
device, but only use clear water to
avoid embrittlement of the plastic.
7.2 Warranty and maintenance
Prerequisite for obtaining the statutory war-
ranty claim is regular backwashing (see
chapter 4.2). The DIN EN 13443-1 pre-
scribes that the backwashing must take
place every six months. JUDO however
recommends to comply with the information
in chapter 4.2.1 Backwashing interval.
To ensure the process operates success-
fully as long as possible, regular inspec-
tion and routine servicing of the device are
essential. Where home automation is con-
cerned, this is governed by DIN EN 806-5.
We recommend the conclusion of a main-
tenance contract, which is the best way
to ensure a good operating function, even
beyond the warranty period. The skilled
tradesmen or the factory customer service
are suitable partners for regular mainte-
nance work and the supply of consumables
and wear materials as well as for possible
repairs.
The maintenance sticker on the device
serves as a reminder of the next mainte-
nance date and should be marked by the
installer after installation.

Technical data
1701429 • 2018/12 JUDO JSY-LF-AT 19
8 Technical data
Automatic backwash protective filter JUDO SPEEDYMAT-LF
JSY-LF-AT
The water to be filtered must comply with the European Drinking Water Directive.
Information about: JSY-LF-AT
¾"
JSY-LF-AT
1"
JSY-LF-AT
1¼"
JSY-LF-AT
1½"
JSY-LF-AT
2"
Pipe connection ¾" 1" 1¼" 1½" 2"
Backwashing volume
flow1) 0,3 L/s 0,3 L/s 0,3 L/s 0,3 L/s 0,3 L/s
Backwashing time approx.
40 s
approx.
40 s
approx.
40 s
approx.
40 s
approx.
40 s
Nominal pressure PN 16 PN 16 PN 16 PN 16 PN 16
Operating pressure 1,5 - 16 bar 1,5 - 16 bar 1,5 - 16 bar 1,5 - 16 bar 1,5 - 16 bar
Rated flow after
backwashing with
0.2 (0.4) bar pres-
sure loss
3,3 (5,0)
m³/h
4,5 (7,0)
m³/h
5,5 (8,5)
m³/h
13,0 (22,0)
m³/h
17,0 (26,0)
m³/h
Mesh size Sieve
insert 0.1 mm 0.1 mm 0.1 mm 0.1 mm 0.1 mm
Water temperature
and ambient temper-
ature
max. 30 °C max. 30 °C max. 30 °C max. 30 °C max. 30 °C
Threaded connection
according to DIN EN 10226-1
Power connection 230 V AC / 50 Hz
Power consumption
Operation 3 W 3 W 3 W 3 W 3 W
Power consumption
backwashing 5 W 5 W 5 W 5 W 5 W
Weight 2,5 kg 2,6 kg 3,0 kg 5,9 kg 6,4 kg
Order no. 8070571 8070572 8070573 8070566 8070567
1) Applies to a fully opened backwashing valve and 2 - 3 bar mains pressure.

Technical data
20 JUDO JSY-LF-AT 1701429 • 2018/12
8.1 Installation dimensions
Fig. 9: Installation dimensions
JSY-LF-AT ¾" - 1¼"
Fig. 10: Installation dimensions
JSY-LF-AT 1½" - 2"
JSY-LF-AT ¾" JSY-LF-AT 1" JSY-LF-AT 1¼" JSY-LF-AT 1½" JSY-LF-AT 2"
A180 195 230 252 280
B160 160 160 165 165
C122 122 117 33 40
D311 311 316 382 390
E108 108 108 108 108
G50 50 50 50 50
G1 13 13 13 13 13
Sewer connection necessary
A Installation length
B Unit depth
C Height above the pipe middle
D Height below the pipe middle
E Installation depth up to the pipe middle
G Waste water nominal diameter
G1 Waste water nominal diameter (alternative)
