JUKI APW-896N/IP-420 User manual

APW-896N/IP-420
INSTRUCTION MANUAL
* "CompactFlash(TM)" is the registered trademark of SanDisk Corporation, U.S.A.

i
CONTENTS
I. CAUTIONS BEFORE OPERATION..................................................................................1
II. CONFIGURATION OF THE MACHINE ...........................................................................2
III. SPECIFICATIONS...........................................................................................................3
1. MECHANICAL SPECIFICATIONS ....................................................................................................... 3
2. ELECTRICAL SPECIFICATIONS......................................................................................................... 3
IV. INSTALLATION...............................................................................................................4
1. REMOVING PACKING MATERIALS.................................................................................................... 4
2. SECURING THE MACHINE.................................................................................................................. 4

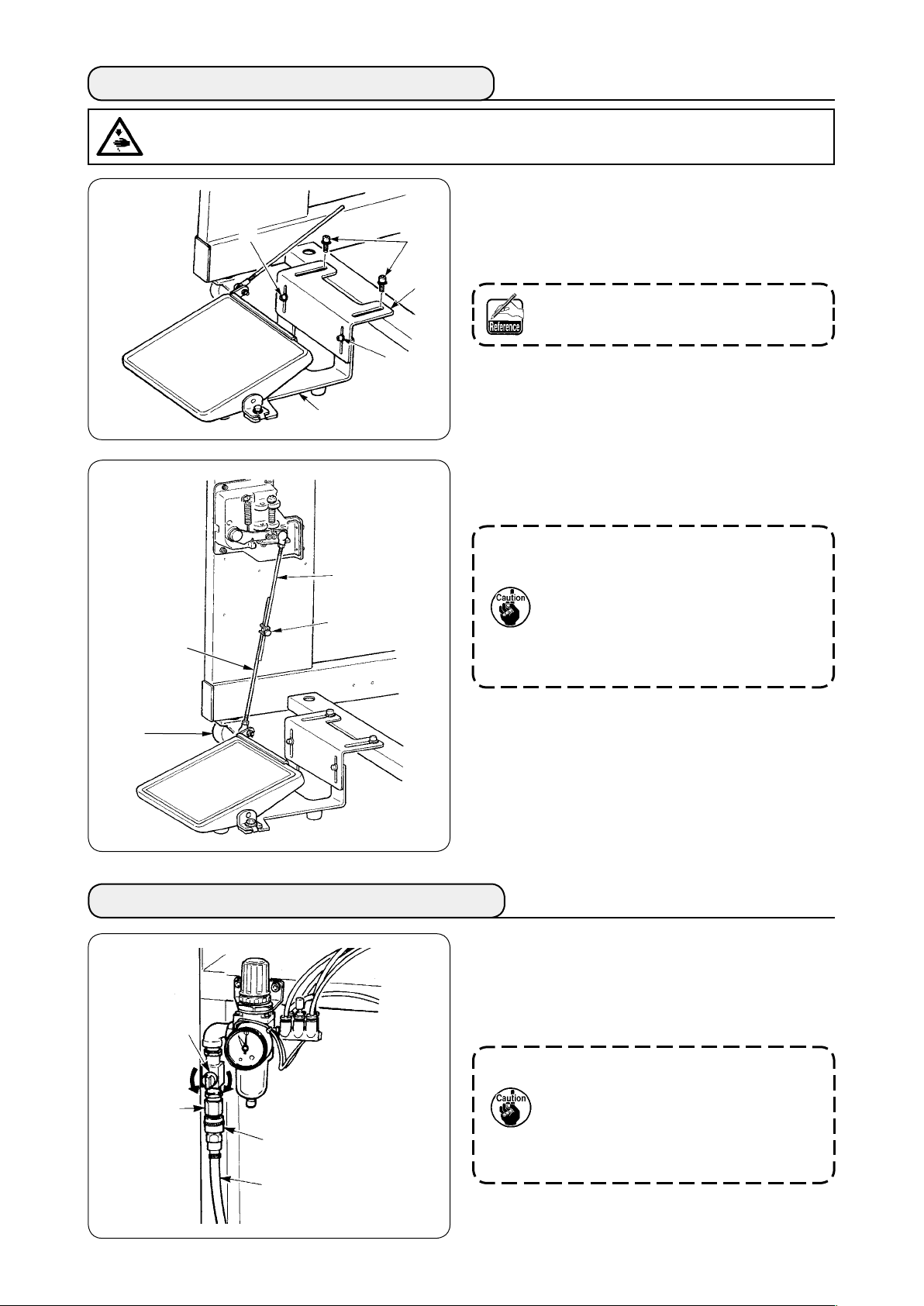

3. CONNECTING THE FOOT PEDAL...................................................................................................... 5
4. CONNECTING THE AIR COUPLER ................................................................................................... 5

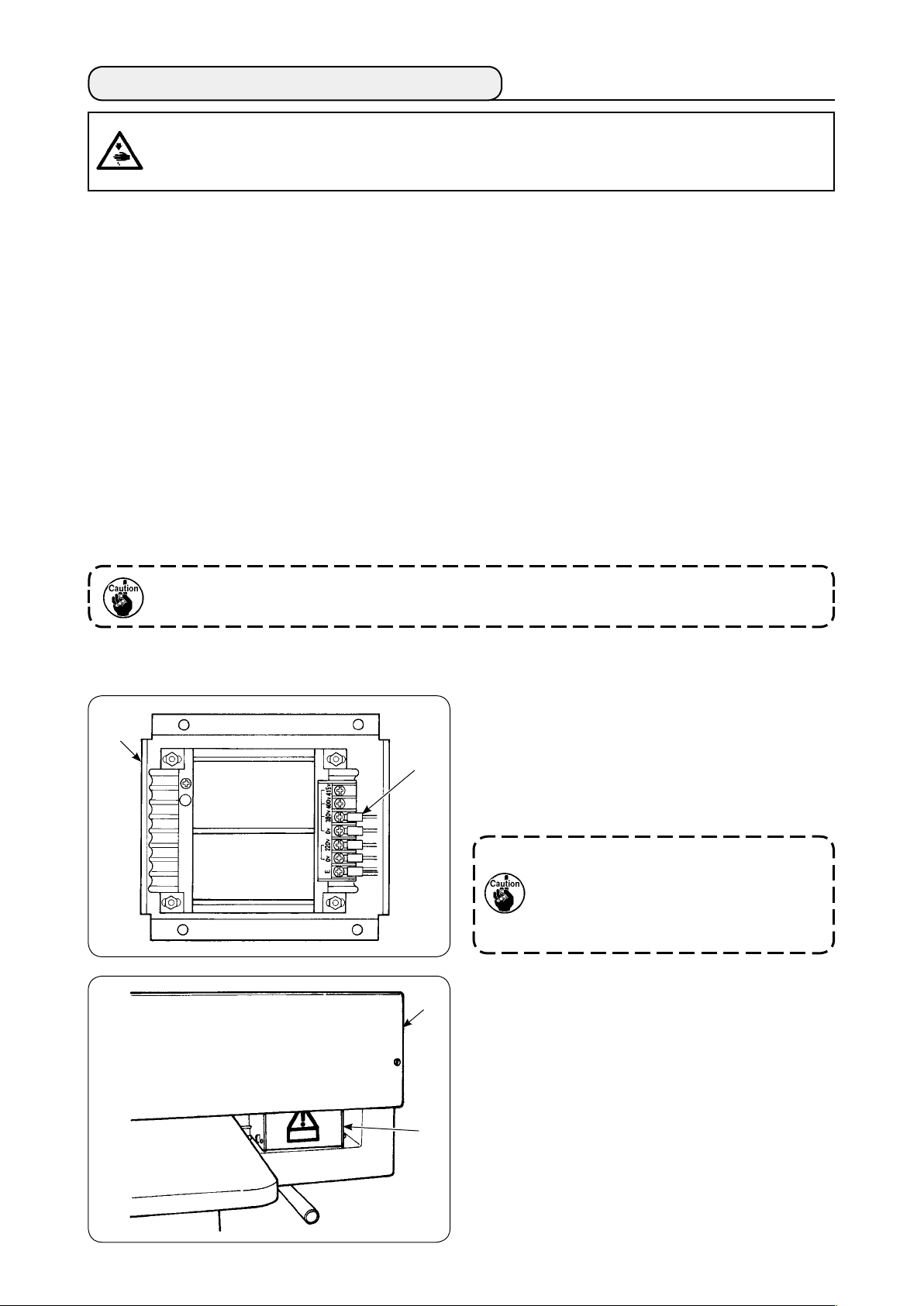

5. CONNECTING THE POWER PLUG .................................................................................................... 6

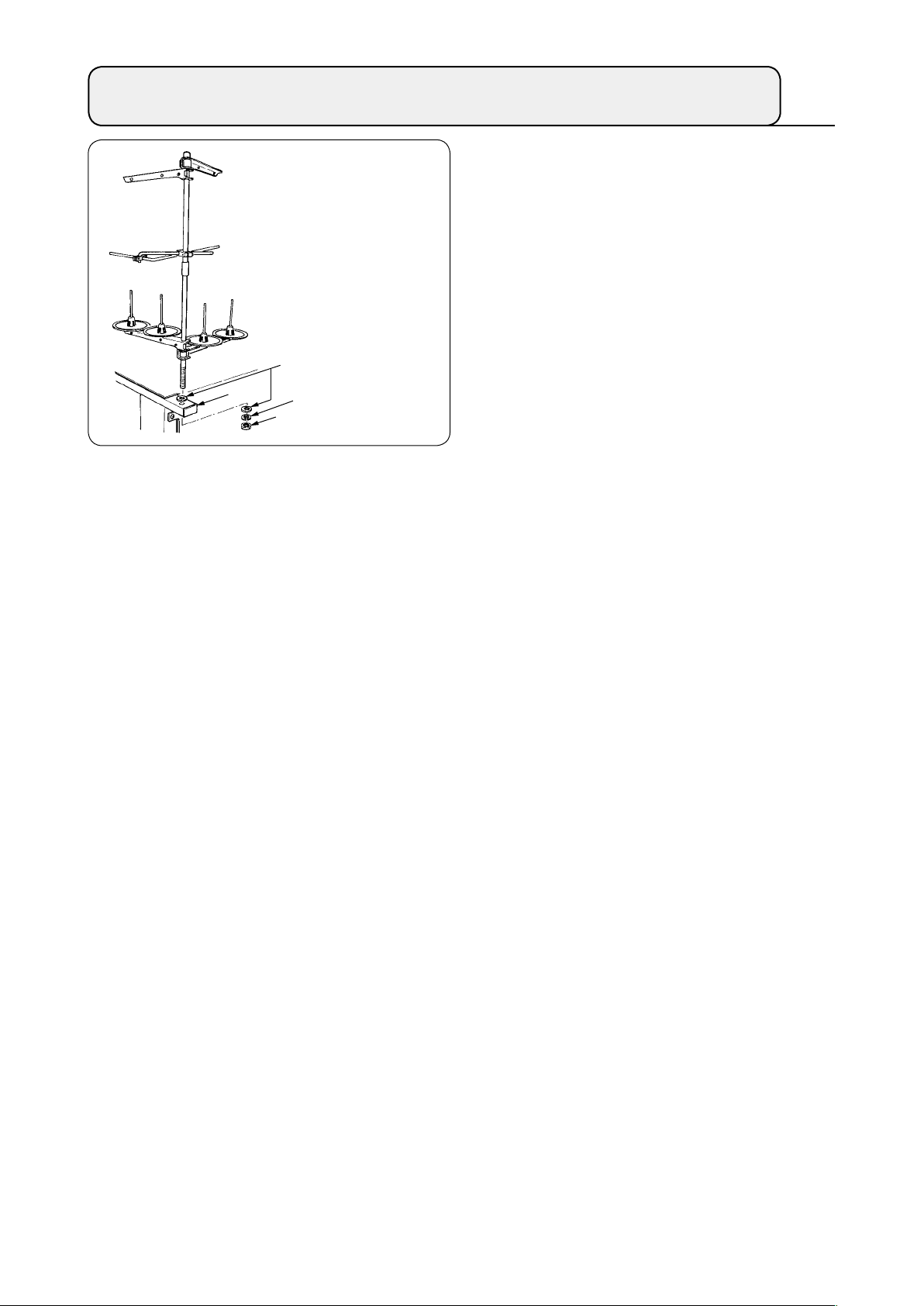

6. ASSEMBLING THE THREAD STAND AND ATTACHING IT TO THE MACHINE ............................... 7
7. INSTALLING SP-46N (CLAMP BAR STACKER) (OPTIONAL PART NO. : 40149301) ..................... 8

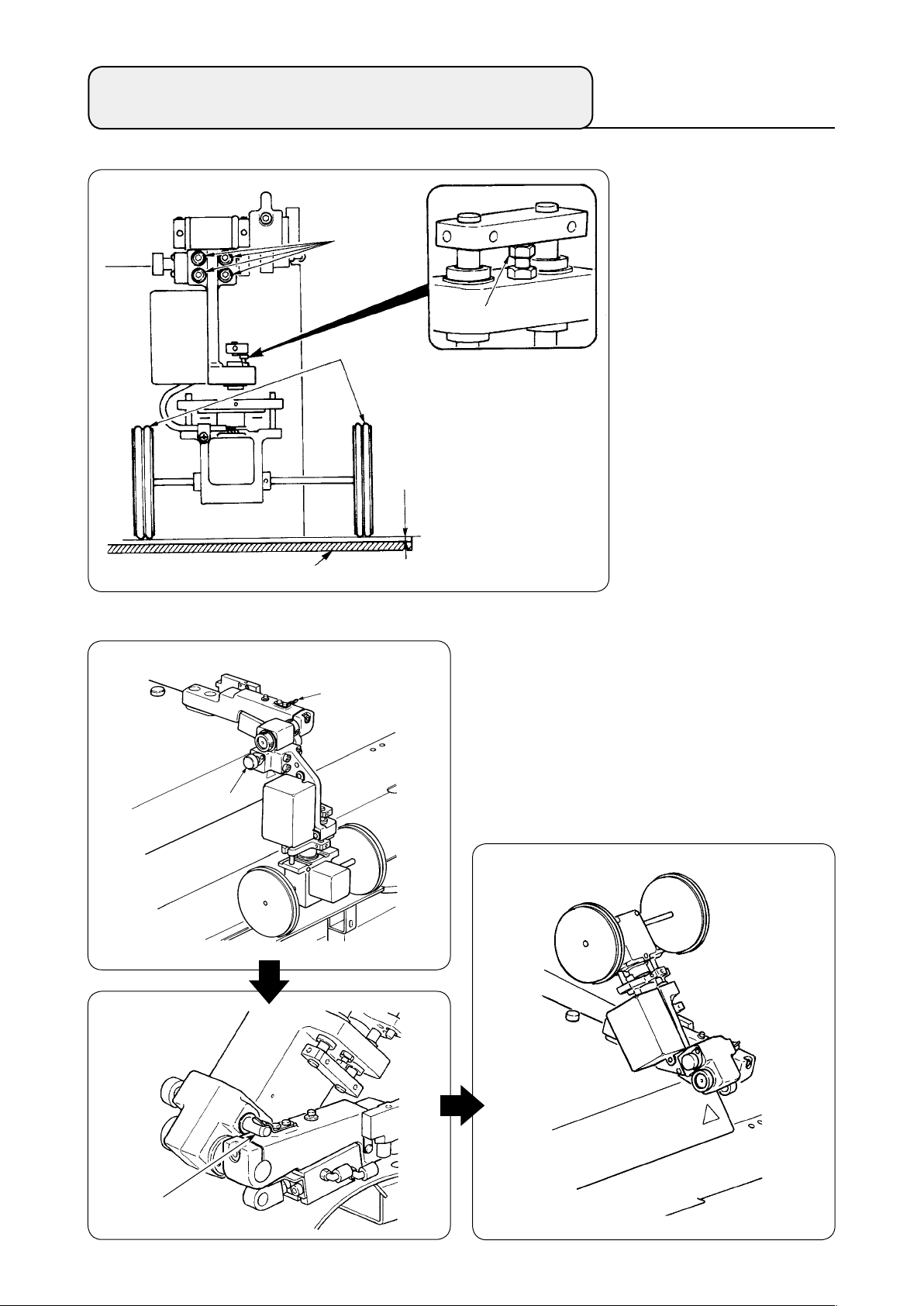

8. INSTALLING SP-47N (ROLLER STACKER) (OPTIONAL PART NO. : 40149302) ............................ 9
9. REMOVING THE HEAD FIXING PLATE ............................................................................................ 10
10. INSTALLING THE SUB-TABLE ......................................................................................................... 10
11. INSTALLING OPERATION PANEL IP-420......................................................................................... 10
12. LUBRICATING THE OIL TANK .......................................................................................................... 11
13. INSTALLING SA-120N (INTERLINING SUPPLYING DEVICE) (OPTIONAL PART NO. : 40149798) ... 12
14. ADJUSTMENT OF SA-120N (INTERLINING SUPPLYING DEVICE) (OPTIONAL PART NO. :
40149798) ............................................................................................................................................. 13
V. PREPARATION OF THE SEWING MACHINE ..............................................................14
1. HOW TO OPERATE THE SEWING MACHINE HEAD....................................................................... 14
(1) How to attach the needles .............................................................................................................. 14
(2) Thread used.................................................................................................................................... 14
(3) How to pass the needle thread ....................................................................................................... 15
2. HOW TO REMOVE THE SEWING TABLE......................................................................................... 16
(1) When replacing the bobbin thread.................................................................................................. 16
(2) Cautions to be taken when the sewing tables are removed ........................................................... 17
3. HOW TO WIND THE BOBBINS ......................................................................................................... 18
4. HOW TO THREAD THE BOBBIN CASE ........................................................................................... 19
5. HOW TO INSTALL THE BOBBIN CASE............................................................................................ 19
6. HOW TO ADJUST THE THREAD TENSION ..................................................................................... 20
7. SETTING THE MATERIAL TO BE SEWN.......................................................................................... 21
8. ADJUSTING THE MATERIAL GUIDE ................................................................................................ 21
VI. HOW TO USE THE OPERATION PANEL....................................................................22
1. PREFACE ........................................................................................................................................... 22
2. BASIC OPERATION OF THE OPERATION PANEL (IP-420)............................................................ 25
(1) Conguration of IP-420................................................................................................................... 25
(2) Buttons used in common ................................................................................................................ 26
(3) Basic operation ............................................................................................................................... 26
3. EXPLANATION OF THE BASIC SCREEN......................................................................................... 29
(1) Input screen (Independent sewing mode)....................................................................................... 29
(2) Sewing screen (Independent sewing mode) .................................................................................. 30

ii
(3) Input screen (Alternate sewing mode) ............................................................................................ 31
(4) Sewing screen (Alternate sewing mode) ........................................................................................ 32
(5) Input screen (Cycle sewing mode).................................................................................................. 33
(6) Sewing screen (Cycle sewing mode) ............................................................................................. 34
4. USING THE COUNTER ...................................................................................................................... 35
(1) Setting procedure of the counter..................................................................................................... 35
(2) Releasing procedure of count-up.................................................................................................... 38
(3) Counter value changing procedure during sewing ......................................................................... 38
5. USING THE BOBBIN THREAD AMOUNT ADJUSTMENT COUNTER............................................. 39
(1) Setting procedure of the bobbin thread remaining amount adjustment counter ............................. 39
(2) Releasing procedure of the bobbin thread remaining amount detection count-up ......................... 41
6. CHANGING THE SEWING MODE ..................................................................................................... 42
7. USING THE SEWING PATTERN........................................................................................................ 43
(1) Performing the selection of pattern................................................................................................. 43
(2) Performing the new creation of pattern........................................................................................... 44
(3) Copying the pattern......................................................................................................................... 45
(4) Erasing the pattern.......................................................................................................................... 47
(5) Naming the pattern ......................................................................................................................... 48
(6) Editing procedure of the cycle sewing data .................................................................................... 49
8. CHANGING THE SEWING DATA....................................................................................................... 51
(1) Changing procedure of the sewing data ......................................................................................... 51
(2) Sewing data list............................................................................................................................... 52
(3) Copying function of the upper and lower alternate sewing data ..................................................... 63
9. CHANGING THE MEMORY SWITCH DATA ...................................................................................... 65
(1) Changing procedure of the memory switch data ............................................................................ 65
(2) Memory switch data list................................................................................................................... 66
10. PERFORMING OPTIONAL SETTING................................................................................................ 74
(1) Changing procedure of the optional setting .................................................................................... 74
(2) Optional setting list.......................................................................................................................... 75
11. CHANGING THE DEVICE SETTING.................................................................................................. 76
(1) Changing procedure of the device setting ...................................................................................... 76
(2) Device setting list............................................................................................................................ 77
12. CUSTOMIZING THE PEDAL OPERATION ........................................................................................ 78
(1) Method to select and use the customized data............................................................................... 78
(2) Customizing the pedal operation data ............................................................................................ 79
13. CUSTOMIZING THE DATA INPUT SCREEN..................................................................................... 81
14. PERFORMING THE CUSTOMIZING SETTING OF THE SEWING SCREEN ..................................................... 83
15. USING THE INFORMATION............................................................................................................... 85
(1) Observing the maintenance inspection information........................................................................ 86
(2) Releasing procedure of the warning ............................................................................................... 87
(3) Observing the production control information ................................................................................. 88
(4) Performing setting of the production control information ................................................................ 90
(5) Observing the operation measurement information........................................................................ 92
16. USING THE COMMUNICATION FUNCTION ..................................................................................... 94
(1) Handling possible data ................................................................................................................... 94
(2) Performing communication by using the media.............................................................................. 94
(3) Performing communication by using USB ...................................................................................... 94
(4) Take-in of the data .......................................................................................................................... 95
(5) Take-in of plural data together ........................................................................................................ 96
17. PERFORMING FORMATTING OF THE MEDIA................................................................................. 98

iii
VII. MAINTENANCE...........................................................................................................99
1. INSPECTION ...................................................................................................................................... 99
(1) Maintenance and inspection of the pneumatic device .................................................................... 99
(2) Maintenance and inspection related to the sewing machine .......................................................... 99
(3) With regard to the waste oil of the hook oil................................................................................... 100
(4) With regard to the cleaning of the hook shaft base....................................................................... 100
2. MARKING LIGHT.............................................................................................................................. 101
(1) Fixed marking (standard).............................................................................................................. 101
(2) Movable marking (optional)........................................................................................................... 101
(3) Adjusting the marking light irradiation position.............................................................................. 102
3. REPLENISHING GREASE TO THE DESIGNATED PLACE............................................................ 103
4. CONSUMABLE REPLACEMENT COMPONENTS.......................................................................... 106
5. TILTING THE MACHINE................................................................................................................... 107
6. STANDARD OF REPLACING TIME OF THE GAS SPRING ........................................................... 108
7. REPLACING PROCEDURE BETWEEN DOUBLE-WELT AND SINGLE-WELT ..................................................... 109
(1) Replacing procedure between double-welt and single-welt.......................................................... 109
(2) Fine adjustment of the position of garment body clamp ............................................................... 109
(3) Replacing the binder......................................................................................................................110
8. ADJUSTING THE CORNER KNIFE ..................................................................................................111
(1) Corner knife unit.............................................................................................................................111
(2) Adjusting the corner knife...............................................................................................................112
(3) Corner knife adjustment function screen .......................................................................................113
(4) Corner knife actuating position setting procedure..........................................................................115
(5) Feature of the corner knife actuating position setting ....................................................................116
(6) Deection amount setting ..............................................................................................................118
9. CENTER KNIFE................................................................................................................................ 119
(1) Center knife actuating position setting procedure..........................................................................119
(2) Feature of the center knife actuating position setting ................................................................... 120
10. ADJUSTING THE POSITION OF THE SENSOR FOR DETECTING FLAPS ................................................... 122
11. CAUSES AND CORRECTIVE MEASURES AGAINST TROUBLES WITH THE BOBBIN THREAD REMAINING
AMOUNT DETECTING DEVICE........................................................................................................................... 123
12. HOW TO ADJUST THE FOOT PEDAL ............................................................................................ 124
13. ERROR CODE LIST ......................................................................................................................... 126
14. INPUT NUMBER TABLE .................................................................................................................. 138

− 1 −
I. CAUTIONS BEFORE OPERATION
Following items have to be checked every working day before the operation of the machine
and before the start of work hours.
1. Ascertain that the sewing machine is lled with the predetermined amount of oil.
2. Never operate the machine unless the lubricating part in the hook has been lled up with oil.
3. Ascertain that the pressure gauge indicates the designated air pressure of 0.5 MPa.
* (This is necessary particularly when the compressor is stopped for a lunch break or the like.)
If the compressed air pressure is equal to or less than the designated value, troubles such as
interference between the parts can occur. It is therefore necessary to carefully check the com-
pressed air pressure.
4. Check whether the needle thread/bobbin thread need to be replenished.
5. To perform sewing immediately after turning ON the power switch, perform trial stitching rst,
then proceed with sewing of actual products after the test sewing.
6. In order to prevent the optical ber sensor of the bobbin thread remaining amount detecting de-
vice from showing a detecting failure, be sure to clean thread waste around the hook using an air
gun once or more times a day.
7. In order to protect the ap sensor from showing a detecting failure, be sure to clean dust on the
reecting tape of the folding plate using an air gun once or more times a day.

− 2 −

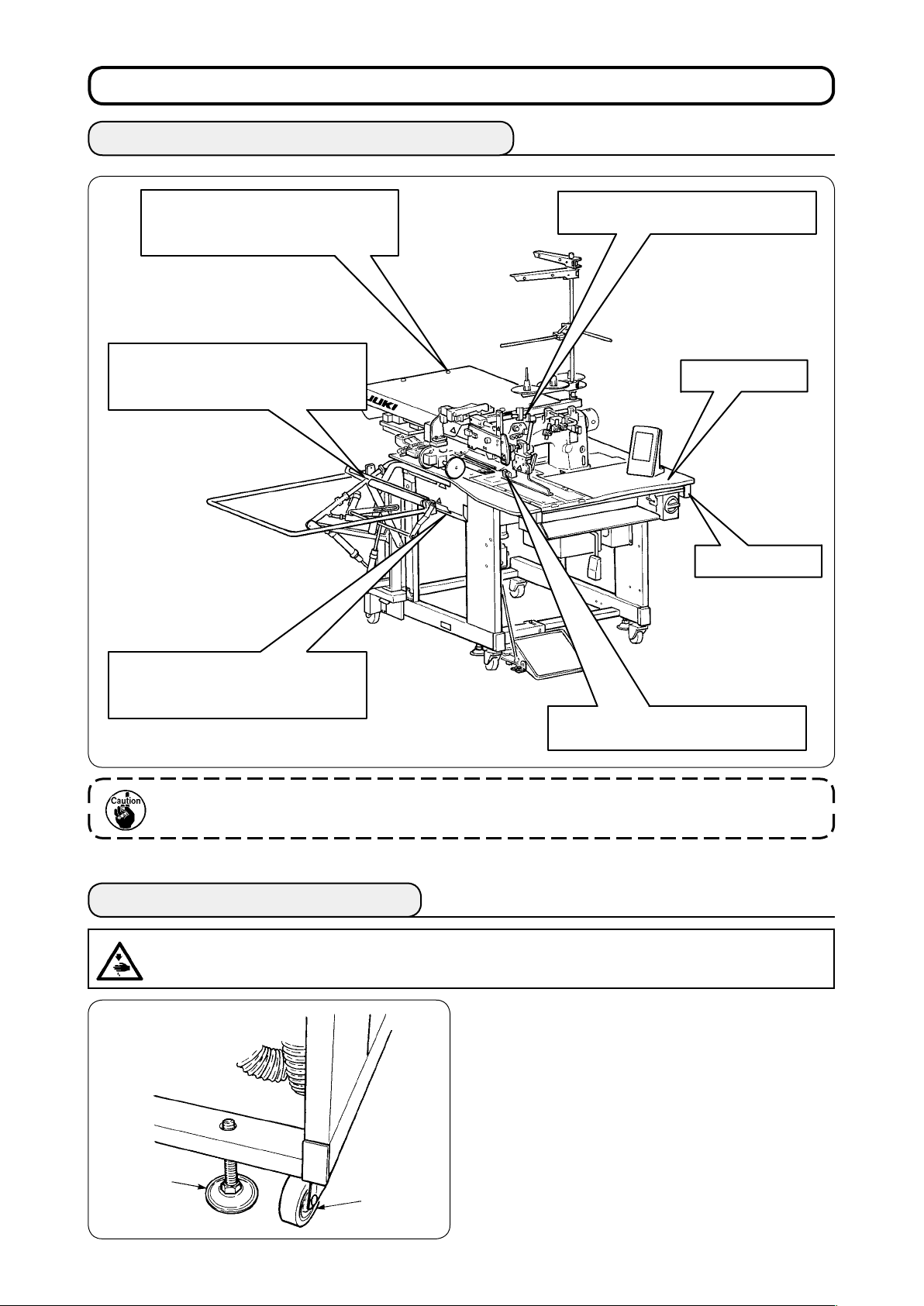

II. CONFIGURATION OF THE MACHINE
The APW-896N consists mainly of the following units.
A Frame and structural components (Framesewing table, covers, foot switch, etc.)
B Clamp foot unit and feed mechanism
C Corner knife unit
DBinder unit (Binder components and its driving components)
E Pneumatic control unit (Pneumatic control devices and pipings)
FStacker unit (Optional)
GSewing machine head
HElectric control unit (Control panel)
IOperation panel
J Power switch (Also used as the emergency stop switch)
K Temporary stop switch
With this machine consisting of the aforementioned 11 units, you can do desired welting work simply by set-
ting materials (garment body, interlining piece, welting patch, etc.) in place and operating the switches on the
operation panel.
In addition, when temporary stop switch K is pressed during operation of the device, the device stops.
DK
I
B
J
F
E
G
A
H
C

− 3 −
III. SPECIFICATIONS
1. MECHANICAL SPECIFICATIONS
1 Sewing machine LH-896N model of 2-needle, lockstitch machine with a center knife
2 Sewing speed 3,000 sti/min (max.)
3 Stitch length Lockstitch : 2.0 to 3.4 mm (standard : 2.5 mm)
Condensation stitch : 0.5 to 1.5 mm (standard : 1.0 mm)
Back tack stitch : 0.5 to 3.0 mm (standard : 2.0 mm)
Condensation/Back tack stitch selectable
4Types of welt Parallel double welt, parallel single welt
slant double welt, slant single welt Each with ap or without ap
5Pocket lip length
(Welt lenght)
Possible to set in increments of 0.1 mm within the range of 18 mm (min.) to 220 mm (max.)
* Parallel ap : Min. 47.5 mm
* Slant ap : Dependent on deection amount
(Reference) 20 mm gauge, deection amount 20 mm, back-tuck 7.5 mm
/ Min. 67.5 mm
6 Welting width
(Needle gauge)
8, 10, 12, 14, 16, 18and 20 mm
* However, for with dart stretcher, 8, 10, and 12 mm
For with breast pocket, 8, 10 and 12 mm
For with zipper attachment, 16 mm, 18 mm, 20 mm
7 Needles ORGAN DP X 17 #14 to #18 (standard #16)
8 Thread Spun thread #60 (Recommended)
9 Hook Full rotary, vertical-axis, self-lubrication hook
10 Thread take-up lever Slide thread take-up lever
11 Needle bar stroke 33.3mm
12 Cloth feed mechanism Driven by stepping motor
13 Control By a micro-computer
14 Safety mechanism Machine operation is automatically stopped if the cloth feed mechanism error detector,
the needle thread breakage detector or any of the various safety devices is actuated.
15 Lubricating oil JUKI New Defrix Oil No. 1
16 Operating air pressure 0.5 MPa
17 Air consumption Approx. 40 Nℓ/min
18 Dimensions of machine Width : 1,095 mm (1,580 mm - when including the stacker)
Length : 1,500 mm
Height : 1,165 mm (1,800 mm - when including the thread stand)
19 Weight 238.5kg
20 Noise - Equivalent continuous emission sound pressure level (LpA) at the workstation :
A-weighted value of 80.0 dB; (Includes KpA = 2.5 dB); according to ISO 10821- C.6.3
-ISO 11204 GR2 at 3,000 sti/min for the sewing cycle, 4.8s ON.
(Pattern : No.1, Jump feed speed of clamp foot : Max speed)
2. ELECTRICAL SPECIFICATIONS
1The number of independent sewing patterns that
can be stored in memory 99 (1 to 99)
2The number of alternate sewing patterns that can be
stored in memory 20 (1 to 20)
3The number of cycles that can be stored in memory 20 (1 to 20)
4 Input power : Single phase : 220 to 240V 50/60 Hz
3-phase : 200 to 240V 50/60 Hz (Optional 380V)
Voltage uctuation : Within + 10% of the rated voltage
5Power consumption 270VA

− 4 −
IV. INSTALLATION
Remove the upper cover and remove
the string and packing materials that
have xed the clamp foot.
Remove the string and packing
materials that have xed the clamp
bar stacker.
Remove the string that has xed the
binder unit.
Draw out the corner knife unit and
remove the string that has xed the
unit. Cut and remove the clip band that
has xed the needle bar.
1. REMOVING PACKING MATERIALS
2. SECURING THE MACHINE
❶
❷
CAUTION :
To prevent a fatal accident, lower and x adjust bolts ❷(4 places) located at the side of caster ❶after
moving the machine to the level and stabilized place.
When lifting the machine, hold the frame without holding the wooden table.
Wooden table
Frame

− 5 −
3. CONNECTING THE FOOT PEDAL
① Install the pedal base to the machine frame with
screws ❷.
②Connect pedal bases Aand Bwith two screws
❶.
Position of the pedal can be optionally
adjusted within the range of the slot.
③ Connect the connecting rods with xing screw
❸.
1. When connecting, do not connect the
rods with connecting rod Con the
sensor side pulled downward,
2. Install so that connecting rod on the
pedal side Dand the caster ❹do not
interfere with each other within the
range of pedal operation.
4. CONNECTING THE AIR COUPLER
Connect one end of air coupler Asupplied with
the machine as an accessory to air hose ❷. Then
connect the other end to coupler ❸on the main unit
side.
• Connect coupler A to the main unit
with air cock ❶ closed, then carefully
open air cock ❶to allow the com-
pressed air to be supplied.
• Make sure that the pressure gauge of
the regulator reads 0.5 MPa.
CAUTION :
When installing the pedal, perform the work paying attention to the overhead table.
❶
A
❸
❷
❶
❶
A
B
❷
❸
C
D
❹

− 6 −
5. CONNECTING THE POWER PLUG
Connection of the power plug to the power depends on the specications of the product. Adjust the power
plug to the power specications to connect.
① In case of the product of single-phase, 220 to 240V specications :
Connect the sky-blue and brown wires of the power cord to the power terminal (AC220 to 240V) and the
yellow/green wire to the ground (earth) terminal respectively.
② In case of the product of 3-phase, 200 to 240V specications :
Connect the red, white and black wires of the power cord to the power terminal (AC200 to 240V) and
the yellow/green wire to the ground (earth) terminal respectively.
③ In case of the product with the optional high voltage transformer (with SA-128) :
Connect the black wires (3 pieces) of the power cord to the power terminal (AC380 to 415V) and the
yellow/green wire to the ground (earth) terminal respectively.
It is possible to connect to 380/400/415V by setting of the input tap of transformer (standard setting at
the time of delivery : 380V).
CAUTION :
To prevent possible accidents caused by leakage or dielectric strength, an appropriate power plug
shall be installed by a person who has an expert knowledge of electricity. Be sure to connect the pow-
er plug to the receptacle that is well grounded.
This product performs operation by the single-phase connection for 3-phasse 380/400/415V.
[ Caution when changing the power source of the high voltage optional transformer ]
When using high voltage optional transformer ❶with
the input voltage of 400V or 415V, it is necessary to
replace input power source cord ❷ of high voltage
optional transformer ❶. Change power source input
cord ❷ (sky blue) that is connected to 380V to the
connection of 400V or 415V.
To prevent accidents, perform the work
after leaving the sewing machine alone
more than 4 minutes in the state that
the power switch is turned OFF and the
power cord is drawn out.
High voltage optional transformer ❶is set on the
rear side of the table.
When performing changeover of voltage, remove
transformer box ❹ after removing top cover ❸.
❸
❹
❶
❷

− 7 −
6. ASSEMBLING THE THREAD STAND AND ATTACHING IT TO
THE MACHINE
Putting nut and washer between main unit frame ❶
and x the thread stand as illustrated in the left-hand
gure.
Washer
Spring washer
Nut
❶

− 8 −
7. INSTALLING SP-46N (CLAMP BAR STACKER)
(OPTIONAL PART NO. : 40149301)
Clamp bar stacker is delivered in the
state that it is xed in the frame at the
time of delivery with the clamp bar
stacker mounted. It is necessary to
change the installing position to the nor-
mal using position.
① Remove stacker xing plate ❶.
② Turn the whole stacker in the direction of the
arrow and take it out from inside of the frame.
③ Change stacker turning shaft Asection to
stacker base hole B.
At this time, take care to prevent the stacker cord, the air piping, etc. from being caught.
In addition, insert the stacker rotating shaft into the hole in the stacker base until the bottom of
the base is reached.
④Lock the whole stacker with hinge ❷.
⑤ Insert safety bar ❸in direction Cas illustrated
in the gure. Fix the safety bar at the position
where it is in parallel with the oor surface.
At this time, conrm that air is being
supplied.
C
❸
❷
❶
A
B
Stacker in the operation state (with the air supply)
If the aforementioned situation occurs,
stop the air supply to bring the stacker
back to the state shown in the left gure
"Stacker in the setup state (without the
air supply)".
Then, start supplying the air after check-
ing to make sure that the stacker is in
the setup state.
In the case of power interruption due to
a power failure, etc., the folding opera-
tion of the stacker can get out of order.
Be aware that this can give rise to a risk
that the hand is caught in the stacker.
Do not put hands in the area surrounded
by the safety bar.
Stacker in the setup state (without the air supply)

− 9 −
8. INSTALLING SP-47N (ROLLER STACKER)
(OPTIONAL PART NO. : 40149302)
① Conrming parallelism
Make sure that stacker
table ❹and rubber roller
❸are installed parallel
with each other.
If not, loosen four set-
screws ❷ to adjust.
② Conrming the clearance
Make sure that the clear-
ance between stacker ta-
ble ❹and rubber roller ❸
is approximately 0.5 mm.
If it is not approximately
0.5 mm, loosen nut ❺to
adjust.
❷
0.5mm
❸
❹
❺
(1) Adjusting the position
When the roller stacker is not used or adjusting the
corner knife, the roller stacker can be turned upward
with the procedure below.
Pull release lever ❶. Lift up the roller section to
thrust pin ❸ into xing spring ❷, then bring them
into locked state (see Fig. 1). This puts the sewing
machine in standby state.
(Working state)
(Waiting state)
Fig. 1
❶
❷
(2) Maintenance
❸

− 10 −
B
A
9. REMOVING THE HEAD FIXING PLATE
Remove xing screws ❷ of head xing plate ❶.
Be sure to x the machine and the frame
when performing re-transportation.
10. INSTALLING THE SUB-TABLE
Install the sub-table with four screws ❶as shown in
the gure.
11. INSTALLING OPERATION PANEL IP-420
As shown in the gure above, open the lid on the right-hand section B of IP-420 and connect the connector
which is xed with tape to the right-hand top surface A of the table.
To prevent malfunction due to static electricity, install operation panel IP-420 on the panel base
to use and do not change the position of the panel base.
At this time, x the sub-table so as to be
ush with the main table.
Tape
Connector
❶
❶
❶
❷

− 11 −
• At the time of initial lling, ll the oil
tank with oil of 200cc as the standard
and conrm that the oil amount indi-
cating rod is working.
• When operating a newly installed
machine or a machine which has not
been used for a relatively long period
of time, make the machine run at 2,000
sti/min or less for the purpose of
break-in. In addition, use the machine
after applying oil to races Aof the
right/left hooks.
• For the oil for hook, purchase JUKI
MACHINE OIL No. 1 (Part No. : MD-
FRX1600C0).
• Be sure to ll the oil tank with clean
oil.
• Never ll the oil tank with dirty oil.
12. LUBRICATING THE OIL TANK
❸❷
❶
Fill the oil tank with the oil for hook lubrication before
operating the sewing machine.
①Remove oil cap ❶ and ll the oil tank with
JUKI MACHINE OIL No. 1 (Part No. : MD-
FRX1600C0) using the oiler supplied with the
machine as accessories.
Upper
engraved
marker line
② Fill the oil tank with the oil until the top end of
oil amount indicating rod ❸comes between
the upper engraved marker line and the lower
engraved marker line of oil amount indicating
window ❷.
When oil amount is excessively large, oil leaks
from the air hole or adequate lubrication cannot
be performed. So, be careful.
③
When operating the sewing machine and the top
of oil amount indicating rod ❸has lowered up to
oil amount indicating window ❷, start lubricating.
To prevent entering of dust, be sure to
attach the cap for use.
CAUTION :
1. To prevent accidents caused by abrupt start of the sewing machine, do not connect the power
plug until lubrication has been completed.
2. To prevent inammation or rash, immediately wash the part when oil has stuck to your eyes or
body.
3. If oil has been swallowed, diarrhea or vomiting may occur. Put oil to the place where children can-
not reach.
Lower
engraved
marker line
A
A

− 12 −
①Fix interlining installing plate ❶to the machine
frame with two screws ❷.
② Set interlining as shown in the gure above.
The roll core that can be used is 40 to 70 mm wide and 200 mm in roller diameter (max.).
③ Pass the interlining between guide B and guide A and roller, and route it up above the table.
Roller
Guide B
Guide A
Sewing table
Set collar
Spring
Side plate
❷
❶
Guide plate Guide B
Interlining
Feed the interlining up to the roller section using the notch of the guide plate.
④ Adjust the lateral position of two guides, two guide pins and side plate (on the right) to allow the interlin-
ing to be fed straight up above the sewing table.
⑤ Position the set collar on the left-hand side to allow the side plate to lightly hold the interlining by spring.
Then x the set collar there.
Notch
13. INSTALLING SA-120N (INTERLINING SUPPLYING DEVICE)
(OPTIONAL PART NO. : 40149798)
CAUTION :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.

− 13 −
CAUTION :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.

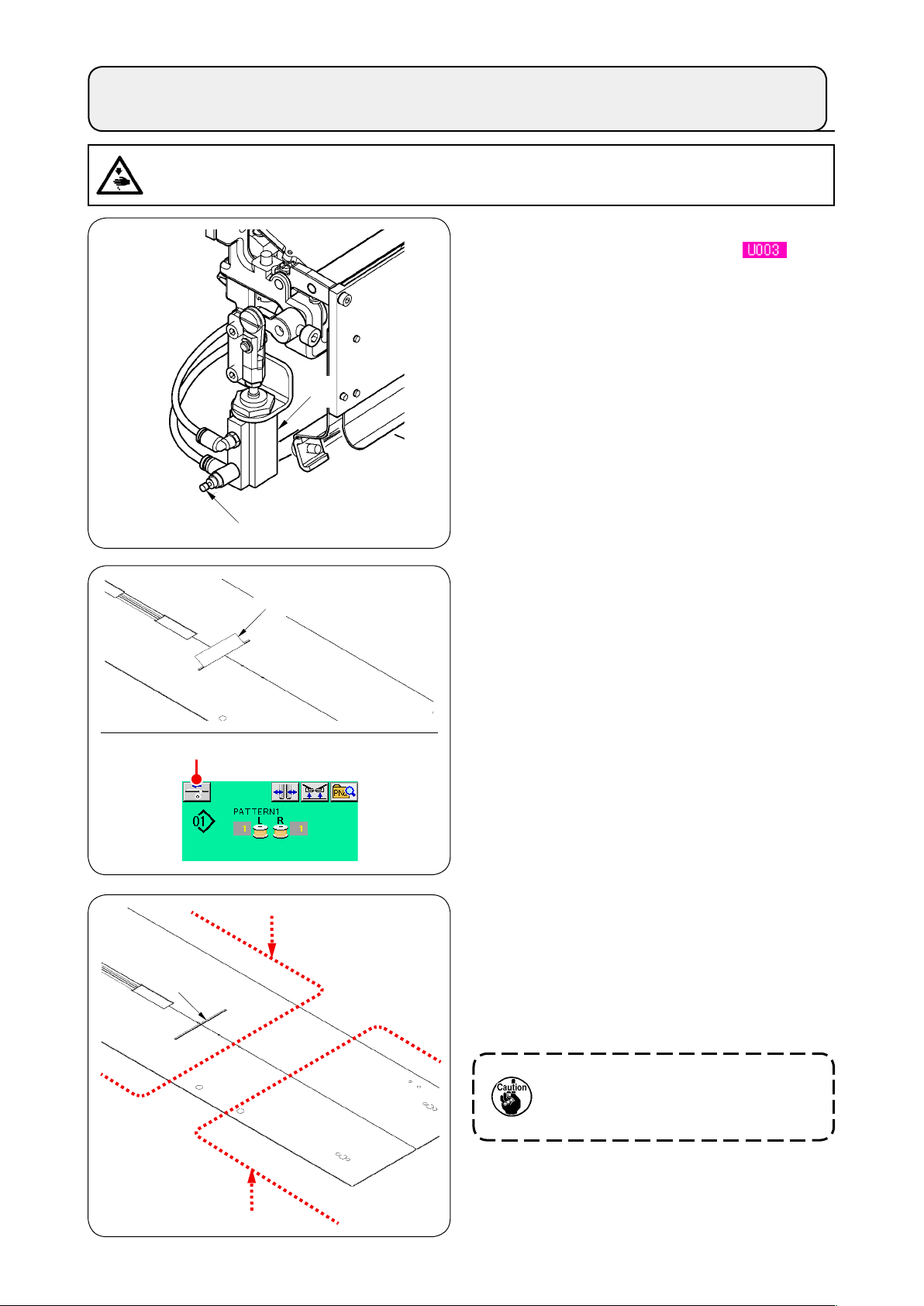

14. ADJUSTMENT OF SA-120N (INTERLINING SUPPLYING DEVICE)
(OPTIONAL PART NO. : 40149798)
①Adjustment of the interlining feeding amount
is performed with memory switch ( ).
However, perform further ne adjustment with
the speed controller ❷ of the interlining feeding
cylinder ❶.
(When tightening the speed controller ❷, the
amount is decreased and when loosening it, the
amount is increased.)
❸
❹
②When a new interlining ❸is mounted, press
interlining supply button ❹, perform feeding
of the trial sewing several times and use the
device after conrming the feeding amount and
the parallel feeding of the interlining.
❻
❼
❺(Caution when operating)
When using the interlining supplying device with
rear reference ❺, the interlining at the sewing
start remains long since it is away from interlin-
ing outlet ❻. So, use the device with front refer-
ence ❼.
For handling the sewing tables, refer to
"V-2.(2) Cautions to be taken when the
sewing tables are removed" p. 17.
❶
❷

− 14 −
V. PREPARATION OF THE SEWING MACHINE
1. HOW TO OPERATE THE SEWING MACHINE HEAD
(1) How to attach the needles
Needles used are DP X 17 #14 to #18 (standard
#16). Use the specied needle.
Insert left- and right-hand sides needles as far as
they will go pointing their long grooves ❶at each
other and tighten needle clamp screws ❷.
• Use the left hand twist thread for the needle
thread.
• Either twist thread will do for the bobbin thread.
(2) Thread used
Right hand twist thread
Left hand twist thread
Use a new thread which is uniformly
twisted.
CAUTION :
• Turn OFF the power before starting the work so as to prevents accidents caused by abrupt start of
the sewing machine.
• When replacing the needle, be careful not to allow your ngers to touch the blade section of the
center knife.
❷❷
❶

− 15 −
A
AB
A
B
AB
C
B
A B
A
B
C
A
B
❶
Pass the needle thread in the illustrated order.
Left-hand side needle thread toward the sewing machine A
Right-hand side needle thread toward the sewing machine B
② Then pass needle thread in the order as shown in the gure below.
Periodically replace thread guide felt C. Sewing trouble due to rough motion of thread
during sewing can be prevented.
(3) How to pass the needle thread
① Lift binder ❶in the direction A, Hold section B
by hand and turn the whole binder in the direc-
tion C.
Binder is locked with the ball plunger.
Rather strongly turn the binder in the
direction C to release the lock.
Be sure to press section B since welt-
ing width may become improper when
the binder is pressed and turned in the
direction C.
CAUTION :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.

− 16 −
❶
Pin
A

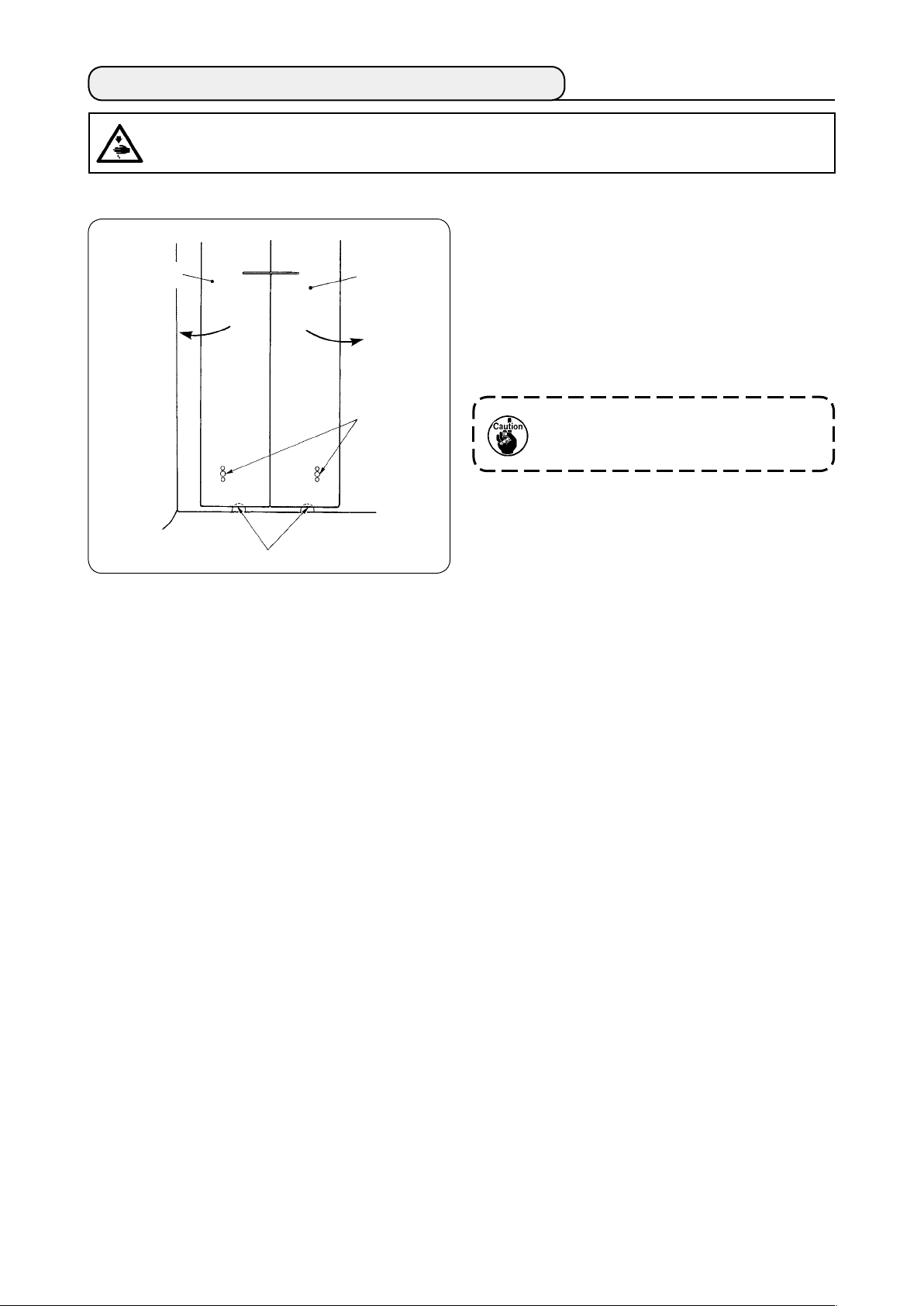

2. HOW TO REMOVE THE SEWING TABLE
(1) When replacing the bobbin thread
① Move the clamp foot to the rear end of its stroke.
② Insert your ngers into notches Ain the bottom
of right- and left-hand sewing tables ❶and ❷,
and push up the sewing tables.
③ Move the tables in the direction of the arrow
keeping the above state, and you can see the
bobbin case.
At this time, move the sewing tables
so as not to allow the sewing tables to
come in contact with the needles.
④ After replacing the bobbin thread, return
the sewing tables in place by following the
above-mentioned steps of procedure in the
reverse order. Now, rmly set the sewing tables
on the throat plates and the pins.
❷
CAUTION :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
