JVC CU-V70KITE User manual

ENGLISHDEUTSCHFRANÇAIS
NEDERLANDSCASTELLANO
ITALIANO
VICTOR COMPANY OF JAPAN, LIMITED
COPYRIGHT© 1997 VICTOR COMPANY OF JAPAN, LTD. EPrinted in Japan
0397MSV*UN*VP
CU-V70KIT E
CU-V70KIT E
INSTRUCTIONS
ACCESSORY KIT
ZUBEHÖR-SET
KIT D'ACCESSOIRES
ACCESSOIRE-KIT
JUEGO DE ACCESORIOS
KIT DI ACCESSORI
LYT0002-0D8A MANUALE DI INSTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING
MANUEL D’INSTRUCTIONS
BEDIENUNGSANLEITUNG
TW

EN-2
Dear Customer,
Thank you for purchasing this Accessory KIT.
Before use, please read the safety information
and precautions contained in the following
pages to ensure safe use of your new
Accessory KIT.
Using This Instruction Manual
•All major sections and subsections are listed in
the Table Of Contents (Zpg. 9).
•Notes appear after most subsections. Be sure to
read these as well.
It is recommended that you . . .
..... read thoroughly the Safety Precautions that
follow and cautions (Zpgs. 6, 7). They
contain extremely important information
regarding the safe use of your new Accessory
Kit.
SAFETY
PRECAUTIONS
WARNING:
TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
CAUTION:
nTo prevent shock, do not open the cabinet.
No user serviceable parts inside. Refer
servicing to qualified personnel.

EN-3
Warning on lithium cell battery
The battery used in this device may present a
fire or chemical burn hazard if mistreated. Do
not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Panasonic (Matsushita
Electric), Sanyo or Maxell CR2025; use of
another battery may present a risk of fire or
explosion.
nDispose of used battery promptly.
nKeep away from children.
nDo not disassemble and do not dispose of
in fire.
CAUTION (applies to the Docking Station):
TO REDUCE THE RISK OF FIRE, DO NOT
REMOVE COVER (OR BACK). NO USER–
SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED SERVICE PERSONNEL.
NOTE:
● The rating plate (serial number plate) of the
Docking Station is on its bottom.
This unit is produced to comply with
Standard IEC Publ. 65.

EN-4
CAUTION! Attaching the camcorder to the
Docking Station, connecting cables (AUDIO/
VIDEO, S-VIDEO, Editing, DC) and leaving the
unit on top of the TV is not recommended, as
tripping on the cables will cause the camcorder to
fall, resulting in damage.
About Batteries
DANGER! Do not attempt to take the batteries
apart, or expose them to flame or excessive heat,
as there is a risk of fire or explosion.
WARNING! Do not allow the battery terminals,
or the battery itself, to come in contact with
metals, as this can result in a short circuit and
possibly start a fire.
• When transporting, make sure the provided battery cap
is attached to the battery. If you misplace the battery
cap, carry the battery in a plastic bag.

EN-5
Lithium-ion is vulnerable in colder temperatures.
Keep the battery in a pocket when not in use, or
use the provided power grip.
The Benefits Of Lithium-Ion Batteries
Lithium-ion batteries are small yet have a large
power capacity. However, if exposed to extreme
cold (below 10°C), the effective operational time
decreases significantly. Exposure to temperatures
below 0°C will render the battery inoperative. If
you are planning to shoot in an environment at
these temperatures, carry the battery in a pocket
to keep it warm, then attach it just prior to
recording. The provided power grip is also
recommended. It holds two batteries, and keeps
them sufficiently warm even at an outside
temperature of 0°C.

EN-6
CAUTIONS
BEFORE USE
●To avoid malfunctions, short circuits, battery
leakage, excessive heat and possibly fire . . .
..... DO NOT allow the DC Plug to come in
contact with metal objects or surfaces.
..... DO NOT use the Power Grip with any
appliance other than the GR-DVJ70.
..... DO NOT attempt to modify the case in any
way.
..... DO NOT dispose of the case in excessive
heat or fire with the BN-V714U Battery Packs
inside.
..... DO NOT store the Power Grip in direct
sunlight or near a radiator or other heat-
generating appliance (where the temperature
is above 80°C).
..... DO NOT attempt to use the Power Grip if it
or the BN-V714U Battery Packs become wet.
DURING USE
●Make sure to remove the battery cap.
●The battery may become warm after charging or
after use. This is normal.
●When attaching the Power Grip to the GR-DVJ70,
make sure the attachment screws are securely
tightened.
WHEN NOT IN USE
●Store the Power Grip in a dry, climatically
stable environment.
●Detach the Power Grip from the GR-DVJ70 and
remove the battery from the case before storing.
Replace the GR-DVJ70’s connector cover.
Battery Packs
The BN-V714U Battery
Pack is a lithium-ion
battery. Before using the
battery pack, be sure
to read the following
cautions: Terminals
Cap
Battery

EN-7
1. To avoid hazard . . .
..... do not burn.
..... do not short-circuit the terminals.
..... do not modify or disassemble.
..... use only specified chargers.
2.
To prevent damage and prolong service life . . .
..... do not subject to unnecessary shock.
..... charge in an environment where
temperatures are within the tolerances
shown in the chart below. This is a
chemical reaction type battery—cooler
temperatures impede chemical reaction,
while warmer temperatures can prevent
complete charging.
..... store in a cool, dry place. Extended
exposure to high temperatures will
increase natural discharge and shorten
service life.
..... avoid prolonged uncharged storage.
..... remove from charger or powered unit
when not in use, as some machines use
current even when switched off.
3. To prevent damage to the camcorder . . .
..... replace the battery pack when it begins to
deliver less recording time per charge.
NOTES:
● Recharging time is based on room temperature
of 20°C.
● The lower the temperature, the longer recharg-
ing takes.
● It is normal for the battery pack to be warm
after charging, or after use.
Temperature Ranges
Charging ................................ 10°C to 35°C
Operation .............................. 0°C to 40°C
Storage .................................. –10°C to 30°C

EN-8

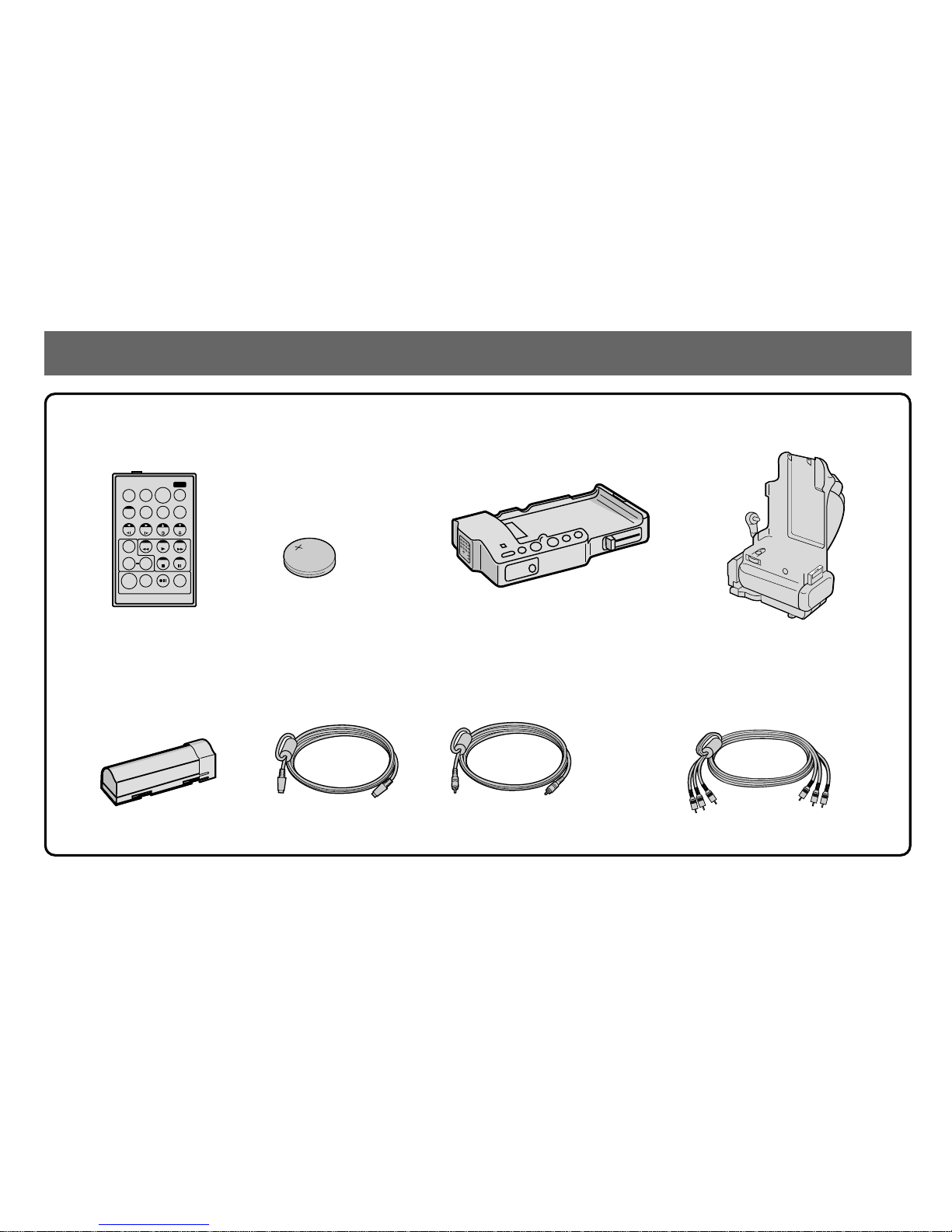

PROVIDED ACCESSORIES
TW
Power Grip CU-V778U
Battery pack
BN-V714U AUDIO and VIDEO cable (Phono Docking Station TV or VCR)
Editing cableS-VIDEO cable
Docking Station
Remote control unit
RM-V708U or RM-V710U
Lithium battery CR2025
(for remote control)

EN-9
CONTENTS
SAFE PRECAUTIONS 2
PROVIDED ACCESSORIES 8
ABOUT THE POWER GRIP 10
Install Batteries......................................................................................... 11
Attach The Power Grip To The Camcorder........................................................... 12
Adjust The Grip Band .................................................................................. 13
Record A Scene ......................................................................................... 14
Tripod A Mounting ...................................................................................... 15
Attaching A Microphone ............................................................................... 16
Specifications ........................................................................................... 17
ABOUT THE REMOTE CONTROL UNIT 18
ABOUT THE DOCKING STATION 21
ABOUT THE BATTERY PACK 24

EN-10
The Power Grip enables extended continuous shooting, and makes shooting possible even at 0°C.
Lithium Ion batteries are vulnerable in the colder temperatures of winter. Their effectiveness is drastically
reduced at temperatures below 10°C, and they will normally not function when the temperature is
below 0°C. In such an environment, use the Power Grip.
ABOUT THE POWER GRIP
When using fully charged batteries . . . When using unevenly charged batteries . .
Fully Charged Battery 1
Fully Charged Battery 2
Approximate shooting time — 90 min.
(20 — 25°C)
Fully Charged Battery 1
Partially Charged Battery 2Discharged
Portion
Approximate shooting
time — depends on remaining
charge of Battery 2

EN-11
Install Batteries
Always use two battery packs. The case will not function if only one battery pack is installed.
1
2
3
1
Press down "PUSH" and open the cover
in the direction of the arrow.
2
Insert two fully charged Battery Packs.
• Make sure the / marks on the batteries
are facing each other.
• If two unevenly charged battery packs are
used, the case will stop functioning as soon
as the weaker of the two battery packs run
down.
3
Close the cover.
/marks
“PUSH”
Cover
Cover
Battery Pack

EN-12
Attach The Power Grip To The Camcorder
Always use two battery packs. The case will not function if only one battery pack is installed.
2
4
1
2
1
1
4
23

3
DC Cord
Metal Fittings
Slots
Connector cover
Screw
When detaching the
Power Grip, turn the
screw opposite the
direction indicated by
the arrow.
DC Plug
DC Input Jack
ABOUT THE POWER GRIP (Cont.)

EN-13
1
Remove the camcorder’s connector
cover as indicated by 1, 2.
• In 2, rotate the cover in the direction
indicated by the arrow, then remove it.
• After use, follow 3, 4to re-attach the
cover.
2
Insert the tips of the metal fittings on
the Power Grip deep into the corre-
sponding slots on the camcorder (1),
then attach the case (2).
3
Turn the unit around, then turn the screw
in the direction indicated by the arrow.
• Continue turning the screw until it stops.
4
Connect the DC Plug on the Power
Grip to the DC Input Connector on the
camcorder.
• Do not pull on the DC Cord, as this can
result in malfunctions.

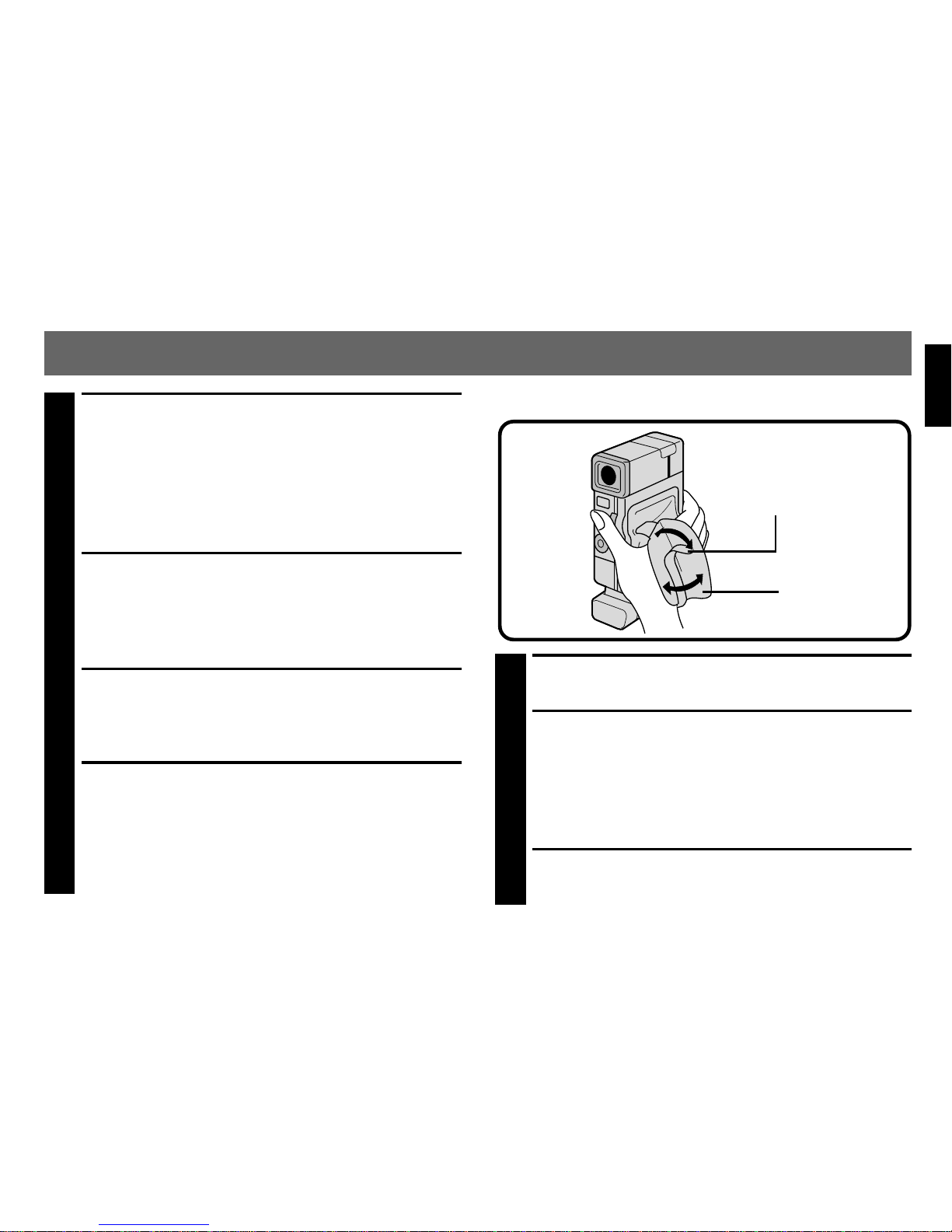

1
Detach the pad.
2
While holding the camcorder securely,
adjust the grip band on the Power Grip.
• Adjust so your thumb can easily reach the
Zoom Lever and the RECORDING START/
STOP button.
3
Re-attach the pad.
Pad
Grip Band
Adjust The Grip Band

EN-14
Record A Scene
Insert a cassette and try recording.
ABOUT THE POWER GRIP (Cont.)
** The camcorder’s battery and the Power Grip battery packs cannot be used at the same time. If both are installed, the
Power Grip battery packs become the power source. When the Power Grip Battery Packs near complete discharge
(when the Power Lamp begins blinking), set the camcorder to RECORD/STANDBY mode, set the Power Dial to
“OFF” and detach the Power Grip DC Cord from the camcorder. Then turn the camcorder’s power back on.
OFF
5S
REC
PLAY
PAUSE
2
13
Blinks*
Extinguishes (Batteries
have discharged)
*Depending on the temperature,
the time from when the Power
Lamp begins blinking to when it
goes out will vary (it takes
longer in colder temperatures).
Power Lamp Lights
Viewfinder
Record/Standby
Mode
RECORDING
START/STOP Button
Power Lamp Lights

EN-15
1
Pull out the viewfinder.
2
Set the Power Dial to “REC”.
• The Power Lamp lights and the camcorder
enters the Record/Standby mode.
• When the battery packs installed in the
Power Grip become weak, the case’s
Power Lamp begins to blink, and the lamp
goes out when the battery packs have
completely discharged. Replace them with
two fully charged battery packs.
• Be sure to set the Power Dial to "OFF"
before installing charged battery packs.
• While the DC Plug is connected, even as
the battery packs begin to run down, the
Battery Indicator on the camcorder will
show the battery packs to be fully charged
.
3
Press RECORDING START/STOP.
1
Align the screw and Power Grip
direction stud on the tripod with the
Power Grip’s mounting socket and stud
hole. Then tighten the screw.
• Refer to the tripod's instruction manual for
details on mounting onto tripod.
Bottom side of
Power Grip
Tripod Mounting

EN-16
Attaching A Microphone
You can attach a stereo microphone (commercially available) to the Power Grip.
The camcorder does not supply power to the microphone.
Refer to the microphone's instruction manual for details on attaching.
1
1
2
2
Accessory shoe
Accessory shoe Shoe
Accessory shoe
External MIC
input jack
ABOUT THE POWER GRIP (Cont.)

EN-17
Specifications
Operating temperature 0 — 40°C
Operating humidity 30 — 80%
Storage temperature –20 — 50°C
Continuous shooting time
..... at 20 — 25°C Approx. 90 min.*
Dimensions 96 (W) x 149 (H) x
65 (D) mm
Weight Approx. 151 g
* Based on use of two fully-charged BN-V714U
Battery Packs.
1
Pull out the accessory shoe 1and turn
it in the direction of the arrow 2.
2
Insert the microphone's shoe into the
accessory shoe. Then connect the
microphone's ø3.5 mm mini-plug
connector to the external MIC input
jack on the camcorder.

EN-18
ABOUT THE REMOTE CONTROL UNIT
For further details, refer to your camcorder's instruction manual.
Controls, Indications And Connectors
You can use the RM-V708U or RM-V710U to control the camcorder when it's attached to
the Docking Station.
TW
321
@
#
$
%
^
&
*
(
)
qw
er
4
5
6
7
8
9
0
!

EN-19
1POWER ON/OFF Button
2Recording START/STOP Button
3PAUSE IN connector
4ZOOM Buttons
5DISPLAY Button
6SHIFT Button
7SLOW Rewind Button/Left Button
8SLOW Forward Button/Right Button
9FADE/WIPE Button
0EFFECT Button
!EFFECT ON/OFF Button
@AUDIO MONITOR Button
#MBR SET Button
$A.DUB Button/Down Button
%INSERT Button/Up Button
Operation Buttons
^FF Button
&PLAY Button
*REW Button
(PAUSE Button
)STOP Button
R.A. EDIT Buttons
qON/OFF Button
wVCR REC STBY Button
eCANCEL Button
rIN/OUT Button

EN-20
Installing The Battery
The RM-V708U or RM-V710U uses one lithium battery (CR2025).
ABOUT THE REMOTE CONTROL UNIT (Cont.)
Specifications
Power : DC 3 V (Lithium
Battery CR2025)
Battery Life : Approx. 1 year (depend-
ing on usage)
Effective distance : Approx. 5 m (front shaft)
Operating temperature : 0°C — 40°C
Storage temperature : –20°C — 50°C
Dimensions : 54 mm (W) x 86 mm
(H) x 12 mm (D)
Weight : Approx. 26 g (with
battery installed)
KNOB
1
Pull out in the direction of the arrow
while pressing the knob as shown.
2
With the “+” side up, place the lithium
battery (CR2025) in the holder.
3
Slide the holder back in until you hear
a click.
