JVC KA-DV350U User manual

KA-DV350U
INSTRUCTIONS
NETWORK PACK STARTUP GUIDE
LST0207-001A
For Customer Use:
Enter below the Serial No. which is
located on the body. Retain this
information for future reference.
Model No. KA-DV350U
Serial No.
This instruction book is made from
100% recycled paper.
KA-DV350U
NETWORK PACK STARTUP GUIDE
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD.
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2004 VICTOR COMPANY OF JAPAN, LIMITED LST0207-001A
®
®
VICTOR COMPANY OF JAPAN, LIMITED

Ⅰ
IMPORTANT SAFEGUARDS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water .
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with
the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer .
10. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/appara-
tus combination to avoid injury from tip-over .
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the appara-
tus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally , or has been dropped.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3126A
FOR USA AND CANADA
The lightning flash wish arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Information for USA
This device complies with part 15 of the FCC Rules.
Changes or modifications not approved by JVC could
void the user’s authority to operate the equipment.
INFORMATION (FOR CANADA)
This Class B digital apparatus complies with
Canadian ICES-003.
RENSEIGNEMENT (POUR CANADA)
Cet appareil numérique de la Class B est conforme
á la norme NMB-003 du Canada.
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE.REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
INFORMATION FOR USA
INFORMATION
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmfull interfrence to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
CHANGES OR MODIFICATIONS NOT APPROVED BY
JVC COULD VOID USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION
Ⅱ

2
Safety Precautions
Thank you for purchasing this product.
(These instrustions are for KA-DV350U)
Before beginning to operate this unit, please read the instruction manual carefully in order to
make sure that the best possible performance is obtained.
Due to design modifications, data given in
this instruction book are subject to possible
change without prior notice.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOIS-
TURE.
AVERTISSEMENT:
POUR EVITER LES RISQUES
D’INCENDIE OU D’ELECTRO-CUTION,
NE PAS EXPOSER L’APPAREIL A
L’HUMIDITE OU A LA PLUIE.
POWER SYSTEM
Connection of POWER supply
The power for the network pack is supplied
through the camera that is connected to the
network pack.
This equipment is in conformity with the provisions and protection requirements of the corre-
sponding European Directives. This equipment is designed for professional video appli-
ances and can be used in the following environments:
• residential area (in houses) or rural area
• commercial and light industry; e.g. offices or theatres
• urban outdoors
In order to keep the best performance and furthermore for electromagnetic compatibility .
Use the PC Card which acquired a CE mark.
Caution
Where there are strong electromagnetic waves or magnetism, for example near a radio or
TV transmitter, transformer, motor, etc., the picture may be disturbed. In such case, please
keep the apparatus away from the sources of the disturbance.
3
Network Pack Startup Guide
(This document)
This document describes the basic instructions
for use of the Network Pack.
Contents
Product Conponents ..................................... 3
Features ........................................................ 4
Precautions ................................................... 4
What the KA-DV350 can be used for ............ 6
Controls, Connectors and Indicators ............ 8
How to Attach................................................ 9
Confirming correct attachment ................... 10
Installing Streamproducer ........................... 11
Specifications.............................................. 12
Network Pack
KA-DV350
Adapter for encoding/decoding
video/audio data by connecting to GY-
DV300.
The following software and these Instructions are included on the provided CD-ROM.
• Streamproducer Software
Software used for distributing movies on a network.
• Network Pack User ’s Guide (pdf)
Reference guide for the Network Pack.
•User’s Guide (pdf) to “Streamproducer” – the software for network distribu-
tion.
Software for live broadcasting and distribution on networks.
CD-ROM
Setting of the KA-DV350 is performed on the menu screen of the GY-DV300 camcorder.
For details on the setting methods, please see the Network Pack User ’s Guide (pdf) included on the provided
CD-ROM.
CD-ROM\ENU\Network Pack User ’s Guide (pdf)
When the Streamproducer program included on the provided CD-ROM is installed, the Network Pack User’s
Guide (pdf) is automatically installed on the PC and added to the Start menu.
[Start/Programs/KA-DV350U/User ’s Guide]
The Adobe Reader is required to view PDF files.
*The names of other manufacturers and
their products mentioned in this document
may be the trademarks or registered
trademarks of their respective owners.
In this document, symbols like ™, ®, ©,
etc. have been omitted.
Product Components

4
Features
Precautions
Wired LAN card EA2906 194 Revision C*1
(Manufacturer: Socket Communications Inc.) *2
PCM100 (Manufacturer: LINKSYS)
FA411 (Manufacturer: NETGEAR)
Wireless LAN-card WLI-CF-S11G (Manufacturer: BUFFALO INC.)
WLI2-CF-S11 (Manufacturer: BUFFALO INC.)
WCF11 (Manufacturer: LINKSYS) *3
TEW-201PC (Manufacturer: TRENDware international Inc.)
TEW-202CF (Manufacturer: TRENDware international Inc.)
AIR-PCM352 (Manufacturer: Cisco Systems, Inc.)
CF (Compact Flush) card SDCFB-16-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-32-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-64-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-128-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-256-801 (Manufacturer: SanDisk Corporation) *2
*1: The Revision designation is indicated on the label fixed to the
package.
*2: Use PCMCIA card TYPE 1 or TYPE 2 adapter.
*3: Use PCMCIA card TYPE 2 adapter.
Do not use other cards that those for which operation has been
confirmed. Improper installation may cause damage to the KA-
DV350.
(For the latest cards for which operation have been confirmed,
please consult the person in charge of professional video
equipment at your nearest JVC-authorized service agent.)
●By connecting the KA-DV350 to GY-DV300, video/audio of camera or of tape playback
can be encoded/decoded in realtime. Video data is converted to MPEG-4 and audio data
is converted to G726 or
µ -Law.
●Installing a LAN-card in the PC card slot enables real-time streaming.
●Installing a Compact Flash card in the PC card slot enables real-time capturing.
●Network distribution of the video/audio file created by the KA-DV350 is possible when the
“Streamproducer” program included on the provided CD-ROM is installed on the PC.
●Be sure to turn the camcorder ’s power supply OFF before the KA-DV350 is attached to
the camcorder.
●Be sure to turn the camcorder ’s power supply OFF before inserting or removing CF
(Compact Flash) cards, etc., into and from the camcorder . Inserting or removing cards
while the camcorder ’s power supply is turned ON can result in corruption of the
recorded sections of the card or damage to the card itself.
●The KA-DV350 accepts the following cards for which operation has been confirmed:
5
Precautions (cont’d)
Streamproducer Operating Environment
●Under the following conditions, the Streamproducer can be used in the required
operating environment.
• When using 1 camera or 1 file.
• When recording of the camera image is not performed.
• When switched distribution is not performed.
Required operating environment
●Hardware
CPU
Memory
Display
Hard disk
Network
●Software
OS (English)
Player software
Pentium III 700 MHz
128 MB
XGA (1024 X 768)
•50 MB for installation
•1hour viewing time requires empty hard disk space equivalent
to 25 MB (high compression) to 200 MB (low compression).
•1LAN system for connecting the network pack
•Internet connection to download codec program for playback
of moving pictures
•Other network environment for distribution if distribution is to
be performed in other environment than that described above
WindowsXP Home Edition
WindowsXP Professional
Windows 2000
Windows Media Player 7.01 or Windows Media Player 8
If Windows Media Player 9.0 is used, some functions of the
Streamproducer may be restricted.
●When using multiple cameras or files, the following operating environment is
recommended in order to make full use of the application’ s functions.
●Hardware
CPU
Memory
Display
Pentium 4, 2.2 GHz or higher
512 MB or more
SXGA (1280 X 1024) or more
Other operating environment demands are the same as the
required operating environment demands.
Recommended Operation Environment
The described required operating environment and recommend
operating environment are both meant as guidelines to ensure
optimal use of the application but are not meant as guarantee of
operation. Also, even if you use a computer that complies with
the operating environment, optimal use of the application may
not be obtainable due to the configuration of your system.
MemoMemo

6

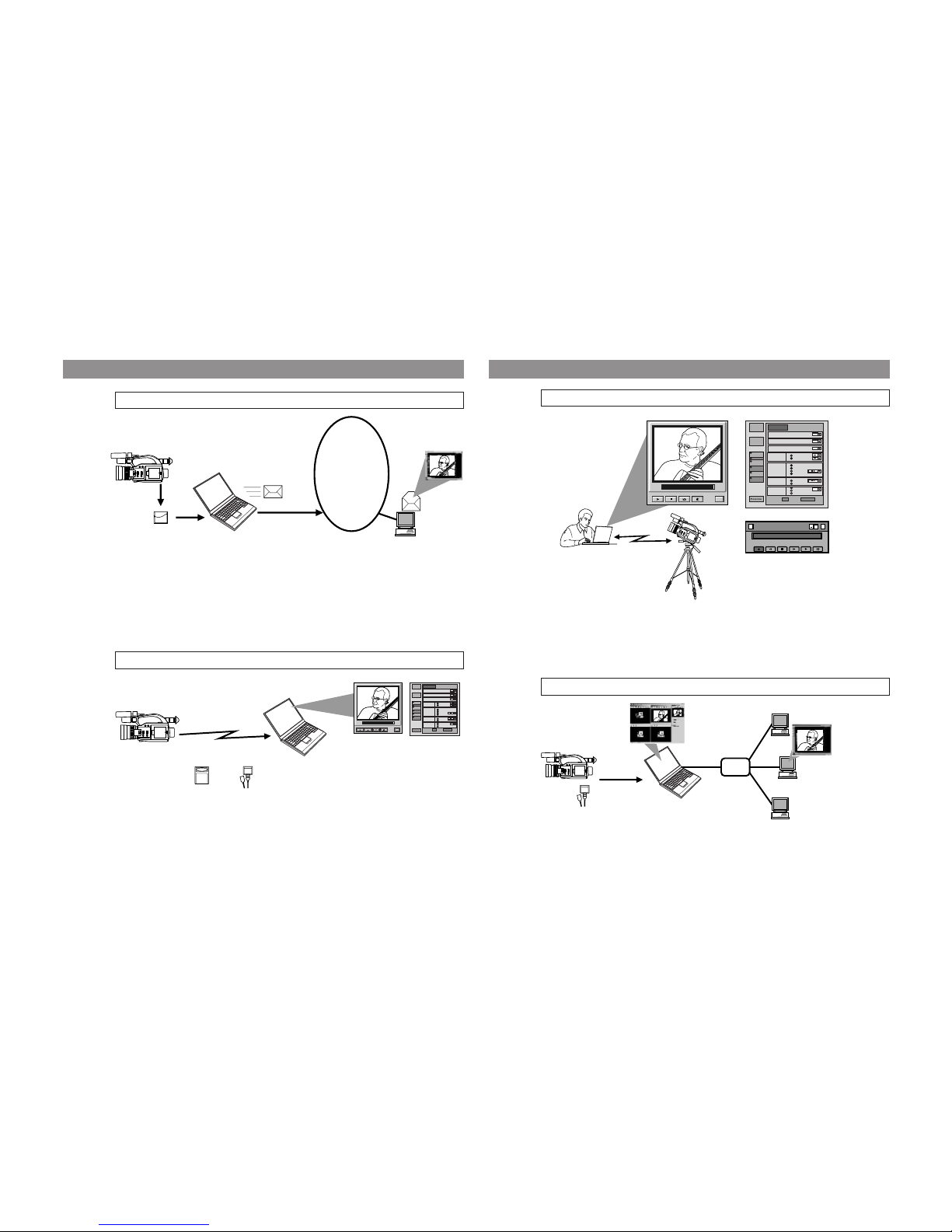

What the KA-DV350 can be used for
Sending camera video/audio by email using CF (Compact Flash) card
Viewing and storing camera video/audio with your PC.
INTERNET
1. Using the KA-DV350 to transfer
the camera images data to a
PC.
2. Using Streamcapture for viewing
and/or storing the camera
images data on a PC.
1. Recording the camera images
data to a CF card by using the
KA-DV350.
2. Sending an image file stored on
a CF card as an e-mail
attachment file.
VIEW STOP CAPTURE MUTE PROPERTY
CAPTURING
00 : 00 :00
CAMERA CONTROL
FULL AUTO
BARS
WHITE BAL
IRIS
GAIN
SHUTTER
ZOOM
OK CANCEL
AUTO
MANUAL
Lolux
ALC
STEP
0dB
STEP
OFF
WIDE
TELPHOTO
STOP
ON
ON
FAW
JVC
NETWORKPACK
KA-DV300
NETWORK
PACK
SETUP
NETWORK
PORTSETUP
ENCODE
PARAMETERS
CAMERA
CONTROL
CONTROL
STREAMING
CAPTURE
VTR
SETUP
0
7
Controlling the camera with computer
Receiving/Distributing the camera video data via LAN
Camera settings and VTR control can be
performed using a notebook computer .
VIEW STOP CAPTURE MUTE PROPERTY
CAPTURING
00 : 00 : 00
CAMERA CONTROL
FULL AUTO
BARS
WHITE BAL
IRIS
GAIN
SHUTTER
ZOOM
OK CANCEL
AUTO
MANUAL
Lolux
ALC
STEP
0dB
STEP
OFF
WIDE
TELPHOTO
STOP
ON
ON
FAW
JVC
NETWORK PACK
KA-DV300
NETWORK
PACK
SETUP
NETWORK
PORT SETUP
ENCODE
PARAMETERS
CAMERA
CONTROL
CONTROL
STREAMING
CAPTURE
VTR
SETUP
0
ex
VTR CONTROL Microsoft InternetEx
REC REW FF PLAY STILL
PAUSE/
STOP
HUB
Windows Media Server
1. Using the KA-DV350 to transfer
the camera images data to a PC
2. Using Streamproducer to
redistribute the camera images
data transferred to the PC
3. Using Windows Media Player to
view the distributed camera
video data on a PC
What the KA-DV350 can be used for (cont’d)

8
Controls, Connectors and Indicators
5Service terminal.
Do not use this terminal.
6
Camera mounting screw holes
( 1 /4 inch)
To mount the KA-DV350 and
the GY -DV300 on a camera
tripod.
7Release button
Press this button to remove
the KA-DV350 from the GY-
DV300.
1
5
4
3
2
7
6
1
Camera connection terminal
To connect the DV
camcorder (GY-DV300).
(☞See page 9 “How to
Attach”)
2PC card slot
To insert a LAN card,
Compact Flash card, etc.
3Access lamp
This lamp lights when the
card is in use.
4Guard
Guard to prevent the card
from being inadvertently
ejected.
9
How to Attach
Be sure to turn OFF the power of
the GY-DV300 and open the
“cover” at the lower part of the
camera before attaching the KA-
DV350 using the following pro-
cedure.
1. Hook the claw at the rear of
the KA-DV350 onto the notch
of the GY-DV300.
2. While pressing the Release
button, press the claw at the
front of the KA-DV350 into the
notch of the GY-DV300.
3. Attempt to move the KA-
DV350 back and forth to en-
sure that it is securely at-
tached to the camcorder.
2.
1.
3.
Release button
Cover
To detach, perform steps 2. and 1. in
order while pressing the Release
button.
MemoMemo

10
Confirming correct attachment
1. Turn OFF the power of the
GY-DV300.
2. Insert the card.
3. Turn ON the power of the
GY-DV300.
4. Confirm the card status indi-
cator.
Be sure to turn OFF the GY-DV300’s
power supply before the card is
removed from the camcorder.
Card status
indicator
e
The card status indicator is
displayed on the GY-DV300’s
LCD screen or viewfinder
screen in accordance with
the type of the card.
The card status indicator
shown on the right blinks
during the initialization
operation right after the power
is turned on.
Caution
Use the following procedure to confirm that the KA-DV350 is correctly attached.
MemoMemo
: Card not inserted
: LAN card
: CF card
CF
e
11
Installing Streamproducer
1. Insert the CD-ROM of
Streamproducer into the
CD-ROM drive.
•Wait until the access lamp of
the CD-ROM drive goes out.
•The screen shown on the
left appears.
•In case the Streamproducer
does not start automatically,
execute the “autorun.exe” in
the CD-ROM.
2. Click on “English”.
The screen shown on the left
appears.
3. Click on “Install the
Streamproducer”.
The Installer starts up.
•When installing the Streamproducer, make sure
that login is made to a PC with “Administrator
privileges”.
•Detailed information on how to operate the
Streamproducer is described in the “Read
User’s Guide”, so please refer to this.
The “Read User ’s Guide” can be opened by
selecting: Start menu/Programs/
Streamproducer/User ’s Guide.
•There are no descriptions referring to the KA-
DV350 in the Streamproducer “Read User’s
Guide”. However, all of the instructions that are
required for the KA-DV350 are the same as
those for the KA-DV300.
MemoMemo
Click
Click

12
Specifications
Mass : 150 ˝(main unit only)
Power supply : Supplied from the GY-DV300
Power consumption : DC 7.2 V }0.61 A (main unit only)
Allowable operating temperature : 0 ˚C to 40 ˚C
Allowable storage temperature : –20 ˚C to 60 ˚C
Allowable operating humidity : 30 % to 80 % RH
Provided accessories CD-ROM
INSTRUCTIONS
Warranty Card (USA and Canada only)
● External Dimensions (Unit: mm)
Design and specifications are subject to change without notice.

74
3539
27.6
191.5
13

LST0196-001A
NETWORK PACK
User’s Guide
KA-DV350U
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD.
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2004 VICTOR COMPANY OF JAPAN, LIMITED
LST0196-001A
®
®
VICTOR COMPANY OF JAPAN, LIMITED

Items concerning the operations of this product are described.
References concerning the usage, restrictions, etc. of this product are described.
☞Reference pages and reference items are indicated.
Notes on usage
Thank you for purchasing
this NETWORK PACK KA-DV350U.
2
MemoMemo
Caution
Proprietary terms
●All rights reserved by JVC. Unauthorized duplication or reprinting of this manual, in whole
or in part, is strictly prohibited.
●Windows is a registered trademark of Microsoft Corporation in the U.S.
●All other product names used in this manual are trademarks or registered trademarks of
their respective companies. Please note that marks such as TM, ®, ©, stc. have been
omitted in this manual.
Illustrated designs, specifications and other contents of this manual are subject to change without prior
notice.
Contents
INTRODUCTION
PREPARATION
OPERATION
OTHERS
3
INTRODUCTION
PREPARATION
OPERATION
Contents ..................................................................................................... 3
Precautions for Proper Use ........................................................................ 4
PC Operating Environment ........................................................................ 6
LCD and Viewfinder Display ...................................................................... 8
Setup Menus ............................................................................................ 12
NETWORK PACK CONFIG menu ............................................................... 13
NETOWRK MAIN menu .............................................................................. 14
ENCODE SETUP menu............................................................................... 18
MOVIE CLIP SETUP menu.......................................................................... 20
Changing the NETWORK PACK CONFIG menu settings .......................... 21
Resetting the NETWORK PACK CONFIG menu settings ........................... 22
Operations Available with This Unit ......................................................... 23
Flow of Preparation .................................................................................. 25
Setup of the GY-DV300 ........................................................................... 26
When using a wired LAN and one PC ........................................................ 26
When using a wired LAN and multiple PCs................................................ 30
When using wireless LAN and one PC ....................................................... 34
When using wireless LAN and multiple PCs .............................................. 38
Connection ............................................................................................... 42
Installing the wired/wireless LAN card ....................................................... 42
Setup of the PC ........................................................................................ 43
Setting up the proxy server ........................................................................ 43
Activating the web browser ........................................................................ 44
Using the CF (Compact Flash) Card ........................................................ 45
Inserting the card ....................................................................................... 45
Formatting the card .................................................................................... 46
Recording ................................................................................................... 47
Recording time on CF card ........................................................................ 51
Playback ..................................................................................................... 52
Protecting recorded images ....................................................................... 55
Deleting images.......................................................................................... 56
Viewing Camera Images on a PC ............................................................ 58
Viewing images recorded in CF card ......................................................... 58
Transmitting images using LAN card ......................................................... 59
Controlling a Camera from a PC .............................................................. 62
Controlling the GY-DV300 .......................................................................... 62
Adjusting the GY-DV300 camera ............................................................... 63
Setting the image display on a PC ............................................................. 64
Changing the KA-DV350 menu setup ........................................................ 65
Function of Simplified Viewer ................................................................... 68
Receiving Camera Images via LAN ......................................................... 70
Using the Windows Media Player ............................................................... 70
Using QuickTime Player ............................................................................. 71
Distributing Camera Images via LAN ....................................................... 73
Changing the Top Page of the Web Control Display (Streamcorder) ...... 74
Updating the KA-DV350 Version.............................................................. 75
Checking the Network Communication (PING Command) ...................... 76
Using the QuickTime Streaming Server ................................................... 77
Glossary ................................................................................................... 79
OTHERS

Maintenance and operating environment
Do not store or use this equipment in the
following environments. This will cause
malfunctioning and damage.
•Locations beyond the allowable operating
temperature range of 0 °C to 40 °C.
•Locations beyond the allowable operating
humidity level of 30 % to 80 %.
•Near equipment that produces strong
magnetic fields, such as transformers or
motors.
•Near equipment that emits radio waves, such
as transceivers and mobile phones.
• Locations with excessive dust and sand.
•Locations that are subject to excessive
vibration.
• Locations prone to condensation.
•Locations that emit radiation, X-rays or
corrosive gases.
Handling precautions
Do not stack pieces of equipment
The heat and noise produced by the various
units may cause a malfunction in adjacent
equipment, failure or fire.
Do not step over
The unit may topple over or break and cause
injury. Take special care to prevent children
from attempting these actions.
Do not place a container of liquid (including
a vase, flowerpot, toilet articles, medicine,
etc.) on the unit.
Penetration of a liquid inside the unit may
cause a fire or electric shock.
Do not allow any object to enter the unit.
If a metallic or easily flammable object is
inserted PC card slot, a fire or electric shock
may result.
Cleaning
Wipe this equipment using soft rags.
Wiping with thinner or benzene may dissolve or
tarnish its surface. For dirt that cannot be easily
removed, wipe using a neutral detergent
diluted with water, followed by wiping with a dry
cloth.
Transportation
Turn off the power for camera and unplug
the power cord from AC outlet before
transportation.
This may cause damage to power cord, fire
or electrical shock.
Saving Energy
Turn off the power to save energy when the
equipment is not to be used for extensive
periods of time.
Copyright information
Duplication, alteration and transmission of
copyrighted materials including video and
audio materials require the permission of the
copyright owners, except in a case in which
the person attempting these actions is the
copyright owner of the video or audio
material or a person who has obtained
previous permission for these actions from
the copyright owner.
If you duplicate, alter or transmit a
copyrighted material without the permission
of the copyright owner, an infringement of
copyright law is constituted and you may be
liable for damages. Therefore, when you
want to utilize a copyrighted material as a
video or audio material, be sure to check in
advance, the conditions that relate to
obtaining permission for the use of the
copyrighted material.
In the case of a subject of shooting has been
copyrighted, it is also necessary to obtain
permission for shooting and utilizing it. Be
sure to check in advance the conditions that
relate to obtaining permission.
Loss of opportunity
Before performing an important recording,
always perform test recording and confirm
normal recording results in advance.
Should normal recording fail due to a problem
with this unit, JVC will not assume liabilities for
any damages that may result from the failure.
Precautions for Proper Use
4
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Caution for using wireless LAN card
Receiving Level Indicator of Wireless LAN
If you are using wirelss LAN card that can
detect receiving level, receiving level
indicator is shown next to the card status infor-
mation on LCD of your camcorder. The indica-
tor shows value from 5 to 0, 5 means
maximum level and 0 means minimum level.
(The indicator is for reference. The value does
not guarantee communication.)
WLAN CH is the wireless frequency band
used for communication. If there is an access
point, adapter, etc., using the same band in
the proximity, there may be a hindrance in the
communication and may reduce throughput
or the quality of communication. When setting,
check the settings of surrounding access
points, etc., to avoid doubling.
Caution for using wireless LAN card
For the WLAN ESS ID, input the values of
ESSID set in:
Ad hoc mode : PC of other party
Infrastructure : Access point
WLAN AD HOC MODE
When IBSS is set, the NETWORK MODE
setting of the wireless LAN card on the PC
side must be set to 802.11 Adhoc.
When AHDM is set, the NETWORK MODE
setting of the wireless LAN card on the PC
side must be set to Adhoc. Depending on
the LAN card on the PC side, only 802.11
Adhoc mode may be available.
About restriction of audio record
This unit is not compatible with audio
sampling frequency of 44.1kHz. When
playing back a tape recorded with audio of
44.1kHz on GY-DV300 or when inputting
audio in the 44.1kHz mode into the DV
terminal, the audio will be processed as
muted sound. However,the video will be
processed as normal.
Precautions for Proper Use
5
Frequency bands (ISM bands) and channels
(IEEE803.11b standard)
N. America :
FCC / 2.412~2.462GHz (11 channels)
Europe : CE ETSI / 2.412~2.472GHz (13 channels)
Japan : 2.412~2.4835GHz (14 channels)
France : 2.457~2.472GHz (4 channels)
Spain : 2.457~2.462GHz (2 channels)
(Set according to operating environment.)
1ch
2412 2417 2422
2427
2432
2437
2442
2447
2452
2457
2462
2467
2472 2484
2ch
3ch
4ch
5ch
6ch
7ch
8ch
9ch
10ch
11ch
12ch
14ch
13ch
Approx.
11MHz Center frequency
1ch frequency band1ch frequency band 1ch frequency band11ch frequency band 1ch frequency band14ch frequency band6ch frequency band6ch frequency band
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Since adjacent channels causes signal interference,
channels are normally spaced 5 channels apart.

The operation of this unit has been confirmed under the following PC environment. The following PC
environment was available as of January 2004. For details of the latest available operating environment,
please consult your nearest JVC-authorized agent.
Minimum requirements of PC
Web browser
PC Operating Environment
6
OS : Windows XP Home Edition
Windows XP Professional
Windows 2000 Professional
CPU : Pentium III 700 MHz
Memory : 128 MB
Display : XGA (1024 x 768)
Sound card : Sound Blaster, compatible with DirectX.
SoundBlaster-compatible card, compatible with
DirectX.
Internet Explorer 6.0 : For the CPU performance and required memory
capacity, refer to the recommended
specifications for the browser.
Player software
Windows Media Player 7.01 : If Windows Media Player 9.0 is used, some
functions of the Streamproducer may be
restricted.
LAN environment
100BASE-TX /10BASE-TX : Using a crossover cable enables 1-to-1
connection of the PC and this unit.
* The use of a crossover cable may be inhibited
with certain LAN boards. Please check your
LAN board details.
INTRODUCTION
PREPARATION
OPERATION
OTHERS
or
Windows Media Player 8
Available card
The operation of the cards in the list above has been confirmed. (available
as of January 2004) Do not use the cards not mentioned in the list. It may
cause of malfunction of this unit.
Please ask our company’s sales clerk about the newest card checked
of operation.
PC Operating Environment
7
Wired LAN card :EA2906 194 Revision C*1
(Manufacturer: Socket Communications Inc.) *2
PCM100 (Manufacturer: LINKSYS)
FA411 (Manufacturer: NETGEAR)
Wireless LAN-card : WLI-CF-S11G (Manufacturer: BUFFALO INC.)
WLI2-CF-S11 (Manufacturer: BUFFALO INC.)
WCF11 (Manufacturer: LINKSYS) *3
TEW-201PC (Manufacturer: TRENDware international Inc.)
TEW-202CF (Manufacturer: TRENDware international Inc.)
AIR-PCM352 (Manufacturer: Cisco Systems, Inc.)
CF (Compact Flush) card : SDCFB-16-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-32-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-64-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-128-801 (Manufacturer: SanDisk Corporation) *2
SDCFB-256-801 (Manufacturer: SanDisk Corporation) *2
*1: The Revision designation is indicated in the
upper right of the serial number label af fixed
to the package.
*2: Use PCMCIA card TYPE 1 or TYPE 2 adapter
*3: Use PCMCIA card TYPE 2 adapter
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Caution
MemoMemo

Information from Network Pack KA-DV350 is displayed on the GY-DV300 LCD screen/
viewfinder screen.
When there is a system error, network error, unit malfunction, etc., KA-DV350 displays the
error on the GY-DV300 LCD screen or viewfinder screen.
e
CF FULL!
<LCD screen or viewfinder screen>
LCD and Viewfinder Display
8
1Card status displays
Display Description
No card is inserted in Network
Pack. Flashing display during
initialization (after power on).
LAN card is inserted in Net-
work Pack.
Video/audio data is being sent
from LAN card.
CF card is inserted in Network
Pack.
CF card is being recorded with
data.
Card is inserted in Network
Pack but transmission is not
available.
There is possibility of unit mal-
function. Contact your nearest
JVC dealer.
e
e
CF
CF
X
2
CF card warning display
Displays CF card status and
system errors.
*For details concerning warning
displays, see page 9.
(White display)
(Red display)
(White display)
(Red display)
Flashing display
1Card status displays
2
CF card warning display
INTRODUCTION
PREPARATION
OPERATION
OTHERS
AOVER
Remedy
Stop recording and replace
with a new CF card, or delete
files on the current CF card to
secure recording space.
Screen display
CF REMAIN 60SEC!
(Flashing for 3 sec.)
CF REMAIN 30SEC!
CF REMAIN 20SEC!
CF REMAIN 10SEC!
CF FULL!
(Displayed until CF recording stops)
CF FULL!
(Flashing for 3 sec.)
FORMAT ERROR!
NO CF FORMAT!
(Flashing)
Cause
Remaining time became less
than 60 seconds during
recording to CF card.
Remaining time became less
than 30 seconds during
recording to CF card.
Remaining time became less
than 20 seconds during
recording to CF card.
Remaining time became less
than 10 seconds during
recording to CF card.
Remaining time has run out
during recording to CF card.
Recording is being attempted on
CF card with remaining time of
less than 10 seconds.
Failed to format CF card.
CF card is unformatted, or an
unknown format is being
used.
<File system related>
Reference page
47
48
49
50
51
46
46
LCD and Viewfinder Display
9
Check the CF card and format
again. If the card still cannot
be formatted, contact your
nearest JVC-authorized
service agent.
Check the CF card and
format.
e
CF FULL!
<LCD screen or viewfinder screen>
1Card status displays
2CF card warning display
INTRODUCTION
PREPARATION
OPERATION
OTHERS

<Operation related>
Remedy
Insert a CF card.
To delete the clip file, remove the
protection.
Check the CF card.
Set DHCP in the NETWORK SET
menu screen to OFF when using
the AD HOC mode.
Set WLAN AD MOC MODE in the
NETWORK SET menu screen to
OFF when using DHCP server.
Set an unused port.
Set an unused port.
Set an unused port.
Set an unused port.
Set a value within the setting range.
Set using 10 or 26 characters.
Set using 3 or more / 4 or more
characters.
Set LEAP to OFF when in the
ADHOC mode.
Set a password different from the
old password.
Input a correct password.
Please wait until process is
completed.
Screen display
NO CF CARD!
(Flashing for 3 sec.)
PROTECT!
(Flashing for 3 sec.)
NO CLIP!
(Flashing for 3 sec.)
SET WLAN AD HOC MODE OFF!
(Flashing for 3 sec.)
SET DHCP OFF!
(Flashing for 3 sec.)
OVERLAP HTTP!
(Flashing for 3 sec.)
OVERLAP ASF-HTTP!
(Flashing for 3 sec.)
OVERLAP ASF-RTSP!
(Flashing for 3 sec)
OVERLAP QT-RTSP!
(Flashing for 3 sec)
ILLEGAL SETTING!
(Flashing for 3 sec.)
DATA LENGTH 10 or 26
(Flashing for 3 sec)
CHRACTER IS SHORT!!
(Flashing for 3 sec)
SET LEAP MODE OFF!!
(Flashing for 3 sec)
SAME OLD PASSWORD NAME!!
(Flashing for 3 sec)
WRONG PASSWORD!!
GARBAGE! (Flashing display
while optimizing)
Cause
There is no CF card inserted.
Deletion of a protected clip file
was attempted.
There is no CF card inserted, of
there is no clip file available.
Use of DHCP server was
attempted while in the AD HOC
mode. It is displayed also when
the LEAP mode is set to ON on the
NETWORK MAIN menu.
Selection of AD HOC mode was
attempted while using DHCP
server.
Port set for HTTP of WEB Browser
is already in use.
Port set for HTTP of Media Player
is already in use.
Set port for RTSP of Streamproducer
is already in use by another port.
Set port for RTSP of Quick Time is
already in use by another port.
Set value exceeded setting range.
Setting made with other than 10 or
26 characters.
Set number of characters is 2 or
less / 3 or less.
ADHOC mode use is attempted
when the LEAP mode is set to ON.
The new password is the same as
the old password.
Wrong password is input.
Optimization of internal ROM disk
currently being processed.
Reference page
45
55
—
14
16
15
15
15
15
14
17
14
17
16
17
27
—
AOVER
LCD and Viewfinder Display
INTRODUCTION
PREPARATION
OPERATION
OTHERS
10 11
<Operation related>
Remedy
Set DHCP again.
Insert a CF card with UPDATE data
into the slot.
Insert a CF card with UPDATE data
into the slot.
Contact your JVC dealer.
Input recording signal with no copy
guard protection.
Check the setting again.
Screen display
IP ADDRESS ERROR!
(Flashing display until network
connection is established)
NO UPDATE FILES!
(Flashing for 3 sec.)
NO UPDATE CARD!
(Flashing for 3 sec.)
UPDATE FAILED!
COPY GUARD!
SETTING FAILED!
Cause
Failed to acquire IP address when
DHCP is ON.
There is no update data in the CF
card.
CF card is not inserted.
Update was not successful.
Signal of recording origin is
protected with copy guard.
Input settng is wrong.
Reference page
14
—
—
—
—
—
LCD and Viewfinder Display
INTRODUCTION
PREPARATION
OPERATION
OTHERS

PORT SETUPâÊñ
Setup Menus Menu screen structure
12
INTRODUCTION
PREPARATION
OPERATION
OTHERS
When attaching Network Pack KA-DV350 to DV Camcorder GY-DV300, NETWORK PACK CONFIG menu and MOVIE
CLIP menu are appeared on the GY-DV300 TOP MENU screen.
MENU
SYSTEM SET ..
VTRSET ..
DISPLAY SET . .
..
..
CLOC K / TC..
MENU ALLR
ESET CELANC
NETWORKP
ACK CONFIG
MOE VI C
LIP
EXIT
MO D E
MENU
MAN ALU
SYSTEM SET ..
EARPHONE L
DISPLAY SET
E
..
CAME RA SET [ C
V
A
E
-M
L10
A.
.
..
CLOC K / TC..
MENU A LLR
ESET CELANC
NETWORKPACKCONFIG
EXIT
]
OPERAT ONI[CA-MA .
.
]
mc
mc
mc
mc
00 5 . 0asf WR/
IEOVMCIP
L
02 03/02/09 0 0:00:
00 6 . 0asf WR/
02 03/02/09 3 0:25:
00 7 . 0asf WR/
02 03/02/10 1 0:55:
00 8 . 0asf WR/
02 03/02/11 0 0:00:
PAGE B ACK
HOS T NAME . .
..
..
WOETNRKET
S
FOF
DHCP
IP ADDRESS
NET M SAK
..GAT
SUB
EWAY
NEXT PAGE
PAGE BACK
UPWOETNRK
NETWORK SETUP . .
PORT SETUP . .
WIRELESS LAN SETUP . .
SERVER SETUP . .
PAGE BACK
ODNCEEET
SUP
FRAMESIZE 320x24
BITRATE 384kb /
MAX F RAME RAT E M I D
STREAM TYPE for WMP
PAGE BACK
0
s
TORPET
SUP
HTTP forWEB Browser . .
HTTP for Media Player. .
PAGE BACK
VEERSRET
SUP
SETUP ON WEB OFF
LEAP USER NAME . .
LEAP PASSWO R D ..
HTTP USER NAME . .
HTTP PASSWORD . .
FTP USER NAME. .
FTP PASSWORD . .
PAGE BACK
IEOVMCLIPET
SUP
DELETE ALL CANCE
FORMAT CANCE
PLAY MODE REPEA
PAGE BACK
L
L
T
MA I N
RTSP for Streamproducer . .
RTSP for QuickTime . .
.
IG
RGI
ACNLE
NE T W OR K TSE P .U
TSE P . .U
TSE P . .U
ORTWENKACK
PON
CF
ENCODE
MPE G R E C T
C
MOV I E CLIP
ME N U R E S E T
PAGE B ACK
MA I N
(
*1
WMPundr8) (CF Viewer) *2
e
SETUP.WIRELESS .LAN .
AD .HOC .MOD E ........OFF ..
10C
...
Primary ESS .ID .
Secondary
Country
ESS I D
........
.......
....
....
CH ... .............. H.
2CHWE P .KEY . . .......... ..
OFFLEAP ............... ..
2CHPAGE .BACK .......... ..
.
USA.............. ...
MODE switch: When CAM-A
or CAM-B is selected
TOP MENU screen TOP MENU screen
MOVIE CLIP list screen
(☞page 52)
* Example display when there are clip
files in the CF card
NETWORK MAIN menu screen NETWORK SETUP menu screen
MODE switch:
VTR is selected
ENCODE SETUP menu screen PORT SETUP menu screen
MOVIE CLIP SETUP menu screen WIRELESS LAN SETUP menu screen
SERVER SETUP menu screen
NETWORK PACK CONFIG
menu screen
*1Indicates the currently compatible
version of Windows Media Player.
*2When (CF Viewer) is displayed, a clip
list (CSV file) that can be used with
CF Viewer (provided application) is
created. (During the TRIG mode)
The details of a menu item
refer to page 14.
NETWORK PACK CONFIG menu
Item Setting Description
NETWORK MAIN SETUP
ENCODE SETUP
MPEG REC
MOVIE CLIP
SETUP
MENU RESET
PAGE BACK
TRIG
SPLIT
OFF
CANCEL
EXECUTE
Displays menu screen for network related settings.
Displays menu screen for setting video and audio
compressions.
Selects the operation method for recording video data
to a CF card or sending data to a remote media from
a LAN card.
TRIG :Pressing the REC START/STOP button of
GY-DV300 starts operation. Use this set-
ting when simultaneously recording to a
DV tape.
SPLIT :Use this setting when recording or trans-
ferring with CF card or LAN card only.
Operation starts when pressing the SE-
LECT dial of GY-DV300.
OFF :Recording will not be made to the CF card
and streaming data from the LAN card will
not be recorded/sent to the PC even when
pressing the REC START/STOP button or
the SELECT dial of GY-DV300.
Displays the menu screen for CF card related
settings such as formatting or deleting all recorded
clip files.
Selecting EXECUTE and pressing the SELECT dial
returns NETWORK PACK CONFIG menu screen
settings to the original factory settings.
Pressing the SELECT dial returns to the TOP MENU
screen.
indicates default factory setting.
Setup Menus NETWORK PACK CONFIG
menu screen item
13
INTRODUCTION
PREPARATION
OPERATION
OTHERS
MemoMemo
The details of a menu item
refer to page 18.
MemoMemo
The details of a menu item
refer to page 20.
MemoMemo

NETWORK MAIN menu
Item Setting Description
HOST NAME
DHCP
IP ADDRESS
SUBNET MASK
GATE WAY
PAGE BACK
none
ON
OFF
192. 168. 100. 101 
255. 255. 255. 000 
192. 168. 100. 254 
Displays the host name input setting screen. (4 - 64
alphanumerical characters)
[Factory setting: none]
Select whether DHCP server is used.
OFF : Use this setting when using LAN connection
rather than DHCP.
When this setting is used, IP ADDRESS and
SUBNET MASK, GATEWAY must also be set.
ON : Use this setting when using DHCP connection.
When using this setting, IP ADDRESS and
SUBNET MASK, GATEWAY are automatically
set.
Displays the IP address setting screen.
When using LAN connection with DHCP set to OFF,
this setting is required. Set a unique IP address.
[Factory setting] 192.168.100.101]
Displays the subnet mask input screen.
This setting is required when using LAN connection
with DHCP set to OFF.
[Factory setting: 255.255.255.000]
Displays the gateway address input screen.
[Factory setting: 192.168.100.254]
Pressing the SELECT dial returns to the NETWORK
MAIN SETUP menu screen.
indicates default factory setting.
When DHCP is set to ON,
WLAN ADHOC MODE
cannot be set to AHDM or
IBSS.
IP ADDRESS setting is not
available when DHCP is
set to ON.
SUBNET MASK setting is
not available if DHCP is
set to ON.
GATEWAY setting is not
available when DHCP is
set to ON.
14
Setup Menus
NETWORK SETUP menu
MemoMemo
MemoMemo
MemoMemo
MemoMemo
NETWORK MAIN menu
screen items
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Setup Menus
NETWORK MAIN manu
Item Setting Description
HTTP for
WEB Browser
HTTP for
Media player
RTSP for
Streamproducer
RTSP for
QuickTime
PAGE BACK
1
:
80
:
32767
1
:
8080
:
32767
1
:
8554
:
32767
1
:
554
:
32767
The screen for setting RTSP and HTTP port numbers
appears.
HTTP for Web Browser can be set with the Web
browser HTTP port number and HTTP for
Mediaplayer can be set with the Mediaplayer HTTP
port number.
RTSP for Streamproducer can be set with the
Streamproducer RTSP port number and RTSP for
QuickTime can be set with the QuickTime RTSP port
number.
Normally, the unit can be used without changing the
factory settings.
If there are port restrictions for the LAN environment
of your PC, consult your network administrator.
Pressing the SELECT dial returns to the NETWORK
MAIN menu screen.
indicates default factory setting.
NETWORK MAIN menu
screen items
• When changing a port
number, refer to “4.2.1
Connecting to Streamcorder”
of the “Streamproducer”
User’s Guide of the network
distribution software to
change settings.
•Do not use the same port
numbers for RTSP and
HTTP.
•When a port number is
changed, switch the
power of the GY-DV300
off once, and then switch
it on again.
15
INTRODUCTION
PREPARATION
OPERATION
OTHERS
PORT SETUP menu screen
MemoMemo

NETWORK MAIN menu
Item Setting Description
AD HOC MODE
Primary ESS ID
Secondary
ESS ID
Country
CH
WEP KEY
LEAP
PAGE BACK
OFF
AHDM
IBSS
NONE
NONE
USA
EU
FRN
SPN
JPN
1CH
:
10CH
:
14CH
ON
OFF
Wireless LAN setting
OFF : Use this setting when performing
communication via access point.
AHDM/IBSS : Use this setting when performing
communication in AD HOC mode
with a PC connected with a wireless
LAN card. (☞page 16)
Displays the wireless LAN ESS-ID input setting
screen (Max. 32 alphanumerical characters)
Setting for the country using wireless LAN
USA: USA, EU: Europe, FRN: France, SPN: Spain,
JPN: Japan
(Set according to operating environment.)
Wireless LAN channel setting
CH setting changes depending on the Country
setting.
USA: 1 to 11CH, EU: 1 to 13CH, FRN: 10 to 13CH,
SPN: 10, 11CH, JPN: 1 to 14CH
When encrypting data, set the WEP KEY (10 or 26
characters consisting or letters a to f and numbers).
Must be compatible with access point
authentication for the use of this item.
Set to ON when connecting a Cisco Systems
wireless LAN device and using the LEAP function.
Pressing the SELECT dial returns to the NETWORK
MAIN SETUP menu screen.
indicates default factory setting.
When this item is set to
AHDM or IBSS, DHCP
cannot be set to ON.
The LEAP function is
exclusive to Cisco Systems
wireless LAN devices. For
details concerning the
LEAP function, see the
instruction manual
accompanying the wireless
LAN device.
16
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Setup Menus NETWORK MAIN menu
screen items
WIRELESS LAN SETUP menu
MemoMemo
MemoMemo
NETWORK MAIN menu
Item Setting Description
SETUP ON
WEB
LEAP USER
NAME
LEAP
PASSWORD
HTTP USER
NAME
HTTP
PASSWORD
FTP USER
NAME
FTP
PASSWORD
PAGE BACK
ON
OFF
leap-user
ka-dv-jvc
jvc
ka-dv300
ftp-user
ka-dv
Set to ON when changing the USER NAME and
PASSWORD from the Web.
Displays the LEAP USER NAME input screen. (4 to
32 alphanumerical characters)
Set when using the LEAP function.
[Default setting: leap-user]
Displays the LEAP PASSWORD input screen. (4 to
32 alphanumerical characters)
Set when using the LEAP function.
[Default setting: ka-dv-jvc]
Displays the HTTP USER NAME input screen. (3 to 8
alphanumerical characters)
Set when connecting from the Web browser.
[Default setting: jvc]
Displays the HTTP PASSWORD input screen. (4 to 8
alphanumerical characters)
Set when connecting from the Web browser.
[Default setting: ka-dv300]
Displays the FTP USER NAME input screen. (3 to 8
alphanumerical characters)
Used when uploading USER PAGE.
[Default setting: ftp-user]
Displays the FTP PASSWORD input screen. (4 to 8
alphanumerical characters)
Used when uploading USER PAGE.
[Default setting: ka-dv]
Pressing the SELECT dial returns to the NETWORK
MAIN SETUP menu screen.
indicates default factory setting.
If higher security is desired,
set this function to OFF so
that changes cannot be
made from the Web.
For details concerning user
name and password
settings, see page 27.
17
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Setup Menus NETWORK MAIN menu
screen items
SERVER SETUP menu
MemoMemo
MemoMemo

ENCODE SETUP menu
Item Setting Description
FRAME SIZE
BIT RATE
MAX FRAME
RATE
320 ×240
160 ×120
56K
128K
256K
384K
512K
MAX
MID
MIN
Sets the video compression size.
320 ×240 : Sets the image size to 320 ×240 pixels.
160 ×120 : Sets the image size to 160 ×120 pixels.
Sets streaming speed (bps).
56K : MPEG4 024 kbps (G726 16 kbps for WMP)
128K: MPEG4 104 kbps (G726 16 kbps for WMP)
256K : MPEG4 224 kbps (G726 32 kbps for WMP)
(µlaw 64kbps for QT)
384K : MPEG4 352 kbps (G726 32 kbps for WMP)
(µlaw 64kbps for QT)
512K : MPEG4 472 kbps (G726 40 kbps for WMP)
(µlaw 64kbps for QT)
Sets the frame rate per second. Settings are as shown
below.
indicates default factory setting.
AOVER
Setup Menus ENCODE SETUP menu
BIT RATE
FRAME SIZE
(bps) 320×240 160×120
MAX MID MIN MAX MID MIN
512K NTSC 15
PAL 12.5
384K NTSC 15
PAL 12.5
256K NTSC 15
PAL 12.5
10
5
10
5
7.5
5
7.5
5
7.5
5
5
5
30
25
30
25
30
25
15
12.5
15
12.5
15
12.5
7.5
5
7.5
5
7.5
5
128K NTSC 7.5
PAL 5
56K NTSC 3
PAL 1
5
5
1
1
3
1
1
1
15
12.5
10
12.5
10
12.5
7.5
5
7.5
5
5
5
The input image for a
160x120 pixel image is
160x120 pixels. However,
they will be 160x128 pixels
when compressed.
The frame rates shown in
the table are not
guaranteed values.
18
MemoMemo
MemoMemo
INTRODUCTION
PREPARATION
OPERATION
OTHERS
Do not set the BIT RATE
Item to “56K” or “128K”
while the STREAM TYPE
Item is set to the “for QT”.
MemoMemo
ENCODE SETUP menu
Item Setting Description
STREAM TYPE
PAGE BACK
for WMP
for QT
Sets the player for stream playback.
for WMP : Media Player, Streamproducer
for QT : QuickTime
Pressing the SELECT dial returns to the NETWORK
PACK CONFIG menu screen.
indicates default factory setting.
Setup Menus ENCODE SETUP menu
•No sound will be heard
when playing back using
QuickTime while in the
WMP mode.
•No sound will be heard
when playing back using
Media Player while in the
QT mode.
•Set to WMP mode when
recording to CF card.
19
MemoMemo
INTRODUCTION
PREPARATION
OPERATION
OTHERS

MOVIE CLIP SETUP menu
Item Setting Description
DELETE ALL
FORMAT
PLAY MODE
PAGE BACK
CANCEL
EXECUTE
CANCEL
EXECUTE
OFF
REPEAT1
REPEAT
Selecting EXECUTE and pressing the SELECT dial
deletes all clip files on the CF card.
Protected clip files are not deleted.
Selecting EXECUTE and pressing the SELECT dial
starts formatting the card.
All recorded clips are erased.
Playback is performed from the specified clip file to
the latest clip file and pauses at the specified clip
file.
Specified clip file is played backed 3 times.
Playback is performed 3 times from the specified clip
file to the latest clip file.
Pressing the SELECT dial returns to the NETWORK
PACK CONFIG menu screen.
indicates default factory setting.
Setup Menus MOVIE CLIP SETUP menu
20
INTRODUCTION
PREPARATION
OPERATION
OTHERS
•Settings are made by viewing the
LCD screen or viewfinder screen.
If OUTPUT CHAR of the DISPLAY
[2/2] menu screen is set to MIX, the
menu screen also appears on the
monitor screen connected to the
VIDEO OUT or Y/C connector.
•The NETWORK PACK CONFIG
menu screen will not appear
during card initialization (flashing
display).
Menu screen settings can be made regardless of whether a card is inserted. Settings will be stored in the
KA-DV350 memory even when turning the power off.

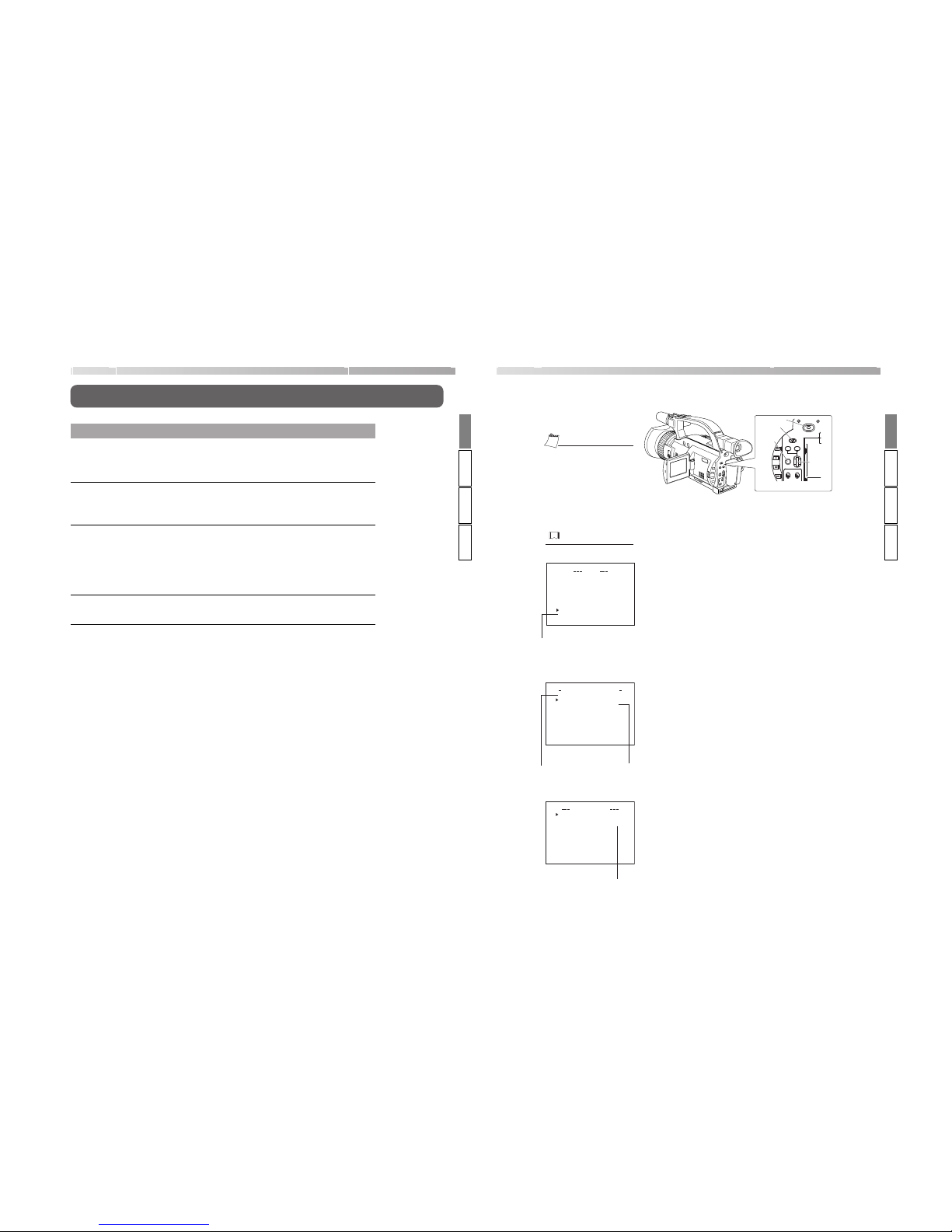

Setup Menus Changing the NETWORK PACK CONFIG
menu settings
21
INTRODUCTION
PREPARATION
OPERATION
OTHERS
1. Set the POWER switch to ON.
2. Set the MODE switch.
•Set to “CAM-A” or “CAM-B” when shooting a video.
•Set to “VTR” for VTR playback, clip file playback or DV sig-
nal recording.
(GY-DV300E can not record the DV input signal.)
3. Press the MENU button for about 1 seconds. The TOP MENU
screen appears.
•Turn the SELECT dial, move the cursor (t) to NETWORK
PACK CONFIG and press the SELECT dial.
•The NETWORK PACK CONFIG menu screen appears.
4. Select the item to set.
Turn the SELECT dial, move the cursor to the desired item to
set and press the SELECT dial.
•The selected menu screen appears.
•When selecting MPEG REC or MENU RESET, the setting
area flashes and the setting can be changed. Set the item
according to step
6.
•When selecting NETWORK MAIN SETUP, the network re-
lated setting screen appears. (☞page 14)
5. Select an item within the menu screen.
Turn the SELECT dial, move the cursor (t) to the desired
item to set and press the SELECT dial.
• The setting area flashes and the setting can be changed.
6. Change the setting.
Turn the SELECT dial to change the setting and press the
SELECT dial.
•Flashing of the setting area stops and the new setting is
confirmed.
\When changing multiple settings, repeat steps 5and 6above.
7. Return to the TOP MENU screen.
Turn the SELECT dial, move the cursor (t) to PAGE BACK
and press the SELECT dial.
8. When quitting menu screen setting and returning to the nor-
mal screen, perform one of the following operations.
•Press the MENU button.
•Move the cursor (t) to EXIT in the TOP MENU screen and
press the SELECT dial.
MemoMemo
TOP MENU screen
NETWORK MAIN SETUP
menu screen (☞page 14)
NETWORK PACK CONFIG
menu screen
Cursor
Setting
NE T WOR K I N S E TUP . .
..
..
MA
ORTWENKACK
PON CIG F
ENCODE S E TU P
MPEG R E C TRGI
MOV I E CLI PS ETUP
ME N U R E S E T CA N CEL
PAGE B ACK
(WMP under8) (CF Viewer)
SI ZE 0 x240324 kb/s38
ODNCEEET
S
BI T ARTE
PWM
IDM
ST REA YTPE
MAX F R AM
M
E
FRAME
AR TE
for
PAGE B ACK
UP
Setting
MO D E
MENU
MAN ALU
EARPHO EN L LVEE 01
SYST EM SET ..
DISPLAY SET. .
CAME RA S ET [ C A -MA ..
..
CLOCK/ TC. .
MENU A C E LANC
NETWORKPACKCONFIG
EXIT
]
OPERAT I O N [ CA -MA ..]
LL RESET
<GY-DV300 rear panel>
POWER
OFF ON
MODE
CAM-B
VTR
SHUTTER
MENU
GAIN
CAM-A
BAR
AW
FWD
REV
SELECT
dial
POWER switch
MODE switch
MENU
button

1. Check to see that the card status display has changed from a
flashing to constant display.
2. Press the MENU button to display the TOP MENU screen.
3. Turn the SELECT dial to select NETWORK PACK CONFIG
and press the SELECT dial.
•The NETWORK PACK CONFIG menu screen appears.
4. Turn the SELECT dial to set MENU RESET to “EXECUTE”
and press the SELECT dial.
•When resetting the menu, “MENU RESET..” will appear at
the bottom of the screen for about 5 seconds.
•The NETWORK PACK CONFIG menu screen settings will
return to the factory settings.
NETWORK PACK CONFIG
menu screen
NE T W OR K
ORTWENKACK
P
MENU RESET..
ON
CIG F
ENCODE
MPE G R E C TRGI
MOV I E CLIP
ME NU R E S E T E X E C U T E
PAGE B
u
ACK
T..
..
..
SE
SET
P
SET
U
P
U
P
U
(WMP nde
r8) (CF Viewer)
MAI N
Setup Menus Resetting the NETWORK PACK CONFIG
menu settings
22
INTRODUCTION
PREPARATION
OPERATION
OTHERS
POWER
OFF ON
MODE
CAM-B
VTR
SHUTTER
MENU
GAIN
CAM-A
BAR
AW
FWD
REV
SELECT
dial
MENU
button
<GY-DV300 rear panel>
Sending camera video/audio by email using CF (Compact Flash) card
Operations Available with This Unit
23
INTERNET
Viewing and filing camera images on your PC using “Streamcapture”
VIEW STOP CAPTURE MUTE PROPERTY
CAPTURING
00: 00 : 00
CAMERACONTROL
FULLAUTO
BARS
WHITEBAL
IRIS
GAIN
SHUTTER
ZOOM
OK CANCEL
AUTO
MANUAL
Lolux
ALC
STEP
0dB
STEP
OFF
WIDE
TELPHOTO
STOP
ON
ON
FAW
JVC
NETWORKPACK
KA-DV300
NETWORK
PACK
SETUP
NETWORK
PORTSETUP
ENCODE
PARAMETERS
CAMERA
CONTROL
CONTROL
STREAMING
CAPTURE
VTR
SETUP
0
1 Using the KA-DV350 to transfer
the camera images to a PC.
2 Using Streamcapture for
viewing and/or filing the
camera images on a PC.
1 Using the KA-DV350 for filing
the camera image on a CF card.
2 Sending an image file stored on a
CF card as an e-mail attachment
file.
INTRODUCTION
PREPARATION
OPERATION
OTHERS
