About the Quick start guide
This Quick Start Guide describes basic
functions of this unit.
For functions not described in this Guide, refer
to the Instruction Manual on the following
website:
<http://www.jvc.net/cs/car/>
To refer to Instruction manual, a PC loaded
with Microsoft® Windows 7 sp1/ 8/ 8.1/ 10
or Mac OS X® v10.11/ macOS v10.12/ 10.13/
10.14 or later is required in addition to Adobe®
Acrobat Reader™ DC or Adobe® Acrobat® DC
or later.
The Instruction manual is subject to change
for modification of specifications and so forth.
Be sure to download the latest edition of the
Instruction manual for reference.
How to read this manual
NOTE
• The panels shown in this guide are examples
used to provide clear explanations of the
operations. For this reason, they may be
different from the actual panels.
If above icons are showed, read the article
applicable to the unit you use.
• The screens and panels shown in this
manual are examples used to provide a clear
explanation of operations.
For this reason, they may be different from
the actual screens or panels, or some display
patterns may be different from the actual
ones.
• Display language: English is used for the
purpose of explanation. You can select a
display language from the [SETUP]menu. See
User Interface Setup (P.68) in the Instruction
Manual.
Contents

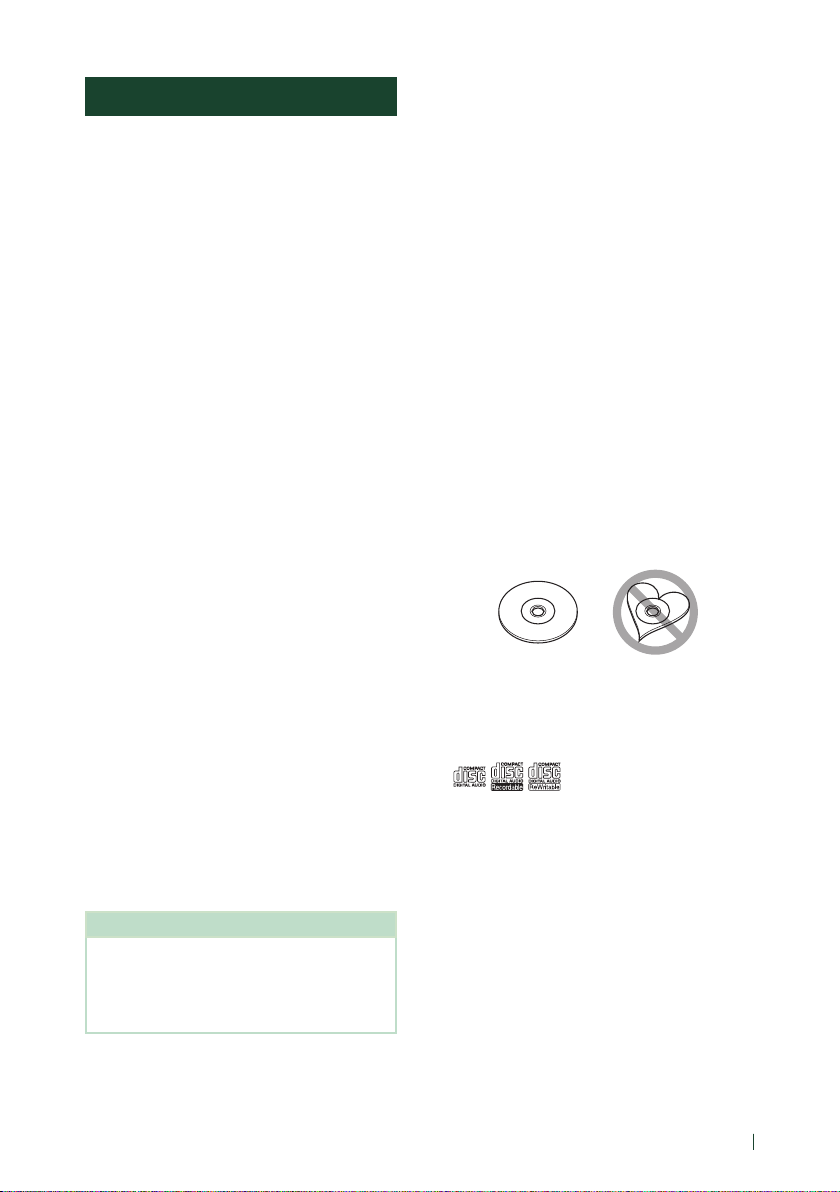

3English
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select a language to display menus,
audio file tags, etc. See User Interface Setup
(P.68) in the Instruction Manual.
• The Radio Data System or Radio Broadcast
Data System feature won’t work in areas
where the service is not supported by any
broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew may form on the lens in the
disc player of the unit due to condensation.
This condensation on the lens (also called lens
fogging) may not allow discs to play. In such a
situation, remove the disc and wait for the dew
to evaporate. If the unit still does not operate
normally after a while, consult your JVC dealer.
Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean the disc from the center toward the
outside rim.
• When removing a disc from this unit, pull it out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
• This unit can only play the following types of
CDs.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process, see
your writing software and your recorder's
instruction manual.)

4
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■[Language]
Select the language used for the control
screen and setting items. Default is“American
English(en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For details of operation, see User Interface
Setup (P.68) in the Instruction Manual.
■[Clock]
Sets the synchronization of the clock and
adjusts it.
For detailed operation, see Calendar/clock
settings (P.5).
■[Display]
Set the button illumination color.
If it is hard to see the image on the screen
even, adjust the viewing angle.
1Touch [Display].
2Touch [Key Color].
3Select the desired color.
4Touch [
].
5Touch [Viewing Angle].
6Select an angle
7Touch [
].
For details of, see Display Setup (P.70) in the
Instruction Manual.
■[Camera]
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For details of, see Camera Setup (P.53) in
the Instruction Manual.
■[OEM SETUP]
This function requires a commercial adaptor.
Consult your JVC dealer for details.
■[DEMO]
Set the demonstration mode. Default is “ON”.
1Touch [DEMO]and select ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be made from the SETUP
menu. See Setup (P.67) in the Instruction Manual.

5English
Calendar/clock settings
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [User Interface].
 User Interface screen appears.
5
Touch [Time Zone].
6
Select the time zone.
7
Set each item as follows.
Scroll the page to show hidden items.
■[Time Format]
Select the time display format.
[12-Hour](Default)/ [24-Hour]
■[Clock]
[[RDS-SYNC]](Default): Synchronizes the
clock time with the RDS.
[Manual]: Set the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual]for Clock, adjust
the date and time manually (P.69) in the
Instruction Manual.
NOTE
• Please set the date and time. If they are not set,
some functions may not work.
Adjusting the volume
You can adjust the volume (0 to 40).
Press [+]to increase, and press [–]to decrease.
Holding [+]increases the volume continuously
to level 15.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
KW-M650BT

6
Basic Operations
Functions of the Buttons on the Front Panel
KW-V850BT/ KW-V85BT
1 2 3 4
KW-M750BT/ KW-M75BT
1 3 4
KW-M650BT
1
4
3
5

7English
NOTE
• The panels shown in this guide are examples used to provide a clear explanation of operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
–, +
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you keep pressing [+].
2
Disc insert
slot
• A slot to insert a disc media.
3
FNC
[ ]
• Displays the popup menu screen.
• Pressing for 1 second displays the Voice Recognition screen (P.63) in the Instruction
Manual.
• When the power is off, turns the power on.
4
Remote
Sensor
• Receives the remote control signal.
5
[ ][ ] • Displays the HOME screen (P.13) in the Instruction Manual.
• Pressing for 1 second turns the power off.
• When the power is off, turns the power on.
Turning on the Unit
The method of turning on is different
depending on the model.
KW-V850BT/ KW-V85BT/
KW-M750BT/ KW-M75BT
1
Press the [FNC]button.
 The unit is turned on.
KW-M650BT
1
Press the [ ] button.
 The unit is turned on.
NOTE
• If it is your first time to turn the unit on after
installation, it will be necessary to perform Initial
setup (P.4).

8

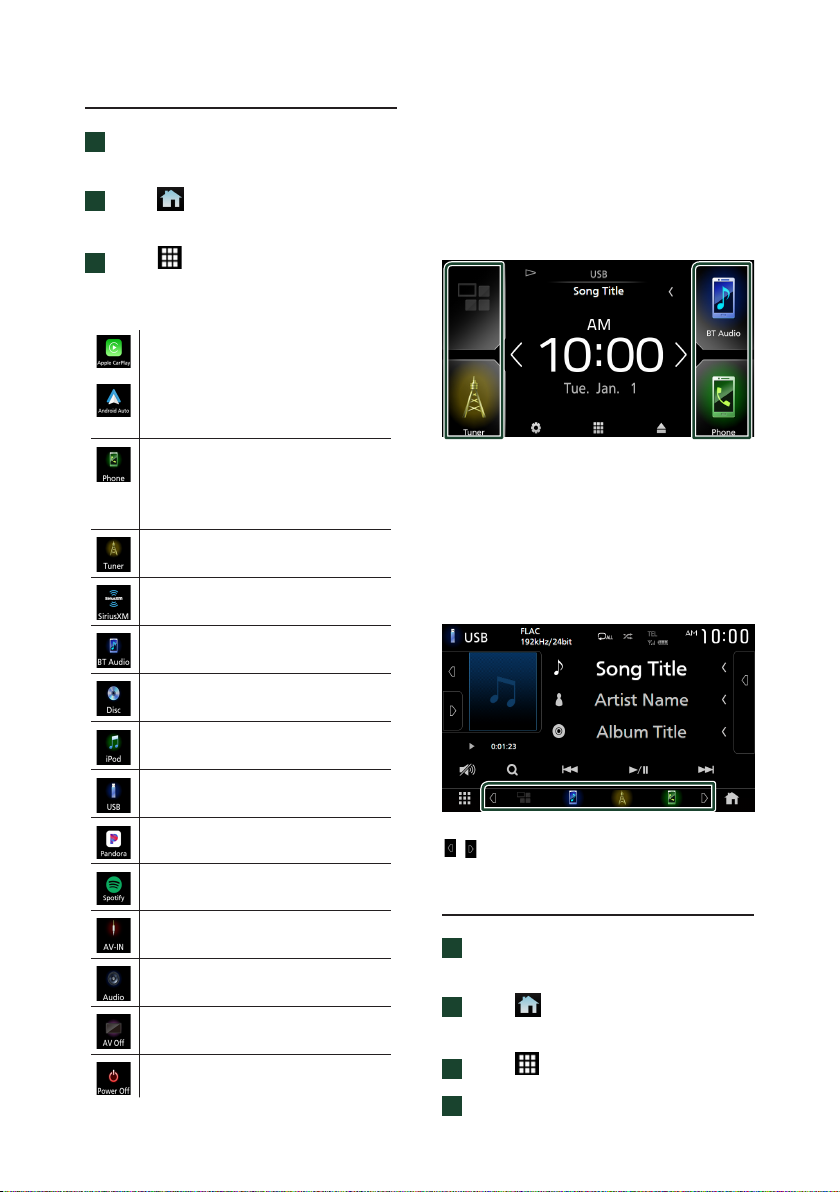

Select the playback source
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
From the screen, you can select the
following sources and functions.
• [Apple CarPlay]: Switches to the Apple
CarPlay screen from the connected
iPhone.
• [Android Auto]: Switches to the Android
Auto screen from the connected Android
device.*1
• Displays the Hands Free screen.
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Switches to the Radio broadcast.
• Switches to the SiriusXM® satellite radio
broadcast.
• Plays a Bluetooth audio player.
• Plays a disc. *2
• Plays an iPod/iPhone.
• Plays files on a USB device.
• Switches to Pandora.
• Switches to Spotify.
• Switches to an external component
connected to the AV-IN input terminal.
• Displays the Audio screen.
• Turns off the AV source.
• Turns off the unit. *1
• For sources and information displayed when
an ADS adapter is connected, see OEM
Features Operation (P.55) in the Instruction
Manual.
*1Except KW-M650BT
*2KW-V850BT/ KW-V85BT only
To select the playback source on the
HOME screen
The 4 items displayed on the source selection
screen with large icons are shown on the
HOME screen.
You can change the items displayed on this
area by customizing the source selection
screen. (P.9)
To select the playback source on the
source control screen
Display source selection buttons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
To turn off the AV source
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [AV Off].

9English
Customize Short-cut buttons on
HOME screen
You can arrange the positions of the source
icons as you like.
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch and hold the icon which you want
to move in the customizing mode.
5
Drag the icon to the desired position.
Changes the page
Source control screen
descriptions
There are some functions which can be
performed from most screens.
Indicators
3
4
125
Short-cut buttons
1
All sources icon
Displays the source selection screen. (P.8)
2
Secondary screen
• [
]/[ ] : The Secondary screen changes to
another one every time you touch it. You can
also change the Secondary screen by flicking
left or right on the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is active.
– [LOUD]: The loudness control function is active.
• Short-cut buttons: The source changes to the
one you have set with a short-cut. For the
short-cut setting, refer to Customize Short-
cut buttons on HOME screen (P.9).
3
Content list
Displays the track/file/station/channel list.
4
Connected Bluetooth device information.
5
HOME button
Displays the HOME screen (P.12) in the
Instruction Manual.

10
Playing a disc
(KW-V850BT/ KW-V85BT)

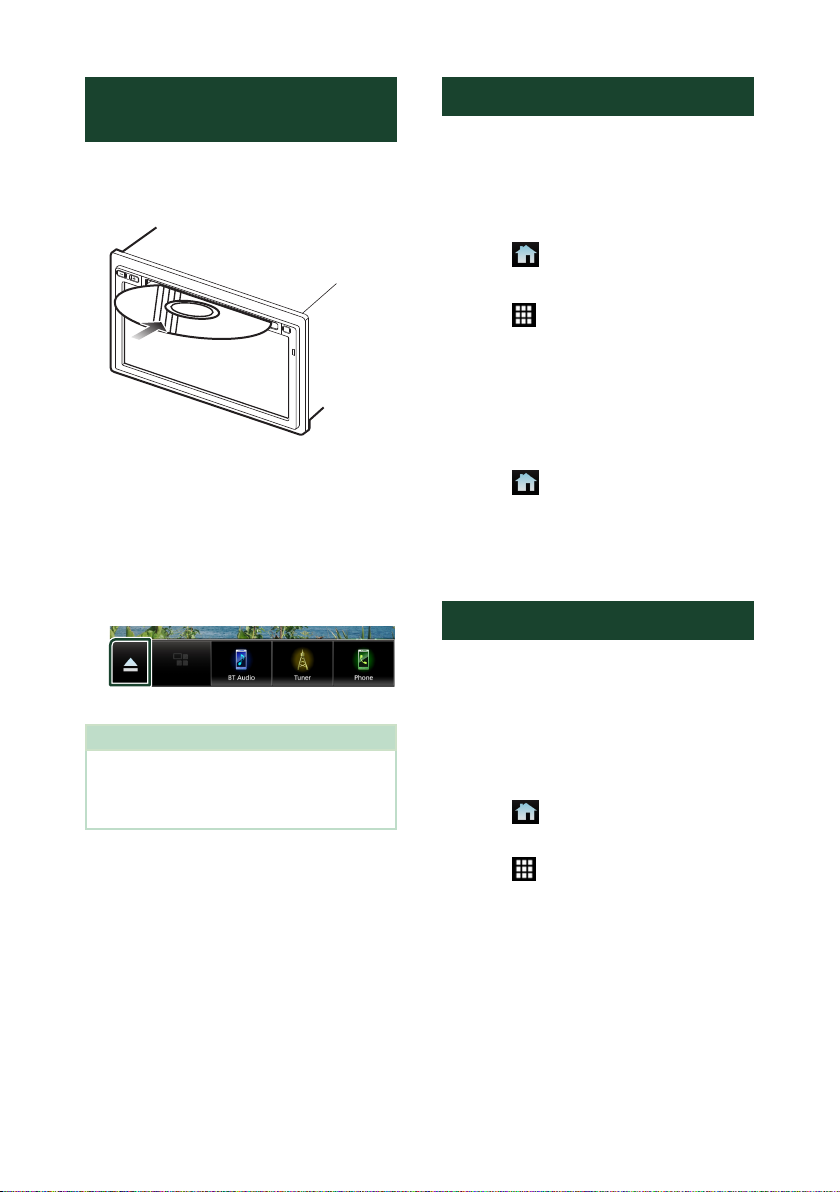

Ñ Insert a disc
1 Insert the disc into the slot.
 The unit loads the disc and playback
starts.
Ñ Eject a disc
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [G].
When removing a disc, pull it horizontally.
NOTE
• This is not displayed on the popup menu screen
of Apple CarPlay or Android Auto source. Change
Apple CarPlay or Android Auto source to other
one to display the popup menu screen.
Connecting a USB device
1 Connect the USB device with the USB
cable. (P.25)
2 Press the [FNC]button.
 Popup menu appears.
3 Touch [ ].
 HOME screen appears.
4 Touch [ ].
5 Touch [USB].
Ñ Disconnect the USB device
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch a source other than [USB].
4 Detach the USB device.
Connect iPod/iPhone
Wired connection
1 Connect the iPod/iPhone using the KS-
U62. (P.26)
2 Press the [FNC]button.
 Popup menu appears.
3 Touch [ ].
 HOME screen appears.
4 Touch [ ].
5 Touch [iPod].
●To disconnect the iPod/iPhone connected
with the cable:
1 Detach the iPod/iPhone.
Bluetooth connection
Pair the iPhone through Bluetooth. (P.15)

11English
DVD/ VCD Basic Operation
(KW-V850BT/ KW-V85BT)
NOTE
• The screen shot below is for DVD. It may be
different from the one for VCD.
1 When the operation buttons are not
displayed on the screen, touch
4
area.
Control screen
1
2
DVD VCD
1
Video screen
4
3
5
3
1
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
2
Operation keys
• [E][F]: Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH]: Plays or pauses.
• [
]: Touch to attenuate/restore the sound.
3
Searching area
Touch to search for the next/previous content.
4
Key display area
Touch to display the control screen.
5
[MENU CTRL](DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.23) in the Instruction Manual.
NOTE
• The control screen disappears when no operation
is done for 5 seconds.
• If you use a remote control, you can jump directly
to the desired image by entering the chapter
number, scene number, play time, etc. (P.84) in
the Instruction Manual.

12
Tuner Basic Operation
Control screen
5
3
4
2
6
1
Open the drawer
6
3
Close the drawer
6
3
1
Information display
Displays the information on the current station.
2
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
4
Band buttons
Switches bands (between FM and AM).
5
Operation keys
• [E][F]: Tunes in a station. The method of
switching frequencies can be changed (see
2
Seek mode).
• [
]: Touch to attenuate/restore the sound.
6
Preset list
• Touching []/ []allows you to change the
display size.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
currently being received station in the
memory.

13English
Music CD/ Disc media/USB
Basic Operation
NOTE
• In this manual, “Music CD” means a general CD
which includes music tracks.
“Disc media” means a CD/DVD disc which
includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.
Control screen
5
1
2
3
4
Open the drawer
3
5
Close the drawer
3
5
4
1

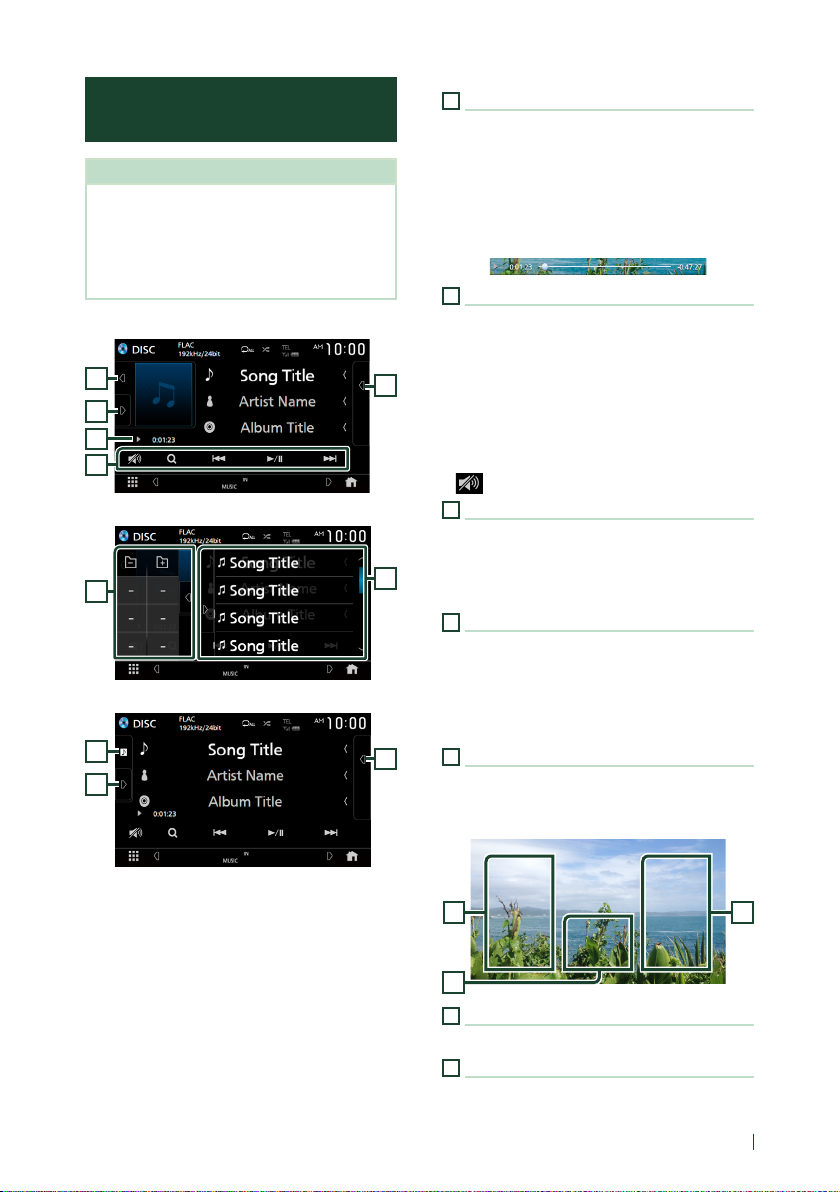

Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of the icons are as follows: D(play),
B(fast forward), A(fast backward),
H(pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
2
Operation keys
• [1](Disc media only) : Searches files. For
details on search operation, see File search
Operation (P.22) in the Instruction Manual.
• [E][F]: Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH]: Plays or pauses.
• [
]: Touch to attenuate/restore the sound.
3
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
4
Artwork/ VU meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed. (Disc media only)
• When touched, switches the artwork to the
VU meter.
5
Function panel (Disc media only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
Video screen
7
66
6
File search area (Video file only)
Touch to search for the next/previous file.
7
Key display area (Video file only)
Touch to display the control screen.

14
iPod/iPhone Basic Operation
Ñ Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th
generation)
Control screen
3
1
2
4
Open the drawer
5
4
2
Close the drawer
4
2
1
Artwork/ VU meter
• Displays/hides artwork area.
• The jacket of the currently being played file is
displayed.
• When touched, switches the artwork to the
VU meter.
2
Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D(play), B(fast forward), A(fast
backward), H(pause).
3
Operation keys
• 1]: Searches for a track/file. For details on
search operation, see File search Operation
(P.37) in the Instruction Manual.
• E][F]: Searches for the previous/next
track/file.
Touch and hold to fast forward or fast
backward.
• [DH]: Plays or pauses.
• [
]: Touch to attenuate/restore the sound.
4
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
5
[ ] / [ ]
• [
]: Repeats the current track/album. Each
time you touch the key, repeat modes are
switched in the following sequence:
Song repeat ( ), All songs repeat ( ),
Repeat off ( )
• [
]: Randomly plays all tracks in the current
album. Each time you touch the key, random
modes are switched in the following sequence:
Song random ( ), Random off ( )

15English
Bluetooth Setup
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
 SETUP screen appears.
4 Touch [Bluetooth].
 Bluetooth Setup screen appears.
See the following section for each
setting.
• Connect the Bluetooth device (P.15)
• Change the device name (P.59) in the
Instruction Manual.
• Change the PIN Code (P.59) in the
Instruction Manual.
Ñ Connect the Bluetooth device
1 Touch [Select Device]on the Bluetooth
Setup screen.
2 Touch the name of the device you want
to connect.
 Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
3 Set each profile as follows.
■[TEL (HFP) 1], [TEL (HFP) 2]
Select when the device is connected with
the unit as hands-free phone 1 or 2.
■[Audio (A2DP)/App (SPP)]
Select to interwork with an application
installed in a smartphone or to use as an
audio player.
4 Touch [Close].

16
Using the Hands-Free Unit
You can use the telephone function by
connecting the Bluetooth telephone to this
unit.
NOTE
• While Apple CarPlay or Android Auto is
connected, the Bluetooth Hands-Free function
and two Bluetooth devices connections cannot
be used. Only the Apple CarPlay or Android Auto
Hands-Free function can be used.
Ñ Make a call
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [Phone].
 Hands Free screen appears.
NOTE
• If your cell-phone supports PBAP, you can display
the phone book and call lists onto the touch
panel screen when the cell-phone is connected.
– Phone book: up to 1000 entries
– Up to 50 entries including dialed calls, received
calls, and missed calls
3 Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
●Select the cell-phone to use
When you connect two cell-phones
1) Touch [
]to select the
phone you want to use.
●Bluetooth Setup
1) Touch [
].
Bluetooth Setup screen appears.
●Voice Recognition
1) Touch [
].
NOTE
• Status icons such as battery and antenna icons
may differ from those displayed on the cell-
phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Call using call records
1 Touch [ ].
2 Select the phone number from the list.
Call using the preset number
1 Touch [ ].
2 Touch the name or phone number.

17English
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Call using the phonebook
1 Touch [ ].
2 Touch [ ].
3 Select the initial.
• Characters with no corresponding name
will not appear.
• A first character with an accent character
such as“ü”can be searched for with a
non-accent character“u” . A character
with an accent character in a sentence
cannot be searched for.
4 Select the person you want to call from
the list.
5 Select the phone number from the list.

18
Connection/Installation
Before Installation
Before installation of this unit, please note the
following precautions.
#WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
#CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.” is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Mount the unit so that the mounting angle is
30° or less.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.

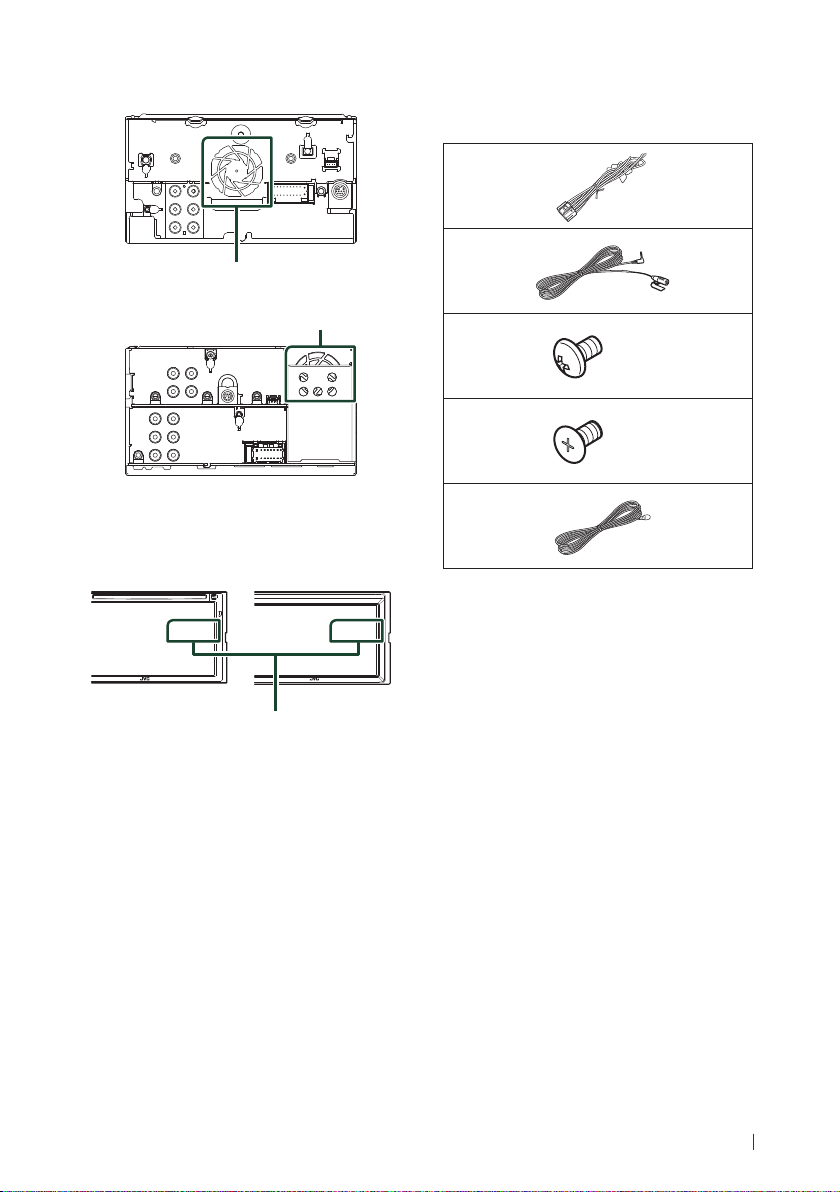

19English
(KW-V850BT/ KW-V85BT)
Cooling fan
(KW-M750BT/ KW-M75BT/ KW-M650BT)
Cooling fan
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit
Ñ Supplied accessories for
installation
1
x1
2
(3 m)
x1
3
(M5 x 8 mm)
x6
4
(M5 x 8 mm)
x6
5[1]
(2 m)
x1
[1] KW-M750BT/ KW-M75BT/ KW-M650BT only
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤terminal of the battery.
8) Perform the Initial Setup.
See Initial setup (P.4).

20

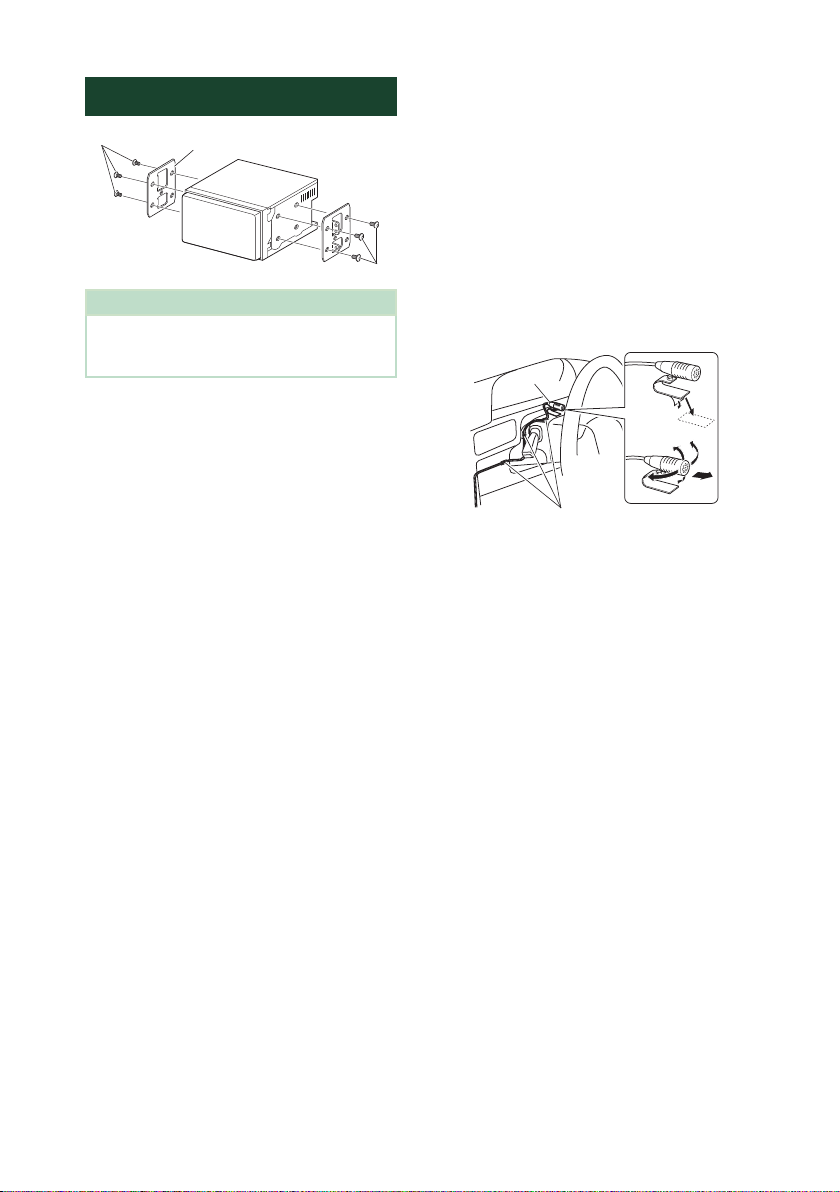

Installing the unit
3or 4
3or 4
Car Bracket
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 2).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 2), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 2) to the driver.
2
Fix a cable with a commercial item of tape.
