SERVICE MANUAL
CD/CDR MULTIPLE COMPACT DISC RECORDER
No.A0035
Aug. 2002
COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD.
XL-R5020BK
XL-R5020BK
Area Suffix
J ------------- U.S.A.
XLÐR5020 CD/CDR MULTIPLE COMPACT DISC RECORDER
MP3 PLAYBACK
COMPACT
DIGITALAUDIO
Recordable
ReWritable
MIN MAX
COMPACT
DIGITAL AUDIO
C
A
N
C
E
L
R
E
C
S
O
U
R
C
E
D
I
S
P
L
A
Y
M
E
N
U
1
CD1 CD2 CD3
STANDBY/ON
PLAY
CD REC CD EDIT SYNCHRO FADE
REC
RM-SXL001J
REMOTE CONTROL
PITCH 0
PITCH
FINALIZE
REC MUTING
MODE
SET
GROUP
REPEAT CD CDR
4
7
10
2
5
8
3
6
9
10
GROUP
CONTROL
GROUP

XL-R5020BK
2
TABLE OF CONTENTS
1 Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Critical parts for safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Preventing static electricity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.6 Handling the traverse unit (optical pickup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.7 Importance admistering point on the safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.8 Precautions for Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Disassembly method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Main body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 MECHANISM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Changer mechanism assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Confirm method of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 Check mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 All release of set content. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.3 Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4 Running operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.5 Display of version number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.6 Extension cord for diagnosis of changer mechanism unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Description of major ICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.1 AN22000A-W(IC601):RF & SERVO AMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 BU4066BCF-X(IC831,IC841,IC861):Source selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 BU4052BCF-X(IC821):Channel switch controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4 LB1641 (IC851,IC852) : DC Motor driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5 TC74HC00AF(IC301,IC311):Digital I/O selector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6 BR24C01AFV-W-X (IC201) : EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.7 LA6541-X (IC801) : Focus & Spindle & Feed & Tracking BTL driver . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.8 M66004SP(IC721):FL Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.9 MN35505-X (IC361) : DAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.10 TC9246F-X(IC404):Clock generation for digital audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.11 TC74HCU04AF-W(IC331):Digital input selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.12 74VHC00MTC-X (IC406) : 2-input nand gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.13 74VHC08SJ-X(IC407):2-input AND gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.14 TC94A02F-005(IC401) : MP3 Decoder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.15 TC9412AF(IC891) : Rec Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.16 MN662790RSC(IC651):Digital servo & processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.17 UPD780076GK-533(IC251):Unit microcomputer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.18 UPD784215AGF513(IC501):System controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.19 W24L010AJ-12-X (IC402) : SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

XL-R5020BK
3
SECTION 1
Important Safety Precautions
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purposes.
For continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by
using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Service
Manual. Electrical components having such features are
identified by shading on the schematics and by ( )
on the Parts List in the Service Manual. The use of a sub-
stitute replacement which does not have the same safety
characteristics as the recommended replacement parts
shown in the Parts List of Service Manual may create
shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing)
After reassembling the product, always perform an isolation
check on the exposed metal parts of the product (antenna
terminals, knobs, metal cabinet, screw heads, headphone
jack, control shafts, etc.) to be sure the product is safe to
operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particu-
larly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.).

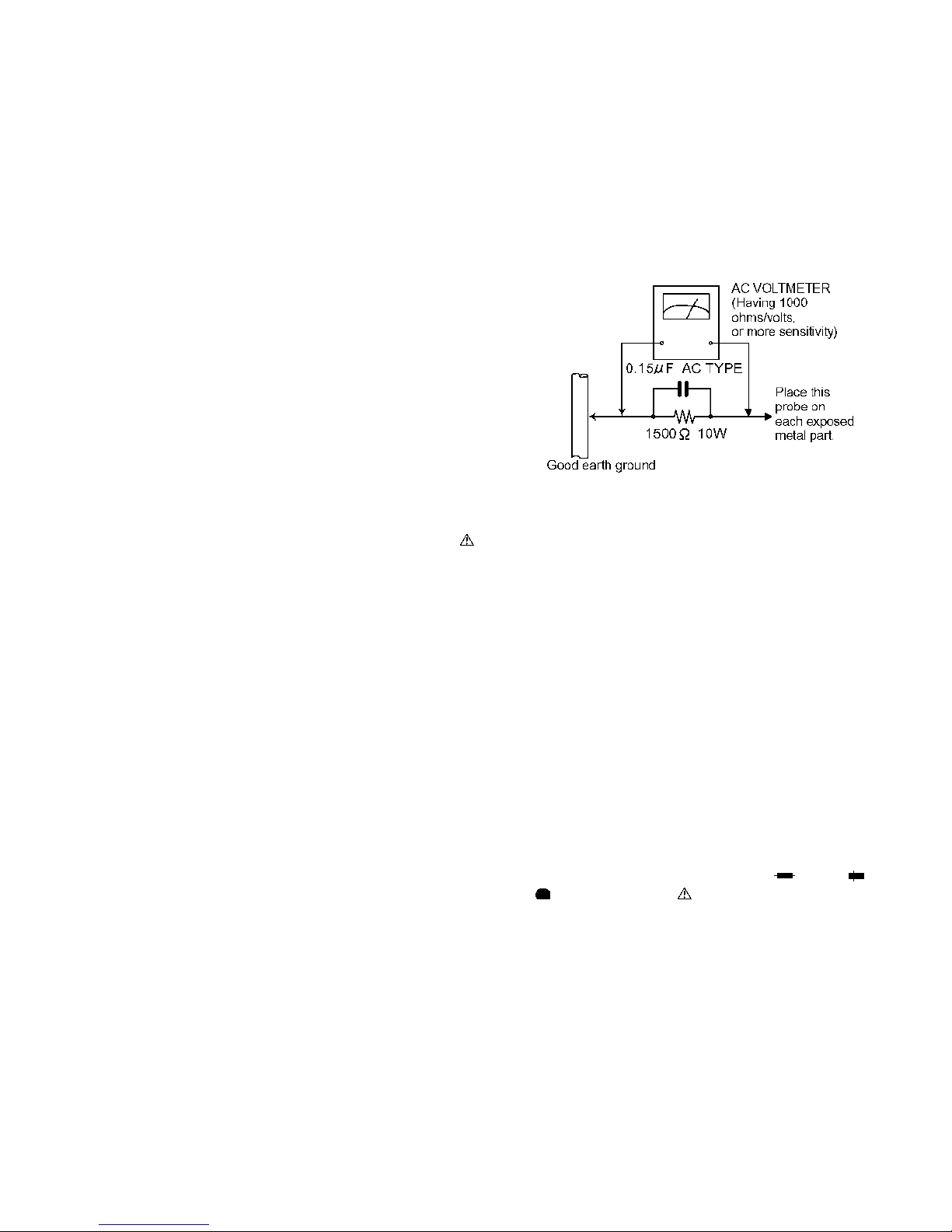

• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC
voltmeter having, 1,000 ohms per volt or more sensitivity in
the following manner. Connect a 1,500 ohm 10W resistor
paralleled by a 0.15 µF AC-type capacitor between an
exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and repeat
each measurement. Voltage measured any must not
exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC
(r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for lo-
cal voltage.
1.3 Caution
Burrs formed during molding may be left over on some
parts of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( ) and
ICP ( ) or identified by the " " mark nearby are critical for safe-
ty.
When replacing them, be sure to use the parts of the same type
and rating as specified by the manufacturer. (Except the JC version)

XL-R5020BK
4
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can
easily destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too
long a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4)I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

XL-R5020BK
5
1.7 Importance admistering point on the safety

XL-R5020BK
6
1.8 Precautions for Service
1.8.1 Handling of Traverse Unit and Laser Pickup
(1) Do not touch any peripheral element of the pickup or the actuator.
(2) The traverse unit and the pickup are precision devices and therefore must not be subjected to strong shock.
(3) Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the internal power supply of the tester.)
(4) To replace the traverse unit, pull out the metal short pin for protection from charging.
(5) When replacing the pickup, after mounting a new pickup, remove the solder on the short land which is provided at the center
of the flexible wire to open the circuit.
(6) Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the characteristicsof the optical block.
Do not change the setting of these half-fixed resistors for laser power adjustment.
1.8.2 Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothing
or the human body. Before repairing peripheral elements of the traverse unit or pickup, be sure to take the following electrostatic
protection:
(1) Wear an antistatic wrist wrap.
(2) With a conductive sheet or a steel plate on the workbench on which the traverse unit or the pick up is to be repaired, ground
the sheet or the plate.
(3) After removing the flexible wire from the connector (CN101), short-circuit the flexible wire by the metal clip.
(4) Short-circuit the laser diode by soldering the land which is provided at the center of the flexible wire for the pickup.
After completing the repair, remove the solder to open the circuit.
Please refer to "Fig.2-4" of "Disassembly
method" for details.

XL-R5020BK
7
SECTION 2
Disassembly method
2.1 Main body

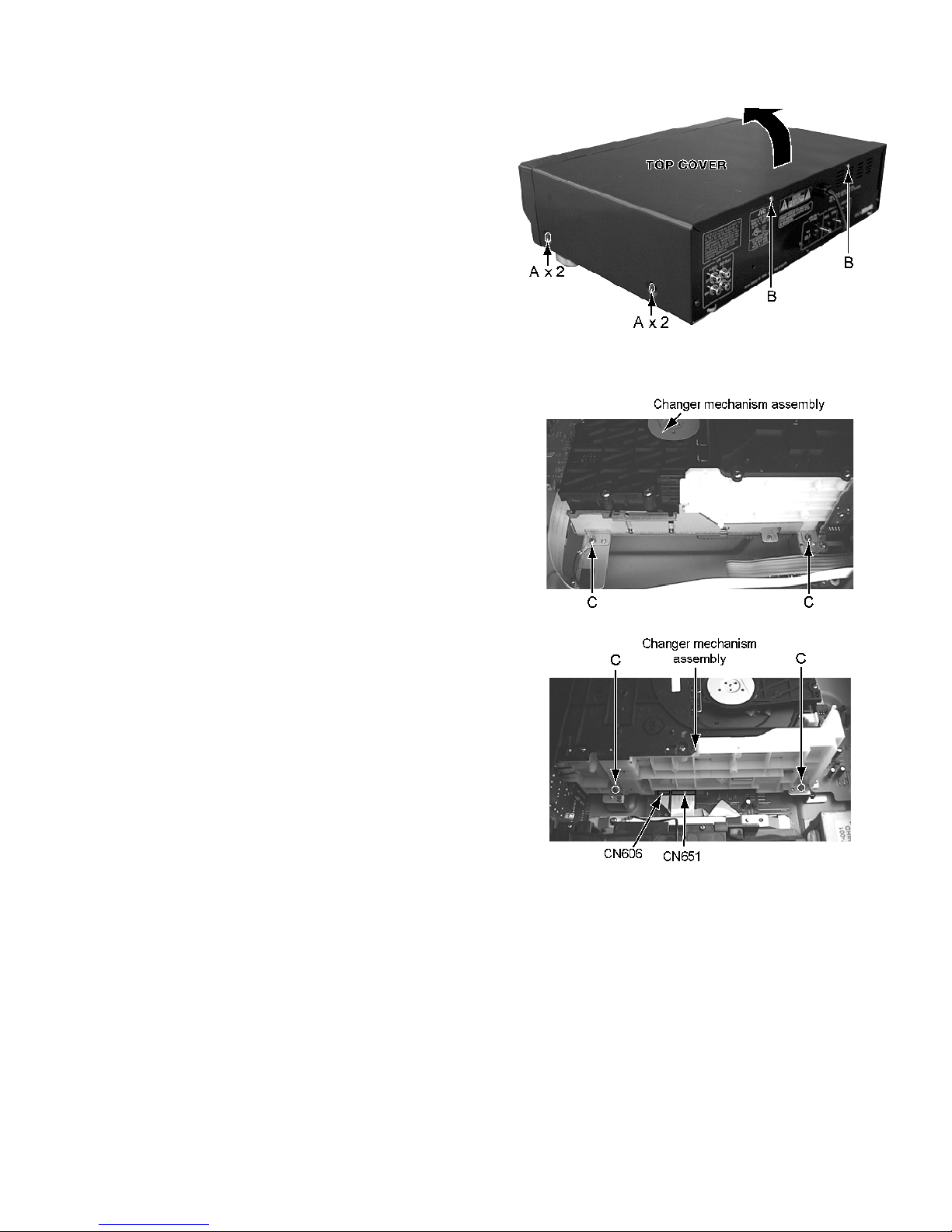

2.1.1 Removing the top cover (see Fig.1)
(1) Remove the four screws Aattaching the top cover on both
sides of the body.
(2) Remove the two screws Battaching the top cover on the
back of the body.
(3) Remove the top cover from the body by lifting the rear part
of the top cover.
ATTENTION:
Do not break the front panel tab fitted to the top cover.
Fig.1
2.1.2 Removing the changer mechanism assembly
(see Fig.2~3)
*Prior to performing the following procedure, remove the top
cover.
(1) Remove the four screws Cattaching the changer mecha-
nism assembly.
(2) Disconnect the card wire from connector CN606 and
CN651 on the CD servo control board respectively.
(3) Remove the changer mechanism assembly from the body
by lifting the rear part of the changer mechanism assem-
bly.
Fig.2
Fig.3

XL-R5020BK
8

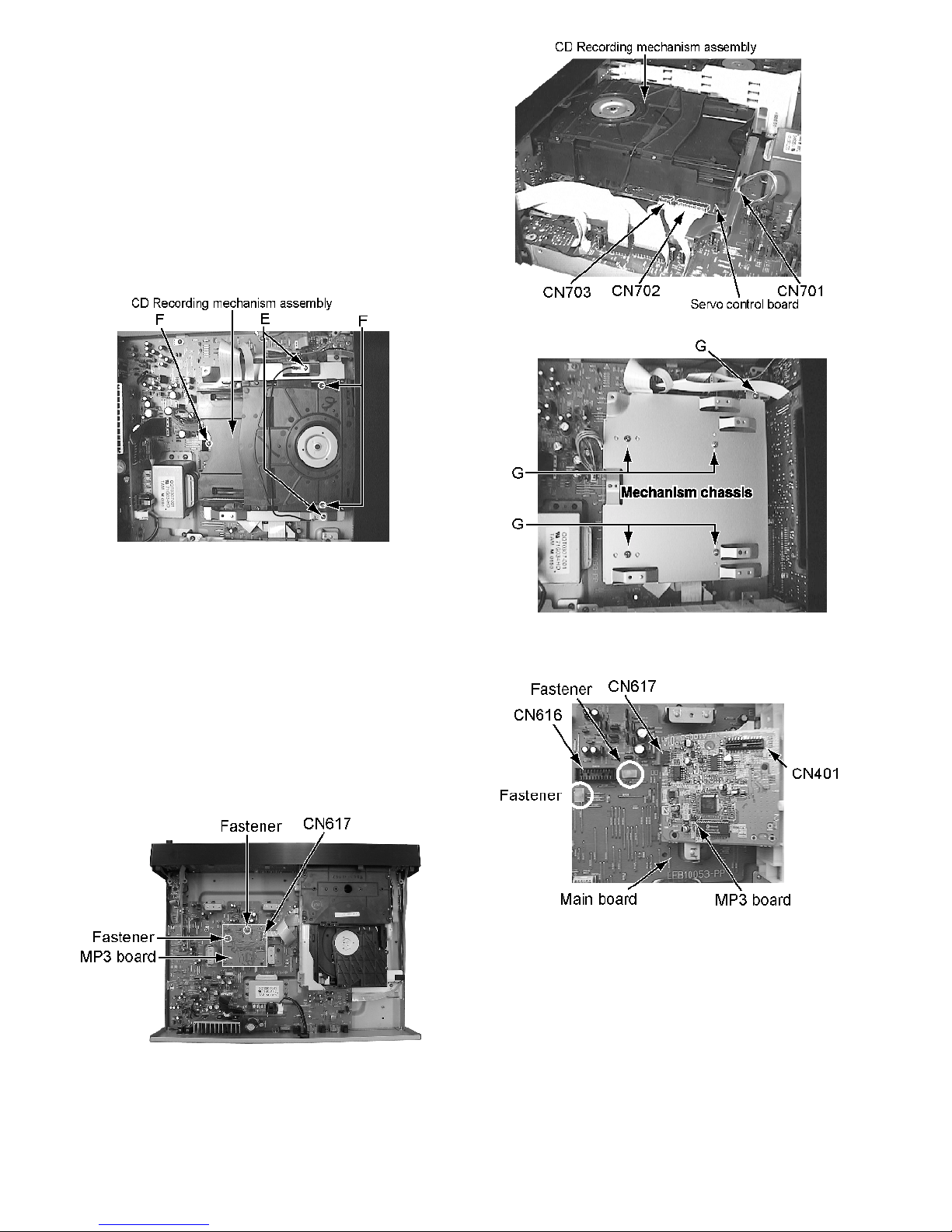

2.1.3 Removing the CD recording mechanism assembly
(see Fig.4~6)
*Prior to performing the following procedure, remove the top
cover.
*There is no need to remove the changer mechanism assembly.
(1) Remove the two screws Eattaching the mechanism chas-
sis.
(2) Remove the three screws Fattaching the CD recording
mechanism assembly.
(3) Disconnect the card wire from connector CN702 and
CN703 on the servo control board respectively.
(4) Disconnect the connect wire from connector CN701 on the
servo control board.
(5) Remove the five screws Gattaching the mechanism chas-
sis
Fig.4
Fig.5
Fig.6
2.1.4 Removing the MP3 board
(see Fig.7,8)
*Prior to performing the following procedure, remove the top
cover, CD recording mechanism assembly.
*There is no need to remove the changer mechanism assembly.
(1) Pull out the MP3 board from the fastener.
At this time, disconnect the connector CN401 of the MP3
board from connector CN616 on the Main board.
(2) Disconnect the card wire from connector CN617 on the
MP3 board.
Fig.7
Fig.8

XL-R5020BK
9

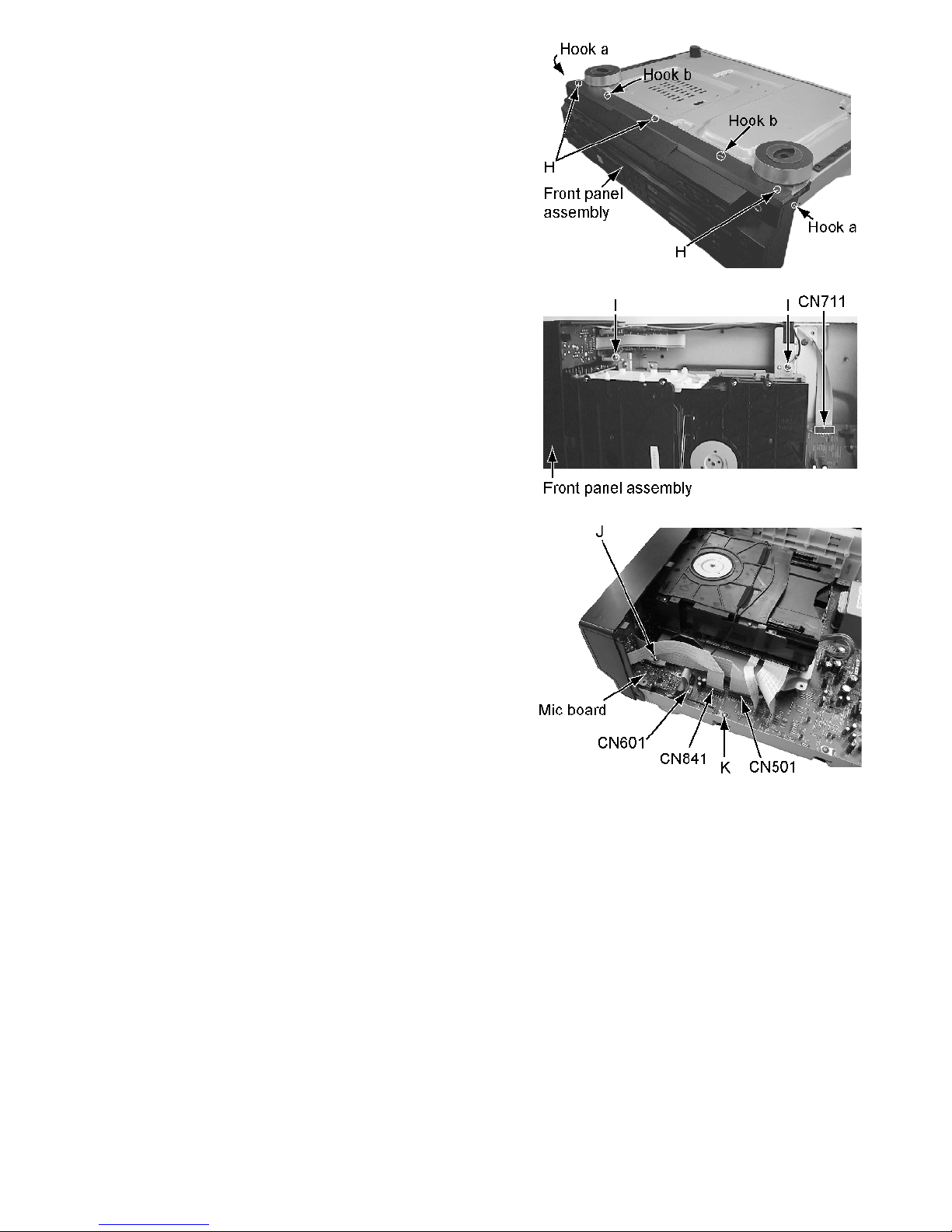

2.1.5 Removing the front panel assembly
(see Fig.9~11)
*Prior to performing the following procedure, remove the top
cover.
*There is no need to remove the changer mechanism assembly
and CD recording mechanism assembly.
(1) Remove the three screws Hattaching the front panel as-
sembly on the bottom of the body.
(2) Remove the two screws Iattaching the headphone jack
bracket.
(3) Remove the one screw Jattaching the mic jack bracket.
(4) Remove the one screw Kattaching the main board.
(5) Disconnect the card wire from connector CN711, CN841
and CN501 on the main board respectively.
(6) Disconnect the flat wire from connector CN601 on the
main board from mic board.
(7) Hook aand bare removed respectively, and the front
panel assembly is removed.
Fig.9
Fig.10
Fig.11

XL-R5020BK
10
2.1.6 Removing the rear panel
(see Fig.12,13)
*Prior to performing the following procedure, remove the top
cover.
(1) Remove the ten screws Lattaching the rear panel.
(2) Disconnect the power cord from connector CN1 on the
power supply board.
Fig.12
Fig.13
2.1.7 Removing the main board and power supply board
(see Fig.14)
*Prior to performing the following procedure, remove the top
cover, front panel assembly, changer mechanism assembly, CD
recording mechanism assembly and rear panel.
(1) Remove the four screws Mattaching the power transform-
er.
(2) Disconnect the flat wire from connector CN901 and
CN902 on the main board.
(3) Remove the six screws Nattaching the main board.
Fig.14

XL-R5020BK
11
SECTION 3
MECHANISM
3.1 Changer mechanism assembly
3.1.1 Removing the servo control board
(See Fig.1 to 5)
ATTENTION:
Make sure the sub chassis unit is locating at the lowest posi-
tion. If not,perform the following procedure from 1 to 3.
(1) Insert a screwdriver into the sub chassis slot on the back
of the body and push the slider (R) toward the front.
(2) From the top of the body, slide the hook and the slider (R)
forward until they stop.
(3) From the right side of the body, slide the slide cam (L)
backward until it stops. The sub chassis unit will move to
the lowest position.
(4) From the bottom of the body, unsolder each soldered part
aand bof the motors on the servo control board.
(5) Remove the five screws Aattaching the servo control
board.
(6) Disconnect connector CN610 on the servo control board
from the tray select switch board to suspend the servo
control board tentatively. Solder the part cof the flexible
wire connected to connector CN601 on the underside of
the servo control board.
(7) Disconnect the flexible wire from connect or CN601 and
remove the servo control board from the body.
ATTENTION:
In case of disconnecting the flexible wire without solder-
ing, the CD pick up may be damaged.
ATTENTION:
When reassembling, make sure the cam switch boss of
the servo control board is fitted to the slot pof the con-
trol cam on the bottom of the body
(Refer to Fig.3).
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5

XL-R5020BK
12

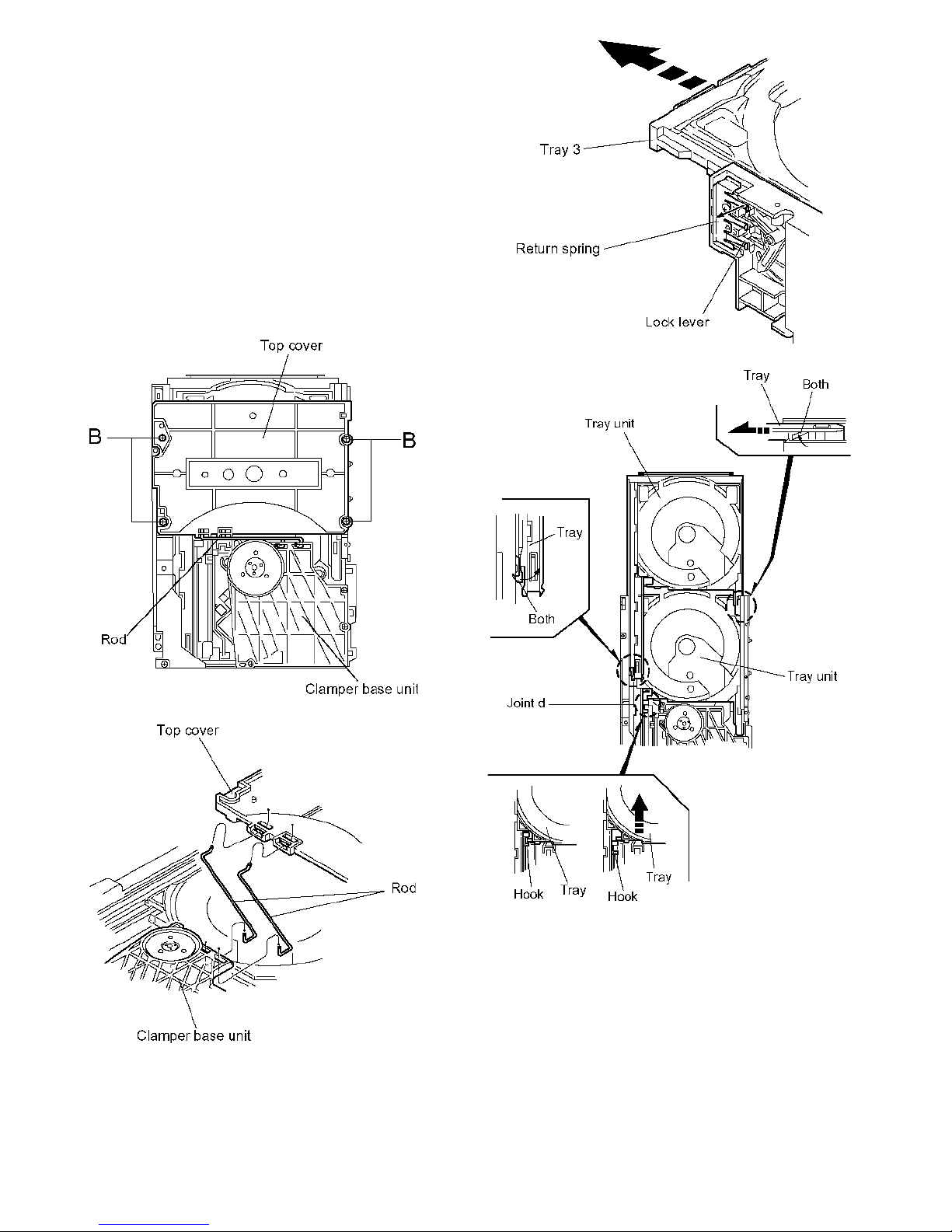

3.1.2 Removing the tray unit
(See Fig.6 to 9)
*The tray unit can be removed despite the position of the sub
chassis unit, but the lowest position is recommendedto expedite
the work.
(1) Remove the four screws Battaching the top cover on the
top of the body.
(2) Remove the top cover with the two rods attached to the top
cover and the clamper base unit.
(3) Pull the lock lever of the return spring on the right side of
the body to eject the tray unit.
(4) From the top of the body, release the tray from the joint
hook marked d(Push the tray toward the front).
(5) Release the stoppers on both sides in the direction of the
arrow and pull out the tray unit from the body.
ATTENTION:
Pull out the tray unit from the top tray 3 in sequence.
Fig.6
Fig.7
Fig.8
Fig.9

XL-R5020BK
13

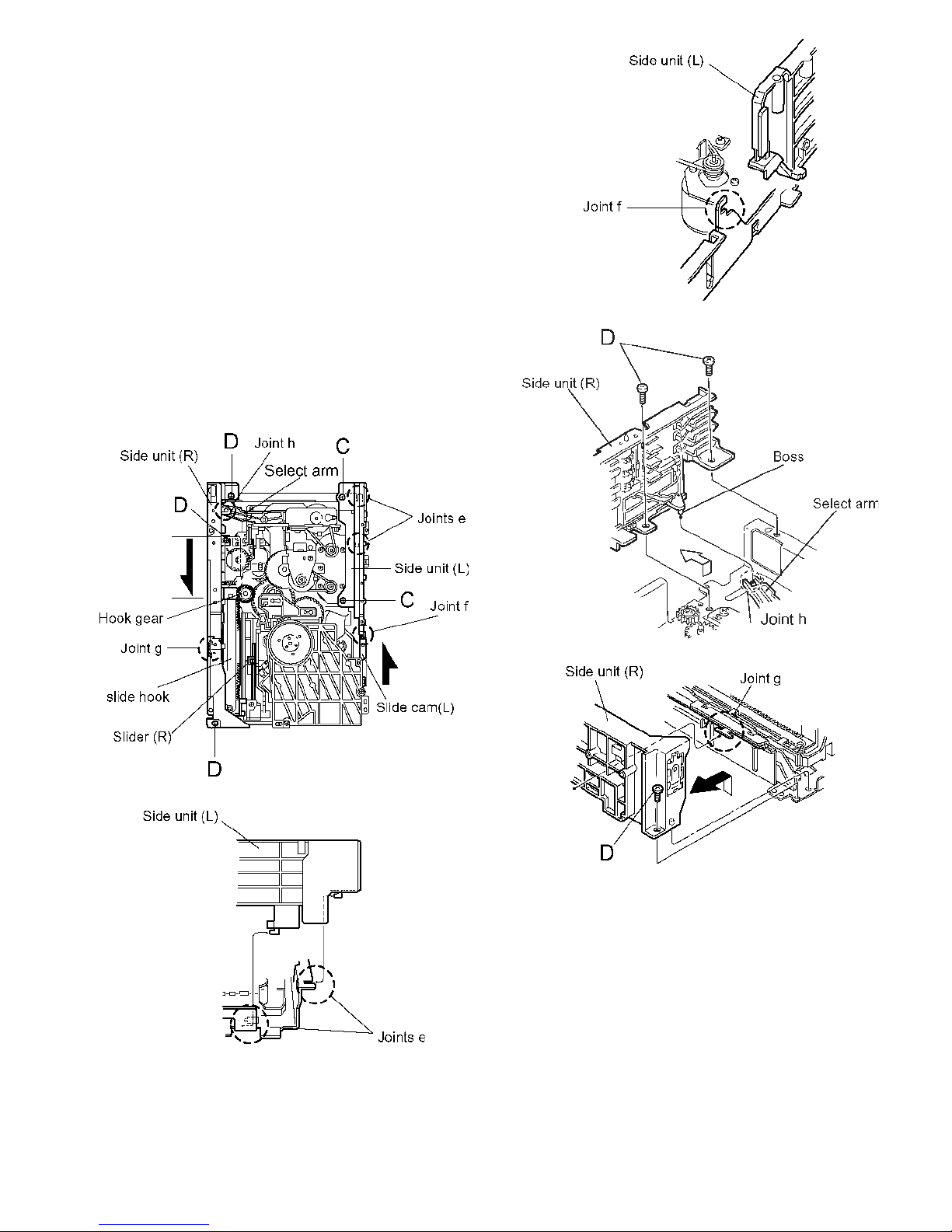

3.1.3 Removing the side unit (L) and (R)
(See Fig.10 to 14)
*Prior to performing the following procedures, remove the servo
control board, the top cover and the tray unit.
(1) Remove the two screws Cattaching the side unit (L).
(2) Slide and remove the side unit (L) toward the front while
releasing the two joints eand the joint fwith the chassis
unit.
(3) Slide the slide cam (L) toward the front until it stops to
place the sub chassis unit at the top position.
ATTENTION:
The side unit (R) can be removed when the sub chassis
unit is located at the top position.
(4) Turn the hook gear counterclockwise to move the slide
hook and the slider (R) backward until they stop.
(5) Remove the three screws Dattaching the side unit (R).
Raise the side unit (R) upward and release the joint gwith
the chassis unit and the boss from the select arm marked
h. Then remove the side unit (R) from the body.
ATTENTION:
When reassembling, make sure the boss is fitted to the
select arm marked h.
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14

XL-R5020BK
14

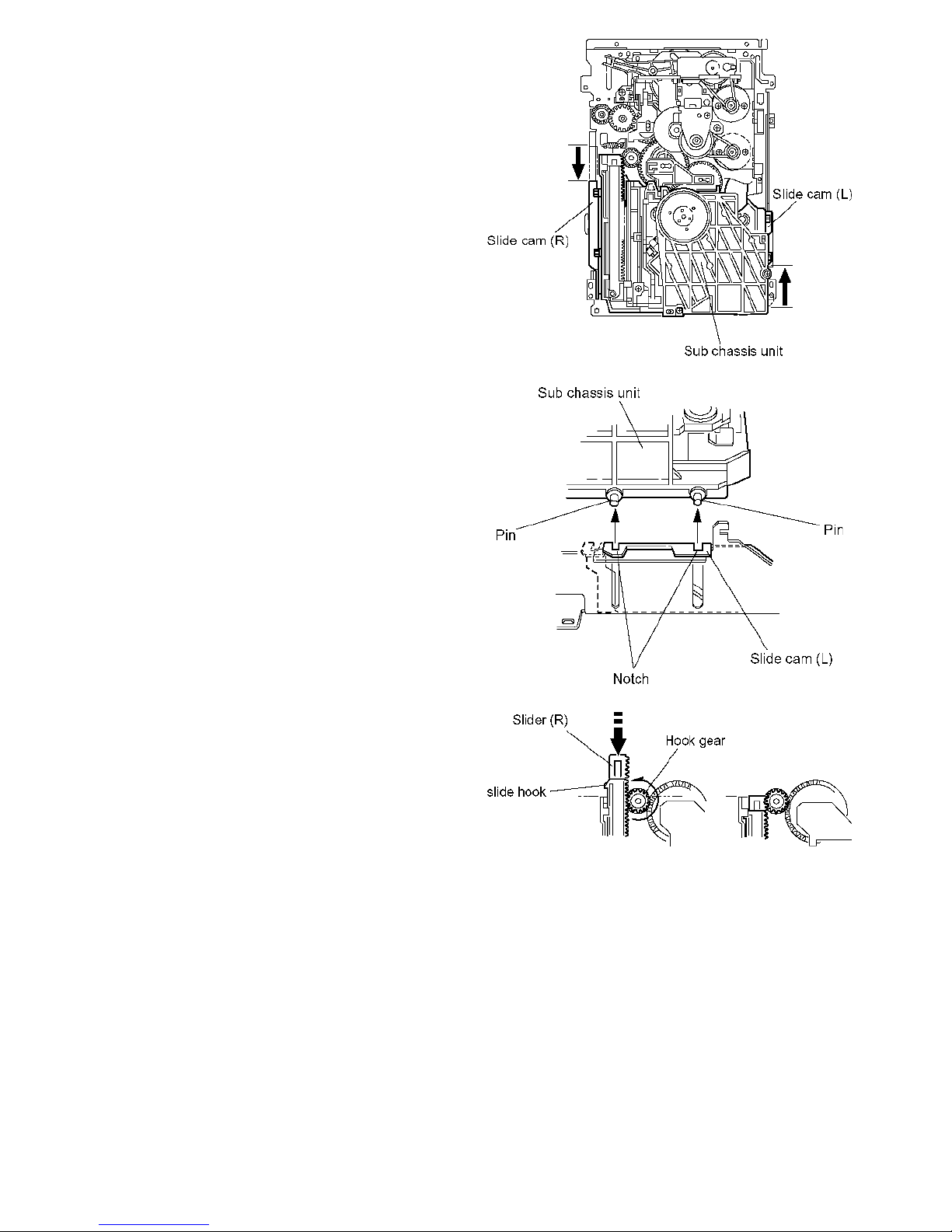

3.1.4 Removing the sub chassis unit
(See Fig.15 to 17)
*Prior to performing the following procedures, remove the servo
control board, the top cover, the tray unit,the side unit (L) and
the side unit (R).
(1) Turn the hook gear counterclockwise to move the slide
hook and the slider (R) backward until they stop.
(2) Slidetheslidecam (L)and the slidecam (R)in thedirection
of the arrow until they stop.
(The notches of each slide cam are fitted to the pins on
both sides of the sub chassis unit.)
(3) Detach the sub chassis unit upward.
ATTENTION:
When reassembling, turn the hook gear of the chassis
unit counterclockwise until it stops and slide the slide
hook and the slider (R) of the sub chassis unit backward
until they stop.
Fig.15
Fig.16
Fig.17

XL-R5020BK
15
3.1.5 Removing the flap base unit and the gear base unit
(See Fig.18 and 19)
*Prior to performing the following procedures, remove the servo
control board, the top cover, the tray unit,the side unit (L) and
the side unit (R).
(1) Remove the screw Eattaching the flap base unit. Release
the joint tabs iand j, then remove the flap base unit from
the body.
(2) Remove the belts from the two pulleys on the gear base
unit.
(3) Remove the three screws Fand remove the gear base unit
from the body.
Fig.18
Fig.19
3.1.6 Removing the motors
(See Fig.20)
*Prior to performing the following procedure, remove the main
board.
(1) Remove the belts from the two pulleys.
(2) Remove the four screws Gand detach each motor from
the body.
Fig.20

XL-R5020BK
16
3.1.7 Removing the pickup
(See Fig.21 to 25)
(1) From the top of the body, remove the three screws H
attaching the clamper base unit.
(2) Remove the clamper base unit with the two rods attached
to the clamper base unit and the top cover.
(3) Turn the screw shaft gear marked kin the direction of the
arrow to move the pickup unit.
(4) Remove the screw Iattaching the shaft holder.
(5) Move the screw shaft in the direction of the arrow and
release it from the joint l. Then release it from the joint m
with the pickup holder. Detach the pickup with the screw
shaft.
(6) Solder the part nof the flexible board on the underside of
the pickup. After soldering, disconnect the flexible wire
connected to the pickup (In case of disconnecting the
flexible wire without soldering, it may cause damage to the
CD pickup).
(7) Remove the two screws Jattaching the rack arm to the
pickup unit.
(8) Pull out the screw shaft from the pickup.
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25

XL-R5020BK
17

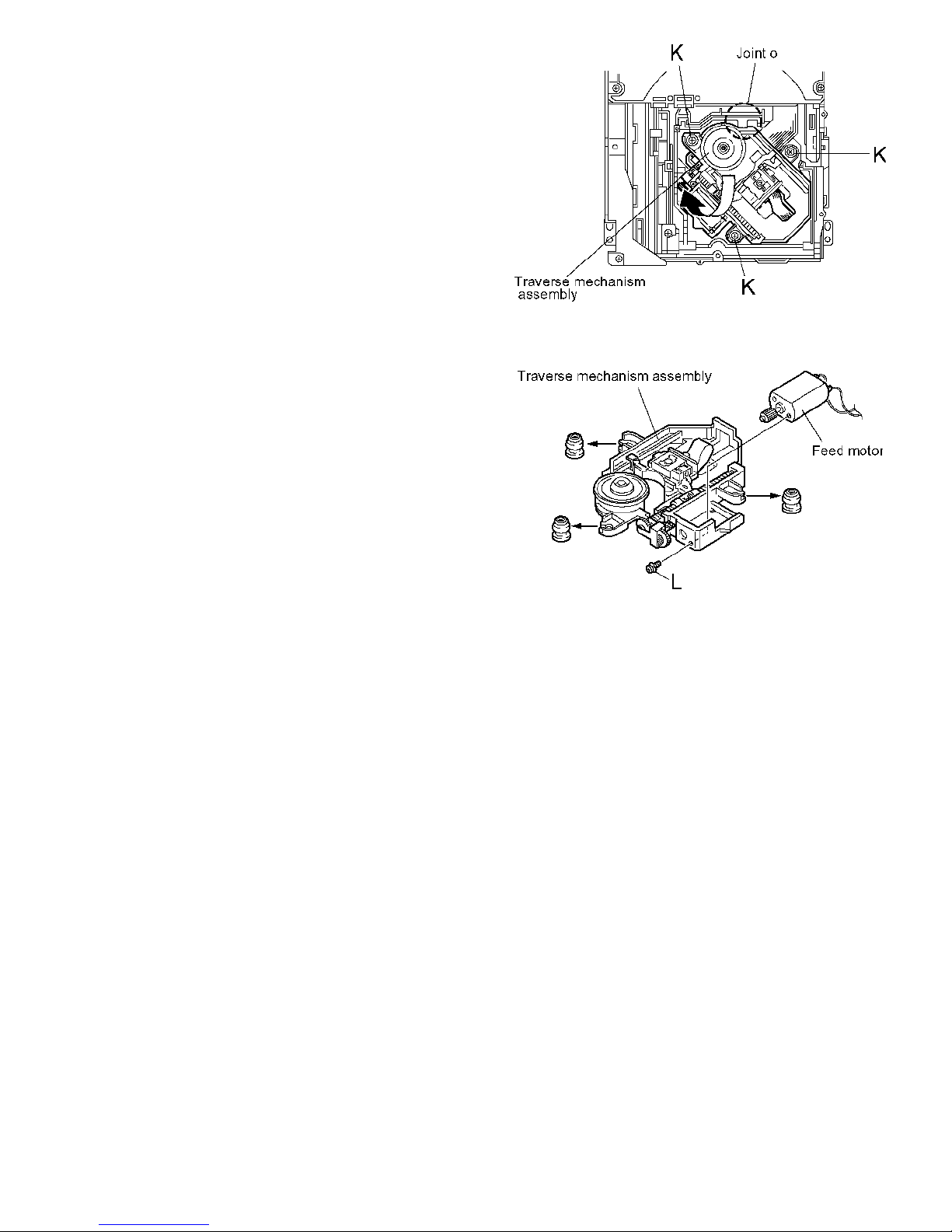

3.1.8 Removing the traverse mechanism assemb ly
(See Fig.26)
*Prior to performing the following procedure, remove the servo
control board and the clamper base unit.
(1) Remove the three screws Kattaching the traverse
mechanism assembly.
(2) Detach the rear part of the traverse mechanism assembly
upward to release the joint o with the sub chassis unit.
Then remove the assembly from the body.
Fig.26
3.1.9 Removing the feed motor
(See Fig.27)
*Prior to performing the following procedure,remove the
traverse mechanism assembly.
(1) Remove the screw Lattaching the feed motor.
Fig.27

XL-R5020BK
18

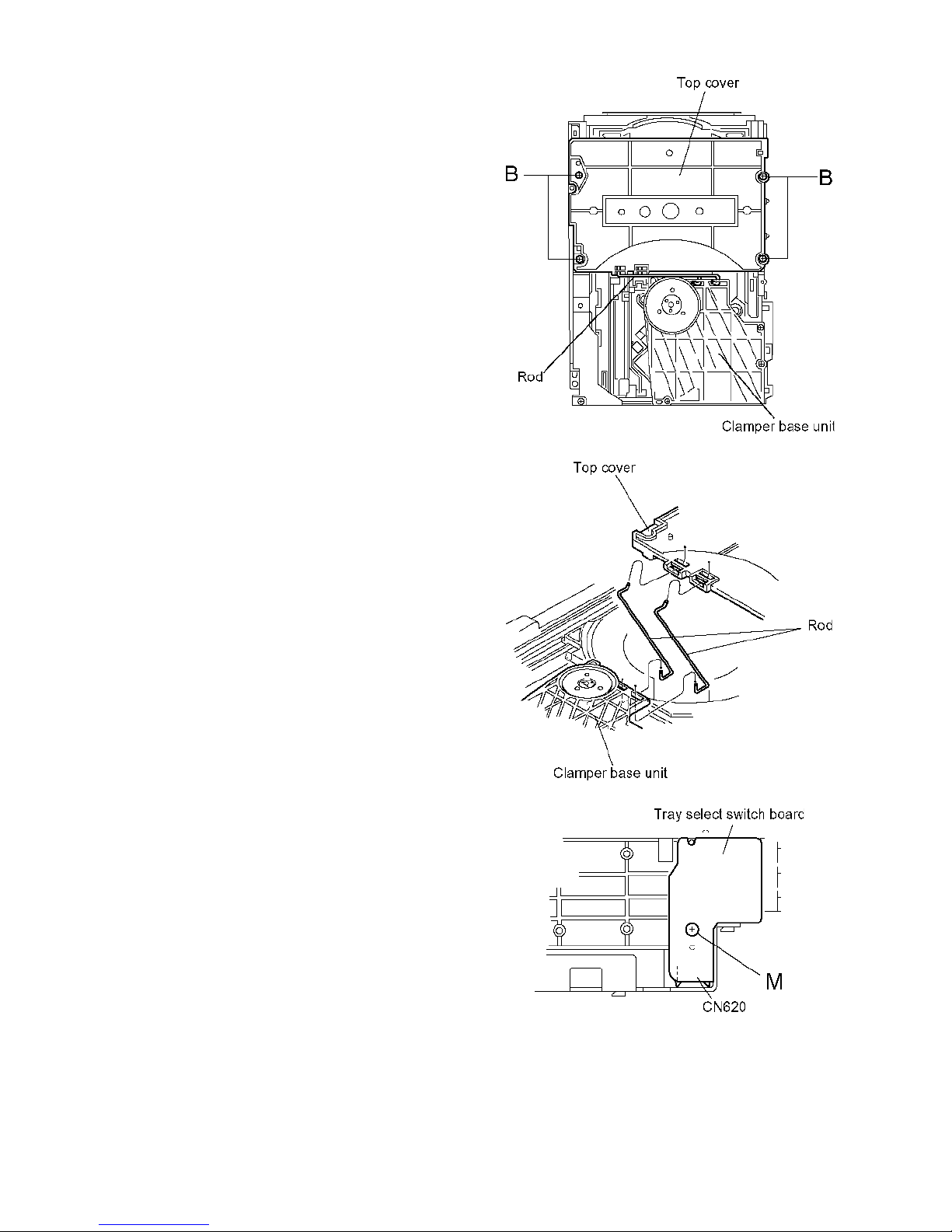

3.1.10 Removing the tray select switch board
(See Fig.6,7 and 28)
(1) Remove the four screws Battaching the top cover on the
top of the body.
(2) Remove the top cover with the two rods attached to the top
cover and the clamper base unit.
(3) Remove the screw Mon the right side of the body.
Fig.6
Fig.7
Fig.28

XL-R5020BK
19
SECTION 4
Confirm method of operation
4.1 Check mode
All lighting FL display and reducing time operation of clock
(1) Setting method of all lighting FL display
"STANDBY/ON" key is pushed while pushing "REC/REC
MUTING" key by the stand-by state.
(2) Setting method of reducing time operation of clock
FL display is put into the state of all lighting by the method of the
above-mentioned, and "STANDBY/ON" key is pushed afterwards.
The clock display comes to advance during one minute a
second in actual time when changing to this mode.
Because other operation can do the normal operation,
Uses for the confirmation of the operation of the timer
function etc.
(3) Release method
"STANDBY/ON" key is pushed while pushing "REC/REC
MUTING" key.
4.2 All release of set content
All content of the item in the following set is returned to initial
state. (State of factory shipment)
(1) Setting method
"STANDBY/ON" key is pushed while pushing "REC
SOURCE SELECTOR" key by the stand-by state.
[Set items]
• Deletion of time setting
• The setting of the timer is deleted.
• The program of the program play is deleted.
• The content of the registration of the listening editing
and the program editing is deleted.
The repeat setting is turned off.
• Release of disc lock
• The unit of busy is adjusted to the changer mechanism side.
• The play mode of changer mechanism is made a nor-
mal mode.
• The pitch control setting is turned off.
• The selection of the recording source is made DIGITAL of CD.
• DUB-SPEED setting is made HIGH.
• AUTO TRACK setting is turned ON.
• TRACK SPACE setting is turned ON.
• CONVERTER setting is turned ON.
• D-IN SYNCHRO setting is START
• FINALISE setting is ON
4.3 Service menu
There is an item displayed besides "SYSTEM_AGING" and
"READ_VERSION" in the service menu.
However, because the effective item is only "SYSTEM_AGING" and
"READ_VERSION", the function does not actually use other items.
The running operation and the version of the firmware can be
confirmed by the undermentioned method.
(1) Setting method of service menu
a) "STANDBY/ON" key is pushed while pushing "FI-
NALIZE" key by the stand-by state.
b) When the blinking display of the disk distinction
ends, "MENU" key is pushed.
The menu display changes if "MULTI JOG" knob of
the main body is turned.
c) The execution of the each item is completed or either
"CANCEL"key, "CD-RW STOP"key or "MENU"key
is pushed when going out of the menu mode.
(2) Release method
a) If "STANDBY/ON" key is pushed, and the power
supply is turned off once, becomes a normal menu.
4.4 Running operation
When this mode is executed, the operation of the recording and
the playback is repeated.
Please use to confirm operation.
It is necessary to put the recorded disk or CD-DA in tray 1
of changer mechanism beforehand to execute this item,
and put CD-RW of the blank disk in recording mechanism.
(1) Setting method of running operation
a) "Service menu" is made to be displayed on the FL
display referring to the above-mentioned.
b) "SYSTEM_AGING" is made to turn "MULTI JOG"
knob, and to be displayed on the FL display.
c) The undermentioned operation starts when "SET"
key is pushed.
The undermentioned control becomes possible according to the
content of the disk turned on to tray 1 of changer mechanism.
* The time required of operation of running once
* Movement frequency of pick-up
F L display becomes " ", and the frequency to which the
running operation is done is displayed by the figure when
"STOP" key is pushed to the running working or interrupted be-
cause of the error etc.
4.5 Display of version number
When this item is executed, version number "system controller",
"CD recording unit", and "3CD changer unit" respectively is dis-
played in FL display for five seconds.
When five seconds pass, this mode is automatically made clear.
Setting method of display of version number
(1) "Service menu" is made to be displayed on the FL dis-
play referring to the previous page.
(2) "READ_VERSION" is made to turn "MULTI JOG" knob,
and to be displayed on the FL display.
(3) The undermentioned operation starts when "SET" key is pushed.
It is displayed instead of version number when failing in reading
version number, "000".
4.6 Extension cord for diagnosis of changer mechanism unit
There is an extension cord to diagnosechanger mechanism unit.
The undermentioned connector is connected, and used mutually.

XL-R5020BK
20
SECTION 5
Description of major ICs
5.1 AN22000A-W(IC601):RF & SERVO AMP
• Pin layout
• Pin function
5.2 BU4066BCF-X(IC831,IC841,IC861):Source selector
• Pin layout & block diagram • Truth table
Pin
No. Symbol Description Pin No. Symbol Description
1 PD APC Amp. Input terminal 16 GND Connect to ground
2 LD APC Amp.Output terminal 17 VREF VREF output terminal
3 VCC Power supply terminal 18 VDET VDET output terminal
4 RFN RF addition Amp.Reversing input terminal 19 TEBPF VDET input terminal
5 RF OUT RF addition Amp.Output terminal 20 TEOUT TE Amp. output terminal
6 RF IN AGC input terminal 21 TEN TE Amp. reversing input terminal
7 C.AGC Terminal of connection of capacity of AGC loop
filter. 22 FEN FE Amp. reversing input terminal
23 FEOUT FE Amp. output terminal
8 ARF AGC output terminal 24 GCTRL Terminal GCTL & APC
9 CEA Capacity connection terminal for HPF-Amp. 25 FBAL FBAL control terminal
10 3TOUT 3TENV output terminal 26 TBAL TBAL control terminal
11 CBDO Capacity connection terminal for RF shade side
envelope detection 27 PDE Tracking signal input terminal 1
28 PDF Tracking signal input terminal 2
12 BDO BDO output terminal 29 D Focus signal input terminal 4
13 COFTR Capacity connection terminal for RF discernment
side envelope detection 30 B Focus signal input terminal 2
31 C Focus signal input terminal 3
14 OFTR OFTR output terminal 32 A Focus signal input terminal 1
15 RFDET RFDET output terminal
Control Switch
HON
LOFF
