JVC XL-R5000BK User manual

1-1
XL-R5000BK
SERVICE MANUAL
CD/CDR MULTIPLE COMPACT DISC RECORDER
No.20844
Aug. 2000
COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.
XL-R5000BK
XL-R5000BK
Contents
Safety Precautions
Important for laser products
Preventing static electricity
Disassembly method
CD-R unit and 3CD changer
check mode
Description of major ICs
1-2
1-3
1-4
1-5
1-19
1-22
Area Suffix
This service manual is printed on 100% recycled paper.
UOther Areas
STANDBY
POWER
CLOCK/
TIMER
XL - R5000 CD/CDR MULTIPLE COMPACT DISC RECORDER
PLAY
MODE CD EDIT CD REC
CD CONTROL
MIC
MAXMIN
PHONES
MIX BALANCECDR CONTROL PHONES LEVEL
CD
LINE
LINE
MIC
PLAY& EXCHANGE
3
-
CD
DISPLAY MENU
DIGITAL
REC SOURCE SELECTOR
CD LINE
MIXING
MIC
FINALIZE MIN MAX
MULTI JOG
+–
CANCEL SET
REC
MUTING SYNCHRO
EJECT
REC LEVEL
REC
123
456
78
10 +10
9
PLAYMODE REPEAT SET CANCEL
CONTROL
PITCH 0
PITCH
+
PITCH
–
SHIFT
REMOTE CONTROL
RM-SXLR5000J
REC MUTING
REC
DISPLAYSYNCHROCDREC
CD EDIT FINALIZE MENU POWER
CD 1
CD 2
CD 3
CD CDR
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-2
XL-R5000BK
Safety Precautions
1.This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the manufacturer`s
warranty and will further relieve the manufacture of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after re-assembling.
5. Leakage currnet check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts
of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by
a 0.15 F AC-type capacitor between an exposed
metal part and a known good earth ground.
Measure the AC voltage across the resistor with the
AC voltmeter.
Move the resistor connection to eachexposed metal
part, particularly any exposed metal part having a
return path to the chassis, and meausre the AC
voltage across the resistor. Now, reverse the plug in
the AC outlet and repeat each measurement. voltage
measured Any must not exceed 0.75 V AC (r.m.s.).
This corresponds to 0.5 mA AC (r.m.s.).
Warning
1.This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
CAUTION
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-3
XL-R5000BK
Important for Laser Products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The compact disc player uses invisible
laserradiation and is equipped with safety switches
whichprevent emission of radiation when the drawer is
open and the safety interlocks have failed or are de
feated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
VARNING : Osynlig laserstrålning är denna del är öppnad
och spårren är urkopplad. Betrakta ej strålen.
VARO : Avattaessa ja suojalukitus ohitettaessa olet
alttiina näkymättömälle lasersäteilylle.Älä katso
säteeseen.
ADVARSEL : Usynlig laserstråling ved åbning , når
sikkerhedsafbrydere er ude af funktion. Undgå
udsættelse for stråling.
ADVARSEL : Usynlig laserstråling ved åpning,når
sikkerhetsbryteren er avslott. unngå utsettelse
for stråling.
REPRODUCTION AND POSITION OF LABELS
WARNING LABEL
DANGER : Invisibie laser radiation
when open and interlock or
defeated.
AVOID DIRECT EXPOSURE TO
BEAM (e)
VARNING : Osynlig laserstrålning är
denna del är öppnad och spårren är
urkopplad. Betrakta ej strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettaessa olet alttiina
näkymättömälle lasersäteilylle.Älä
katso säteeseen. (d)
ADVARSEL :Usynlig laserstråling
ved åbning , når
sikkerhedsafbrydere er ude af
funktion. Undgå udsættelse for
stråling. (f)
!
CAUTION
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-4
XL-R5000BK
Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc.is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
1.1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup.The tester's internal power
source can easily destroy the laser diode.
1.2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text.Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-5
XL-R5000BK

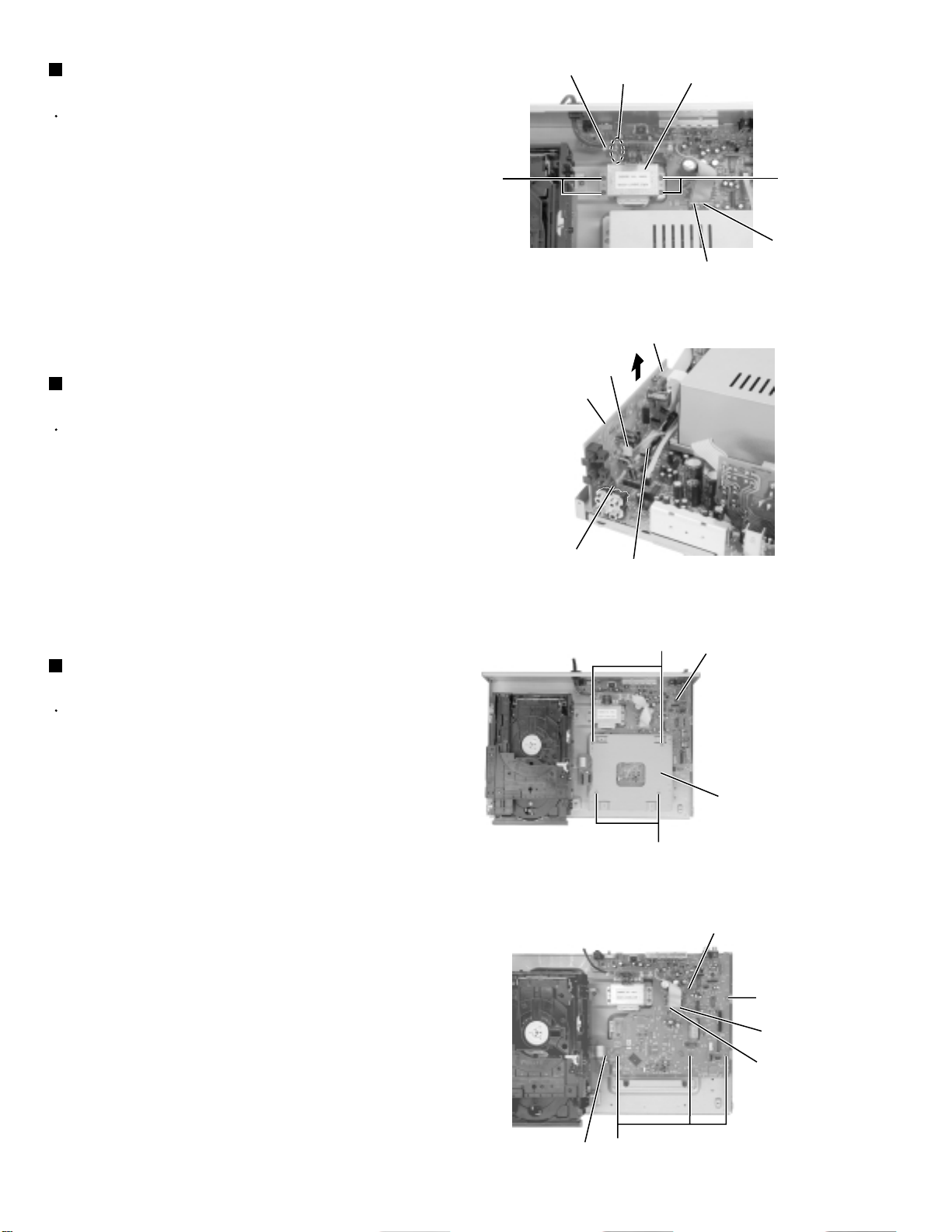

Remove the four screws A on both sides of the
body.
Remove the two screws B on the back of the body.
Remove the top cover from behind in the direction of
the arrow while pulling the lower part of the top cover
sides outwards.
1.
2.
3.
<Main Body>
Removing the top cover (See Fig.1 and 2)

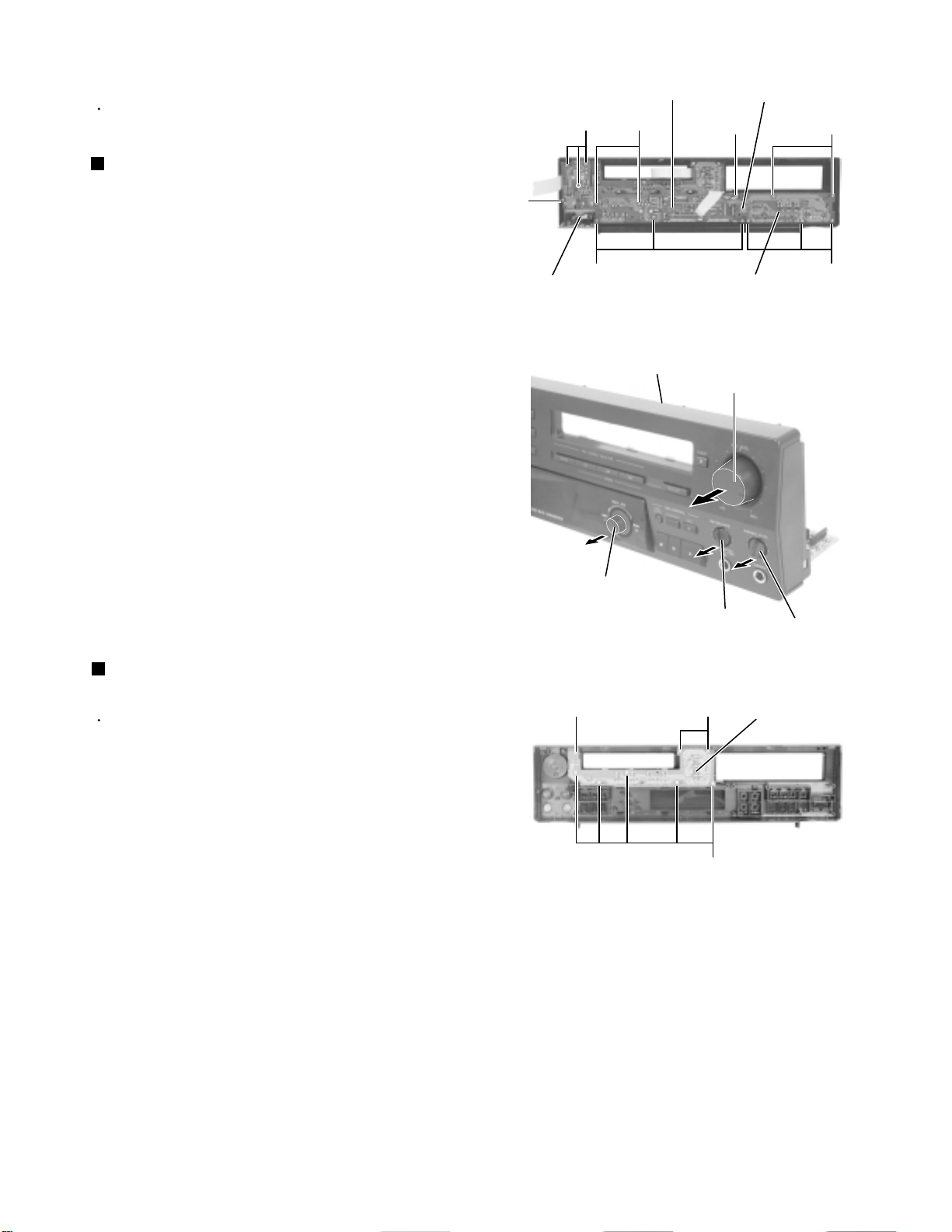

Prior to performing the following procedure, remove
the top cover.
Disconnect the card wire from connector CN811 on
the main board.
Remove the four screws C attaching the CD
changer mechanism assembly.
Remove the CD changer mechanism assembly
backward, then upward.
1.
2.
3.
Removing the CD changer mechanism
assembly (See Fig.3 and 4)
Disassembly method
Fig.1
Top cover
CN811
A
B
A
A
Fig.2
Fig.3
Fig.4
CD changer mechanism
assembly
Top cover
C
C
C
C
Front panel
CD changer mechanism
assembly
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-6
XL-R5000BK
Prior to performing the following procedure, remove
the top cover.
Disconnect the card wires from connector CN501,
CN502, CN841, CN842 and CN861 on the main
board.
Remove the screw D attaching the microphone &
headphone board to the base chassis.
Remove the five screws E attaching the front panel
assembly at the bottom of the body.
Release the two joints a on both sides and the two
joints b on the bottom of the front panel assembly
using a screwdriver. Then remove the front panel
assembly toward the front.
1.
2.
3.
4.
Removing the front panel assembly
(See Fig.5 to 9)
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Main board
CN861
Microphone &
headphone board
Joint a
(Bottom)
Joint a
D
D
E EE
CN841
CN842
Joint a
Front panel assembly
Joint a
Front panel assembly
CN861
CN502
CN501
Front panel assembly
CD-R mechanism cover
CD changer
mechanism assembly
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-7
XL-R5000BK
Prior to performing the following procedure, remove
the top cover and the front panel assembly.
Remove the four screws F attaching the CD-R
mechanism cover.
Disconnect the card wires from connector CN501
and CN601, and the harnesses from CN502 and
CN701 of the servo board on the left side of the CD
mechanism assembly.
Spin the dial on the front of the CD-R mechanism
assembly as shown in the figure and draw the tray
assembly toward the front.
Move the tray assembly until it stops.
Remove the two screws G and the two screws H
attaching the CD-R mechanism assembly.
1.
2.
3.
4.
5.
Removing the CD mechanism assembly
(See Fig.10 to 13)
Prior to performing the following procedure, remove
the top panel.
Remove the seven screws I and the three screws J
on the back of the body.
1.
Removing the rear panel (See Fig.14)
Fig.10
Fig.11
Fig.12
Fig.13Fig.14
CD-R mechanism cover
F
F
F
F
Tray assembly
CN501
CN502
CN701
CN601
CD-R mechanism assembly
CD-R mechanism assembly
CD-R mechanism assembly
Tray assembly
Tray assembly
Dial
G
H
H
G
I
J
JII
I
J
Rear panel
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-8
XL-R5000BK
Prior to performing the following procedure, remove
the top panel.
Unsolder the terminal CN1 and CN2 on the power
transformer board. Cut off the tie band and
disconnect the power cord.
Disconnect the harness from connector CN901 and
CN902 on the main board.
Remove the four screws K attaching the power
transformer.
1.
2.
3.
Removing the power transformer
(See Fig.15)
Prior to performing the following procedure, remove
the top panel and the rear panel.
Disconnect the card wire from connector CN506 and
the harness from CN802 on the external control
board.
Disconnect connector CN351 and CN361 on the
external control board from the main board.
1.
2.
Removing the external control board
(See Fig.16)
Prior to performing the following procedure, remove
the top panel, the front panel, the CD-R mechanism
assembly and the rear panel.
Remove the four screws L attaching the CD-R
mechanism base.
Disconnect the card wire from connector CN811 and
the harnesses from CN901 and CN902 on the main
board.
Remove the four screws M attaching the main
board. If necessary, remove the external control
board.
1.
2.
3.
Removing the main board
(See Fig.17 and 18)
Fig.15
Fig.16
Fig.17
Fig.18
Tie band CN1,CN2 Power transformer
L
L
CN902
Main board CN901
KK
CN506
CN802
External control board
CN361
Main board
CD-R mechanism
base
CN351
Main board
CN902
CN901
CN811 L
M
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-9
XL-R5000BK
Disconnect the relay board.
Remove the five screws N and the operation switch
board from the front panel.
Pull out the two control knobs, the REC LEVEL knob
and the MULTI JOG knob respectively.
Remove the ten screws O and the display board
from the front panel.
1.
2.
3.
4.
<Front panel assembly>
Removing the operation switch board /
the display board (See Fig.19 and 20)
Prior to performing the following procedure, remove
the relay board and the display board.
Remove the eight screws P and the operation
switch board from the front panel.
1.
Removing the operation switch board
(See Fig.21)
Prior to performing the following procedure, remove
the top cover and the front panel assembly.
Fig.19
Fig.20
Fig.21
Display board
Front panel
assembly Operation switch board
O
ON
OO O N
Relay board
REC LEVEL knob
Front panel assembly
MULTI JOG knob
Control knob
Operation switch board
P
PP
Control knob
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-10
XL-R5000BK
Remove the screw Q attaching the microphone &
headphone amplifier board.
Release the bracket tabs c from the bottom of the
front panel.
Remove downwards the snap plate attaching the
bracket to the microphone & headphone amplifier
board as shown in the figure.
1.
2.
3.
Removing the microphone & headphone
amplifier board (See Fig.22 to 24)
Fig.22
Fig.23
Fig.24
Front panel assembly
Front panel assembly
Display board
Micriphone & headphone
amplifier board
Micriphone & headphone
amplifier board
Tabs c
Q
Micriphone & headphone
amplifier board
Snap plate
Snap plate
Bracket
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-11
XL-R5000BK
CD Changer Mechanism Type:VC3 Section
Removing the CD Servo control board
(See Fig.1)
Removing the CD tray assembly
(See Fig.2 4)
1.
2.
3.
4.
5.
6.
7.
8.
9.
Remove the front panel assembly.
Remove the CD changer mechanism assembly.
Remove the CD Servo control board.
From the T.bracket section B and clamper base
section C , remove both of the edges fixing the
rod(See Fig.2 and 3).
Remove the screw 2 retaining the Disc stopper
(See Fig.3).
Remove the three screws 3 retaining theT.bracket
(See Fig.3).
Remove the screws 4 retaining the clamper assembly
(See Fig.3).
From the left side face of the chassis assembly, remove
the one screw 5 retaining both of the return spring and
lock lever(See Fig. 4).
By removing the pawl at the section D fixing the
return spring, dismount the return spring(See Fig.4).
Remove the three lock levers(See Fig.4).
10.
Fig.1
Fig.2
Fig.3 Fig.4
1.Remove the metal cover.
2.Remove the CD changer mechanism assembly.
3.From bottom side the CD changer mechanism assembly,
remove the two screws 1 retaining the CD servo control
board.
4.Absorb the four soldered positions "M" of the right and
left motors with a soldering absorber.
5.Pull out the earth wire on the CD changer mechanism
assembly.
6.The two screws A is removed and C.B.holder is detached.
7.Disconnect the connector CN854 on the CD servo
control board.
8.Disconnect the card wire CN601 and the connector
CN801 on the CD servo control board.
CN601
CN801
A
A
B
C
Rod
T.Braket
Clamper base
2
3
3
4
3
T.Braket Disc stopper
Lod stopper
(C/J version only)
Clamper ass'y
C
B
D
Lock lever
Return spring
5
CD servo control board
CN651
CN854
MM
1
1
C.B.Holder
Earth
wire
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-12
XL-R5000BK
11.
12.
Check whether the lifter unit stopper has been caught
into the hole at the section E of CD tray assembly
as shown in Fig.5.
Make sure that the driver unit elevator is positioned as
shown in Fig.6 from to the second or fifth hole on the
left side face of the CD changer mechanism assembly.
Fig.5
Fig.7Fig.6
Fig.8 Fig.9
[Caution] In case the driver unit elevator is not at above
position, set the elevator to the position as
shown in Fig.7 by manually turning the pulley
gear as shown in Fig.8.
13.
14.
15.
Manually turn the motor pulley in the clockwise
direction until the lifter unit stopper is lowered from the
section Eof CD tray assembly(See Fig.8).
Pull out all of the three stages of CD tray assembly in
the arrow direction F until these stages stop
(See Fig.6).
At the position where the CD tray assembly has
stopped, pull out the CD tray assembly while pressing
the two pawls G and G on the back side of CD tray
assembly(See Fig.9).In this case, it is easy to pull out
the assembly when it is pulled out first from the stage
CD tray assembly.
CD tray
assembly
E
Drive unit of elevator
CD tray assembly
F
Refer to Fig.7 Pawl
Chassis assembly
Pulley gear
Motor pulley
Pawl ,
CD tray assembly
Stopper
G
G G'
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-13
XL-R5000BK
Removing the CD loading mechanism
assembly(See Fig.10)
1.
2.
While turning the cams R1 and R2 assembly in the
arrow direction H align the shaft I of the CD
loading mechanism assembly to the position shown in
Fig.10.
Remove the four screws 6 retaining the CD loading
mechanism assembly.
Removing the CD traverse mechanism
(See Fig.11 and 12 )
1.
2.
For dismounting only the CD traverse mechanism
without removing the CD loading mechanism assembly,
align the shaft J of the CD loading mechanism
assembly to the position shown Fig.11 while turning the
cam R1 and R2 assembly in the arrow direction K .
By raising the CD loading mechanism assembly in the
arrow direction L , remove the assembly from the
lifter unit
Fig.10
Fig.12
Fig.11
Fig.13
Removing the CD pick unit
(See Fig.13 )
1.
2.
3.
4.
Move the cam gear in the arrow direction a .Then, the
CD pickup unit will be moved in the arrow direction b .
According to the above step, shift the CD pickup unit to
the center position.
While pressing the stopper retaining the shaft in the
arrow direction c , pull out the shaft in the arrow
direction d .
After dismounting the shaft from the CD pickup unit,
remove the CD pickup unit
6
Cams R1, R2 assembly
I
CD loading mechanism assembly
6
H
Arrow
6
6
Lifter unit
CD traverse mechanism
L
Arrow
Cam R1, R2 assembly
K
Arrow
J
CD Pickup unit
CD loading
mechanism
Shaft
Cam gear
Shaft
Shaft
Stopper Stopper
b
a
d
c
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-14
XL-R5000BK
Removing the cam unit
(See Fig.14 to 17 )
1.
2.
3.
4.
5.
Remove the CD loading mechanism assembly.
While turning the cam gear L, align the pawl N
position of the drive unit to the notch position(Fig.16) on
the cam gear L.
Pull out the drive unit and cylinder gear(See Fig.16).
While turning the cam gear L, align the pawl O
position of the select lever to the notch position(Fig.17)
on the cam gear L.
Remove the four screws 9 retaining the cam unit(cam
gear L and cams R1/R2 assembly)(See Fig.17
Fig.15
Fig.14
Fig.16
Cam gear L
Drive unit
N
Chassis assembly
Tray select
switch board
CN802
CN801
CN804 8
Cylinder gear
Drive unit
Fig.17
9
Select lever
Cams R1, R2 assembly
9
9
Cam unit
Cam gear L
O
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-15
XL-R5000BK
Fig.18
Fig.20
Fig.19
Fig.21
[Note] When the chassis assembly is turned over under
the conditions wherein the gear bracket and belt
have been removed, then the pulley gear as well
as the gear, etc. constituting the gear unit can
possibly be separated to pieces. In such a case,
assemble these parts by referring to the assembly
and configuration diagram in Fig. 21.
Removing the actuator motor and belt
(See Fig.18 21)
1.
2.
3.
4.
5.
Remove the two screws 10 retaining the gear bracket
(See Fig.18).
While pressing the pawl P fixing the gear bracket in
the arrow direction, remove the gear bracket
(See Fig.18).
From the notch Q section on the chassis assembly
fixing the edge of gear bracket, remove and take out the
gear bracket(See Fig.19).
Remove the belts respectively from the right and left
actuator motor pulleys and pulley gears(See Fig. 19).
After turning over the chassis assembly, remove the
actuator motor while spreading the four pawls R
fixing the right and left actuator motors in the arrow
direction(See Fig. 20).
10
Pulley gear
10
Belt
Motor pulley
Belt
Pulley gear
Motor pulley
Gear bracket
P
Pawl
R
Actuator motor
R
Chassis assembly
Q
Gear bracket
Pulley gear
Gear B
Cylinder gear
Gross gear U
Gear C
Gross gear L
Select gear
Gear B
Gear C
Pulley gear
Assembly and Configuration Diagram
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-16
XL-R5000BK
Fig.22
[Caution] To reassemble the cylinder gear, etc.with the
cam unit (cam gear and cans R1/R2 assembly),
gear unit and drive unit, align the position of the
pawl N on the drive unit to that o f the notch
on the cam gear L.Then, make sure that the
gear unit is engaged by turning the cam gear L
(See Fig. 23).
Removing the cams R1/R2 assembly
and cam gear L(See Fig.22)
1.
2.
3.
4.
Remove the slit washer fixing the cams R1 and R2
assembly.
By removing the two pawls S fixing the cam R1,
separate R2 from R1.
Remove the slit washer fixing the cam gear L.
Pull out the cam gear L from the C.G. base assembly.
Removing the C.G. base assembly
(See Fig.22 and 23)
Remove the three screws 11 retaining the C.G. base
assembly.
Fig.23
11
Slit washer
Pawl
Cam R2
Slit washer
Cam gear L
Cam switch board
C.G. base assembly
Cam R1
Pawl
Cam gear L
Notch
Cylinder
gear
Gear bracket
Cam R1, R2 assembly
Gear unit
Drive unit
N
Pawl
SS
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-17
XL-R5000BK
Refer to the separate figure.
When removing the tray:
1. Make sure that the pickup is located in the innermost position (usual position).
If the pickup is out of the innermost position, locate it in the innermost position with care not to touch the lens.
2. While turning the gear drive (
3
in the figure) clockwise to lower the mechanism, draw the tray towards the front side.
Pull out the tray to the full extent (as shown in the figure).
3. Press the lever (
1
in the figure) in the direction of the arrow (leftward).
4. Holding the lever (
1
) in the status of the above step
3
, raise the lever (
2
in the figure) in the direction of the arrow
(upward).
5. Pull the tray out of the CDR unit with the levers held in the above-mentioned status.
When setting a new tray:
1
Slide the slide gear (
4
in the figure) rightwards to lower the mechanism before inserting a new tray.
2
Insert a new tray into the CDR unit front the front side.
3
Going through the procedure for removing the tray in the reverse order, turn the gear drive counterclockwise to raise
the mechanism upwards and check to see if it is in the topmost position.
That is all for the tray replacement procedure.
CDR UnitTray Replacement Procedure
1
3
2
4
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-18
XL-R5000BK
CRD-Unit Belt Replacement Procedure
Refer to the figure below.
1. Remove the tray following to the tray removal procedure.
2. Remove the belt with the tweezers or the like.
3. Wipe over the belt creep (
A
in the figure) of the pulley gear (
1
in the figure) and pulley motor (
2
in the figure)
with alcohol.
4. Engage a new belt with
1
first and
2
next by use of tweezers or the like.
5. Make sure that the belt is neither twisted nor soiled with grease, etc.
6. Restore the tray to the original position.
A
2
BELT, SQUARE
1Don't soil with grease, etc.
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-19
XL-R5000BK
How to check for 3CD and CD-R
1. Special tools and CDR & CDRW Disc.
CD TEST DISC:CTS-1000
CD-R for Audio
CD-RW for Audio
Note: 1. Be sure to use general audio CD-R and CD-RW disks available on the market for this set.
2. This set is incapable of playing any CD-R or CD-RW disk for the personal computer.
3. The CD-RW disk can be played only by the player compatible with the CD-RW disk.
4. The CD-R disk that has not been finalized after writing can be played by the CD-R unit only.
How to check up the CD-R unit whether it is normal (OK) or defective (NG ).
* For checking up the CD-R unit for normal or abnormal status, open the Service Menu.
1. How to open the Service Menu.
1) Press both the DIGITAL key and POWER key simultaneously.
2) Press the MENU key.
The following menu items appear one after another on the FL Display.
The menu items from 1to 8can be repeatedly shown on the
display by the JOG dial or the FWD/BWD key on the remote
controller.
If the SET key is pressed while a menu item is shown on the
display, the setting value of the item appears on the display.
The menu item 6shows the self-diagnosing result of the CD-R
unit. After the self-diagnosing result appears on the display, quit
the Service Menu by turning off the set, otherwise you cannot
access the further menu items.
For details of each menu item, refer to the next page.
1"READ_RID_CODE"
2"ENG_SETUP____"
3"3CD_FC_ADJ___"
4"3CD_TRK_ADJ__"
5"READ_CDR_C1__"
6"CDR_SELFDIAG."
7"SYSTEM_AGING_"
8"READ_VERSION_"
********
**** ****
*
JVCCA01089231
0
////////
****
DIAG OK or NG
COPY PLAY ERAS
If "DIAG NG" message appears, replace the CD-R unit with new one.
below 200Hz
CD-R unit and 3CD changer check mode
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!

1-20
XL-R5000BK
Explanation of Service menu
1. READ RID CODE
When this menu item is executed, the RID code is read out and it is shown by the FL tube for 5 seconds.This selection is
automatically cleared after the 5-second display.
Example of display: JVCCA01089231
Manufacturer code: JVC
Type code: CA01
Unique No.: 089231
2. ENG SETUP
Explanation of this item is omitted because of the confidential function.
3. 3CD FC ADJ (3CD focus automatic adjustment value readout) (000000F7)
When this menu item is executed, the 3CD unit focus automatic adjustment value (hexadecimal number in six figures) is dis-
played by the FL tube for 3 seconds.This selection is automatically cleared after the 3-second display. When the set fails in
reading out the 3CD unit focus automatic adjustment value, a message "NG" is shown for the value to be read.
4. 3CDTRK ADJ (3CD tracking automatic adjustment value readout) (00000FA)
When this menu item is executed, the 3CD unit tracking automatic adjustment value (hexadecimal number in six figures) is
displayed by the FL tube for 3 seconds.This selection is automatically cleared after the 3-second display.When the set fails in
reading out the 3CD unit tracking automatic adjustment value, a message "NG" is shown for the value to be read.
5. READ CDR C1 (CDR C1 error rate readout)
When this menu item is executed, the CDR is set to the play mode with display of the C1 error rate.To escape from this menu
item, switch off the set.
6. CDR SELFDIAG (CDR self-diagnosing)
When this menu item is executed, the set carries out self-diagnosing of the CDR.When nothing wrong is detected by the self-
diagnosis, a message "DIAG OK" appears on the display.To quit this self-diagnosing mode, switch off the set.
7. SYSTEM AGING (Running operation)
When this menu item is executed, the set automatically starts the following running operation. For executing this item, it is
required to set a blank CD-RW disk in the CDR beforehand.The time required for a running operation or number of times of pick
movement can be controlled by changing the data written on the disc set on the current tray of the 3CD.
(When the running operation starts without disk, "000CD 1ACOPY" is shown on the display.)
One time disk dubbing (COPY)
Play of CDR until readout is complete (PLAY)
Erasure of CDR from disk (ERAS)
If the set receives an effective input from the key, remote controller or DCS, it immediately stops the running operation.If the running
operation is suspended by the STOP key or because of an error, the following message is continuously displayed until the set is
switched off.
8. READVERSION (Version number readout)
When this menu item is executed, version numbers of the syscon, CDR farm and 3CD farm are shown by the FL tube for 5
seconds.This selection is automatically cleared after the 5-second display.
Each version No.is set apart from the other(s) by a space.
A 3-digit number is shown as *.**.The last two digits are shown in the decimal places.
When the set fails in reading out a version number, "000" (three zeros) is shown for the version number to be read.
Classification of the unit in which
an error breaks out
CDorCDR
Errorcode(hexadecimal numberintwo
figures)
000CD
Operation executed last
COPYorPLAYorERAS Number of execution times (4-digits
decimal number)
1ACOPY
Syscon version No. (in 3 digits) CDR farm version No.(in 3 digits) 3CD farm version No.(in 3 digits)
www.freeservicemanuals.info
12/23/2018
Digitized in Heiloo the Netherlands
Not for sale!
Other manuals for XL-R5000BK
2
Table of contents
Other JVC Recording Equipment manuals

JVC
JVC XL-R5000BKB User manual

JVC
JVC KM-H3000 User manual

JVC
JVC GW-SP100U User manual

JVC
JVC XL-R2010BK User manual

JVC
JVC BR-HD50U - Compact HDV/DV Format Video... Quick start guide

JVC
JVC SEA-70 User manual

JVC
JVC PK-VS4GD User manual

JVC
JVC XL-R5000BK User manual

JVC
JVC KD-G411 User manual

JVC
JVC KSSRA100 - Vehicle Sirius Satellite Radio... Guide
Popular Recording Equipment manuals by other brands

Feig Electronic
Feig Electronic OBID ID RW01 -A Series Mounting instruction

Cochlear
Cochlear Aqua+ for Kanso 2 user guide

Axia
Axia RAQ Installation & user guide

SMC Networks
SMC Networks EX260 Series Operation manual

Contemporary Research
Contemporary Research IR-232 Specifications

Cochlear
Cochlear Nucleus 8 user guide
