Kärcher G 2900 R User manual

8.757-207.0 03/18
G 2900 R
Manual Not For Use
in USA and Canada!

2
1
12
6
8
15
5
4
7
3
9
2
10
16
13

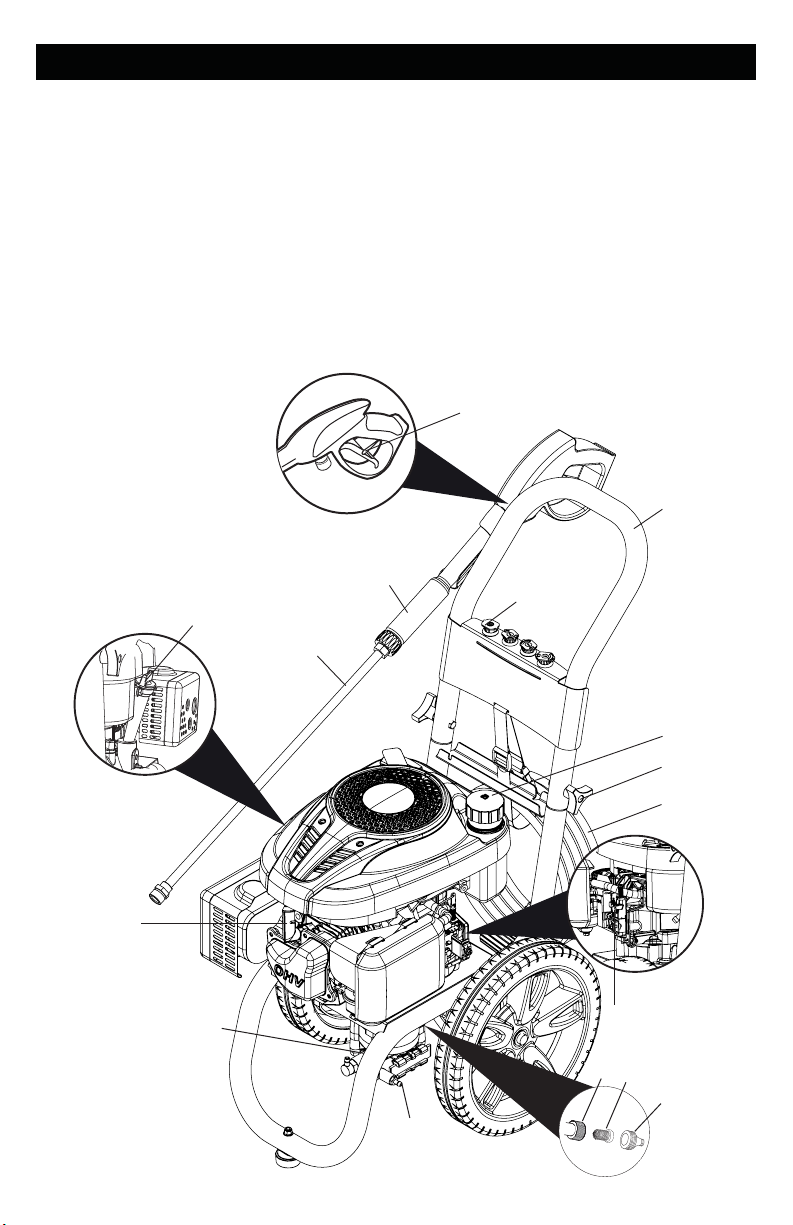

1 Handle
2 Trigger gun
3 Trigger gun safety lock
4 High pressure hose
5 Spray wand
6 Quick connect nozzles
7 Knob
8 Petrol Tank
9 Oil Dipstick
MODEL OVERVIEW
10 Water inlet for garden hose
11 High pressure outlet
12 Spark plug
13 Water inlet filter
14 Detergent tube connection
15 Engine on/off switch
16 Tap adaptor
*For engine details see engine manual.
14
11

3
Model Overview 2
Important Safety Instructions 5
Assembly Instructions 7
Operating Instructions 8
Using the Accessories 10
Working With Detergents 10
Taking a Break 11
Shutting Down & Clean-Up 11
Winterizing and Long-Term Storage 12
Maintenance Instructions 13
Cleaning Tips 13
Troubleshooting 15
Warranty Information 17
6SHFLÀFDWLRQV
HIGH PRESSURE WASHER OPERATOR MANUAL
G 2900 R
Max. Operating
Pressure 2900 PSI
Max. Water Flow 9.5 L/MIN
Detergent Suction 0.56 - 0.75 L/MIN
Engine Karcher KPS 196
Fuel Type Unleaded Petrol
Fuel Tank Size 1.5 L
Engine Oil Type SAE 10W-30
Engine Oil Capacity 0.6 L
Part No. 1.107-363.0
This high-pressure cleaner is designed:
- To clean machines, vehicles. buildings, tools,
facades, terraces, garden equipment etc. using a
high-pressure washer (and detergents if required).
- With accessories, replacement parts and de-
tergents approved by KÄRCHER. Observe the
instructions provided with these detergents.
The packing material can be recycled.
Please do not place the packaging into
the ordinary refuse for disponsal, but
arrange for the proper recycling.
Old appliances contain valuable materials
than can be recycled. please arrange for
the proper recycling of old appliances.
Please dispose your old appliances using
appropriate collection systems.
Notes About the ingredients (REACH)
You will find current information about the ingre-
dientents at:
http://www.karcher.de/de/unternehmen/
umweltschutz/REACH.htm
2ZQHU8VHU RHVSRQVLELOLW\
3URSHU 8VH

4
DANGER
Indicates “an imminently hazardous situation
which, if not avoided, will result in death or seri-
ous injury.”
WARNING
Indicates “a potentially hazardous situation which,
if not avoided, could result in death or injury.”
&A87I2N
Indicates “a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury or in property damage incidents.”
The owner and/or user must have an understand-
ing of the manufacturer’s operating instructions
and warnings before using this pressure washer.
Warning information should be emphasized and
understood. If the operator is not fluent in English,
the manufacturer’s instructions and warnings shall
be read to and discussed with the operator in
the operator’s native language by the purchaser/
owner, making sure that the operator comprehends
its contents. Owner and/or user must study and
maintain for future reference the manufacturer’s
instructions.
2ZQHU8VHU RHVSRQVLELOLW\
6DIHW\ AOHUW 6\PEROV
HIGH PRESSURE WASHER OPERATOR MANUAL
The high pressure jet may not be
directed at persons, animals, live
electrical equipment or at the ap-
pliance itself. Protect the appliance
against frost.
Risk of burns on account of hot surfaces!
Risk of poisoning! Do not breathe in the
exhaust fumes.
Call: 1 800 675 714 for help or visit our website:
ZZZNDUFKHUFRPDX
Please take a moment to register your pressure
washer online at:
ZZZNDUFKHUFRPDX
Call: 0800 527 2437 for help or visit our website:
ZZZNDUFKHUFRQ]
6\PEROV RQ WKH PDFKLQH
.lUFKHU &XVWRPHU 6XSSRUW
AXVWUDOLD
.lUFKHU &XVWRPHU 6XSSRUW
NHZ =HDODQG
The operator must know how to stop the pressure
washer quickly, and undestand the operations of
all controls.
This manual should be considered a permanent
part of this pressure washer and should remain
with it if resold.
Read engine manual which is separate from this
manual before starting.
6A9E 7+E6E IN67R8&7I2N6
6DYH 7KHVH IQVWUXFWLRQV
RHDG EQJLQH 0DQXDO

5
5English
IMPORTANT SAFETY INSTRUCTIONS
QRead all instructions before using product.
QTo reduce the risk of injury, close supervision
is necessary when a product is used near
children.
QHigh pressure cleaners shall not be used by
children or untrained personnel.
QKnow how to stop the product and bleed pres-
sures quickly. Be thoroughly familiar with the
controls.
QStay alert, watch what you are doing.
QDo not operate when fatigued or under the
influence of alcohol or drugs.
Q Keep operating area clear of all persons.
QDo not overreach or stand on unstable sup-
port. Keep good footing and balance at all
times.
QFollow the maintenance instructions specified
in the manual.
QTo avoid risks, all repairs and replacement of
should only be carried out by trained person-
nel.
QHigh pressure hoses, fittings and cou-
plings are important for the safety of the
machine. Use only hoses, fittings and cou-
plings recommended by the manufacturer.
WARNING
Risk of injection or injury, do not direct
discharge stream at persons or animals.
QHigh pressure jets can be dangerous if mis-
used. The jet must not be directed at persons,
animals, electrical devices, or the unit itself.
Read the operating instructions of
the engine manufacturer before start-up
and follow the safety instructions carefully.
Incorrect fuels shall not be used as they may
prove hazardous.
WARNING
When using this product, basic precautions
should always be followed, including the fo-
llowing:
QDo not direct the jet against yourself or oth
ers in order to clean clothes or foot-wear.
QDo not use the machine within range of
persons unless they wear protective cloth
ing.
QTo ensure machine safety, use only original
spare parts from the manufacturer or ap
proved by the manufacturer.
DANGER
Do not spray electrical connections, electrical
outlets or fixtures.
WARNING
Risk of explosion, do not spray flammable
liquids. Operate only where open flame or
torch is permitted.
QDo not use acids, solvents, or any alkaline
or flammable material in this product. These
products can cause physical injuries to the
operator and irreversible damage to the
machine.
WARNING
Gun kicks back hold with both hands.
Q  The trigger gun safety lock prevents the
trigger from accidentally being engaged.
This safety feature must be engaged when
replacing nozzles or not in use.
WARNING
QRisk of asphyxiation: use this product only in
a well ventilated area.
QDo not use combustion engine powered
machines indoors unless adequate
QEnsure that any exhaust emissions are not
in the vicinity of air intakes.
Qventilation is assessed by national labour
authorities.
QOperate and fuel machine in a well ventilated
area, free of devices featuring an open pilot
or flame such as boilers, water heaters, etc.
QDuring use of high pressure cleaners, aero
sols may be formed. Inhalation of aerosols
can be hazardous to health.

6
IMPORTANT SAFETY INSTRUCTIONS
Do not use the machine if a supply cord or
important parts of the machine are dam
aged, e.g. safety devices, high pressure
hoses, trigger gun.
WARNING
Always switch off the mains disconnecting
switch when leaving the machine unatend
ed.
WARNING
Risk of fire, do not add fuel when the product
is operating or still hot.
&A87I2N
QDo not operate if fuel has been spilled. In-
stead, move machine to different location and
avoid creating sparks.
QThis machine has hot surfaces which can
cause burns. Operate in a safe environment
and away from children.
QDo not touch hot surfaces or allow acces-
sories to contact hot surfaces.
QDo not leave machine running unattended.
QAvoid tipping machine on its side.
WARNING
Serious injury can result from high pressure
discharge produced by pressure washers.
Keep out of reach of.
6A9E 7+E6E IN67R8&7I2N6

7
IMPORTANT SAFETY INSTRUCTIONS
WDWHU VXSSO\ &ROG WDWHU 2QO\
WARNING
Water that has flowed through backflow
preventers is considered to be non potable.
Use a water filter to avoid potential damage
from dirt in the water supply.
QGarden hose must be at least 5/8 inch in-
side diameter.
Q  Flow rate of water supply must not fall below
9.5 L/MIN (Liters per minute)
Q  Supply pressure must be greater than 40 PSI.
QFlow rate can be determined by running the
water for one minute into an empty 20 Liters
container.
Q  The water supply temperature must not ex-
ceed 122°F/50°C.
QNever use the pressure washer to draw in
water contaminated with solvents, e.g. paint
thinners, petrol, oil, etc.
QAlways prevent debris from being drawn into
the unit by using a clean water source. Use
additional water filter.
QDo not operate pressure washer without the
water turned on.
+DUGZDUH LQFOXGHG
DHVFULSWLRQ 3XUSRVH IOOXVWUDWLRQ Qty
A
Knob Handle assembly 2
B¼" bolt Handle assembly 2
C
High pressure
hose
Spray gun assembly 1
D
Quick connect
nozzle kit
Nozzles kit assembly 1
E
Trigger gun Spray gun assembly 1
F
Wand Wand assembly 1
ASSEMBLY INSTRUCTIONS

8
IOOXVWUDWLRQ 1
Attach the handle to the pressure washer
frame.
IOOXVWUDWLRQ 2
Align holes, insert bolts (B), and tighten with
knobs (A).
IOOXVWUDWLRQ 3
Place the quick connect nozzles (D) in the
nozzle holder.
AVVHPEO\
OPERATING INSTRUCTIONS
67E31
Pull the spring-loaded collar of the wand back
to insert your quick connect nozzle choice.
Release the collar and push the nozzle until
the collar clicks.
CA87I2N
High pressure in nozzle area.
Risk of injury caused by improperly locked
nozzle.
QMake sure you hear a "click" when inserting
the nozzle tip in to the wand.
QPull the nozzle to make sure it is seated
properly before operating your unit.
67E32
Attach the high pressure hose (C) to the trigger
gun (E).
A
B
D
C
E
F
1 1
123
1
5
1
41
6
1
6
IOOXVWUDWLRQ 45
Attach the wand (F) to the spray gun (E).
Push the wand (F) into the trigger gun (E) and
then thread the connection.
IOOXVWUDWLRQ 6
Remove the oil dipstick and add the oil. Do
not over fill.
ASSEMBLY INSTRUCTIONS

9
OPERATING INSTRUCTIONS
CA87I2N
Engine shipped without oil. Before starting
engine, fill with oil. Do not over-fill. Do not run
the engine with a high or low oil level as this
can cause engine damage.
If you have further questions regarding the
engine, please refer to the engine manual
included with the unit.
67E33
Check oil level. Oil level should always be
between the "FULL" and "ADD" or "MAX" and
"MIN" marks on the dipstick as shown in the
picture below.
Be sure the machine is level when checking
the oil level. (Refer to the engine operating
manual for seasonal grades).
We recommend to change the oil after the first
5 hours of use, then once every 50 hours.
67E34
Fill fuel tank with unleaded petrol.
DRQRW XVH OHDGHG SHWURO
DRQRW DGG RLO WR WKH SHWURO
67E35
Connect the high pressure hose to the high
pressure outlet on the pump.
FULL / MAX
ADD / MIN
67E36
Connect garden hose to unit’s water inlet.
67E37
Connect garden hose to the cold water source
and turn water completely on.
DRQRW XVH KRW ZDWHU
67E38
Unlock the trigger gun safety lock. Pull trigger
to eliminate trapped air, wait for a steady flow
of water to emerge from the spray nozzle.
67E39
Move the engine on/off to the ON position.
67E310
Pull the starter handle. If the engine fails to
start after 3 pulls, squeeze the trigger gun to
release pressure, and repeat step.
FRU HQJLQH GHWDLOV VHH HQJLQH PDQXDO

10
USING THE ACCESSORIES
CA87I2N
High pressure in nozzle area. Risk of injury
caused by improperly locked nozzle.
QMake sure you hear the "click" when inserting
the nozzle tip into the quick connection.
QPull the nozzle to make sure it is seated
properly before operating your unit. (See
OPERATING INSTRUCTIONS: Step 1)
WARNING
To avoid serious injury never point spray
nozzle at yourself, other persons or animals.

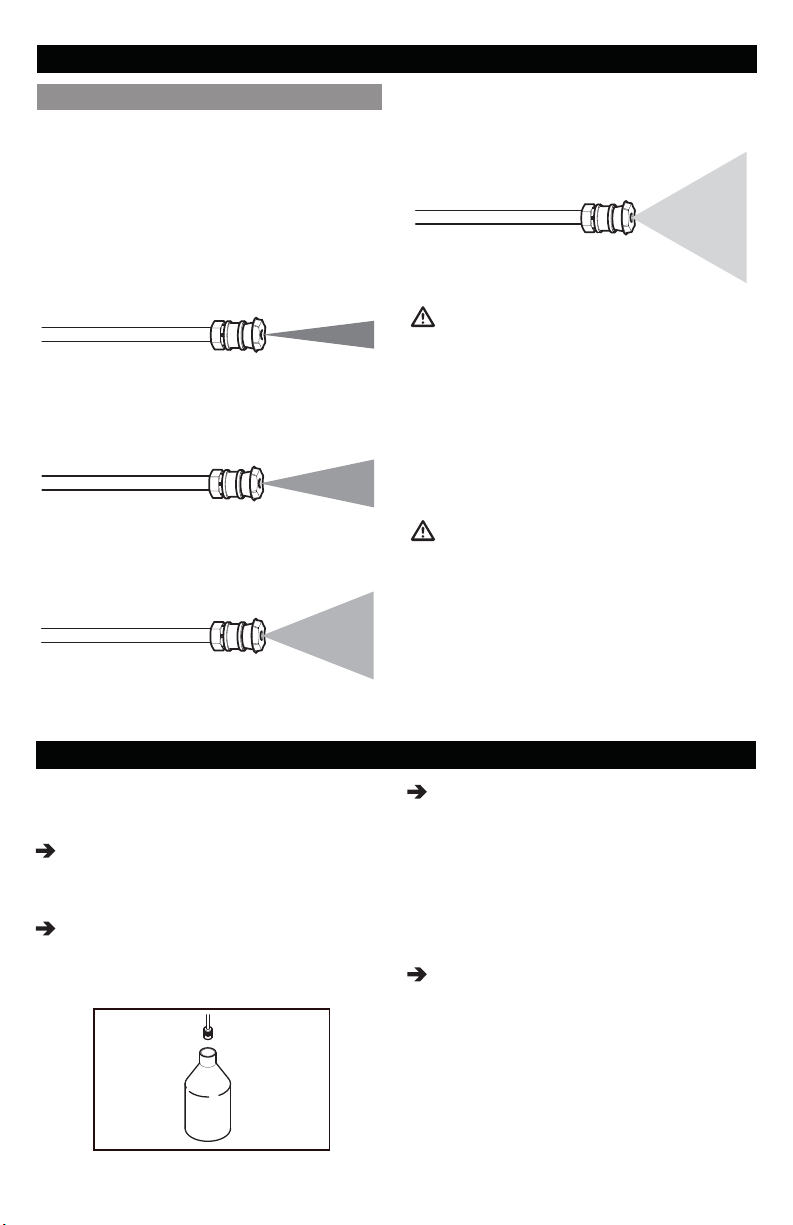

The color-coded quick connect nozzles provide a
wide array of spray widths from 15° to 65° and are
easily accessible when placed in the convenient
nozzle holder.
25VSUD\ DQJOH GUHHQ QR]]OH
For dirt accumulation over a large surface.
15VSUD\ DQJOH <HOORZ QR]]OH
For dirt accumulation over a surface.
65VSUD\ DQJOH BODFN QR]]OH
For operating with detergents or cleaning with
low pressure.
40VSUD\ DQJOH WKLWH QR]]OH
For moderate dirt accumulation over a large
surface.
4XLFN FRQQHFW QR]]OHV
DHWHUJHQWV FDQ RQO\ EH DSSOLHG ZLWK WKH EODFN
GHWHUJHQW QR]]OH
67E31
Install the black detergent nozzle for deter-
gent application at low pressure.
67E32
Fill a container with Kärcher detergent.Place
the filter end of detergent suction tube into the
container.
WORKING WITH DETERGENTS
67E33
With the engine running, pull trigger to operate
unit.
Liquid detergent is drawn into the unit and
mixed with water.
Apply detergent to work area.
Do not allow detergent to dry on surface.
67E34
AOZD\V draw fresh water through the deter-
gent suction tube when the cleaning job is
done, to rinse/flush any remaining detergents
from the injection system.
6HH COHDQLQJ 7LSV IRU VSHFLÀF LQIRUPDWLRQ RQ
KRZ WR FOHDQ GLIIHUHQW VXUIDFHV

11
67E36
Disconnect the garden hose from the water
inlet on the unit.
67E37
Disconnect the high pressure hose from the
high pressure outlet. Store the high pressure
hose in the hose holder assembly.
67E31
If detergents have been used, remove deter-
gent suction tube from container and insert
into 1 gallon of fresh water.
Siphon water at low pressure for one min-
ute to clear the line of residual detergent.
67E32
Move the engine on/off switch to the OFF
position.
67E33
Turn off the water source.
67E34
Press trigger to release water pressure.
67E35
Release trigger and engage gun safety lock.
SHUTTING DOWN & CLEAN-UP
67E31
Move the engine on/off switch to the OFF position.
67E32
Release trigger and engage safety lock.
DHWHUJHQWV
TAKING A BREAK ...five minutes or more
WORKING WITH DETERGENTS
CA87I2N
This unit has been designed for use with cleaning
detergents recommended by the manufacturer.
The use of other cleaning detergent may affect the
operation of the machine and void the warranty.
AOZD\V 8VH .lUFKHU DHWHUJHQW IRU BHVW RHVXOWV
Kärcher biodegradable detergents are specially
formulated to protect the environment and your
pressure washer. The special formula won’t clog
the suction tube filter and will protect the internal
parts of the pressure washer for a longer life. For
Kärcher Detergents, check your retailer or visit
our website:
ZZZNDUFKHUFRPDX or ZZZNDUFKHUFRQ]
CA87I2N
NHYHU XVH
– Bleach, chlorine products or other corrosive
chemicals
– Liquids containing solvents (i.e., paint thin-
ners, petrol, oils.)
– Tri-sodium phosphate products
– Ammonia products
– Acid-based products
These chemicals will harm the unit and damage
the surface being cleaned.
8VH RI WKHVH LWHPV ZLOO YRLG WKH ZDUUDQW\

12

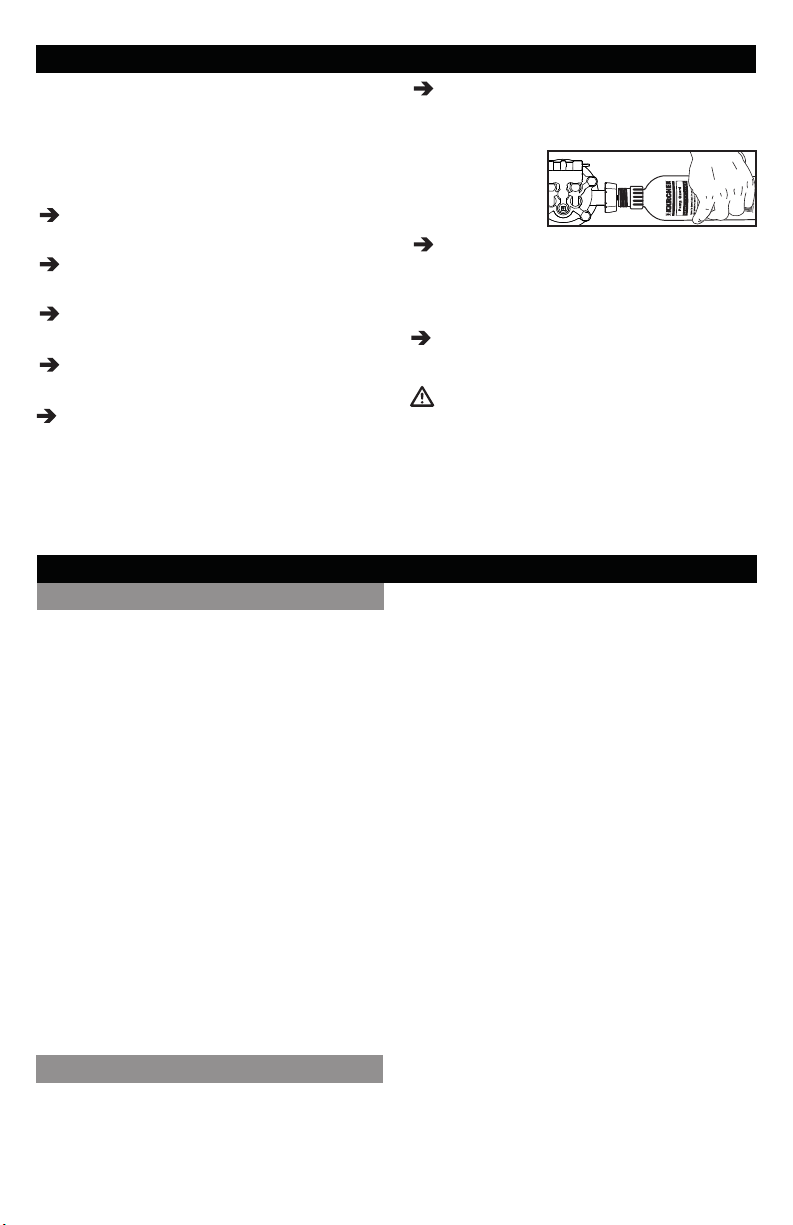

67E36
Screw bottle into water inlet on pressure
washer pump and squeeze.
IQLWLDO 8VH
All Kärcher pumps ship with oil already inside direct
from the factory. There is no need to add oil.
3XPS IQVSHFWLRQ
You should routinely make a visual inspection of
the pressure washer’s pump. If you notice oil leak-
ing around the pump seals, you should take the
pressure washer to a Kärcher-Authorized Service
Center for repair. (You can locate a service cen-
ter in your area online at: www.Karcher.com.au
& www.karcher.co.nz).
3XPS 0DLQWHQDQFH
The pump on your Kärcher pressure washer does
not require maintenance. Any attempts to service
or alter the pump may damage your pressure
washer and void your product warranty.
Carry out maintenance tasks for the engine accord-
ing to the specifications provided in the operating
instructions provided by engine manufacturer.
.lUFKHU SXPS
EQJLQH
MAINTENANCE INSTRUCTIONS
WINTERIZING AND LONG-TERM STORAGE
CA87I2N
Failure to follow the above directions may
result in damage to the pump assembly and
accessories and void the warranty.
It is highly recommended to use Kärcher's
Pump Guard (part number 9.558-998.0) be-
fore winter storage and during the cleaning
season to protect the pump from freezing and
premature wear.
67E31
Turn engine on/off switch to the OFF position
67E32
Disconnect all hoses.
67E33
Unscrew cap from Pump Guard bottle.
67E34
Remove internal seal.
67E35
Reattach cap to Pump Guard bottle and
remove black protective cap.
67E37
With engine OFF, pull starter rope until fluid
starts to exit.
67E38
Unscrew bottle. Store or dispose properly.
Briefly run the machine to warm it up.
Never drain the oil when engine is hot.

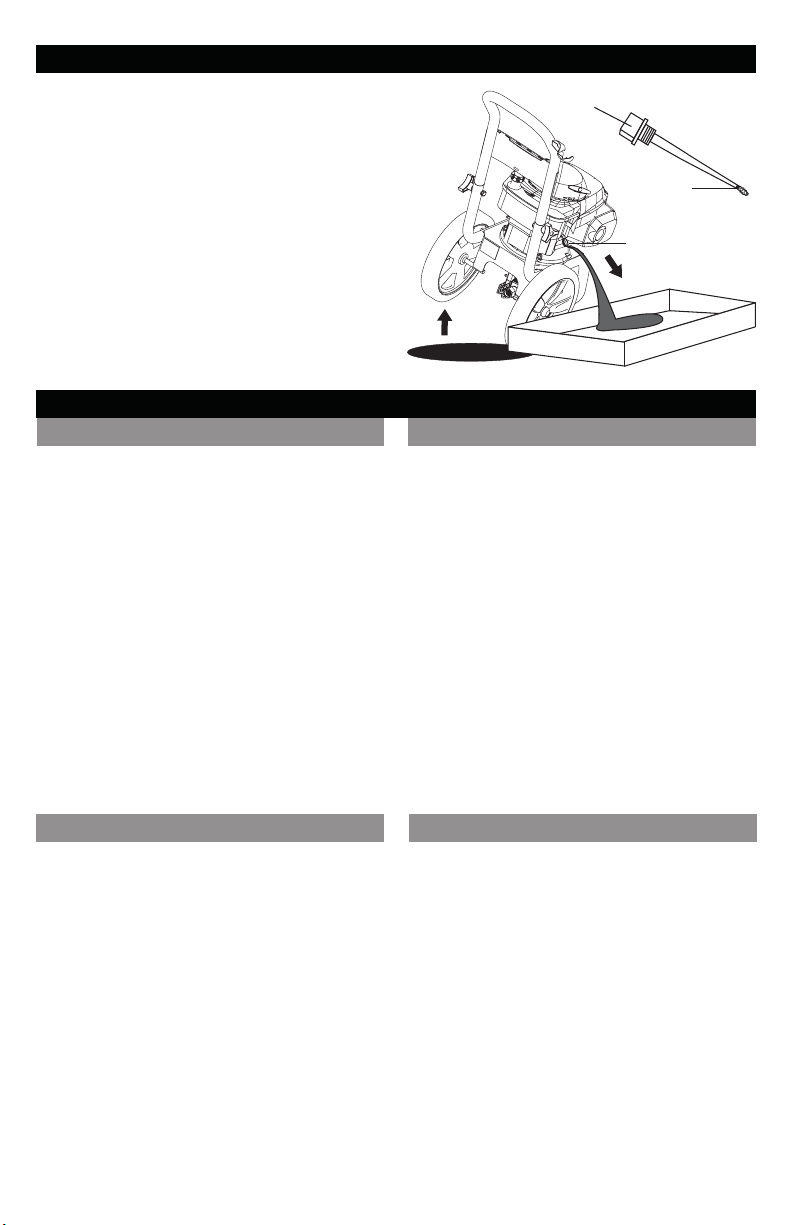

1. Place a suitable container near the engine to
collect used oil.
2. Remove the cap / dipstick from the oil level (1)
and drain the oil into the container, tilting the pres-
sure washer towards the oil filler tube (2).
Dispose of used engine oil in a manner that is
compatible with the environment. We suggest you
take the used oil in a sealed container to the local
recycling center or service station for recovery.
Do not throw it in the trash or pour it on the floor
or in the drain.
3. With the engine in a level position, fill up to
the high limit mark (3) on the oil dipstick with the
recommended oil (Engine manual).
Amount of filling: 0.6 L

13
MAINTENANCE INSTRUCTIONS
(1)
(3)
(2)
CLEANING TIPS
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse deck and
surrounding area with fresh water. If using Karcher
Multipurpose Cleaner, apply to surface at low
pressure. For best results, limit your work area to
smaller sections of approximately 2 square meter.
Allow Karcher Multipurpose Cleaner to remain on
surface 1-3 minutes. Do not allow detergent to
dry on surface. Rinse at high pressure in a long
sweeping motion keeping the spray nozzle ap-
proximately 8-15 cm from the cleaning surface.
Always clean from top to bottom and from left to
right. When moving on to a new section of the
cleaning surface, be sure to overlap the previous
section to eliminate stop marks and ensure a more
even cleaning result.
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse cleaning
surface with fresh water. If using Karcher Multipur-
pose Cleaner, apply to surface at low pressure (for
best results, limit your work area to smaller sec-
tions of approximately 1.8 meter and always apply
detergent from bottom to top). Allow detergent to
remain on surface 1-3 minutes. Do not allow de-
tergent to dry on surface, if surface appears to be
drying, simply wet down surface with fresh water.
If needed, use special wash brush attachment (not
included) to remove stubborn dirt. Rinse at high
pressure from top to bottom in an even sweeping
motion keeping the spray nozzle approximately 15
cm from the cleaning surface.
DHFN COHDQLQJ +RXVH 6LGLQJ
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse vehicle
with fresh water. If using Karcher Vehicle Wash
and Wax, apply to surface at low pressure. For
best results, clean one side of vehicle at a time
and always apply detergent from bottom to top, do
not allow detergent to dry on surface. If needed,
use special wash brush attachment (not included)
to remove stubborn dirt. Rinse at high pressure
in a sweeping motion keeping the spray nozzle
approximately 8-15 cm from the cleaning surface
(distance should increase when rinsing pin-striping
or other sensitive surfaces). Always clean from top
to bottom and from left to right. For best results,
wipe surface dry with a chamois or soft dry cloth.
CDUV BRDWV 0RWRUF\FOHV
4. Reinstall the oil level meter / dipstick (1).
N27ICE
Starting the engine with a low oil level can cause
damage to the engine.
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse clean-
ing surface with fresh water. If using Karcher
Multipurpose Cleaner, apply to surface at low
pressure. For best results, limit your work area to
smaller sections of approximately 2 square meter.
Allow Karcher Multipurpose Cleaner to remain on
surface 1-3 minutes. Do not allow detergent to dry
on surface. Rinse at high pressure in a sweeping
motion keeping the spray nozzle approximately 8
- 15 cm inches from the cleaning surface. Always
clean from top to bottom and from left to right. For
removing extremely stubborn stains, use a Turbo
Nozzle Spray Nozzle (sold separately)
CRQFUHWH 3DWLRV BULFN DQG 6WRQH

14
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse furniture
and surrounding area with fresh water. If using
Karcher Multipurpose Cleaner, apply to surface at
low pressure.Allow Karcher Multipurpose Cleaner
to remain on surface 1-3 minutes. Do not allow
detergent to dry on surface. If needed use special
Wash Brush Attachment (not included) to remove
stubborn dirt. Rinse at high pressure in a sweeping
motion keeping the spray nozzle approximately
8-15 cm from the cleaning surface. For best results,
clean from top to bottom and from left to right.
3DWLR /DZQ FXUQLWXUH
Optional accessories are available to further
enhance your cleaning capabilities. These acces-
sories are accurate as of the printing date of this
manual. Please check our website:
ZZZNDUFKHUFRPDX or ZZZNDUFKHUFRQ] for
pricing and up-to-date information.
– Extension Hose
– Turbo Nozzle
2SWLRQDO AFFHVVRULHV
CLEANING TIPS
ZLWK RU ZLWKRXW GHWHUJHQW Pre-rinse cleaning
surface with fresh water. If using Karcher Multi-
purpose Cleaner, apply detergent at low pressure.
Allow Karcher Multipurpose Cleaner to remain on
surface 1-3 minutes. Do not allow detergent to
dry on surface. Rinse at high pressure keeping
the spray nozzle approximately 8-15 cm from the
cleaning surface. For removing extremely stub-
born dirt, it may be necessary to move the spray
nozzle even closer to the surface for greater dirt
cutting action.
BDUEHFXH GULOOV 2XWGRRU 3RZHU
ETXLSPHQW GDUGHQLQJ 7RROV
QBefore cleaning any surface, test spray pa-
ttern and distance in an inconspicuous area.
QIf painted surfaces are peeling or chipping,
use extreme caution as pressure washer may
remove the loose paint from the surface.
QWhen using on surfaces which might come in
contact with food, flush surfaces with plenty
of drinking water.
QFor additional cleaning tips, visit our website
at ZZZNDUFKHUFRPDX or ZZZNDUFKHU
FRQ]
RHFRPPHQGDWLRQV

15
CA87I2N
Remove the spark plug cable to prevent accidental
ignition of the engine before making any repair.
TROUBLESHOOTING
6\PSWRP CDXVH 6ROXWLRQ
ENGINE WI//
N27 67AR7
No petrol. Fill petrol tank
Engine switch OFF Turn engine switch to the ON position
Water pressure built up in
the machine
Squeeze the trigger to release the pressure
FRU DGGLWLRQDO HQJLQH SUREOHPV UHIHU WR WKH HQJLQH PDQXDO
WA7ER 3RE6-
68RE /2W
Diameter of garden hose is
too small
Replace with a 5/8" inside diameter or larger
garden hose
Water supply is restricted Check garden hose for kinks, leaks or
blockage
Not enough inlet water
supply
Turn water on full force. Check garden hose
for kinks, leaks or blockage.
Water inlet filter is clogged Remove filter and rinse out in warm water
Black detergent nozzle is
attached
Remove black detergent nozzle and attach
high pressure nozzle
287387
3RE668RE
9ARIE6+IG+
AND /2W
Not enough inlet water
supply.
Turn water on full force. Check garden hose
for kinks, leaks or blockage
Pump is sucking air Check that hoses and fittings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady flow of
water emerges through the nozzle
Water inlet filter is clogged Remove filter and rinse out in warm water
Spray nozzle is obstructed Blow out or remove debris with a fine needle
Calcified gun, hose or
spray wand
Run distilled vinegar through detergent
suction tube.
N2DE7ERGEN7Detergent suction tube not
properly connected to the
machine
Check connection
Detergent is too thick Dilute detergent, for best results use Kärcher
detergent
Filter on detergent suction
tube is clogged
Run warm water through filter to remove
debris
Damaged or clogged deter-
gent suction tube
Remove obstruction or replace detergent
suction tube
A high pressure nozzle is
attached
Replace with black detergent nozzle
Spray nozzle is obstructed Blow out or remove debris with fine needle

16
If the symptom you are experiencing is not listed
above, or if the provided solutions do not solve your
issue, please visit our extensive online trouble-
shooting database at:
ZZZNDUFKHUFRPDX RU ZZZNDUFKHUFRQ]
6\PSWRP CDXVH 6ROXWLRQ
GARDEN +26E
C2NNEC7I2N
/EA.6
Loose fittings Tighten fittings
Missing/worn rubber
washer
Insert new washer
63RA<WAND
/EA.6
Spray wand not properly
attached
Turn the swivel nut of the gun clockwise until
connection is tight
Broken o-ring or plastic
insert
Visit www.karcher-help.com or locate a ser-
vice center at www.karcher.com.au or
www.karcher.co.nz
3803 I6N2I6< Water supply Check that hoses and fittings are air tight.
Turn off machine and purge pump by
squeezing trigger gun until a steady flow of
water emerges through the nozzle
WA7ER /EA.6
FR20 3803 83
72 10 DR23 3ER
0IN87E I63ER-
0I66IB/E
Loose fittings Check fittings
Water seals are damaged
or worn.
Visit www.karcher-help.com or locate a ser-
vice center at www.karcher.com.au or
www.karcher.co.nz
Thermal protection device
is activated.
Thermal protection device will auto reset.
Do not run pump for more than 5 minutes
without spraying
2I/DRI3Oil seals are damaged or
worn
Visit www.karcher-help.com or locate a ser-
vice center at www.karcher.com.au or
www.karcher.co.nz
TROUBLESHOOTING

17
+LJK 3UHVVXUH WDVKHUV
/LPLWHG ZDUUDQW\
This Kärcher product is warranted by Kärcher to be free of defects in workmanship and
materials under normal use.
Specific warranty applies to:
s+ÊRCHER+03AND+83SERIESENGINESAREWARRANTEDFORTWOYEARSPARTSANDLABORAND
serviced by a Kärcher service center
s(ONDA'#SERIESENGINESAREWARRANTEDFORTWOYEARSPARTSANDLABORANDSERVICEDBY
a Honda authorized service center
s(ONDA'8SERIESENGINESAREWARRANTEDFORTWOYEARSPARTSANDLABORANDSERVICEDBY
a Honda authorized service center
s+OHLER2(SERIESENGINESAREWARRANTEDFORTWOYEARSPARTSANDLABORANDSERVICEDBY
a Kohler authorized service center
s0UMPSAREWARRANTED FOR TWO  YEARSPARTSAND LABOR AND ARESERVICEDBY A +ÊRCHER
service center
s&RAMESHANDLESANDDETERGENTTANKSANDOTHERSTRUCTURALCOMPONENTSCARRYAONE
year parts and labor warranty.
s3TANDARDACCESSORIESANDATTACHMENTSAREWARRANTEDFORANINETYDAYPERIOD
s!NYCOMMERCIALINDUSTRIALORRENTALUSEOFTHISEQUIPMENTWILLREDUCETHEWARRANTYTONINETY
(90) days.
The warranty period is calculated from the date of purchase by the end user and covers
the cost for replacement parts and/or equipment and warranty labor performed. In order to
verify a warranty situation, the machine must be evaluated by an Authorized Kärcher Service
Center or by an authorized service center representing the engine manufacturer. A copy of
the original purchase receipt or gift receipt from the original retailer must also accompany
the warranty claim. To locate the nearest authorized Kärcher service center, please visit our
website at www.karcher.com.au or www.karcher.co.nz
Kärcher’s obligation under this warranty shall strictly be limited, at Kärcher’s option, either to
replace or repair, through Kärcher direct or through an Authorized Kärcher Service Dealer
without charge during the warranty period any part, which in the opinion of the manufacturer,
shows defect in workmanship or material. Service will be scheduled according to the normal
work flow and business hours at the service center, and availability of replacement parts. All
decisions of Kärcher with regard to this limited warranty shall be final.
This warranty does not cover:
s-ERCHANDISESOLDASRECONDITIONEDUSEDDEMONSTRATIONORmOORMODELS
s-ERCHANDISEPURCHASEDONE"AYANDOTHERONLINEAUCTIONWEBSITES
s$AMAGECAUSEDBYMISUSENEGLECTACCIDENTABUSEIMPROPERHANDLINGFREEZINGNORMAL
wear and tear or non-compliance with operator’s manual.
s$AMAGECAUSEDBYWATERSEDIMENTCONTAMINATEDWATERSUPPLYORUSEOFCHEMICALSAND
detergents not approved by or recommended by Kärcher.
WARRANTY INFORMATION

18
s$AMAGECAUSEDBYACTSOFNATURESUCHASmOODSlRESEARTHQUAKESLIGHTNINGSTRIKESETC
s$EVICESORACCESSORIESNOTDISTRIBUTEDORAPPROVEDBY+ÊRCHER!NYUSEOFSUCHSAIDDEVICES
or accessories will void implied warranty.
s2EPAIRSMADEBYTHEENDUSERORANYSERVICECENTERNOTAUTHORIZEDBY+ÊRCHER!NYSUCH
tampering with Kärcher equipment or accessories will void the implied warranty.
s!NYCOSTFORSHIPPINGBYTHECUSTOMERORAUTHORIZEDSERVICECENTEROFTHEALLEGEDDEFECTIVE
part or equipment.
This warranty is non-transferable and applies only to products purchased through a Kärcher
authorized reseller in the Australia and New Zealand. Equipment provided, but not manu-
factured by Kärcher such as Honda and Kohler petrol engines are subject to warranties and
service through said manufacturer’s service centers according to the terms and conditions
provided by the respective original equipment manufacturer. Kärcher is not authorized and
has no responsibility to provide warranty service for Honda and Kohler engines. This war-
ranty gives you specific legal rights. You may have other rights, which vary by country and
state/province.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Please register online at www.karcher.com.au or www.karcher.co.nz
Online registration is quick, free and provides you with a confirmation
email for your records.
If you do not have internet access, please return the warranty registration card included in
the accessory bag. It is not necessary to use an envelope. Please remember to use a first-
class postage stamp. The Postal service will not deliver without a stamp.
WARRANTY INFORMATION
